Creating Bar Bending schedule, Different Door types, and Creation of standard drawing templates using AutoCad

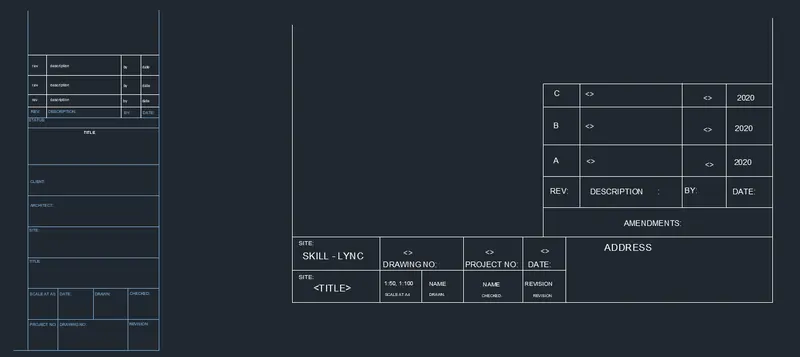

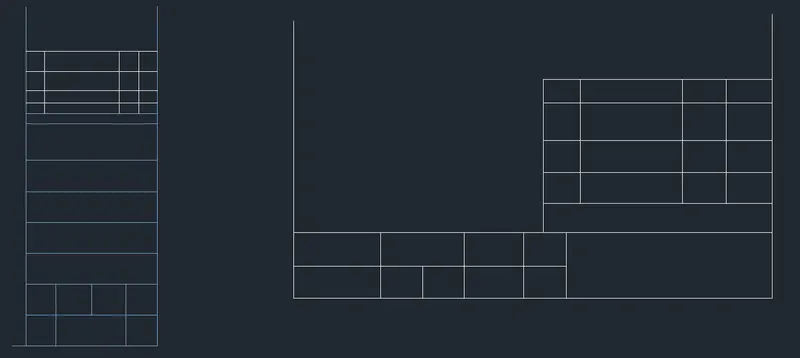

1. Aim: To create the template for the title block.

Introduction: To create the title block template as per industry standards or by assuming as per the size of paper.

Procedure:

• First we need to set dimensions by using Units command and limmax.
• Then take the line command and have to draw the lines as per the requirement in the drawing.
• Proper clear details to be mentioned in the template.
• All the details about the drawing to be mentioned in template only.
• And as per the requirement outer lines are drawn and attached below.
•
• After completing the outer lines then we need to insert the text in the template.
• Proper correct information to be mentioned with all the details clearly.
• By using Mtext command you need to enter the text.
• By using the details in the template only, construction works will occur.
• Then after creating the template final attachment is attached below in the result.

Result:

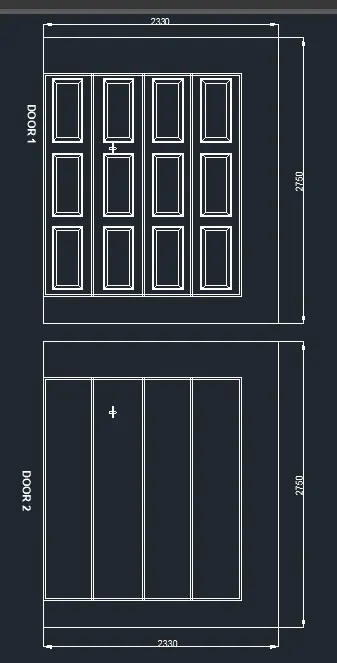

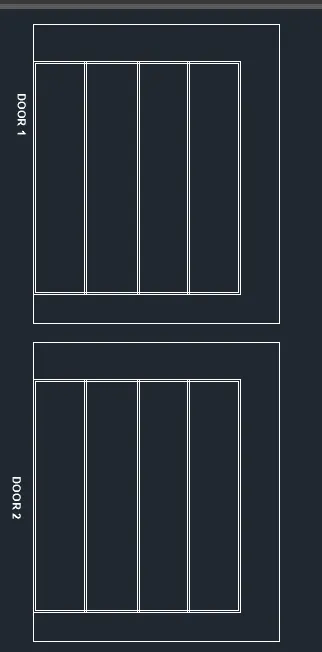

2. Aim: To create door type of ware house.

Introduction: To create the door size of the house as per the standard door dimensions.

Procedure:

• First we need to set dimensions by using Units command and limmax.
• Then take the line command and have to draw the lines as per the requirement in the drawing.
• Take the door sizes as in the give attachment or by the standard door sizes.
• Draw the outer portions of the table as in the attachment for the proper door size.
• In the same way draw the outer portion for 2nd door as in the below attachment.
•
• Then after taking the outer boundary lines, we need to onsert door portion in the table.
• Now draw the door portion by using line command as shown in the given attachment.
• Now this door to be in the block layer for saving the door size.
• Before creating to the block, door should be in the door layer.
• Then only we can insert in the block layer and final drawing is attached in the result.

Result:

•

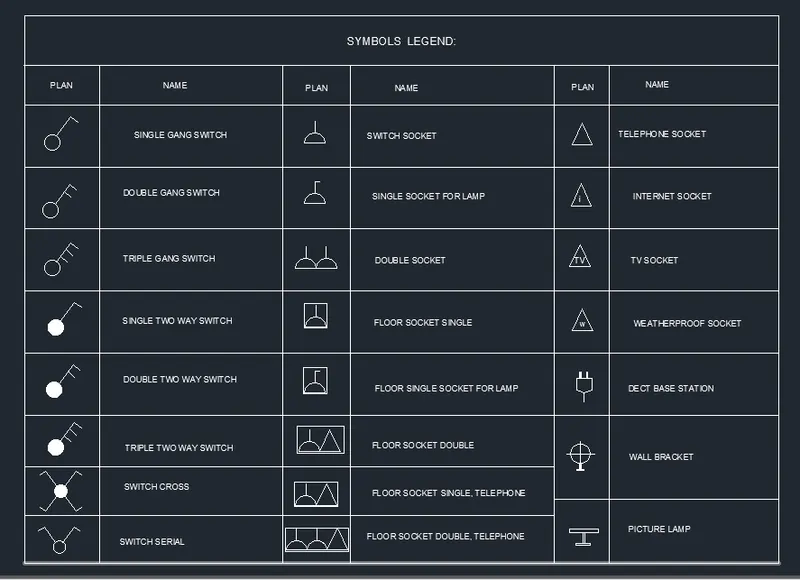

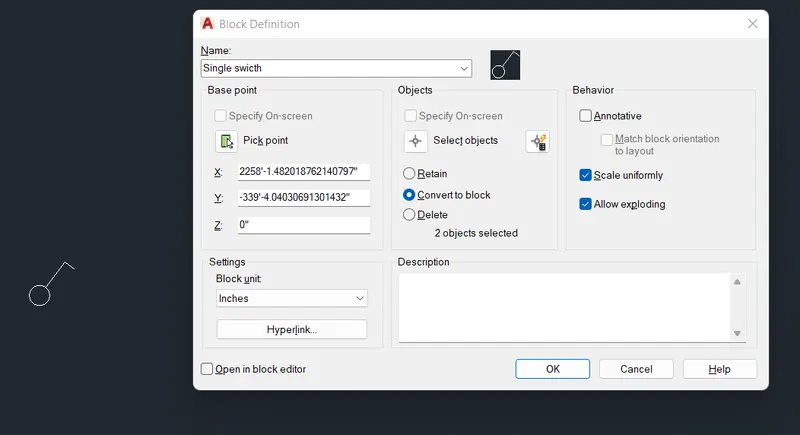

3. Aim: To create the symbol with the name given in the legend.

Introduction: To create the symbols in the block layer with the name given in the legend.

Procedure:

• First we need to set dimensions by using Units command and limmax.
• Then take the line command and have to draw the lines as per the requirement in the drawing.

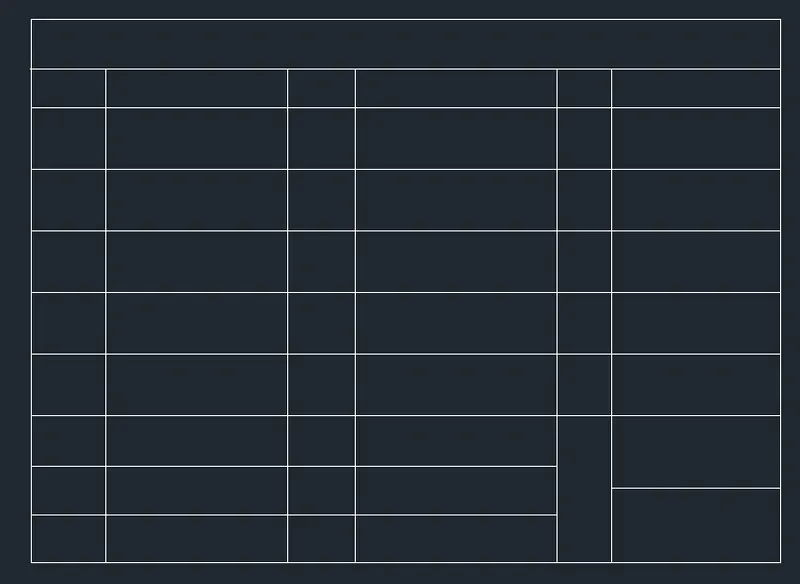

• Draw the outer portions of the table as in the attachment for the proper size.
• In the same way draw the outer portion as in the below attachment.
•
• After completing the outer lines then we need to insert the text and symbols in the template.
• By using Mtext command you need to enter the text.
• Then the symbols given in the attachment need to be prepared for clear understanding the type of switches.
• After creating the symbols, they should be in the block layer because of inserting easily.
• Before placing in the block, symbols should be in the layer command.
• After creating in the block, then the symbol and it's name is to be entered in the table.
• Then after creating the template final attachment is attached below in the result.
•

Result:

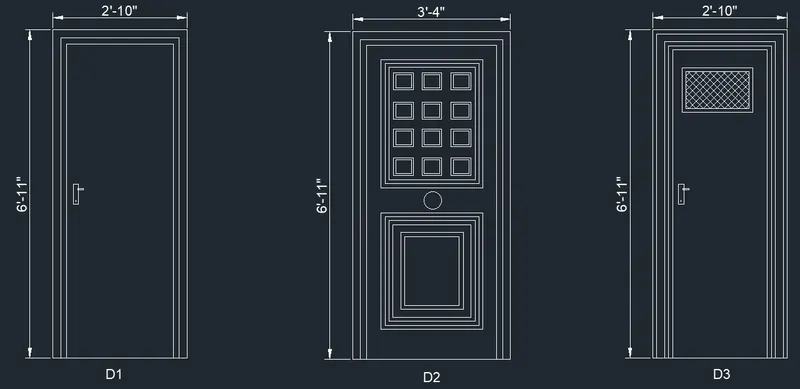

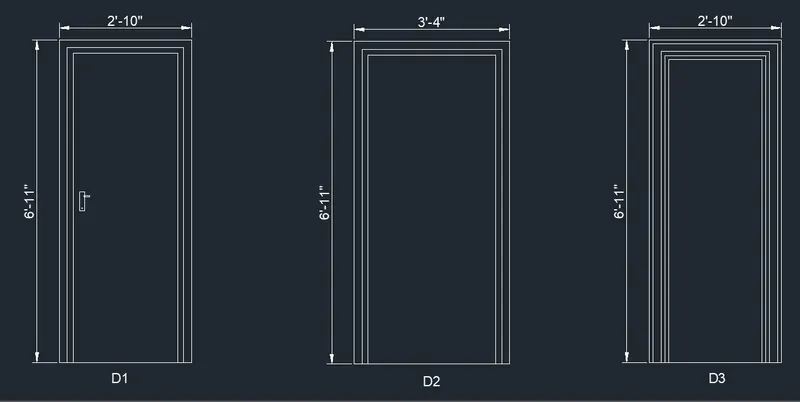

4. Aim: To create the door type for residential building as a block.

Introduction: To create the door typr for residential building as a block with the given dimensions or by assuming the dimensions as per the Indian standards.

Procedure:

• First we need to set dimensions by using Units command and limmax.
• Then take the line command and have to draw the lines as per the requirement in the drawing.

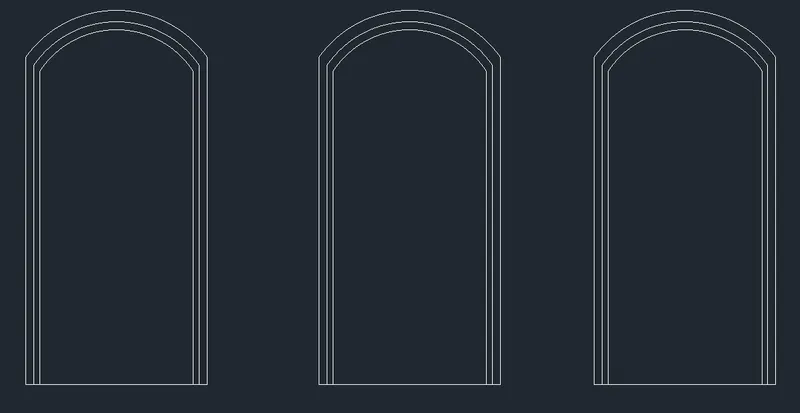

• Draw the outer portions of the door as in the attachment for the proper size.
• In the same way draw the outer portion for the remaining doors as in the below attachment.
•

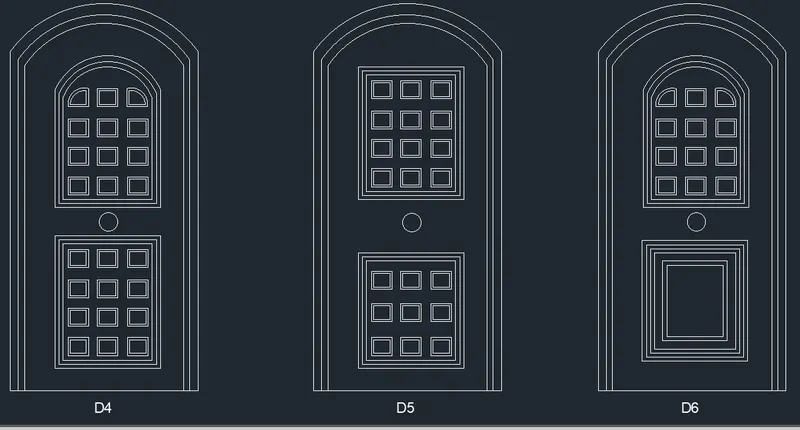

• In the same way, draw the remaining doors D4, D5 and D6 also.
• If the diimensions are shown in the given attachment, then you need to show the dimensions.
• Or else you can assume the dimensions as per Indian Construction standards.
• Then finally remaning doors outer lines are attached below.
•
• Then we have to design in the inner side of the door.
• For this we can do by our own design or as in the given attachment.
• There shoud be a handle also to be mentioned in the handle portion.
• Finally the door is ready and is attached below.
•
• In the same way, we have to design for the remaining doors.
• Then we have to design in the inner side of the door.
• For this we can do by our own design or as in the given attachment.
• There shoud be a handle also to be mentioned in the handle portion.
• Finally the door is ready and is attached below in the result.

Result:

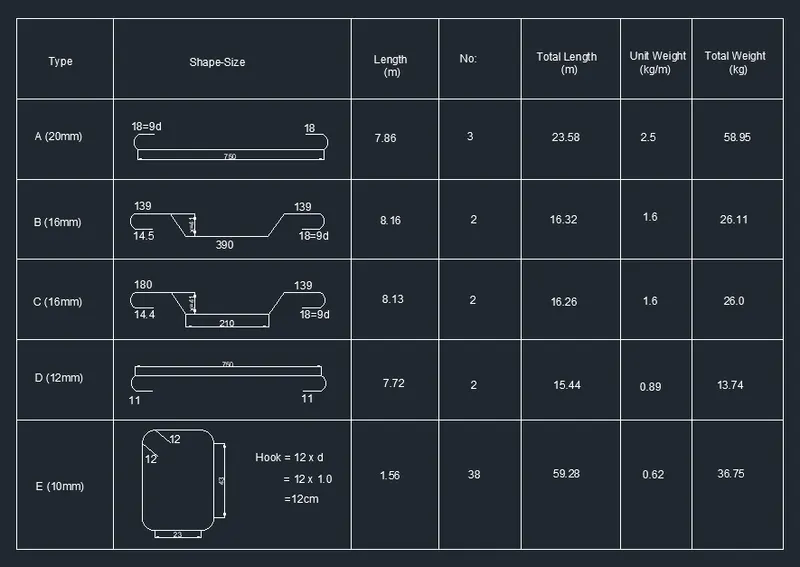

5. Aim: To create the shapes of the block as in the figure.

Introduction: To create the shapes of the block as in the given attachment by saving the block and inserting in the table.

Procedure:

• First we need to set dimensions by using Units command and limmax.
• Then take the line command and have to draw the lines as per the requirement in the drawing.

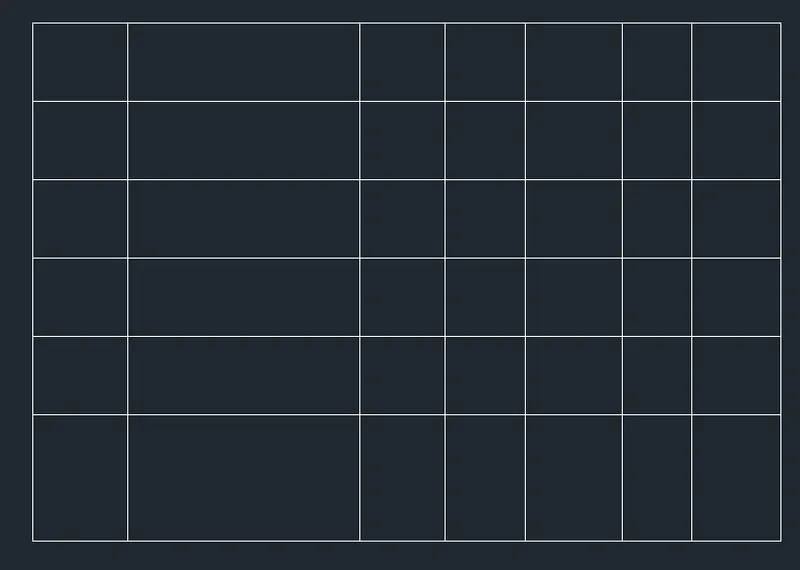

• Draw the outer portions of the table as in the attachment for the proper size.
• In the same way draw the outer portion as in the below attachment.
•
• Now we have to insert the given shapes and text in to the table.
• After creating the shapes, each shape should be attached with the block.
• First have to create with the layer command, then that layer should have to be in the block.
• After creating all the shapes in the same way, Then you need to insert them in the table.
• For inserting them in the table, use the insert command to insert in the table which is created by the block.
• Then the final drawing is readdy and attached in the result.

Result:

Note: For clear dimensioning view and line weight, Please look into the PDF attachments.
