Challenge

Creating Bar Bending schedule, Different Door types, and Creation of standard drawing templates using AutoCad

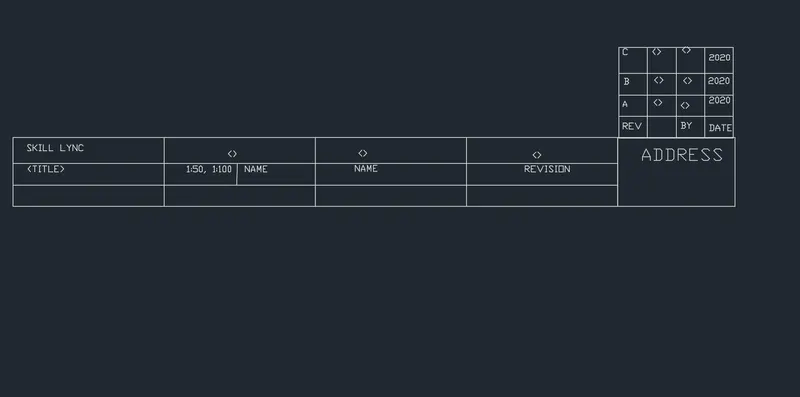

AIM:-to create templates title block and need to save it as a block with names

INTRODUCTION:-to create templates title block and need to save it as a block with names

CUSTOM1_titleblock and

CUSTOM2_titleblock,respectively.BY using autocad

PROCEDURE:-

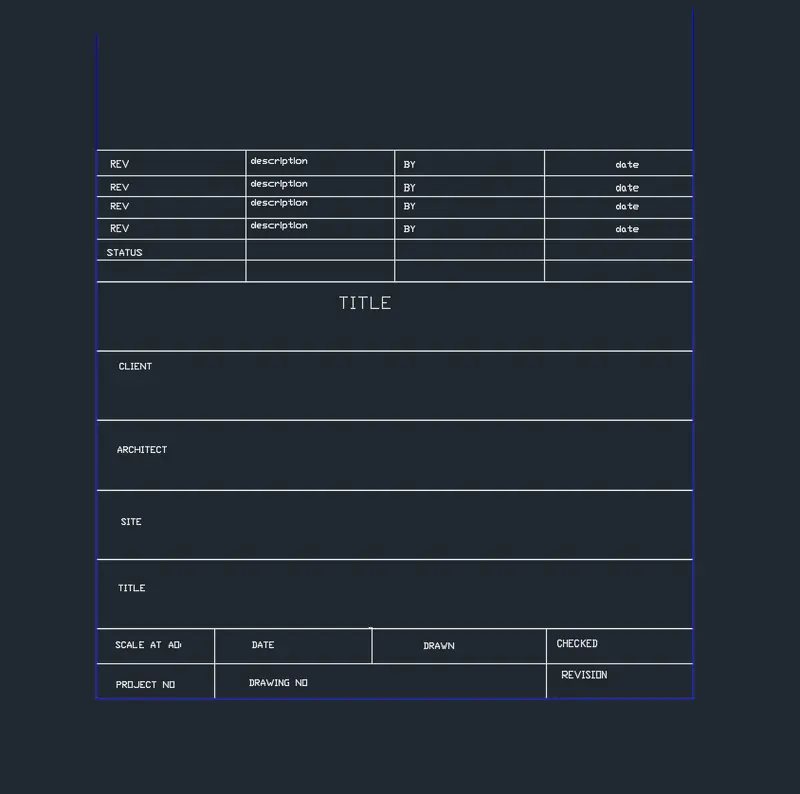

creating of custom_1 titleblock
take rec command for rectangle and create a recctangle
Take the explode command ex to break rectangle lines
Next take the offset command and make the table for placing of text
Take the command Mtext Select the base point write the text
Set the height of the text
Next copy the and place the text and than edit as per required of the text
Creating of block
Type b in the command box for the block
NExt give the name of block
Next select the object and pickup point and than click on for the cfreation of block
Set the height of the text
Next copy the and place the text and than edit as per required of the text
Creating of block
Type b in the command box for the block
NExt give the name of block

RESULT:-

AIM:- Creation of Door types for warehouse

Introduction:- To create door types for warehouse and after creating blocks of this door type by using auto cad

Procedure:-

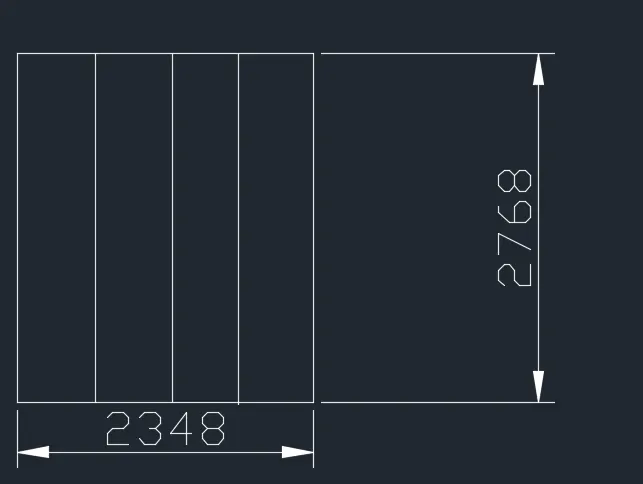

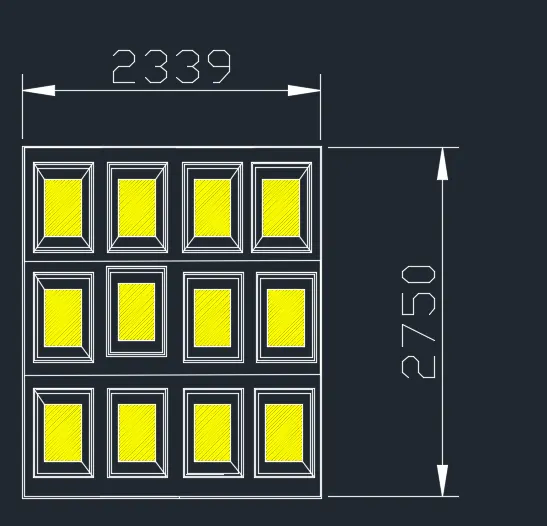

Take a rec command for rectangle and create a rectangle of 2330* 2750
Take a rec command for rectangle and create a rectangle
Next take the offset command and make a 300mm offset from the four side rectangle
Now divided into four segments
To create door types for warehouse
Take a rec command for rectangle and create a rectangle or creation of door
Next take the offset command first make the offset of 20mm for creation of farm and 50mm of offset
Now divided into four segments
To create door types for warehouse
Take a rec command for rectangle and create a rectangle or creation of door
Next take the offset command first make the offset of 20mm for creation of farm and 50mm of offset

Step 2:-

Now take the copy command and select the object and place it
Creation of text .Type the m.text in the command box and type the text as door1

Step 3:-

RESULT:-

AIM:-Creating each symbol as a block with thje name given in the legend . after creating block arrange them in legend

Introduction:-Create each symbol as a block with the name given in the legend . after creating the blocks arrange them in

the legend

PROCEDURE:- Creation of symbols

CREATION OF BLOCK:- type b in the commandc for block

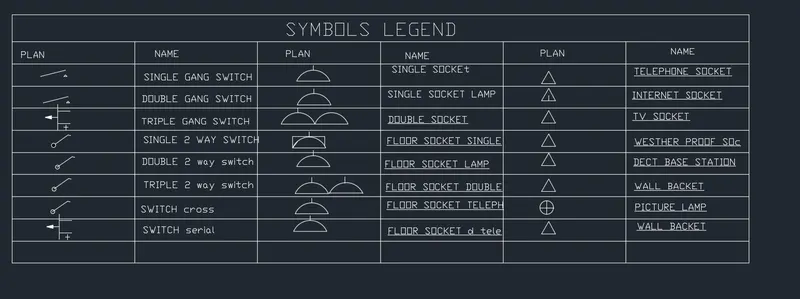

CREATION OF TABLE SYMBOL LEGEND:-

TAKE THE INSERT COMMAND by typing l in the command box
Select the object option next take the select objedt and than go filled option from ribbon
NOW select the object and place name of object

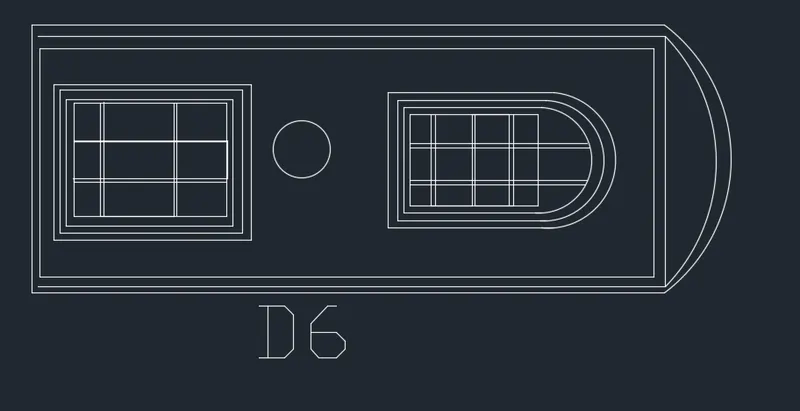

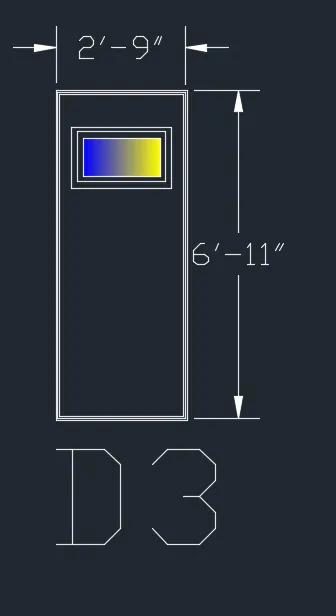

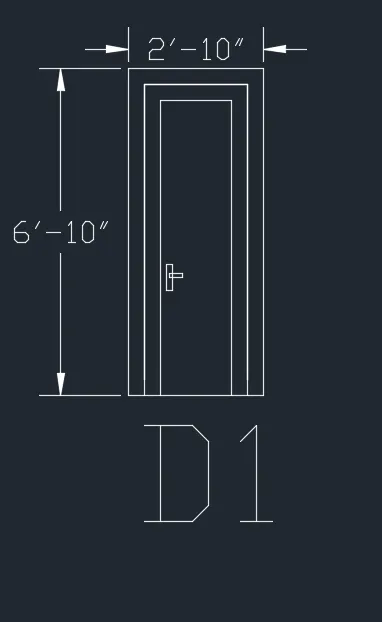

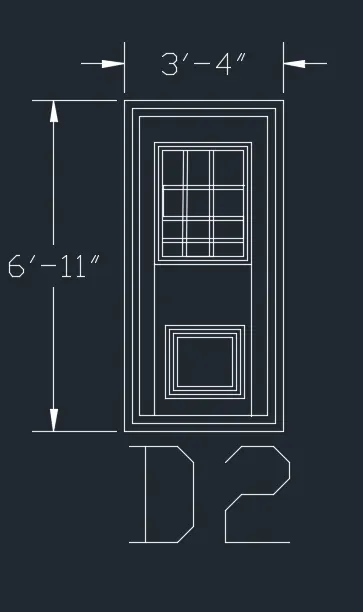

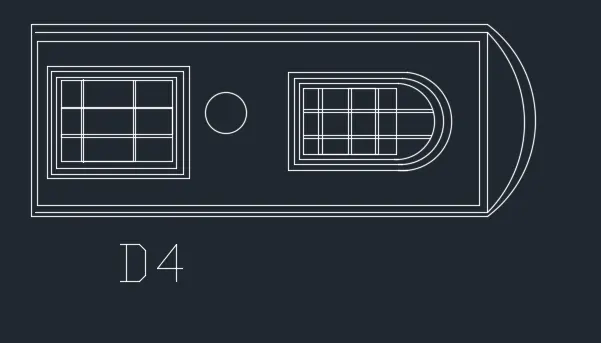

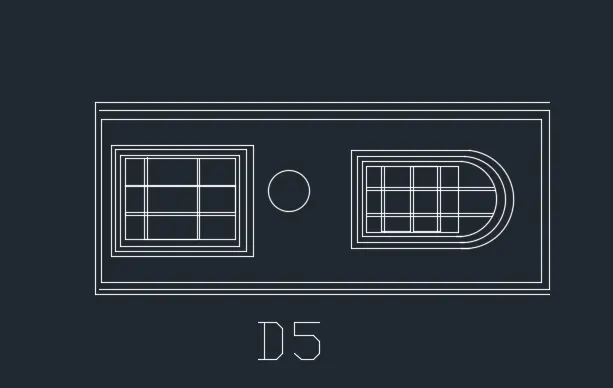

AIM:- To create door type for residentail building a a block

INTRODUCTION:- to create door type for residential building

PROCEDURE:-

STEP 1 :-

STEP2 :-

STEP 2 :-

STEP 3:-

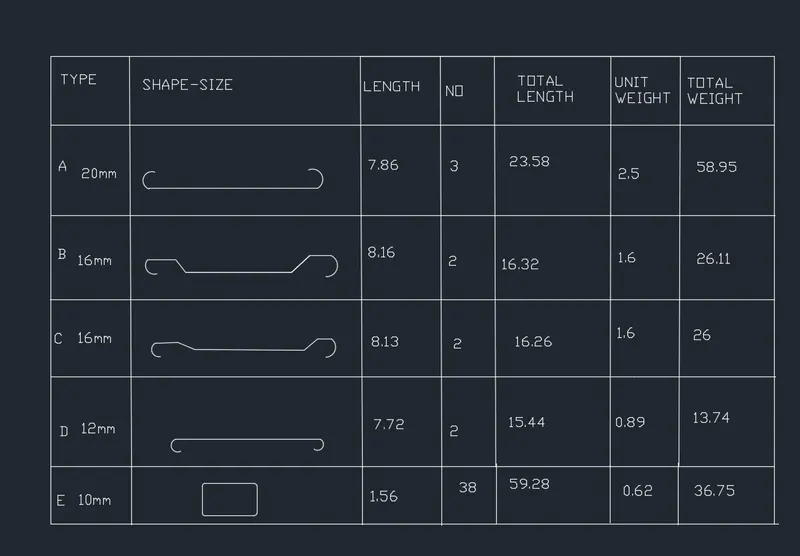

AIM:-TO Create each shape of the block as shown and insert them on the table

PROCEDURE:-

Creating of shape
First take the line command of length 750
NExt make the circle at the end of line with radius of 9
Next trim the extra lines and mirror it on other side
Next take the dim command dimension it and text it as per requiremnet
Next take the offset command and make a 300mm offset from the four side rectangle
Now divided into four segments
To create door types for warehouse
Take a rec command for rectangle and create a rectangle or creation of door
Next take the offset command first make the offset of 20mm for creation of farm and 50mm of offset
Now divided into four segments
To create door types for warehouse
Take a rec command for rectangle and create a rectangle or creation of door

RESULT:-
