Creating Bar Bending schedule, Different Door types, and Creation of standard drawing templates using AutoCad

1.)

AIM :-

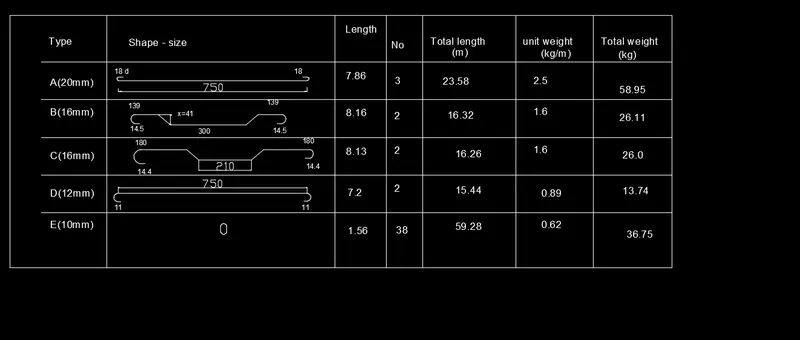

• To creat the shedule and do a block asper the procedure.

procudure :-

• Set the units first

• Select the line commend
• Get the dimensions
• take offset for the procedure
• cresat the tables
• type the given shedules

• creat the next table as show in the figure.
• use the line commend.

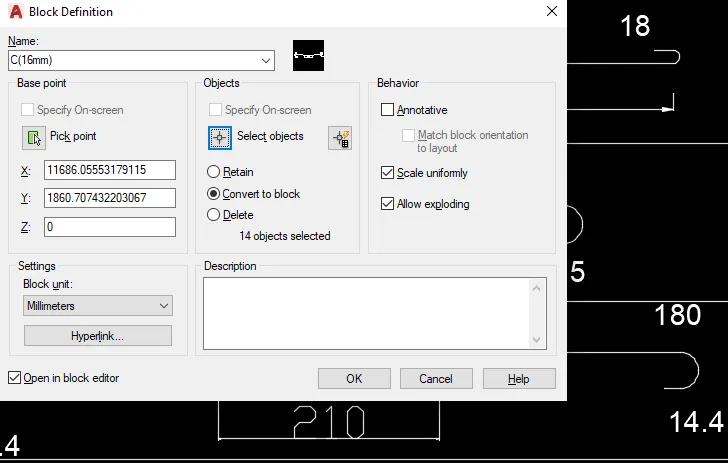

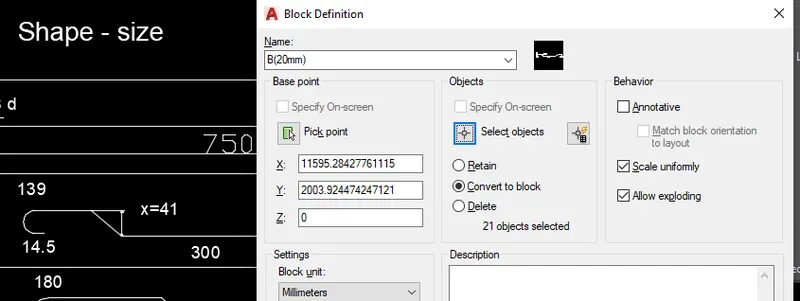

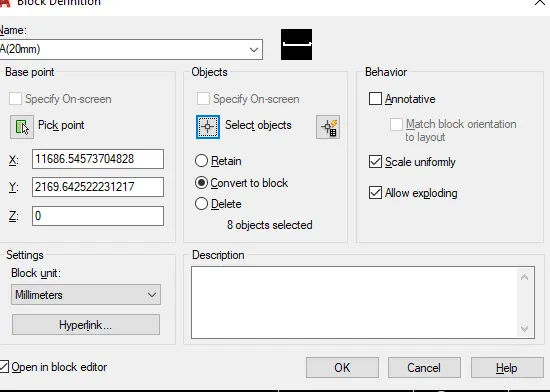

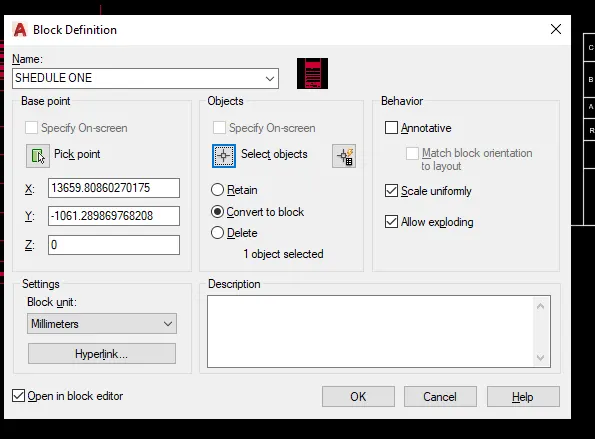

• use the commend block and insert

• use the insert commend in the actual form.
• draw thw table.

• Result

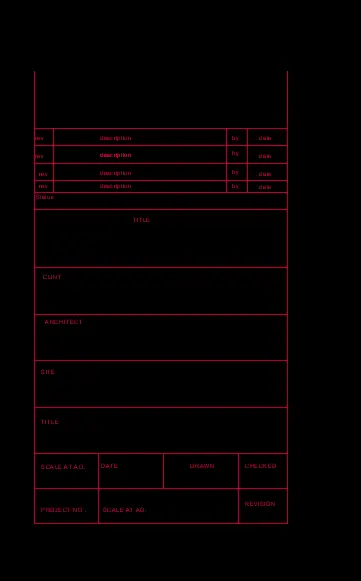

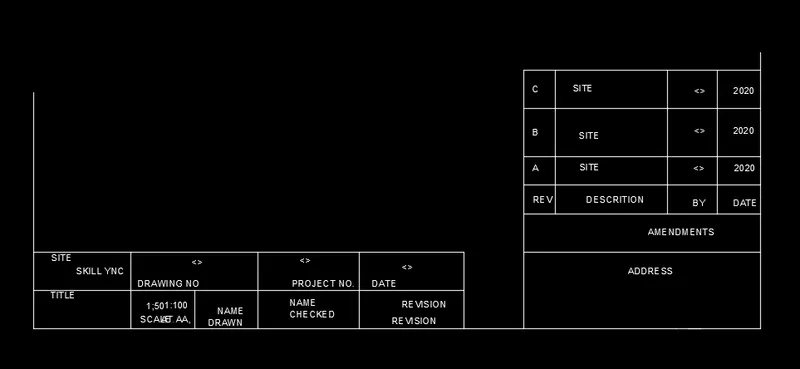

As the table is created,the size of the title block as per industry standards has assumed it as per the size of the paper.

2.)

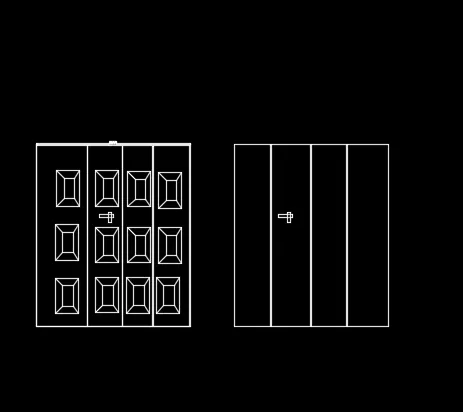

AIM:

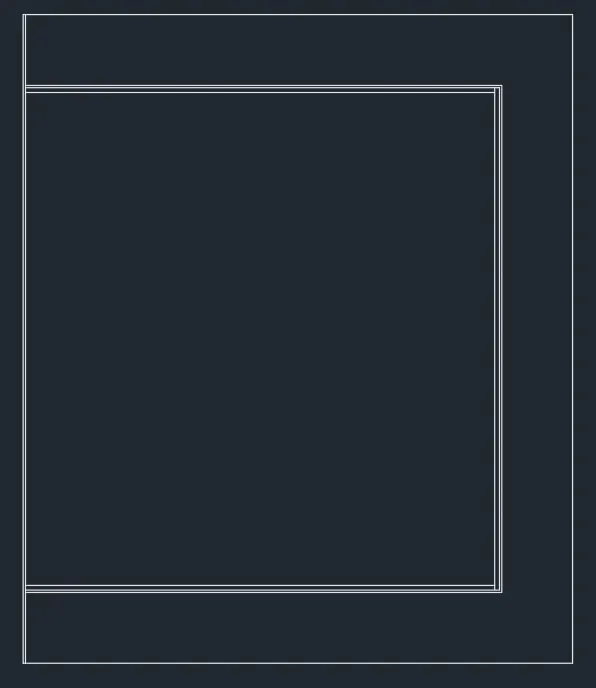

To Create the doors type for warehouse.

procudure

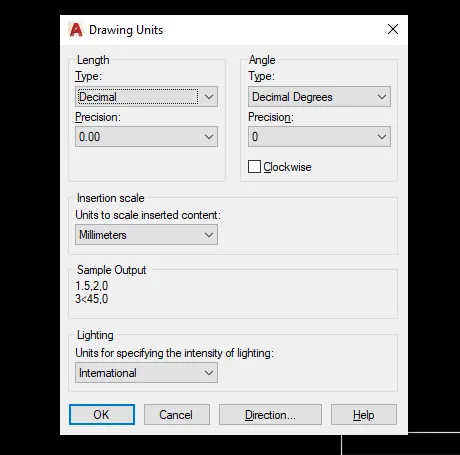

• Set the units to millimeters
• drwaw a a rectangle using rectangular commend

3.)

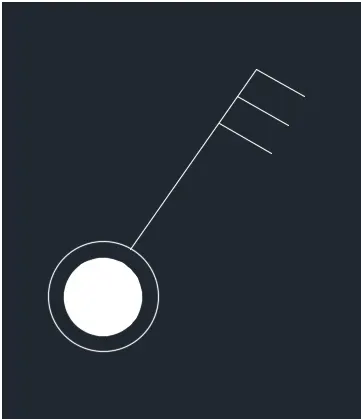

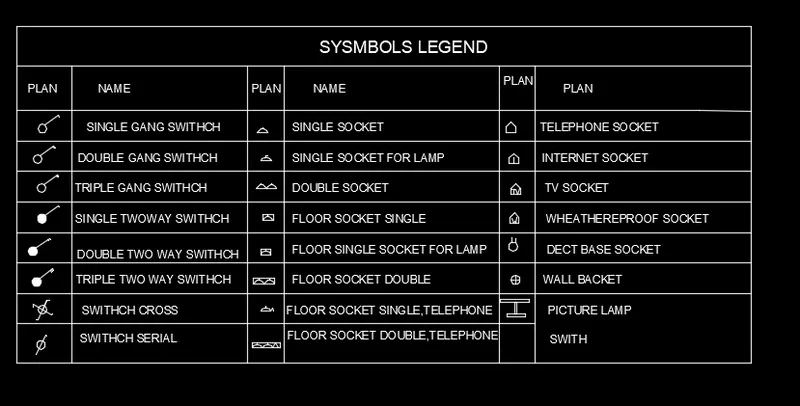

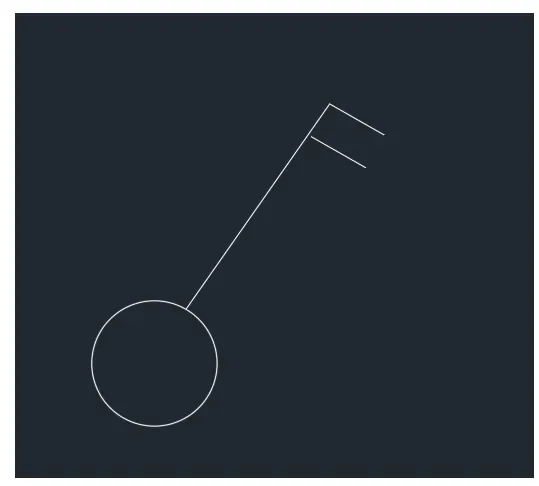

Aim

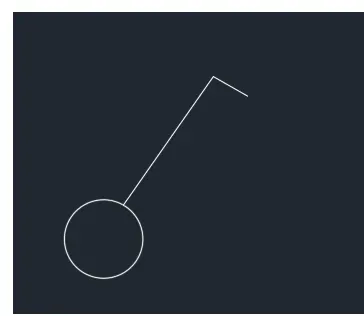

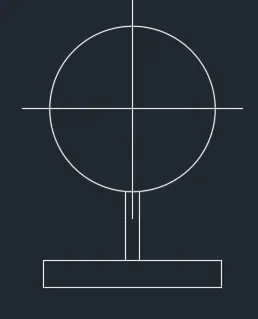

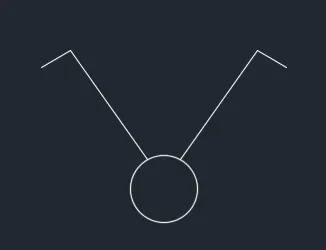

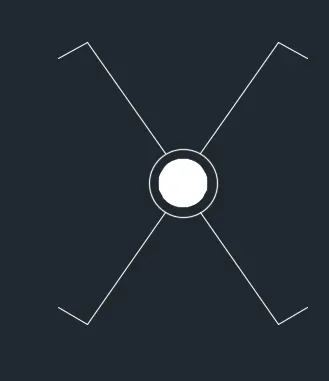

Create each symbol as a block with the name given in the legend. After creating the blocks arrange them in the legend .

Procedure

• draw the each symbol anmd arrange them in a table as shown
• arange them as in the form

• Set them mutually in all the side
• arranmge in th3e correct way as in the figure

Result :

Thus the table is done in the way in the given form

4.)

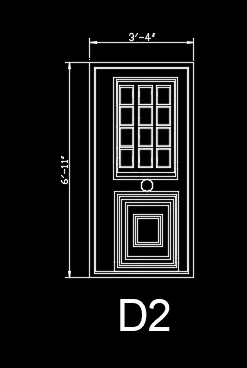

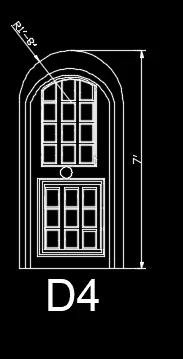

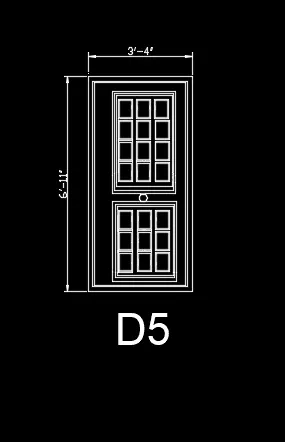

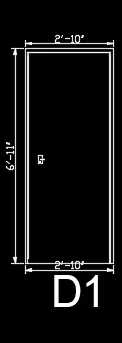

AIM

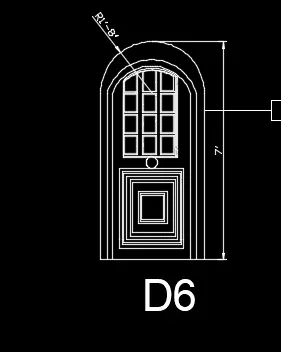

• to draw the doors in diffrent dimension

Procedure

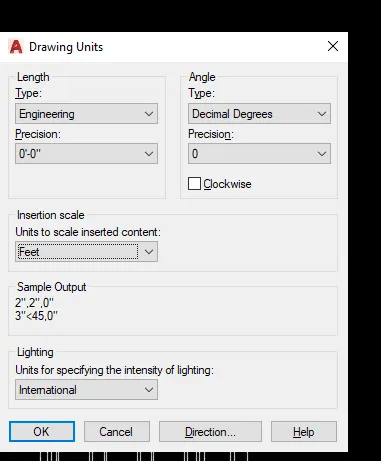

• set the units as per the form

• Select the line commend
• Use the arc option
• Then esacpe go as per the procedure.

• Made by diffreent dimensions
• used the line commend

Result

Tyhis tyhe door which given.done by uising line tool.

5.)

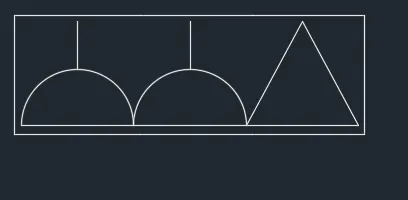

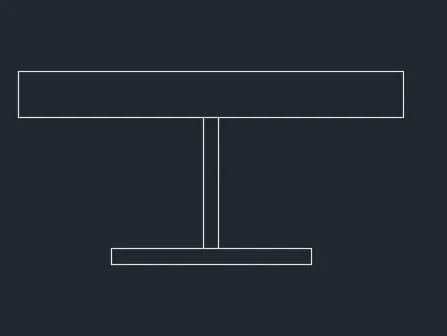

Aim

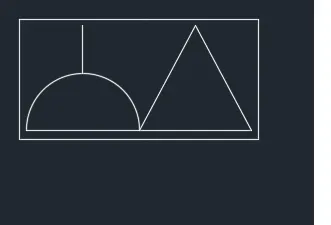

Create each shape as a block as shown in the Figure. Save the block and insert them on the table as shown in the Figure

procedure

• Set the units first to mm
• drwa the lines as in the figure

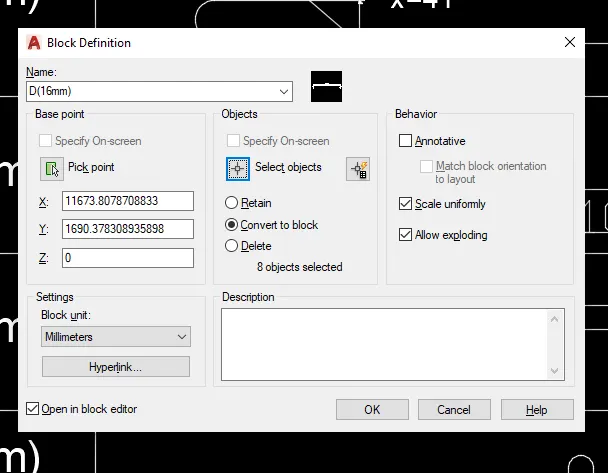

• Make the block as in the form
• Make them inseret in the given form

• Do as the procude
• Arramnge the table in th e given form
•
• Insert them in inb the general manner in the form
• repeat the step as in the procedure.
• result thus they are alloted in the given form
