Creating Bar Bending schedule, Different Door types, and Creation of standard drawing templates using AutoCad

AIM: Creating Bar Bending schedule, Different Door types, and Creation of standard drawing templates using AutoCad

1) Create templates named: Custom1_titleblock and Custom2_titleblock

Procedure:

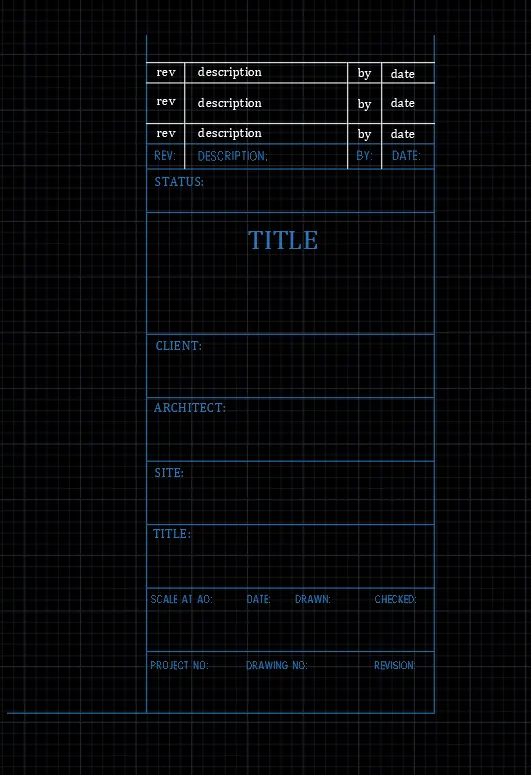

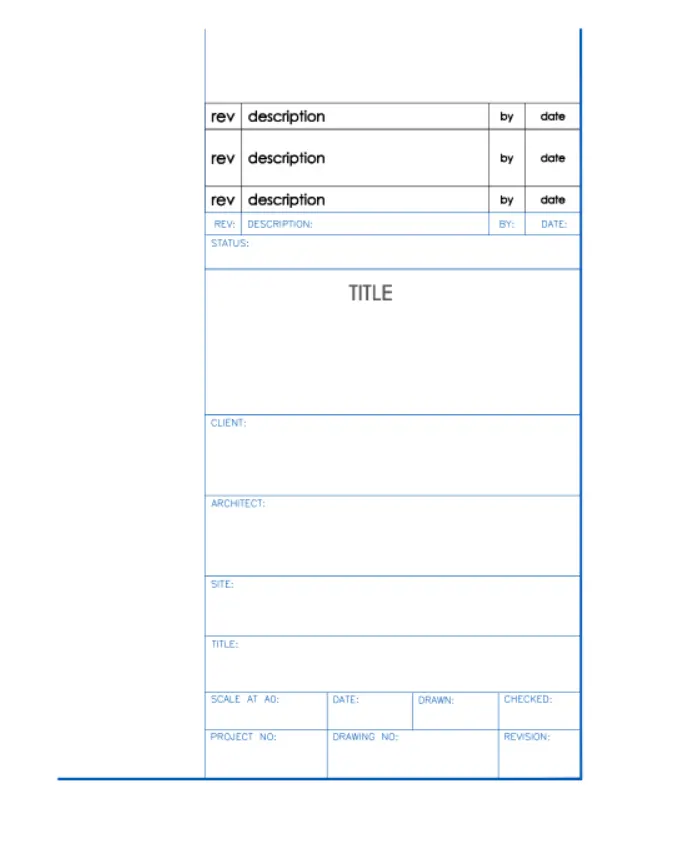

Step 1: Creating custom 1 titleblock

• Use line command to draw lines
• Use mtext command to provide text
• Use the properties option in the ribbon to change colour

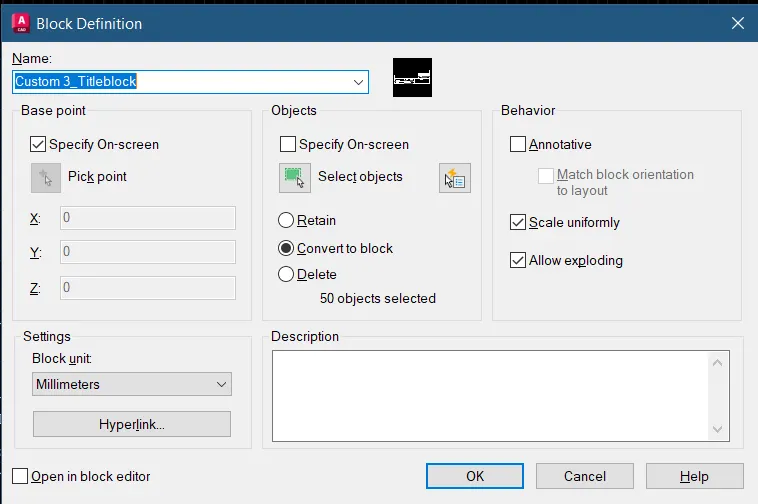

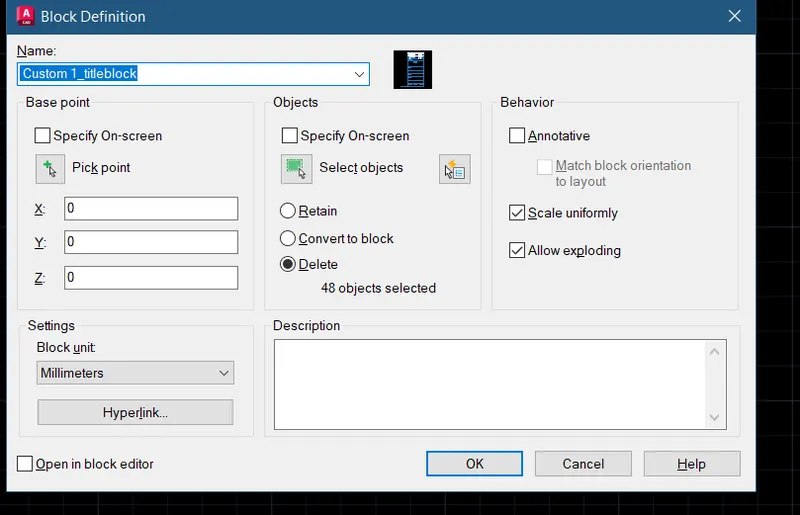

• Use block command to create it as a block

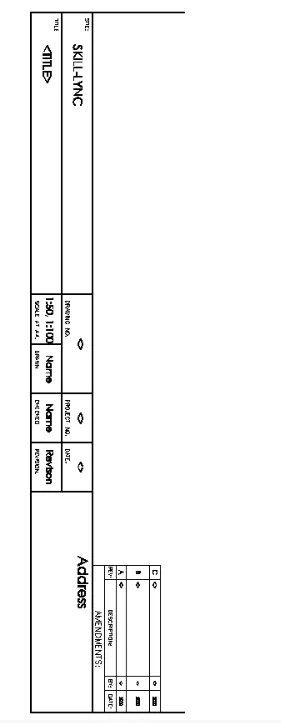

Result:

Step 2: Creating Custom 2 Tiltleblock

• Use line command to create the table lines
• Use mtext command to insert text
• Use properties option to change colour
• Use block command to create it as a block

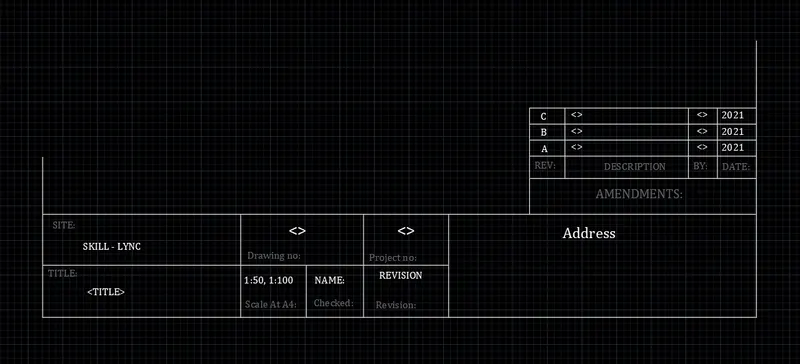

Result:

2) Create the doors type for warehouse and also create the blocks of this door type after creating them

Procedure:

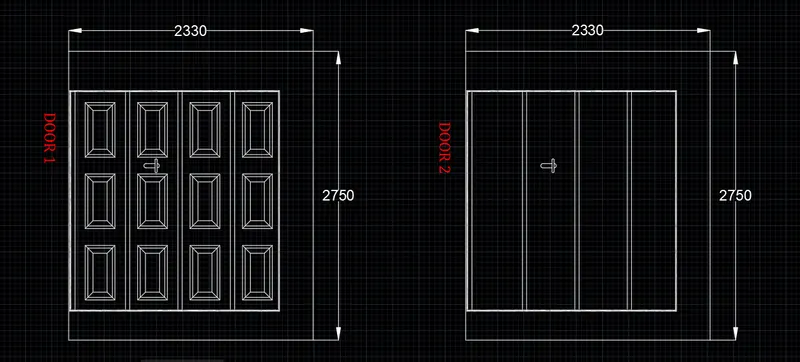

Step1 : Door 1

• Set the units to mm usin units command
• Use line command to draw lines of the doors
• Use rec command to draw the inner box and use the array tool for creating multiple boxes
• use line and fillet command to make the handle
• Use dimension command to provide dimensions
• Use mtext command to provide text

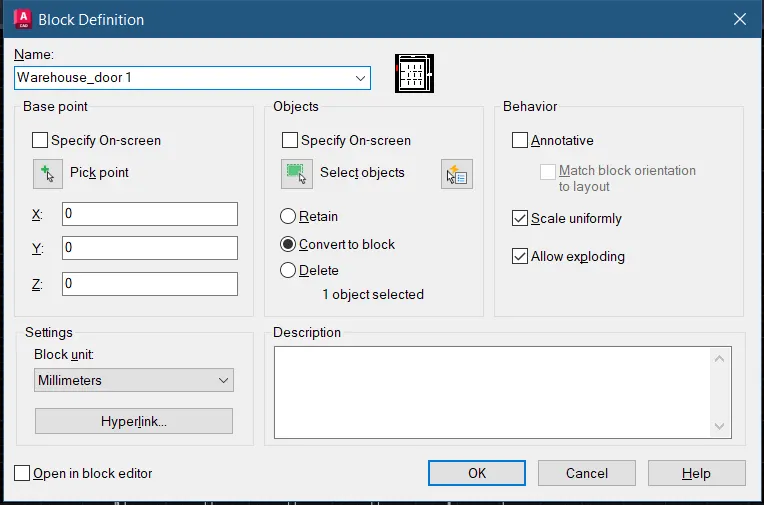

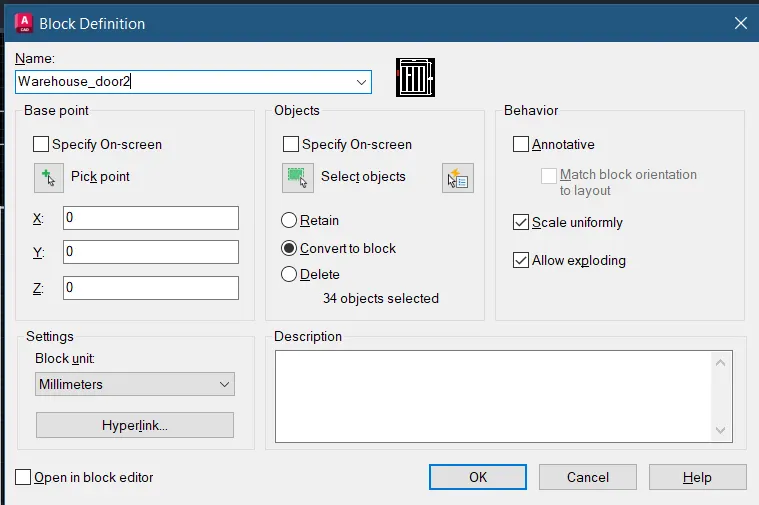

• Use block commad to create it as a block

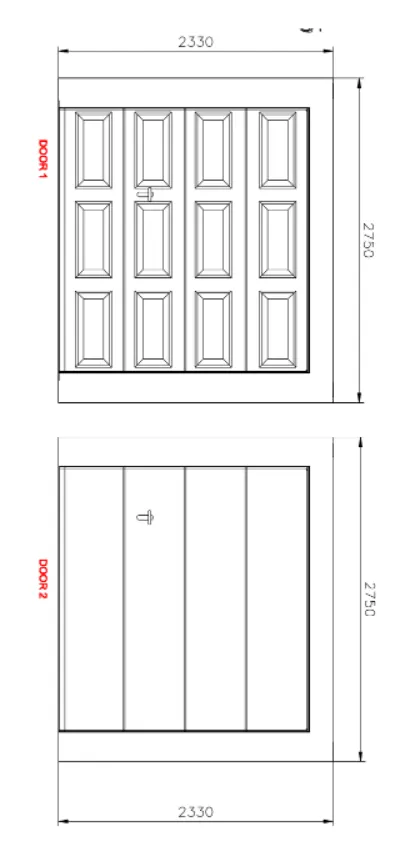

Step 2: Door 2

• Copy the above figure and erase the boxes
• Also edit the mtext to door 2
• Now create it as block

Result:

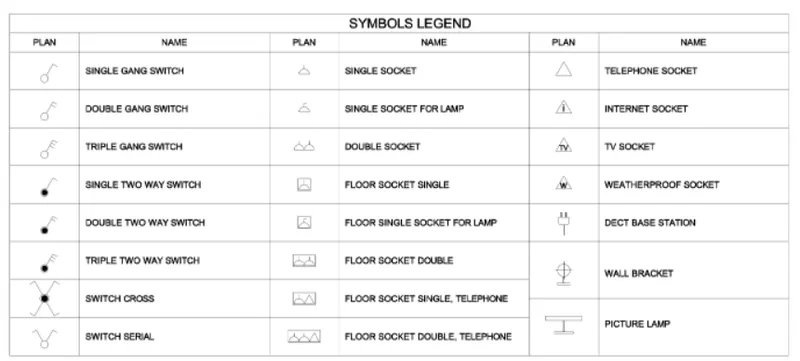

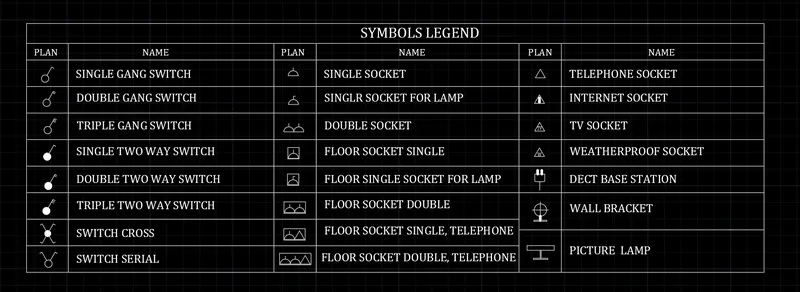

3) Create each symbol as a block with the name given in the legend and arrange them

Procedure:

Steps:

• Use circle command and line command to create the symbol
• Now make the symbol as a block and name it 'single gang switch'

• Use LIne,Circle and arc command to make sdifferent symbols
• Make all symbols as a block
• Now use line commad and make table
• Put all the symbol blocks in the table and give the names of the symbol using the mtext command

Result:

4) Create the door type for residential building as a block

Procedure:

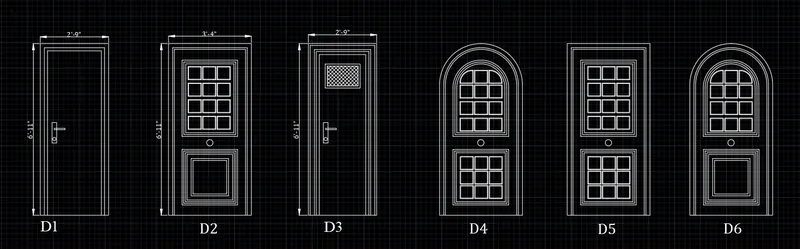

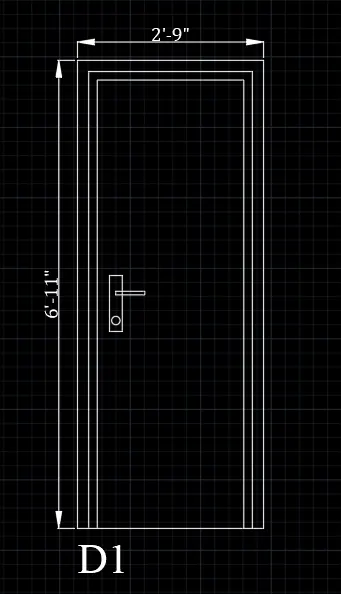

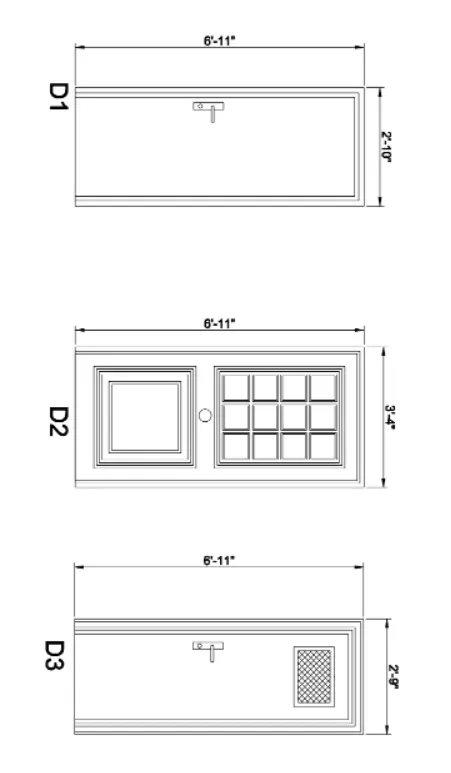

Step 1: D1

• Use Line command to draw line
  • 6'11" in y direction
  • 2'9" in x direction
  • 6'11" in -y direction
  • Close
• use offset command on offset the lines as per figure
• Use rec and circle command to create handle
• Use dimension command to provide dimensions
• Use block command to create it aas a block

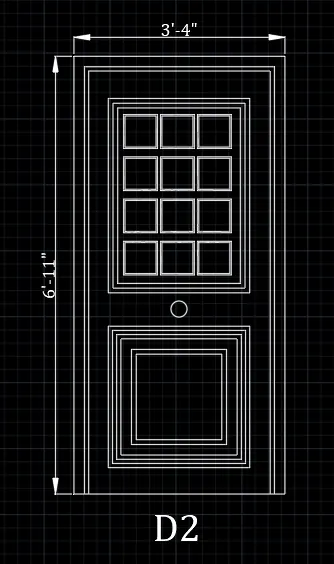

Step 2: D2

• Use line and rec command to draw the door
• Also use circle command
• Use dim and mt text command
• Use block command to make it a block

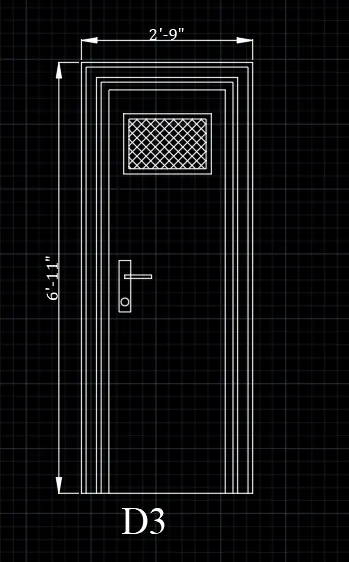

Step 3: D3

• Use line and rec command to draw the door
• Also use Hatch command
• Use dim and mt text command
• Use block command to make it a block

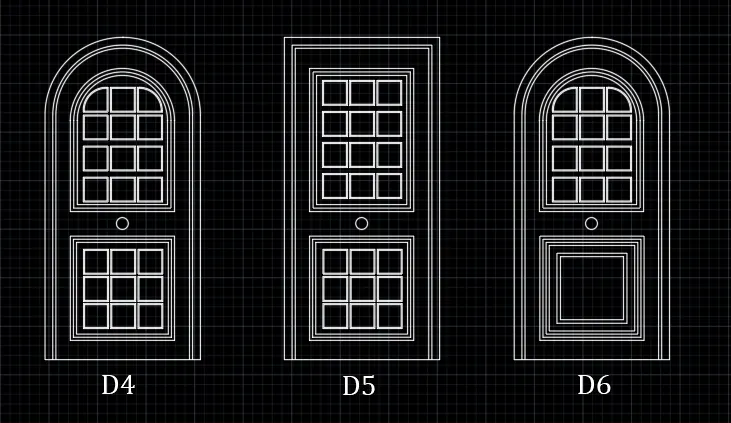

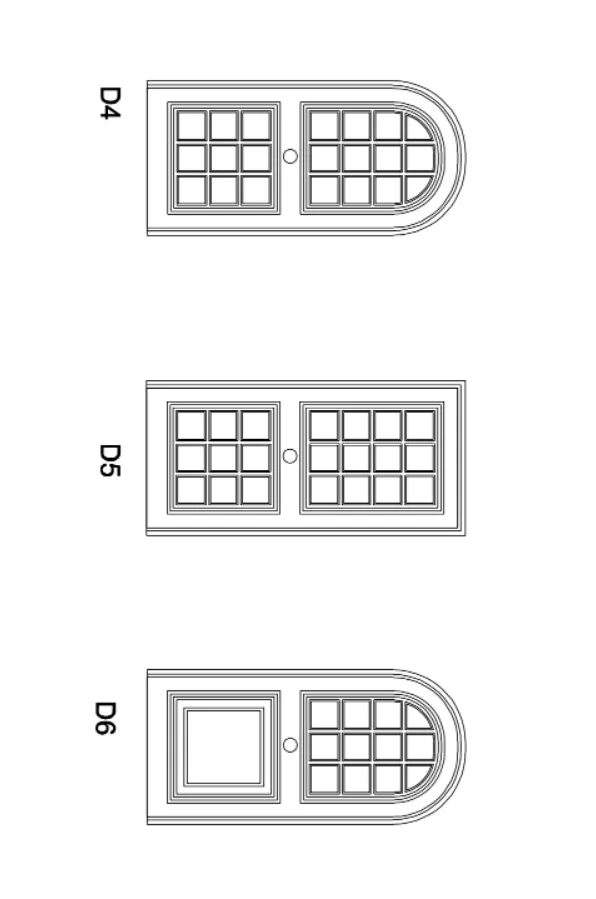

Step 4: D4, D5, D6

• Use line, circle and rec command to draw the door
• Also use trim command to trim waste lines
• Use dim and mt text command
• Use block command to make it a block

Result:

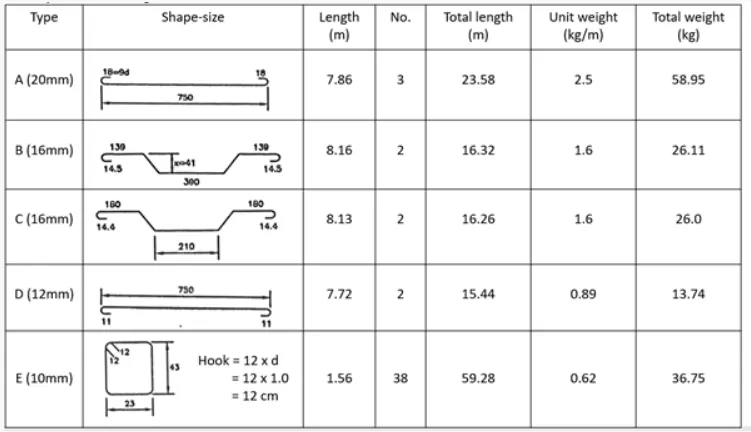

5) Create each shape as a block and insert them on the table as shown in the Figure

Procedure:

Steps:

• Use line command to create the figures
• For figure - A(20mm)
  • Draw a line of length 750 mm
  • Use arc command to create the bend in the bar
• Figure - B(16mm)
  • Use line command and draw a line of length 300 mm
  • now draw 2 lines at both end in an angle of 60 degrees and 40 mm displacement in x direction
  • draw 180 mm lines from both and also use arc to show bar bend
• Figure - C(16mm)
  • Use line command and draw a line of length 210 mm
  • now draw 2 lines at both end in an angle of 60 degrees and 40 mm displacement in x direction
  • draw 180 mm lines from both and also use arc to show bar bend
• Figure - D(12mm)
  • Draw a line of length 750 mm
  • Use arc command to create the bend in the bar
• Figure E(10mm)
  • Use line command to create a rectangle of width-23mm and breadth - 43 mm
  • Use fillet tool to curve the edges
  • use line tool to create hook
• Now provide dimensions to the figures
• Create the figure as a block one by one

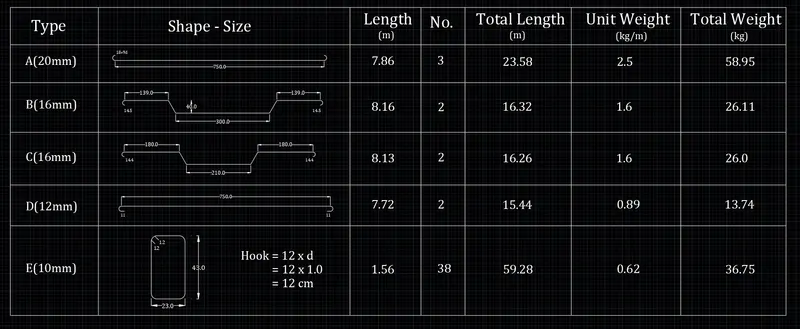

• Use line command to create table
• Insert the blocks using 'i' command
• Use mtext command to provide text

Result:
