Creating Bar Bending schedule, Different Door types, and Creation of standard drawing templates using AutoCad

1.

Aim:
To create the templates as given.

Procedure:

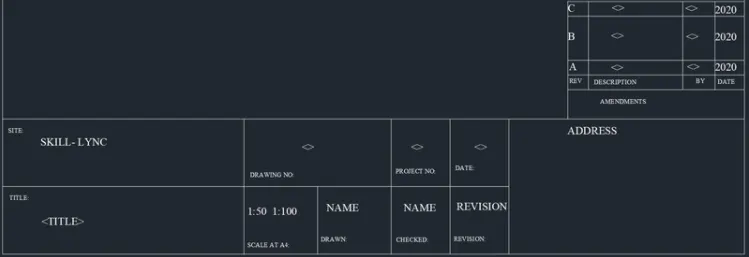

-Custom 1_ title block

• Draw a rectangle of dimension 66.63 x 158 mm
• Divide it into columns using line command.
• Offset for the rows to a distance of 5, 10, 5,5, 8, 30, 15, 20, 20, 20 mm
• Type the required texts and descriptions using the MTEXT command.
• As it is repeated in the other two rows, take array to give columns as 1 row as 3 spacing as 7
• Again type the required fields using MTEXT
• Using the B command, Select the pick points, select a point and object- select the whole table including the text.
• Go to insert and select the object and insert it.
•

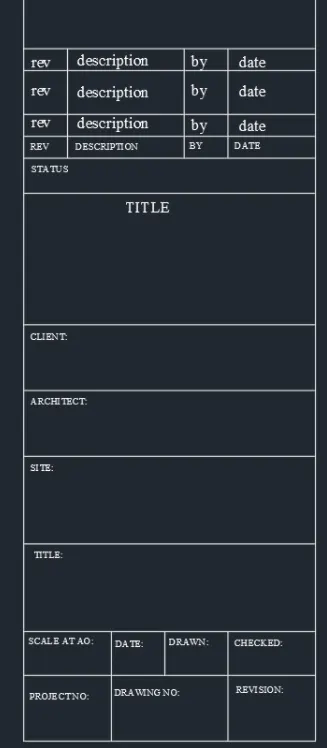

_Custom2- title block

• Create a small rectangle and explode it.

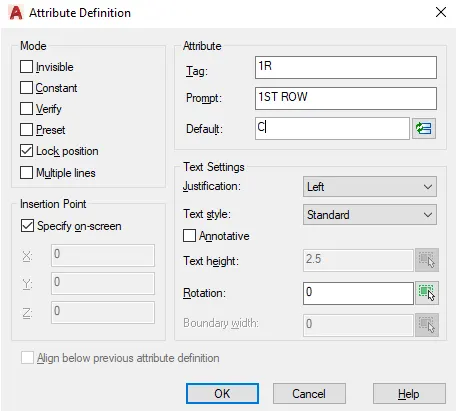

• Using ATT, insert tagline, visible before creating the block
• Prompt: Question we need to add what we need to enter
• Default: value shown in diagram after making it as block

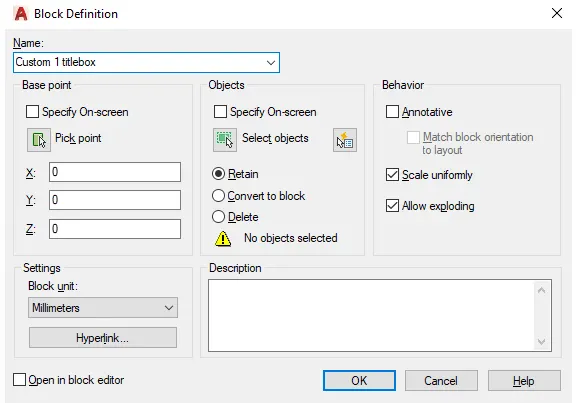

• Now create a block with command B and name it as Custom_2_titleblock, select the whole title block and make it as a block. After creating it as a block we can see that all attributes will change to their default values.
•

Result:

________________________________________________________________________________________________________

2.

Aim:

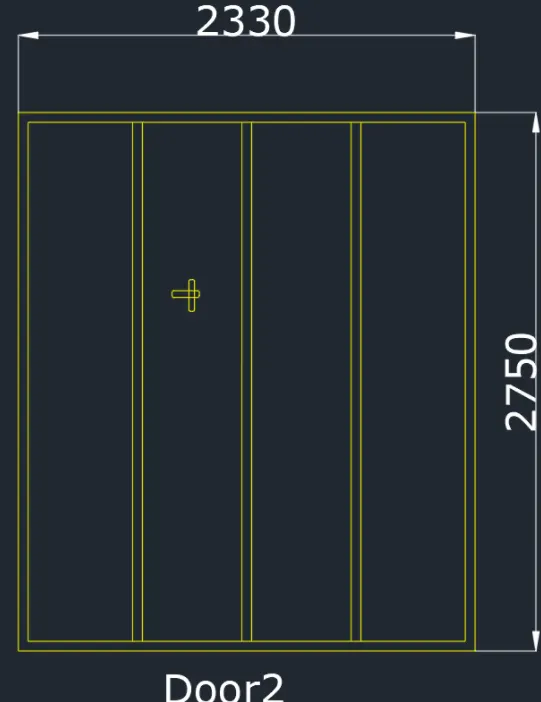

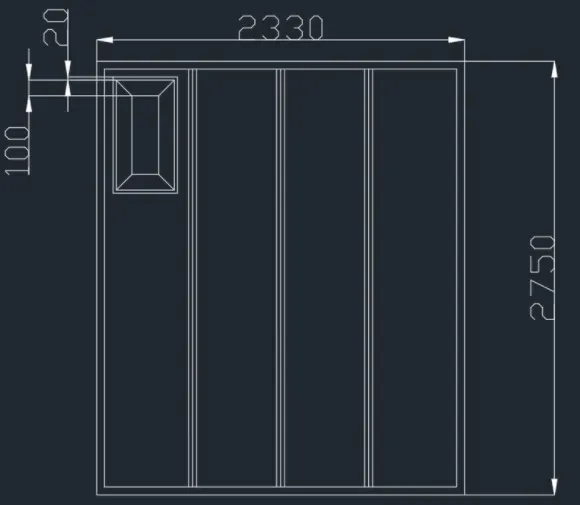

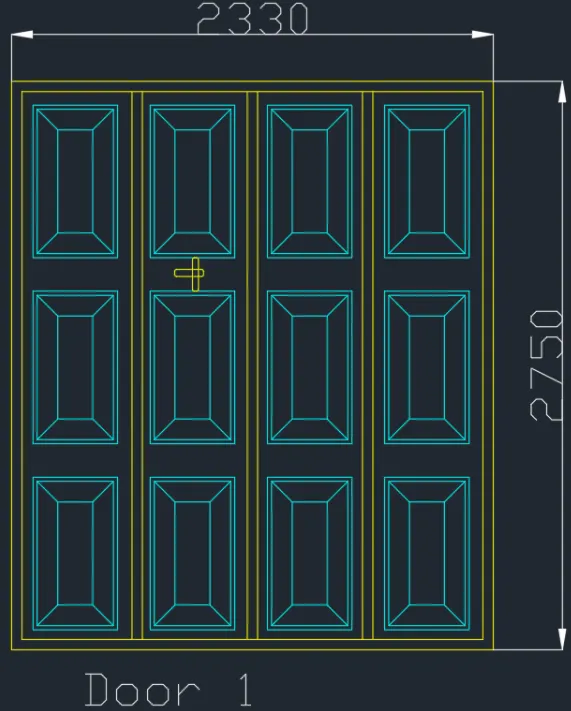

To create the door types for the warehouse.

Procedure:

• Type l in the command prompt to draft the lines.
• draft the boxes using the rectangle command.
• Fillet the edges.
•
• In the ribbon bar >dimensions ( to give the dimensions of the door )
• In the ribbon bar >annotation > text ( to give the text for the door )

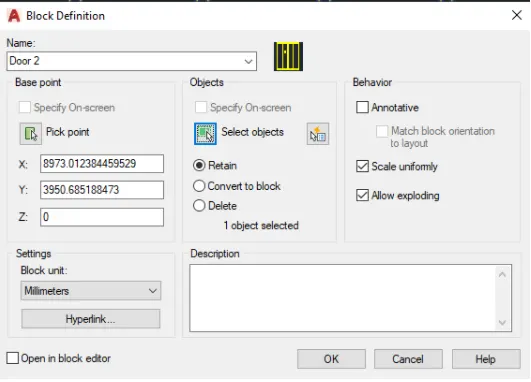

• In the ribbon bar > block > create a block ( to create the door block )
•

Result

________________________________________________________________________________________________________

3.

Aim:

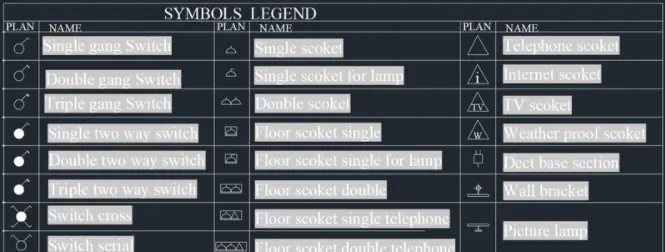

To create each symbol as a block with the name given in the legend.

Procedure:

• Using line rectangle and circle command draw the following
•
•
•
•
•
•
•
•
•
•
•
•
•
• Command B - pick a point- the select object (created single gang witch) - tick scale uniformly and allow exploding options.
• Define each one of them as a block with respective names.
• Create and arrange them in layers.
• Create a rectangular table having 10 rows ad 6 columns.
• Place each of the blocks in respective rows and columns.

Result:

________________________________________________________________________________________________________

Aim:

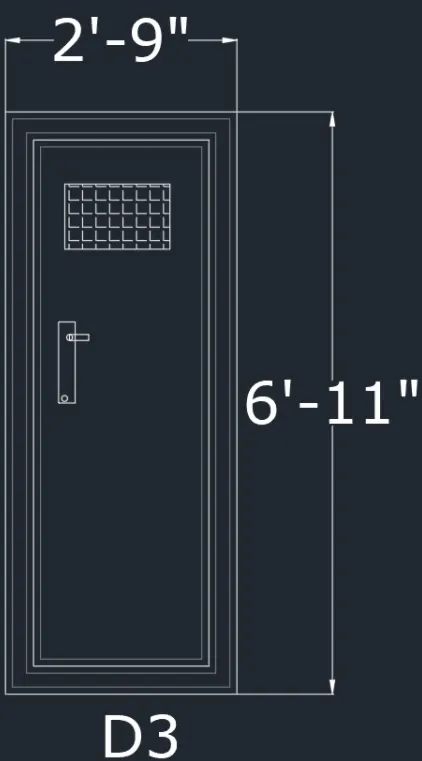

To create the doors type for the warehouse as shown in the Figure.

Procedure:

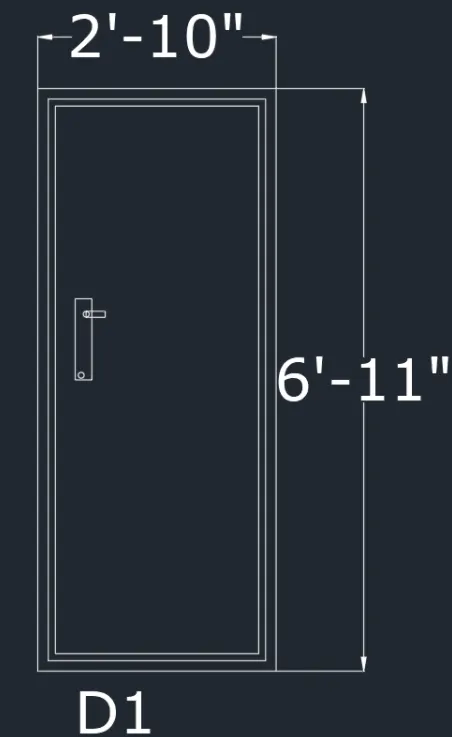

• Draw a rectangle of dimension 2'10" X 6'11"
• Offset 1"
• Draw the lock
• Create it as a block as "D1".

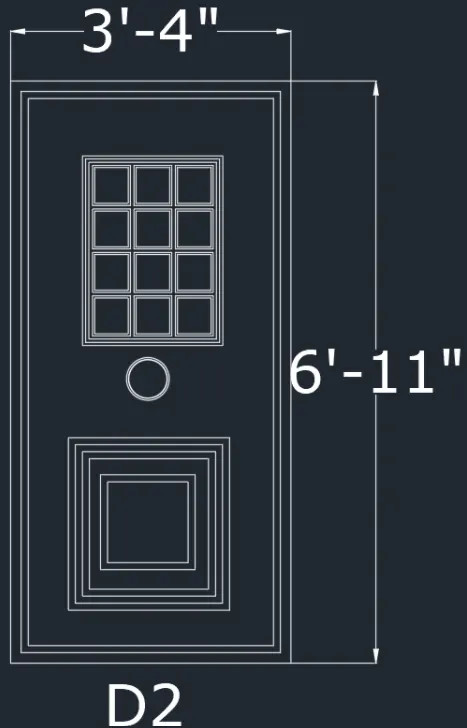

• Draw rectangle of dimension 3'4" and 6'11"
• Offset 1.5" for frame
• Offset 1" for shutter
• Draw panel of 1'11" and 2'9"
• draw a rectangle 5'4" x x5'7"
• Offset 0.3"
• Array the rectangle
• Arrange the rectangle to the desired places.
• Create as block "D2"

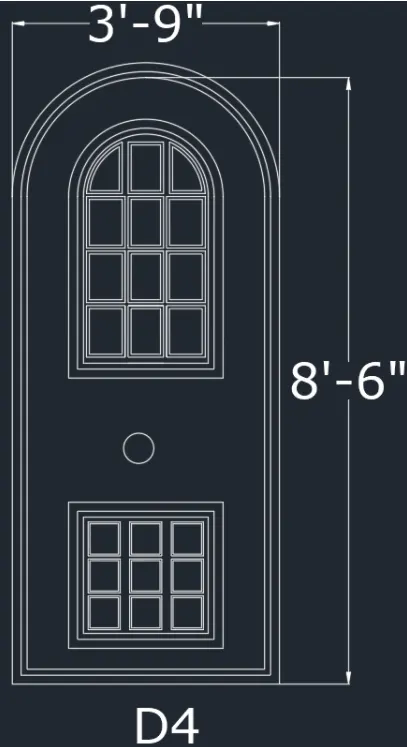

• Draw a rectangle 3'9" X 6'10"
• Explode it
• Draw an arc with 2 endpoints
• offset 1.5" and 1"
• offset 8" from arc and rectangle for panel and divide into 2
• Create a lock using a circle
• Create as a block "D4"
• Draw a rectangle 3'5" x 6,8"
• Offset 1"
• Create another rectangle inside with offset 4.4"
• Create rectangle on the bottom 2'2.9"x2'2.6"
• Offset 1" two times
• Create a rectangle panel with offset 0.5"

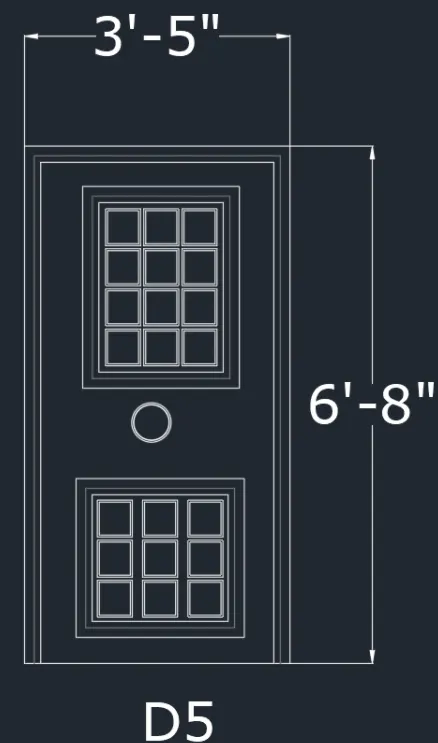

• Create as a block "D5"
• Draw rectange 3'5" x 7'11.6"
• Explode it
• Create an with 2-point mehtod
• Offset 1.5"
• offset 1"
• Offset 8" from arc and rectangle for panel and divide it by 2
• offset 1" 2 times
• Create a lock using circle

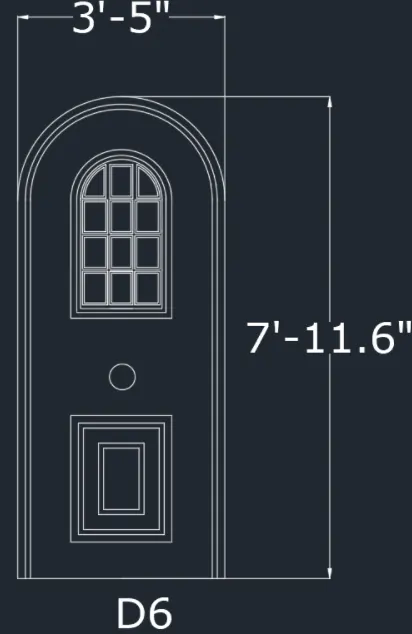

• Make it as block "D6"\

Result:

________________________________________________________________________________________________________

5.

Aim:

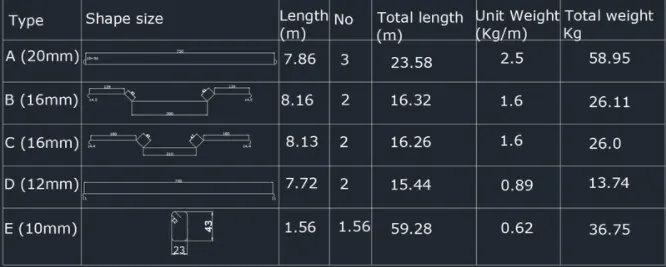

To Create each shape as a block

Procedure:

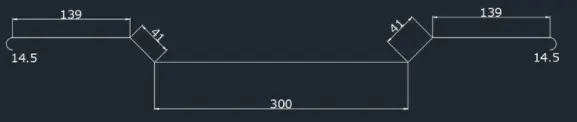

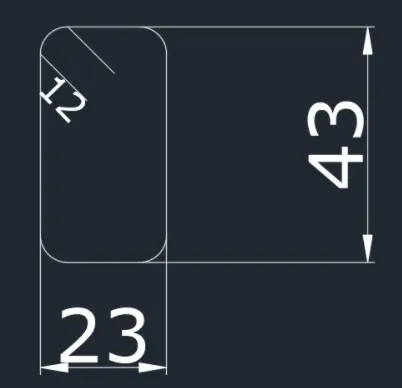

• Draw the following shapes uding desired commands
•
•
•
•
•
• Make them as Block with name A B C D and E.
• Create a rectangle with 6 rows and 7 columns.
• Insert desired texts and blocks in the table.

Result:
