Creating Architectural and Structural model with 3D rendering using REVIT

MMohammad Mosheer29 Apr 2023

Creating Architectural and Structural model with 3D rendering using REVIT

AIM 1) Select the type of structure you want to build from one of the three below:
a. Multi-Unit Residential Apartment
b. Office Buildings
c. School

Procedure

B. Office Building is selected from above options.

AIM Assume reasonable assumptions for geographic and location details for your project modeling. Based on assumptions and type of structure selected identify the modeling requirements from NBC

Procedure

Location New Delhi, India.
The open space around the building shall not be less than 4.5m.
The type of construction as type 2 Construction, the FAR value for the business building shall be taken as 2.9.

AIM Using the structural model, include the following components based on the type of structure selected
a. Foundation – Isolated / Wall/Matt Foundation
b. Columns
c. Beams Connected to Columns
d. Roof Framing/ Truss
e. Floor / Decks
f. Floor Openings for Elevators and Stairs

Procedure

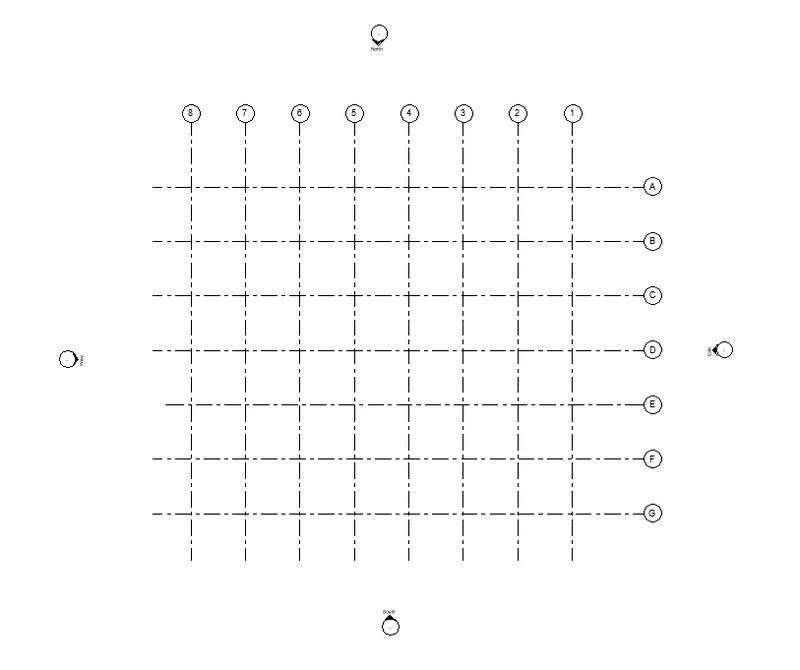

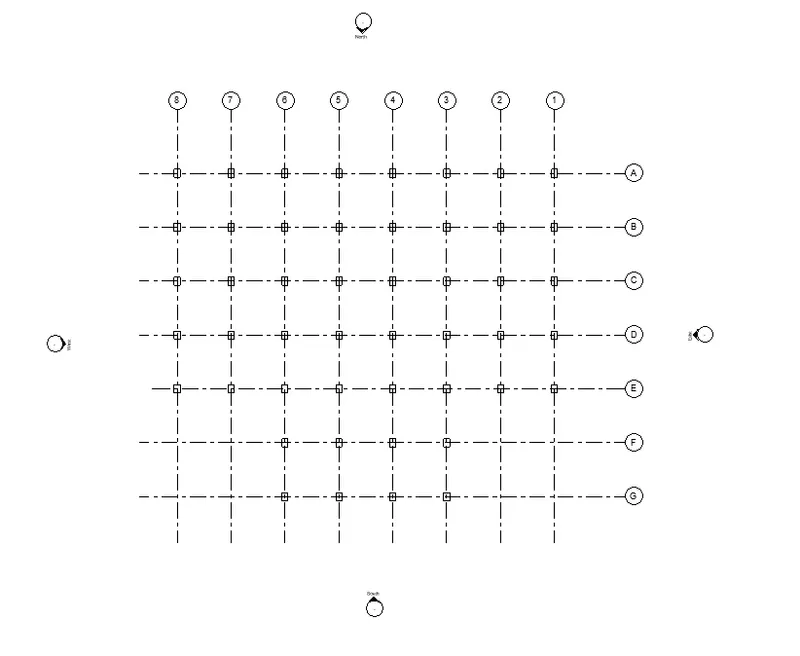

Draw grids using gr command, Hprizontal and Vertical.

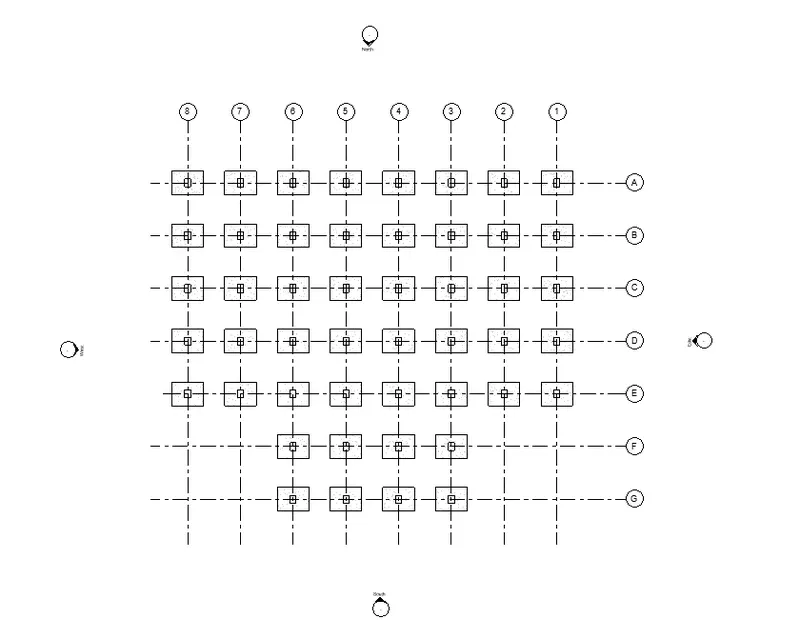

Now in Structural Tab Select Isolted Footing and draw the same.

In structural Tab click on structural column Choose column and place them on grids.

Now Place Structural Framing by choosing Beam size and place on Grids.

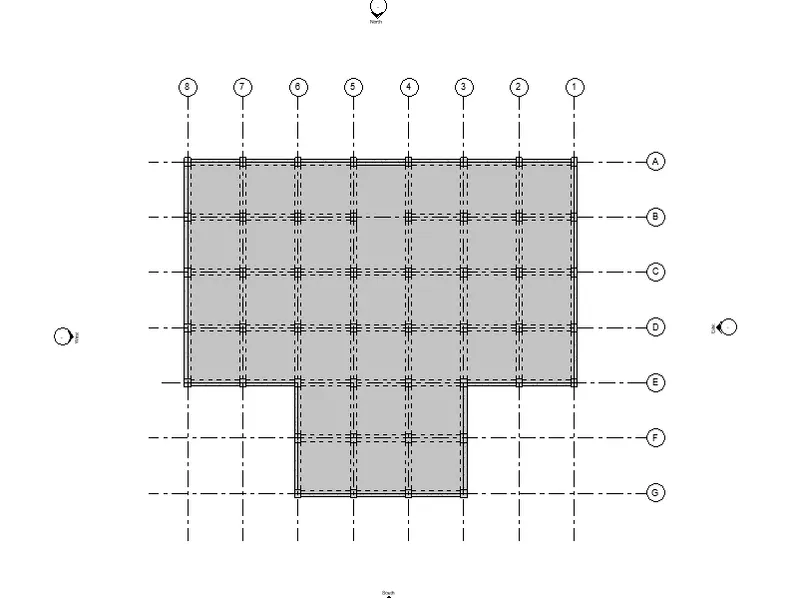

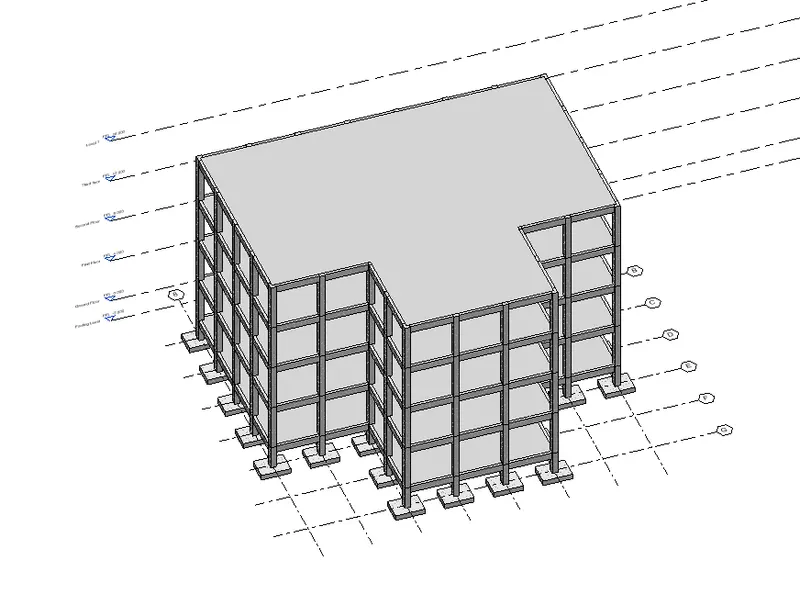

Draw Structural Floor.

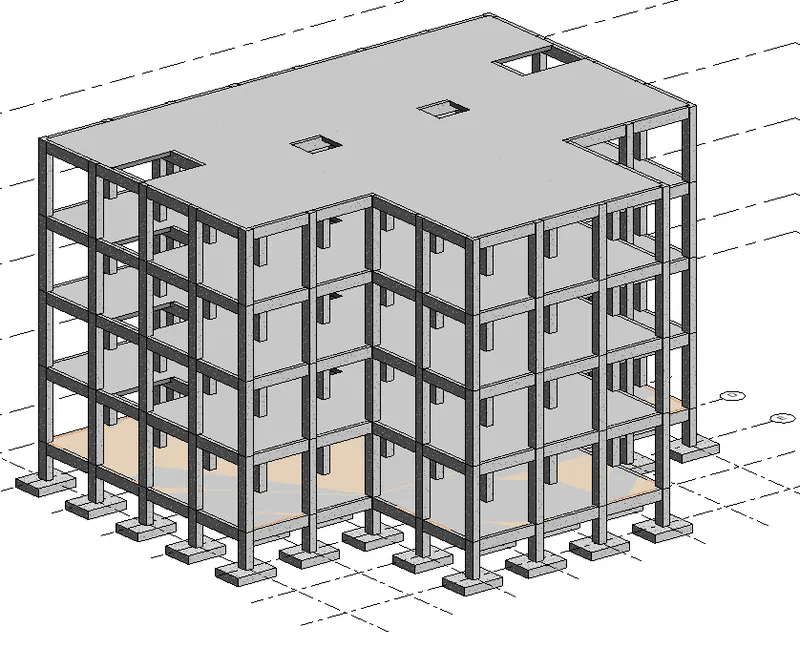

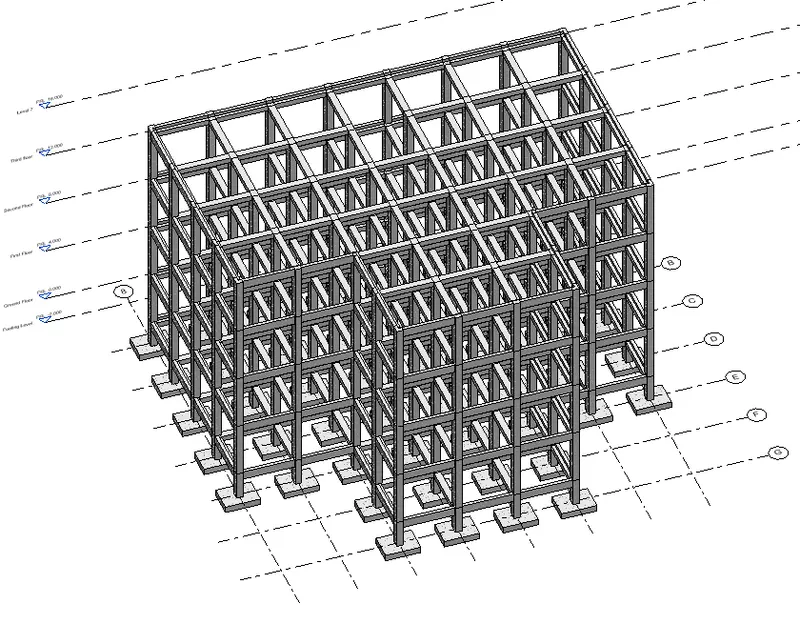

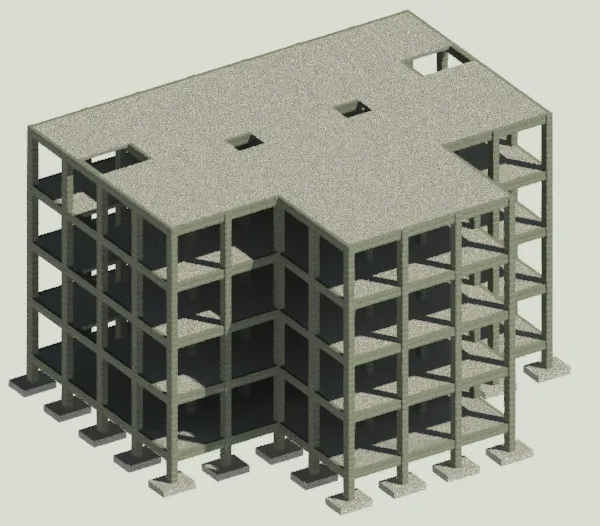

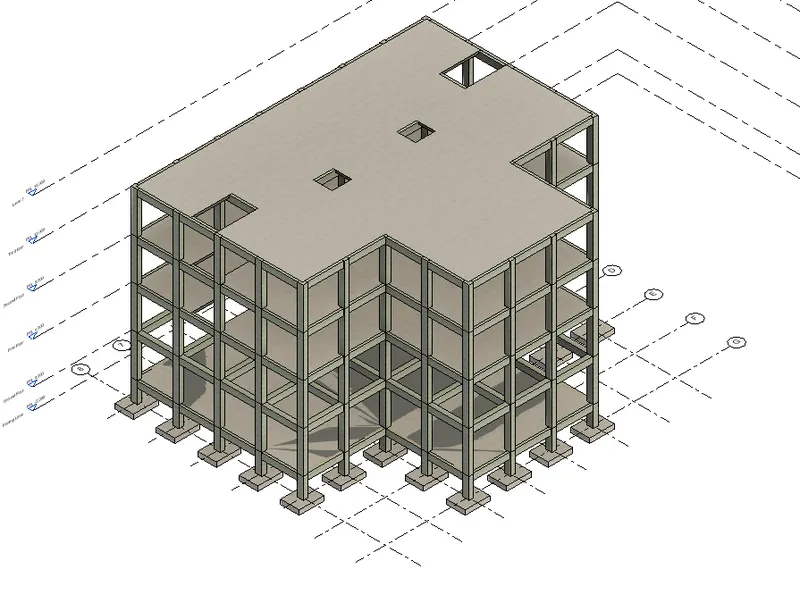

RESULT

AIM Using the architectural model, include the following components based on the type of structure selected
a. Wall Layout with appropriate material and finishing
b. Exterior façade with fancy finish
c. Interior partition walls to size rooms
d. Components to add details to a room ( Desk, Chair, Lighting, Plumbing fixtures)
e. Add components such as stairs Elevators
f. Have at-least one side of the building with curtain walls and glass panels
g. Include interior and exterior lighting fixtures
h. Place proper topographic components from outside ( Trees, Parking, Plants) to add details to the model

Procedure

Now Link structural file in architectural template.
Copy desired Elements using Copy/Monitor tool in Collaboration tab.

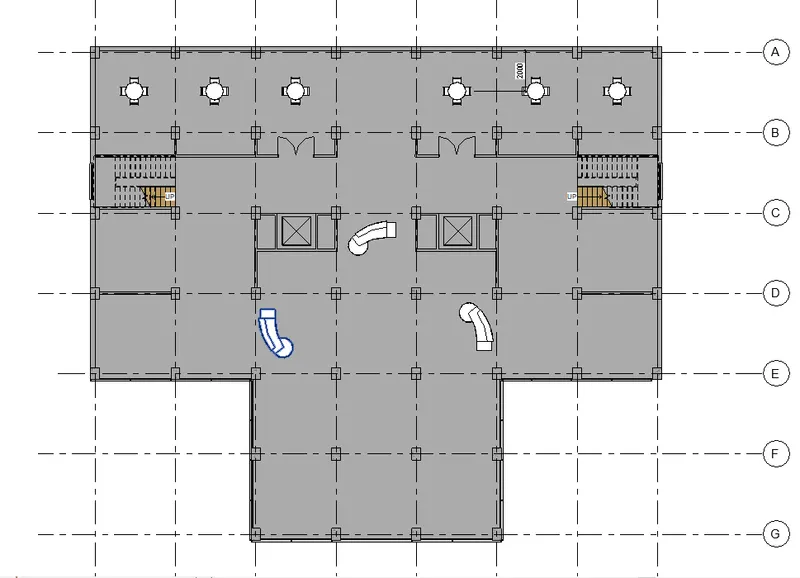

Now Place walls, Stairs, Doors, etc.

Now Place Furniture and other items.

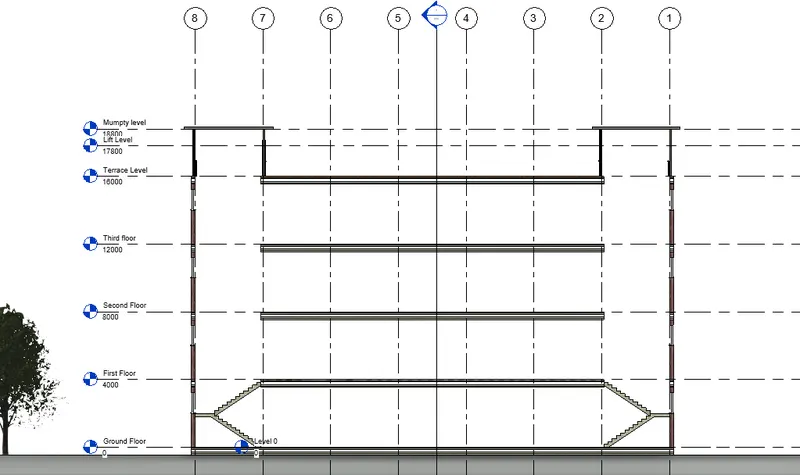

Section 1

Section 2

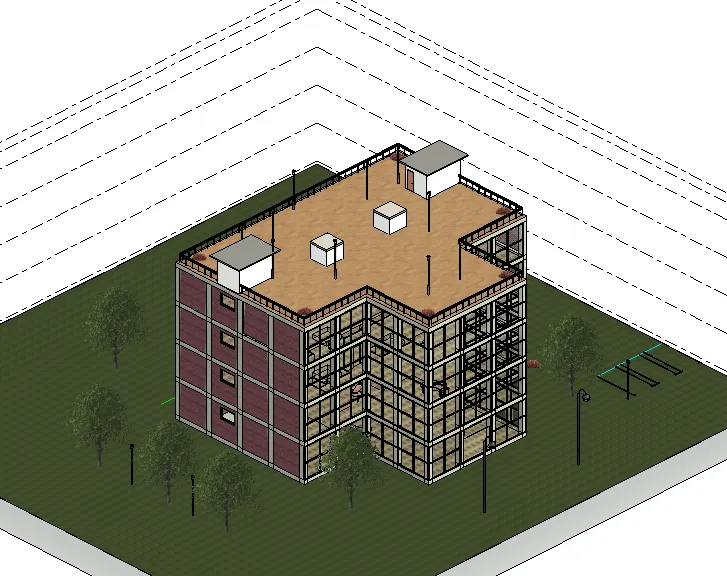

Now Add topography and Other site elements such as Trees etc.

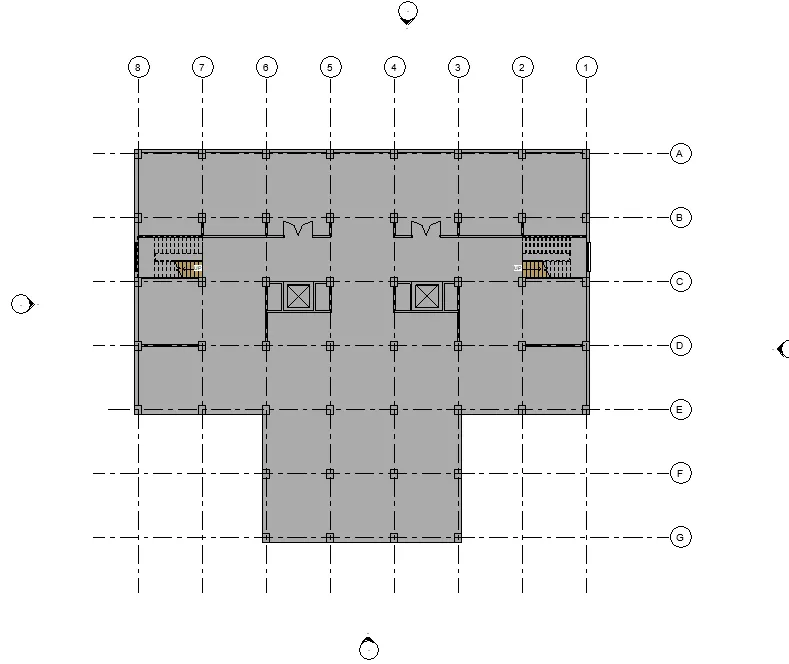

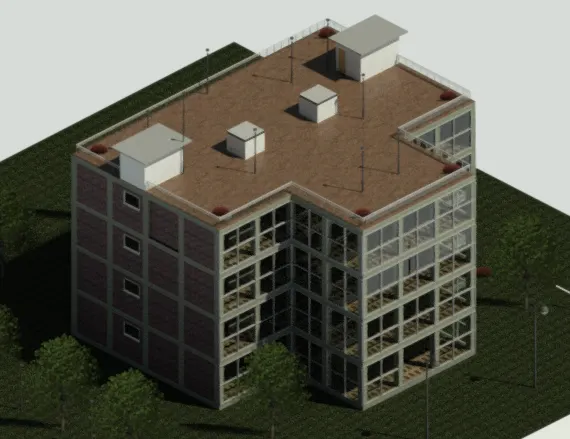

RESULTS

AIM

Provide a set of drawings in an architectural and structural model to list the following details with categories and appropriate sheet templates included
a. Floor Plans with Annotations

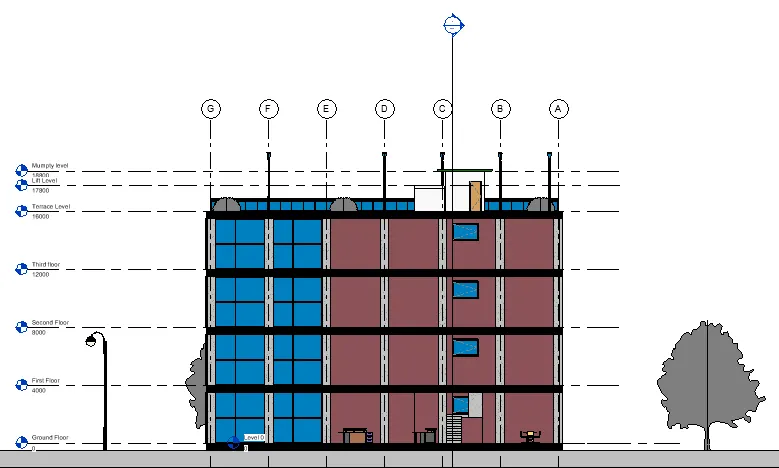

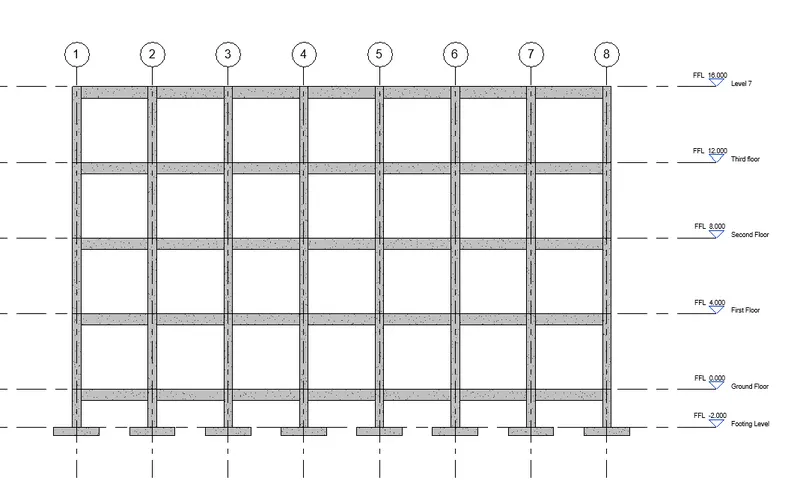

b. Elevations
c. Sections

Procedure

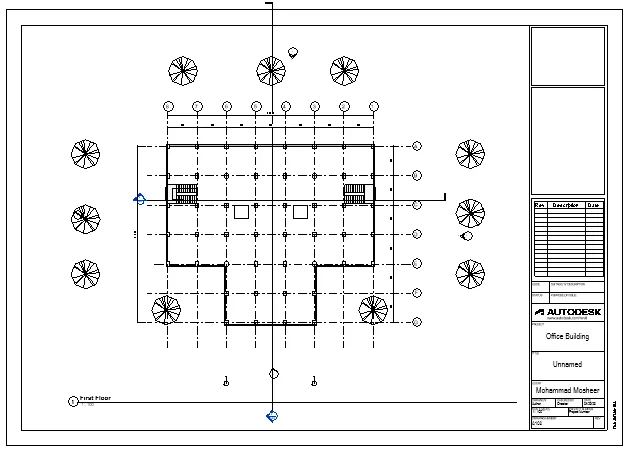

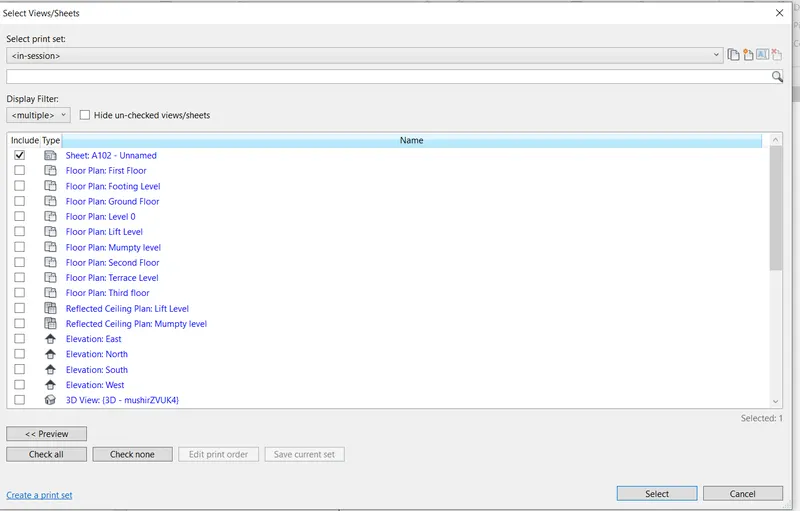

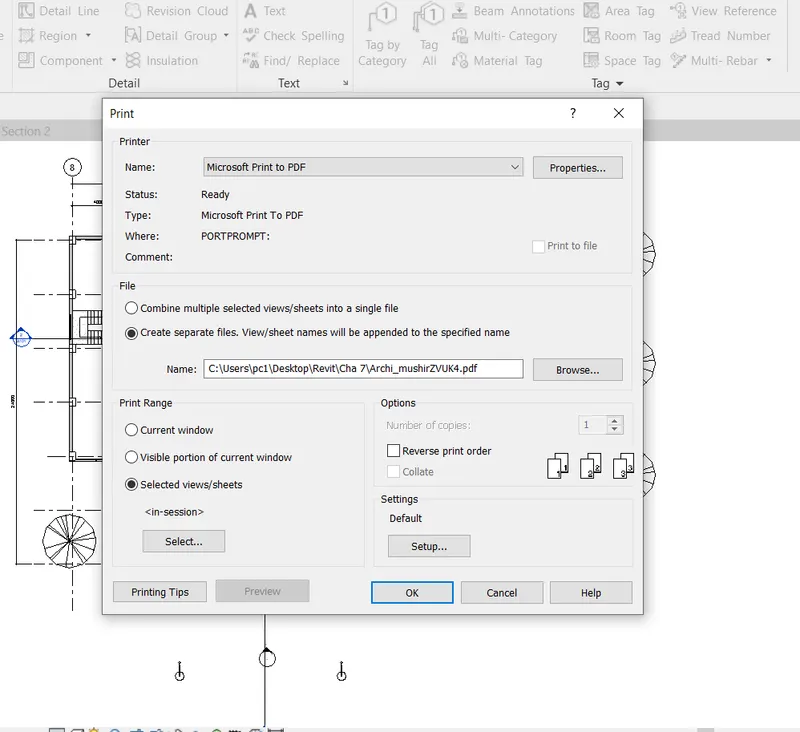

Create sheets using View tab.
Drag the desired plan in the sheets.

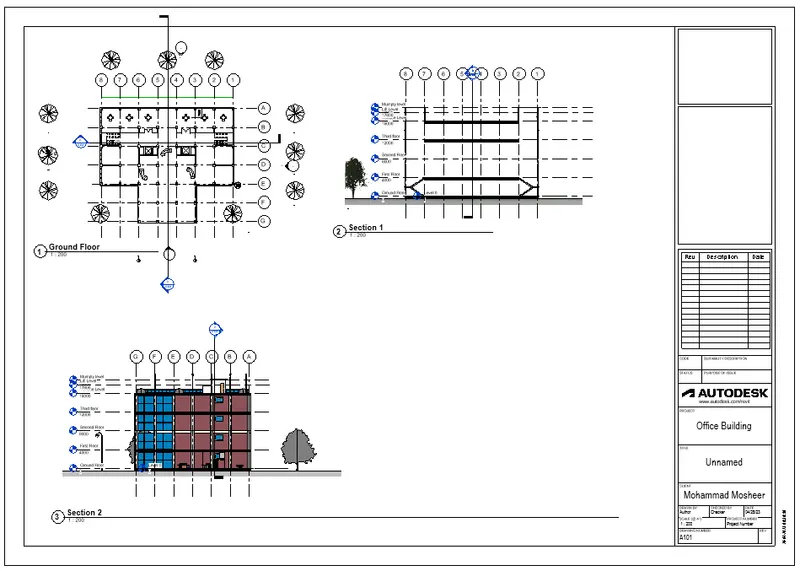

RESULTS

AIM

Using the Rendering settings, Render images of the 3D model produced and include the rendered images to the drawing sheets

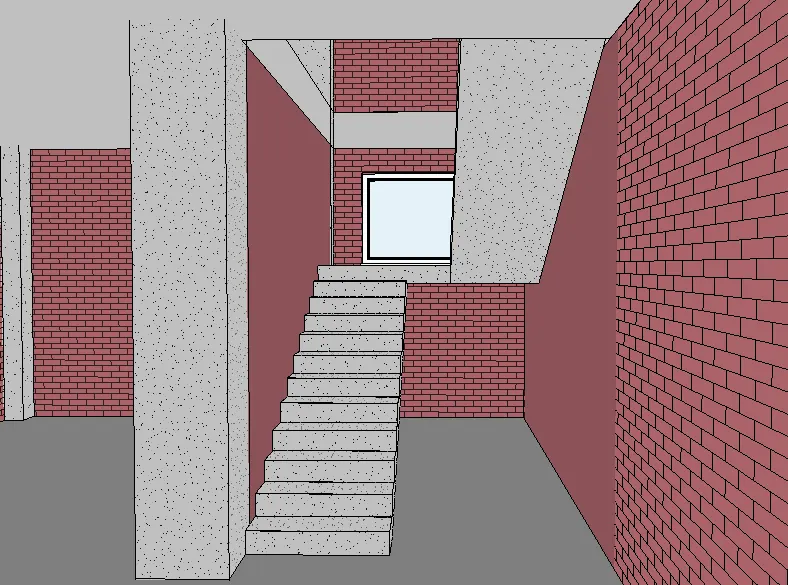

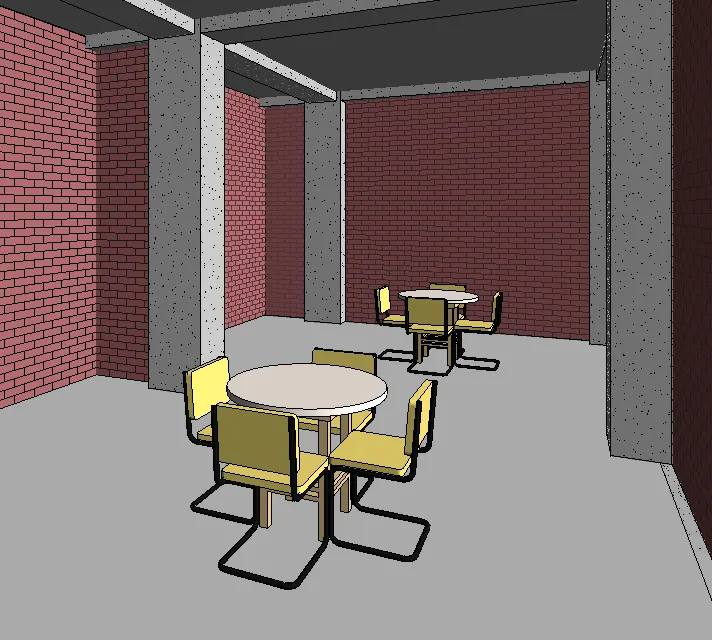

a. Rendering from interior rooms
b. Rendering from out showing topographic features
c. Rendering through structural framing

Procedure
