Creating Architectural and Structural model with 3D rendering using REVIT

LLavina Ruzario29 Jan 2023

1) Select the type of structure you want to build from one of the three below:
a. Multi-Unit Residential Apartment
b. Office Buildings
c. School

Ans: I have chosen the Multi-unit Residential Apartment

2) Assume reasonable assumptions for geographic and location details for your project modeling. Based on assumptions and type of structure selected identify the modeling requirements from NBC.

Assumptions for geographic and location details for your project modeling

My building is constructed in the residential area.
My building is constructed in the plain area (geographic)
Infront of my building there is a road with the width of 30 feets.
As per the NBC, the height limit will be given in NBC part V-1, (National building code).
The size of the rooms also given in the NBC part V-1.

3) Using the structural model, include the following components based on the type of structure selected
a. Foundation – Isolated / Wall/Matt Foundation
b. Columns
c. Beams Connected to Columns
d. Roof Framing/ Truss
e. Floor / Decks
f. Floor Openings for Elevators and Stairs

AIM-

To include the following components based on the type of structure selected using the structural model.

INTRODUCTION:

Beams and columns are two important types of structural elements that play a key role in creating a safe load path to transfer the weight and forces on a structure to the foundations and into the ground.
Beams and columns could be built using the same shapes and materials but each serves a different function and is designed differently.
A foundation is the lowest part of the building structure.
It is the engineering field of study devoted to the design of those structures which support other structures, most typically buildings bridges or transportation infrastructure.
It is at the periphery of Civil, Structural and Geotechnical Engineering disciplines and has distinct focus on soil-structure interaction

PROCEDURE:

Step: 1

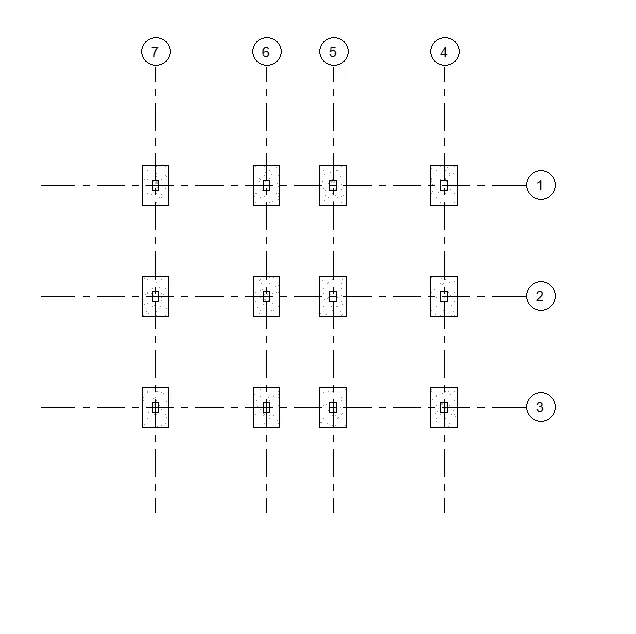

First we draw the vertical and horizontal grids as shown below.
Next we need to add the columns with the size of 300m x 300mm, as shown in the below2 figure.

Step 2:

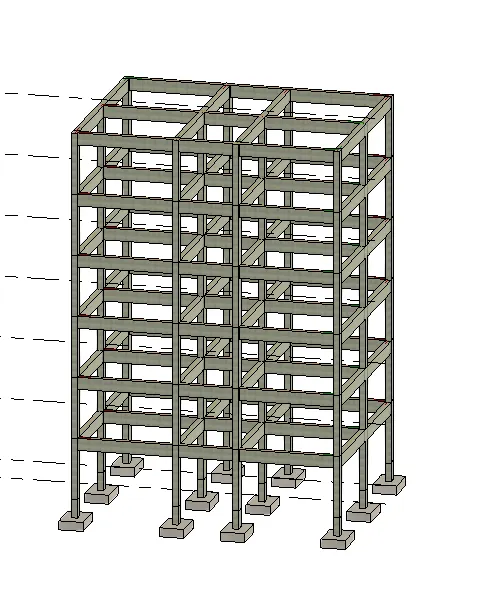

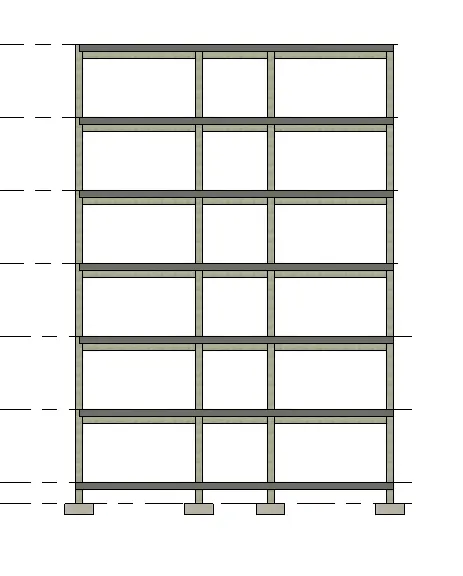

The 3D view of the column and foundation is shown.

Step 3:

The beams are added to the columns connecting each each other.

Step 4:

The beams and columns of the created level is copied to the upper levels.

Step 5:

The floor is created for each levels.

Step 6:

The side views of the 3D model is shown.

RESULT:

The given components are created successfully using structural template in revit.

4) Using the architectural model, include the following components based on the type of structure selected
a. Wall Layout with appropriate material and finishing
b. Exterior façade with fancy finish
c. Interior partition walls to size rooms
d. Components to add details to a room ( Desk, Chair, Lighting, Plumbing fixtures)
e. Add components such as stairs Elevators
f. Have at-least one side of the building with curtain walls and glass panels
g. Include interior and exterior lighting fixtures
h. Place proper topographic components from outside ( Trees, Parking, Plants) to add details to the model

AIM:

To include the given components based on the type of structure selected using the architectural model

INTRODUCTION

Partition-walls are a significant component of a building design. Without partition walls a building's plan cannot be decorative or structured
Lighting fixtures, come in a wide variety of styles for various functions
The most important functions are as a holder for the light source to provide directed light and to avoid visual glare.
Some are very pain and functional, while some are piece of art in themselves
Nearly any material can be used so long as it can tolerate the excess heat and is in keeping with salety codes

PROCEDURE

Step:-1

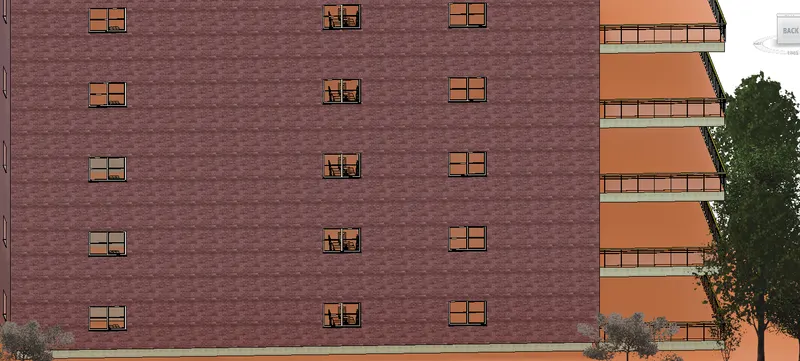

We add the different materials to the wall and finishing has done, as shown below.

Step 2:

Interior partition walls are added.

Step 3:

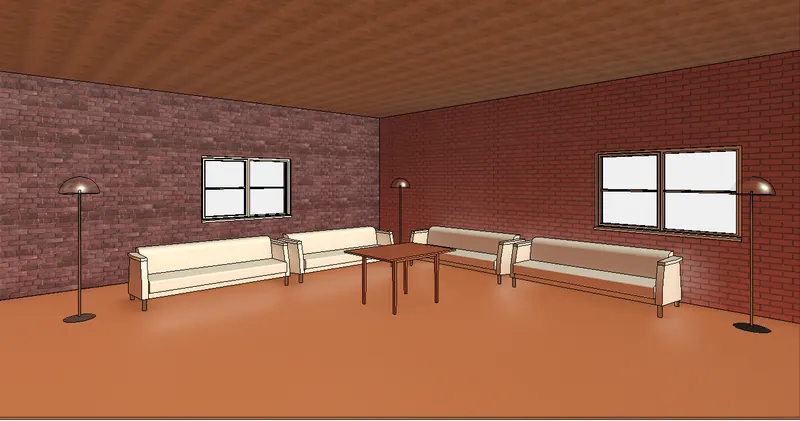

rendered view of living room is given.

Step 4:

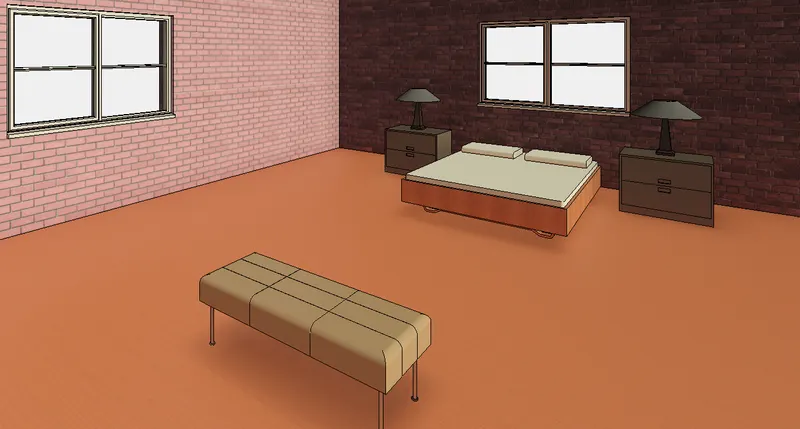

Rendered view of bedroom is given.

Step 5:

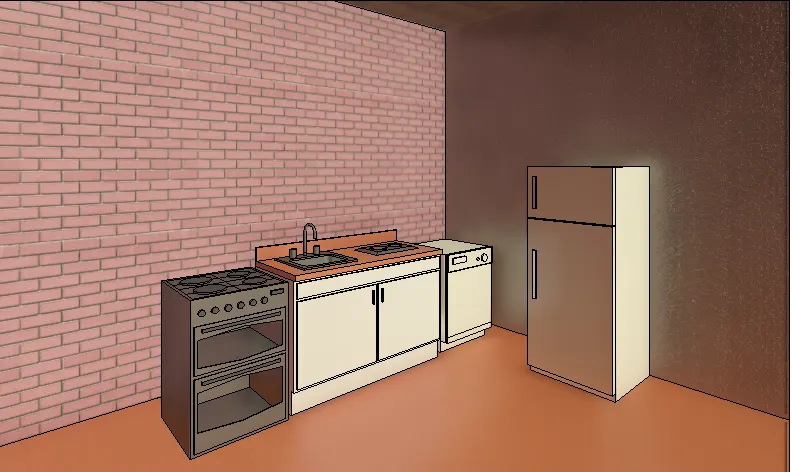

Rendered view of kitchen is given.

Step 6:

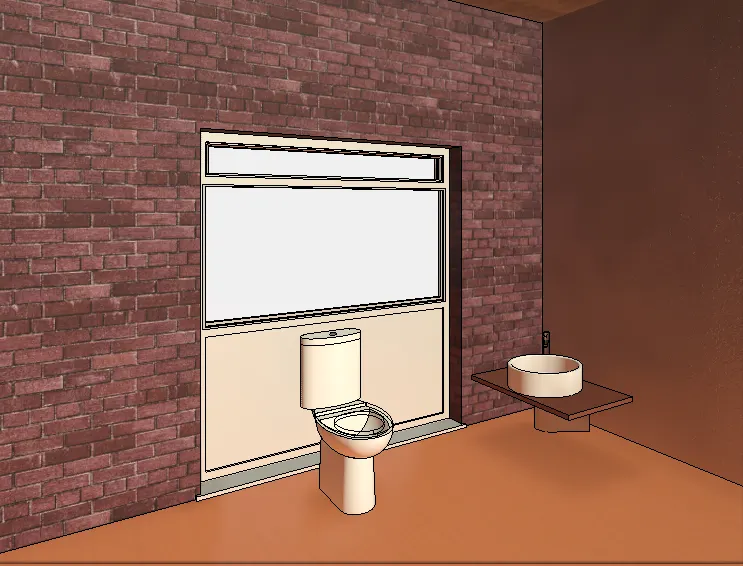

Rendered view of bathroom is given

Step 7:

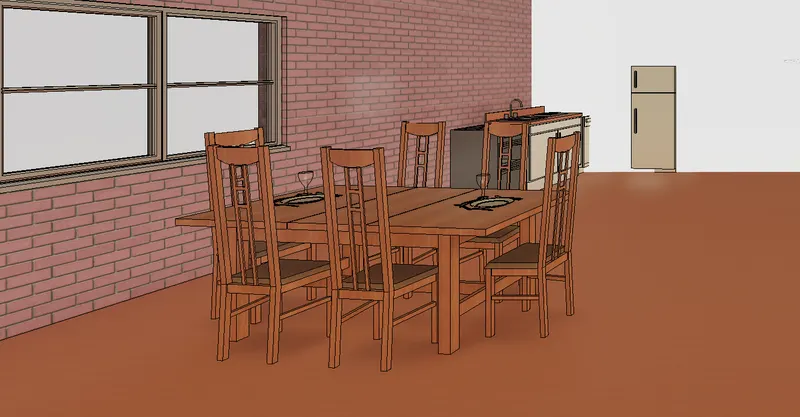

Rendered view of dining is given.

Step 8:

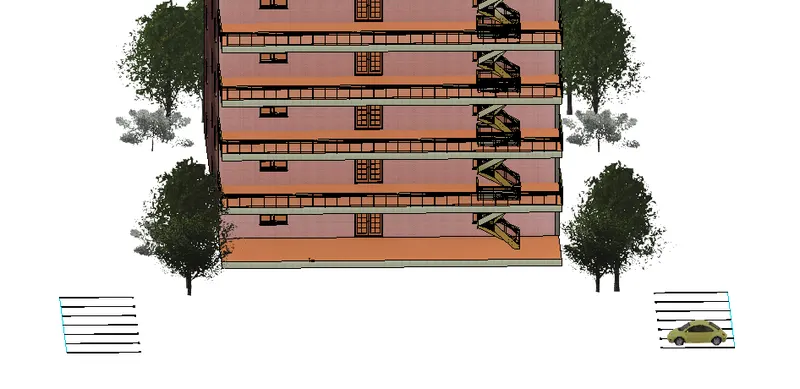

Rendered image of the entire building is given.

RESULT:

The given components are successfully inserted in the architectural model.

5) Provide a set of drawings in an architectural and structural model to list the following details with categories and appropriate sheet templates included
a. Floor Plans with Annotations
b. Elevations
c. Sections

AIM-

To provide a set of drawings in an architectural and structural model to list the given details with categories and appropriate sheet Templates included

INTRODUCTION:

Floor plans are the most critical element of your house plans Drawn to scale and shown from above floor plans illustrate how rooms. spaces, and physical features work in relation to each other within the home
They're the key documents that show how people will move through the space and interact with their home Floor plans, show the extent to which a space will work for its intended purpose

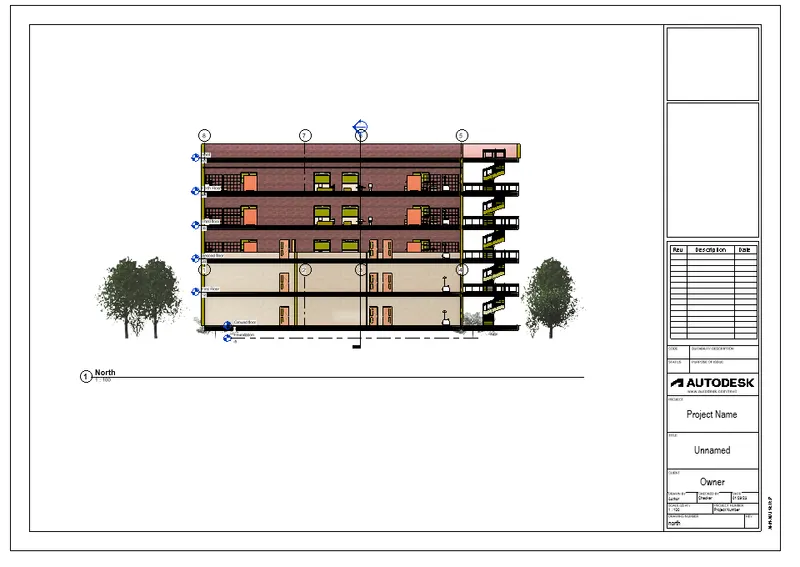

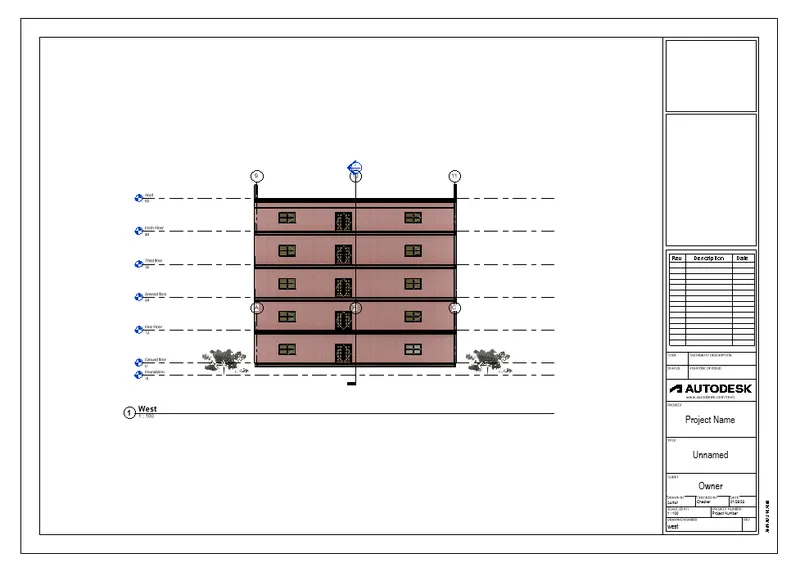

Al elevation is a view of a building seen from one side, a that representation of one view This the most common view used to describe the external appearance of a building
Each elevation is Labelled in relation to the compless direction it Faces eg. looking toward the north you would be seeing the southern elevation of the building
Sectional views, reveal hidden details in a mechanical drawing These views assume that a cutting plane of the object represented by the drawing displaying the appropriate section of the interior

PROCEDURE

Step-1

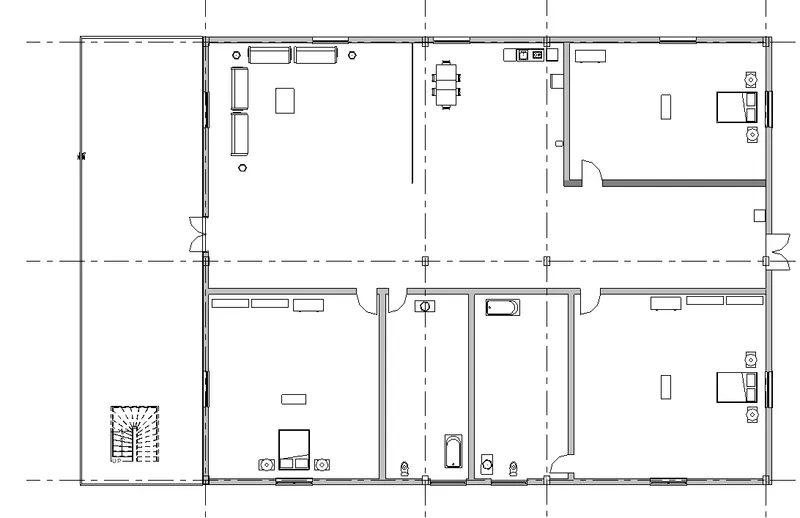

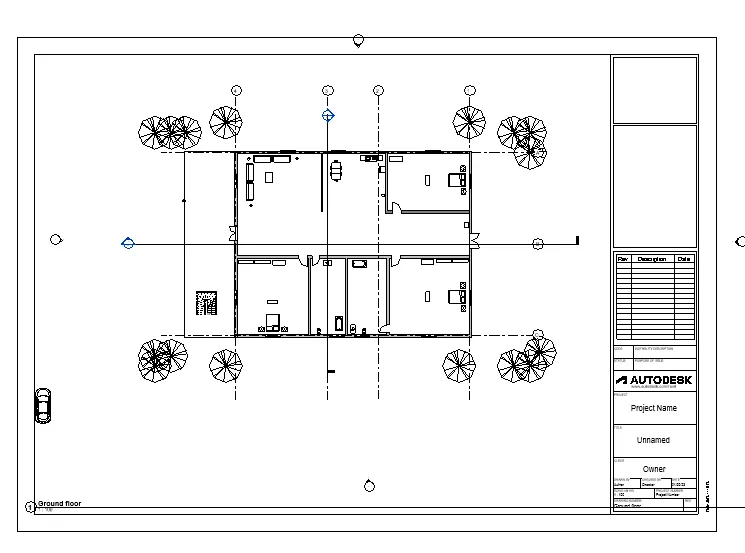

First we add the ground floor plan in the sheet.

Step 2:

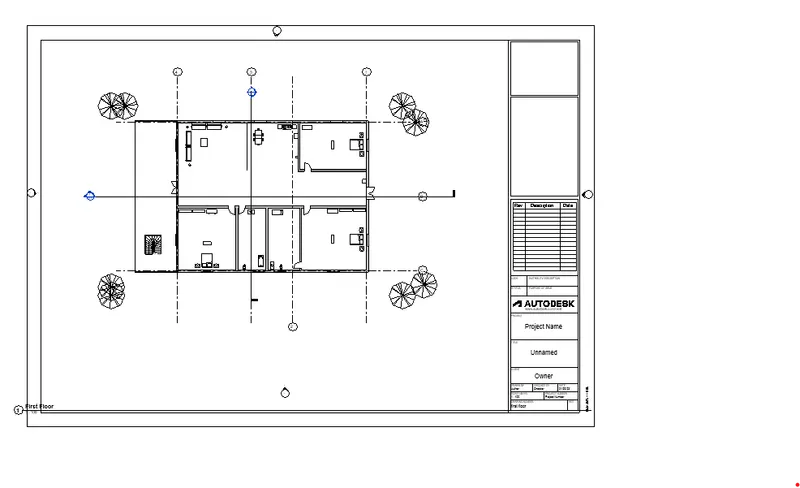

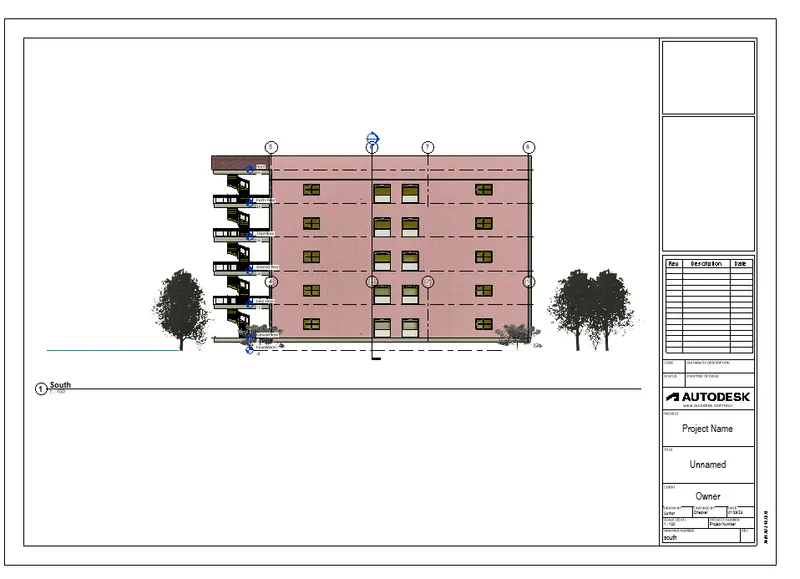

Next we add the first floor in the sheet, as shown below.

Step 3:

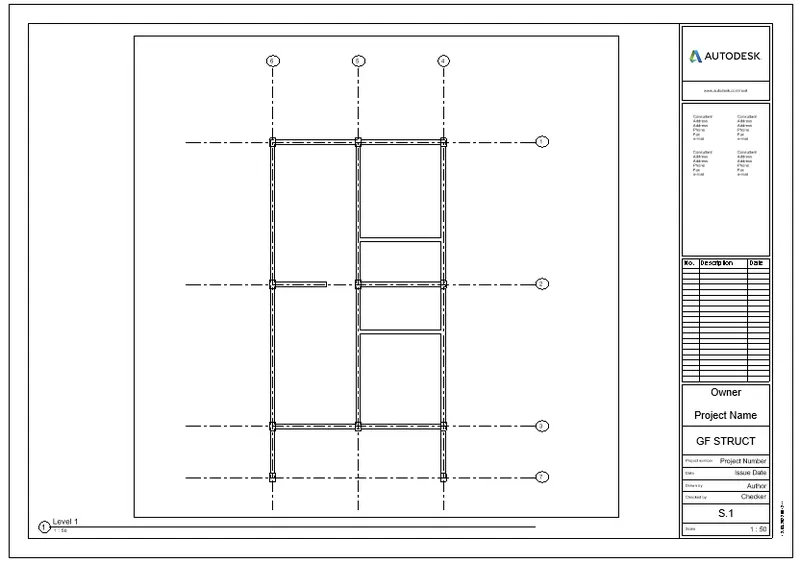

Next we add the Ground floor structural plan in the sheet.

Step 4:

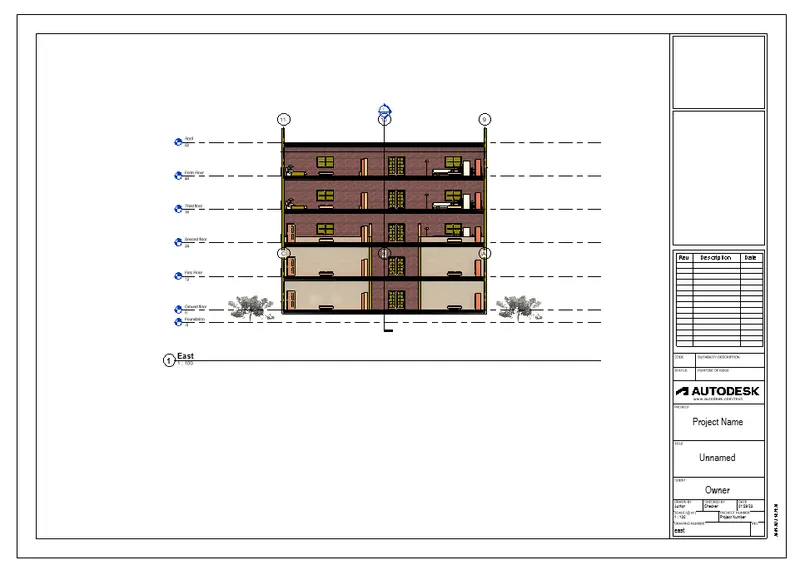

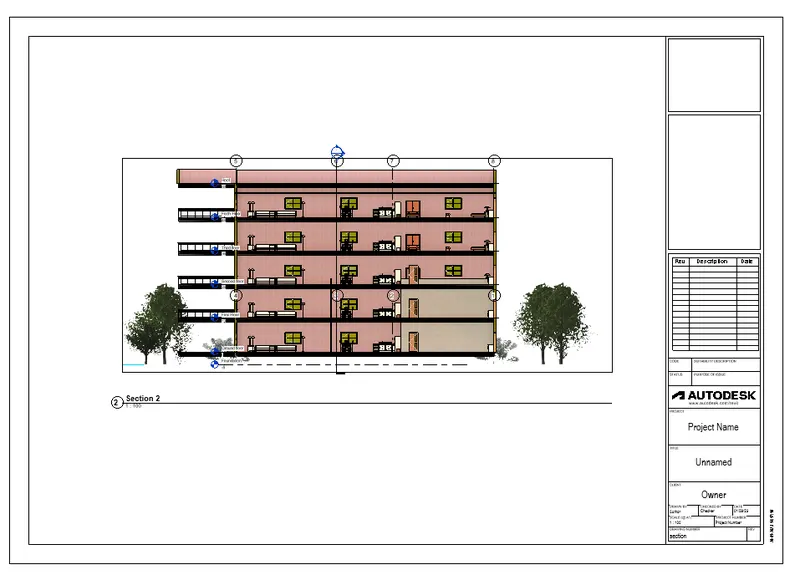

The sectional view of living room is given

Step 5:

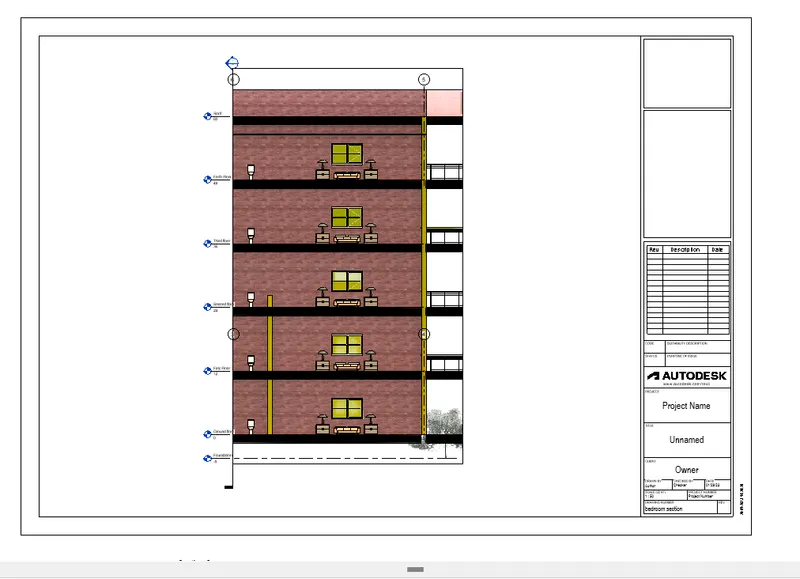

The sectional view of bedroom is given.

RESULT:

All the rendered image of the 3D model is added to the sheet drawing successfully.

7) Print the set of drawing sheets created and submit the drawings from the architecture and structure model

AIM:

To print the set of drawing sheets created and to submit the drawings from the architecture and structure model

INTRODUCTION:

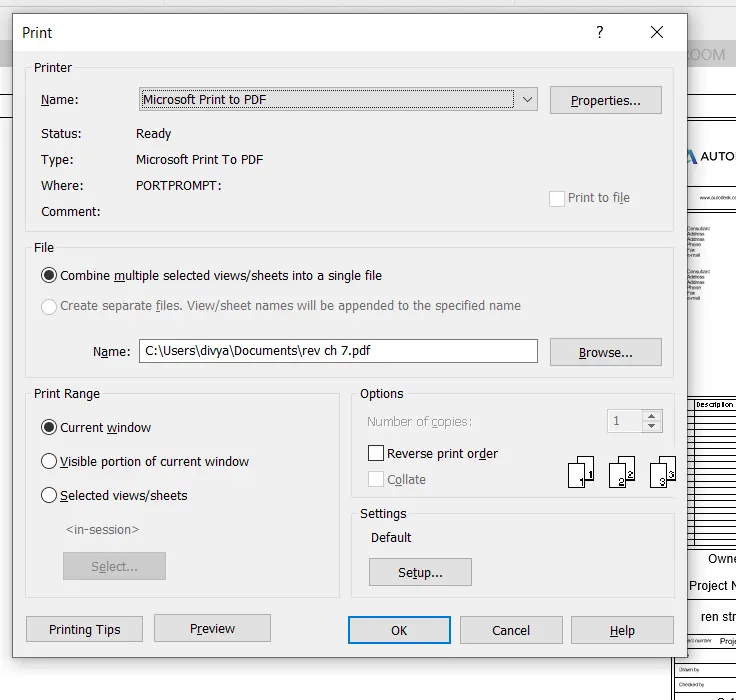

The Print tool prints the current window, a visible portion of the current window, or selected views and sheets - You can send the desired drawings to the printer to PRIV or PLT file, or to a PDF WE

PROCEDURE

Step:-1
