Creating Architectural and Structural model with 3D rendering using REVIT
Q1) Select the type of structure you want to build from one of the three below:
a. Multi-Unit Residential Apartment
b. Office Buildings
c. School
Answer:
Aim: To Select the type of structure need to build from one of the three below:
a. Multi-Unit Residential Apartment
b. Office Buildings
c. School
Type of structure
-OFFICE BUILDING
Q2) Assume reasonable assumptions for geographic and location details for your project modeling. Based on assumptions and type of structure selected identify the modeling requirements from NBC.
Answer:
AIM :
Assuming reasonable assumptions for geographic and location details for your project modeling. Based on assumptions and type of structure selected identify the modeling requirements from NBC.
PROCEDURE :
My project is in plain area.
it is in commercial area.
road width infront of my structure is 60ft.
MODELLING REQUIREMENTS FROM NCB ARE:
An exit must be provided in every building so as to permit safe escape of employes
in case of earthquake or fire hazards.
the minimum height of basement should be 2.5m and maximum height should be 4.5m.

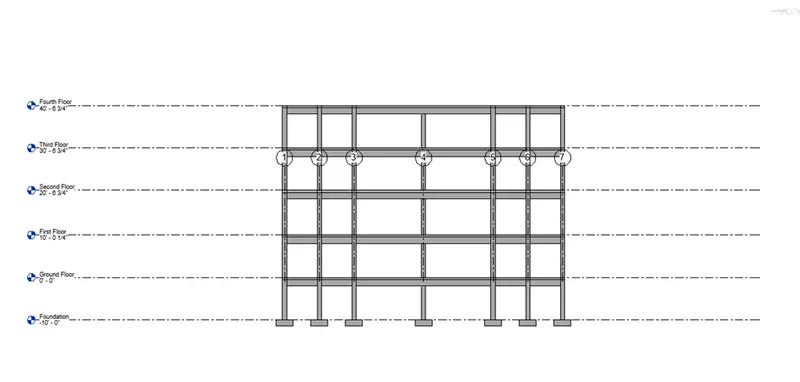

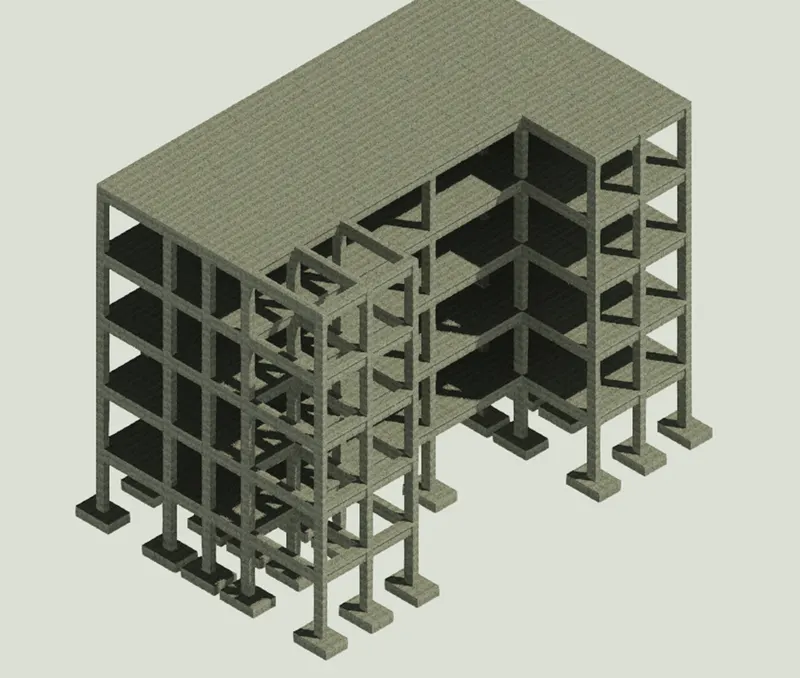

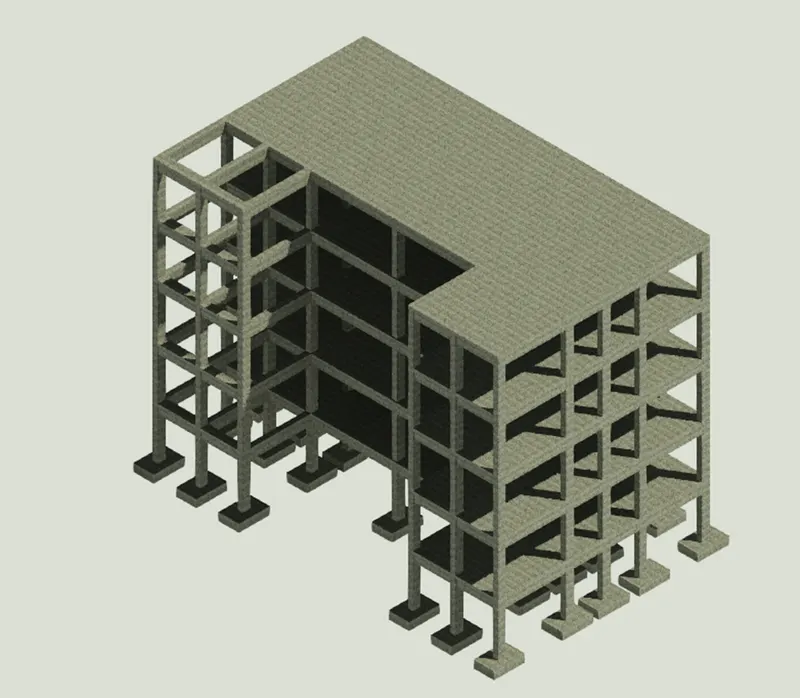

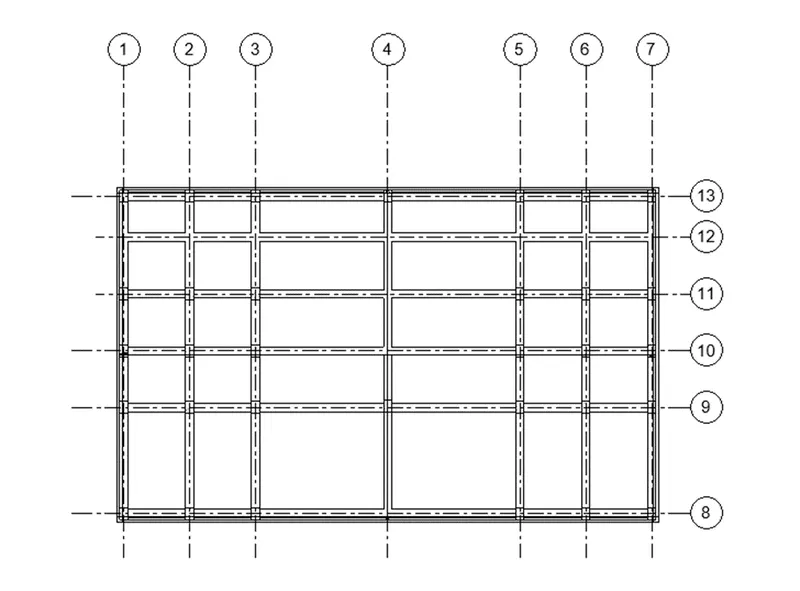

Q3) Using the structural model, include the following components based on the type of structure selected
a. Foundation – Isolated / Wall/Matt Foundation
b. Columns
c. Beams Connected to Columns
d. Roof Framing/ Truss
e. Floor / Decks
f. Floor Openings for Elevators and Stairs
Answer:

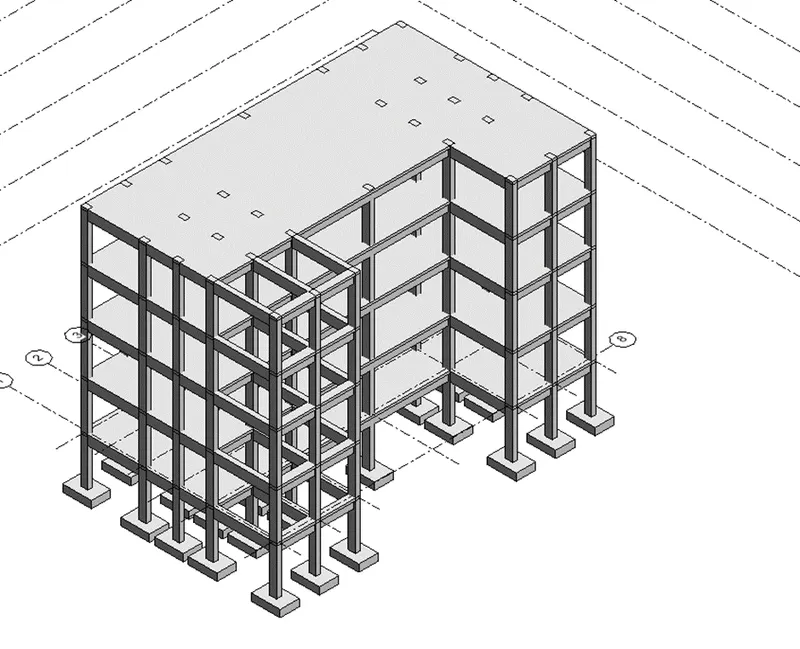

AIM:
Using the structural model, include the following components based on the type of structure selected
a. Foundation – Isolated / Wall/Matt Foundation
b. Columns
c. Beams Connected to Columns
d. Roof Framing/ Truss
e. Floor / Decks
f. Floor Openings for Elevators and Stairs
Result

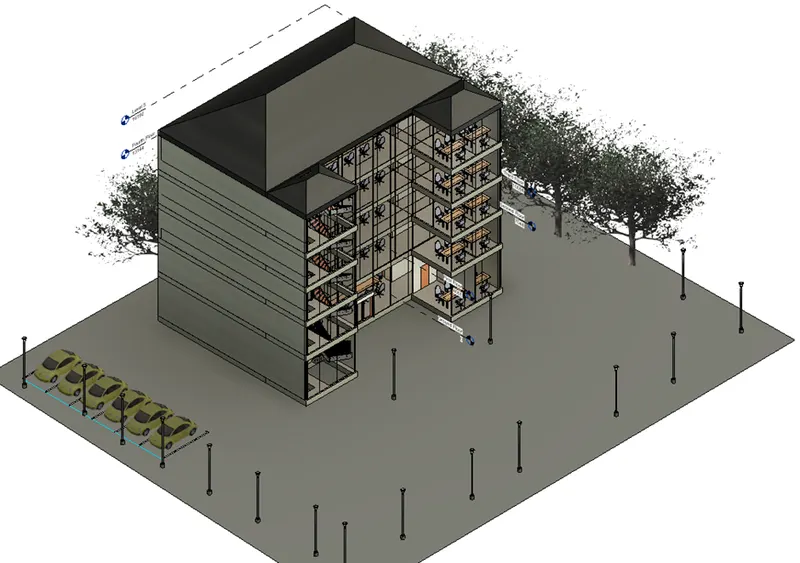

Q4) Using the architectural model, include the following components based on the type of structure selected
a. Wall Layout with appropriate material and finishing
b. Exterior façade with fancy finish
c. Interior partition walls to size rooms
d. Components to add details to a room ( Desk, Chair, Lighting, Plumbing fixtures)
e. Add components such as stairs Elevators
f. Have at-least one side of the building with curtain walls and glass panels
g. Include interior and exterior lighting fixtures
h. Place proper topographic components from outside ( Trees, Parking, Plants) to add details to the model
Answer:

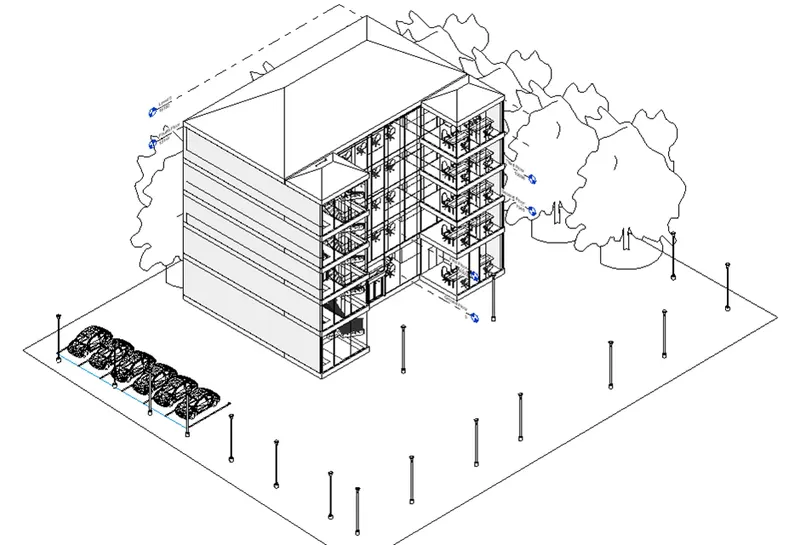

AIM :
Using the architectural model, include the following components based on the type of structure selected
a. Wall Layout with appropriate material and finishing
b. Exterior façade with fancy finish
c. Interior partition walls to size rooms
d. Components to add details to a room ( Desk, Chair, Lighting, Plumbing fixtures)
e. Add components such as stairs Elevators
f. Have at-least one side of the building with curtain walls and glass panels
g. Include interior and exterior lighting fixtures
h. Place proper topographic components from outside ( Trees, Parking, Plants) to add details to the model.
Result:

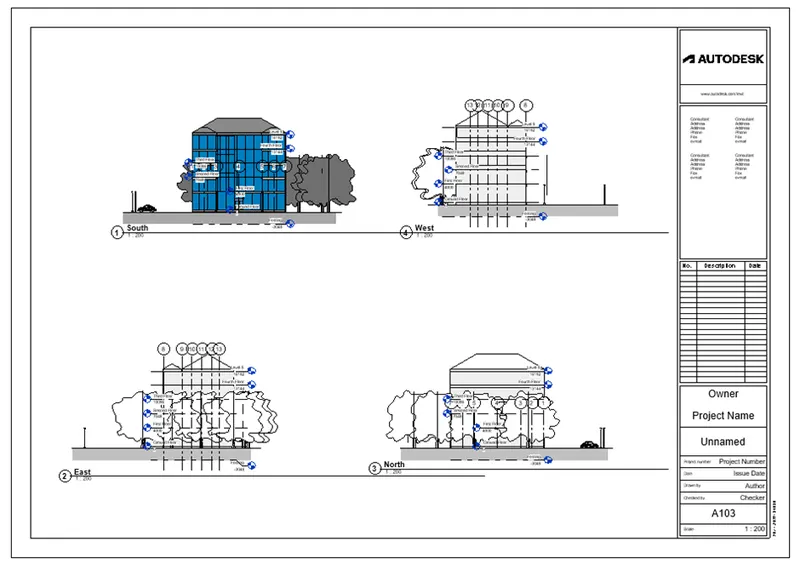

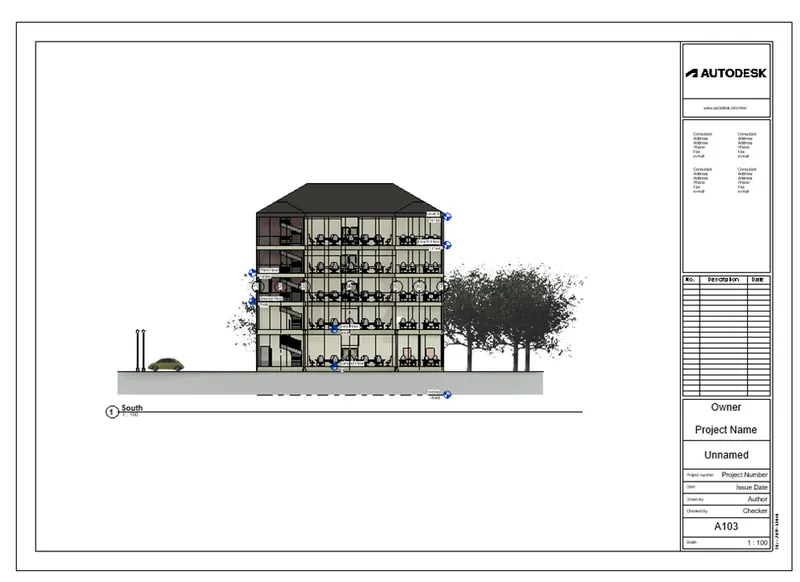

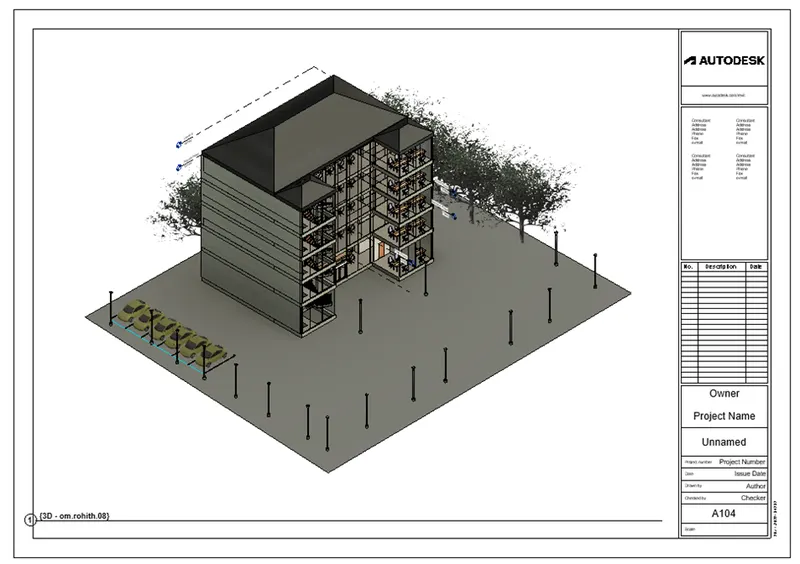

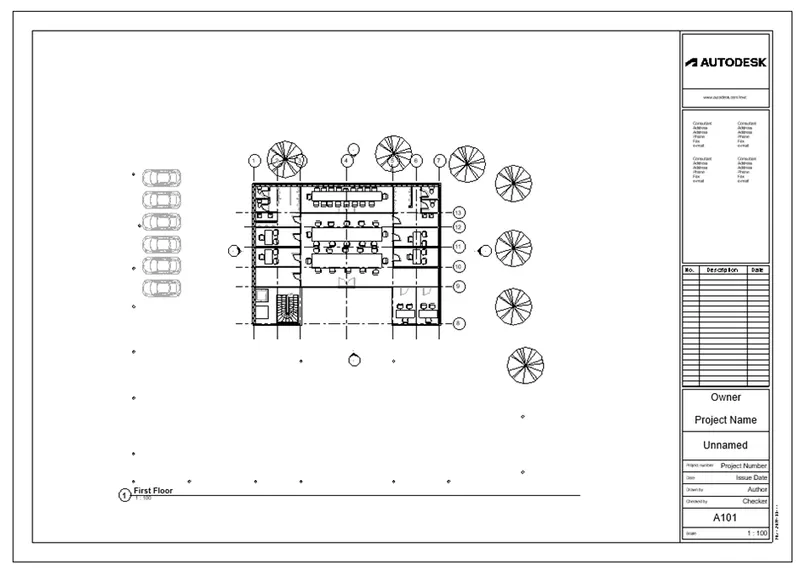

Q5) Provide a set of drawings in an architectural and structural model to list the following details with categories and appropriate sheet templates included

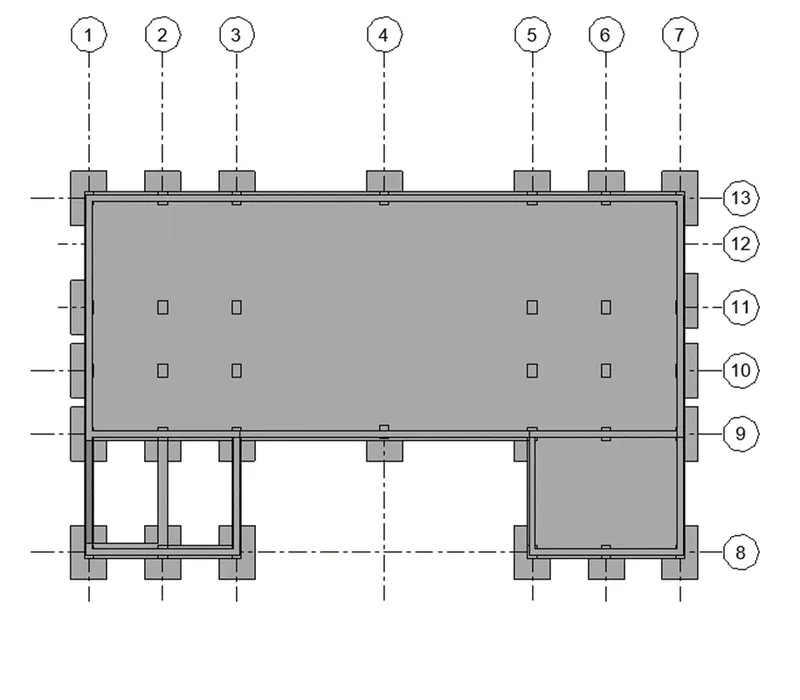

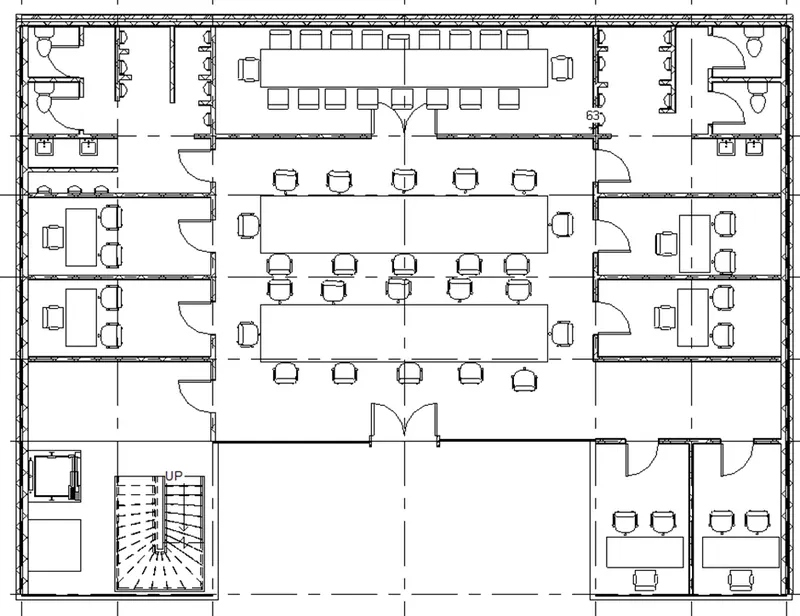

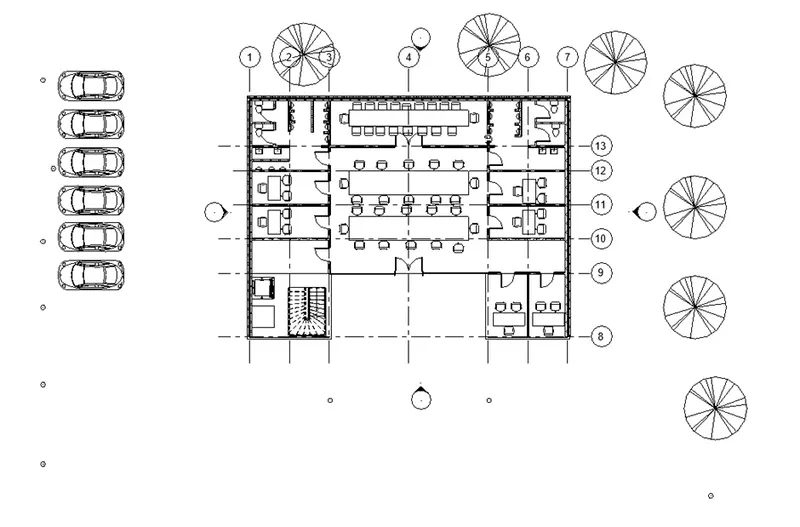

a. Floor Plans with Annotations

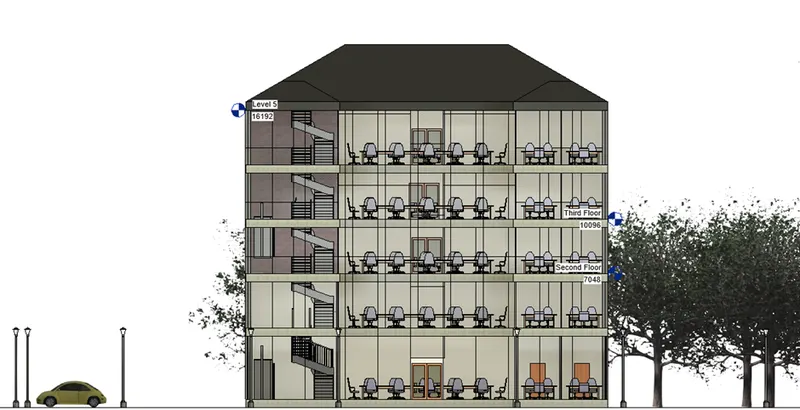

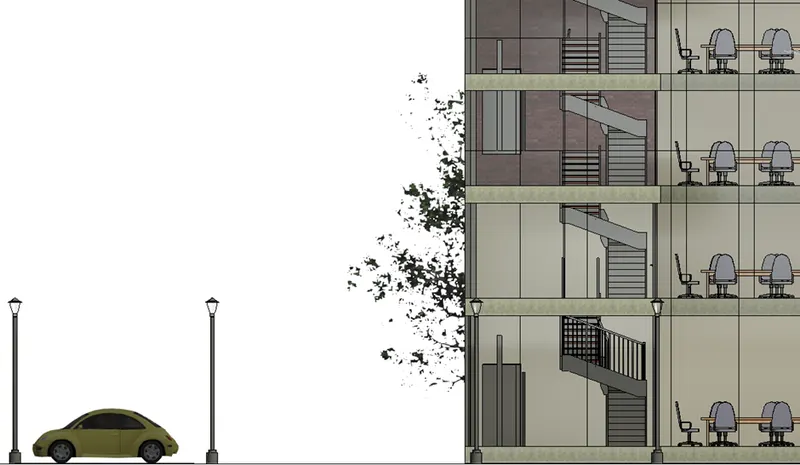

b. Elevations

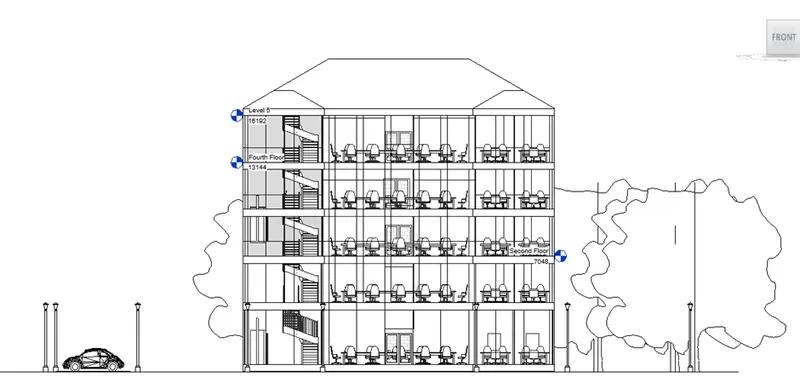

c. Sections
Answer:
AIM : To Provide a set of drawings in an architectural and structural model to list the following details with categories and appropriate sheet templates included
a. Floor Plans with Annotations
b. Elevations
c. Sections
Result:

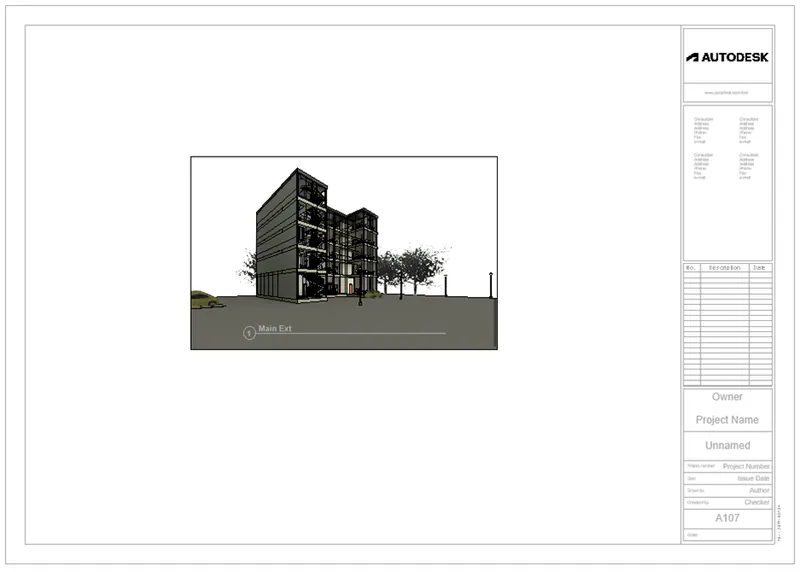

Q6) Using the Rendering settings, Render images of the 3D model produced and include the rendered images to the drawing sheets
a. Rendering from interior rooms
b. Rendering from out showing topographic features
c. Rendering through structural framing
Answer:
AIM: By Using the Rendering settings, Render images of the 3D model produced and include the rendered images to the drawing sheets
a. Rendering from interior rooms
b. Rendering from out showing topographic features
c. Rendering through structural framing.

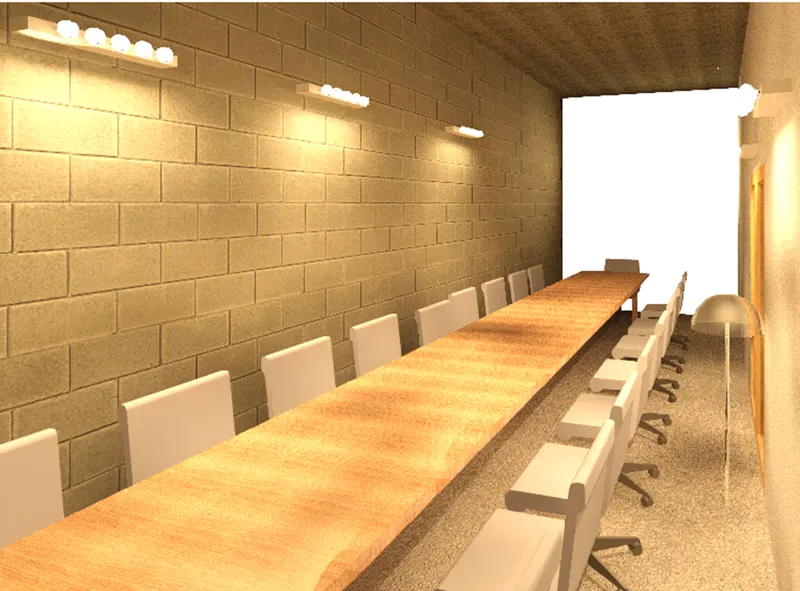

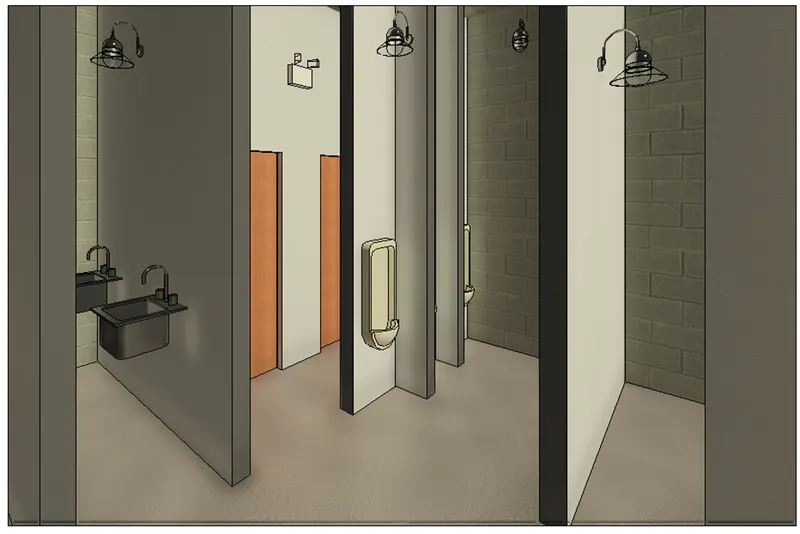

a. Rendering from interior rooms

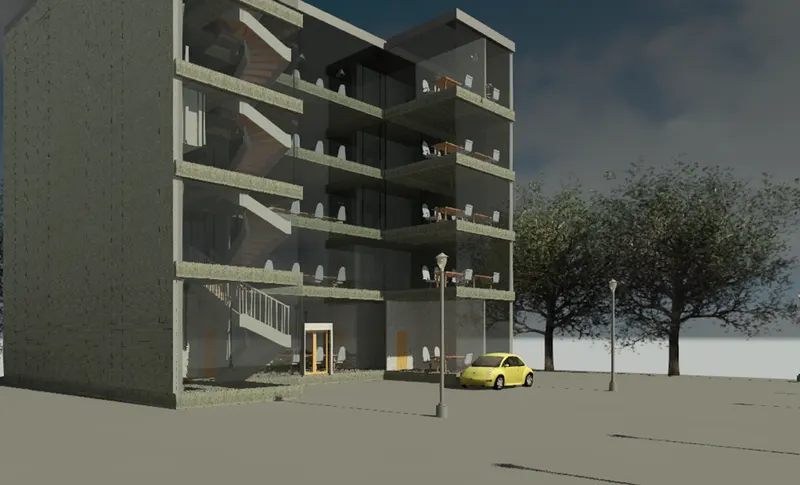

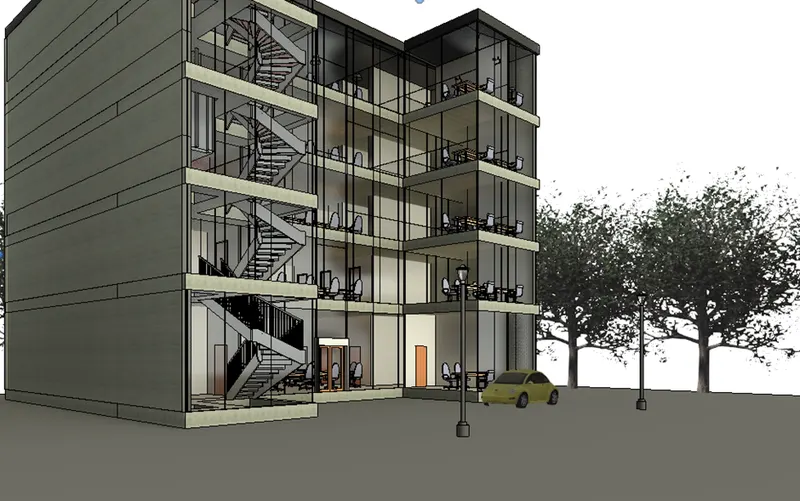

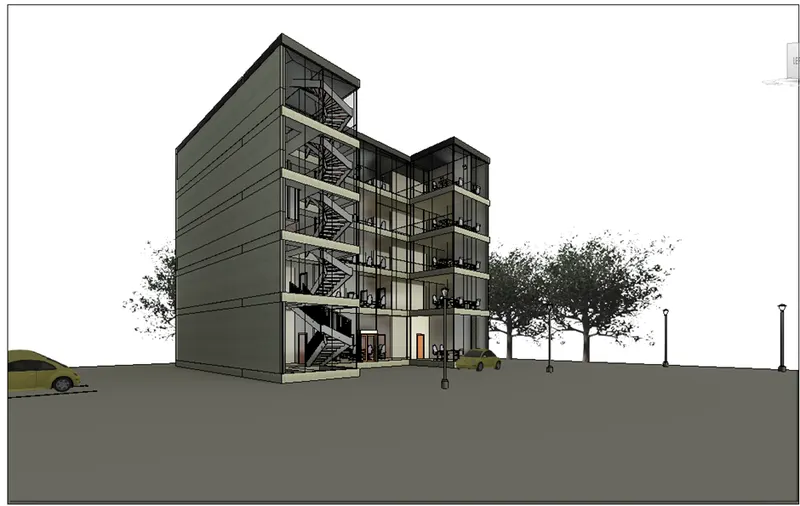

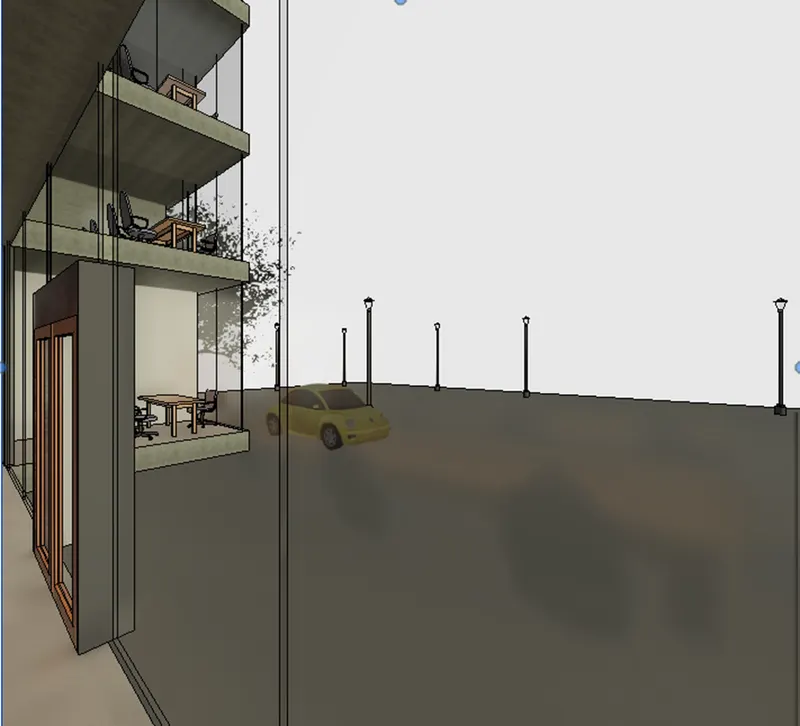

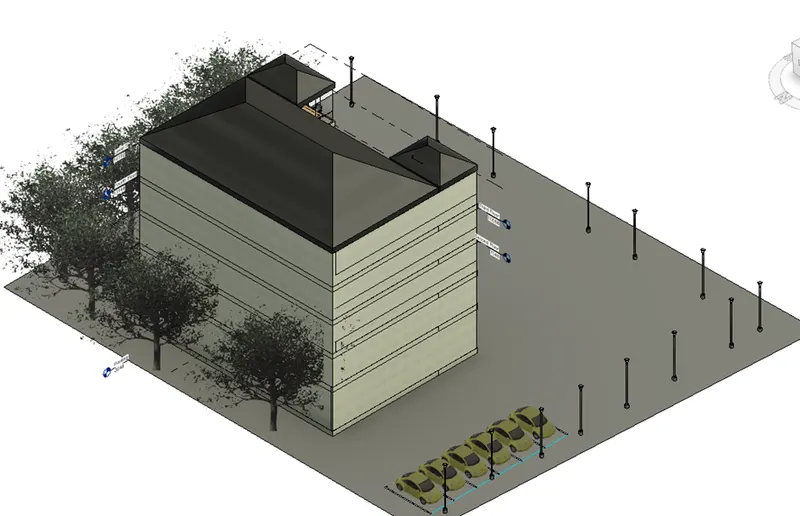

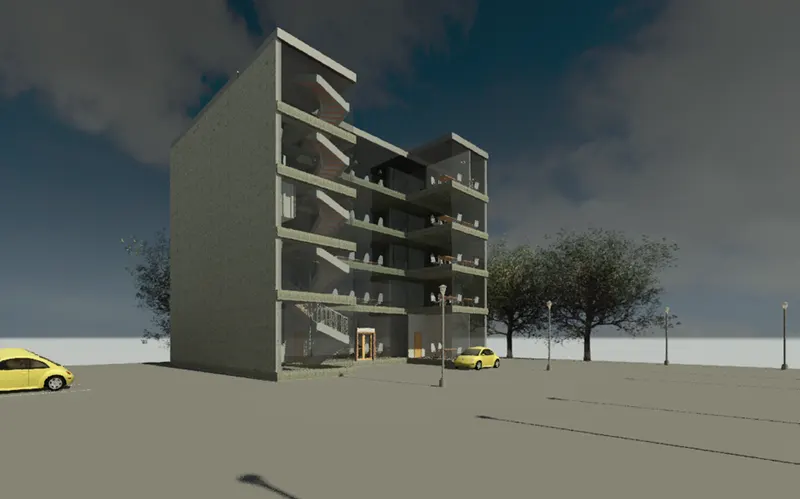

b. Rendering from out showing topographic features:

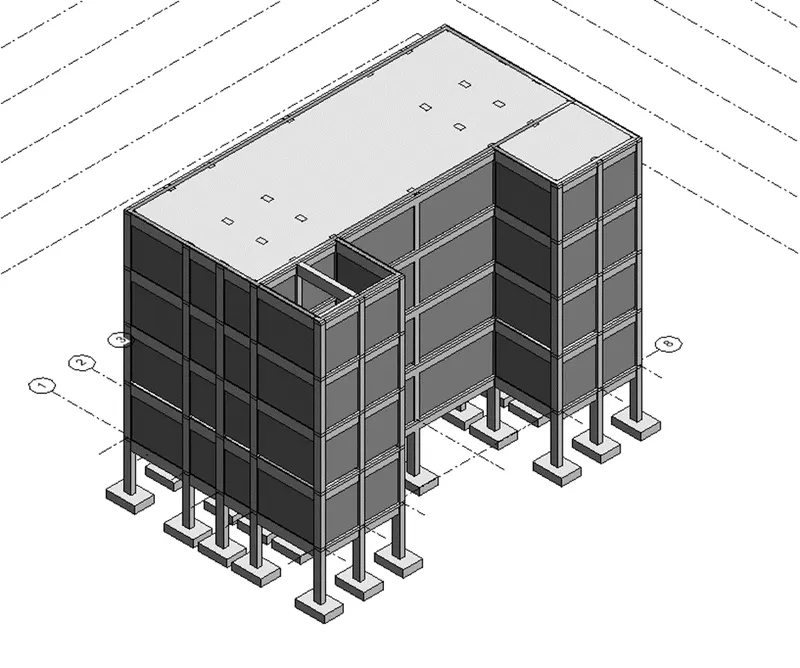

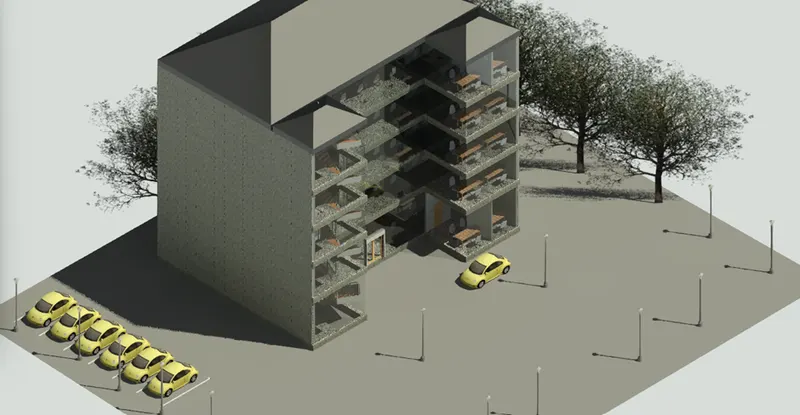

c. Rendering through structural framing
Q7) Print the set of drawing sheets created and submit the drawings from the architecture and structure model
Answer:
Aim: To Print the set of drawing sheets created and submit the drawings from the architecture and structure model
The different drawing templates can be printed. This can be done by going to the file menu in the top left corner of the revit window and in that choose print, then this window appears.
Printed Files are attached
