Creating Architectural and Structural model with 3D rendering using REVIT

1)

aim: the main aim of this question is to select model to creat

introduction: in this, i am gonna select one model and make the plan of it

procedure:

• from the given options in question, i am selecting school
• for the school, i am providing class rooms, staff room, labs,bathrooms,play area,etc,.

result:

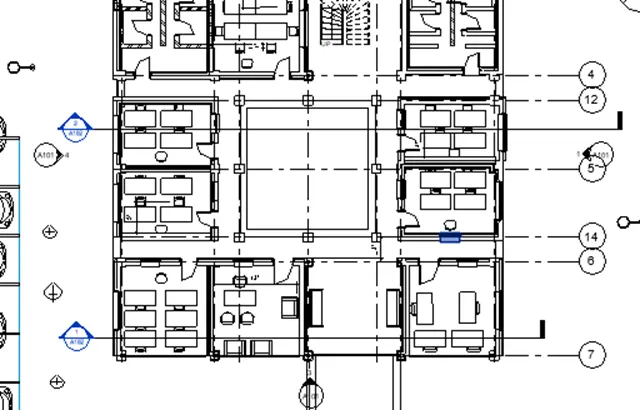

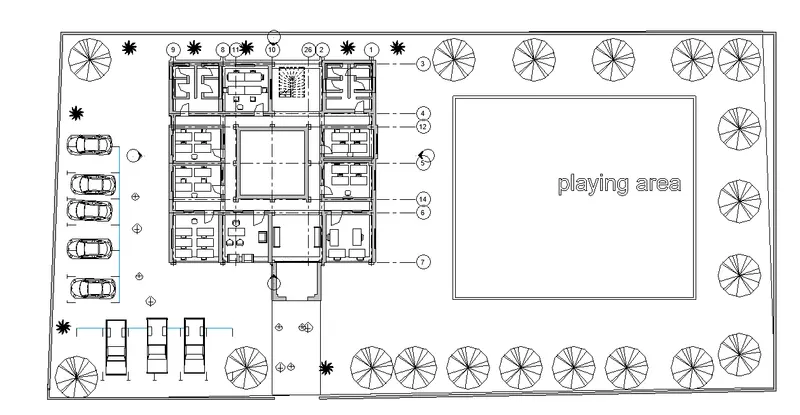

the plan is shown below

2)

• adequate space should be provided for each room such as class room, labs, etc,.
• class room area should be 600 sq.feet
• height of the room should be greater than residential i.e. 13-15 feet
• school should be free from external noises

3)

aim: the main aim of this question is to set the structural items to a school

introduction:in this, i am gonna consider the footings,beams, columns,floors,ceilings, floor openings for staircase and open to environment space,etc,.

procedure:

by using the school plan,

• making the grids
• making the levels as footings,ground level,first floor,roof.
• then using isolated footings option, the footings are laid
• then using column option, the columns are laid with connected upto roof level
• then using the beam option, the beams are laid at ground level,first floor level and roof level
• then using floor and ceilings options, those are laid.
• then using the shaft option, the openings are made for stair as shown below

result:

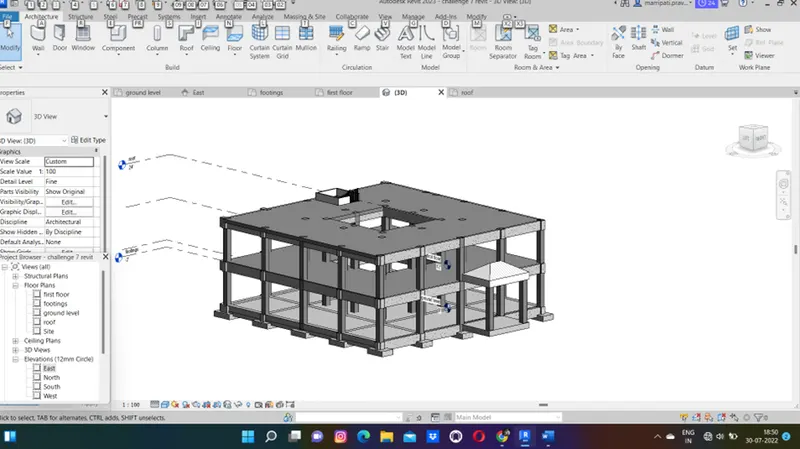

the model with footings,column,beam and ceilings is shown below

4)

aim:the main aim of this question is to provide the interior needs such as desks,chairs and tables etc,.

introduction:in this, for a school model, the necessery items to be placed are tables, chairs, lift elevators,

racks in library etc,. which are provided.

procedure:

• starting with the model
• taking plain finish for exterior and interior walls
• providing glass panel in front for better show
• providing all necessery items in class rooms using place a component
• also providing the play area, trees and parking areas as shown in the result

result:

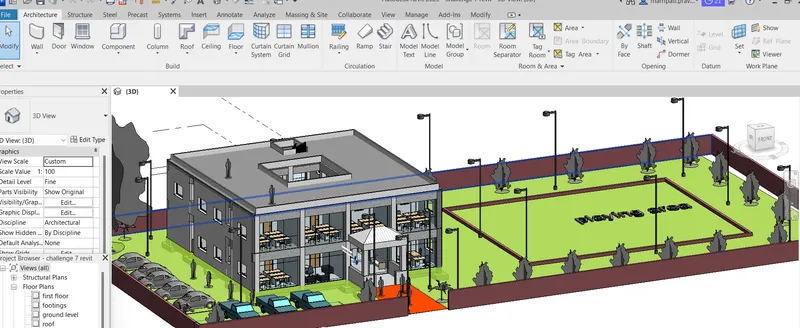

the result of the discussed procedure is as follows

5)

aim:the main aim of this question is to make sheets which having the elevations, floor plans and sections

introduction:in this, i am gonna use the sheets option to creat sheets. and i will drag the plan or elevation or section on to the sheets.

procedure:

• taking the model
• selecting the option sheet from view panel
• dragging the floor plan views, elevations and sections on to the sheets

result:

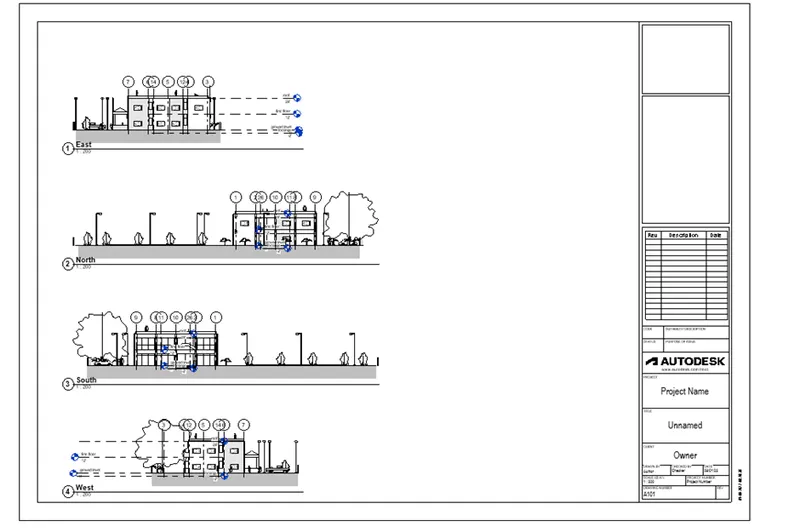

the sheets are shown below

6)

aim:the main aim of this question is to creat the rendered views on sheets

introduction: in this also, using the sheets option, the 3d rendered images are created on the sheets

procedure:

• taking the model
• using the rendering option, the rendering should be done for various views
• after that, taking the sheet, dragging the views on to the sheets

result:

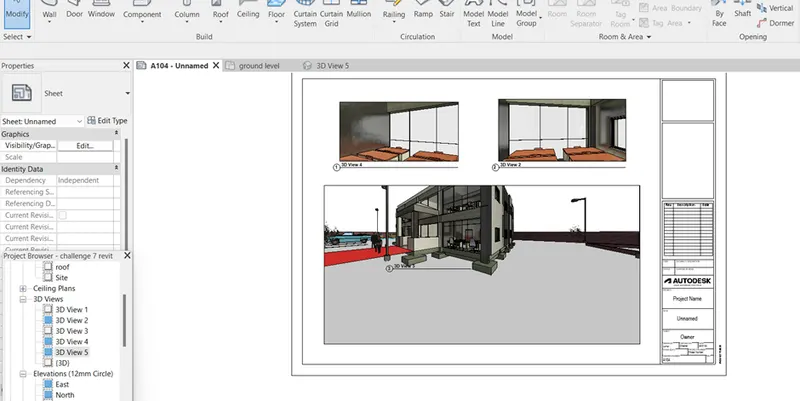

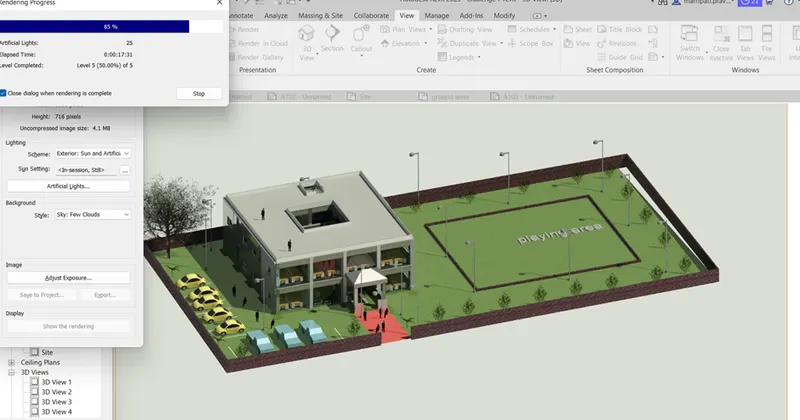

the rendered view are shown below

7)aim:main aim of this question is to make the pdf of different views

introduction:in this, selecting the individual or sheets views to take the printouts or make them to pdf's.

procedure:

• taking the model
• selcting the views which we need to take the print or download as pdf
• clicking the ctr+p in the keyboard to make the print or pdf

result:

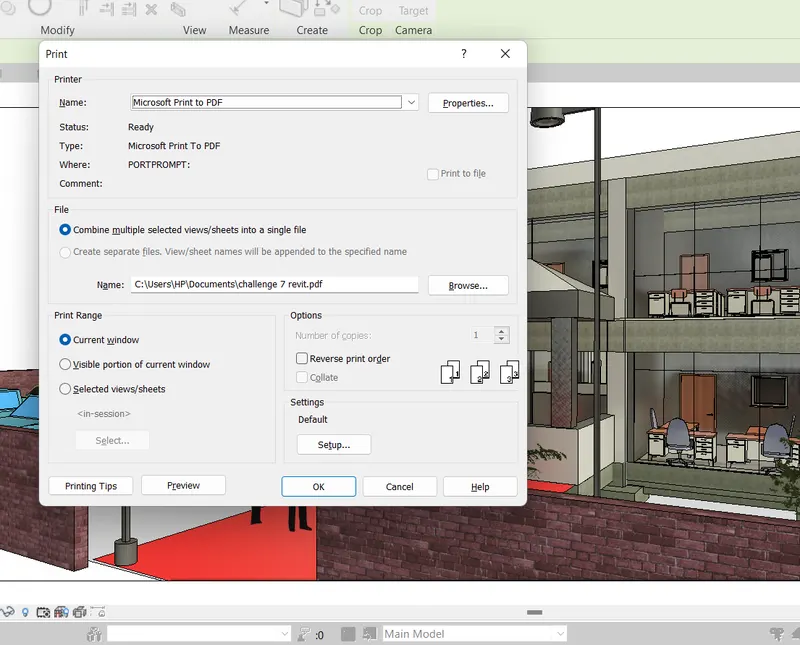

the pdf's or print should be done as follows
