Creating Architectural and Structural model with 3D rendering using REVIT

1. aim - to create the structure of a school building

open the new file of architectural template

create levels of required footing , first floor and second floor in the elevations

using the architectural template create walls in the ground floor up to first floor level

insertion of doors and windows in the walls by going to load family > select doors , windows > select the rquired once

and insert in the walls at required dimension and placement .

after insertion of doors and windows and creating floor

now in architectural tab go to ceiling and select the floor level and tick ok to create the ceiling

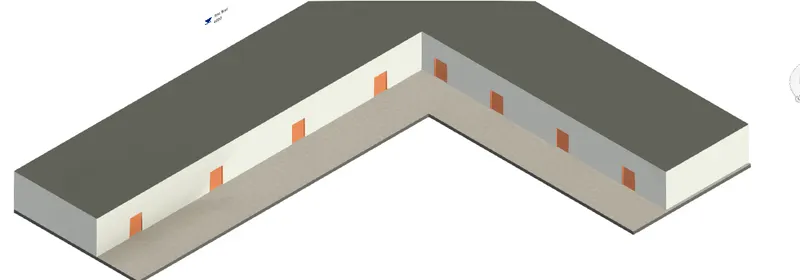

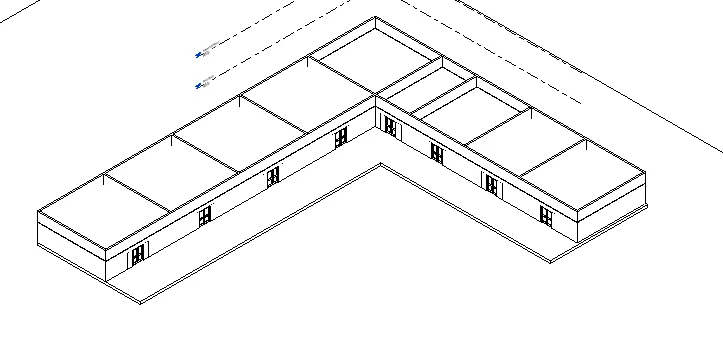

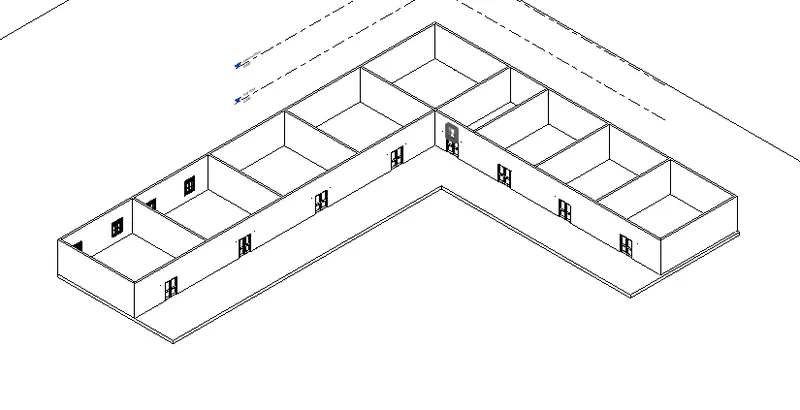

then in 3d view it looks like

and in realisitic view

and creating this craeting 2nd flloor by copying and selecting levels paste in 2nd floor level

second floor view from top

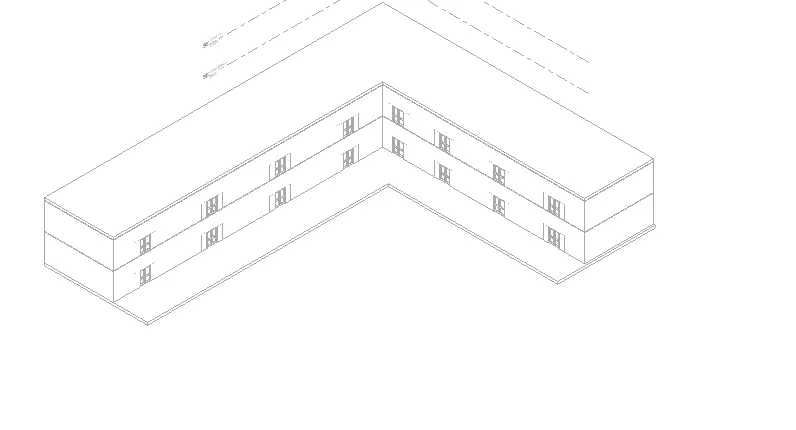

second floor view in 3d

creation of stairs by go in to architectural ab select stair and insert in the levels to levels required

create shaft upside for the openings of stairs .

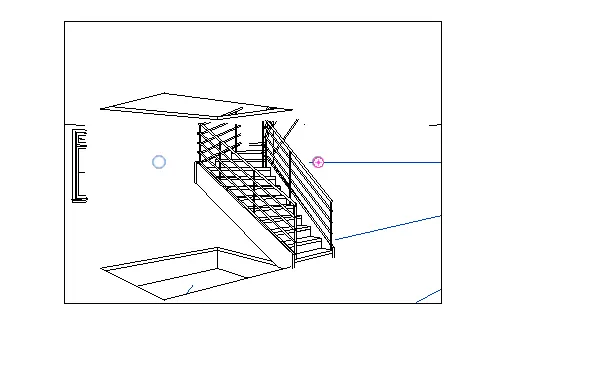

a 3d view created of stairs from first floor level to second f level.

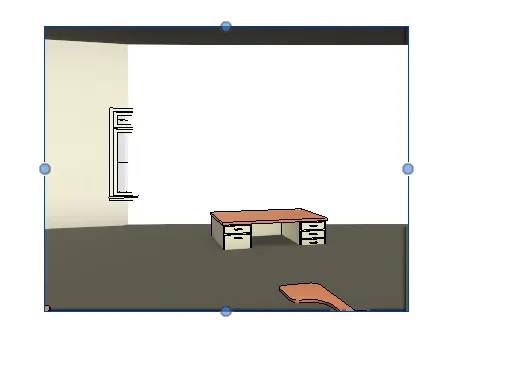

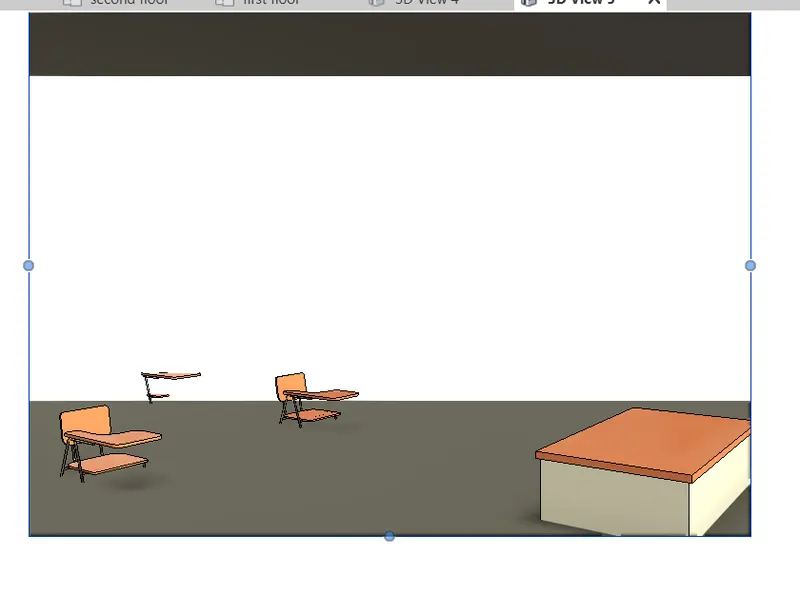

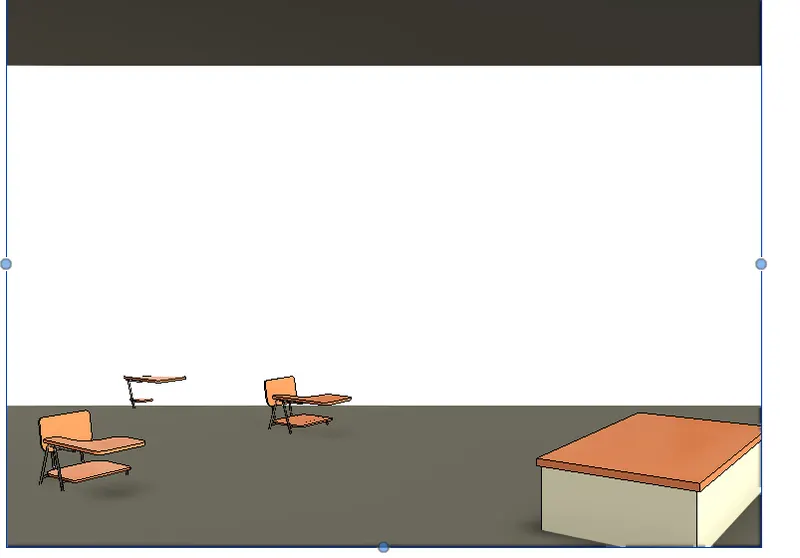

insertion of components like chairs tables etc - the view of ground floor level

creation of some railings from archit tab .

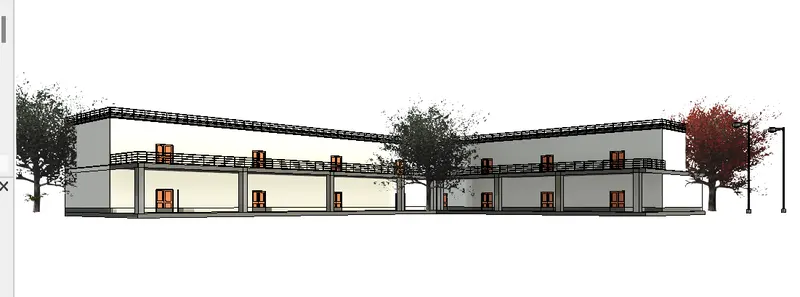

now some section view in 3d realistic

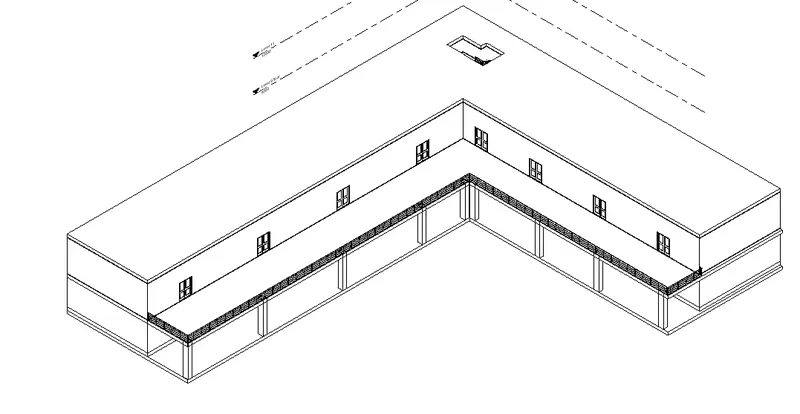

finally the 3d view of school building -

2. created according to NBC Norms and this is not a cold region .

3.aim to create the structure model of including

to create all these go to structural tab select the foundation or column or beams etc

and edit if required for your sizes then insrt according to grid and levels created .

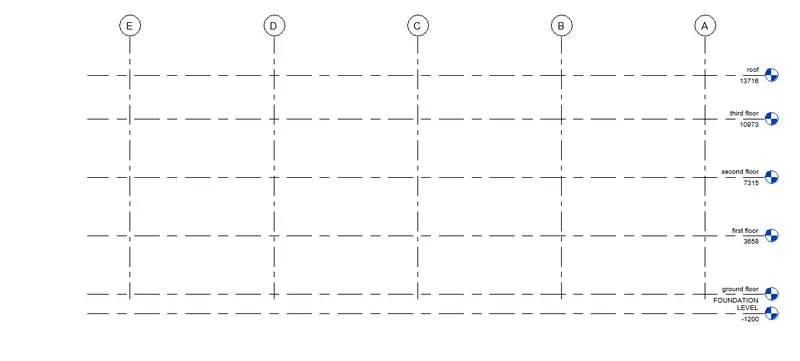

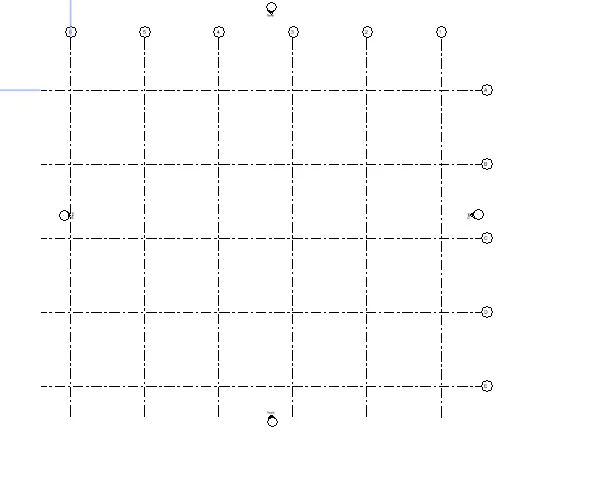

creation of grids

create some levels of foundation , ground, first , second and third

finally roof

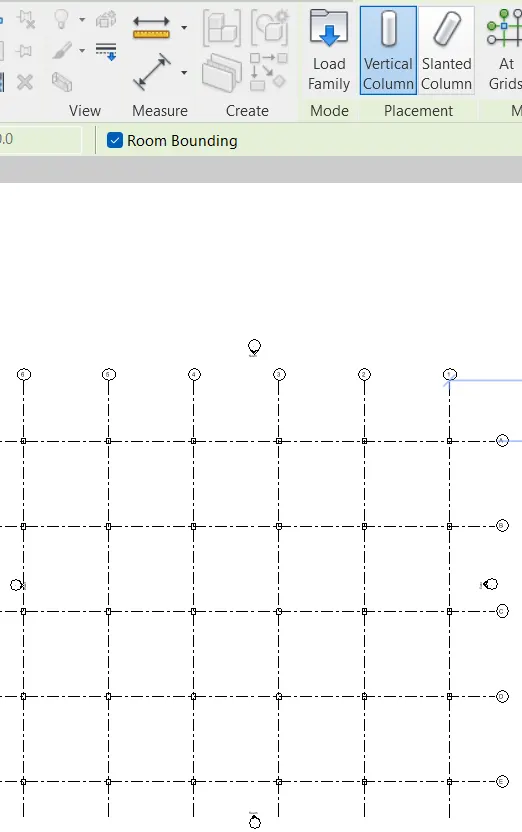

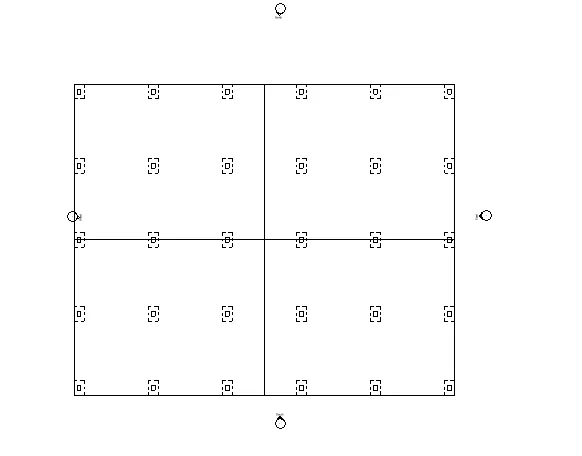

creation of columns

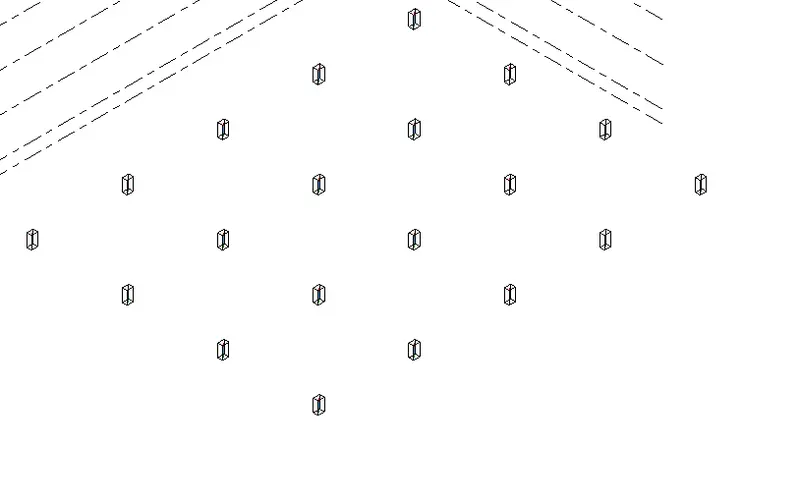

columns are inserted on the grids at required positions

foundations :-

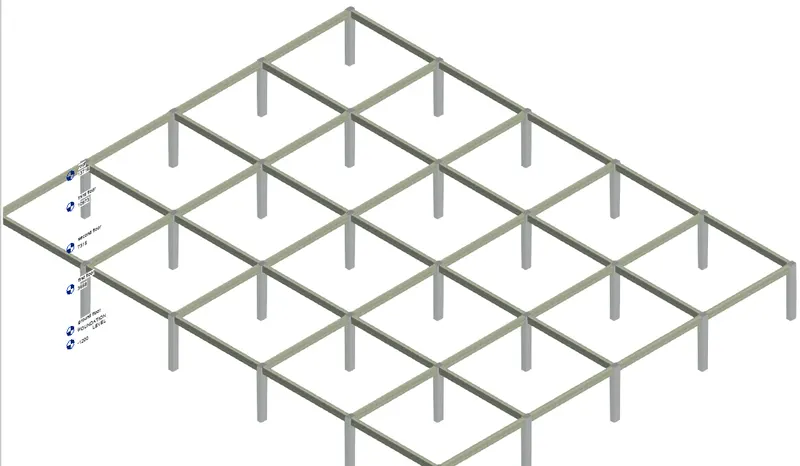

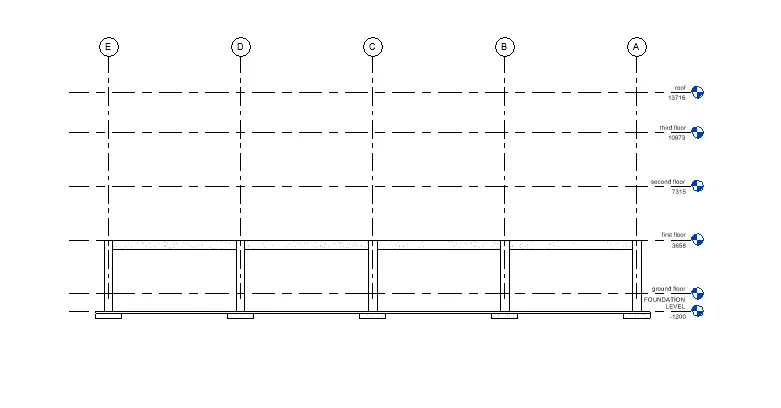

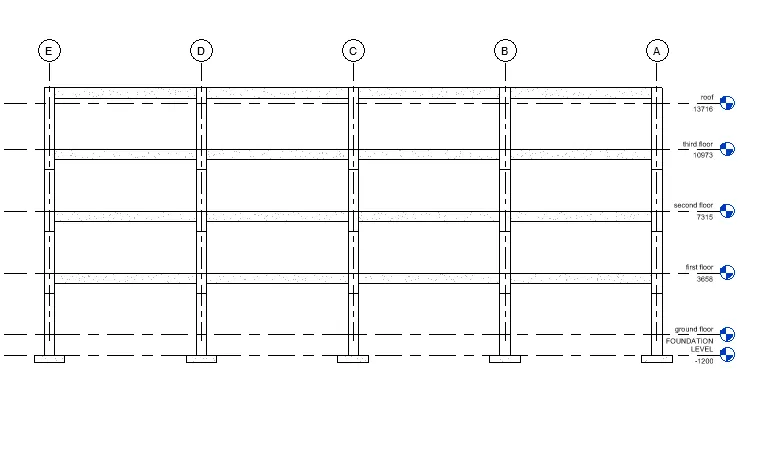

levels showind the foundation colums and beam insertion .

and insertion of roof , floor

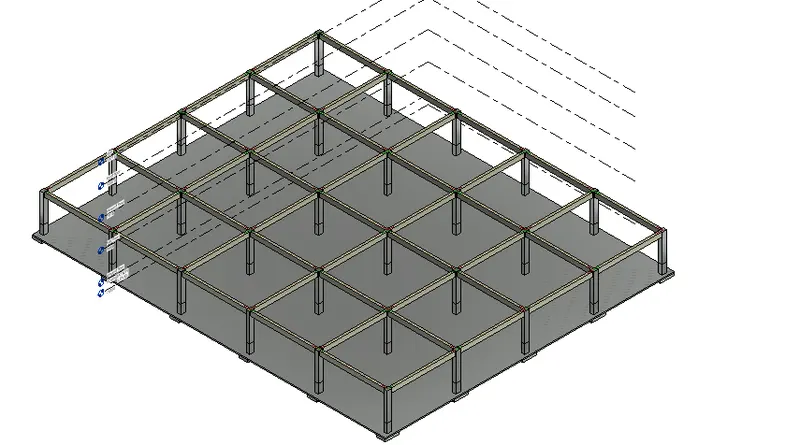

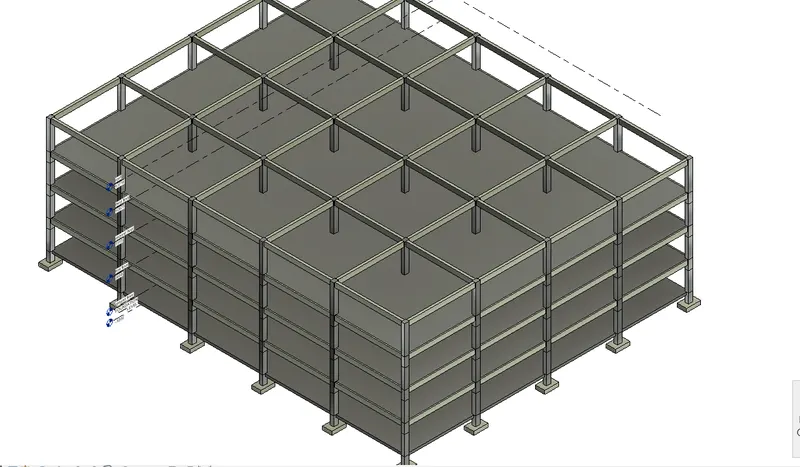

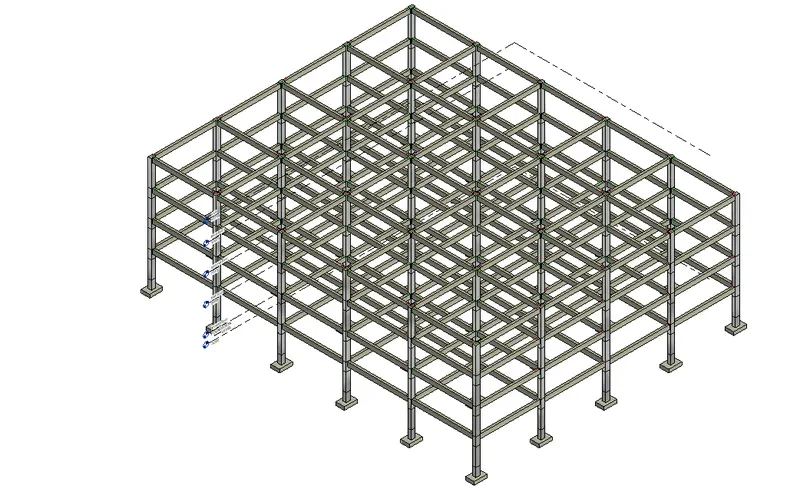

viewind now in 3d views of column , beams , roof and foundations

now copying and insertion in different levels of flooring

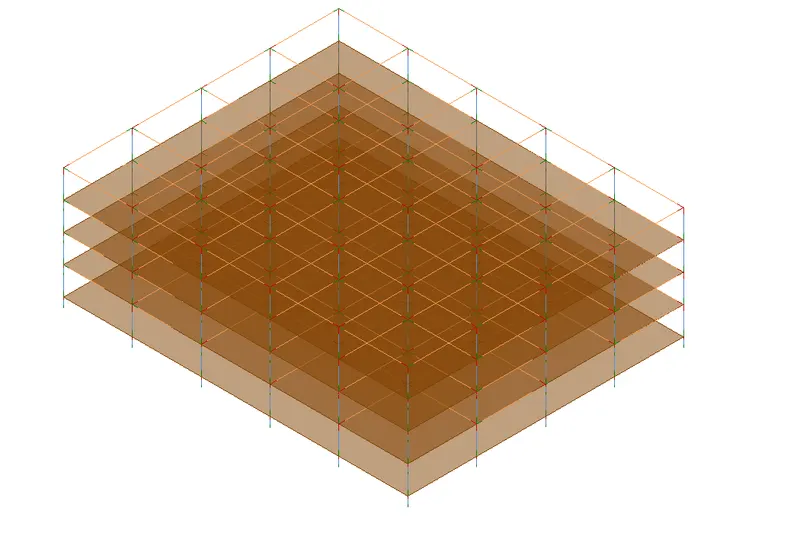

in analytical model

4.using architectural components included

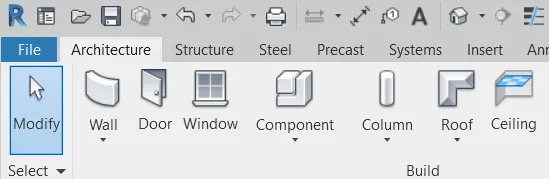

go to architectural tab > insert components > load family and inserted rquired at positions required

in 3d views

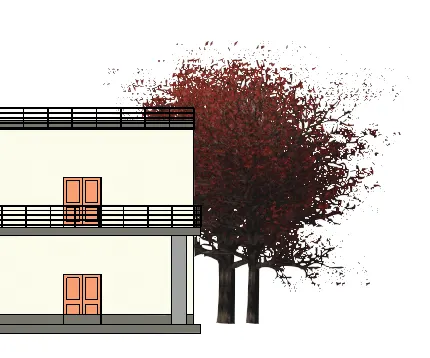

exterior wall look

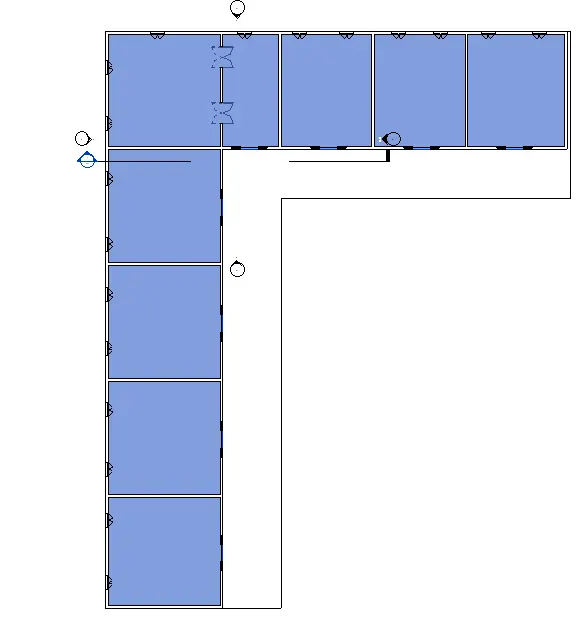

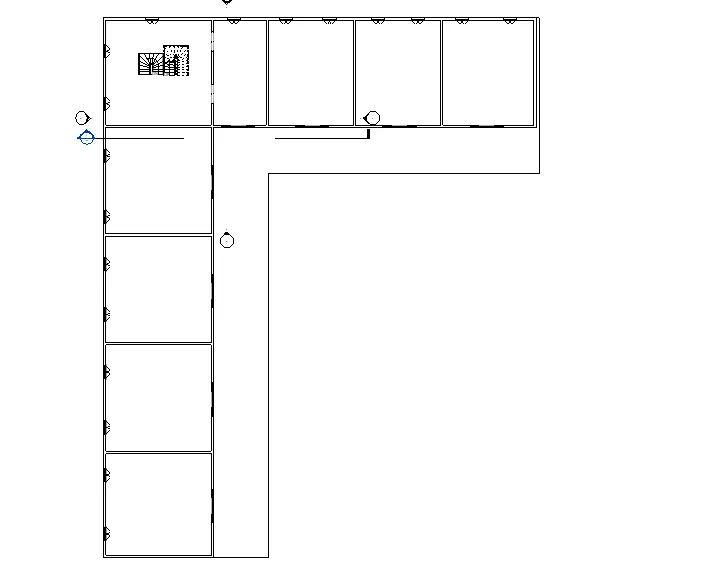

5.ploor plans , elevations and sections

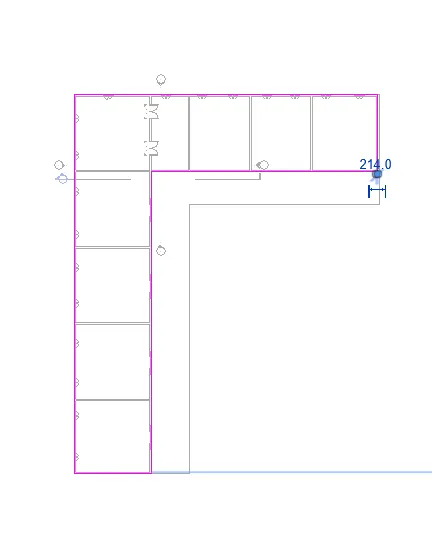

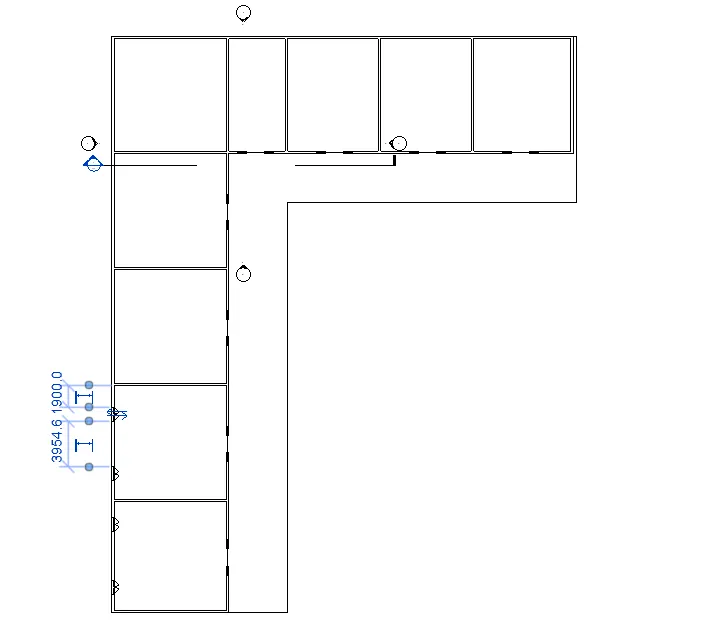

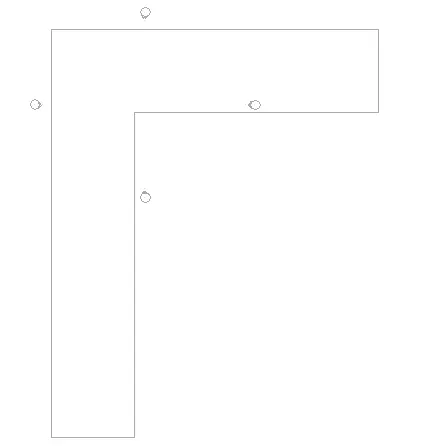

floor plan --

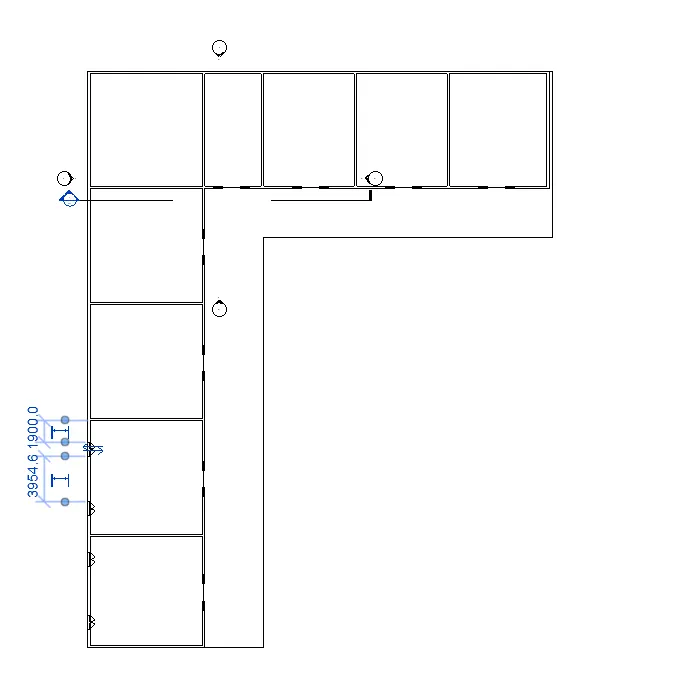

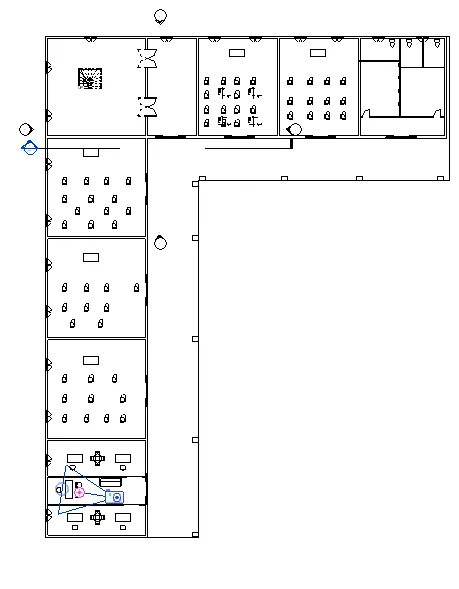

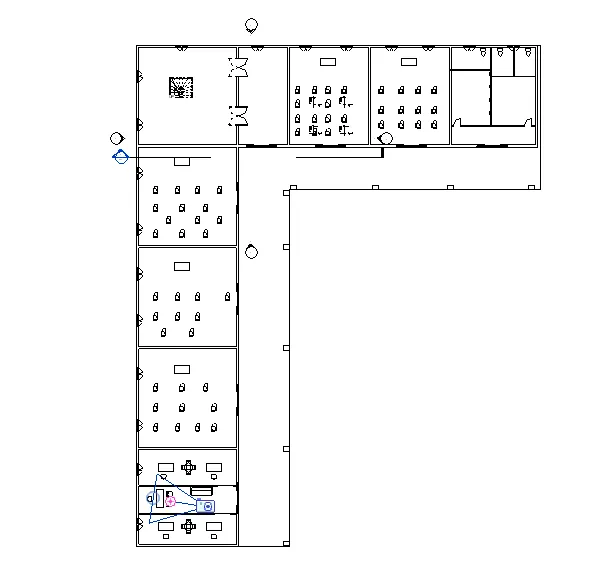

ground floor

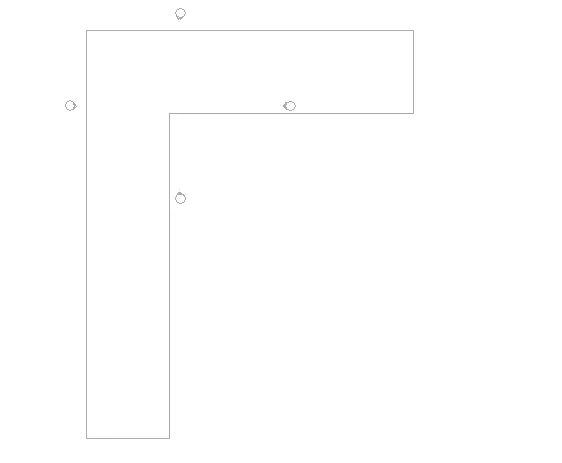

second floor level after creating ceiling

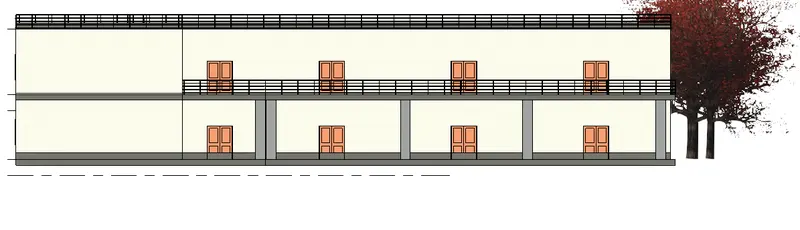

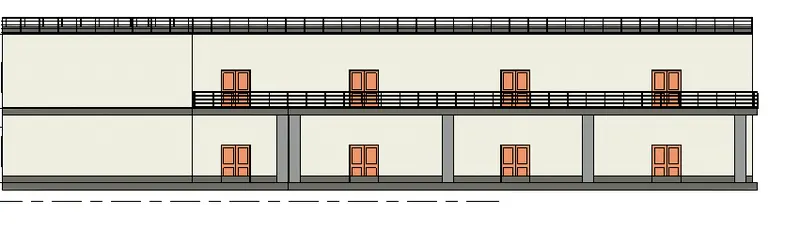

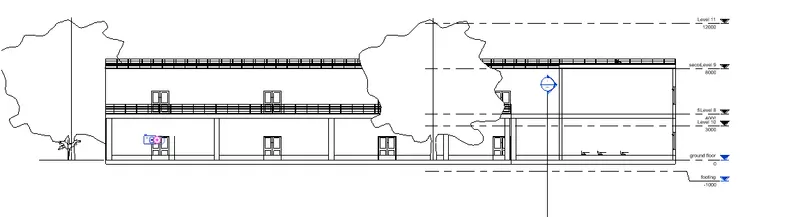

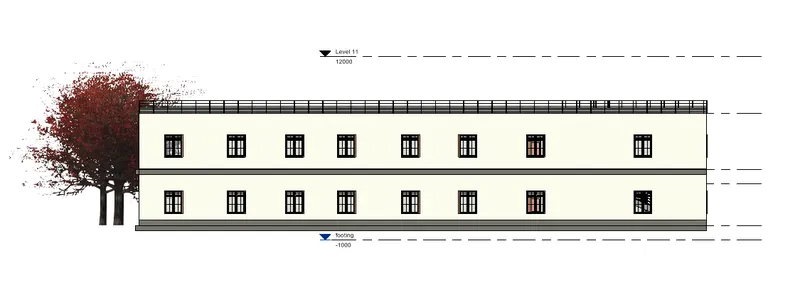

elevations --

east

south

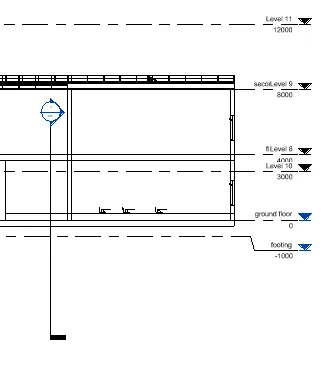

sections

--

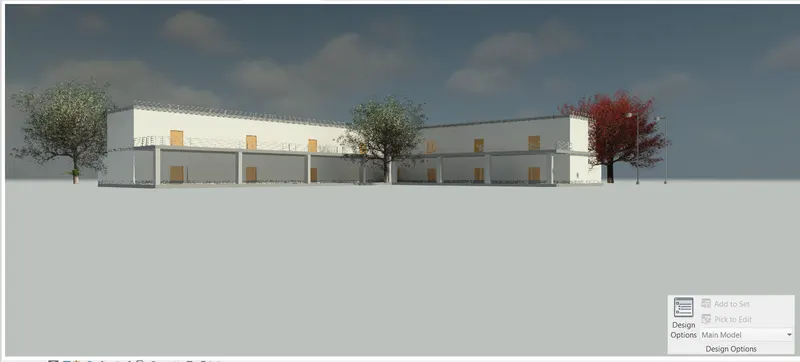

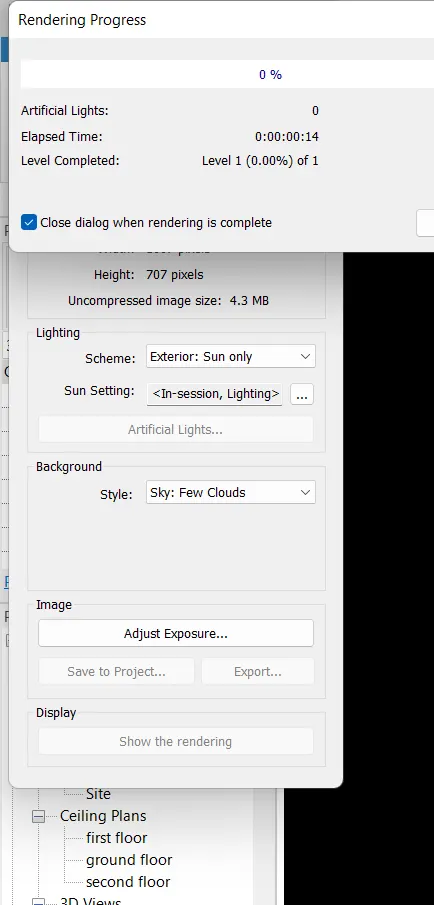

6. rendering

for rendering go to render select options click ok to render

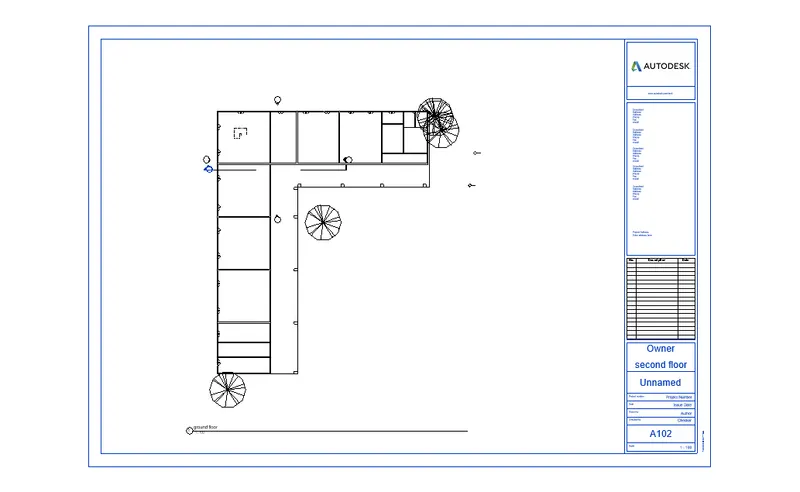

7. drawing sheets
