Creating a Residence Layout, Seating plan, Toilet and Utility room plan using AutoCad

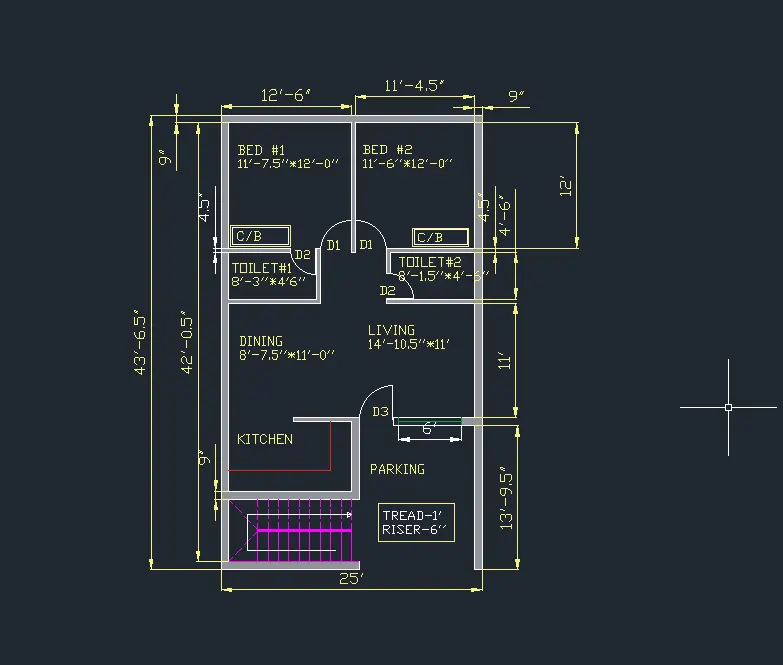

aim :- to sketch the layout of a residence

procedure :- by using the xl option and offset draw the outer wall of 9'' of length 12'6'' in x direction

and 43'6.5'' in y direction and trim the extra portions , and then draw the inner wall of 4.5''

by using line where required portions . then draw the doors of given required lenghts

and similarly window where required then finally draw the steps and mark by leader for

showing upwards and finally layer for difference for door, window ,outer wall , inner wall etc

result :-

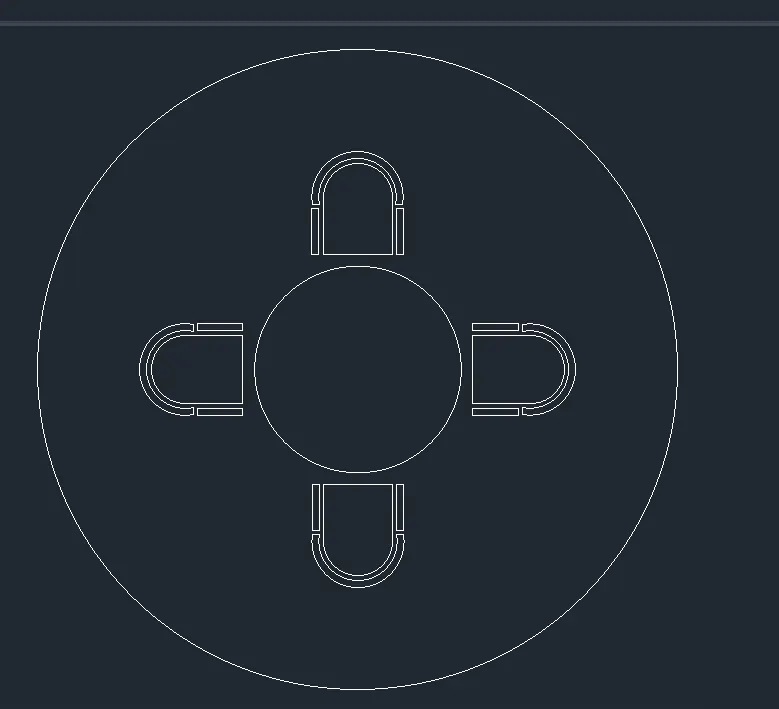

aim :- to create the out door canopy seating plan

pocedure ;-create the inner circle of radius R452

then create the outer circle of radius R1398

draw the seating diagram then using polar array of 4 offsets set the chairs of seating

in 360 degree over.

result :-

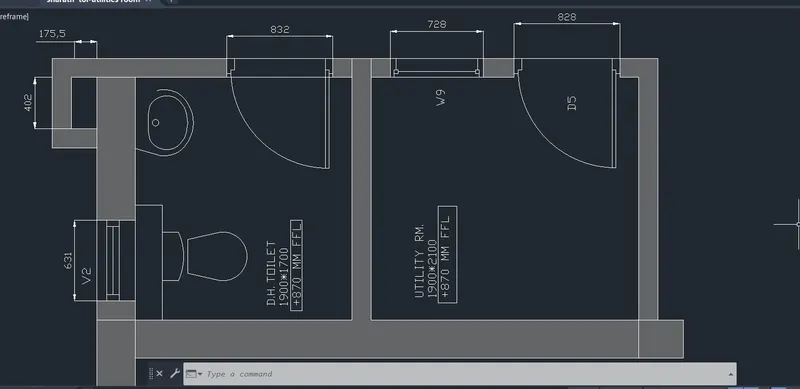

aim :- to draw the 2 rooms of dh toilet and utility room

procedure :- draw the outer wall of 300mm and inner wall of 150 mm

and drw the doors of lengths 828 and 832 and window insert of 631

then by using blocks insert the symbols and hatch the outer wall .

result:-
