Creating a Floor plan, Footing detail and Isometric view using AutoCad

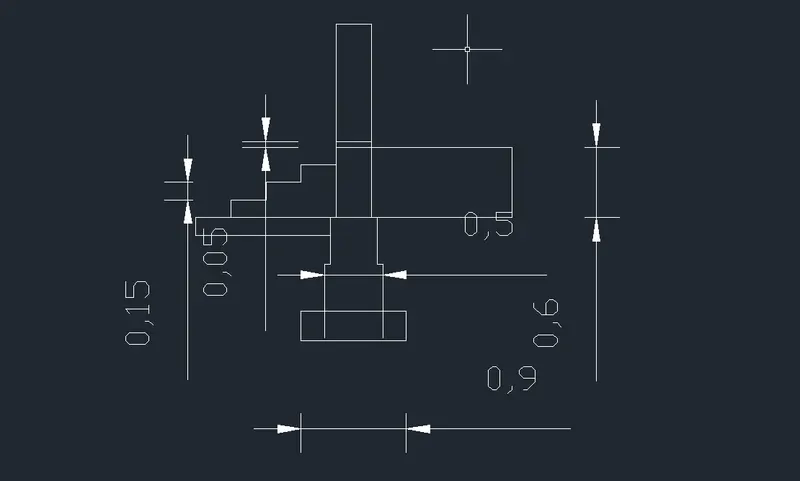

Aim :- to create cs of looad bearing wall

over the spread footing

procedure : first create a spread footing of 0.90 width and 0.25 height

by rectangular tool . upon which create the rectangle of 0.50 width and 0.40

height on the down footing similarly useing some tools of lines and calculations done for un knowns

and create a load bearing wall over the spread footing . and drawing the side steps bside the load bearing wall .

Result:-

Aim :- to create the cs of isolated footing

procedure :- to create the isolated footing by using the various tools of

offset ,using line , rectangular

result :-

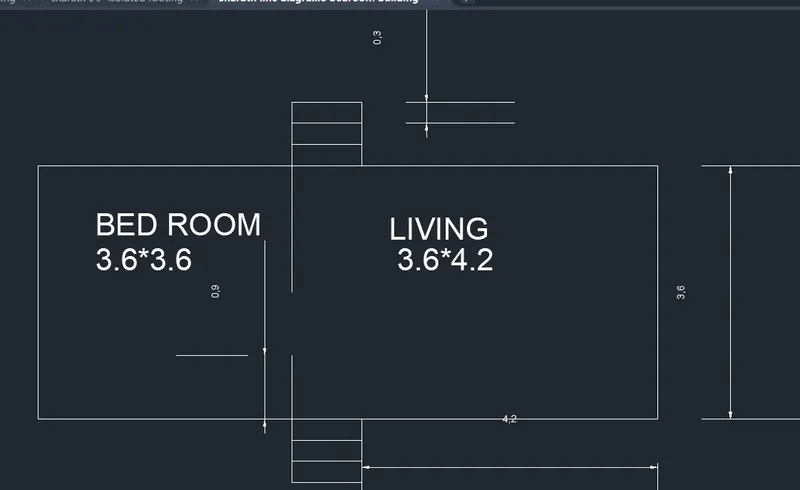

Aim:- to create the line diagram of a two bedroom building

procedure :-first by using the line tool create the 3.60 lengh in y axis and 3.60 in x axis

then from the down side rise a height of length 0.90 and similarly 1.80 from upside to down

then make offets of 0.30 length of 2 times and trim the extras then length the 4.20 on

either sides and close .

result :-

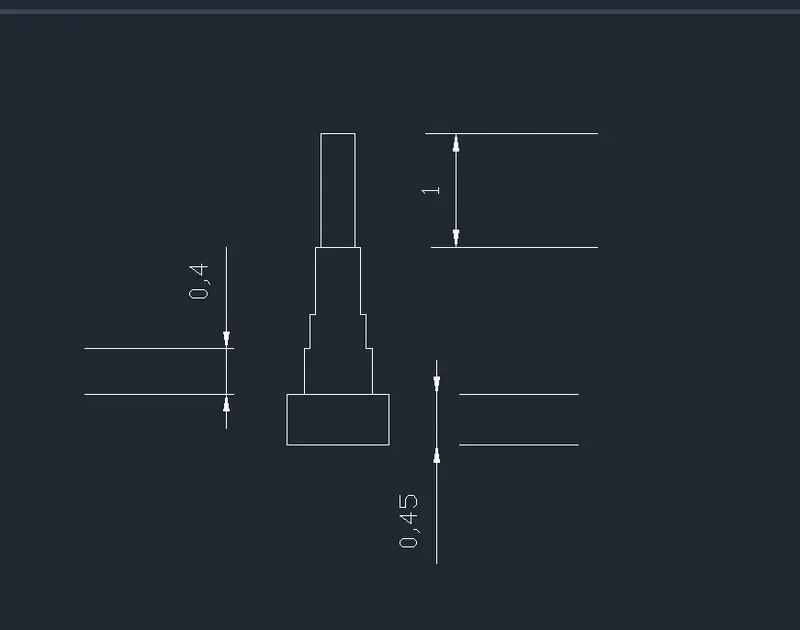

aim :- to create cs of load bearing wall showing foundation details

procedure :- create a rectangle of @0.90,0.45 upon which create similarl rectangles

of 0.50,0.40 placed at center and next 0.40,0.30 and trim the extras and finally 0.30in

width and 1 in length and close .

result:-

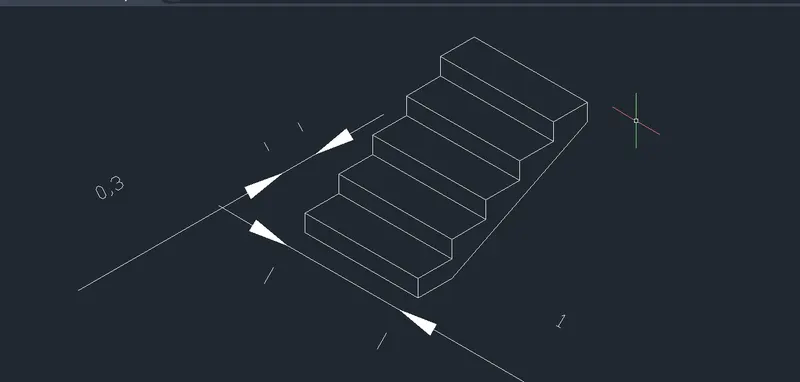

aim :-to create the isometric steps

procedure :- by using the iso tool creating the steps of 0.15 in rise

and 0.30 in tread and length of step by 1 .doing the one and offst

the remaing steps of 4 and the then close .

result :-

aim:- to create oisometric view of gable wall

procedure :- height 2.42 and width of 1 for door entrance and wall width of 0.30

by creating it by isoplane tool and remaing create by isoplane as required lenghts and close

at the top to proper view of gable wall

result:-
