Creating Architectural and Structural model with 3D rendering using REVIT

1 ANSWER:

I want to built Multi-Unit Residential Apartment from the given three types.

2 ANSWER:

Assumptions for geographic and location details are

I am assuming my project location in residential area ,Rajamundry.

1. There is a road with width of 40 feet abutting the building
2. The open space aroud the building shall not be less than 4.5 m
3. The plot size is taken as 50m*80m and individual floor area is 2300m^2m^2.

All are built according to NBC Group 1,2 and 3 i.e., for development,bulding planning and related aspects

                                                                          for structural design and related aspects

                                                                          for construction related aspects respectively

3 ANSWER:

AIM:The purpose is to create the structural model

PROCEDURE:

• Open the structural model created in previous challenge and the set the collaborate settings and save the model

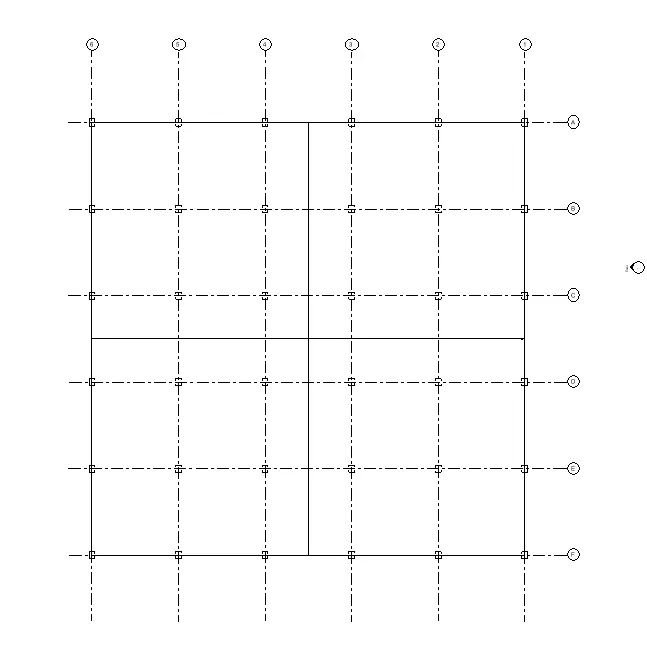

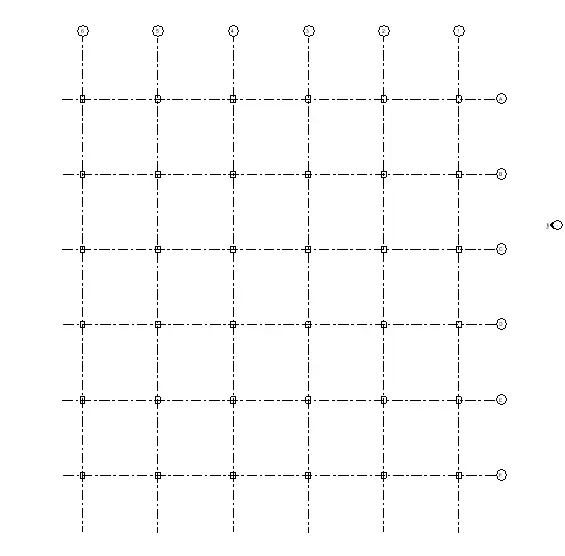

• Now draw both horizontal and vertical grids properly

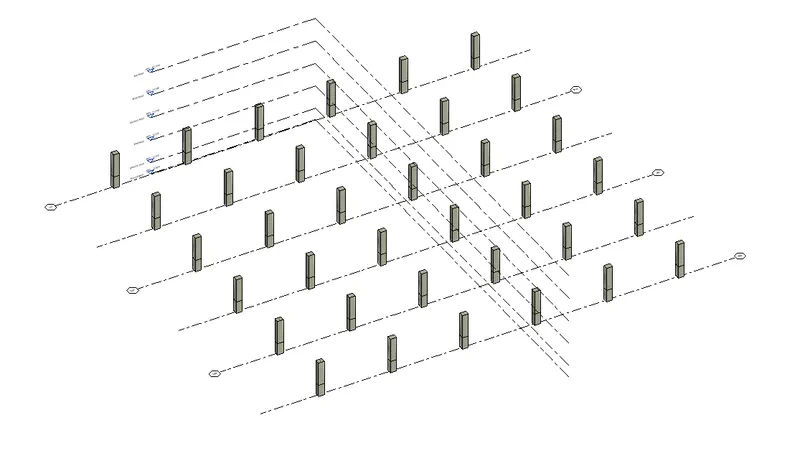

• Then click on columns and set them at the grids

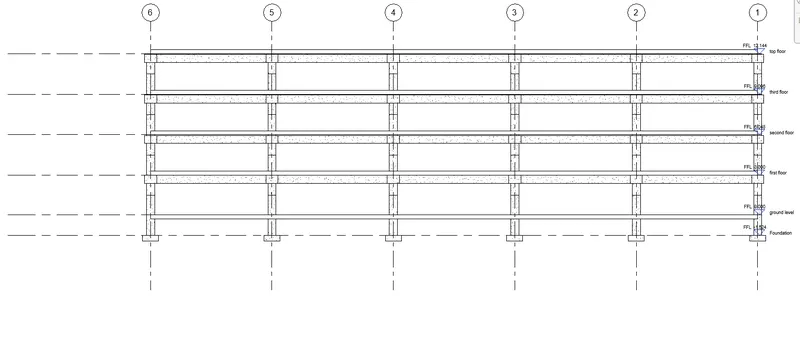

• Also set the levels as footing ,ground floor, first floor , second floor,..,roof
•
•
•
• The column sizes can also be selected from properties browser
• The constaints are set to selected levels .

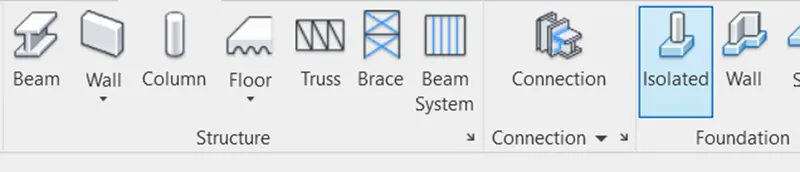

• Now click on isolated footing under structure tab and click on the columns to set the footing in foundation level
•

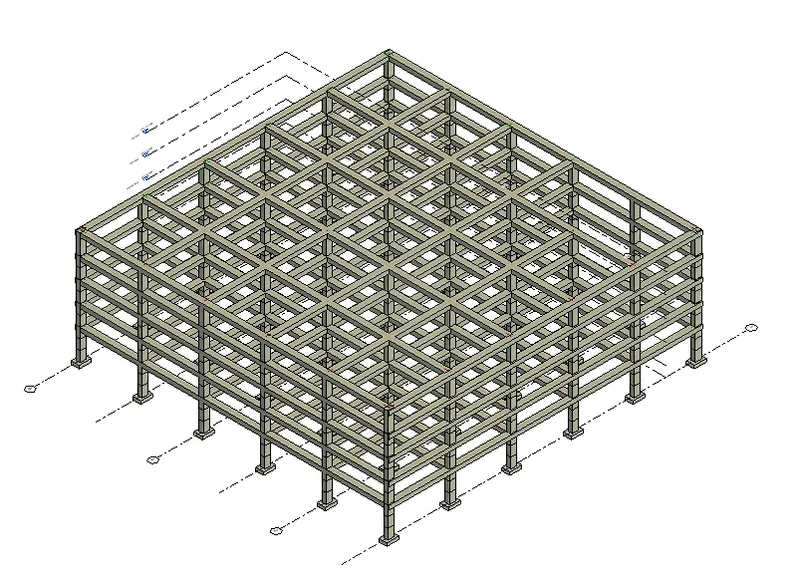

• Now click on the beams and draw them between the columns

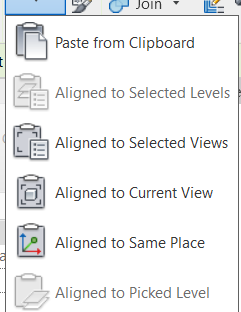

• Then go to the ground floor view draw columns and beams and use copy paste option to copy them to selected levels
•

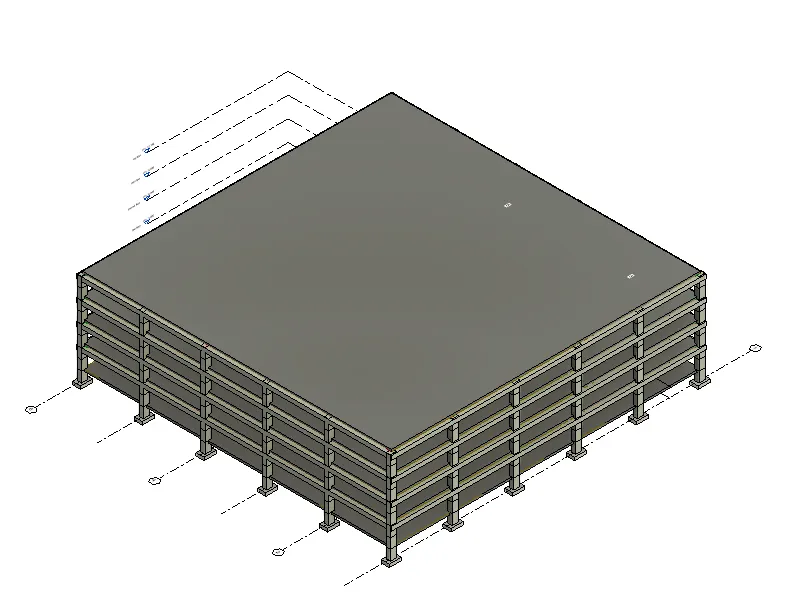

• Click on floor and draw the floor in ground floor and copy them to the selected levels
•
•
• Trusses can also can be added to the model by clicking on truss and truss system,similarly beam system and brace

RESULT:Hence structural model is created

4 ANSWER:

AIM:The purpose is to create architectural model

PROCEDURE:

• Open the architectural tab that is created in previous challege
• Set the collaborate settings in architectural model
• Now click on architecture walls and add walls to the layout created .
•  Change the wall properties and their visibilty from properties tab to set a fancy finish
• Copy the grids of structural model to architectural model and aslo copy levels of structural model to architectural model
•

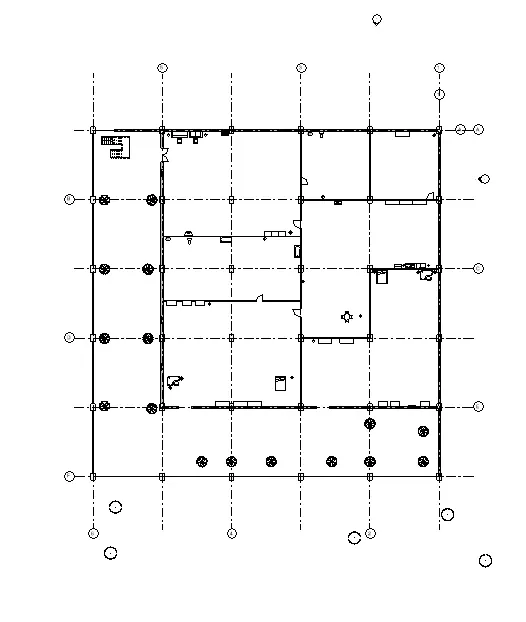

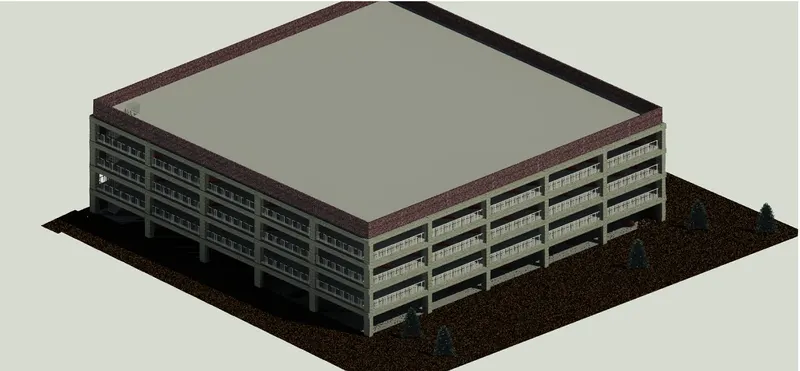

• Select ground floor view and draw the walls ,windows add partition walls and draw internal rooms and all the other components and copy them to other levels
• Also add  plantings to make the model look fancy
•

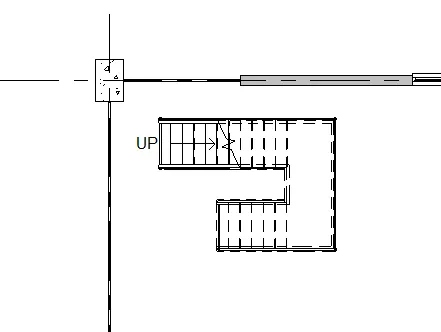

• Draw the stair case in 1st floor and connect it to other levels and click on wall openings and draw them to set the openings in staircase
• Create shaft opening and set curtain walls around stair case to get fancy finishes
•
•

RESULT:Hence architectural model is created

5 ANSWER:

AIM:The purpose is to add Floor plans ,Elevations,and secttional views to sheets

PROCEDURE:

• Select view tab and click on sheets and create new sheet
• Now set the sheet properties from properties browser or from sheet itself
• Then right click on the sheets from properties browser and click on add view and select the views that need to be added
• Similarly crete new sheets and add necessary views to them as shown
•

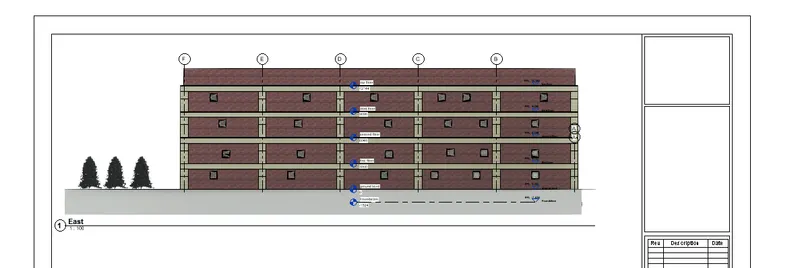

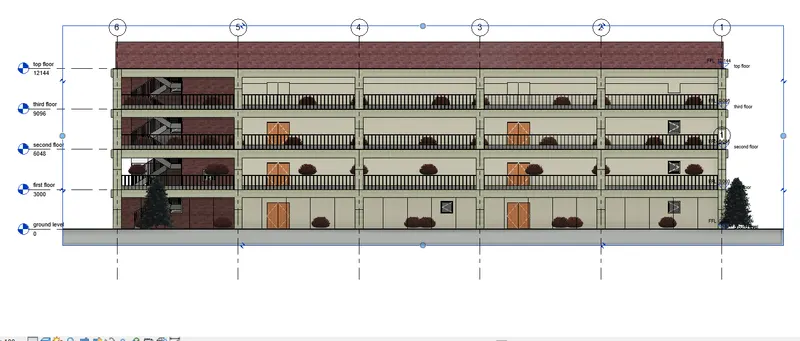

• East elevation
•

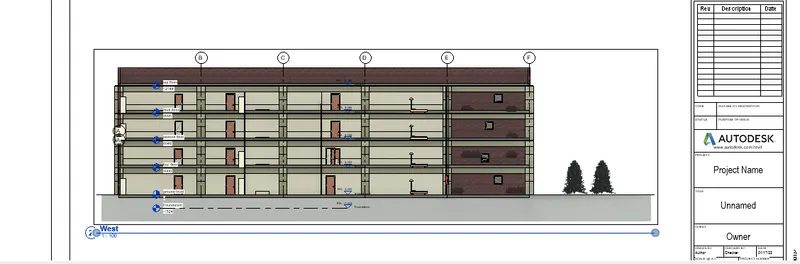

• West elevation
•

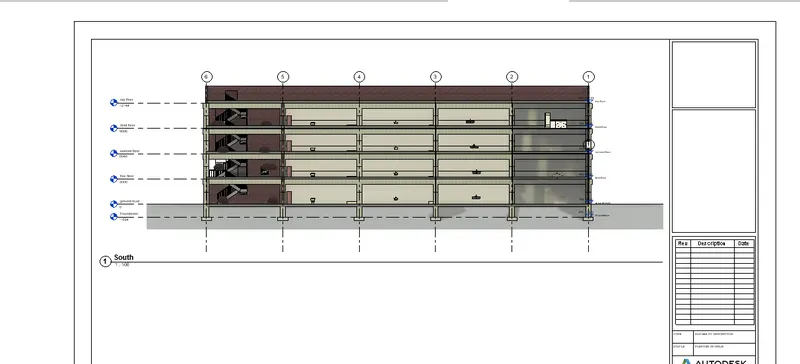

• South elevation
•
• North elevaton
•

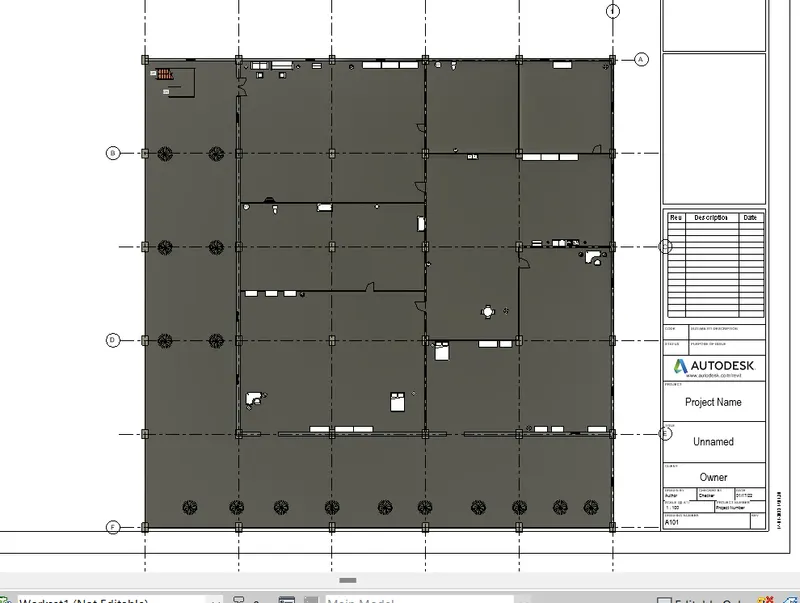

• Sructural plan structural
•
• Structural plan architectural
•

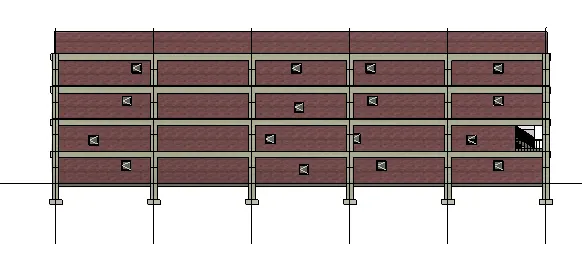

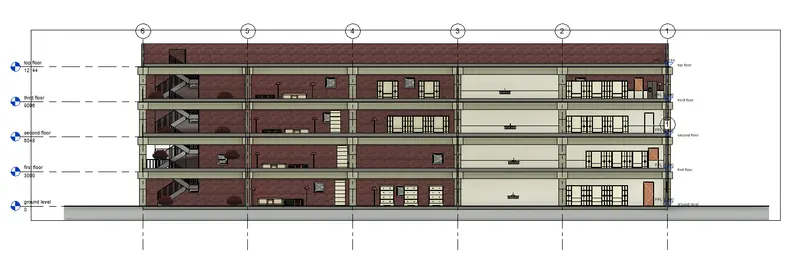

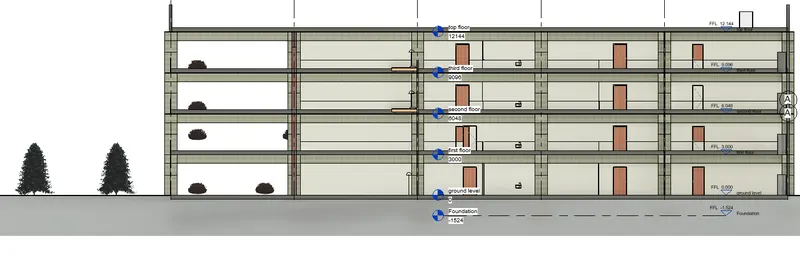

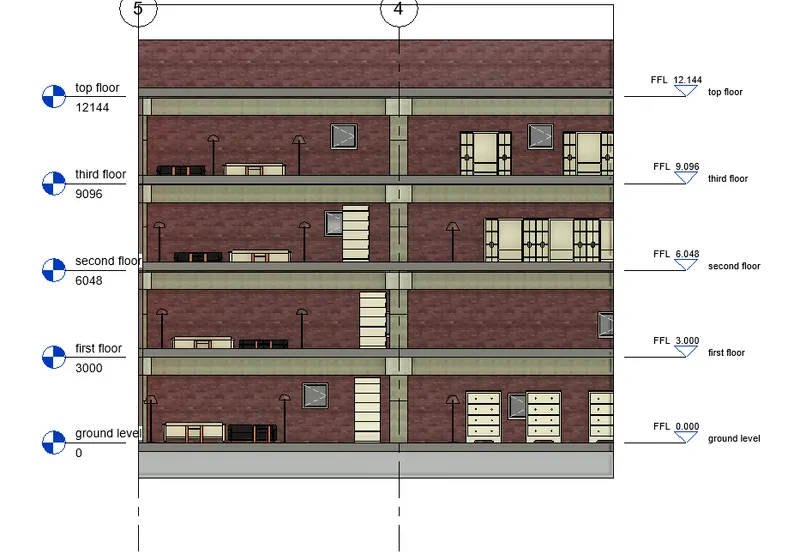

• sectional view-1
•
• sectional view 2
•
• sectional view 3

RESULT:Hence  Floor plans ,Elevations,and secttional views added to sheets

6 ANSWER:

AIM:The purpse is to add Rendered views to our sheets

PROCEDURE:

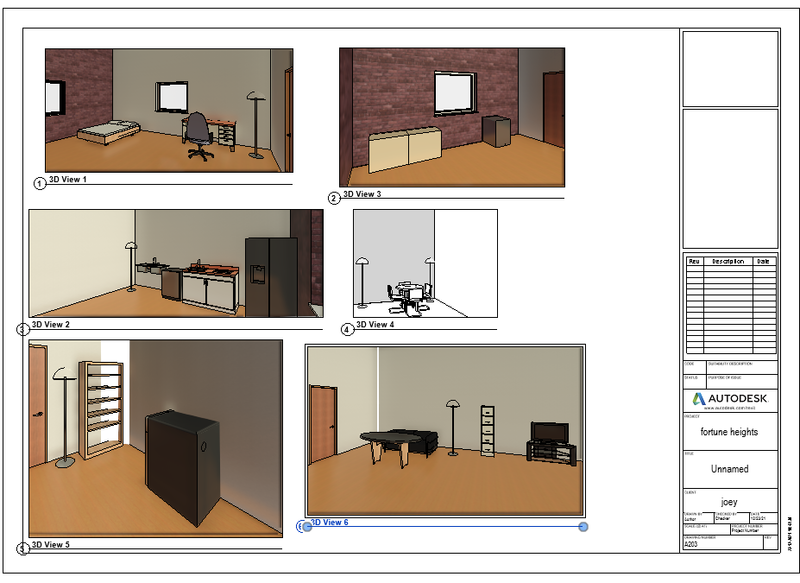

• Select view tab click on camera in 3 d view
• Place the cameras in different rooms

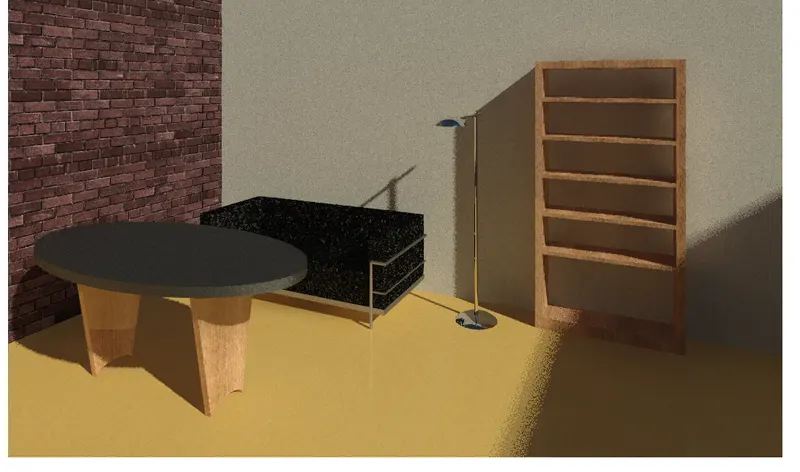

• Now go the respective view and render the views and add them to sheets
•

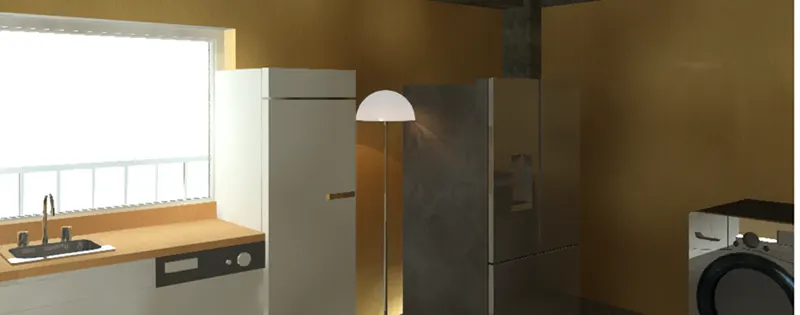

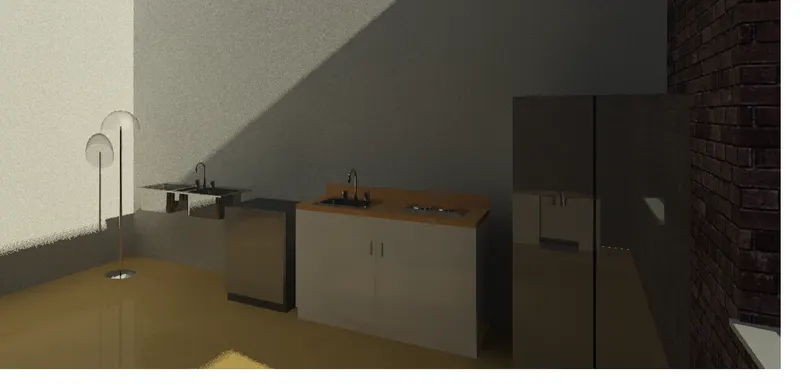

• kitchen
•

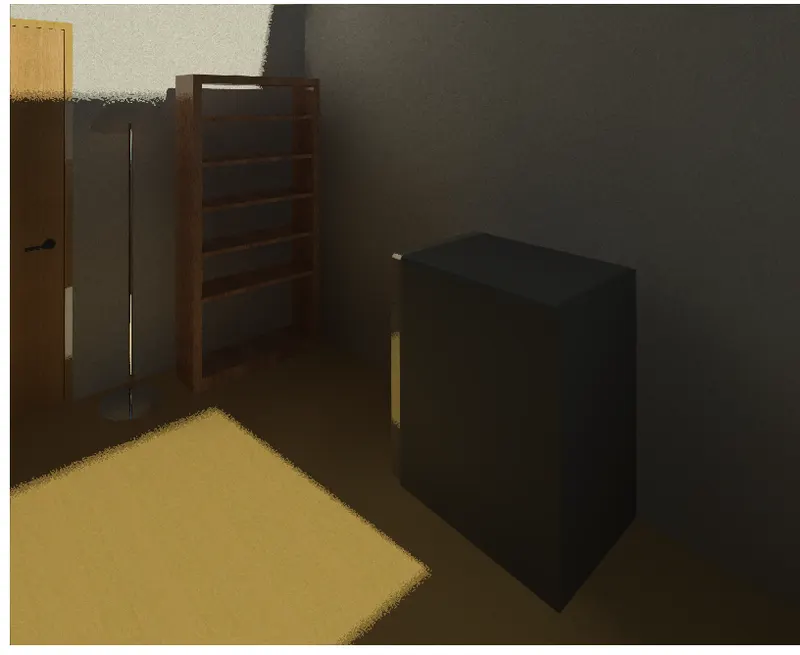

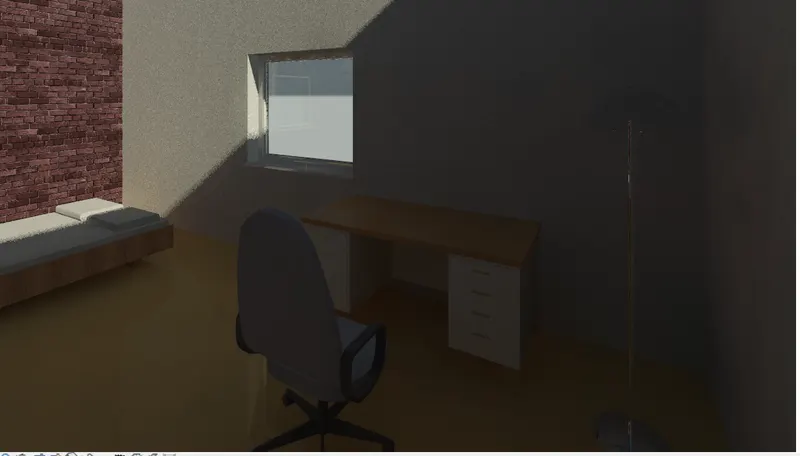

• bed room
•

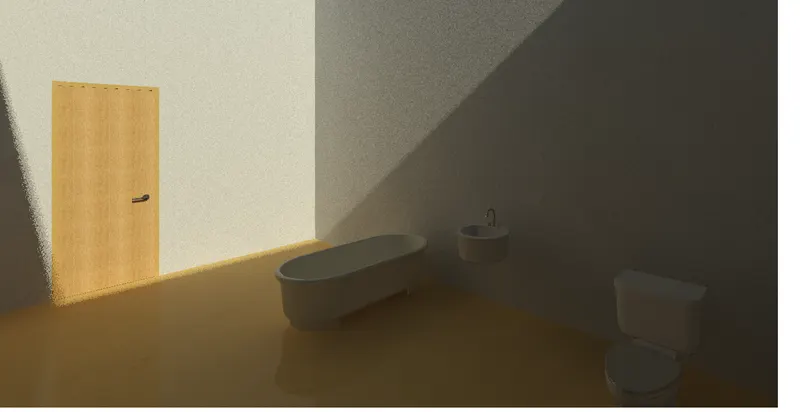

• bath room
•
• washing area
•
• kitchen
•
• living area
•
• topographic view
•

RESULT:Hence views are rendered and added to sheet

7 ANSWER:

AIM:The purpose is to Print the set of drawings created and submit the drawings from our models

PROCEDURE:

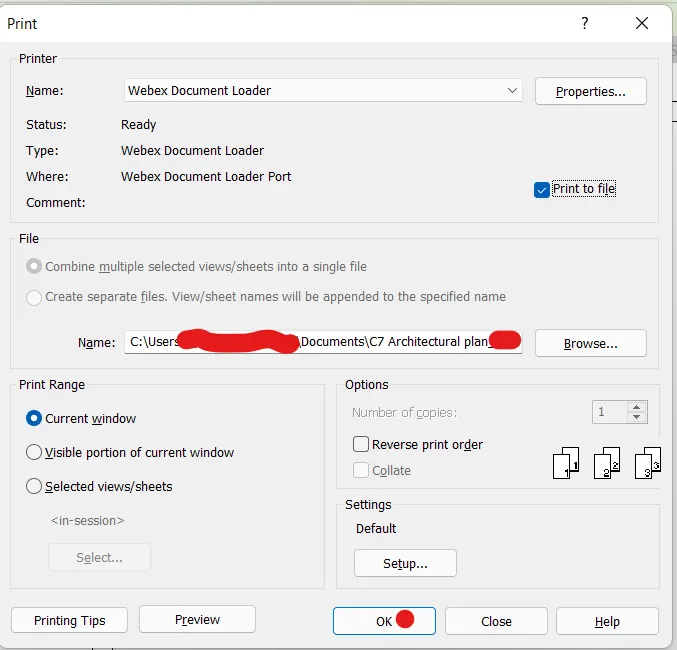

• Open the sheets that are created and click control + p
• Adjust the print settings and click ok
• Similarly Print all the sheets from the model
•

RESULT:Hence the sheets are printed and ready to submit
