Creating Architectural and Structural model with 3D rendering using REVIT

1) Select the type of structure you want to build from one of the three below:
        a. Multi-Unit Residential Apartment
        b. Office Buildings
        c. School

Answer-

From above list of type of structure I choose multi-unit residential apartment

2) Assume reasonable assumptions for geographic and location details for your project modeling. Based on assumptions and type of structure selected identify the modeling requirements from NBC

The geographical location details for project modelling based on assumptions of multi unit residential apartment. Selected identify the modeling requirement  from NBC

1.As above mentioned by the building comes under the residential category and it can be situated in centre of city.

2.the project is located in the highway nearest.

3.toad width of this project is 60 feet.

4.the height, area,limitationand safety measure are following by the nbc 2005.

5.height of project is 42'

6.the height of project in m is 12.8m.and width is 18.2 m.

7.height should not exceed 1.5 times width of road

3) Using the structural model, include the following components based on the type of structure selected
        a. Foundation – Isolated / Wall/Matt Foundation-
        b. Columns
        c. Beams Connected to Columns
        d. Roof Framing/ Truss
        e. Floor / Decks
        f. Floor Openings for Elevators and Stairs

Aim-to Using the structural model, include the following components based on the type of structure like wall,windows, doors ,foundation,beamsetc.

Commands used-

• Architectural template
• Structural template
• Grids
• Coloumn
• Beams
• Fpundation
• Stairs
• Shafts
• Floors

Procedure-

1. Open a architectural template in revit and save it as residential building-arch1

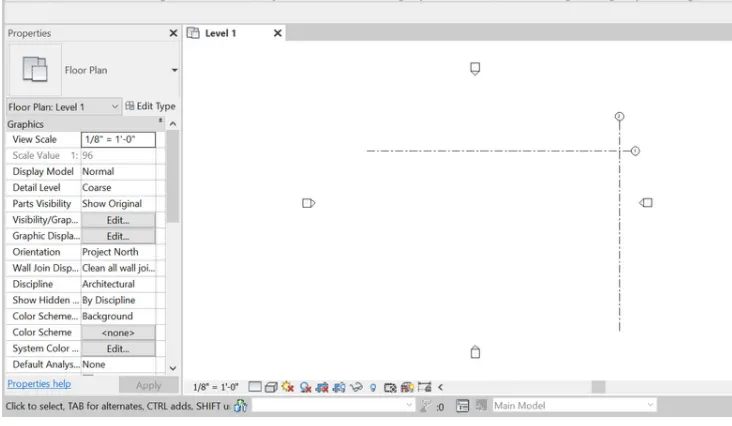

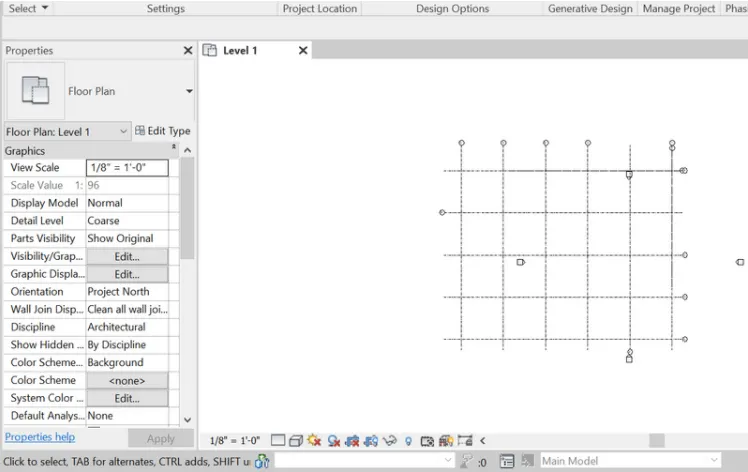

2. Then drow the grid line and specify the coordinates as 0’0” for both horizontal and vertical grid lines

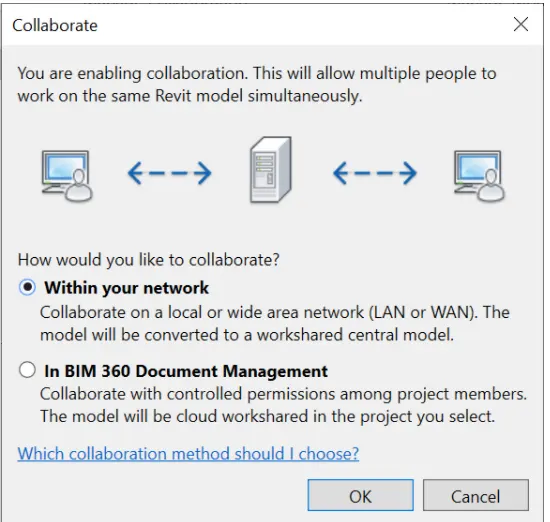

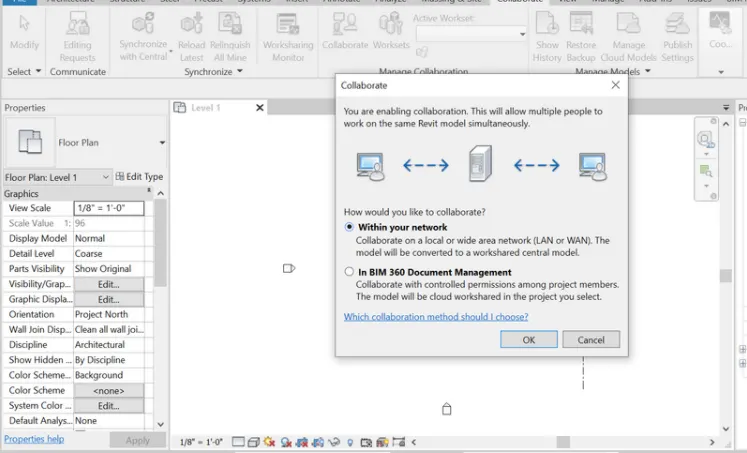

3. Click on collaborate and save the project
4. Now open new structure template nad save it as residential building-structural1
5. Repeat process 2 and 3 to save file
6.

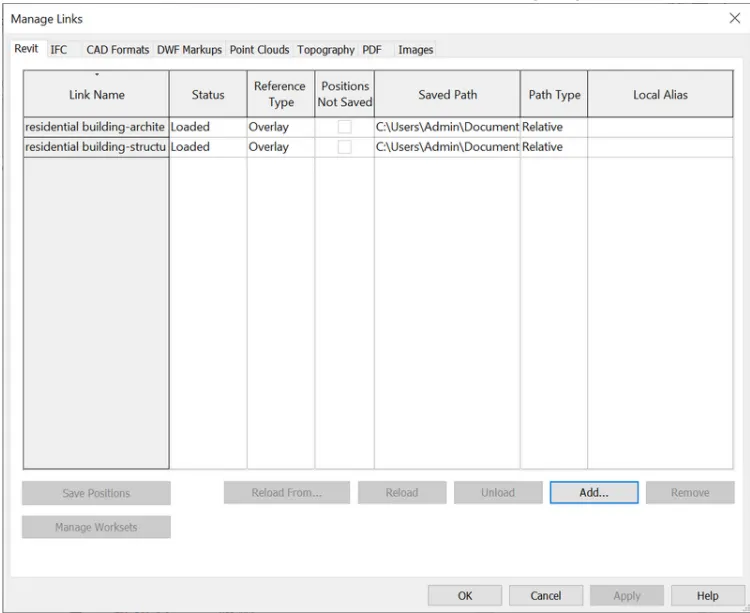

7. Create new architectural template and add the architectural and structural link using manage the link option

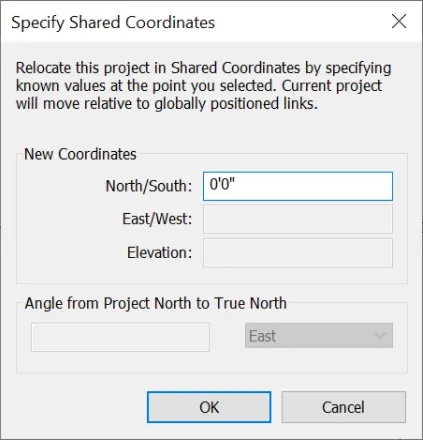

8. Select the acquired co ordinates and set up the inks to the current coordinate

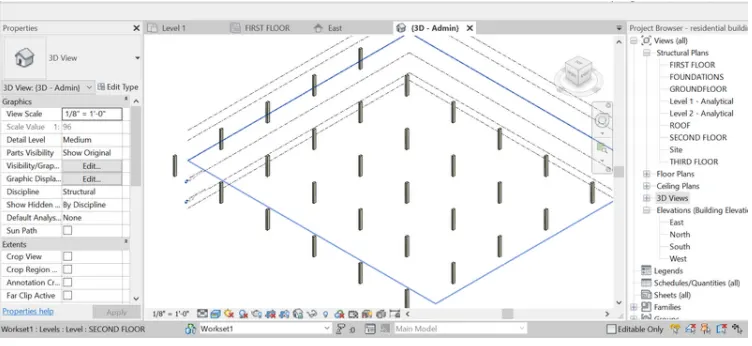

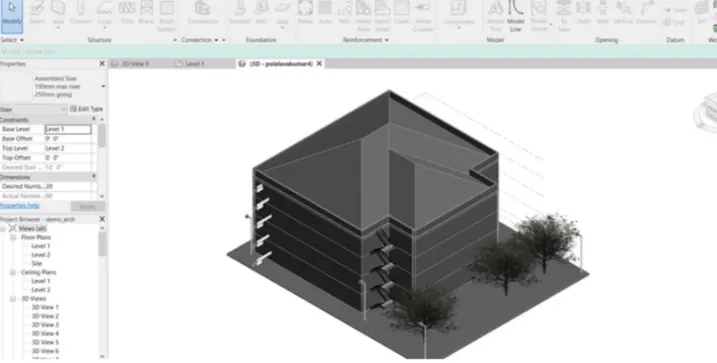

9. Now start drowing structural component of project in structural template

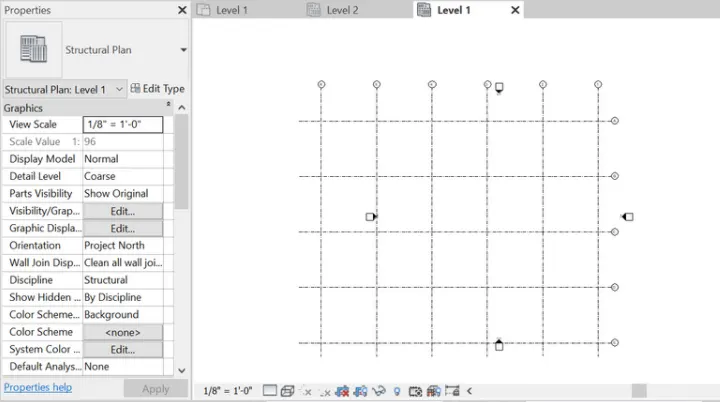

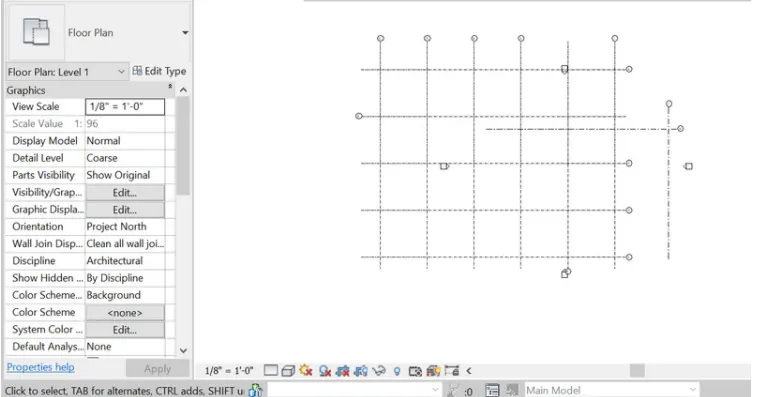

10. Drow vertical and horizontal grid lines and set levels

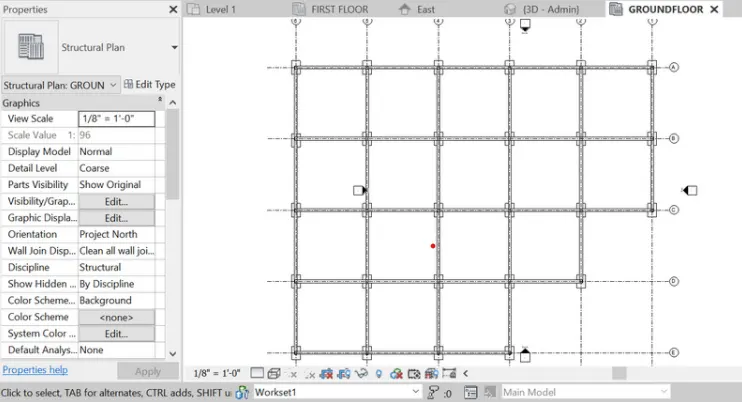

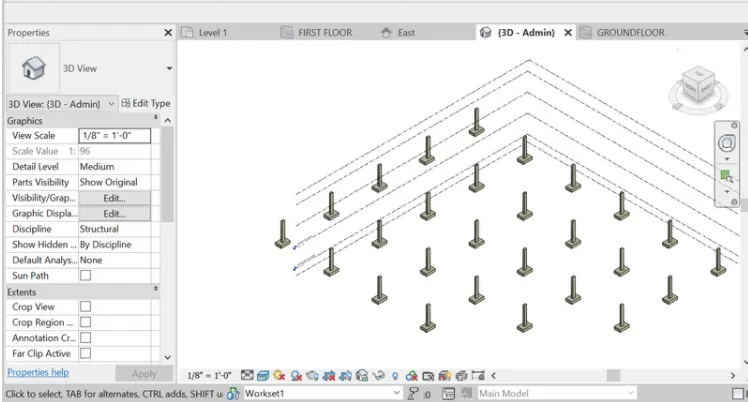

11. Slect common option from structural tab and draw coloumn at intersection point of the grid

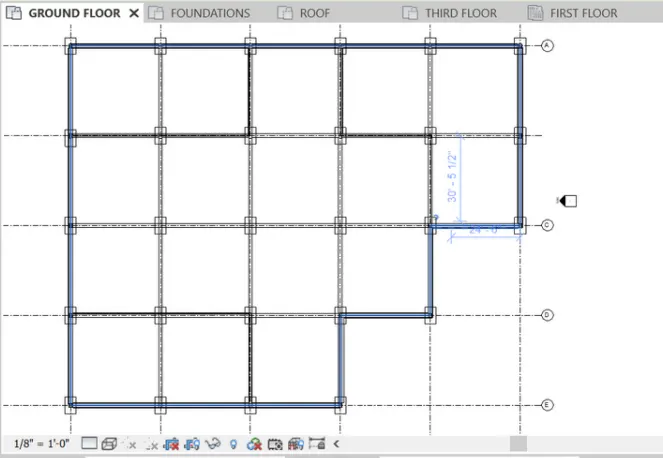

12. Repeat the same process, drow the structural component foundation, beam.floor and save the project to central file

4) Using the architectural model, include the following components based on the type of structure selected
        a. Wall Layout with appropriate material and finishing
        b. Exterior façade with fancy finish
        c. Interior partition walls to size rooms

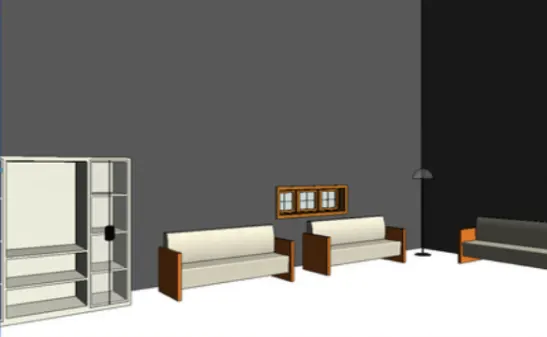

        d. Components to add details to a room ( Desk, Chair, Lighting, Plumbing fixtures)
        e. Add components such as stairs Elevators
        f. Have at-least one side of the building with curtain walls and glass panels
        g. Include interior and exterior lighting fixtures
        h. Place proper topographic components from outside ( Trees, Parking, Plants) to add details to the model

Aim- to  Using the architectural model, include the following components based on the type of structure selected above

Commands used-

• Architecture
• Walls
• Component
• Load family ceiling
• Floors
• Doors
• Window
• Railings

Procedure-

1. Now go to the architectural template which has created before in this file
2. copy the grid which were created in the previous structure template and copy it
3. with the help of paste from clipboard option paste the grades in architectural tablet
4. select the grades and pin it
5. click the elevation and create the labour required for architectural tab
6. click virtual graphics setting and select custom in annotation off the grid now start create the exterior wall on a grid line
7. then floor to add floor to all level of project by the way same doing in other wall also add stairs to all level in it
8. to created the staircase and really system in it
9. add Windows doors to the walls then load
10. the load families in the component are required for the projector and add them in the drawing then in a lot of family
11. set the camera in all room to view the picture in realistic building
12. save the project and changes should be done in the architectural template will be saved to centralised file





 result-

5) Provide a set of drawings in an architectural and structural model to list the following details with categories and appropriate sheet templates included
        a. Floor Plans with Annotations
        b. Elevations

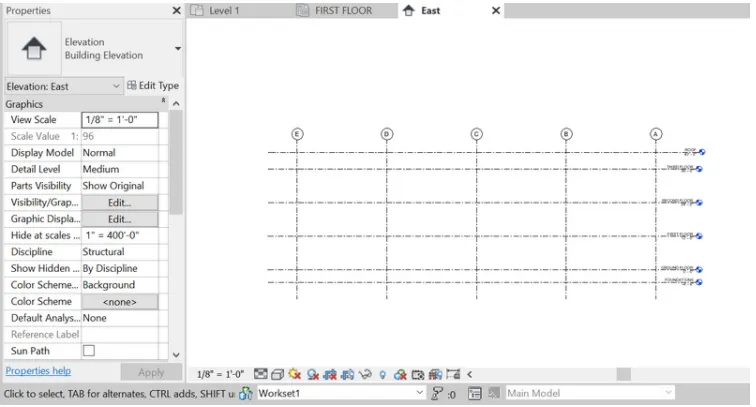

        c. Sections

Aim- to Provide a set of drawings in an architectural and structural model to list the following details with categories and appropriate sheet templates floor plan ,elevation,and section

Command used-

• Insert
• Sheets
• Load families
• Edit sheets
• Load image
• View

Procedure-

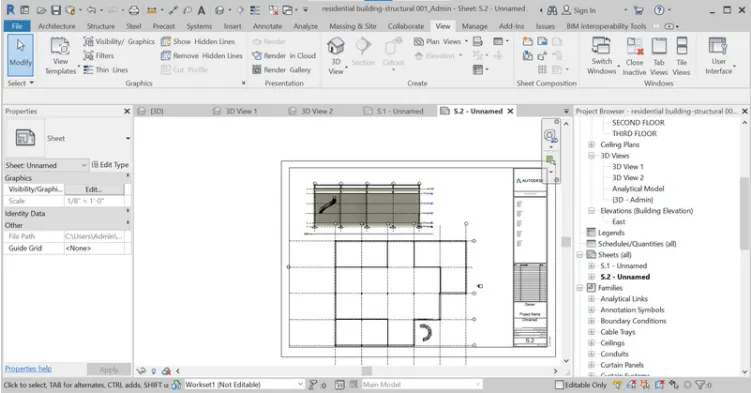

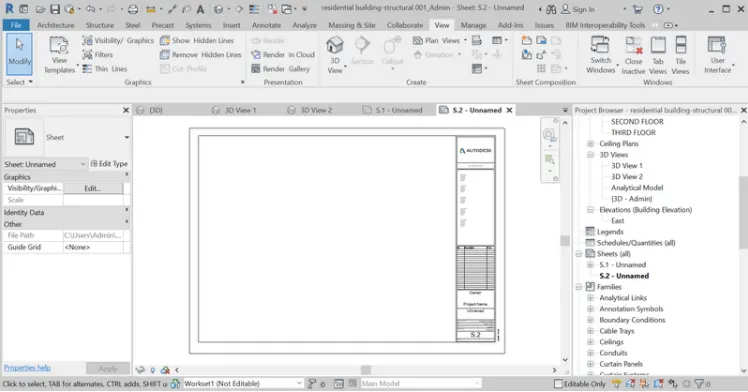

1. Open view tab and selct sheet tool
2. Sheet dialogue box will appear then,press a1 metric and click ok
3. Rename sheets by double clickinh on he name and use appropriate name to the sheet

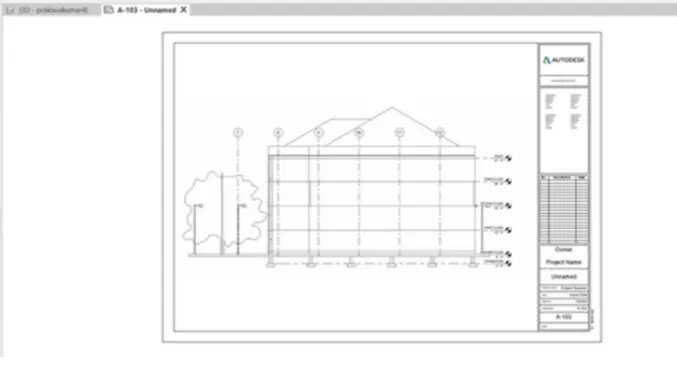

4. Go to insert tab and select on load image option
5. Then ,add image into our sheets and save it.

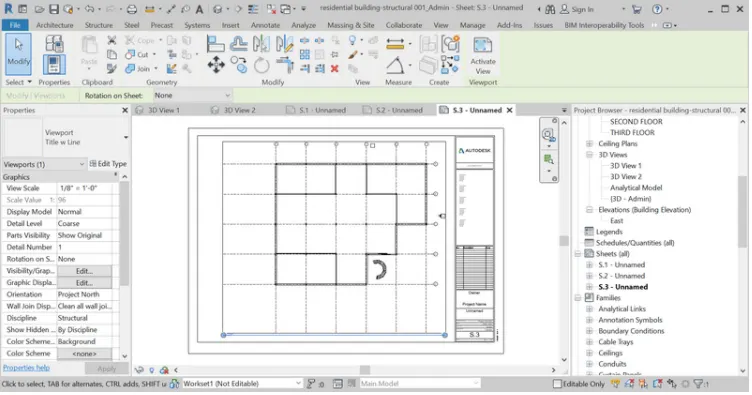

6. Repeat the same process and add the structural and architectural model into sheets

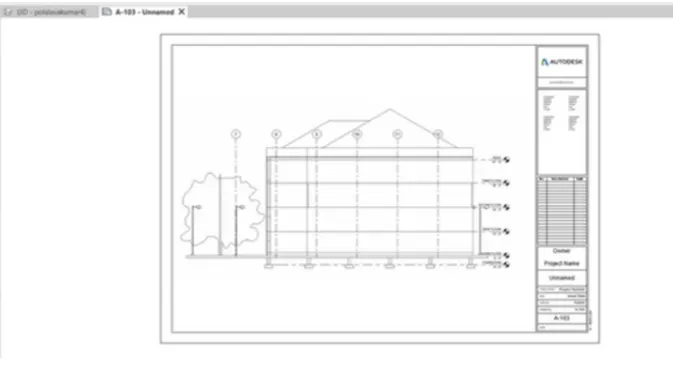

7. Add the floor plan,elevation plan and section with same step into sheet





 result-

6) Using the Rendering settings, Render images of the 3D model produced and include the rendered images to the drawing sheets
        a. Rendering from interior rooms
        b. Rendering from out showing topographic features
        c. Rendering through structural framing

Aim-to Using the Rendering settings, Render images of the 3D model produced and include the rendered images to the drawing sheets

Commands used-

• Render
• Region
• Style
• Scheme
• Sheet

Procedure-

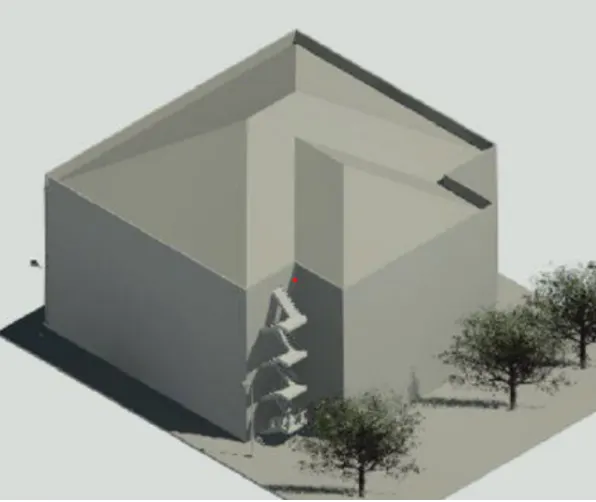

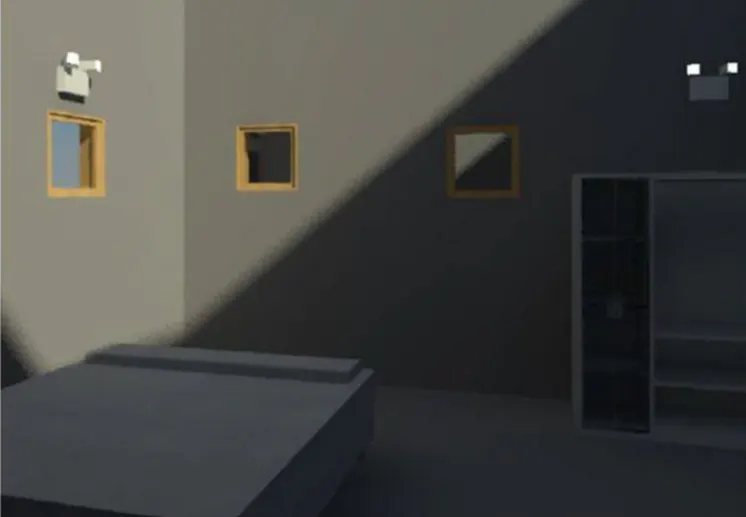

1. Open 3d view and set view to take picture whwre we want to render the area
2. Then click view menuand click render region
3. Render dialogue box are appear
4. Select region option and crop the image in region
5. We can change the style of render image,schemes, lighting option and finally.click render in it
6. Then the render image will be appear into more realistic than other and it can used to better presentation of our client also

 result-

7) Print the set of drawing sheets created and submit the drawings from the architecture and structure model

Aim- to Print the set of drawing sheets created and submit the drawings from the architecture and structure model

Commands used-

• File
• Print
• Setup page
• Select the plotter
• Print

Procedure-

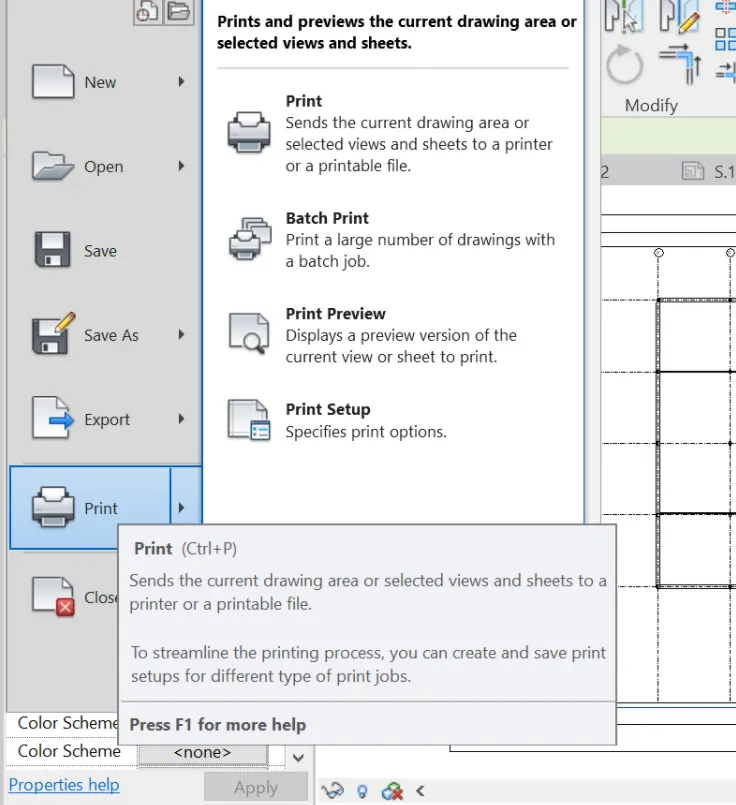

1. Click on the views and open file menu and click the point

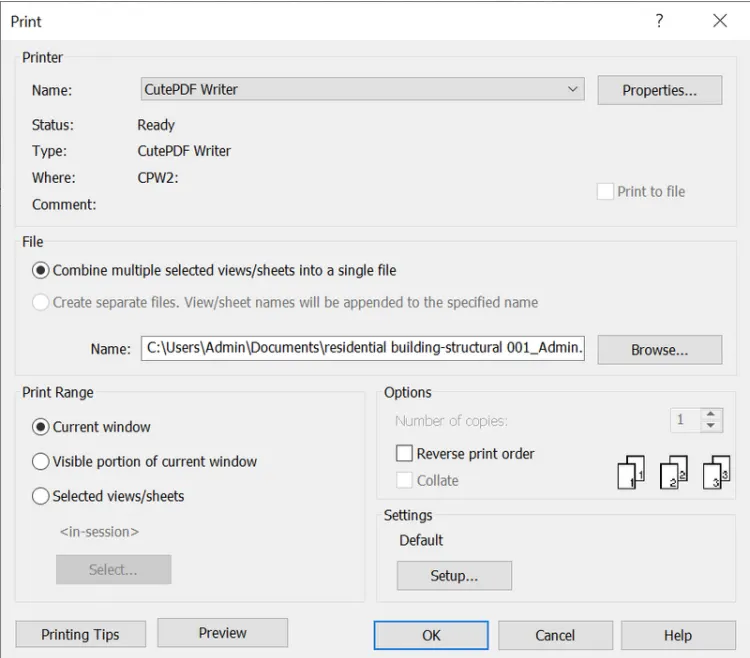

2. Print dialogue box appear
3. Change the settings of sheets size ,text style page setup everything
4. Then click print and press ok

result-
