Creating a Wardrobe detailed drawing, Floor Plan, Kitchen Layout and Column Detail using AutoCad

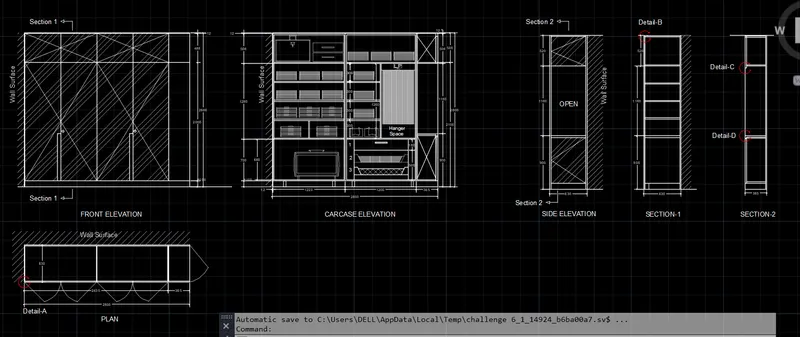

Q.1] Aim and Introduction: Draw the elevation and details of a wardrobe as shown in the Figure below. After sketching,
you need to provide the dimensions and text with the use of layers. Use proper text styles and dimension methods to
document it. Also, assume dimensions, wherever needed.
Note: All dimensions are in mm.

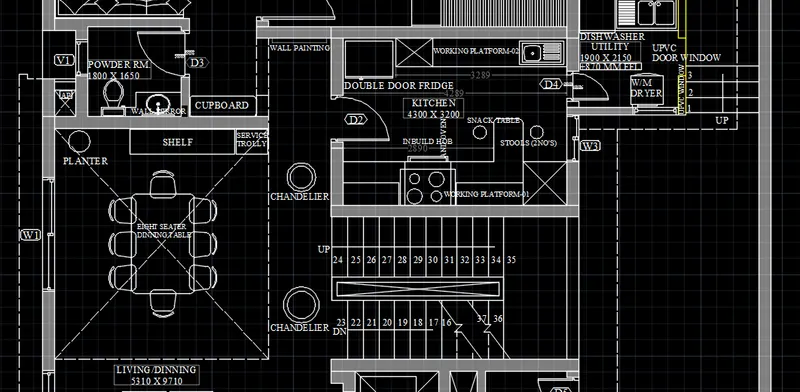

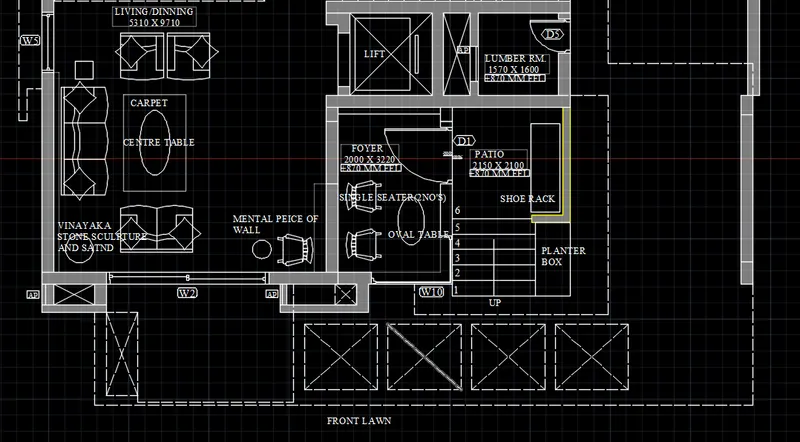

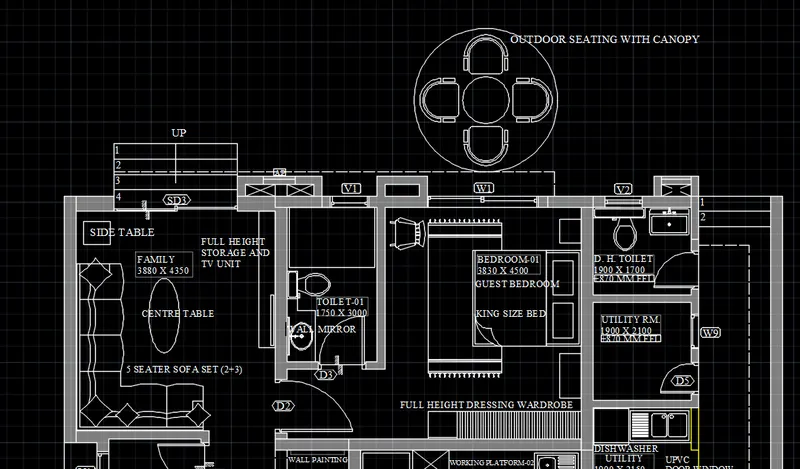

Q.2] Aim and Introduction: Draw the floor plan as shown in the Figure. Use the proper drafting tools to sketch the plan.
Do not hatch or draw the furniture. You need to draw the floor plan with the following:
Note: You can also import the Floor_Plan.pdf into your current drawing and start working on the project. You need to
scale the imported pdf file using reference option. All dimensions are in mm.
- Walls (Exterior and Interior)
Wall Thickness: Exterior Wall- 230mm, Interior Wall: 150 mm (Wherever Required)
- Doors and Windows: Assume the size of the doors and window.
2.1 Stairs: Tread-300mm, Riser-150mm
- Insert Text wherever required
- Insert the dimensions using proper dimension techniques.

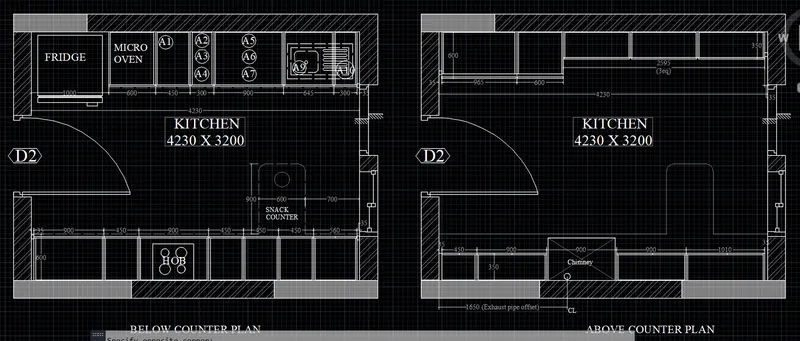

Q.3] Aim and Introduction: Create the Kitchen Layout. Use proper dimension techniques to dimension the kitchen layout.
Also, insert text wherever required. All dimensions are in mm.

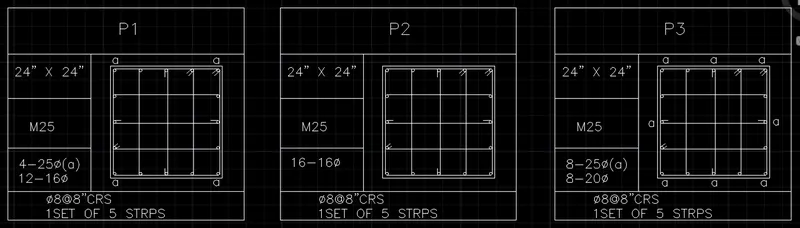

Q.4] Aim and Introduction: Sketch the column details. Insert dimensions and text in the figure. Refer to the bar sizes from
the schedule.
8mm ---- 0.31 Inches
25mm--- 1 inches
16mm—0.62 inches

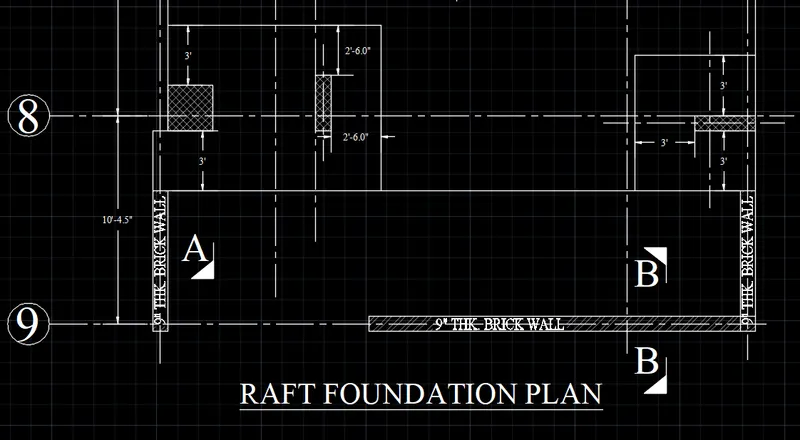

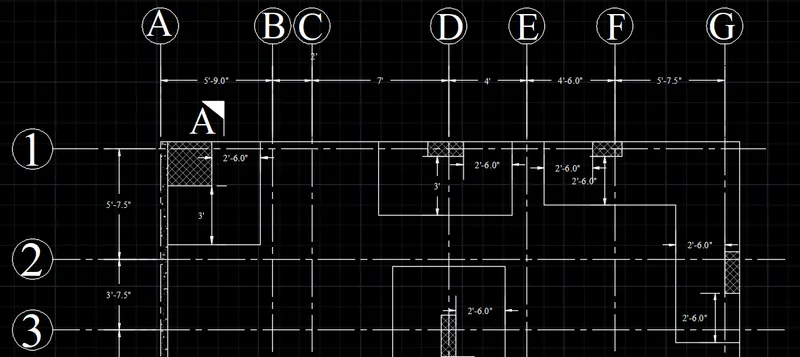

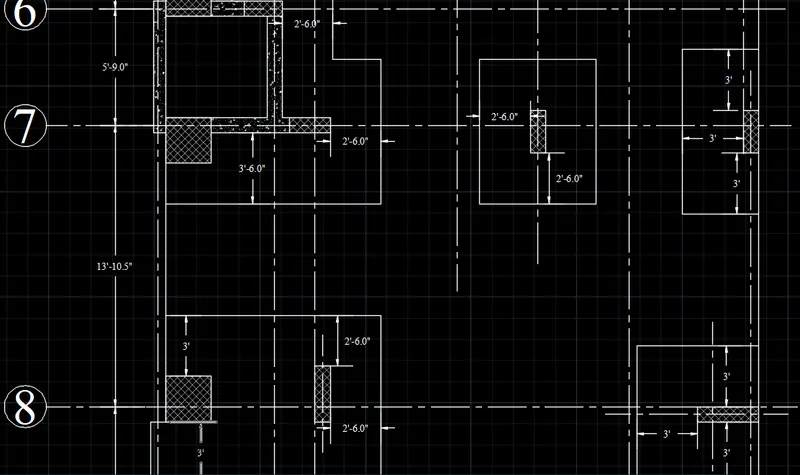

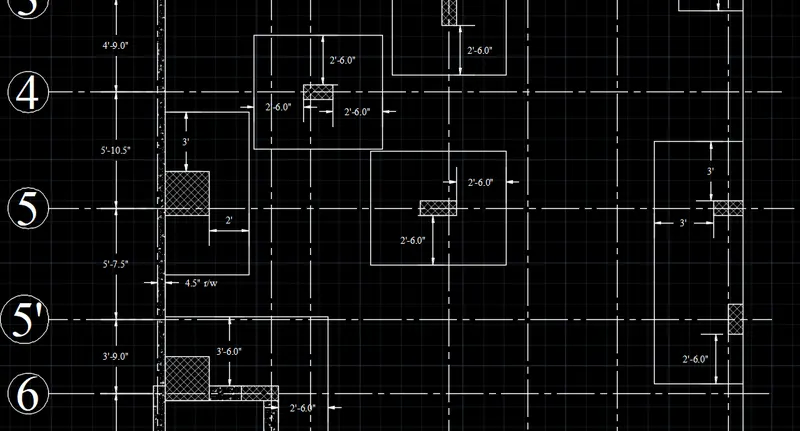

Q.5] Aim and Introduction: Draw the Raft Layout. Assume the column size as per your knowledge. You can take the sizes
as: 24”x24”, 9” x 24”, 9” x 18”, and 9’ x 24”. You can import the raft_foundation.pdf to ensure the missing dimensions.
