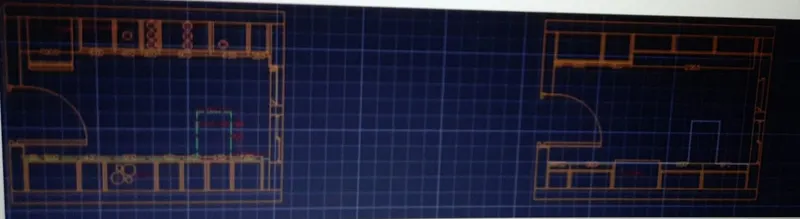

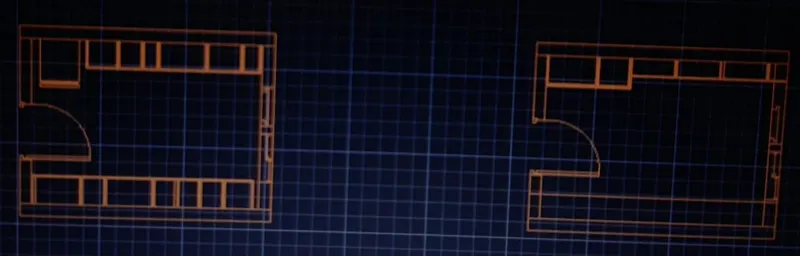

Creating a Wardrobe detailed drawing, Floor Plan, Kitchen Layout and Column Detail using AutoCad

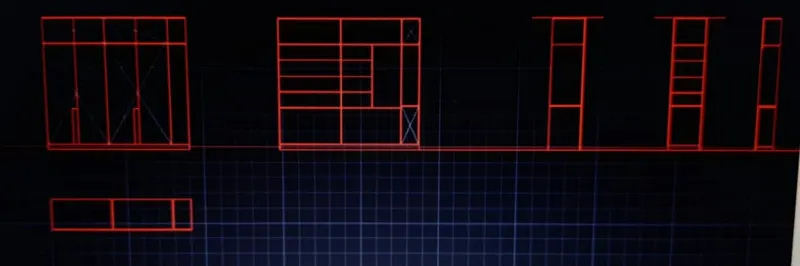

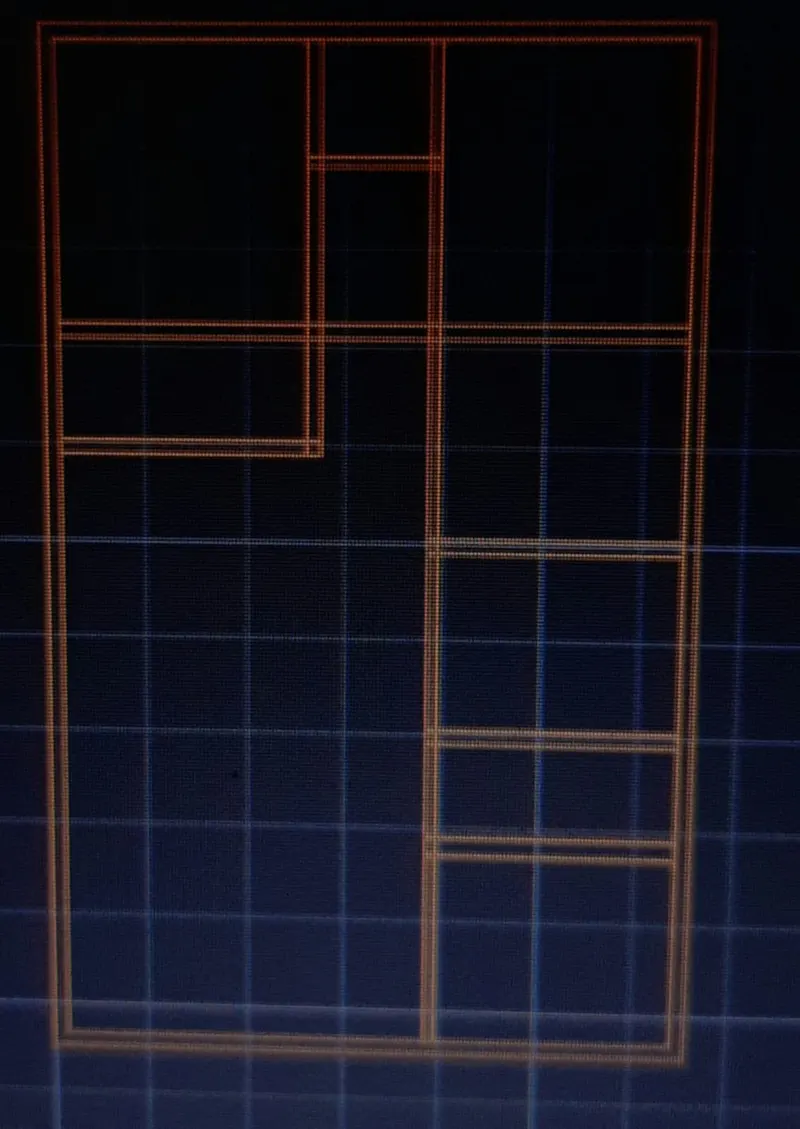

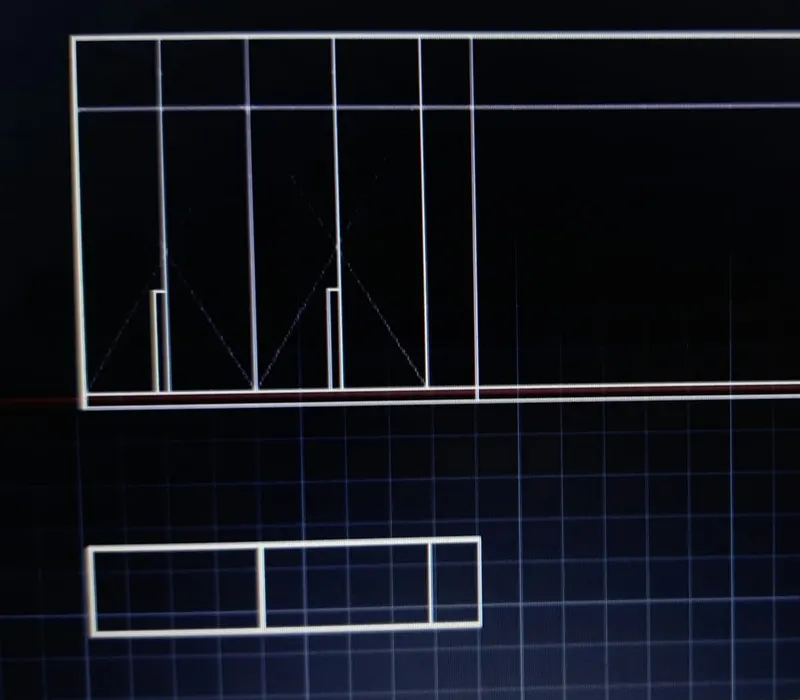

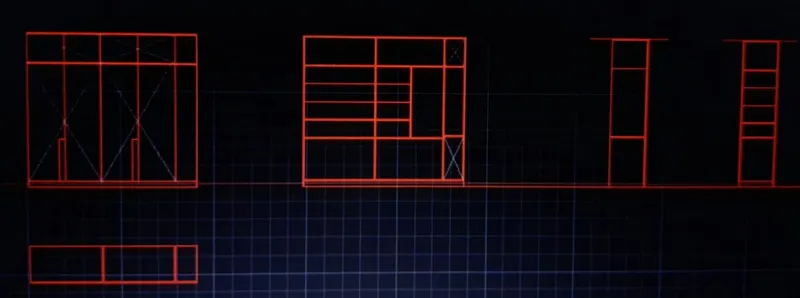

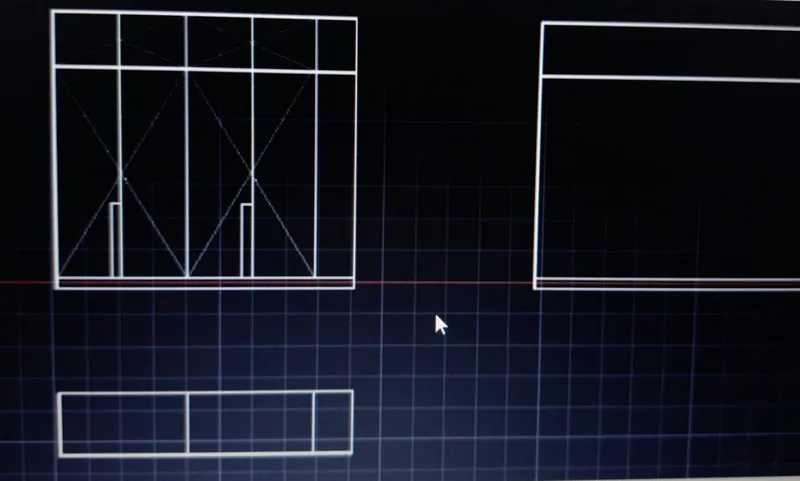

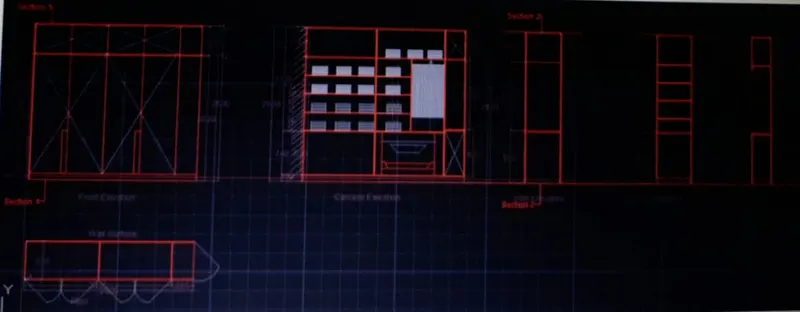

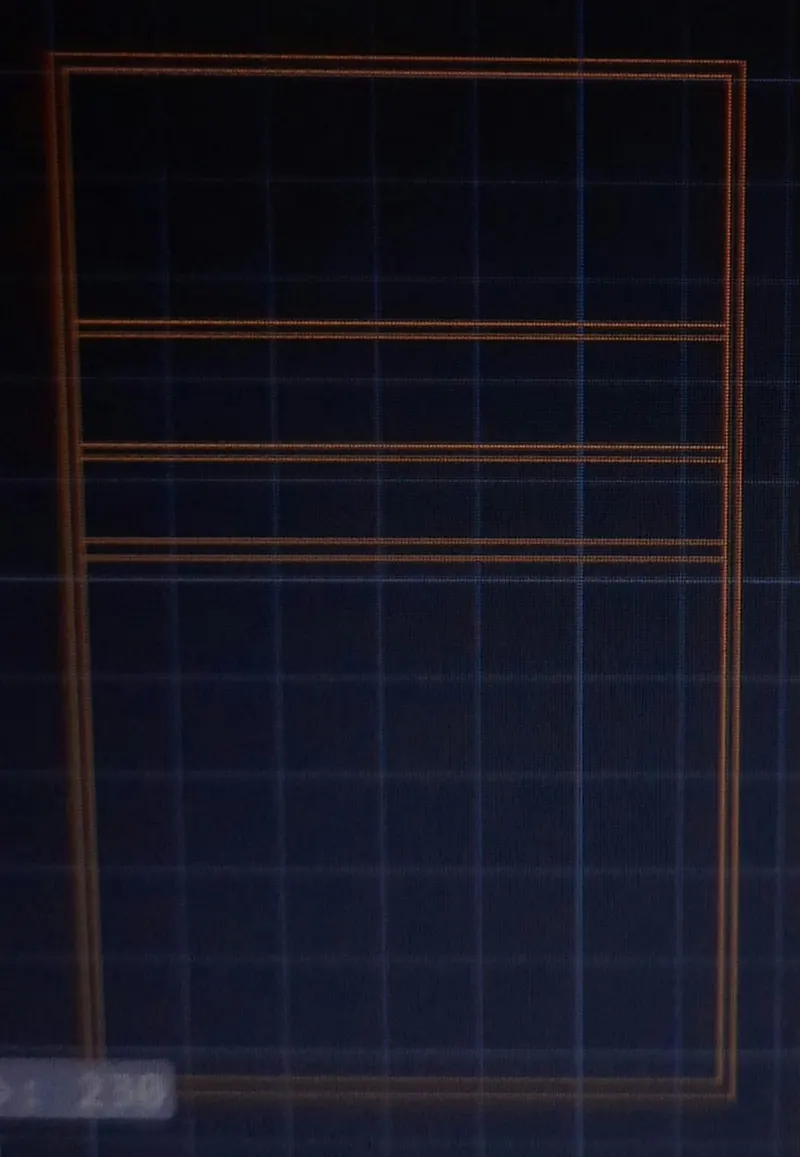

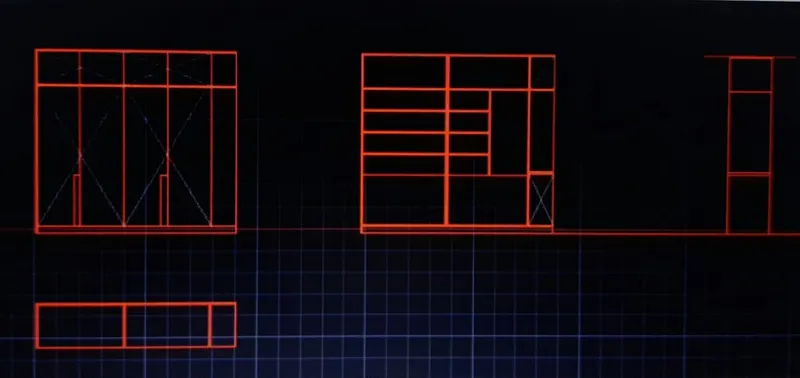

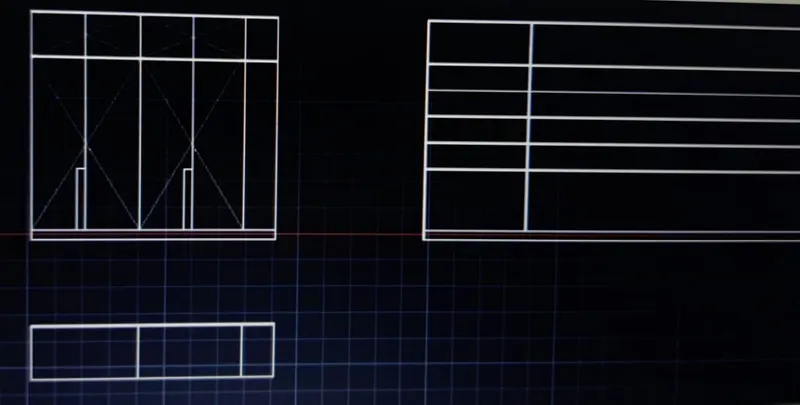

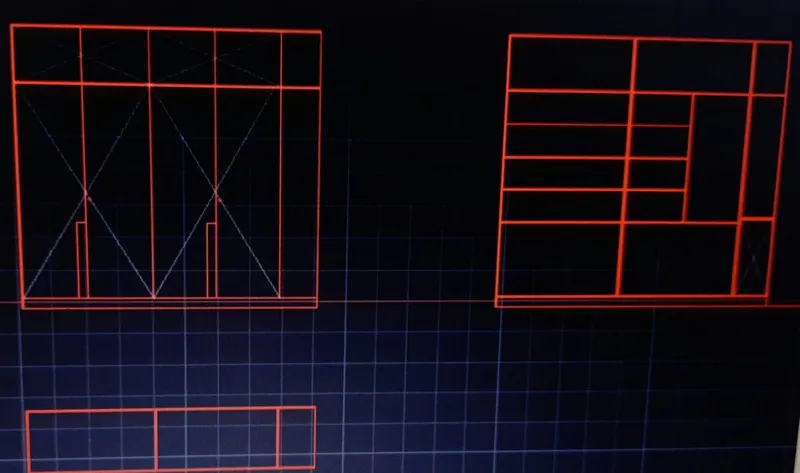

1.AIM-To draw the elevation & details of a wardrobe as shown in the figure using Autocad.
Procedure-
.in the command prompt type 'UNITS' & press enter.
.Select the unit as DECIMAL & insertion scale as 'MILIMETER'.
.Click ok.
type'LIMITS' in the command prompt & press enter.
.Select 'OFF' from the command prompt.
.Type X line in the command prompt & press enter.
.Type v & press enter.
.Place the vertical X line anywhere in the workspace & press Esc.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 2800.& select the vertical line to offset.
.Press Esc.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 12.& select the vertical line to offset.
.Press Esc.
.Type X line in the command prompt & press enter.
.Type H & press enter.
.Place the horizontal line anywhere in the workspace & press Esc.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 100 & select the horizontal line to offset.
.Press Esc.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 2100 & select the previously offsetted line.
.Press Esc.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 488 & select the previously offsetted line.
.Press Esc.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 12 & select the previously offsetted line.
.Press Esc.
.Below the previously created object,Draw a line using line tool from ribbon connecting the two vertical lines.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 12 & select the previously created line.
.Press Esc.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 630 & select the previously created line.
.Press Esc.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 12 & select the previously offsetted line.
.Press Esc.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 12 & select the horizontal line.
.Press Esc.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 1217.5 & select the horizontal line.
.Press Esc.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 12 & select the previously offsetted line.
.Press Esc.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 1217.5 & select the previously offsetted line.
.Press Esc.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 12 & select the previously offsetted line.
.Press Esc.
.Select 'TRIM' from the ribbon tab.
.Click on the line to trim, trim the unwanted lines.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 518.75.& select the vertical line .
.Press Esc.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 518.75 & select the previously offsetted line.
.Press Esc.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 518.75 & select the previously offsetted line.
.Press Esc.
.In the ribbon tab select 'LAYER' properties.
.Click on new layer in the layer properties.
.Create the layer as 'TRANSPERENT' & change the transparency value to 0.
.Set as current layer.
.Edit the def point & change the colour red.
.Close the properties tab.
.Select the line tool from ribbon tab & specify the first point as left bottom corner.
.Draw a digonal line connecting right top corner.
.Press Esc.
.Similarly draw the lines using the line tool according to the given figure.
.With the vertical X line draw another vertical line using the tool.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 12 & select the previously created line.
.Press Esc.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 100 & select the horizontal line.
.Press Esc.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 12 & select the top horizontal line.
.Press Esc.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 488 & select the previously created line.
.Press Esc.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 12 & select the previously created line.
.Press Esc.
.Click on the Trim command, trim the unwanted lines.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 1223 & select the horizontal line.
.Press Esc.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 12 & select the previously offsetted line.
.Press Esc.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 300 & select the previously offsetted vertical line.
.Press Esc.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 12 & select the previously offsetted line.
.Press Esc.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 300 & select the previously offsetted vertical line.
.Press Esc.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 12 & select the previously offsetted line.
.Press Esc.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 300 & select the previously offsetted vertical line.
.Press Esc.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 12 & select the previously offsetted line.
.Press Esc.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 300 & select the previously offsetted vertical line.
.Press Esc.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 12 & select the previously offsetted line.
.Press Esc.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 1200 & select the previously offsetted line.
.Press Esc.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 12 & select the previously offsetted line.
.Press Esc.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 365 & select the previously offsetted line.
.Press Esc.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 12 & select the previously offsetted line.
.Press Esc.
.Use the TRIM command to attain the required dimension as per the figure.
.Select all lines other than the transparent line.
.Click the layer setting & set the current layer as the def point.
.Select line tool from the ribbon tab.
.Specify the starting point along the same direction & plane of previously created line.
.Specify the length as 2488 in vertical direction & press enter.
.Press Esc.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 12 & select the previously created line.
.Press Esc.
.Select the line tool from the ribbon tab.
.Specify the starting point as endpoint offsetted line.
.Specify the length as 630 in the horizontal direction & press enter.
.Press Esc.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 12 & select the previously offsetted line.
.Press Esc.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 520 & select the last created horizontal line.
.Press Esc.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 1180 & select the previously offsetted line.
.Press Esc.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 30 & select the previously offsetted line.
.Press Esc.
.Select line tool from ribbon tab.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 12 & select the previously created line.
.Press Esc.
.Select line tool from ribbon tab.
.Specify the length as 630 in the horizontal direction & press enter.
.Press Esc.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 12 & select the previously offsetted line.
.Press Esc.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 520 & select the last created horizontal line.
.Press Esc.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 300 & select the previously offsetted line.
.Press Esc.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 12 & select the previously offsetted line.
.Press Esc.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 300 & select the previously offsetted line.
.Press Esc.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 12 & select the previously offsetted line.
.Press Esc.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 300 & select the previously offsetted line.
.Press Esc.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 12 & select the previously offsetted line.
.Press Esc.
.Select line tool from ribbon tab.
.Draw a vertical line of 2500 & horizontal line of 365 length.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 365 & select the vertical line.
.Press Esc.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 12 & select the previously offsetted line.
.Press Esc.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 12 & select the previously offsetted line.
.Press Esc.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 12 & select the top horizontal line.
.Press Esc.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 520 & select the previously offsetted line.
.Press Esc.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 12 & select the previously offsetted line.
.Press Esc.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 1180 & select the previously offsetted line.
.Press Esc.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 12 & select the previously offsetted line.
.Press Esc.
.Select 'LAYER' setting tool from ribbon tab.
.Select 'CREATE NEW LAYER' & name the layer as 'TEXT & DIMENSION'.
.Select the colour.
.Set the created layer as current layer.
.Select the dimension tool from the ribbon tab.
.Specify the starting point & end point.
.Select the continue option from the command prompt to continue the dimensioning.
.

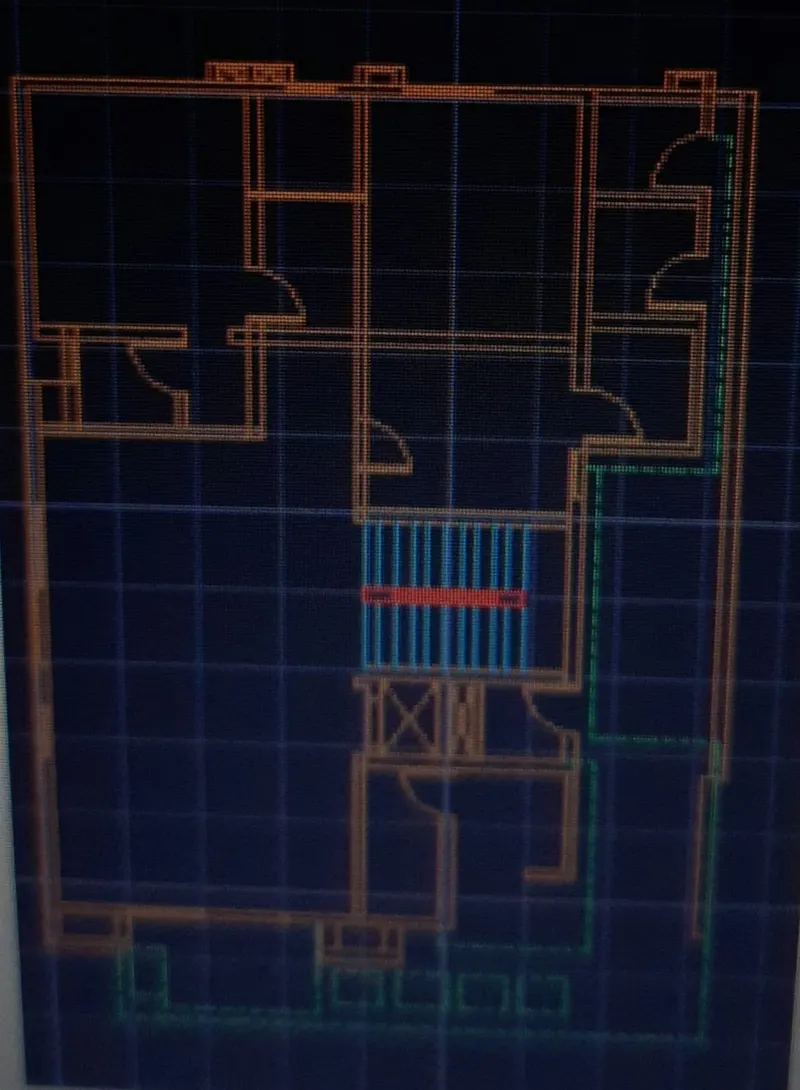

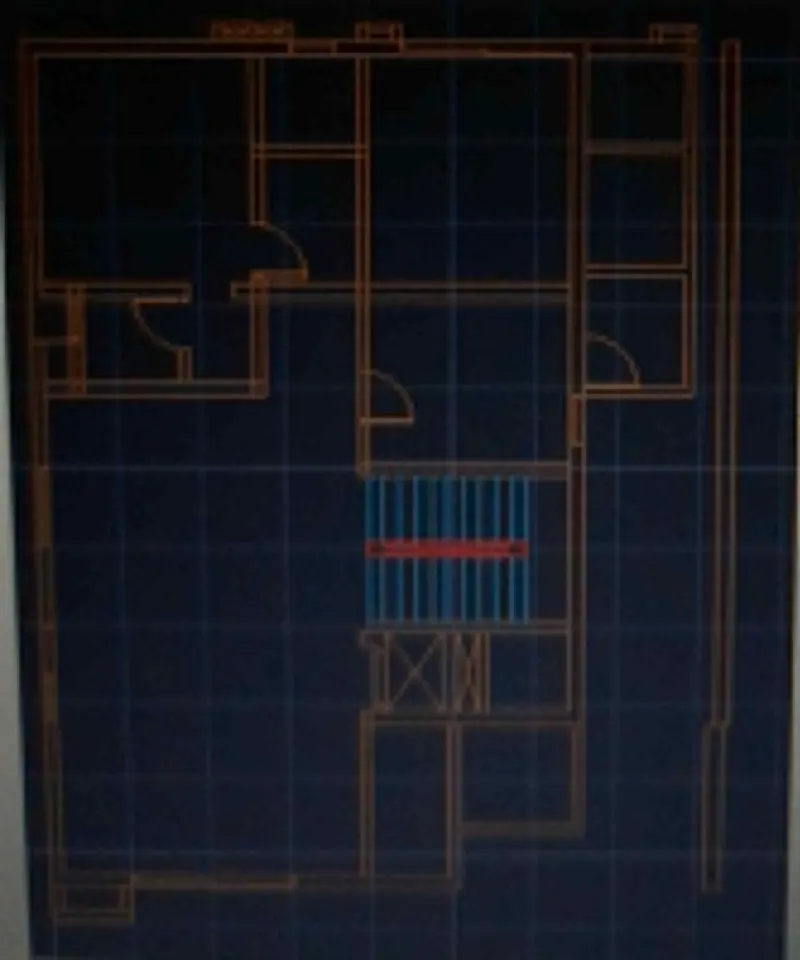

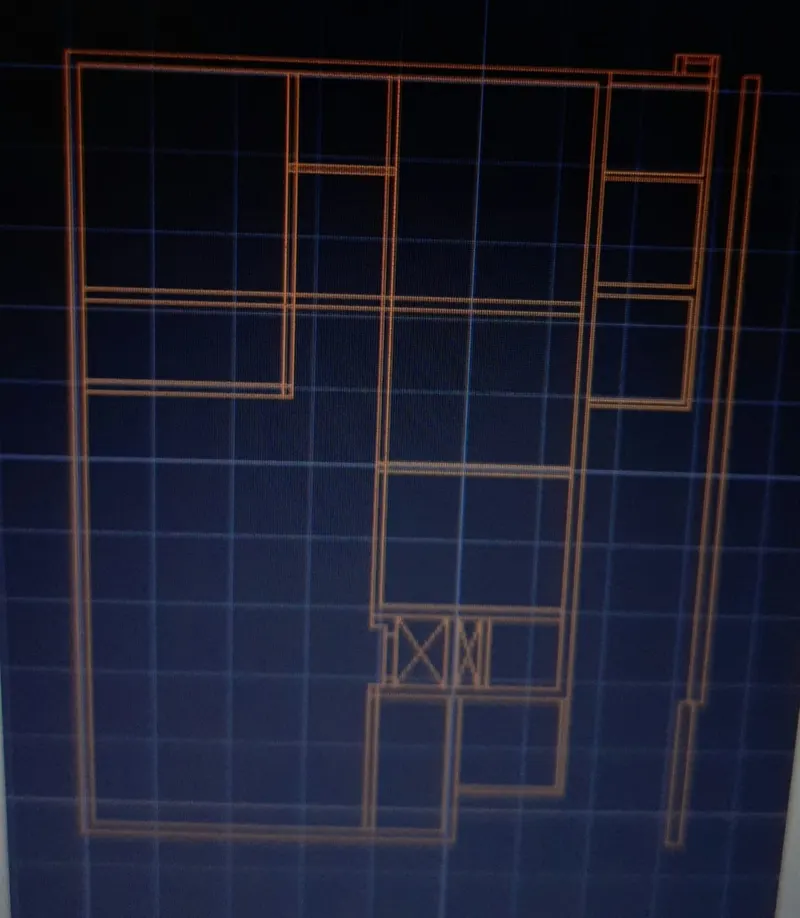

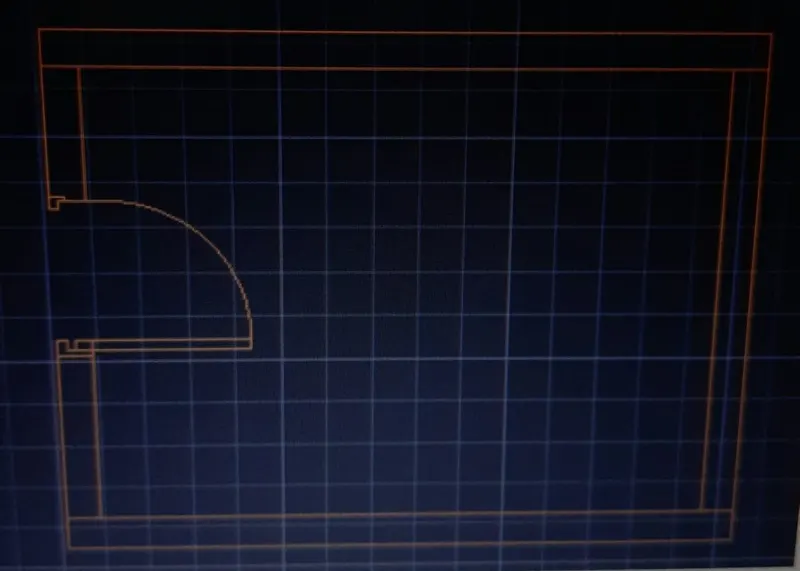

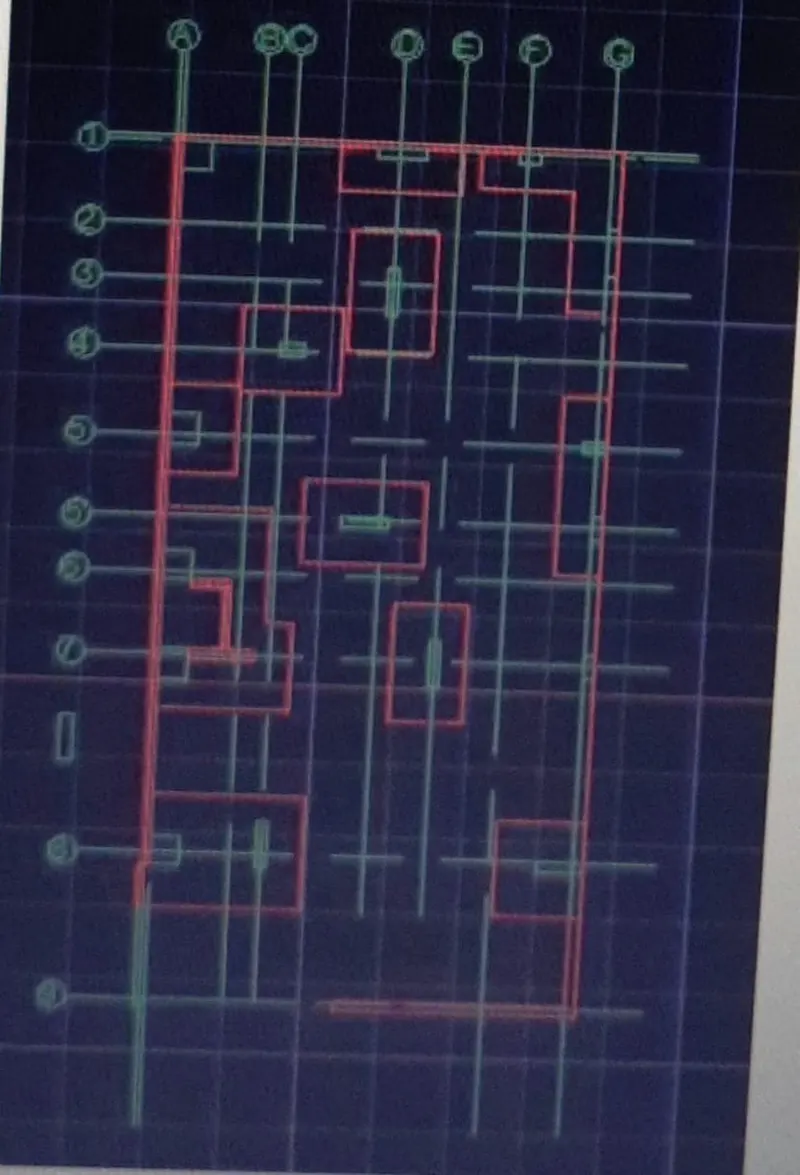

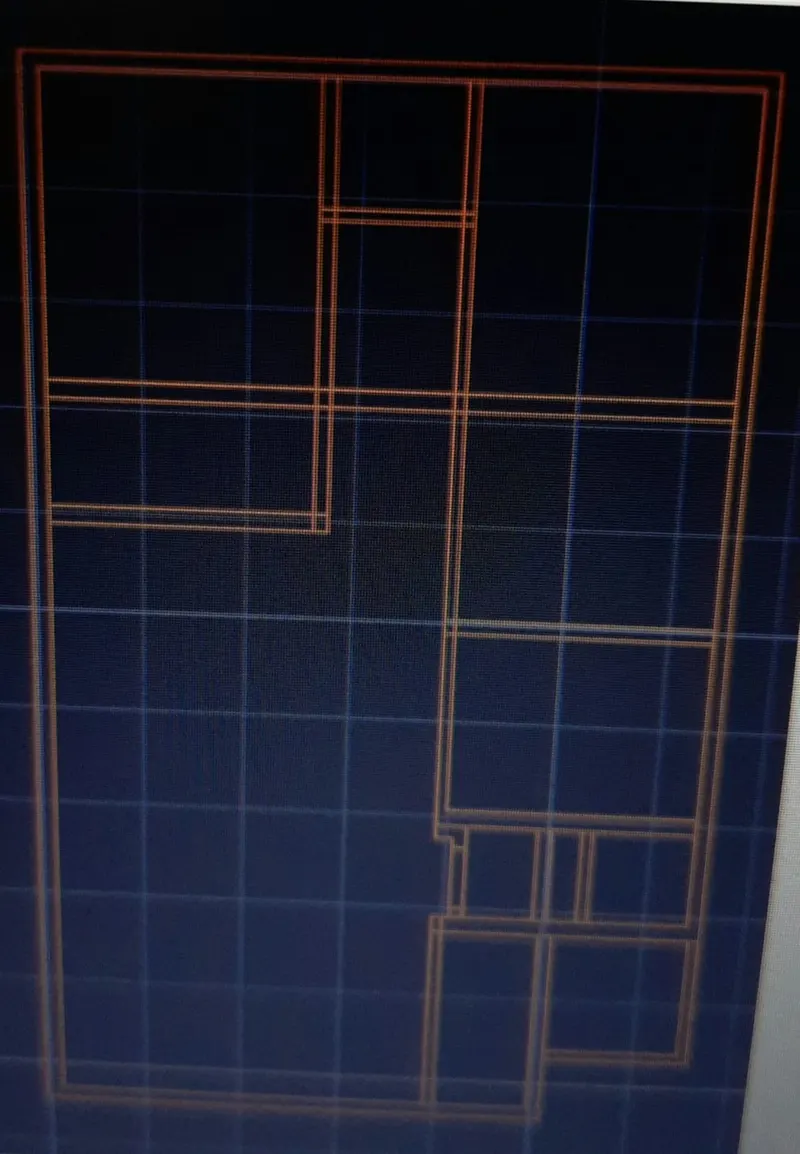

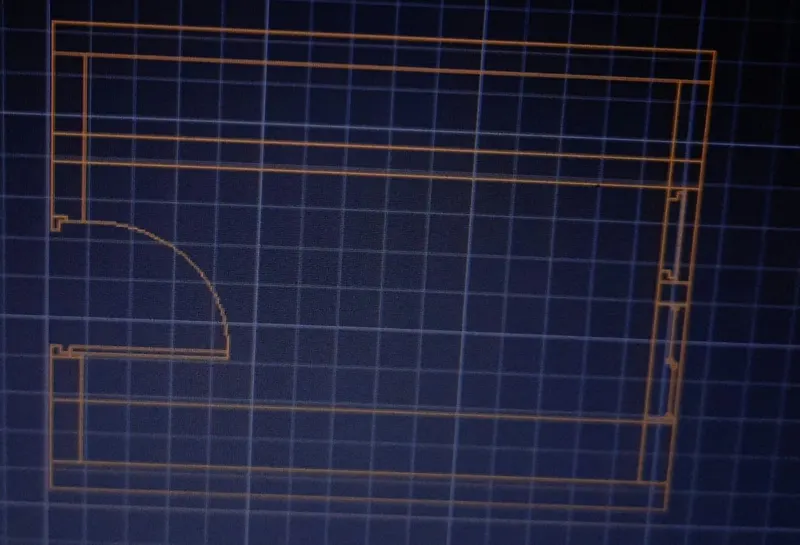

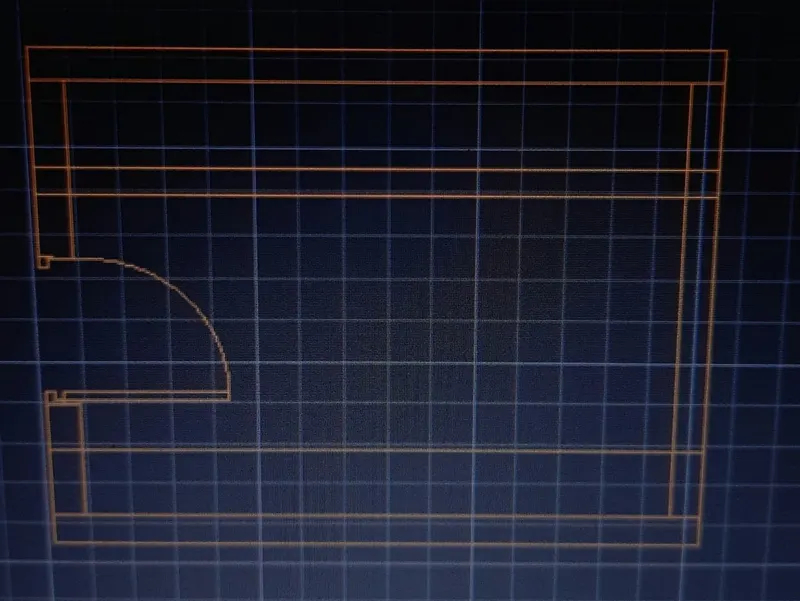

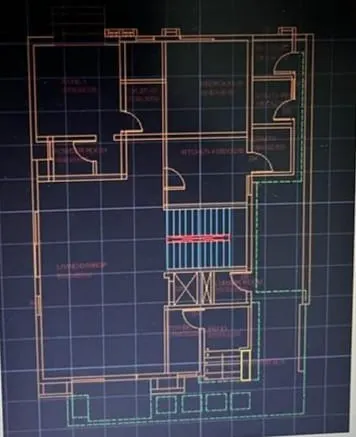

2)AIM-To draw the floor plan as shown in figure.
PROCEDURE-
.in the command prompt type 'UNITS' & press enter.
.Select the unit as DECIMAL & insertion scale as 'MILIMETER'.
.Click ok.
.type'LIMITS' in the command prompt & press enter.
.Select 'OFF' from the command prompt.

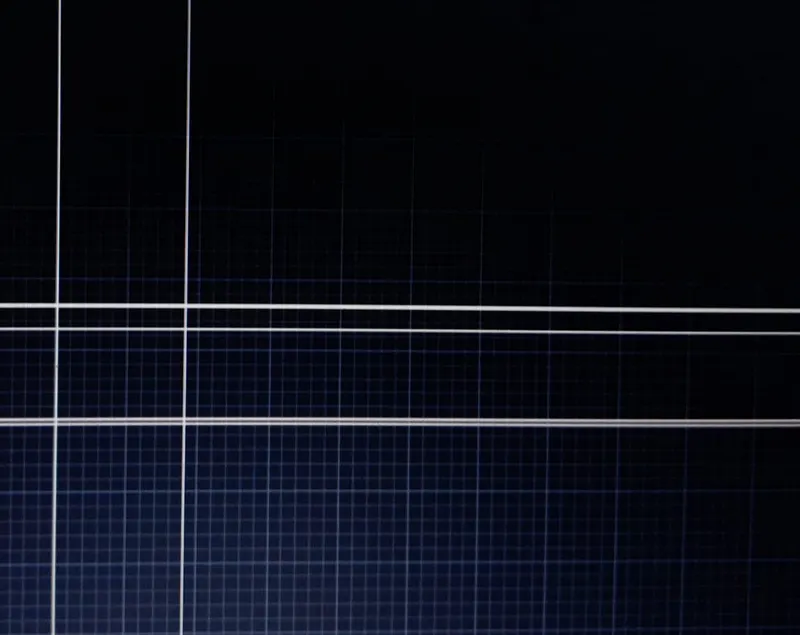

.Type X line in the command prompt & press enter.
.Type v & press enter.
.Place the vertical X line anywhere in the workspace & press Esc.
.Type X line in the command prompt & press enter.
.Type H in the command prompt & press enter.
.Place the horizontal X line & place Esc.

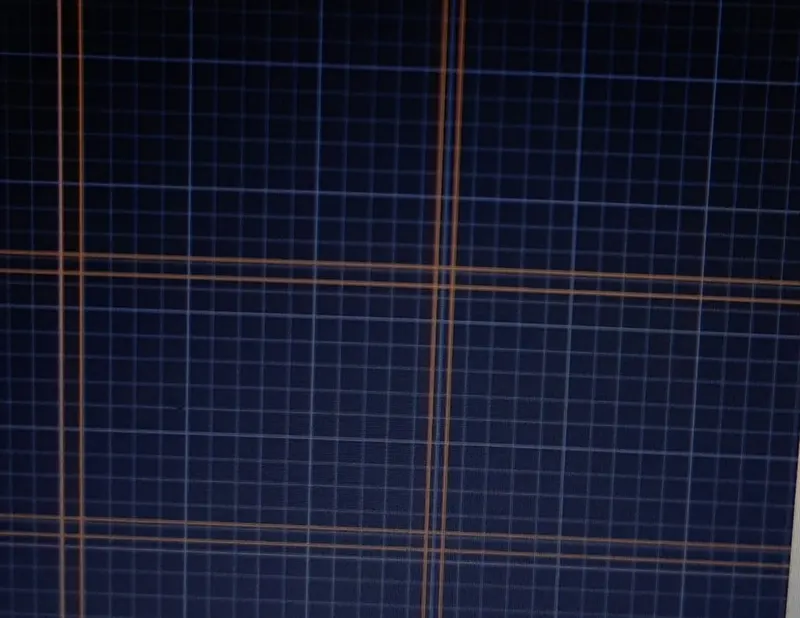

.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as per required standards.

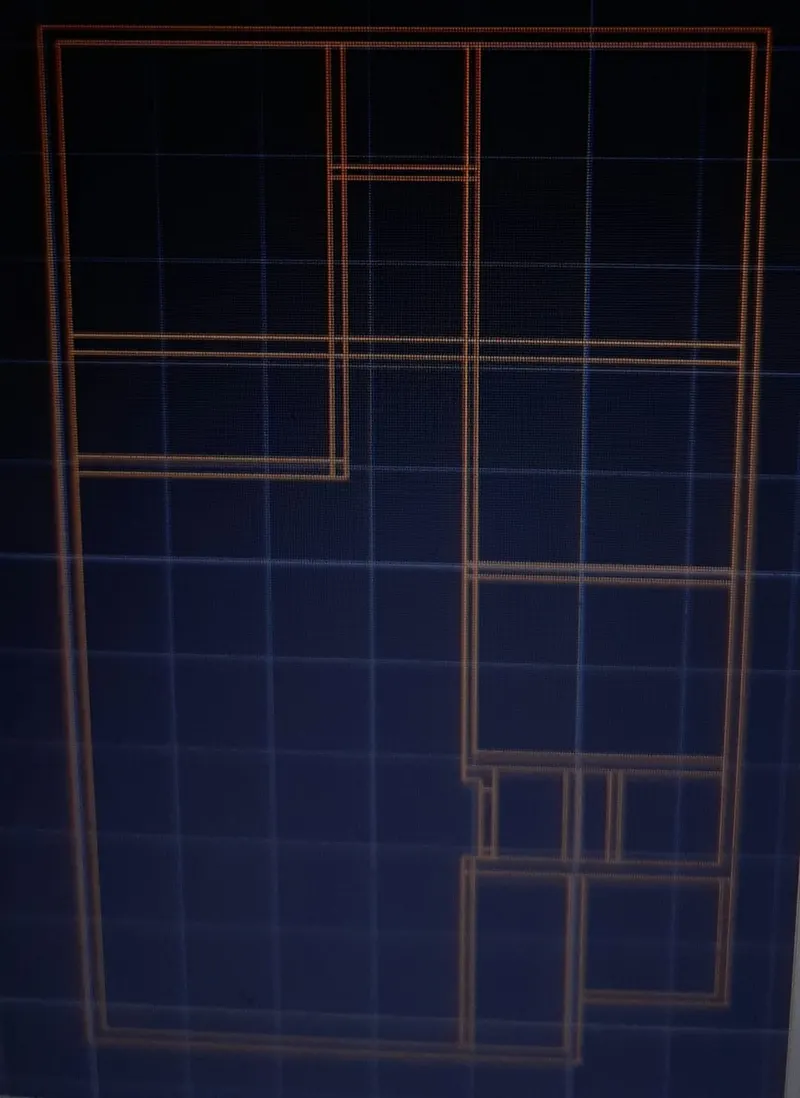

.Repeat the offset command until the outer walls are created.
.Then, type trim in the command prompt & press enter.
.Trim the unwanted lines projecting out.

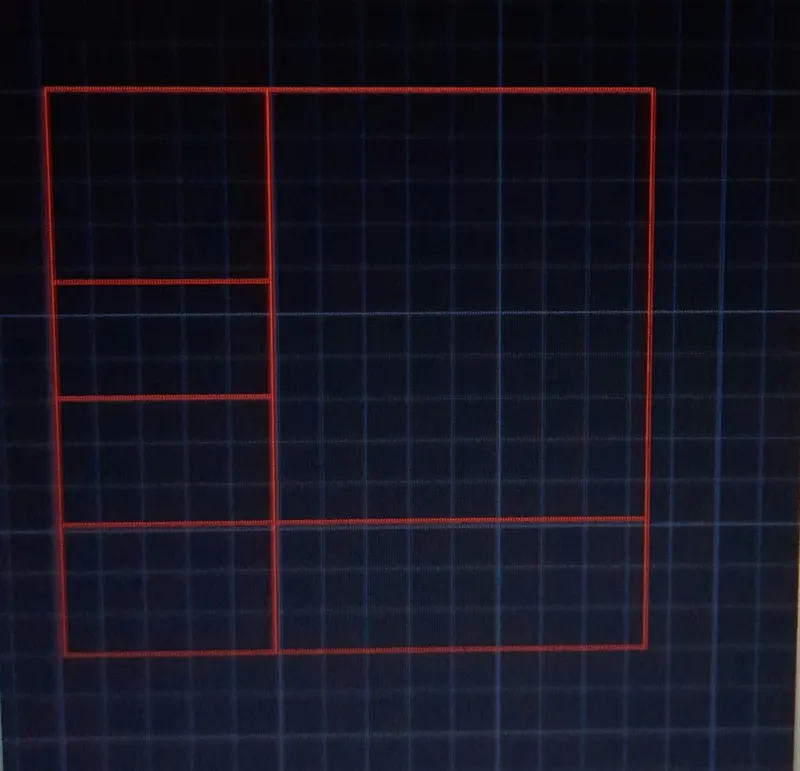

.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 9710 & press enter.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 150 & press enter.
.Repeat the same procedure for sketching.
.Select the trim tool from the ribbon tab.
.Trim the wall created using offset to attain required rooms.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 3200 & press enter.
.Specify the bottom line to offset & press enter.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 230 & press enter.
.Select the previously offsetted line & press enter.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 1600 & press enter.
.Select the previously offsetted line & press enter.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 230 & press enter.
.Select the previously offsetted line & press enter.
.Use trim tool from the ribbon tab.
.Trim the bottom line to obtain required room dimension.
.Use the line tool from the ribbon tab.
.Draw a line to specify a room on the right bottom corner.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 230 & press enter.
.Select the previously offsetted line & press enter.
.Use line tool from the ribbon tab.
.Draw a line to specify a room on the right bottom corner.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 230 & press enter.
.Select the previously offsetted line & press enter.
.Select the trim tool from the ribbon tab.
.Select the line to trim to obtain required room dimension.
.Use line tool from the ribbon tab.
.Draw a line above a previously created room to specify a room.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 230 & press enter.
.Select the previously offsetted line & press enter.
.Use line tool from the ribbon tab.
.Draw a line to specify a room on the right bottom corner.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 230 & press enter.
.Select the previously offsetted line & press enter.
.Use trim tool from the ribbon tab.
.Trim the bottom line to obtain required room dimension.
.Use line tool from the ribbon tab.
.Draw a line to specify a room on the top right corner of required length.
.Press Esc.
.Use line tool from the ribbon tab.
.Draw a vertical line from the last created line of required length.
.Press Esc.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 230 & press enter.
.Select the Horizontal line & press enter.
.Select the vertical line & press enter.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 1700 & press enter.
.Select the Horizontal line & press enter.
.Press Esc.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 230 & press enter.
.Select the previously created line & press enter.
.Press Esc.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 2100 & press enter.
.Select the previously created line & press enter.
.Press Esc.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 230 & press enter.
.Select the previously created line & press enter.
.Press Esc.
.Use line tool from the ribbon tab.
.Draw a vertical line from the last created line of required length.
.Press Esc.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 230 & select the vertical line.
.Press Esc.
.Again draw a vertical from a offset distance using line tool from ribbon tab.
.Type 'OFFSET' in the command prompt & press enter.
.Specify the offset distance as 230 & select the vertical line.
.Press Esc.
.Draw line a required length using line tool from ribbon tab to create staircase.
.Also from the other end draw a line of required length.
.In the center space draw a rectangle using rectangle tool from the ribbon tab.
.Type 'OFFSET' in the command prompt & press enter.
.Since the thread length is 300mm,specify the offset distance as 300.
.Select the line & do multiple offset until required flight is obtained.
.Repeat the same procedure on the downward direction also.
.Click on layertool from the ribbon tab.
.In the layer setting ,create a layer to indicate dash lines.
.Select the 'line type'& then click load .
.From the displayed line type select the suitable line type & press ok.
.Set the layer as current layer.
.Select line tool from ribbon tab.
.Draw a line according to the figure given.
.Select text tool from ribbon tab.
.From the drop-down, select single line text.
.Place the pointer where the text has to be inserted & click.
.Now type 'living & dining 5310x9710".
.Place the pointer in the next point where the text to be inserted & click.
.Similarly, insert all the text as mentioned in the figure.

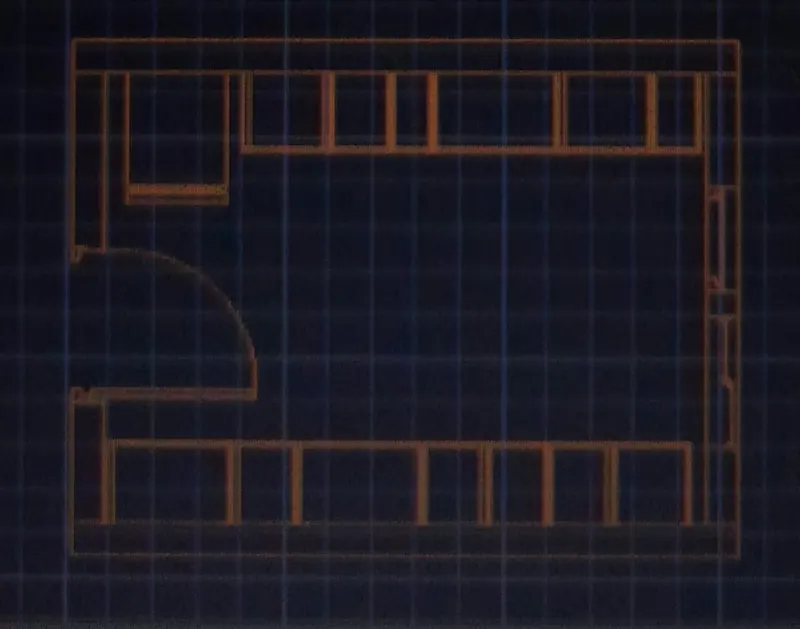

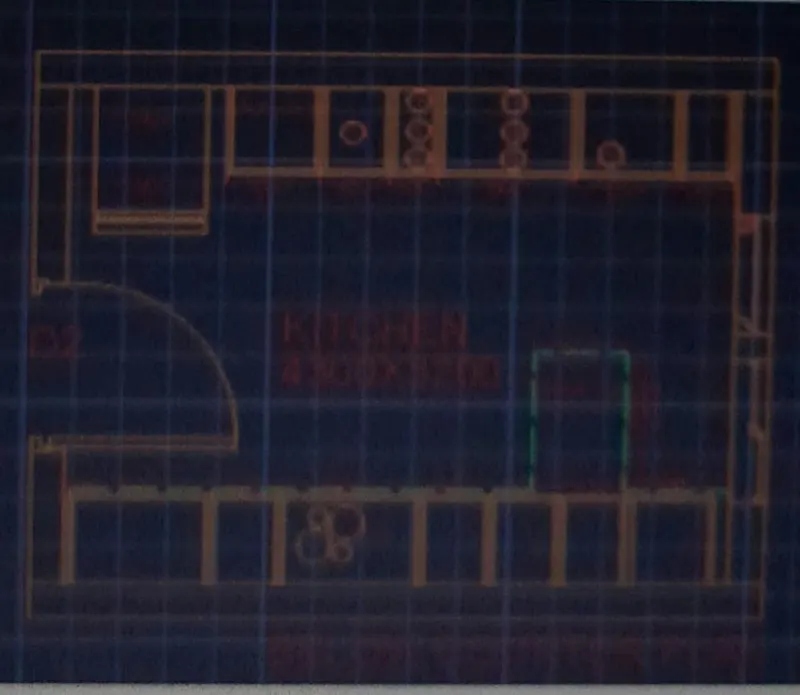

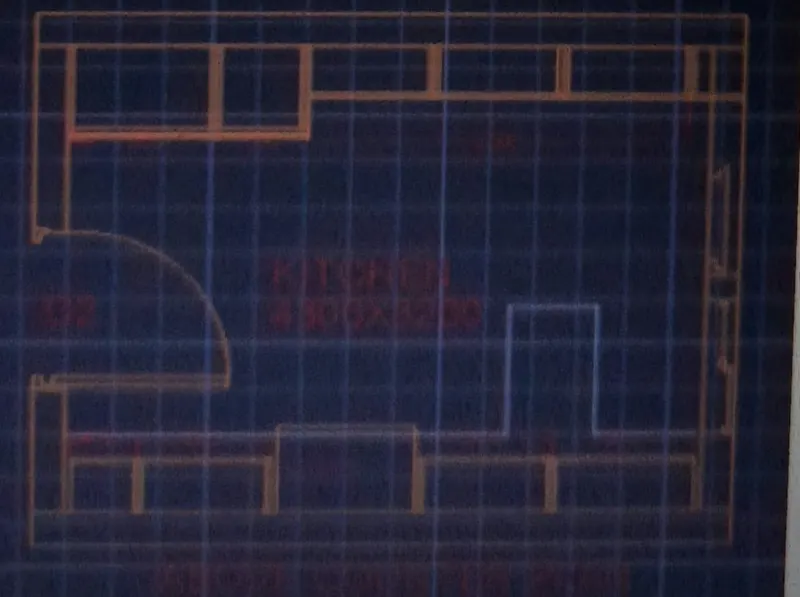

3)AIM:-To create kitchen layout as shown in figure using Autocad.
Procedure:-
.In the command prompt type 'UNIT' & press enter.
.Select the unit as 'decimal' & insertion scale as 'milimetre'.
.Click ok.
.Type 'limits' in the command prompt & press enter.
.Select 'off' from the command prompt.

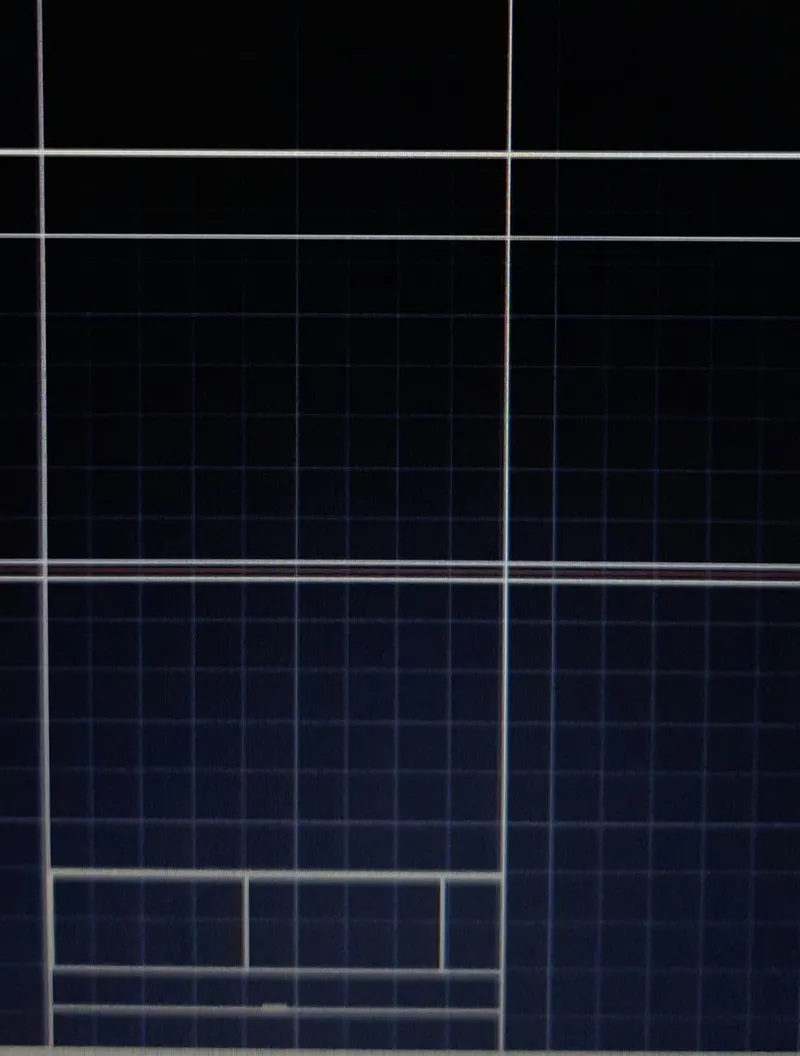

.Type X line in the command prompt & press enter.
.Type V in the command prompt & press enter.
.place the vertical line & press Esc.
.Type X line in the command prompt & press enter.
.Type H line in the command prompt & press enter.
.Place the horizontal xline & press Esc.
.Type offset in the command prompt & press enter.
.Specify the offset distance as 230.
.Select the horizontal line to offset.
.Now select the vertical line to offset.
.Type offset in the command prompt & press enter.
.Specify the offset distance as 4300.
.Select the vertical line to offset & press Esc.
.Specify the offset distance as 3200.
.Select the horizontal line to offset & press Esc.
.Type offset in the command prompt & press enter.
.Specify the offset distance as 230.
.Select the horizontal line to offset .
.Now select the vertical line to offset.
.Select trim tool from ribbon tab.
.Trim the portion required for sketching the door.
.Select arc tool from from ribbon tab.
.From the drop down select start,end, direction.
.Now specify the starting & ending point.
.Move the cursor to specify the direction of door opening.
.Type offset in the command prompt & press enter.
.Specify the offset distance as 600.
.Select the horizontal line to offset & press Esc.
.Type offset in the command prompt & press enter.
.Specify the offset distance as 800.
.Select the horizontal line to offset & press Esc.
.Type offset in the command prompt & press enter.
.Specify the offset distance as 600.
.Select the bottom horizontal line to offset & press Esc.
.Select the line tool from the ribbon tab.
.Specify the starting indicating the position of window.
.Use rectangle tool from ribbon tab to draw the separation.
.Again use line tool to draw the next window.
.Use line tool from ribbon tab.
.Draw a line of length 800 in the negative Y direction.
.Use offset command to offset the line up to distance of 1000.
.Draw a line of length 550 in the negative Y direction.
.Use offset command to offset the line up to distance of 600.
.Draw a line of length 550 in the negative Y direction.
.Use offset command to offset the line up to distance of 450.
.Draw a line of length 550 in the negative Y direction.
.Use offset command to offset the line up to distance of 300.
.Draw a line of length 550 in the negative Y direction.
.Use offset command to offset the line up to distance of 900.
.Draw a line of length 550 in the negative Y direction.
.Use offset command to offset the line up to distance of 300.
.Draw a line of length 550 in the negative Y direction.
.Use offset command to offset the line up to distance of 945.
.Draw a line of length 550 in the negative Y direction.
.Use offset command to offset the line up to distance of 900.
.Draw a line of length 550 in the negative Y direction.
.Use offset command to offset the line up to distance of 450.
.Draw a line of length 550 in the negative Y direction.
.Use offset command to offset the line up to distance of 900.
.Draw a line of length 550 in the negative Y direction.
.Use offset command to offset the line up to distance of 450.
.Draw a line of length 550 in the negative Y direction.
.Use offset command to offset the line up to distance of 450.
.Draw a line of length 550 in the negative Y direction.
.Use offset command to offset the line up to distance of 450.
.Draw a line of length 550 in the negative Y direction.
.Use offset command to offset the line up to distance of 560.
.Select the entire object in the workspace.
.Type 'COPY' in the command prompt & press enter.
.Select the bottom left corner point as base point.
.Move the copy of the object in the positive X direction & place it.
.Use offset command to offset the line up to distance of 965.
.Similarly draw a line of length550in the negative y direction.
.Draw a line of length 550 in the negative Y direction.
.Use offset command to offset the line up to distance of 600.
.Draw a line of length 550 in the negative Y direction.
.Use offset command to offset the line up to distance of 865.
.Draw a line of length 550 in the negative Y direction.
.Use offset command to offset the line up to distance of 865.
.Draw a line of length 550 in the negative Y direction.
.Use offset command to offset the line up to distance of 865.

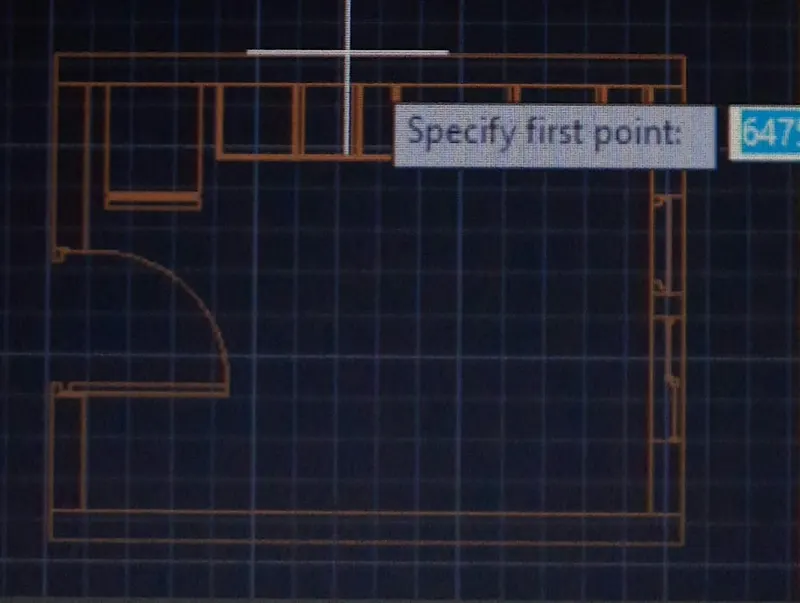

Selection the dimension tool from thr ribbon tab.
.Specify the starting point & end point.
.Move the cursor to adjust the position of dimensions.
.Press c or click continue in the command prompt.
.Select the base point from the dimensioning has to continue.
.Move the cursor to next point & click to display the dimension.
.Similarly repeat the same procedure to display the dimension.
.Select the text tool from ribbon tab.
.From the drop down select single line text.
.Place the pointer where the text has to be inserted & click.
.Type fridge & click on the next point where the text has to be inserted.
.Similarly enter all the text.
.Select text tool from ribbon tab.
.From the drop down ,select single line text.
.Place the pointer where the text has to be inserted & click.
.Type kitchen 4300x3200.
.In the annotate tool click manage text style.
.In the dialog box change the text height & click apply.
.Select the text & go the annotate tool, select standard.
.Now the text height is changed.
.Select the tool from ribbon tab.
.From the drop down ,select single line text.
.Place the pointer where the text has to be inserted & click.
.Type kitchen 4300x3200.
.In the annotate tool click manage text style.
.In the dialog box change the text height & click apply.
.Select the text & go the annotate tool, select standard.
.Now the text height is changed.

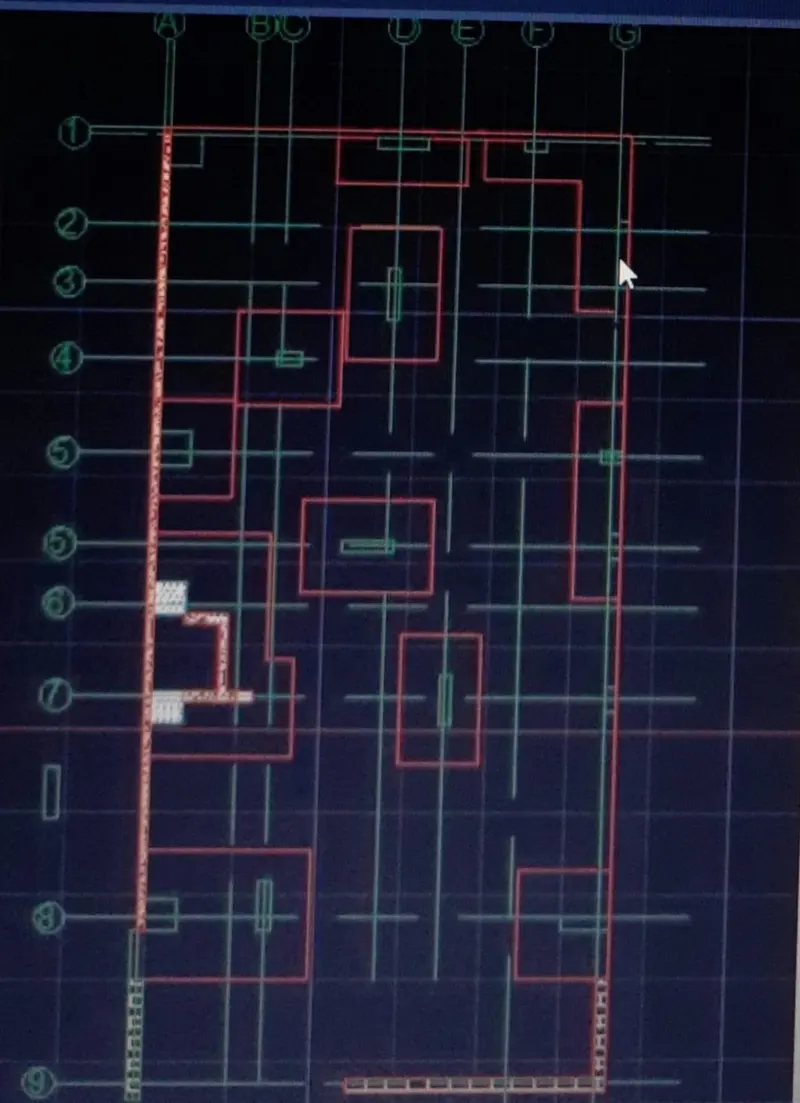

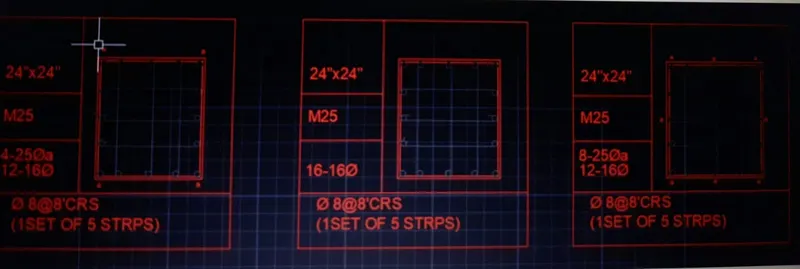

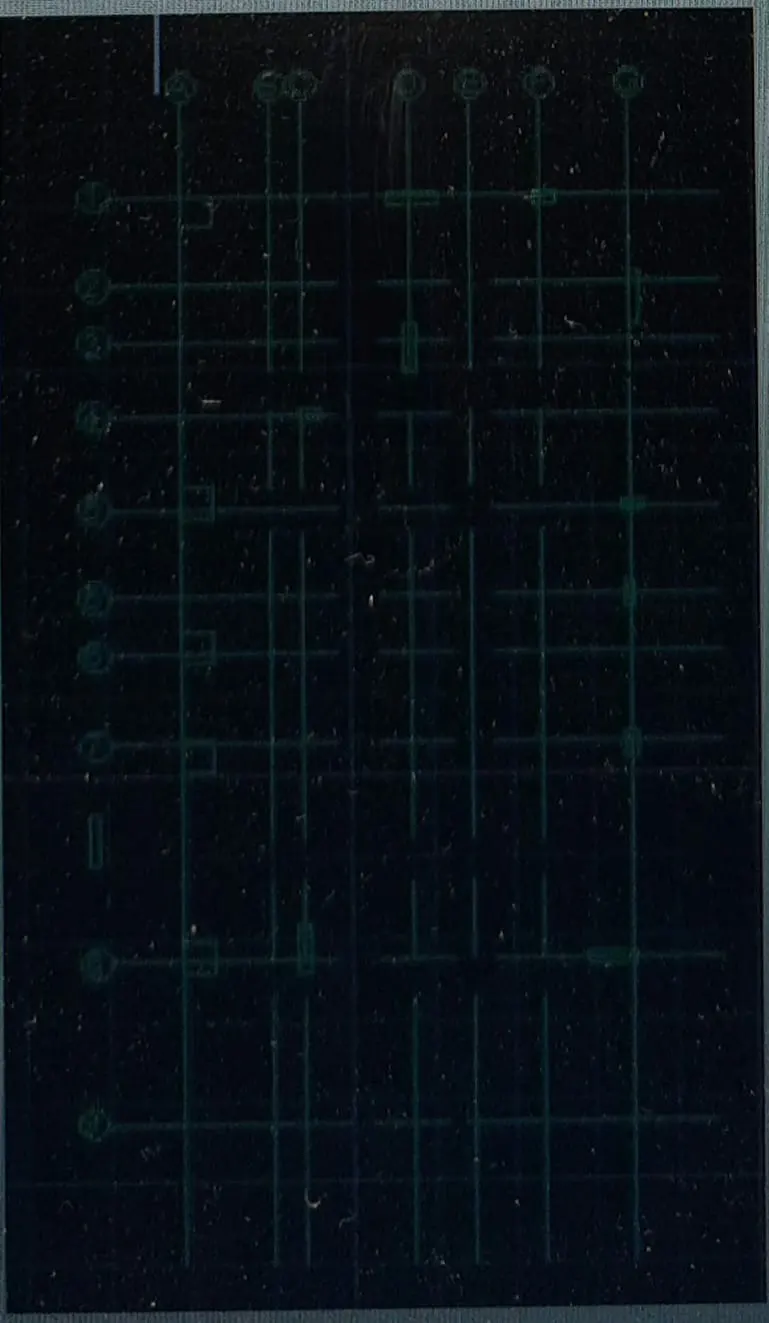

4)AIM -To sketch the column details as given in the figure using Autocad.
PRODECURE-
.Type 'UNITS' in the command prompt & press Enter.
.In the unit tab select the type as Architechtural & insertion scale as 'inches'.
.Click ok.

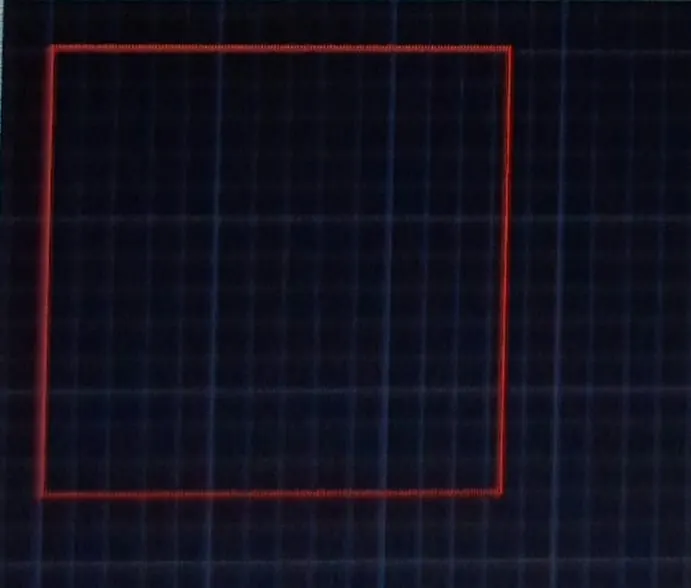

.Select rectangle tool from the command tab.
.Specify the starting point as (0,0) click enter.
.Specify the starting point in the workspace.

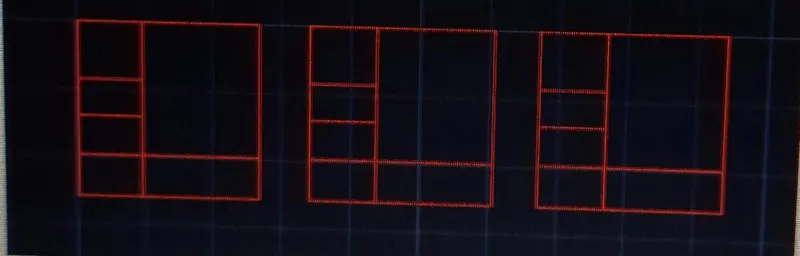

.Drag the rectangle type the dimension as per required size.
.Select line tool from the ribbon tab.
.Draw a vertical line inside the rectangle as per figure.
.Press Esc.
.Draw a Horizontal line inside the rectangle as per figure.
.Press Esc.
.Type offset command prompt & specify the suitable the suitable offset distance.
.Offset the same line for two times.
.Use trim tool to trim the unwanted lines.
.Select the entire object using cursor.
.Type copy in the command prompt & press enter.
.Select the base point as right bottom corner point.
.Move the copied object in horizontal direction & click to paste it.
.Again move the same direction & click to paste it.
.Select text tool from the ribbon tab.
.From the drop down list select single line text.
.Now keep the pointer in the left box & click as per the alignment required.
.Type the text as 24x24 & click on the place where the has to be entered.
.Type the text as M25 & click on the place where the has to be entered.
.Type the text as 4-25`Phi`,12-16`Phi` & click on the place where the has to be entered.
.Type the text as`Phi`8@8" crs(1 SET OF 5 STRAPS) & click on the place where the has to be entered.
.Now press Esc.
.Similarly type the other text in the required alignment.
5)AIM-To draw the raft layout as shown in the figure using Autocad.
PROCEDURE-
.Type 'UNITS' in the command prompt & press Enter.
.In the unit tab select the type as Architechtural & insertion scale as 'inches'.
.Click ok.

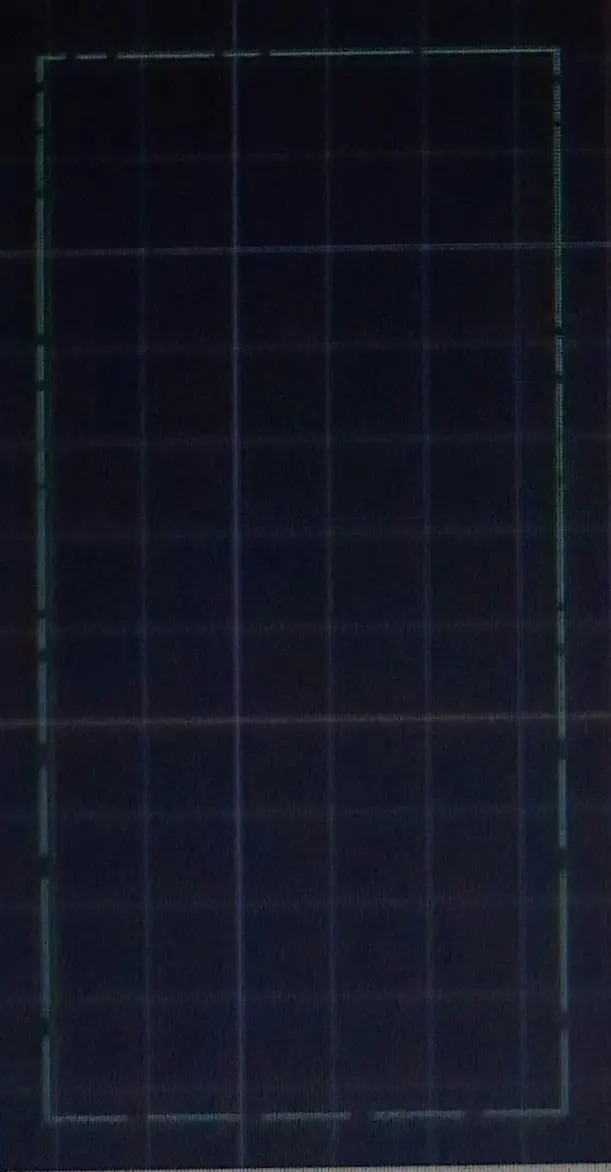

.Select the line type tool from the ribbon tab.
.Click load.
.From the dialog box select 'long dash short dash' & click ok.
.Select line tool from the ribbon tab.
.Specify the starting point in workspace.
.Draw a line of length of 53'5" in vertical direction & press Esc.
.Specify the starting point in workspace.
.Draw a line of length of 26'9" in horizontal direction & press Esc.
.Type offset command prompt & press enter.
.Specify the offset distance as 53'5".
.Select the horizontal line to offset.
.Press Esc.
.Type offset command prompt & press enter.
.Specify the offset distance as 26'9".
.Select the vertical line to offset.
.Press Esc.

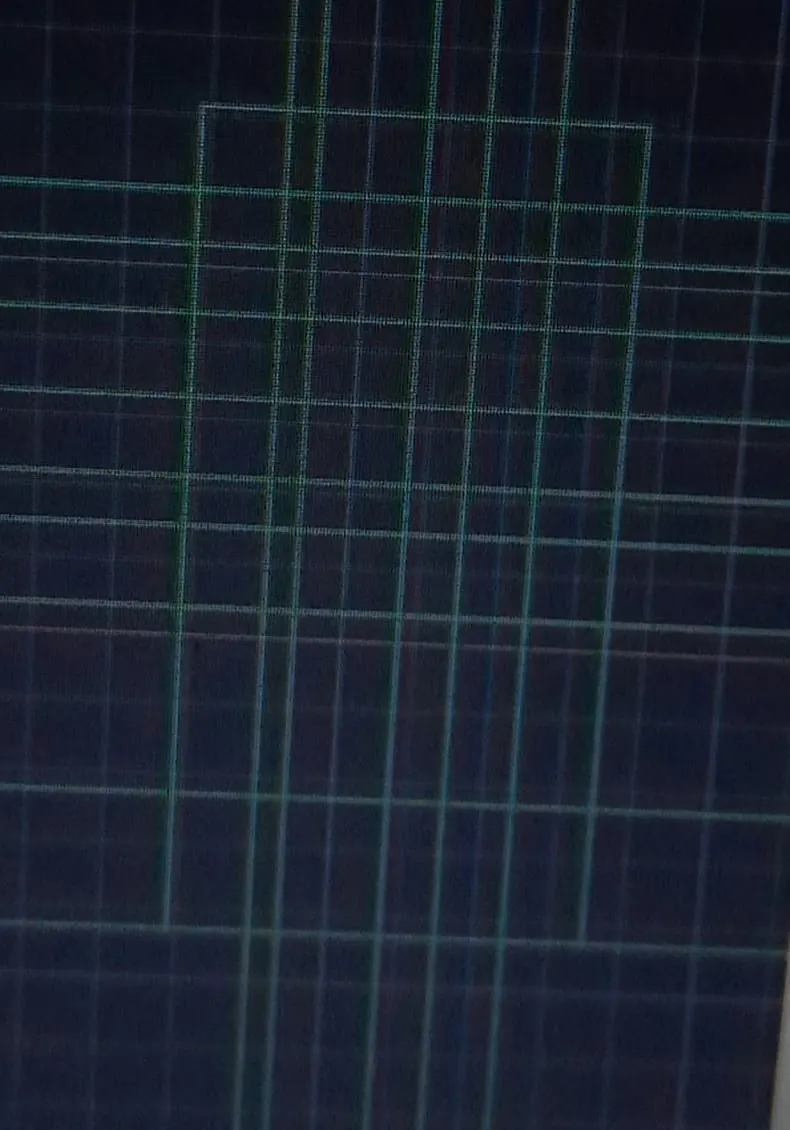

.Type X line in the command prompt.
.Press V in the command prompt & press enter.
.Type X line in the command prompt.
.Press H in the command prompt & press enter.
.Type offset command prompt & press enter.
.Specify the offset distance as 5'6".
.Select the vertical line to offset.
.Press Esc.
.Type offset command prompt & press enter.
.Specify the offset distance as 2'.
.Select the previously offsetted vertical Xline to offset.
.Press Esc.
.Type offset command prompt & press enter.
.Specify the offset distance as 7'.
.Select the previously offsetted vertical Xline to offset.
.Press Esc.
.Type offset command prompt & press enter.
.Specify the offset distance as 4'.
.Select the previously offsetted vertical Xline to offset.
.Press Esc.
.Type offset command prompt & press enter.
.Specify the offset distance as 4'6".
.Select the previously offsetted vertical Xline to offset.
.Press Esc.
.Type offset command prompt & press enter.
.Specify the offset distance as 5'7.5".
.Select the previously offsetted vertical Xline to offset.
.Press Esc.
.Similarly the horizontal line use offset tool.
.Type offset command prompt & press enter.
.Specify the offset distance as 10'4.5".
.Select the horizontal Xline to offset.
.Press Esc.
.Type offset command prompt & press enter.
.Specify the offset distance as 13'10.5".
.Select the previous offseted horizontal Xline to offset.
.Press Esc.
.Type offset command prompt & press enter.
.Specify the offset distance as 5'9".
.Select the previous offseted horizontal Xline to offset.
.Press Esc.
.Type offset command prompt & press enter.
.Specify the offset distance as 3'9".
.Select the previous offseted horizontal Xline to offset.
.Press Esc.
.Type offset command prompt & press enter.
.Specify the offset distance as 5'7.5".
.Select the previous offseted horizontal Xline to offset.
.Press Esc.
.Type offset command prompt & press enter.
.Specify the offset distance as 5'10.5".
.Select the previous offseted horizontal Xline to offset.
.Press Esc.
.Type offset command prompt & press enter.
.Specify the offset distance as 3'7.5".
.Select the previous offseted horizontal Xline to offset.
.Press Esc.
.Type offset command prompt & press enter.
.Specify the offset distance as 5'7.5".
.Select the previous offseted horizontal Xline to offset.
.Press Esc.

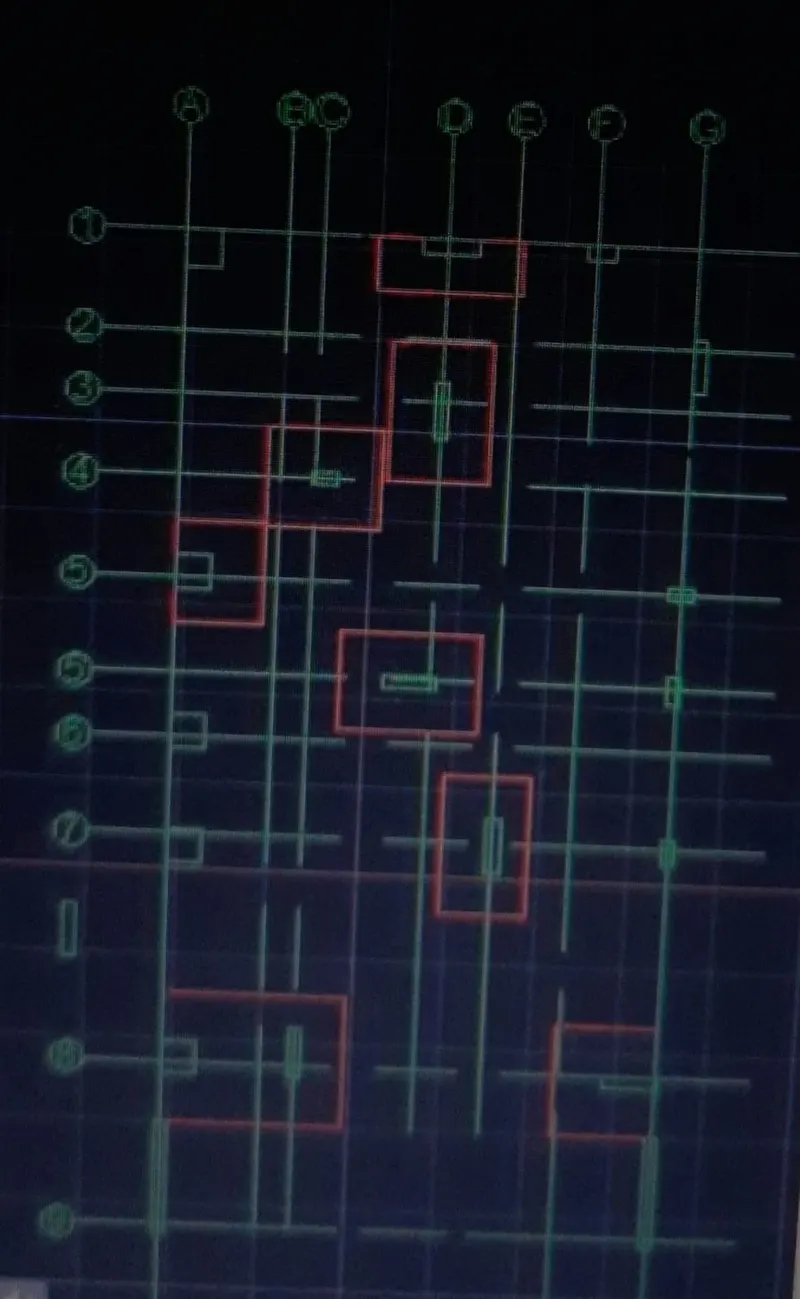

.Select circle tool from ribbon tab.
.Draw a small circle by specifying centre & radious randomly.
.Press Esc.
.Select the circle & type copy in the command prompt.
.Place the copied object in places where it is required as per figure.
.Select text tool from ribbon tab.
.From drop down list select single line text.
.Place the circle inside the the circle to insert text.
.Similarly enter the text to mention the section name.
.Select rectangle tool from the ribbon tab.
.Specify the starting point & select dimensions.
.Enter the length as 24' & width as 24'.
.Press Esc.
.Select rectangle tool from the ribbon tab.
.Specify the starting point & select dimensions.
.Enter the length as 9' & width as 24'.
.Press Esc.
.Select rectangle tool from the ribbon tab.
.Specify the starting point & select dimensions.
.Enter the length as 9' & width as 18'.
.Press Esc.
.Place the created the rectangle in the grid point as shown in figure.
.
.To draw the footing marking use line tool from the ribbon tab.
.From the face D1 column draw a line of length 2'6" on either direction.
.Connect the lines to form the footing.
.Similarly draw the footing the other grid/columns.
.
.To draw the L shaped combined footing use line tool from the ribbon tab.
.Draw a line of length 2'6" in downward direction.
.Specify the next point as @(7'1.5",0) & press enter.
.Specify the next point as @(0,6'1.5") & press enter.
.Specify the next point as @(2'6",0) & press enter.
.Press Esc.
.
.Select hatch tool from the ribbon tab.
.From the hatch dilog box select the hatch indicating concrete.
.Select the as per the required visibility.
.Place the cursor where hatch is to be done & click.
.Again select hatch tool from the ribbon tab.
.From the hatch dilog box select the hatch indicating concrete.
.Select the as per the required visibility.
.Place the cursor where hatch is to be done & click.
