Creating a Wardrobe detailed drawing, Floor Plan, Kitchen Layout and Column Detail using AutoCad

CHALLENGE WEEK - 6

AutoCADD Essential

Question no.1:

• AIM:

• To draw the elevation and details of a wardrobe.
• To use text and dimensions.

• Procedure:

• Select the line tool.
• Initially the plan view or the top view of the wardrobe is sketched.
• Draw a rectangle of size 2800x630
• And offset the rectangle to 20mm.
• Offset the left edges to 2435mm and again to middle of 2435mm.
• Thus the plan view is got.

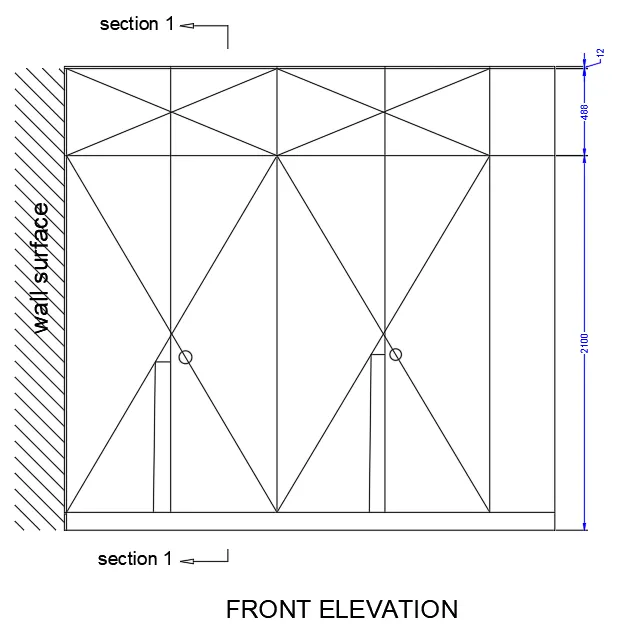

• The for the front elevation.
• Draw a rectangle of 2800x2800
• Offset the same for 12mm on top and left edges.
• Offset the bottom edge for 440mm.
• left edge for 365mm.
• And then the remaining space is splitted into two half which has a total length of 2435mm.
• Then that space further divided in its middle points.
• Thus the front elevation is obtained.

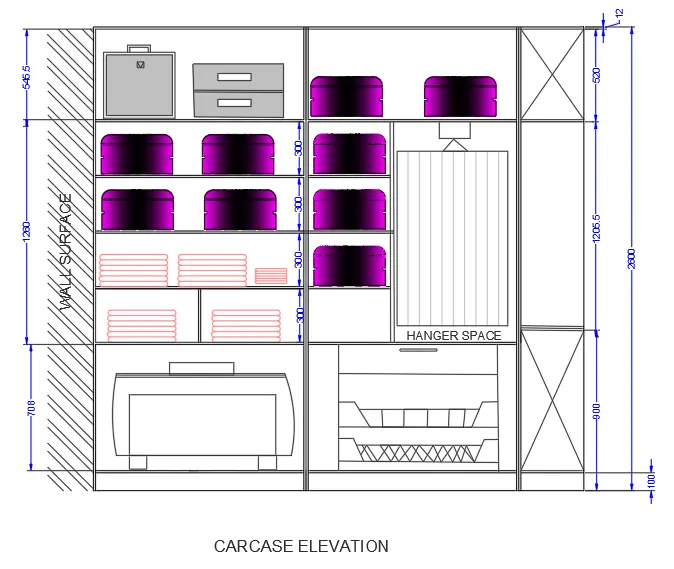

• Then the carcase is same as front elevation sizes and dividings.
• Except for different shelves in 300mm is divided and the right space is left for a hanger space.

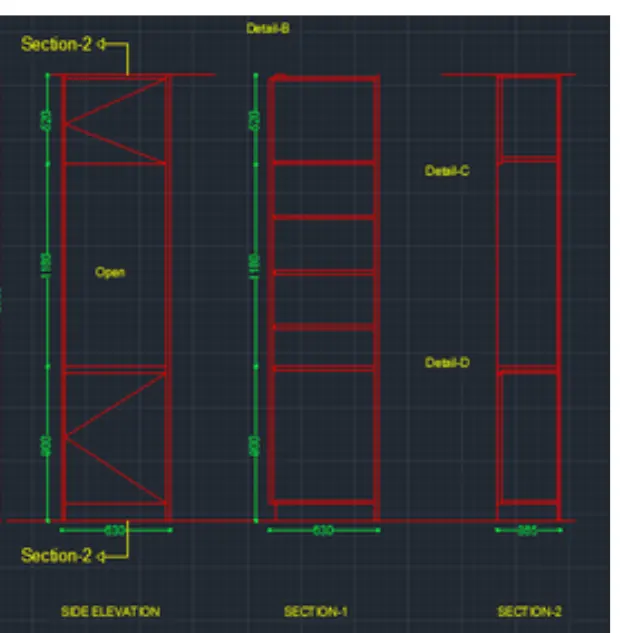

• Then two sections cut from the Front and carcase elevations.
• Then same shelf dividings are shown in the sections.
• ,
• ,
• RESULT:

• The elevation and details of a wardrobe is successfully created.
• All units are in mm.
• The drawing contains the texts of required sizes.

Question no.2:

• AIM:

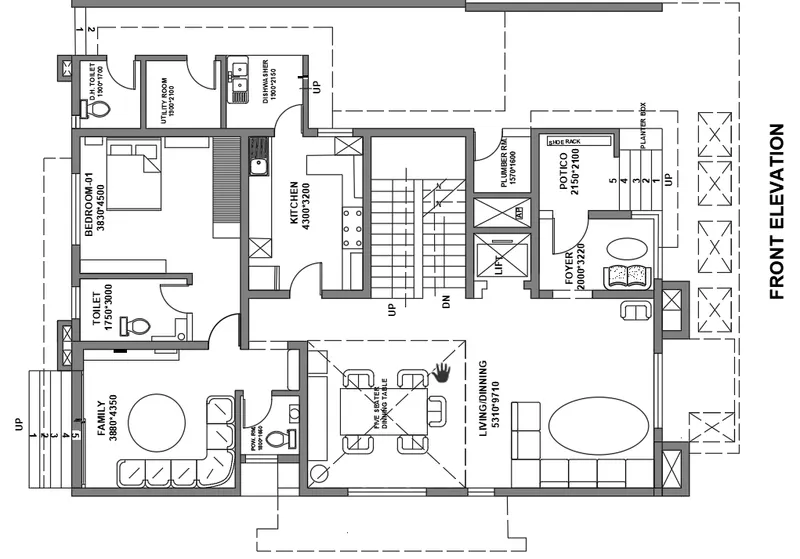

• To draw the floor plan of a residential building.
• To use text and dimensions.

• Procedure:

• Select the line tool.
• Offset command is used to required thickness of the walls.
• Arc commands are used to draw the doors in the the diagram.
• The door after beign drawn are converted to blocks and copied to required places.
• Windows are drawn with line and offset commands.
• Doors and windows are set in separate layers.
• Walls are set in walls layers.
• Dimensions and texts are set in separate text layers.
• Required rooms sizes are marked in the respective rooms.
• The obtained drawing after the procedure is displayed below.

•

• RESULT:

• The draw the floor plan of a residential building is successfully created.
• All units are in mm.
• The drawing contains the texts of required sizes.

Question no.3:

• AIM:

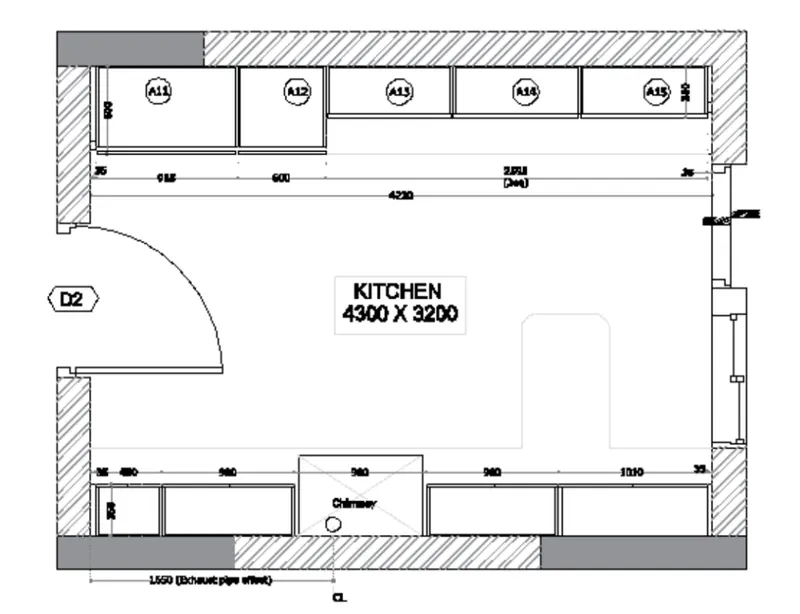

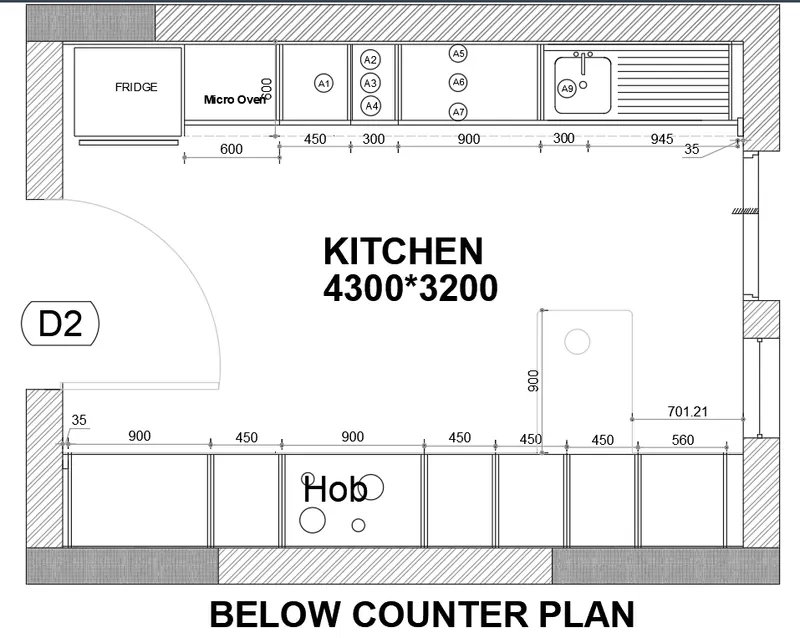

• To create the kitchen layout.
• To use text and dimensions.

• Procedure:

• Select the line tool.
• Offset command is used to required thickness of the walls.
• Arc commands are used to draw the doors in the the diagram.
• The door after beign drawn are converted to blocks and copied to required places.
• Windows are drawn with line and offset commands.
• Walls are set in walls layers.
• Dimensions and texts are set in separate text layers.
• Required rooms sizes are marked in the respective rooms.
• The obtained drawing after the procedure is displayed below.
•

• RESULT:

• The Kitchen Layout successfully created.
• All units are in mm.
• The drawing contains the texts of required sizes.

Question no.4:

• AIM:

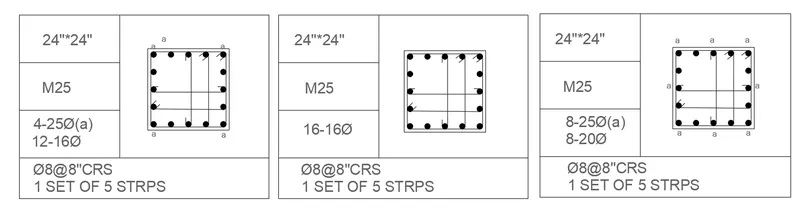

• To Sketch the column details
• To use text and dimensions.

• Procedure:

• Select table creation tool.
• Create a table with two column.
• The first column with 3 rows and last common row for both columns.
• The right column is left with empty space.
• Now the table is copied another 2 times.
• Now every empty column space of the table is placed with column drawing.
• The left column of the table is filled with values of the column.
•

• RESULT:

• The Sketch of the column details is successfully created.
• All units are in mm.
• The drawing contains the texts of required sizes.

Question no.5:

• AIM:

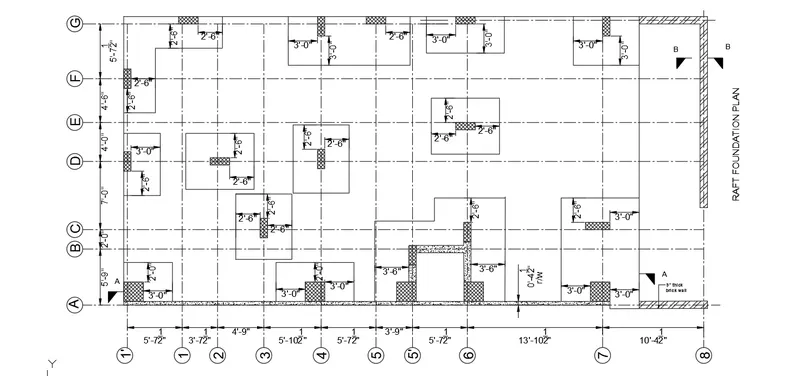

• To Draw the Raft Layout
• To use text and dimensions.

• Procedure:

• Select the line tool.
• The column lines are drawn using centre line.
• The walls are drawn using wall layer.
• The measurement for respective columns are drawn.
• The required column center lines are drawn.
•

• RESULT:

• The Raft Layout successfully created.
• All units are in Architectural units.
• The drawing contains the texts of required sizes.
