Creating a Wardrobe detailed drawing, Floor Plan, Kitchen Layout and Column Detail using AutoCad

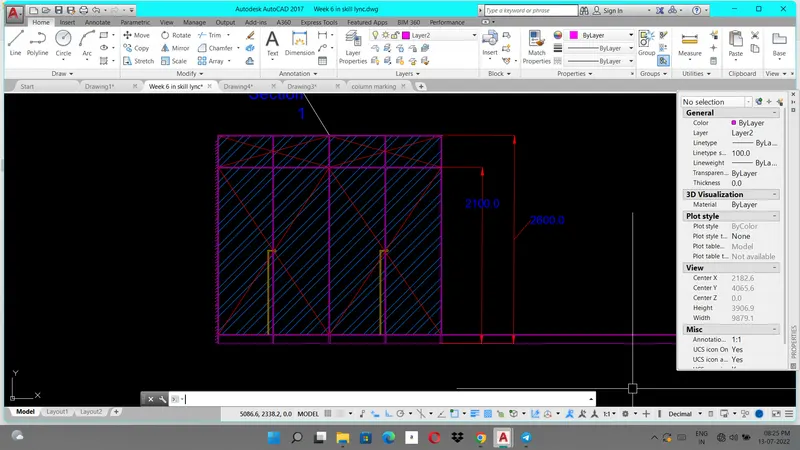

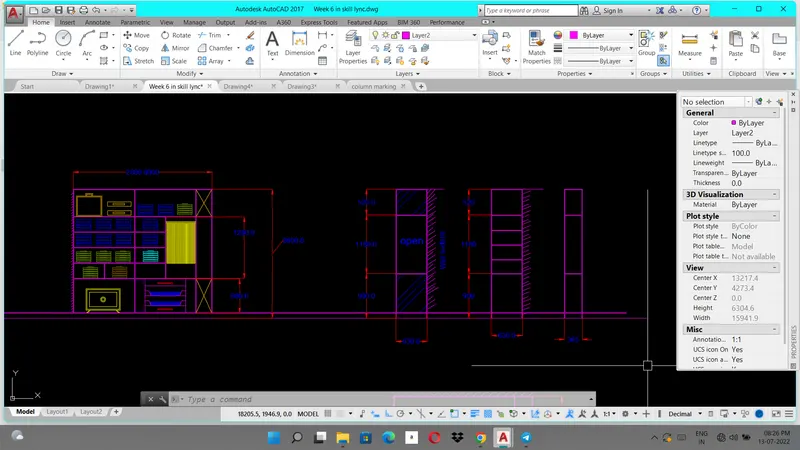

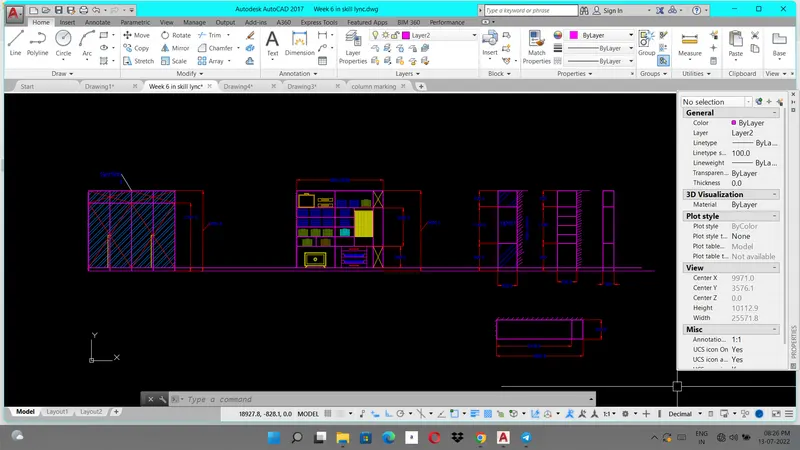

AIM:

To draw the elevation and details of a wardrobe as shown in the figure. After sketching, you need to provide the dimensions and text with the use of layers.

PROCEDURE:

STEP 1:

• Units are set to mm
• Limits and limax are also set
• Zoom command is also used

STEP 2:

• In the command line type rec > 2800,2600
• In the command line type offset
• Offset from the top of the dimensions 12mm and 488mm

Step 3:

• In the command line type offset
• Create the offset from the side at the distance of 608.75 and 365

Step 4:

• In the command line type l and by increasing the transperacy to create wall surface
• In the command line type qleader to mention the annotations

Step 5:

• In the command line type rec > 630 x 2800
• In the command line type qleader to mention the annotations
• In the command line type rec > 2800 x 2600
• With the help of line command drawers and cabinet are created

Step 6:

• In the command prompt type rectangle and dimensions of 520 x 630 , 1180 x 630 , 900 x 630 repeated two times
• Using the command the next of lines are drawn

RESULT:

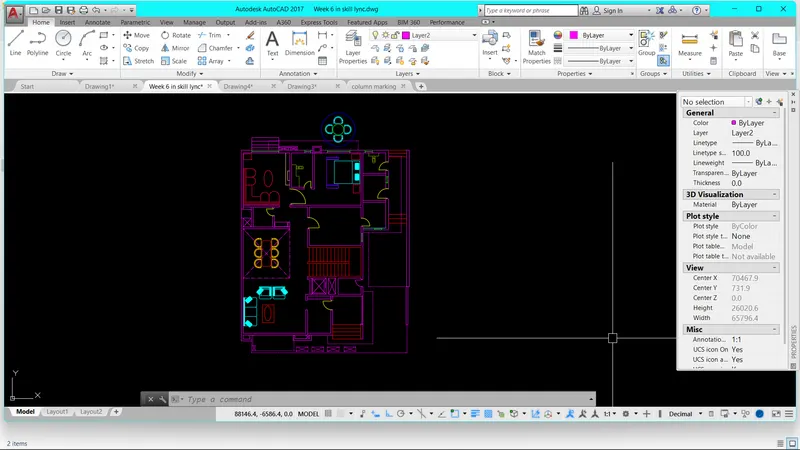

AIM:

To draw the given floor plan

Procedure:

Step 1:

• Units are set to mm
• Limit and limax are also set
• Zoom command is also used

Step 2:

• In the command prompt type XL to draw the infinite lines
• In the command prompt type offset the line for a particular distance
• Using arc command doors are also created

To draw canopy:

Circle:

• In the menu bar click on circle> center, radius
• Specify the center point as 10,10 and radius 452
• In the menu bar click on circle > center, radius
• Specify the center point same as the previous circle and radius 1398

SEATS:

• In the menu bar click on rectangle or in the command prompt type rec specify the length of the rectangle as 662.3
• Specify the width of the rectangle as 298.0
• In the command prompt type FILLET > RADIUS > 100
• In the menu bar > circle > 2 point
• In the menu bar > circle > center, diameter
• Center is the midpoint of the line diameter is 777.2
• Now extend the center line and trim the extras
• In the menu bar click fillet > blend curves > and select the arc

RESULT:

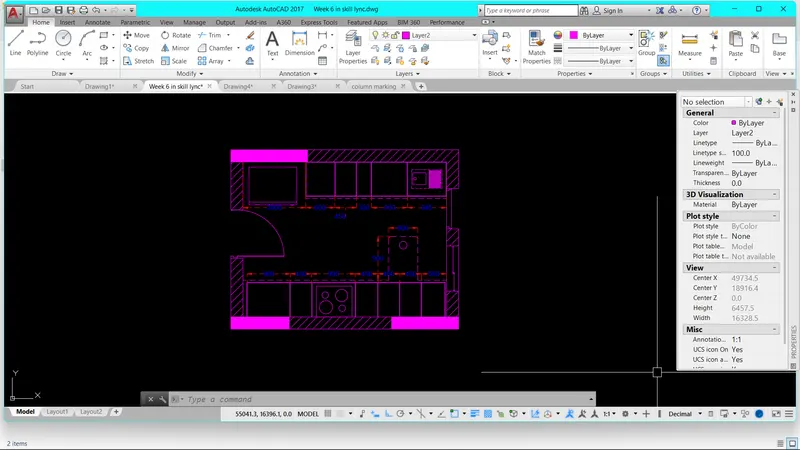

AIM:

To create the kitchen layout and to also, use proper dimensions techniques to dimensions the kitchen layout. Also insert text where ever required. All dimensions are in mm

PROCEDURE :

Step 1:

• Units are set to mm
• Limit and limax are also set
• Zoom command is also used

Step 2:

• In the command prompt type rec and the dimensions are 4734 x 3688mm
• In the command prompt type offset and offset it to the distance of 230mm
• Using the arc and lines the door is drawn
• In the command prompt type hatch the model
• In the command prompt type rec > dimensions to do the fridge
• In the command prompt tyoe offset and offset it to desired distance to get the micro oven
• In the command prompt type trim to trim extra lines
• In the command prompt type offset it to the horizontal distance of 350, 450, 900, 450, 450, and 560
• In the command prompt type type trim to trim the extra lines
• In the command prompt type even the leader command is used to name the dimensions

RESULT:

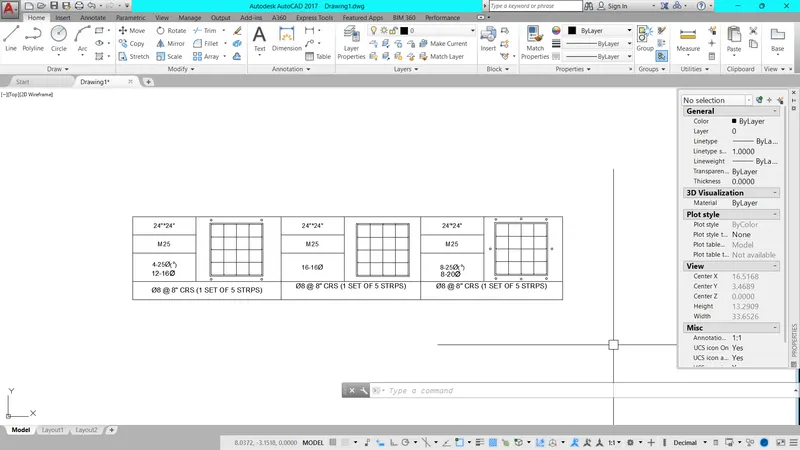

AIM:

To sketch the column details

PROCEDURE:

Step 1:

• Units are set to mm
• Limit and limax are also set
• Zoom command is also used

Step 2:

• Using rec and line command the tables are drawn
• Usin the text command the text are given
• Using the command the text are given
• In the command prompt type line to draw the reinforcement
• Type circle in the command prompt to draw reinforcement
• Draw the raft layout as shown in the figure. Assume the coloumn size as per requirement.
• remaining P2 AND P3 columns are same as the P1 COLUMN

RESULT:

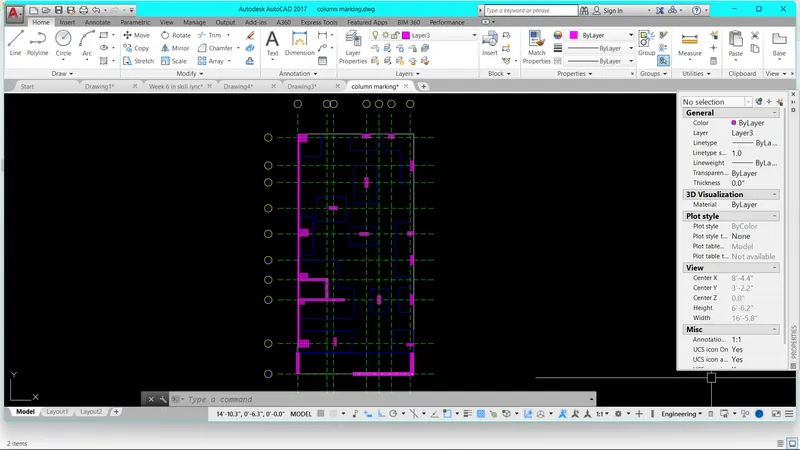

AIM :

To draw the raft layout

PROCEDURE:

Step 1:

• Units are set to Engineering > inches
• Limit and limax are also set
• Zoom command is also used

Step 2:

• In the command prompt type rec > dimensions are 29’-7” and 60’
• To get dotted lines click on the line type and load the dotted lines> current
• With the help of dotted lines and offset command the grids are drawn
• In the command prompt offset the distance to 4”
• In the command line type rec> 2’ x 2’
• In the ribbon bar select hatch > ANS131
• In the ribbon tab> annotate > text > m text to text the given annotations

RESULT:
