Creating a Wardrobe detailed drawing, Floor Plan, Kitchen Layout and Column Detail using AutoCad

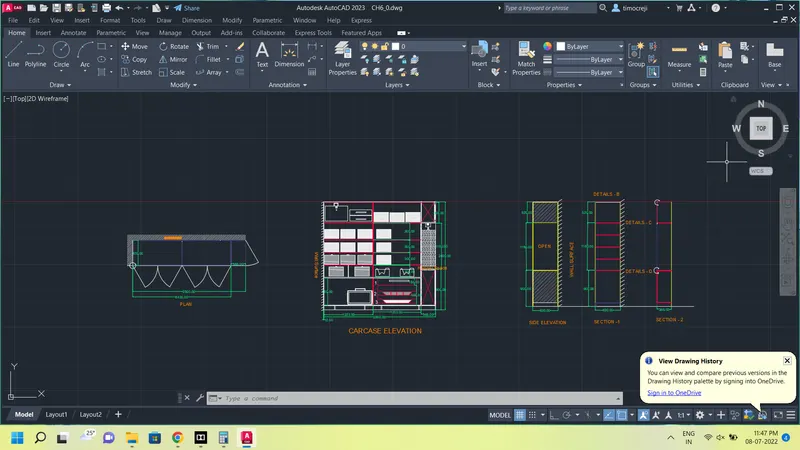

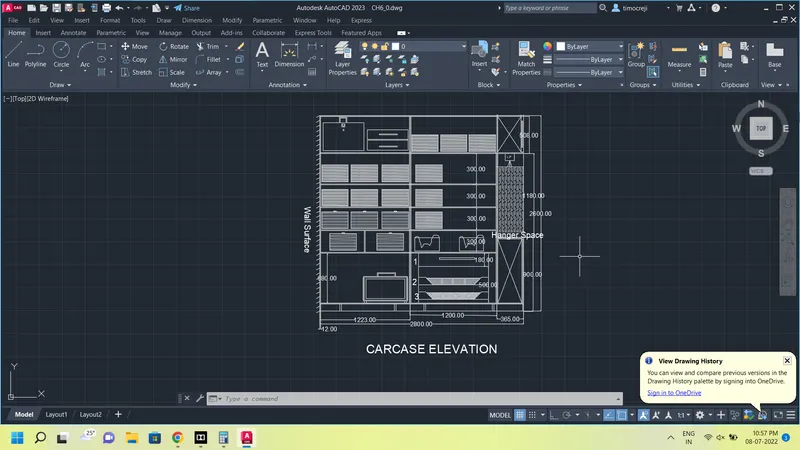

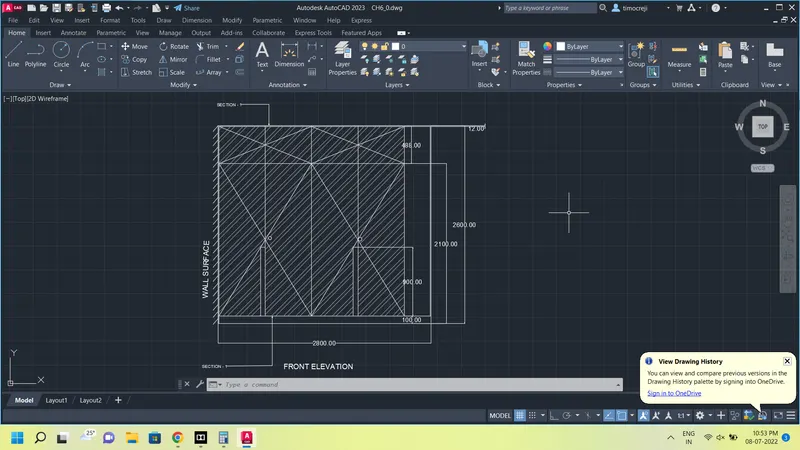

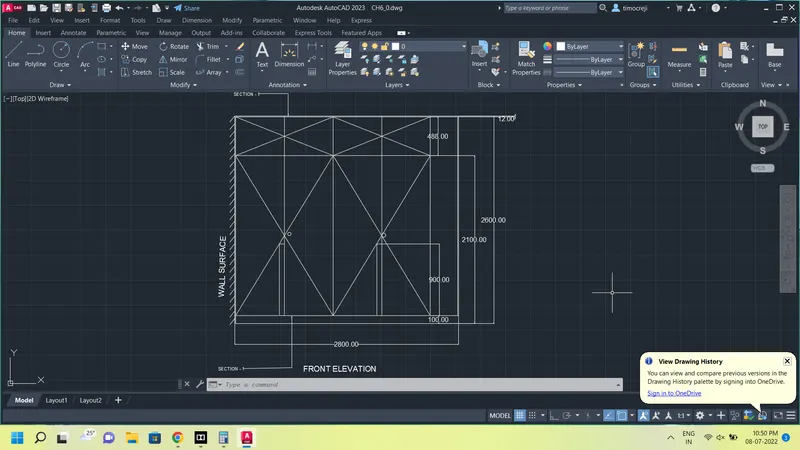

1. AIM: To Draw the elevation and details of a wardrobe as shown in the Figure below. After sketching and to provide the dimensions and text with the use of layers.
PROCEDURE:
• Using unit command Units are set to mm.
• Using limit command limits and lim-max are also set.

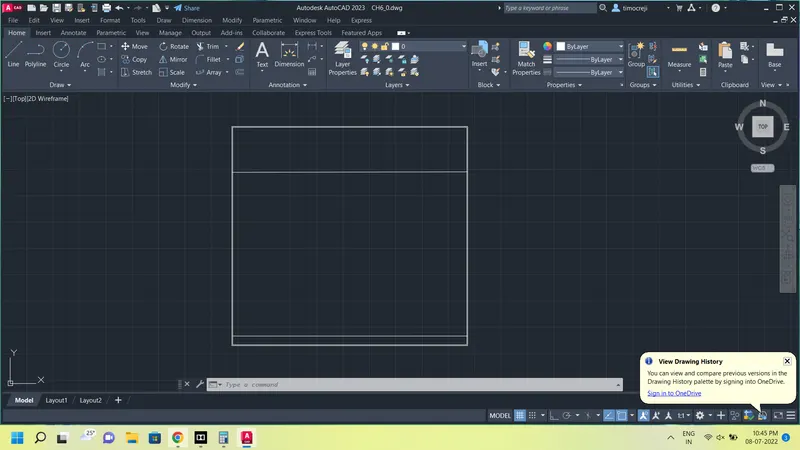

• In the command line type rec of dimensions 2800, 2600 respectively.
• In the command line type offset from the top of dimensions 12 and 488 mm.
• In the command line type offset and create the offset from the side at the distance of 608.75 and 365 .
• In the command line type L and by increasing the transparency to create wall surface.
• And by using hatch give the hatch and give scale 20.
• In the command line type q leader to mention the annotations.

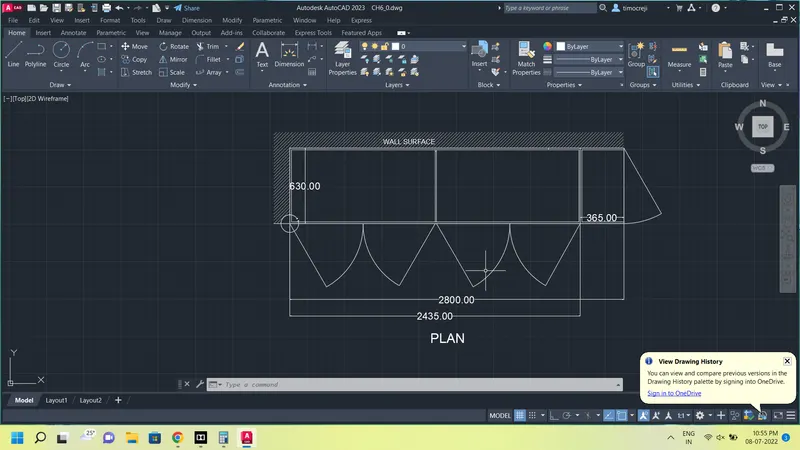

• In the command prompt type rectangle of dimension 630 x2800mm.
• In the command prompt type q leader to give the annotations
• In the command prompt type rectangle of dimension 2800 X 2600mm.
• And with the help of line command drawers and cabinets are created .
• Dimension the drawing by using dimension tool.

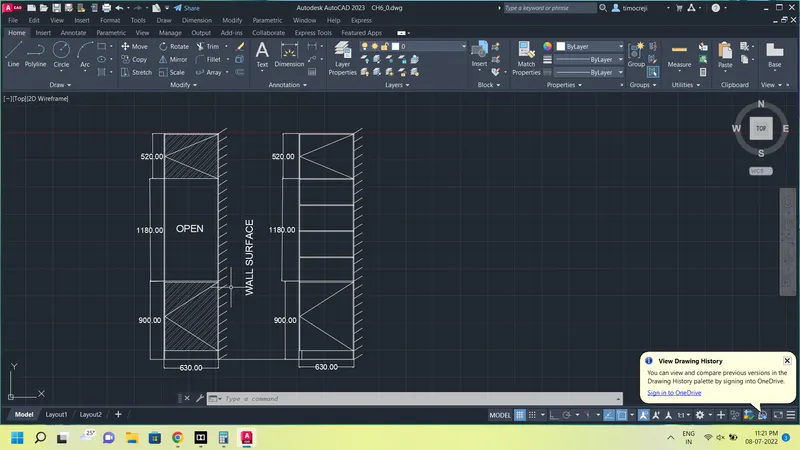

• In the command prompt type rectangle and dimensions of 520 x 630mm, 1180 x 630mm, 900x630mm. This is repeated 2 times.
• Now using line commands, the next of the lines are drawn.

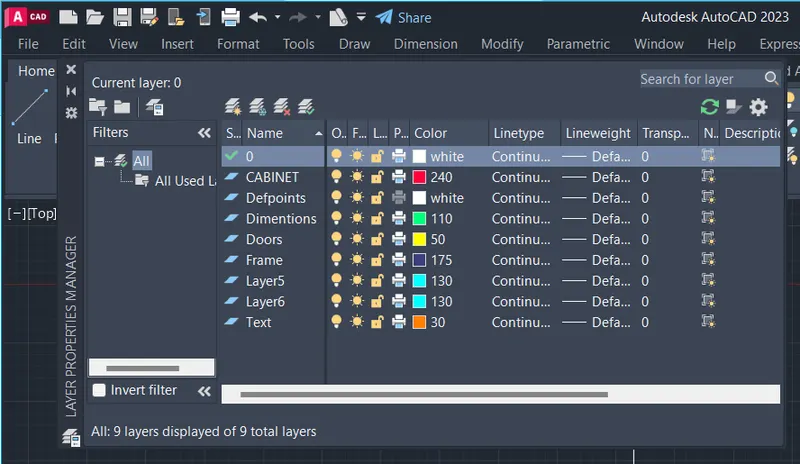

• Place the entire drawing in the respective layers.
Result:

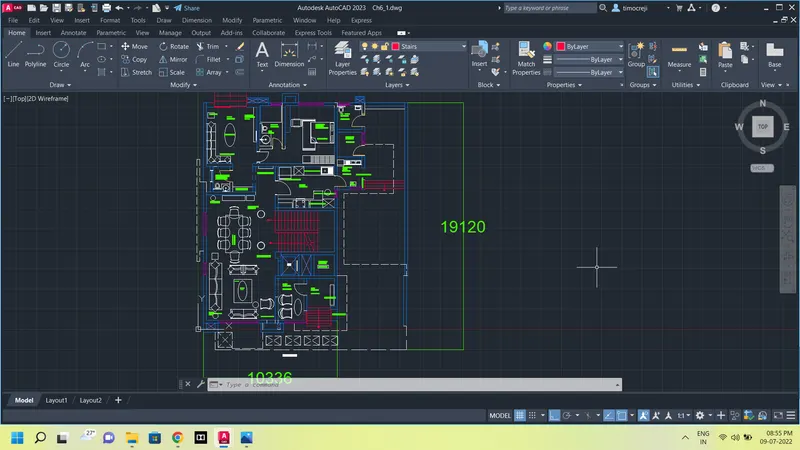

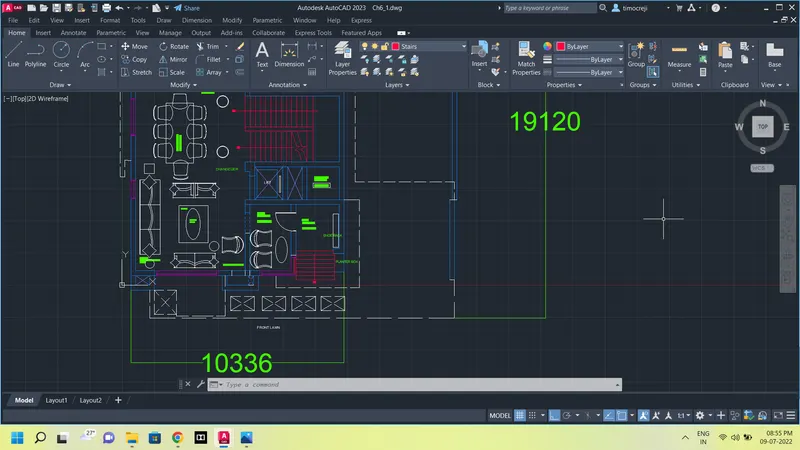

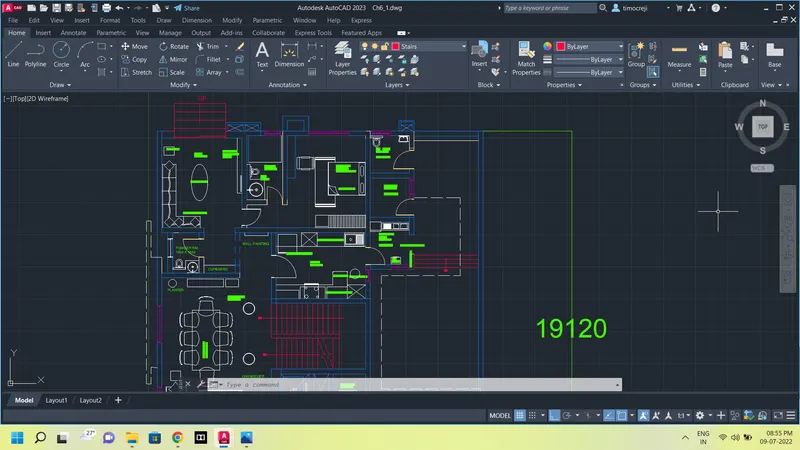

2. Aim: To draw the given floor plan.
Procedure:
• Using unit command the units are set to mm.
• Now Limits and lim-max are also set and Zoom command is also used.
• In the command prompt type XL to draw the infinite lines.
• In the command prompt type offset to offset the line for a particular distance.
• Using arc command doors are also created .
Doors:
D1 - 1000 x 2000 mm
D2 - 900 x 2100 mm
D3 - 800 x 2100 mm
D4 - 750 x 2100 mm
D5 - 700 x 2100 mm
Windows:
W1 - 2700 x 1500 mm
W2 - 2500 x 1500 mm
W3 - 900x 1500 mm
W5 - 1000 x 1500 mm
W9 - 800 x 1500 mm
Ventilators:
V1- 800 x 500 mm
V2 - 750 x 500 mm

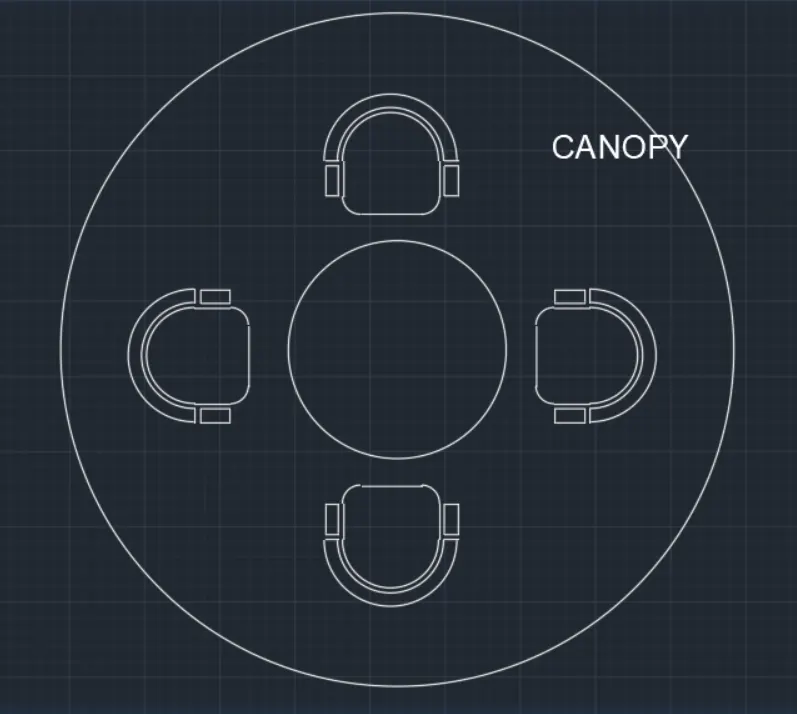

• To draw canopy
1. Circle:
In the menu bar click on circle > centre, radius
specify the centre point as 10,10 and radius 452
In the meu bar click on circle > centre, radius
specify the centre point same as the previous circle (10,10) and radius 1398mm.
2. Seat:
In the menu bar click on rectangular or In the command prompt type rec specify the length of the rectangle as 662.3mm. Specify the width of the rectangle as 298mm.
In the command prompt type FILLET > RADIUS > 100 .00mm.
In the menu bar > circle > 2-point.
In the men bar > circle > centre ,diameter
centre is the midpoint of the line , diameter is 719mm.
In the menu bar > circle > centre, diameter
centre is the midpoint of the line , diameter is 777.2mm.
Now, extend the centre line and trim the extra's
In the menu bar click fillet> blend curves > and select the arc.
In the menu bar click fillet> blend curves > and select the arc.
In the menu bar click fillet> blend curves > and select the arc.
• Give the dimensions and anotation the drawing with the text where ever required.

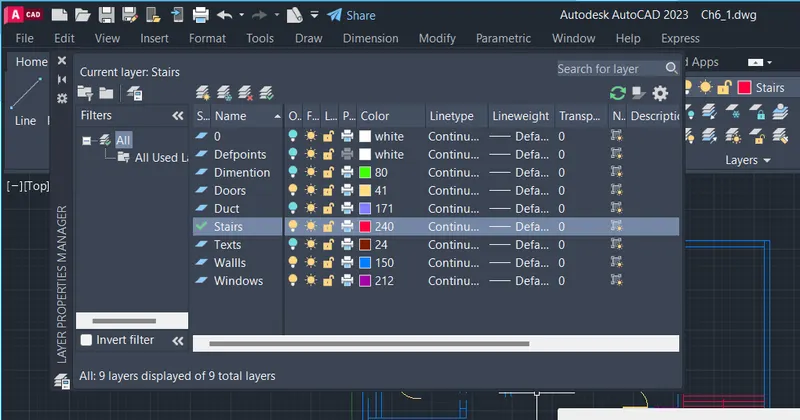

• Place the all elements of the drawing in the respective layers.
Result:

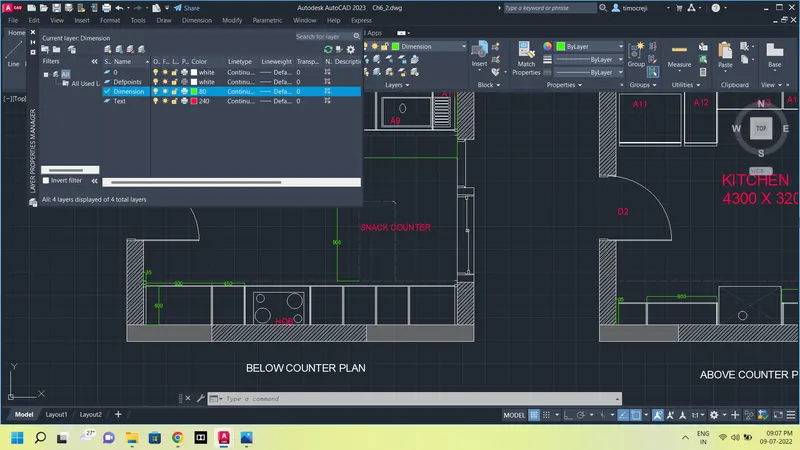

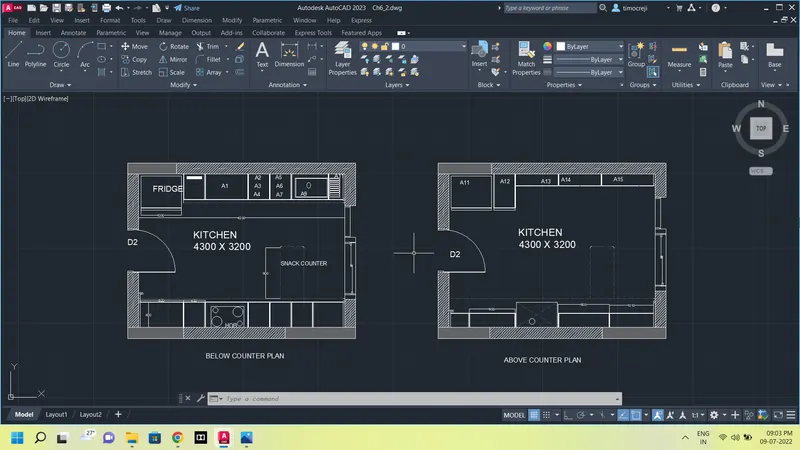

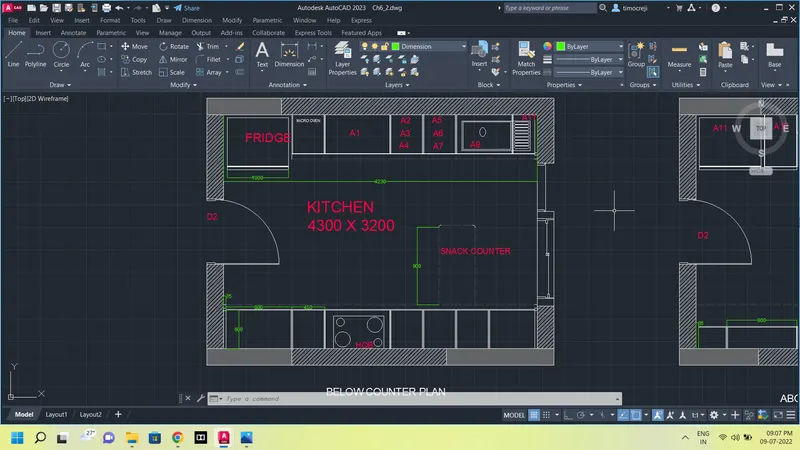

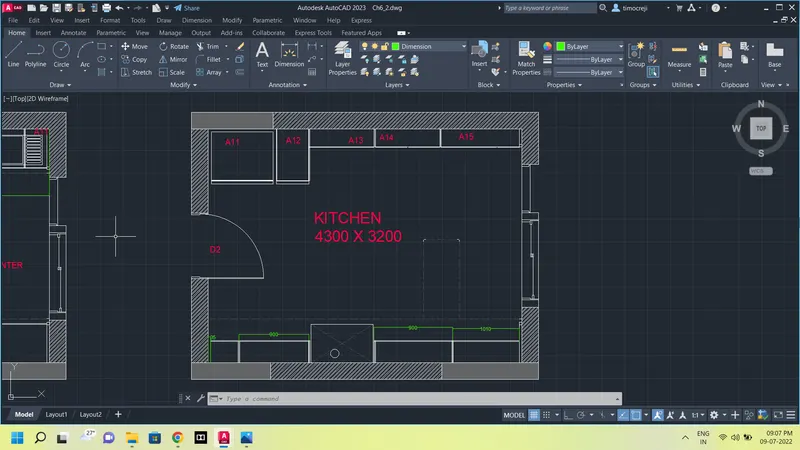

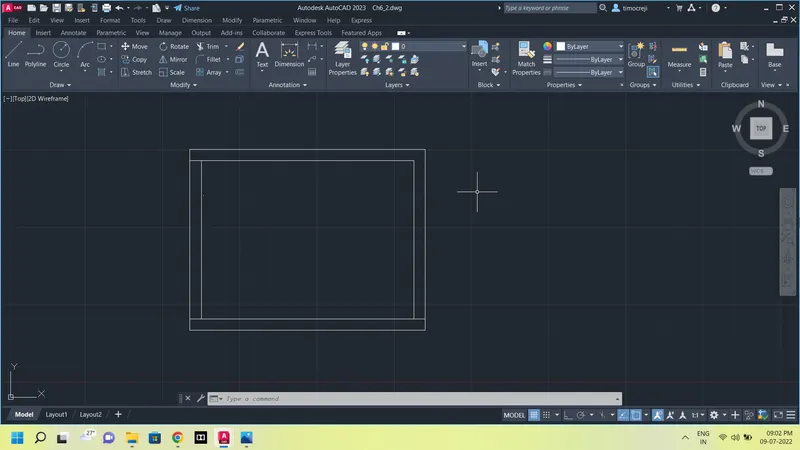

3. Aim: To Create the Kitchen Layout and to Also, use proper dimension techniques to dimension the kitchen layout. Also, insert text wherever required.
Procedure:
• First units are set to mm.
• In the command prompt type rec and the dimensions are 4734 x 3688 mm.
• In the command prompt type offset and offset it to the distance of 250mm.
• Using arc and lines the door is drawn .
• In the command prompt type hatch to hatch the model .
• In the command prompt type rec dimensions, to do the fridge .
• In the command prompt type offset and offset it to the desired distance to get the Micro Oven .
• In the command prompt type trim to trim the extras.
• In the command prompt type offset and offset it to the horizontal distance of 350,450,900,450,450 and 560mm .
• In the command prompt type offset and offset it to the vertical distance of 600mm .
• In the command prompt type trim to trim the extras .
• In the command prompt type line type and load the dotted lines .
• In the command prompt type text to text the given annotations .
• In the command prompt type dimensions to given the dimensions to your plan .
• In the command prompt even the leader command is used to name the dimensions
• Place all the elements in the required layers .
Result:

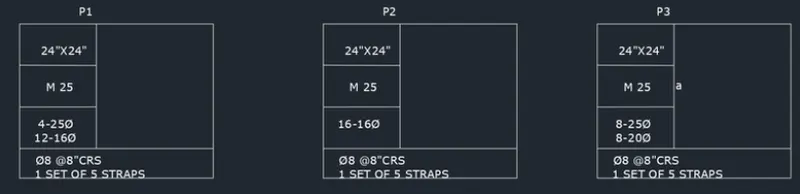

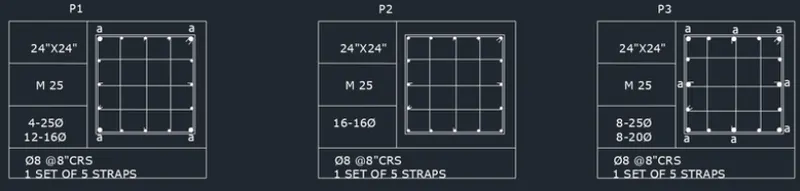

4. AIM: To sketch the column details .
PROCEDURE:
• First units are set to mm.
• Using rectangle and line command the tables are drawn .
• Using text command, the text is given .
• In the command prompt type lines to draw the reinforcement.
• In the command prompt type circles to draw the reinforcement.
Result:

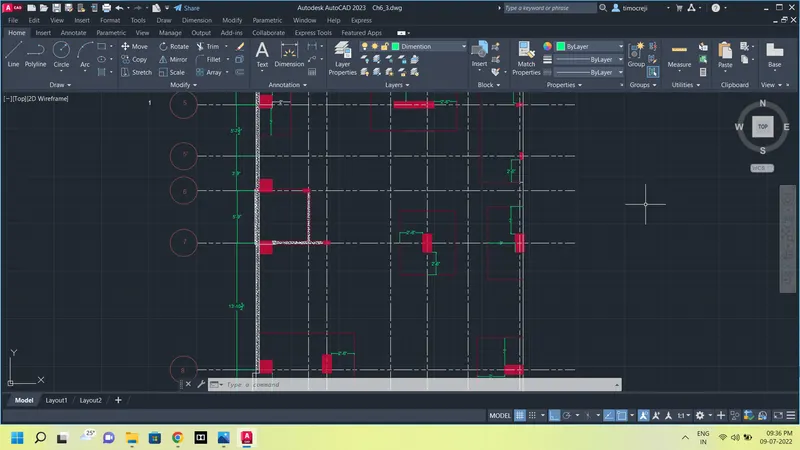

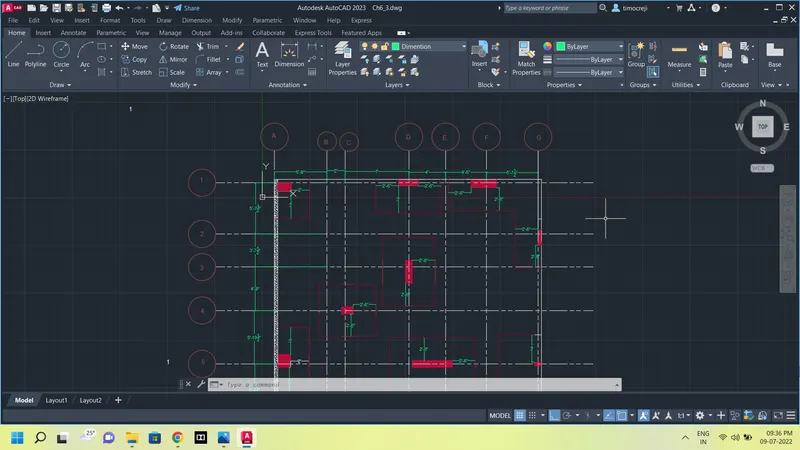

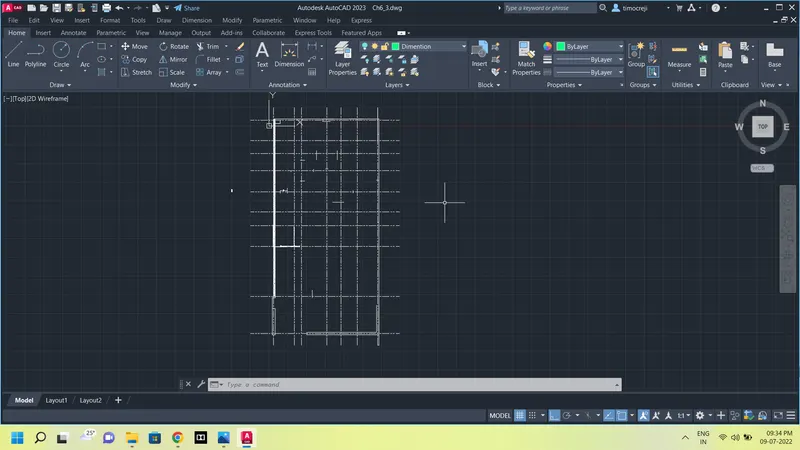

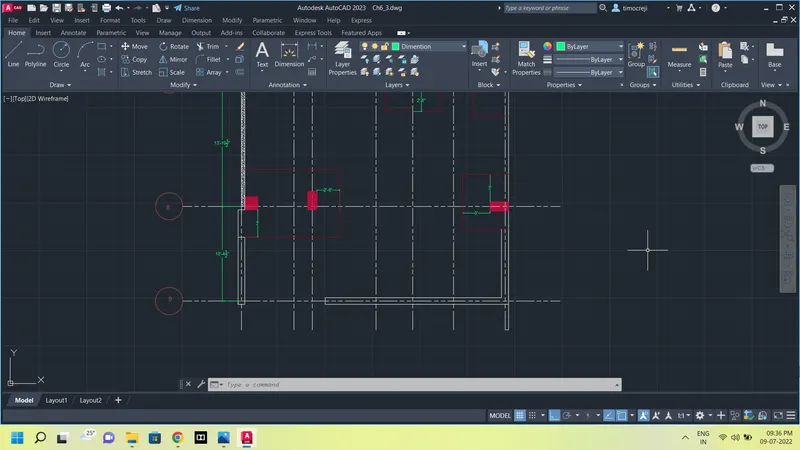

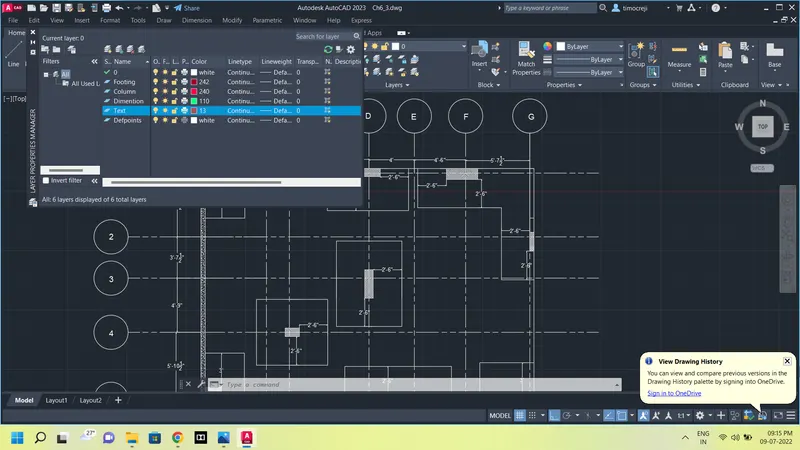

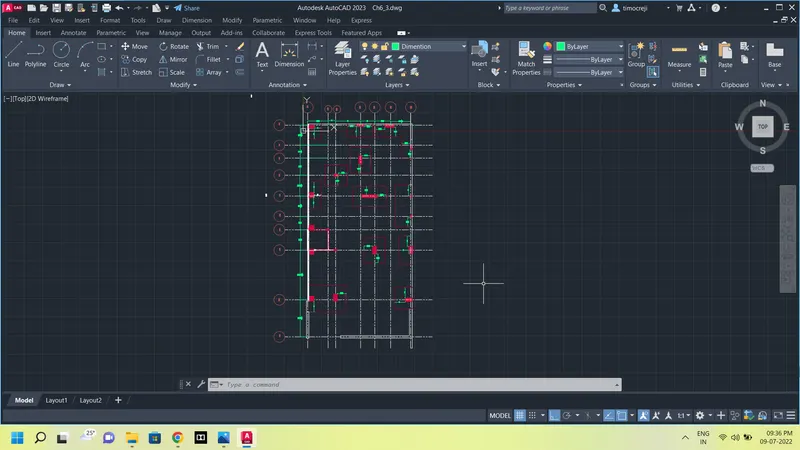

5. Aim: To draw the raft layout.
Procedure:
• First the units are set to Engineering inches .
• In the command prompt type rectangle > dimensions are 29'-7" and 60 '.
• To get dotted lines click on line type and load the dotted lines > set current .
• With the help of dotted lines and offset command the grids are drawn.
• In the command prompt offset the distance to 4" & in the ribbon > hatch > AR-Sand.
• In the command prompt type rec > 2' x2'.
• In the command prompt type rec to draft the columns.
• In the ribbon bar select hatch > ANSI37 hatch the columns.
• In the ribbon bar select hatch > ANSI33 to hatch the walls.
• In the ribbon tab > Annotate > text > Text to text the given annotations .
• In the ribbon tab > Dimensions > To give the dimensions .
• Place the all the elements of the drawings in the required layers .
Result:
