Challenge

Creating a Wardrobe detailed drawing, Floor Plan, Kitchen Layout and Column Detail using AutoCad

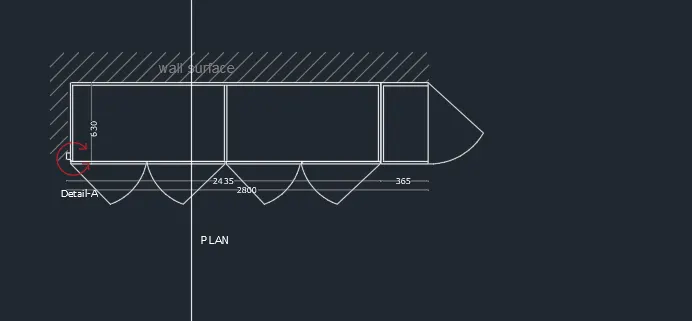

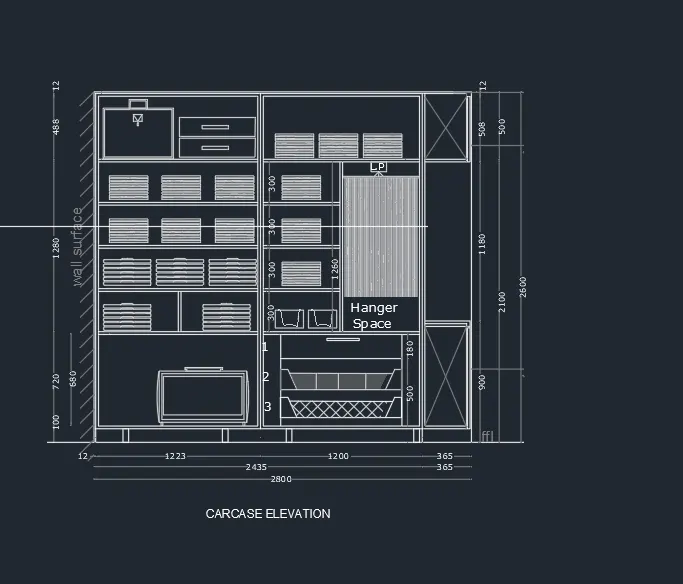

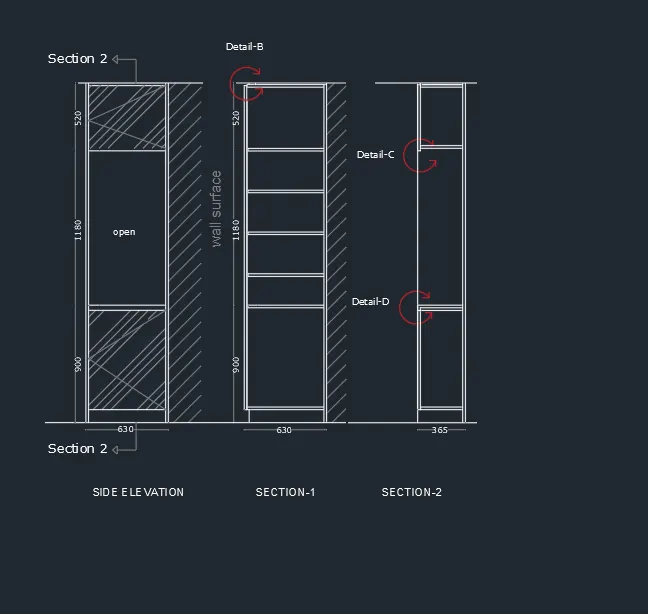

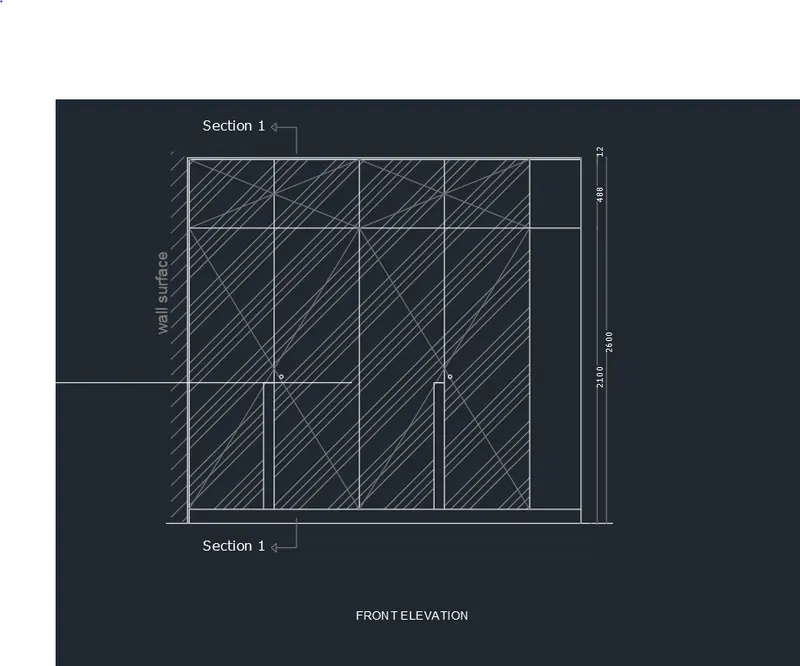

1) ANS-AIM:- To draw the elevation and details of a wordrobe.after sketching,providing neat sketch text and daimenssion.

procedure:-

unit are sets as mm

limitmax and limit are set

zoom command aslo used

in the coomand line draw rectangle 2800,2600
in the coomand line type offset
offset from the top of daimenssion 12 and 488 mm
in the coomand line type offset
offset from the top of daimenssion 608.75 and 375 mm
in the coomand line type land by incresing the transprency to create wall surface
in the coomand line type qleader to mentain the annotations.
in the coomand line draw rectangle>630*2800
in the coomand line type qleader to mentain the annotations.
in the coomand line draw rectangle>2600*2800
in the help of line command to draw the drawer and cabaines
in the coomand line draw rectangle>520*630,1180*630,900*630 this repeted 2 times

resulet:-

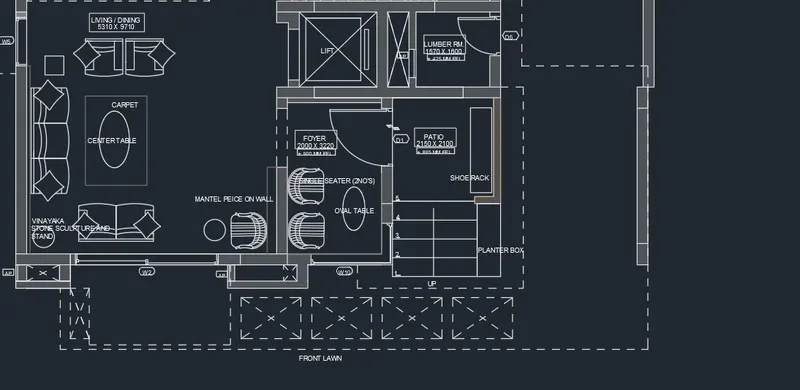

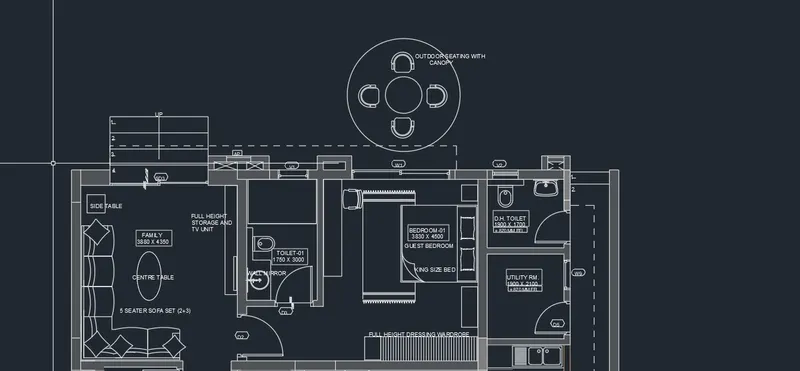

2)ans-AIM:-TO GIVE THE FLOOR PLAN

PROCEDUR:-

unit are sets as mm
limitmax and limit are set
zoom command aslo used
Using the line and offset coomand create the floor plan
using arc command create the door
in the command line adc type to get componetns in the plan
in the command line line type to get dotted lines
in the command line text type to get daimenssion and annotation of paln
in the menu bar draw cirle> centre > dia
centre ponit 10,10 and redi>452
in the menu bar draw cirle> centre > dia
previous centr point 10,10 redious>1398
TO COOMAND THE PROMPT TYPE RECTANGAL LEMGTH 662.3 AND 298
TO COOMAND THE PROMPT TYPE FILLET TYPE REDIUS>100 FILLET THE ARC AT CORNER
IN THE MENU BAR TYPE CIRCLE> 2P AND END POINT OF RECTANGLE DRAW THE CIRCLE
TO COOMAND THE PROMPT TYPE CIRCLE > DIA>719
TO COOMAND THE PROMPT TYPE CIRCLE >DIA>777.2
TO COOMAND THE PROMPT TYPE TRIM THE EXTRA CICRLE
TO COOMAND THE PROMPT TYPE FILLET > BEND CURVE> AND SELECTED THE CURVE
TO COOMAND THE PROMPT TYPE RECTANGLE LENGTH 155.2 WIDTH 27.3
WITH THE HELP THE CPOY AND ROTATE COMMAND THE PLACE AND ALIGN THE SEATS INSIDE CIRCLE

RESULT:-

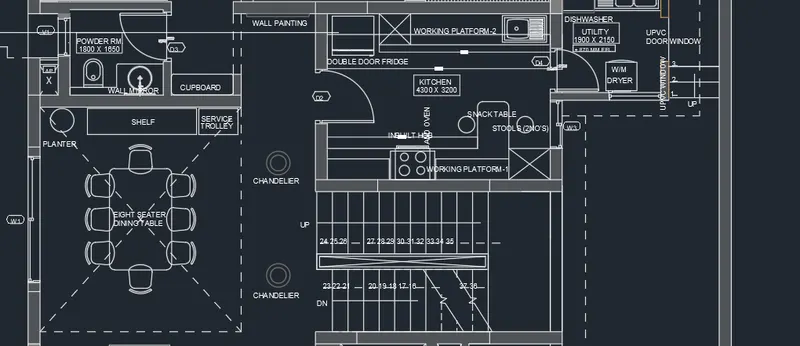

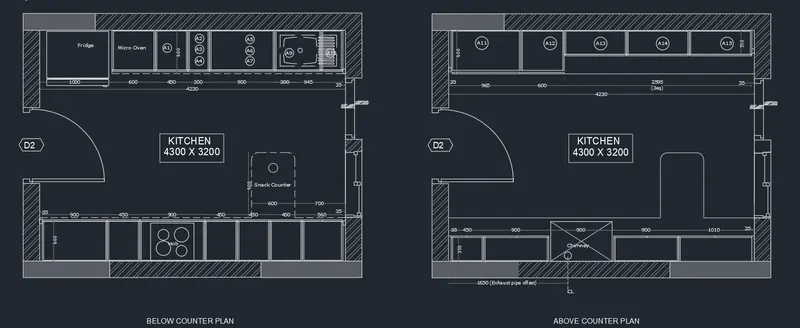

3)ANS-AIM:-

TO CREATE THE KITCHEN LAYOUT AND ALSO USE PROPER DIAMENSSION TECHINIQ TO DIAMENSSION AND TEXT KITCHEN LAYOUT.

PROCEDURE:-

unit are sets as mm
limitmax and limit are set
zoom command aslo used
TO COOMAND THE PROMPT TYPE RECTANGAL LEMGTH 4734*3688 MM
in the coomand line type offset in the dist of 230 mm
using arc draw the door
in the command type hatch and draw the hatch in model
n the command type rect to draw fridge
in the coomand line type offset to offset in desired diam to creat mociro oven
in the command type trim the extra line
in the coomand line type offset to offset in desired diast 350,450,900,450,and 560
in the coomand line type offset to offset in vertical dist 600
in the command type trim the extra line
in the command type line and dotted line
in the coomand line type text and daimenssion to give text and daimenssion
in the command using leader to giveb name of the daimenssion

result:-

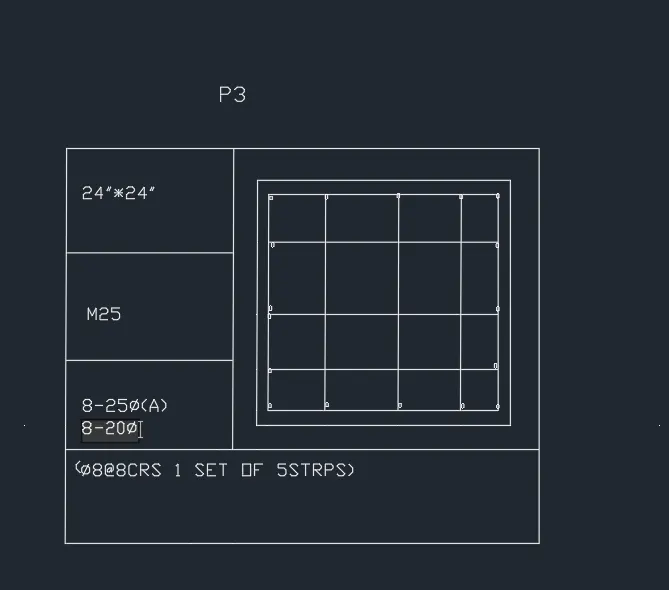

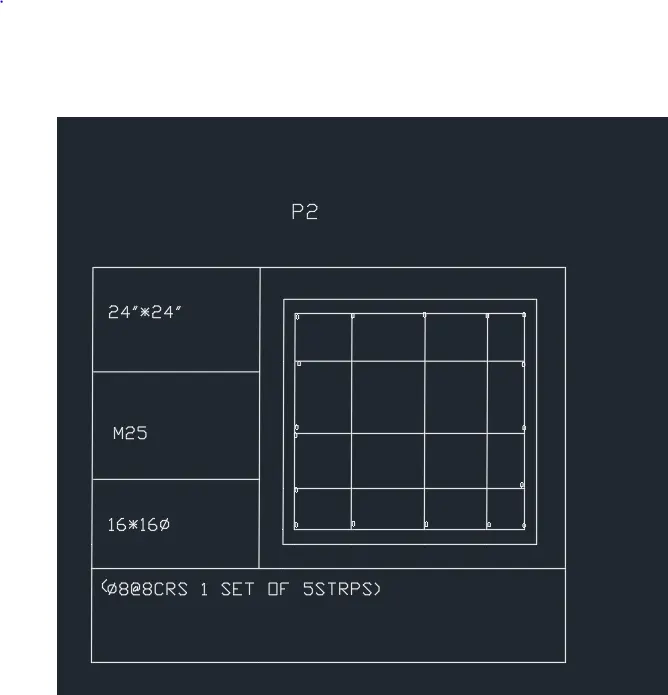

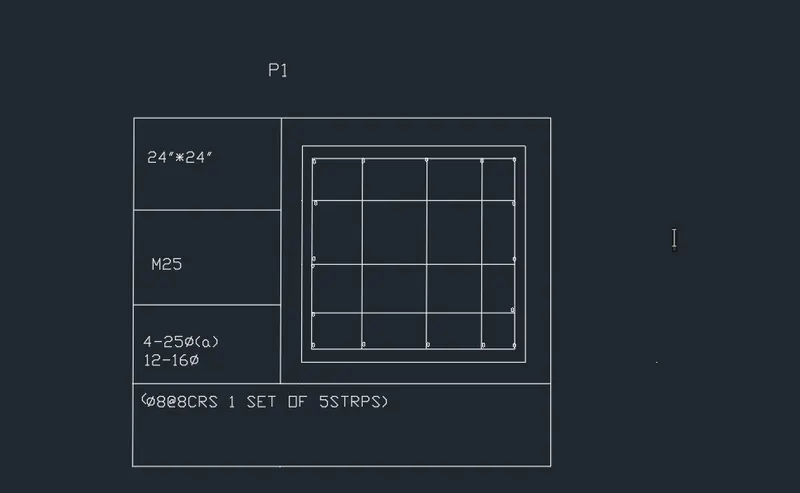

4)ans-AIM:-Sketch the column details as shown in fig.insert the daimenssion and text in the fig.refer bar size in shedual

25 mm-----1 inches

16 mm-----0.62 inches

result:-

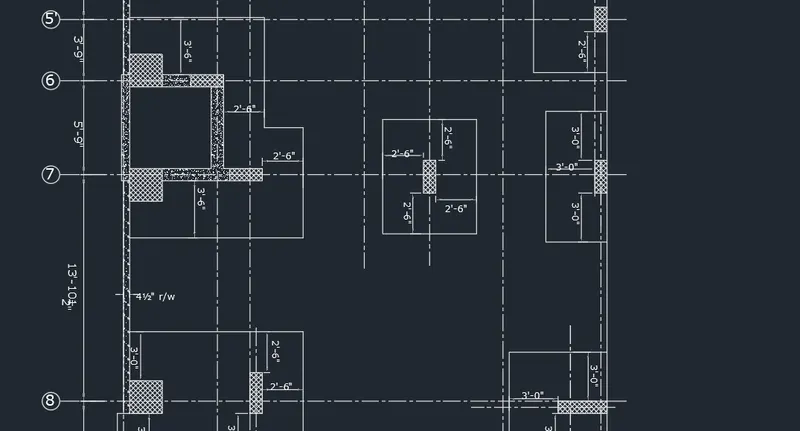

5)ANS-AIM:-

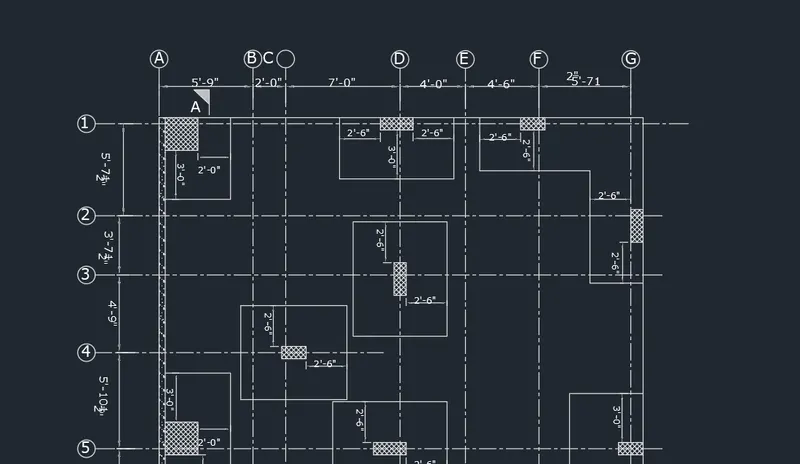

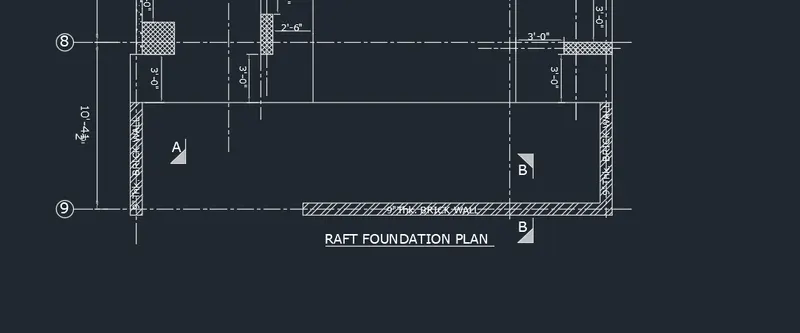

TO draw the raft layout

procedure:-

RESULT:-
