Challenge

Creating a Wardrobe detailed drawing, Floor Plan, Kitchen Layout and Column Detail using AutoCad

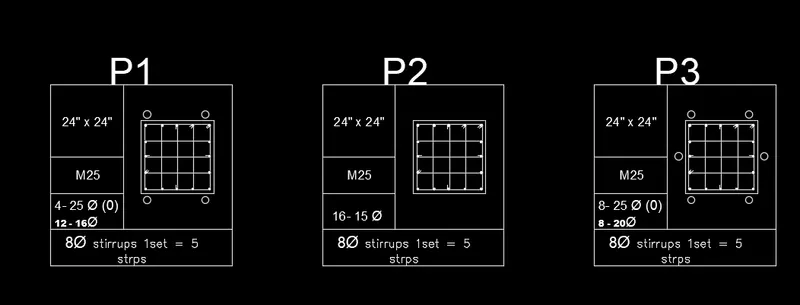

Aim:- To draw the given diagram by using AutoCAD software.

Procedure:-

1) By using line command i was draw the box by given dimensions.

2) i was insert the text as shown by mtext and d text commands.

3) i prepared the reinforcement details by using line and circle commands.

4) copied the whole part by two times and then i created further sections.

5) Finaly i drafted given excercise as shown below.

Result :- i drafted the given excercise by using AutoCAD software.

Aim:-

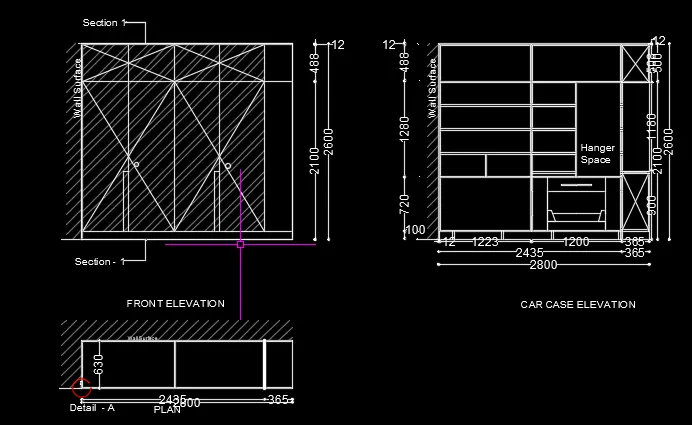

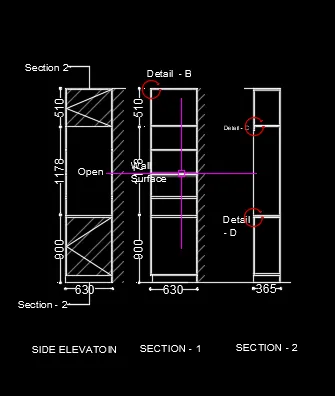

To create given wardrobe sections and give them text and dimensions as per given instructions.

Procedure:-

1) By using line commandi created out to out rectangle.

2) then by using line,offset,trim,extend,copy,move,stretch,erase and etc.. i created the front elevation of wardrobe.

3) By using xl i created remaining sections.

4) by using D edit command i created the dimension style and size and then i applied to given question.

5) i inserted the text by using mtext and d text and i finished the given drafting.

Result :- i drafted the given excercise by using AutoCAD software.

Aim:-

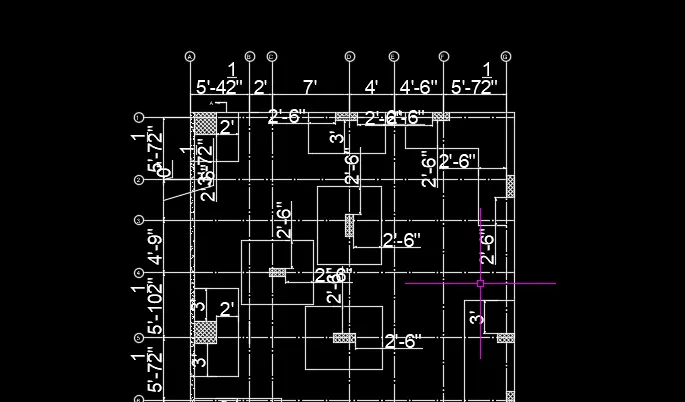

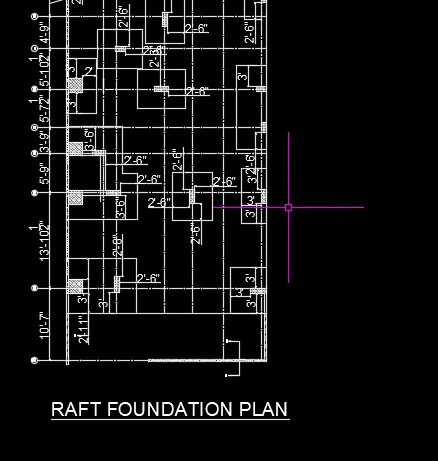

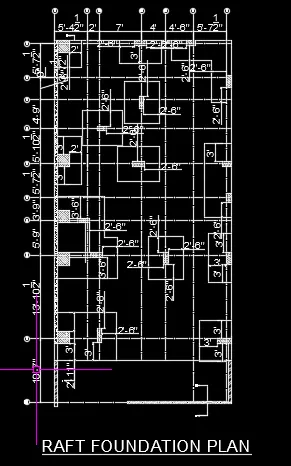

To create given fondation plan and give them text and dimensions as per given instructions.

Procedure:-

1) By using line commandi created out to out rectangle.

2) then by using line,offset,trim,extend,copy,move,stretch,erase and etc.. i created thefoundation plan.

3) By using hatch i hatced the portions of foundations.

4) by using D edit command i created the dimension style and size and then i applied to given question.

5) i inserted the text by using mtext and d text and i finished the given drafting.

Result :- i drafted the given excercise by using AutoCAD software.

Aim:-

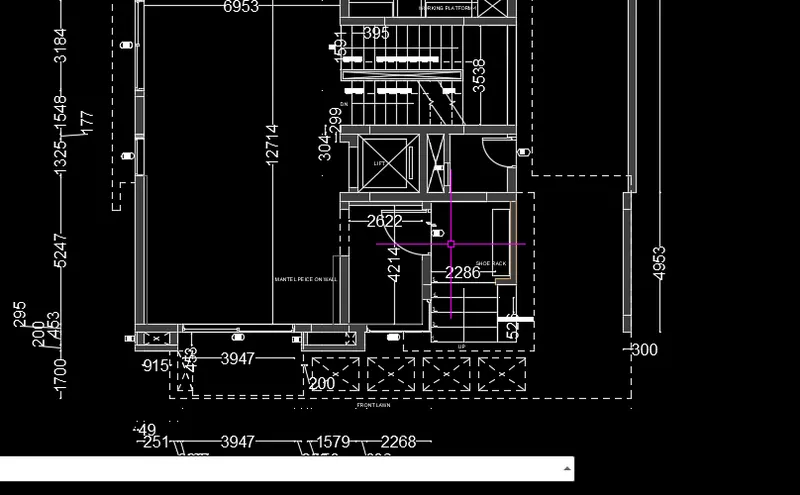

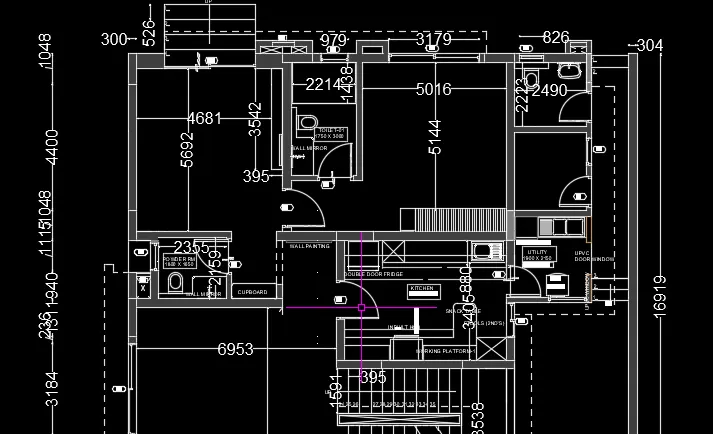

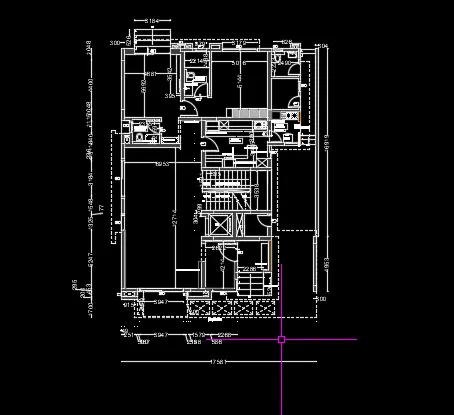

To create given plan and give it text and dimensions as per given instructions.

Procedure:-

1) By using line command created out to out rectangle.

2) then by using line,offset,trim,extend,copy,move,stretch,erase and etc.. i created the given plan.

3) By using circle i created doors.

4) by using D edit command i created the dimension style and size and then i applied to given question.

5) i inserted the text by using mtext and d text and i finished the given drafting.

6) by using dim continue,base line, dim break i used to mention dimensions by using dimsty command.

Result :- i drafted the given excercise by using AutoCAD software.
