Creating a Residence Layout, Seating plan, Toilet and Utility room plan using AutoCad

Q.1

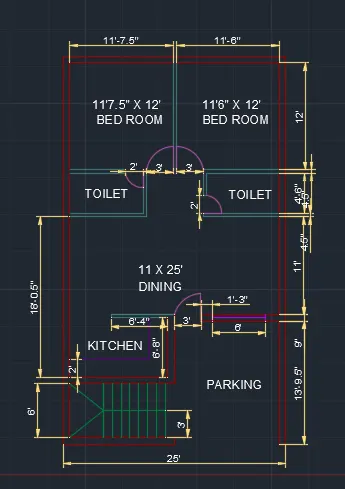

Aim:- To Sketch the Given Residential Layout Using Auto Cad

Procedure:

Step 1:

• Type Units In Command Bar Press Enter
• Select the Types as Engineering and Scale as Inches Click OK
• Give the Command of Limits Press Enter Lower Limit as 0,0 and Upper Limit as 100,100, Press Enter

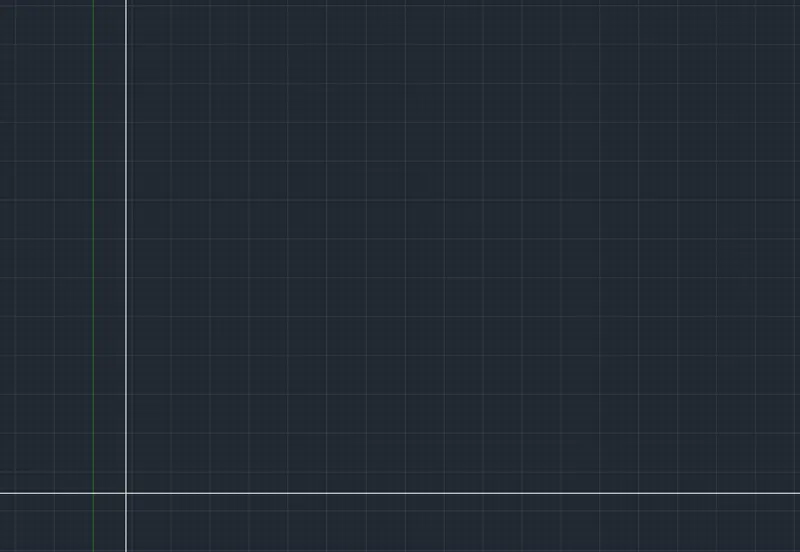

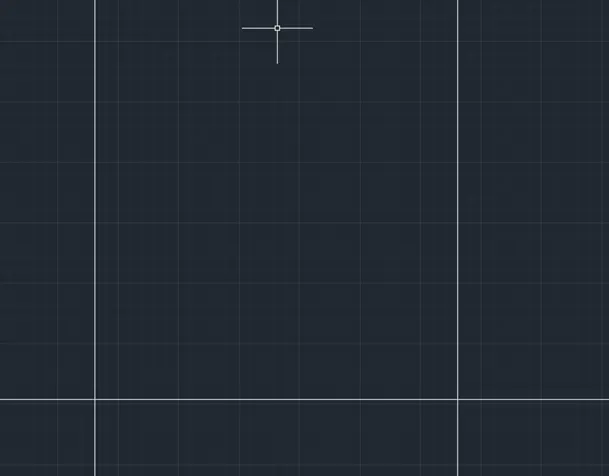

• Give the Command of X line In Command Bar Press Enter
• Type H For Hoeizontal Line Plce at Down to Wotk Space
• Give the Command of XlIne In Command Bar Press Enter
• Type V For Vertical Line Place at Left of the Workspace etc.,
• Select the Vertical Line Give the Command of Offset give the Offset Length by 25’
•

Step-2:

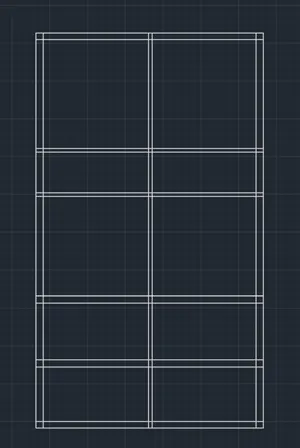

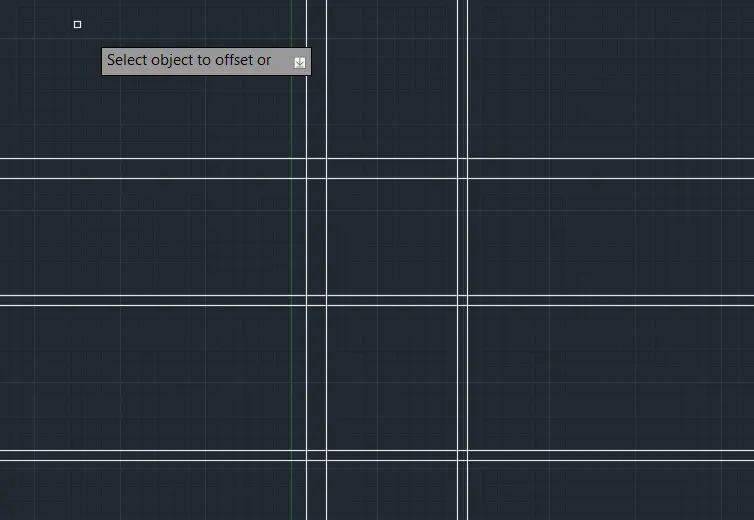

• Give the Trim Command and Press Enter
• Click Corner Lines to trim
• Type Offset Command Give the Offset Distance is 9”
• Select the Both Vertical Lines Give Offset of Inner Side .
• Type Offset Command Give the Offset Distance is 6’
• Select the Horizonal Lines Give Offset Inner Side Press Esc.
• Type Offset Command Give the Offset Distance is 9’’
• Select the Horizonal Line Give Offset Press Esc.

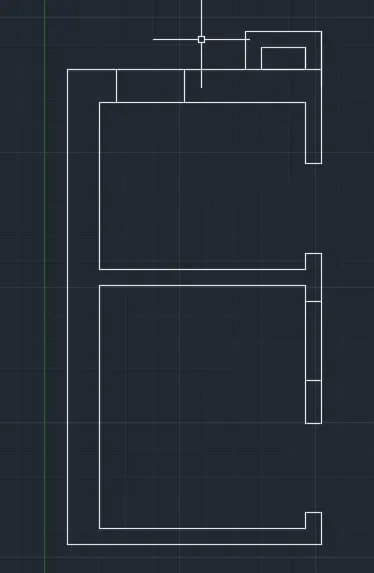

• Type Offset Command Give the Offset Distance is 13’-10.5’’
• Select the Horizonal Line Give Offset Inner Side Press Esc.
• Type Offset Command Give the Offset Distance is 9’’
• Select the Horizonal Line Give Offset Press Esc.
• Type Offset Command Give the Offset Distance is 11’
• Select the Horizonal Line Give Offset Inner Side Press Esc.
• Type Offset Command Give the Offset Distance is 4.5’’
• Select the Horizonal Line Give Offset Press Esc.
• Type Offset Command Give the Offset Distance is 4’6’’
• Select the Horizonal Line Give Offset Inner Side Press Esc.
• Type Offset Command Give the Offset Distance is 4.5’’
• Select the Horizonal Line Give Offset Press Esc.
• Type Offset Command Give the Offset Distance is 12’
• Select the Horizonal Line Give Offset Inner Side Press Esc.
• Type Offset Command Give the Offset Distance is 9’’
• Select the Horizonal Line Give Offset Press Esc.
• Type Offset Command Give the Offset Distance is 11.75”
• Select the Vertical Line Give Offset Press Esc.
• Type Offset Command Give the Offset Distance is 4.5’’
• Select the Vertical Line Give Offset Press Esc
•

Step-3:

• Give the Command of Offset Give the Length is 3’ For Left Side Door Press Enter
• Select Line Give Offset Press Esc.
• Give the Command of Offset Give the Length is 9’’ For Wall Press Enter
• Select Line Give Offset Press Esc.
• Give the Command of Offset Give the Length is 2’ For Door Press Enter
• Select Line Give Offset Press Esc.
• Give the Command of Offset Give the Length is 3’ For Right Side Door Press Enter
• Select Line Give Offset Press Esc
• Give the Command of Offset Give the Length is 9’’ For Wall Press Enter
• Select Line Give Offset Press Esc.
• Give the Command of Offset Give the Length is 2’ For Door Press Enter
• Select Line Give Offset Press Esc.
• Give the Command of Offset Give the Length is 4.5’’ For Horizontal Wall Thickness Press Enter
• Select Line Give Offset Press Esc.
• Give the Command of Offset Give the Length is 4.5’’ For Vertical Wall Thickness Press Enter
• Select Line Give Offset Press Esc
• Give the Command of Offset Give the Length is 6’4” For Vertical Wall Thickness Press Enter
• Select Line Give Offset Press Esc
• Give the Command of Offset Give the Length is 3’ For Right Side Door Press Enter
• Select Line Give Offset Press Esc

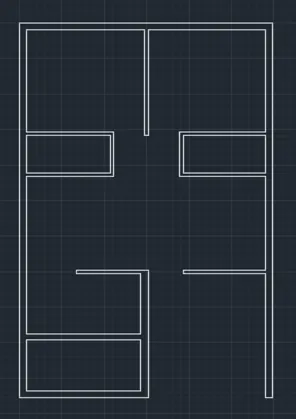

• Give the Command of Fillet In Command Bar Press Enter
• Use the Fillet Tool in Suitable Place to Join Two Intersecting Lines
• Type Trim in the Command and Press enter
• Use trim Tool to Remove the Unwanted Intersection Lines
•

Step-4:

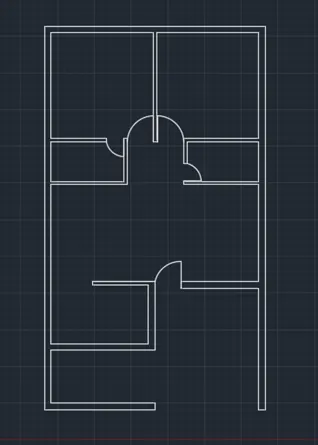

• To Create D1, Give the Command of Circle and Press Enter
• Select the Corner Point of Door Drag the Circle Until Touches End Point
• To Create D2, Give the Command of Circle and Press Enter
• Select the Corner Point of Door Drag the Circle Until Touches End Point
• To Create D3, Give the Command of Circle and Press Enter
• Select the Corner Point of Door Drag the Circle Until Touches End Point
• Give the Command of Trim Press Enter
• Trim the Use Trim Tool to Remove the Unnecessary Lines
•

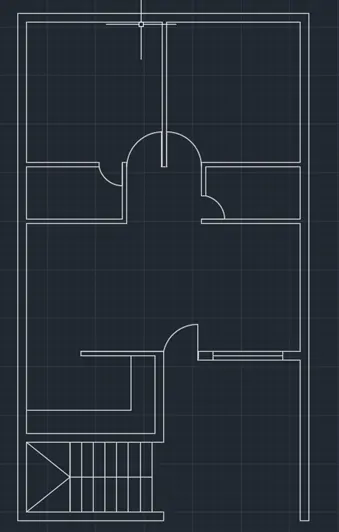

Step-5:

• To Draw a Window of 6’ Length the Line Up to a Distance of 1’3”
• Give the Offset Distance 6’
• Give the Command of L Draw a Line In Between Two Points By Using Snap On.
• Give the L Command Give the Length of 3’
• Type Offset Press Enter the Offset Distance 1’ and Select the Line to offset
• Repeat the Offset for 9 Times
• Type Copy in the Command Bar and Stair Case Objects Choose Base Points Place it.
• Give the Offset to 2 Feet’s for Kitchen Slab in Both Sides Use Trim Unnecessary Lines
•

Step-6:

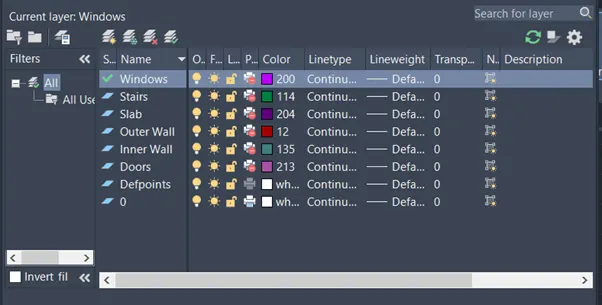

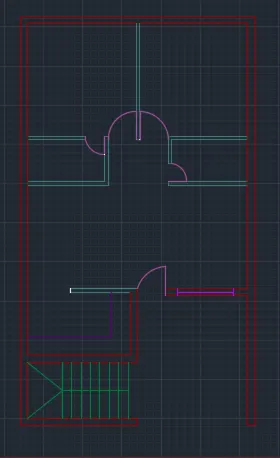

• Type Layers In The Command Bar and Press Enter
• Layer Property Manager Dialog Box Opens
• Click on the New Layer Icons to Add New Layer
• Its Rename it By Outer Walls
• Modify the Colour Using Colour Option
• In work Space Select all the Lines indicating the Outer Walls
• Click in the Layer tool from the Ribbon Tab
• Drop Down List Selected Walls
• Now Layer has Been Set
• Similarly Create all Layers For other Properties to Create
•
•

Step-7:

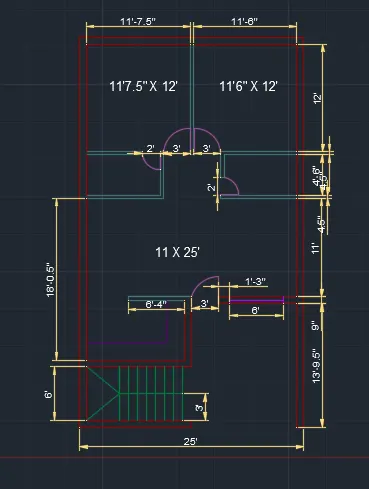

• Type D in Command Bar Press enter
• Modify Dimensions Select the Units as Engineering Click Ok
• Select Dimensions tool From The Ribbon Tab Specify the 1^st Point and 2^nd Point to Measure Dimensions
• Repeat the Procedure to Measuring all the Lines
•

Result:

•

Q.2

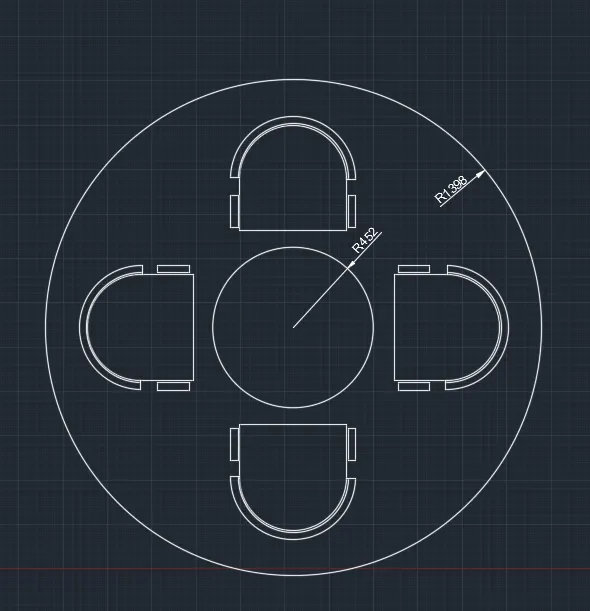

Aim: - Sketch the seating plan for an outdoor canopy

Procedure.

Step-1

• Type units in the Command Bar Press Enter
• Select Type as Decimal and Insertion Scale as MM Click ok

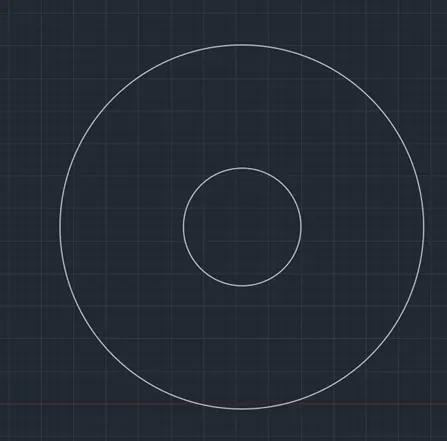

• Give the Command of Circle Specify the Centre Point and Give the Radius as 1398 Press Enter
• To Create a Another Circle by Giving the Command of Cir and Specify the Same Centre Point by Using Snap On
• Give the Radius of 452 Press Enter
•

Step-2

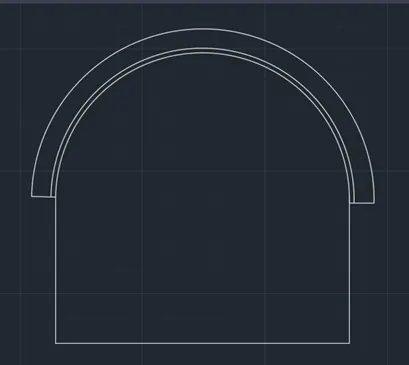

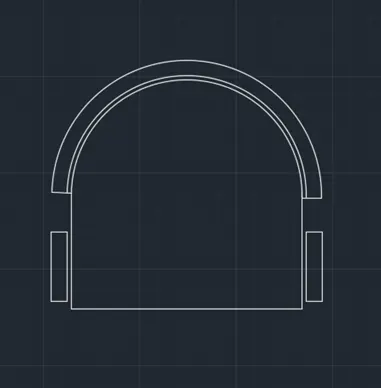

• Give a Command of L and Press Enter
• Specify the Starting point Give length as 300 mm in -Y Direction
• Move the Cursor to X Direction Give the Length as 600 mm
• Move the Cursor to Y Direction Give the Length as 300 mm
• Give the Command of Arc in Command Bar Press Enter
• Select the Start and End Point From Command Bar
• Press Esc.
• Give the Offset Command Bar and Pres Enter
• Select arc and Give the 50 mm Offset
• Join the Ends of arc Using Line
•
• Give the Command of Rec For Rectangle Draw in Arc Alignment With a Required Dimensions With Both Sides
•

Step-3

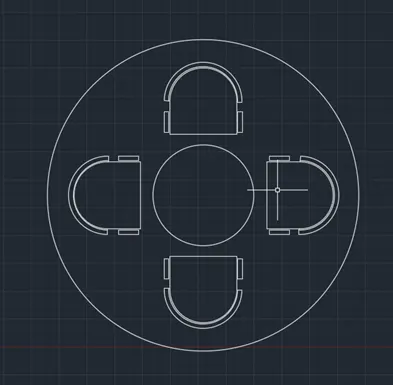

• Place the Created Chair Inside of the Circle of 1392 mm Radius, Align Properly.
• Ortho On
• Copy the Object Place it and Rotate it By Required Face place it According Path of 452 mm Radius of Circle
•

Result: -

•

Q.3

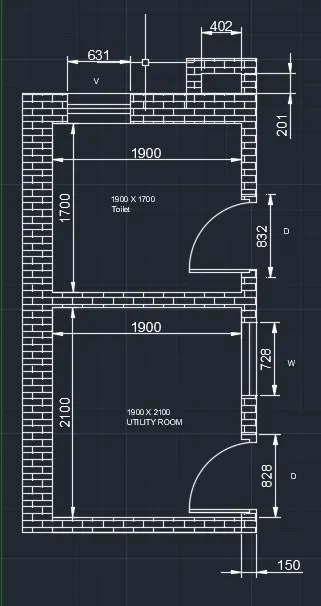

Aim: - Sketch the part plan for the toilers and utilities room

Procedure: -

Step-1

• Give the Command of X Line Select H and Enter Place at Corner of Work Space
• Give the Command of X Line Select V and Enter Place at Left Corner of Work Space
•

Step-2 :-

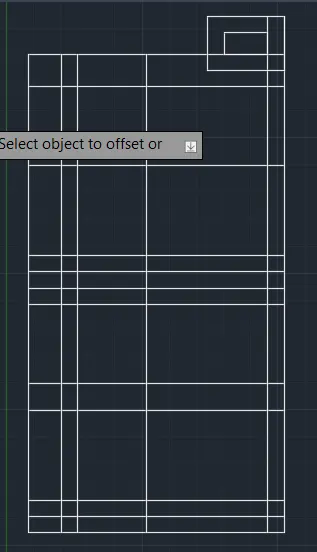

• Give Offset Command and Press Enter
• Give the Offset Distance of 300 and Select the Object and offset it
• Give Offset Command and Press Enter
• Give the Offset Distance of 1900 and Select the Object and offset it
• Give Offset Command and Press Enter
• Give the Offset Distance of 150 and Select the Object and offset it
• Give Offset Command and Press Enter
• Give the Offset Distance of 150 and Select the Object and offset it
• Give Offset Command and Press Enter
• Give the Offset Distance of 2100 and Select the Object and offset it
• Give Offset Command and Press Enter
• Give the Offset Distance of 150 and Select the Object and offset it
• Give Offset Command and Press Enter
• Give the Offset Distance of 1700 and Select the Object and offset it
• Give Offset Command and Press Enter
• Give the Offset Distance of 300 and Select the Object and offset it
•

Step-3

• Trim Corner Lines and Unnecessarly Line By Using Trim Command
• Give Offset Command and Press Enter
• Give the Offset Distance of 150 and Select the Object and offset it
• Give Offset Command and Press Enter
• Give the Offset Distance of 631 and Select the Object and offset it
• Give Offset Command and Press Enter
• Draw a Line In Middle Using Line By Command L Enter and Keep Orho on and Select Middle Point and Apply it.
• Give the Offset Distance of 150 and Select the Object and offset it
• Give Offset Command and Press Enter
• Give the Offset Distance of 832 and Select the Object and offset it
• Give Offset Command and Press Enter
• Give the Offset Distance of 150 and Select the Object and offset it
• Give Offset Command and Press Enter
• Give the Offset Distance of 728 and Select the Object and offset it
• Draw a Line In Middle Using Line By Command L Enter and Keep Orho on and Select Middle Point and Apply it.
• Give Offset Command and Press Enter
• Give the Offset Distance of 150 and Select the Object and offset it
• Give Offset Command and Press Enter
• Give the Offset Distance of 832and Select the Object and offset it
• Draw a Rectnagle by Using Command of Rec Enter and Specify the Corner Point of Wall Give Dimenstion of Length 402, Width 201 Press Enter
•

Step 4

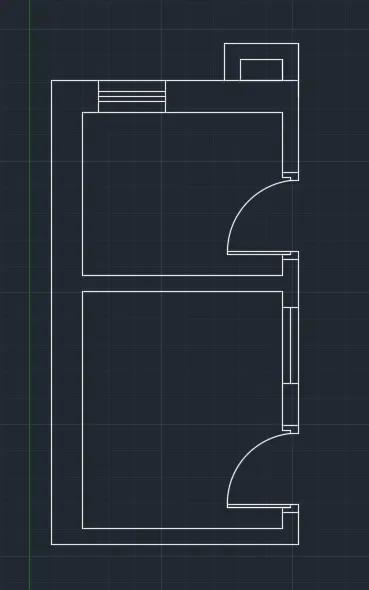

• Fillet the Corner Points By Give the Command of Fillet and Press Enter
• Trim Unnecessary Lines By Give the Command Trim and Enter

Step 5 :-

• To Create Door, Give the Command of Circle and Press Enter
• Select the Corner Point of Door Drag the Circle Until Touches End Point
• Follow the Same Procedure to Create another Doors
•

Result.

•
