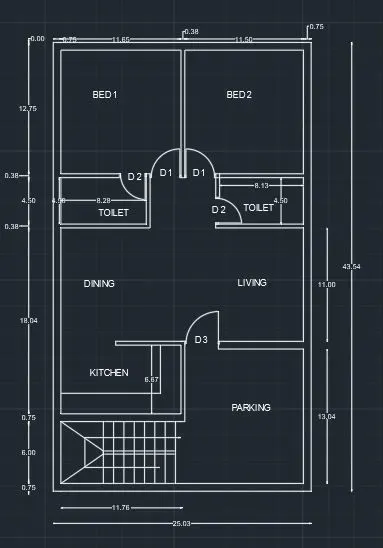

Creating a Residence Layout, Seating plan, Toilet and Utility room plan using AutoCad

1) Aim : To sketch the given layout with appropriate dimensions

procedure :-

1. convert all the dimensions into feet befor estarting to draw.
2. start a new drawing in autocad and select the units as feet
3. switch on ortho mode and start drawing the layout according to the dimensions.Make use of offset option for drawing.
4. draw 3 seperate doors of different size as mentioned and make them into a block.dynamic block can also be use dfor D1 and D2 .
5. trim the unnecessary lines and start dimensioning (use dimcontinue while dimensioning)
6. use text option while writing the texts
7. the resulting figure is as shown below

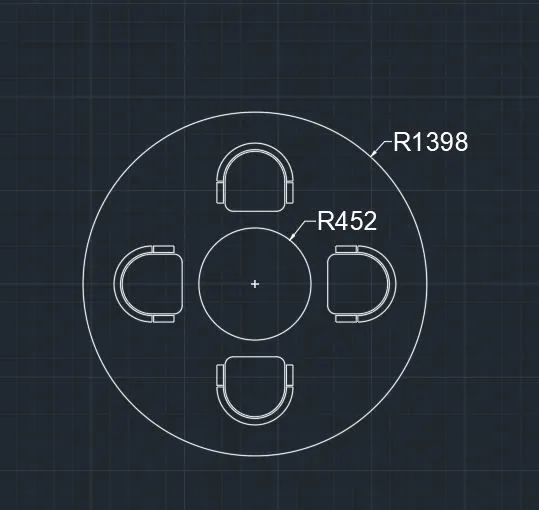

2) Aim :- To sketch the seating plan for an outdoor canopy.

procedure :-

1. start a new page in autocad with unit in mm
2. draw two circles of radius 453mm and 1389mm with the same central point
3. draw a rectangle of suitable dimension and fillet the bottom two corners of the rectangle.
4. draw a circle with the centre at the centre of the top line of the rectangle and trim off its uneccesary parts
5. offset the semicircle part and the sides of the rectangle as shown in the figure an dtrim unecccesary parts
6. make this figure into a block and then place it iin between the two circles drawn earlier.
7. take array option and polar array and make 4 items of it .
8. the resulting figure is as shown below.

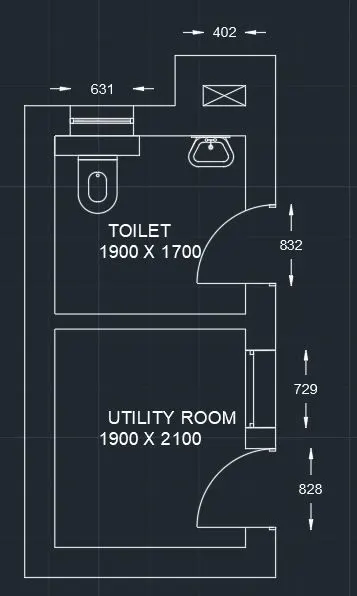

3) Aim :- To sketch the part plan for the toilers and utilities room. Consider the outer wall thickness as 300mm and inner wall thickness as 150mm

procedure:

1. start a new drawing in autocad and select the units as mm
2. switch on ortho mode and start drawing the layout according to the dimensions.Make use of offset option for drawing.
3. draw doors and windows according to the gievn dimensions and make them into blocks
4. draw toilet and wash basin using rectangle, circle fillet and trim tools
5. trim the unnecessary lines and start dimensioning (use dimcontinue while dimensioning)
6. use text option while writing the texts
7. the resulting figure is as shown below
