Creating a Residence Layout, Seating plan, Toilet and Utility room plan using AutoCad
1.O

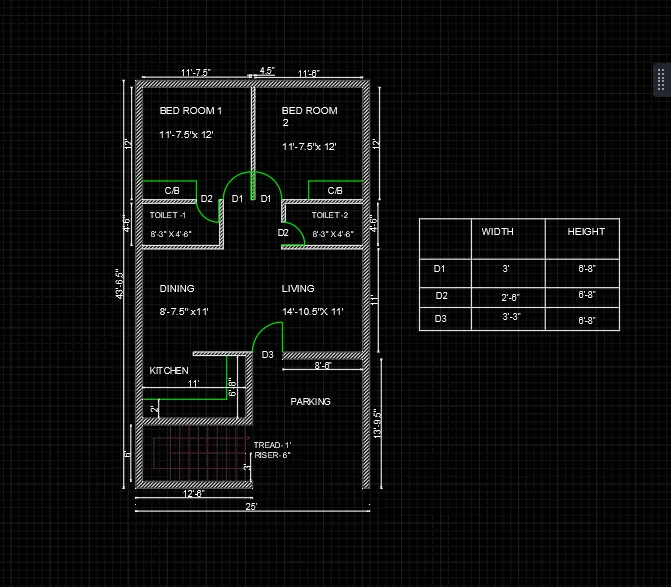

AIM: To sketch the layout of the residence. Consider all dimensions as a reference to sketch the unit plan.
Procedure:
1. Change the unit to Engineering and inch
2. Determine the number of layers you need to create the layout
3. Eg: Layer 1 = Internal and External Walls
Layer 2 = Staircase
Layer 3 = Furniture
Layer 4 = Text & Dimension
4. Starting with External Wall from the Bottom left corner using the Xline command Horizontal and vertical
5. Complete the External wall with 9" Thickness and head towards the internal wall with 4.5" By using line, offset, Trim, Fillet commands, etc
6. Determine the number of steps required for the staircase with the help of the Riser and tread Dimension. Draw the steps with the help of a line and offset commands
7. Next draw the furniture required including the Kitchen platform, Doors, C/S Etc.
8. Lastly Now with the help of the dimension and text command display the length and dimension of each room
RESULT:
2.0

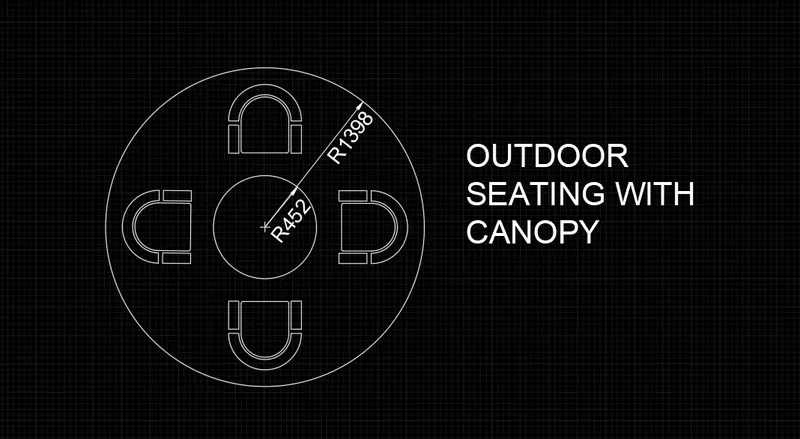

AIM: To Sketch the seating plan for an outdoor canopy
PROCEDURE:
1. Change the unit to Decimal and MM
2. Create a circle with a Radius of 1398 as an external circle
3. Now create another circle inscribed inside the External circle with a radius of 452
4. Create a geometry of chair for sitting with the assumed dimension
5. Lastel use Dimension and text command to determine the radius and dimension of the geometry
RESULT:
3.O

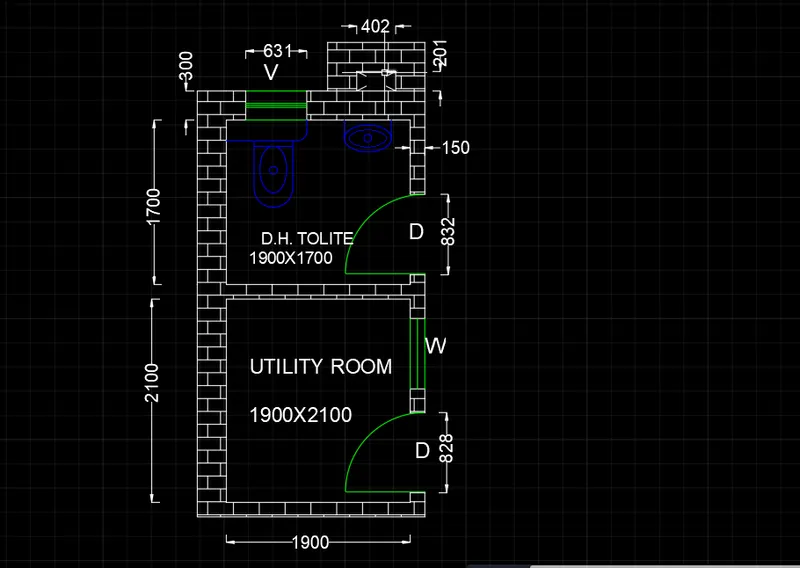

AIM: To Sketch the part plan for the toilers and utility room.
PROCEDURE:
1. Change the Unit to decimal and mm
2. Create 2 types of walls one is an external wall with 300mm thickness and another internal wall with 150mm thickness
with the help of a line, Offset, and trim command
3. sketch the toilet room of size 1900x1700mm and Utility room of size 1900x2100mm with the help of a line and offset command
4. providing Doors, windows, and ventilators as per the given dimension in the figure
5. Determine the dimension of the rooms with help of dimension and text command
RESULT:
