Creating a Residence Layout, Seating plan, Toilet and Utility room plan using AutoCad

FIGURE 1:

AIM:

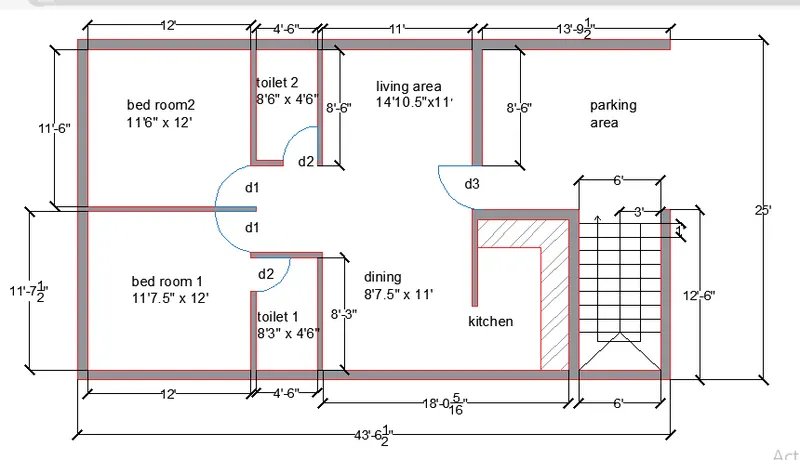

To sketch the layout of a residence as shown in the FigurE. By considering all the dimensions as reference to sketch. Assuming the missing dimensions.

PROCEDURE:

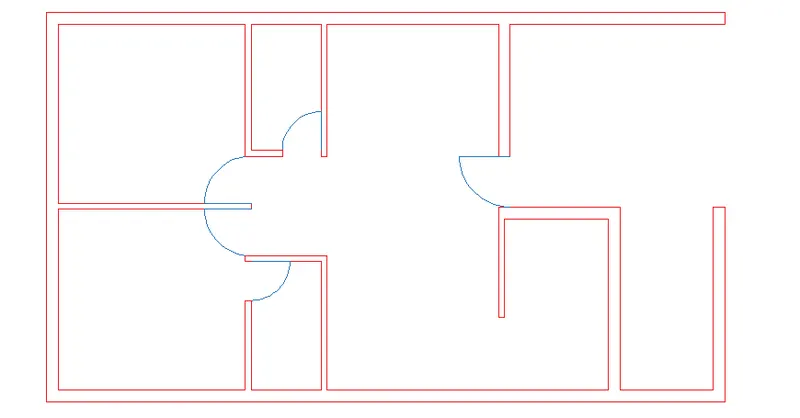

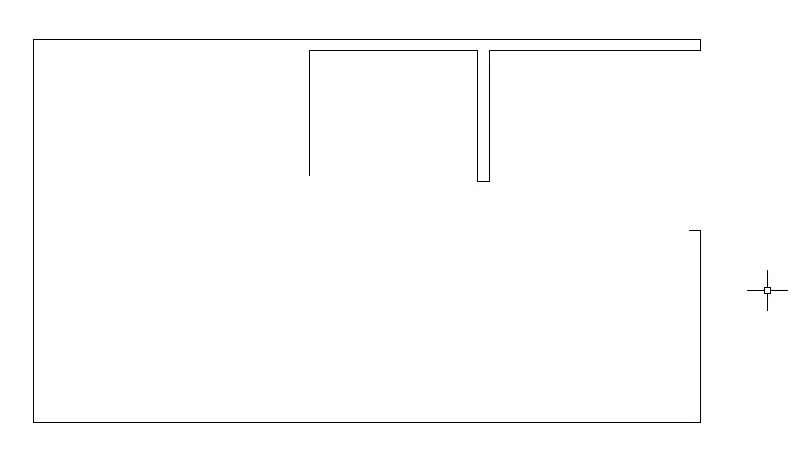

THE FIRST POINT OF THE PLANS STARTED FROMM THE FROM THE POINT OF THE FRONT SIDE OF THE PLAN EXACTLY ON CORNER OF THE KITCHEN.THE DIMENSIONS ARE FOLLOWED FROM THE STARTING POINT.

THE PLAN IS THE CLOSED WITH THE LOOP OF THICKNESS 9" AND 4.5" WHERE THE INTERSECTION WALLS ARE PLACED.

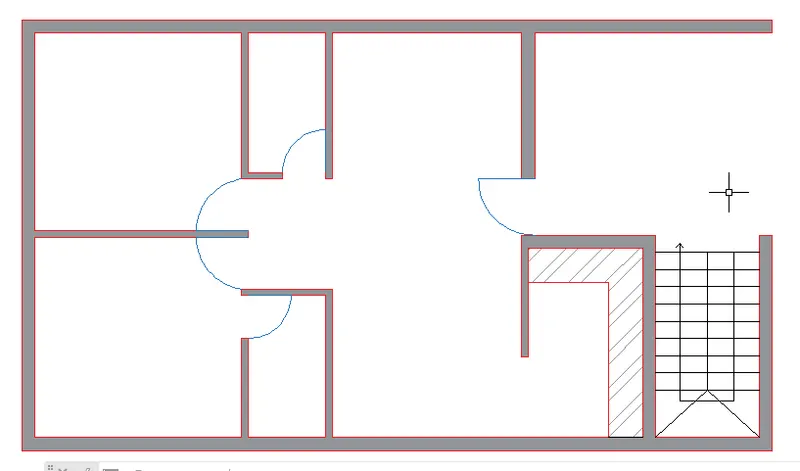

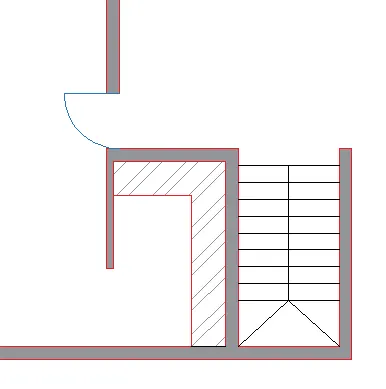

ONCE THE PLAN IS CLOSED, THE STEPS ARE DRAWN I9N THE THICKNESS OF 1" RISER

AFTER THE STEPS AS MENTIONED IN THE QUESTION THE WALL THICKNESS IS HATCHED ASW AS SAME AS THE QUESTION.

THE DIMENSION OF ALL THE WALL IS MENTIONED WITH DIMENTION TOOL. AND ADD THE ROOM INFO WITH THE TEXT TOOL AS SHOWN IN THE PLAN.

RESULT & REPORT:

THE FINAL RESULT HAS THE ALL DETAILS OF THE PLAN AND THE DIMENSIONS OF THE EACH AND EVERY WALL AND THE AREA OF ALL THE ROOM.

FIGURE 2:

AIM:

TO SKETCH THE SEATING OF OUTDOOR CANOPY. ASSUMING THE DIMENSION OF THE SEATING.

PROCEDURE:

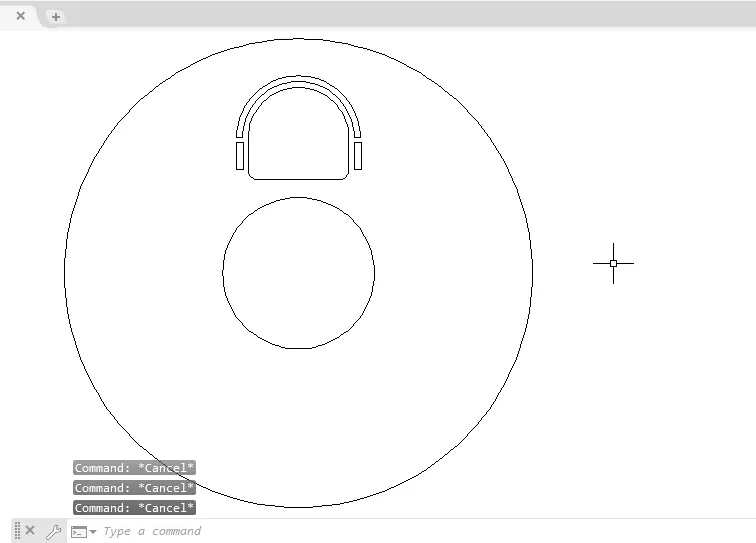

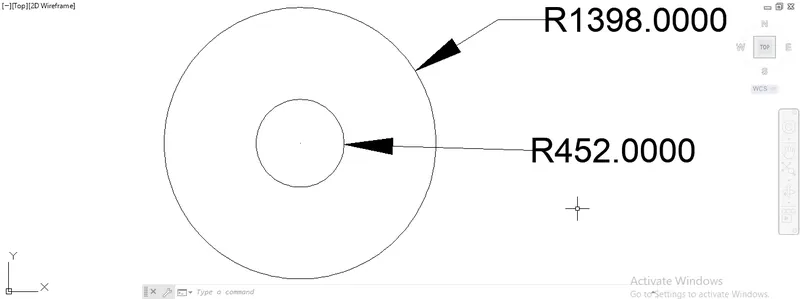

A CIRCLE ID DRAWN WITH THE RADIUS OF R1398 AND THE OTHER CIRCLE WITHE SAME MID POINT WITH THE RADIUS OF R452

\

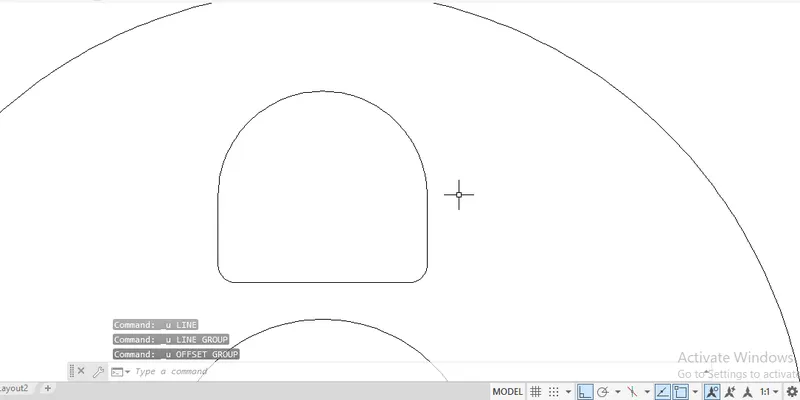

THE SEAT IS DRAWN IN THE ONE QUADRENT POINT OF THE INNER CIRCLE WITH RECTANGLE TOOL AND CURVES WITH THE FILLETS TOOL. AND THE OFFSET TOOL IS USED FOR THE CHAIR.

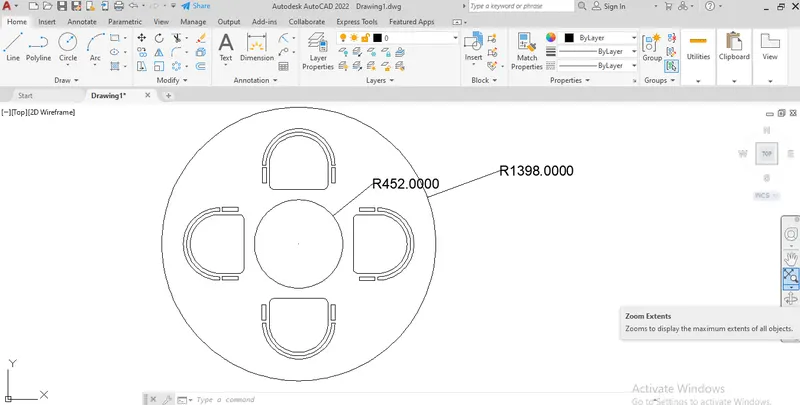

ONCE THE CHAIR IS DRAWN AND IT IS ARRAYED WITH THE POLAR ARRAY METHOD WITH 4 NOS OF THE CHAIR.

RESULT AND REPORT:

FIGURE 3:

AIM:

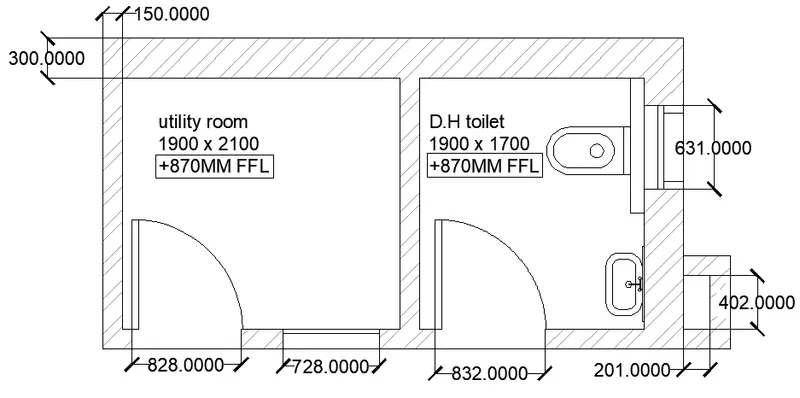

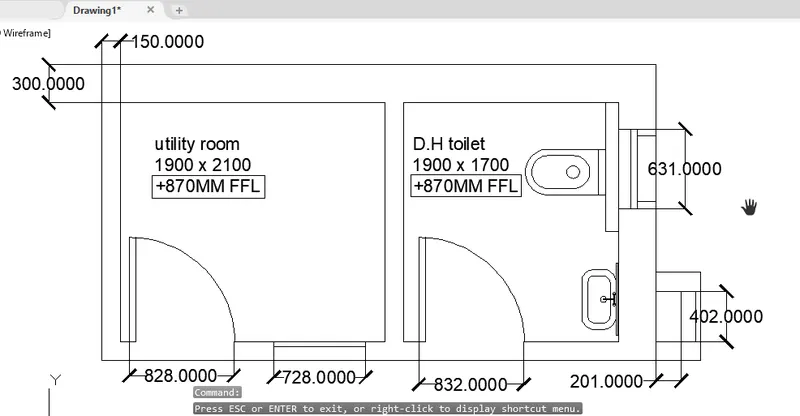

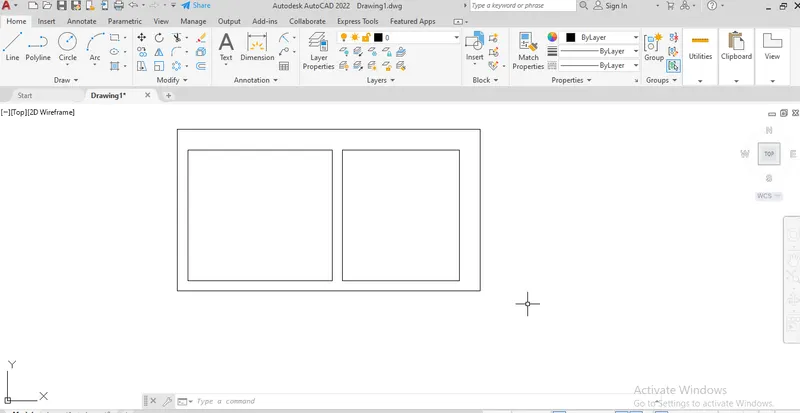

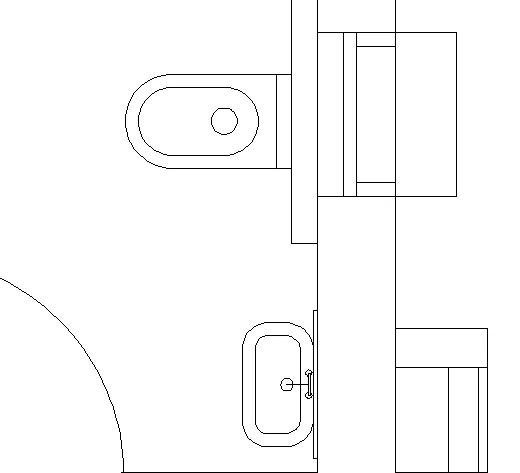

To sketch the part plan for the toilers and utilities room by considering the outer wall thickness as 300mm and inner wall thickness as 150mm. Alsoassuming the missing dimensions of the water closet and the wash basin.

PROCEDURE:

ASSUMUING THE SIZE AND THE DIMENSION OF THE WATER CLOSET AND THE SINK

RESULT AND REPORT:DIMENSION S OF THE DOORS AND WINDOWS ARE MENTIONED AND THE DIMETIONS OF THE ROOMS ARE ALSO MENTIONED,

THE THICKNESS OF THE WALL IS HATCHED AS SHOWN IN THE QUESTION.
