Creating a Residence Layout, Seating plan, Toilet and Utility room plan using AutoCad

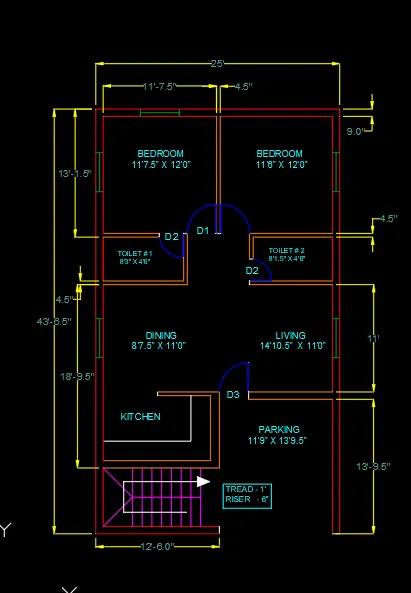

1.AIM

To draw the plan of ground floor building with 2bhk using the various commands in Auto CAD.

PROCEDURE

• To create a new drawing sheet .
• Type ,,UN’ to set the units of current format of measure.( FEET and INCHES)
• Type ,,LIMITS’ to set the maximum dimension limits on the particular page.
• Type ,,L’ - Line commands allows to creating a line where the end points allows creating a line where the end points are dimensional co-ordinates.
• Type ,, OFF’ – offset command to create a new object that specified distance from an existing objects or through a specified points. ( For EX .. Dimensions of wall at interior and exterioir, staircase,,etc..,
• Type ,, FILLET’ to use the commands od rounding the objects with our specified radius.
• Type ,, Tr’ – Trim command is used to trims off an objects cutting the extra edges on objects.
• ARC – Used to create an arc segment.
• COPY – this commands is used to selected objects from a given square to destination, learning a copy at the originally selected location.
• ROTATE – rotate the objects around a specified point.
• MOVE – moves the objects to the destination place from the source place.
• TEXT – creates a text objects with specified height and orientation.
• Type ,, La ‘ to set the different layer properties of wall, door, window, slab, dimensions, text, etc.., for easily identified the different objects in the plan.
• Finally, to save the drawing file.

RESULTS

The diagram of the given plan of ground floor building with 2bhk is drawn as per dimensions using the software of Auto CAD.

DIAGRAM

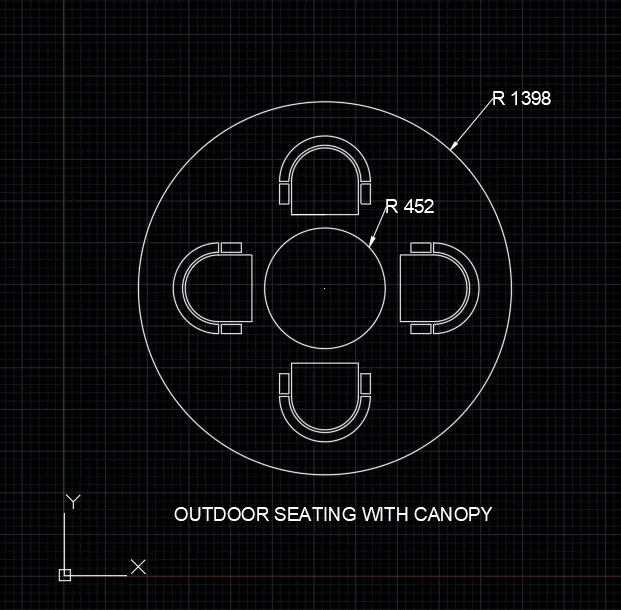

2.AIM

To draw the plan of OUTDOOR CANOPY using the various commands in Auto CAD.

PROCEDURE

• To create a new drawing sheet .
• Type ,,UN’ to set the units of current format of measure.( MILLIMETERS)
• Type ,,LIMITS’ to set the maximum dimension limits on the particular page.
• Type ,, OFF’ – offset command to create a new object that specified distance from an existing objects or through a specified points. ( For EX .. Dimensions of wall at interior and exterioir, staircase,,etc..,
• Type ,, FILLET’ to use the commands od rounding the objects with our specified radius.
• Type ,, Tr’ – Trim command is used to trims off an objects cutting the extra edges on objects.
• ARC – Used to create an arc segment.
• COPY – this commands is used to selected objects from a given square to destination, learning a copy at the originally selected location.
• ROTATE – rotate the objects around a specified point.
• MOVE – moves the objects to the destination place from the source place.
• TEXT – creates a text objects with specified height and orientation.
• Type ,,C’ to create a circle with a given dimensions.( R 1398 and R 452).
• Finally, to save the diagram.

RESULTS

The diagram of the given plan of OUTDOOR CANOPY is drawn as per dimensions using the software of Auto CAD.

DIAGRAM

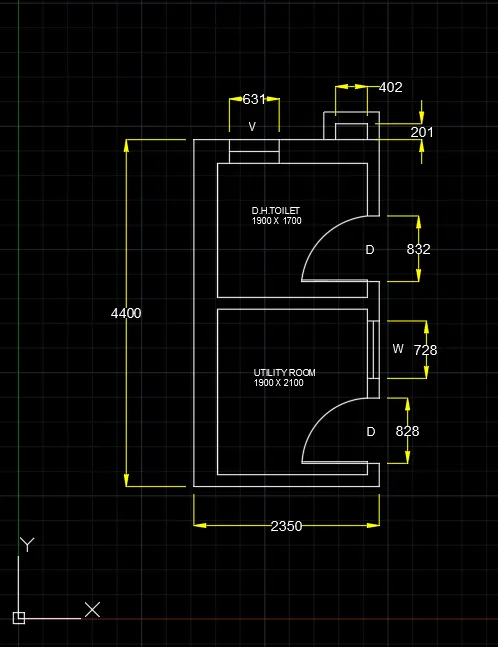

3. AIM

To draw the plan of TOILETS and UTILITY ROOM using the various commands in Auto CAD.

PROCEDURE

• To create a new drawing sheet .
• Type ,,UN’ to set the units of current format of measure.( MILLIMETERS)
• Type ,,LIMITS’ to set the maximum dimension limits on the particular page.
• Type ,,L’ - Line commands allows to creating a line where the end points allows creating a line where the end points are dimensional co-ordinates.
• Type ,, OFF’ – offset command to create a new object that specified distance from an existing objects or through a specified points. ( For EX .. Dimensions of wall at interior and exterioir, staircase,,etc..,
• Type ,, FILLET’ to use the commands od rounding the objects with our specified radius.
• Type ,, Tr’ – Trim command is used to trims off an objects cutting the extra edges on objects.
• ARC – Used to create an arc segment.
• COPY – this commands is used to selected objects from a given square to destination, learning a copy at the originally selected location.
• ROTATE – rotate the objects around a specified point.
• MOVE – moves the objects to the destination place from the source place.
• TEXT – creates a text objects with specified height and orientation.
• Type ,, La ‘ to set the different layer properties of wall, door, window, slab, dimensions, text, etc.., for easily identified the different objects in the plan.
• Finally, to save the drawing file.

RESULTS

The diagram of the given plan of TOILETS and UTILITY ROOM is drawn as per dimensions using the software of Auto CAD.

DIAGRAM
