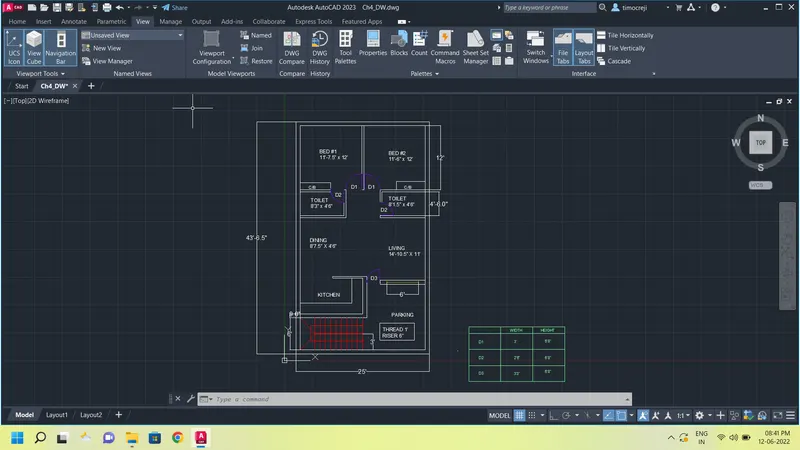

Creating a Residence Layout, Seating plan, Toilet and Utility room plan using AutoCad

AIM: To draw the given residential plan with the details given.

INTRODUCTION:Residential Layout is ideal for students and practitioners of urban design, planning, engineering, architecture and landscape seeking a comprehensive guide to the theory and practice of designing and laying out residential areas

Following are the Commands used in the drawings :-
• Units command
• Text command
• Xline command
• Line command
• Limmax command
• Limits command
• Zoom command
• Dimlinear command
• Dimstyle command
• Extend command
• Trim command

PROCEDURE:

• Open a new page with engineering Unit's and 0'0.0" precision.
• Enter the xline command and draw the line in both x axis and y axis.
• Now make offset of 9" and make the outer wall.
• Again using offset make partition walls of 4.5" thickness.
• Next enter the offset command in the command box, then press enter. And select the lines which we have drawn previously and offset the lines to 9.0".
• Using trim tool remove the extra lines using the trim tool command and In the same way offset command is used to partition the rooms, toilets, living and dinning hall as per the dimensions.
• Using the line command and Offset tool make the staircase.
• Draw the stairs left side of parking with 1' tread and 6' riser, that is shown in figure clearly.
• Next we have to draw the doors with the given dimensions for D1, D2, D3 and provide the dimensions.
• Differentiate the doors and staircase using different colours with the help of layers.
• Using Mtext provide the details of rooms. Also make table providing all the door details with size.

RESULT:

The given residential plan is drawn using autocad.

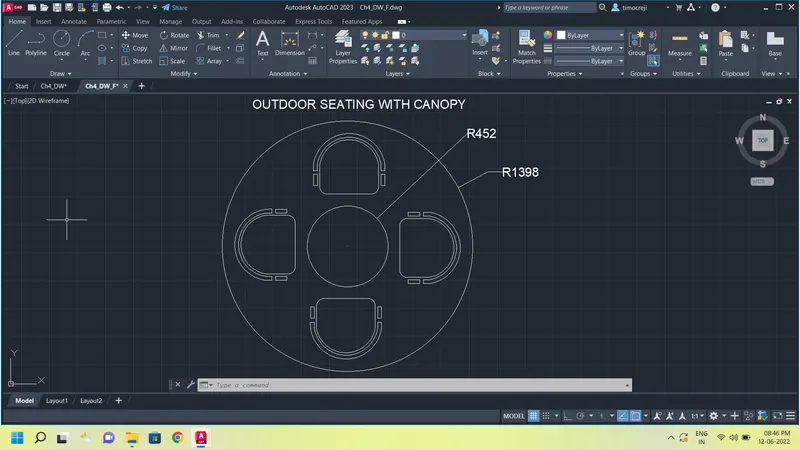

AIM: To draw the given seating plan for an outdoor conopy in detail.

INTRODUCTION: A canopy is an overhead roof or else a structure over which a fabric or metal covering is attached, able to provide shade or shelter from weather conditions such as sun, hail, snow and rain.

COMMANDS USED:

• Circle command
• Arc command
• Array
• Dimstyle commands
• Units command
• Text command

PROCEDURE:

• Using the Command: UN UNITS make decimal units and also make the precision 0.0.
• Using the Command: C CIRCLE make a circle of radius 1398.
• Again using Command: C CIRCLE make a concentric circles with radius of 452.
• Now next here we have to draw the rectangle inside the first circle, then we have to enter the fillet command and select the rectangle coner to fillet it.
•Next we select the arc command to create a left side of the rectangle ane Copy the created chair and use array command.
• Now by using polar array and providing the number of items as 4 the chairs are created as shown below.

RESULT:

An outdoor conopy is created as per the details given using autocad.

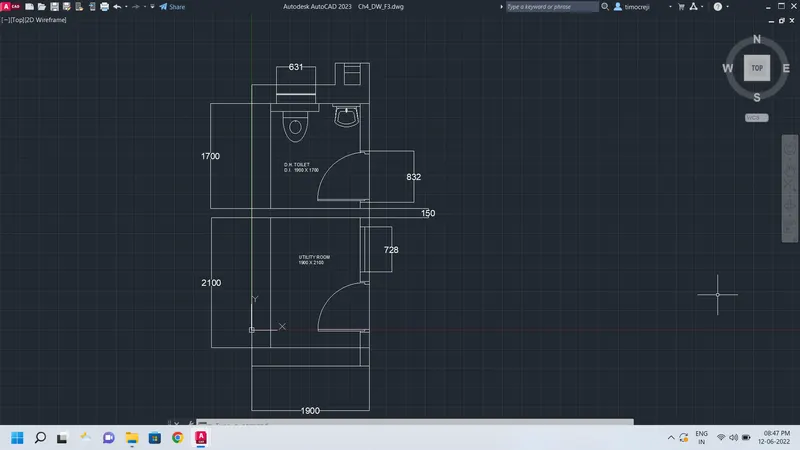

AIM: To draw the part plan for the toilets and utilities in detail.

INTRODUCTION: A toilet room usually consists of obviously a toilet, Lavatory and all of the accessones, such as grab bars and dispensers. There are many layouts of this type but we will explore one very simple design and the code requirements for each. The utility room has several uses but typically functions as an area to do laundry.
.This room contains laundry equipment such as a washing machine, tumble dryer ironing board and clothes iron. The room is also used for closet organization and storage. The room would normally contain a second coat closet which is used to store seasonal clothing such as winter costs or clothing which are no longer used daily.

COMMANDS USED:

• Limmax command
• Limits command
• Zoom command
• Line command
• Dimlinear command

PROCEDURE:

• Open a new page and by using the Command: UN UNITS decimal and precision 0.0.
• The lines are drawn using xline command in both x and y direction.
• The wall thickness is provided as 300mm for the outer walls
• Using the Command: offset, make offset of Distance: 300.
• The wall thickness for the inside walls are provided as 150mm using offset tool.
• The walls are provided as per the dimensions given.
• The extra unwanted lines are deleted using trim command.
• The doors are provided using line and arc command and doors are created as per the dimensions.
• Using the line, arc, ellipse and circle tool the toilet basin is created.
• Same as above the wash basin is created, the commands used are line, arc, fillet.
• The bathroom ventilation for the bathroom is created, the commands used were line, trim and text is added to the drawing using mtext command.
• Using dimensions tool the dimensions of the washroom is provided.

RESULT:

The given plan of the toilet and utilities are created successfully using autocad.
