Challenge

Creating a Residence Layout, Seating plan, Toilet and Utility room plan using AutoCad

AIM:

Creating a Residence Layout, Seating plan, Toilet and Utility room plan using AutoCad

Command Used:

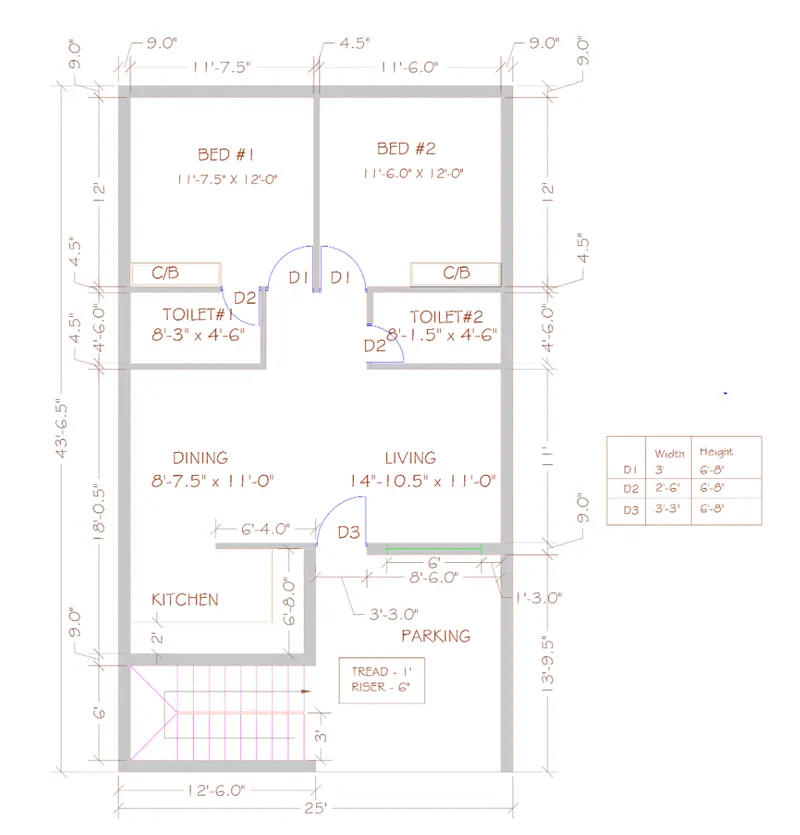

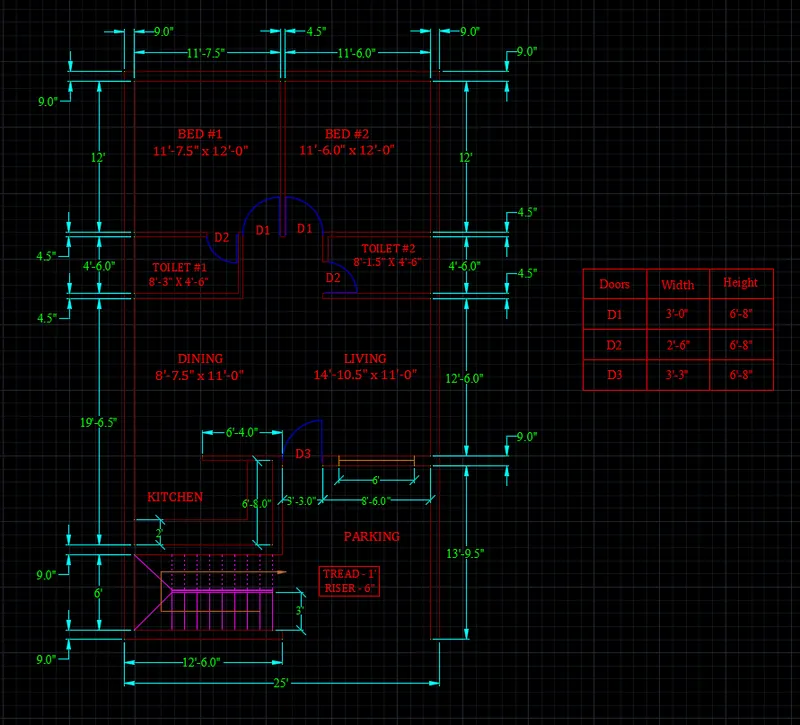

Sketch 1: Residence Plan

Procedure:

Step 1: Inserting layers

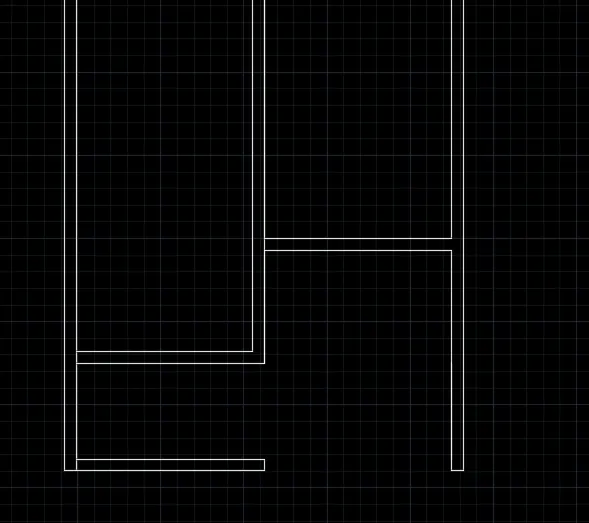

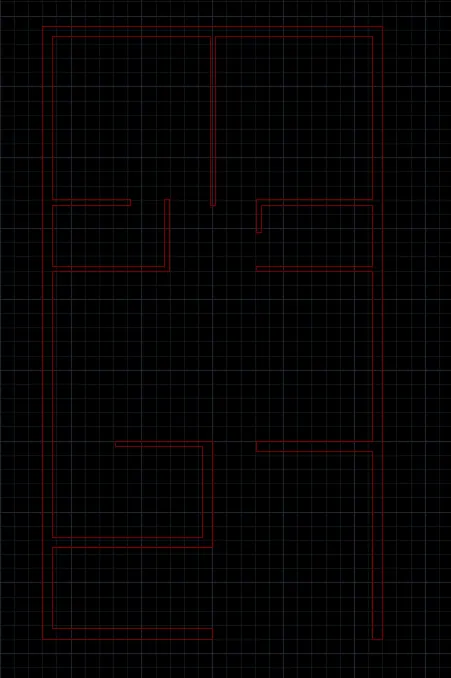

Step 2: Creating walls

Select the Walls layer as cuurent layer
Use xline to make a vertical and horizontal line
Now use offset command to make exterior wall of thickness 9" in vertical xline
Now take an offset of 23'6" from the left wall for the right wall and also offset it upto 9" for wall width
Now take an offset of 11'9" from right wall and also an offset of 9" again.
Now from horizontal xline make an offset of 9" and then an offset of 6' and also take 9" offset for wall
now take an offset of 13'9.5" from horizontal xline wall and again an offset of 9"

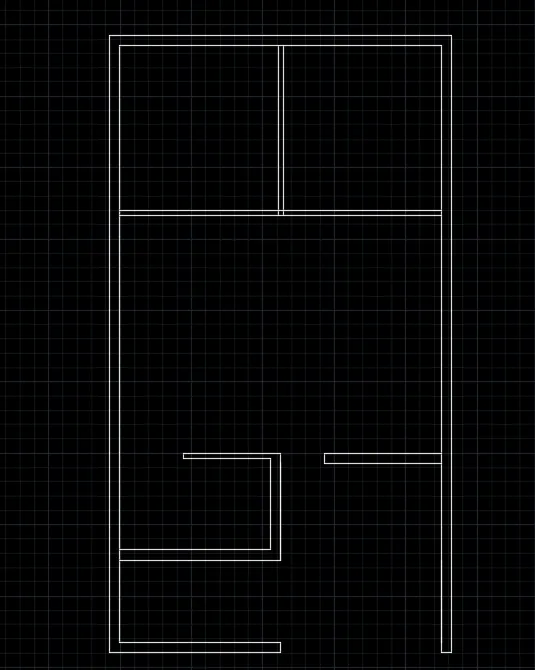

Now trim the unnecessary line for clarity

Now take an offset of 6'8" towards upper direction for Kitchen inner wall and again an offset of 4.5" for thickness of wall
Take an offset of 6'4.0" for the length of that wall and trim the remaining part
Now for the length of wall between parking and living room take an offset of 8'6.0" from right exterior wall and trim the remaining portion
Now take an offset of 43'6.5" from inner side of lowermost wall and use extent to extend it to both side
again offset the line at 9" for thickness of wall
trim the remaining part above
Take an offset of 12' from the upper wall and again an offset of 4.5" for thickness
Now take an offset of 11' 7.5" from lest wall and 11'6.0" from right wall and trim

Take an offset of 3' from the middle wal at both side for door width
Again take an offset of 4'6.0" from the created wall and also an offset of 4.5" for thickness at both sides and use trim for clearing the unwanted lines
Take Take an offset of 8'3" from left wall and 8'1.5" from rigth wall and offset it at a thickness of 4.5"
Trim the remains
Now take an offset of 2'6" for doors D2 and trim the width

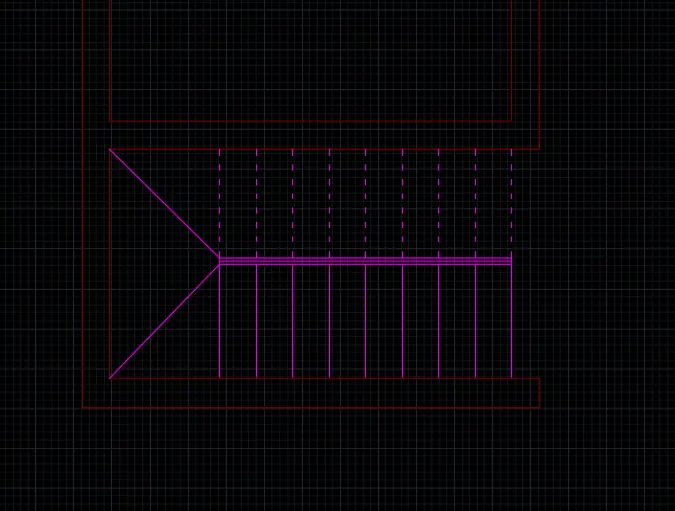

Step 3: Staircase

Take an offset of 3' from exterior wall at both horizontal and vertical direction
trim the Portion for landing slab
Connect the wall using lline command
Take an offset of 1' as tread and make multiple offset
Trim the upper treads and use dashed line type to make the treads of offset 1'

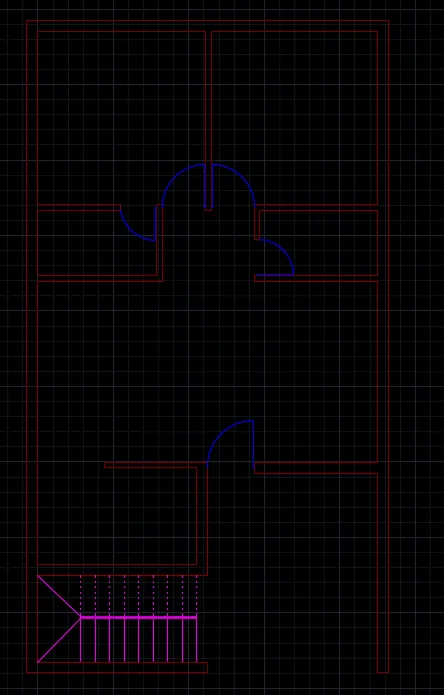

Step 4: Creating Doors

Step 5: Providing Windows

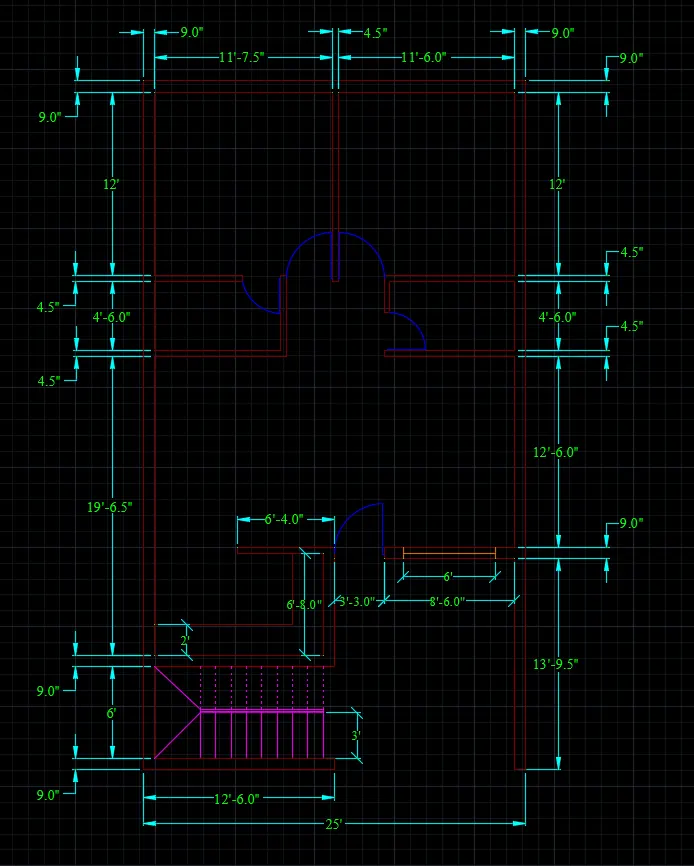

Step 6: Providing Dimensions

Step 7: Providing Text

Result:

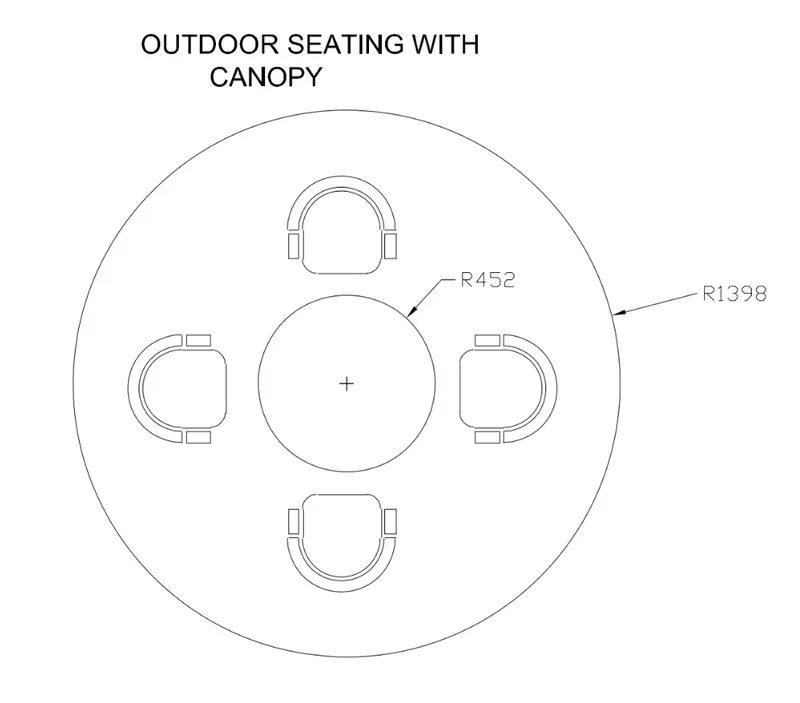

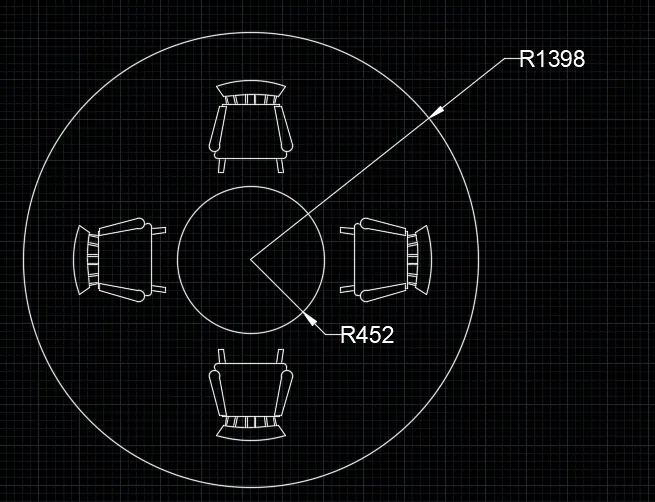

Sketch 2: Outdoor Seating with canopy

Procedure:

Steps:

Use cirlcle command and make a cirlce of radius 1398mm
Now using center in osnap on create one more circle with same center of radius 452mm
Type dc and enter
- Click design center
- Double click home space planning and select blocks in it
- Now select the chair rocking option and double click
- press enter
- make copy of chairs and rotate it likewise
- place the chair at positions
Give dimensions as per drawing using dimension command from the command bar

Result:

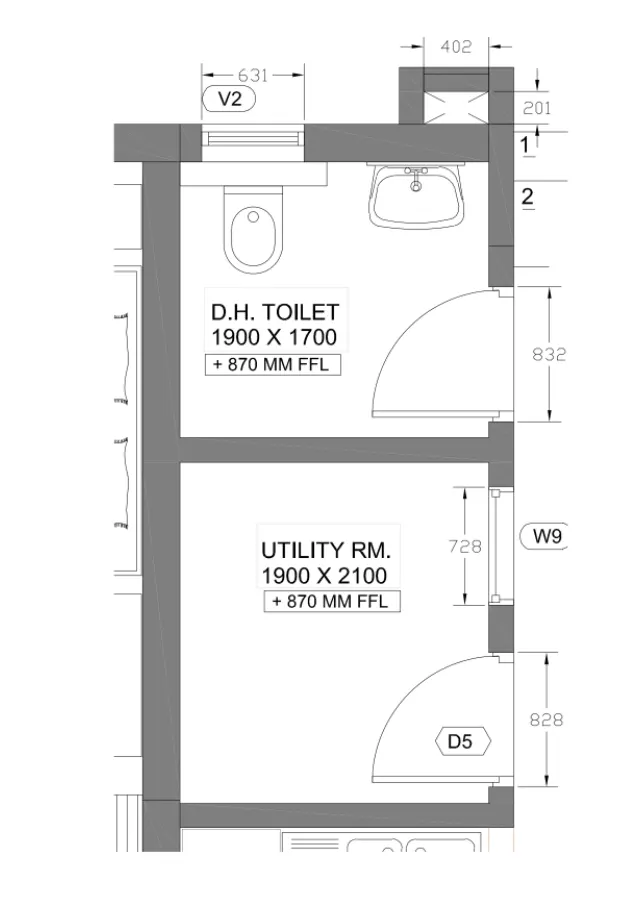

Sketch 3: Toilets and Utility room

Procedure:

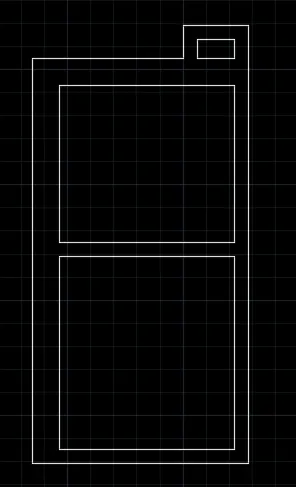

Steps 1: Creating walls

Draw xline in vertical as well as in horizontal direction
Now take an oofset of 300mm from vertical xline and 150 mm from horizontal xline
Take an off set of 1900mm from the verical xline wall and again an offset of 150mm in same direction
Take an offset of 2100mm from horizontal xline wall and again an offset of 150mm.
Again in same direction take an offset of 1700mm and again 300m offset in the upper direction
Take an offset of 201mm from the upper most line and again an offset of 150mm upwards
Now take an offset of 150mm from right wall towards left and continue it with offsets 402mm and 150mm
Now trim the unnecessary lines

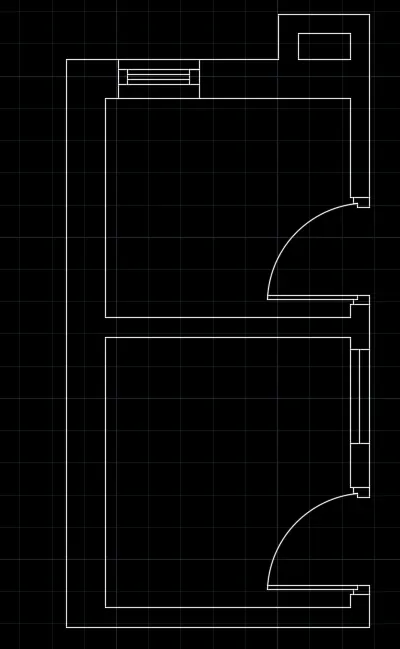

Step 2: Creating Doors, Windows and Ventilater

Use extent for line in horizontal wall and extend it
Taking an offset of m from the horizontal wall take another offset of 832mm for door and trim it
Taking an hinge draw door and using arc option make an arc connecting door and wall
Repeat the above step for another toilet
Draw window of 728mm in the utility room and ventilator of 631mm in the toilet room

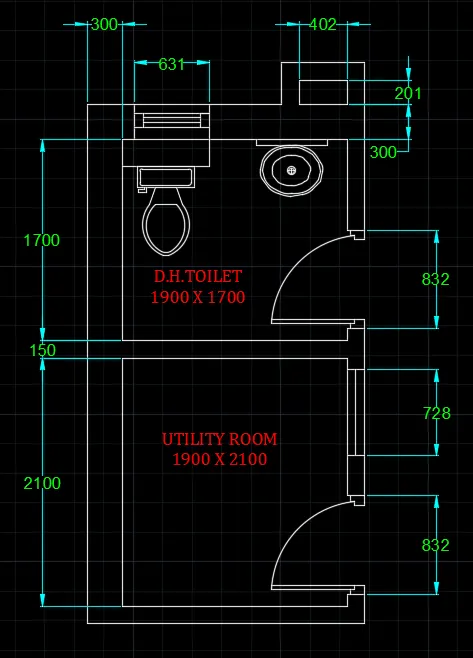

Step 3: Symbols, text and Dimensions

Result:
