CHALLENGE 4

AIM

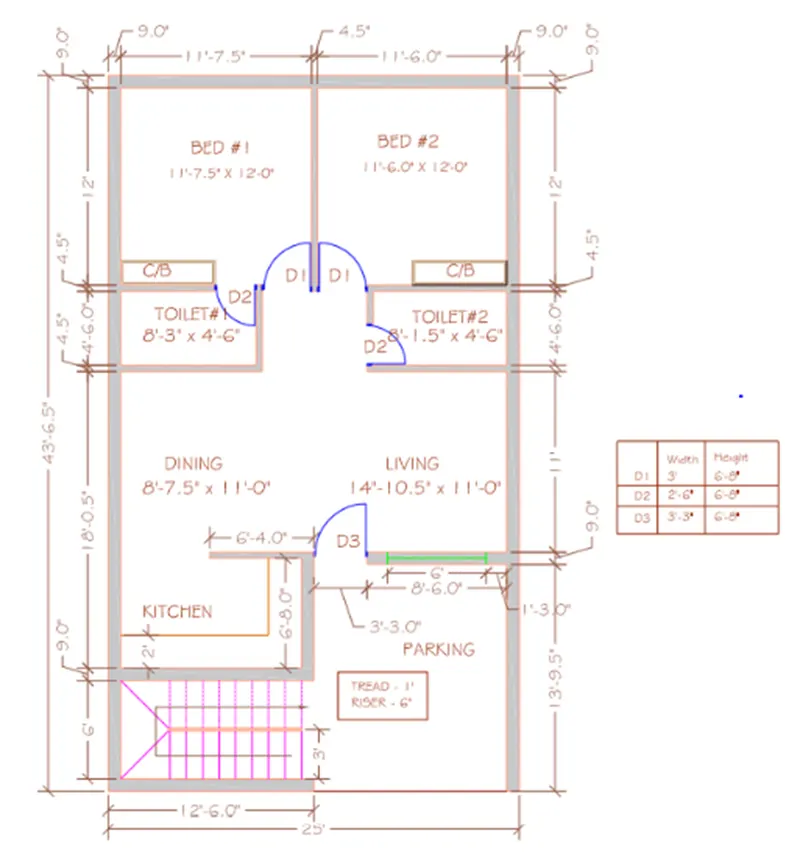

Sketch the layout of a residence as shown in the Figure.

PROCEDURE:

Enter LINE command: L

LINE specify first point: click left mouse button, drag the mouse right and type 25’

Specify next point or [Undo]: drag the mouse UP and type 43’6.5

Specify next point or [Undo]: drag the mouse left and type 25’

Specify next point or [Close Undo]: C

Enter OFFSET command: O [enter]

OFFSET specify offset distance: 9”

Select object to offset or [Exit Undo]: select all 4 lines

Specify point on side to offset [Exit Multiple Undo]: click inside the rectangle

Enter FILLET command: F

FILLET select first object: select vertical side

Select second object: select horizontal side

Enter OFFSET command: O [enter]

OFFSET specify offset distance: 12’

Select object to offset or [Exit Undo]: select the line to create bedroom

Specify point on side to offset [Exit Multiple Undo]: click on the other side

Enter OFFSET command: O [enter]

OFFSET specify offset distance: 4.5”

Select object to offset or [Exit Undo]: select the line to create interior wall

Specify point on side to offset [Exit Multiple Undo]: click on the other side

Enter OFFSET command: O [enter]

OFFSET specify offset distance: 4’6

Select object to offset or [Exit Undo]: select the line to create toilet

Specify point on side to offset [Exit Multiple Undo]: click on the other side

Enter OFFSET command: O [enter]

OFFSET specify offset distance: 4.5”

Select object to offset or [Exit Undo]: select the line to create interior wall

Specify point on side to offset [Exit Multiple Undo]: click on the other side

Enter OFFSET command: O [enter]

OFFSET specify offset distance: 11’

Select object to offset or [Exit Undo]: select the line to create living dining

Specify point on side to offset [Exit Multiple Undo]: click on the other side

Enter OFFSET command: O [enter]

OFFSET specify offset distance: 4.5”

Select object to offset or [Exit Undo]: select the line to create interior wall

Specify point on side to offset [Exit Multiple Undo]: click on the other side

Enter OFFSET command: O [enter]

OFFSET specify offset distance: 6’8”

Select object to offset or [Exit Undo]: select the line to create kitchen

Specify point on side to offset [Exit Multiple Undo]: click on the other side

Enter OFFSET command: O [enter]

OFFSET specify offset distance: 4.5”

Select object to offset or [Exit Undo]: select the line to create interior wall

Specify point on side to offset [Exit Multiple Undo]: click on the other side

Enter FILLET command: F

FILLET select first object: select vertical side

Select second object: select horizontal side

Enter TRIM command: TR

TRIM select object to trim: enter

TRIM: select the lines to be trimmed and create doors

Enter OFFSET command: O [enter]

OFFSET specify offset distance: 1’

Select object to offset or [Exit Undo]: select the line to create steps of stairs

Specify point on side to offset [Exit Multiple Undo]: M

Specify point on side to offset [Exit Multiple Undo]: create steps

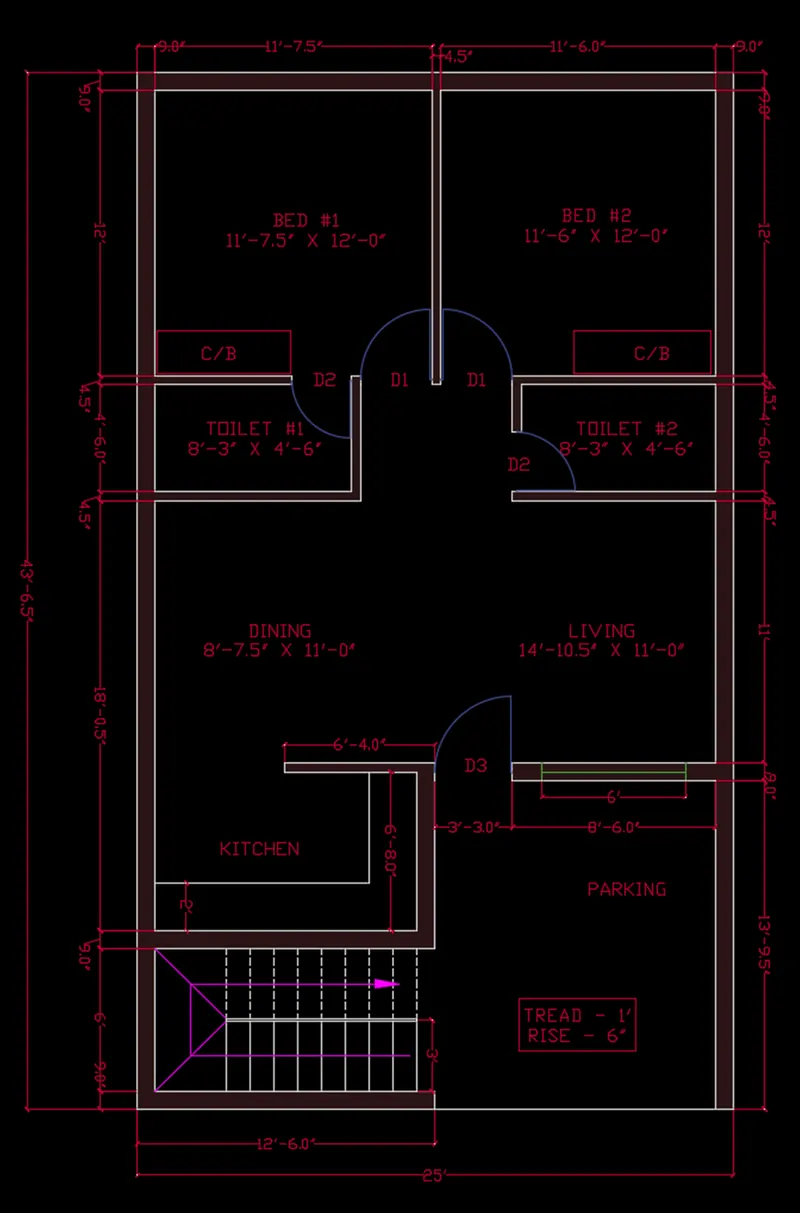

RESULT

AIM

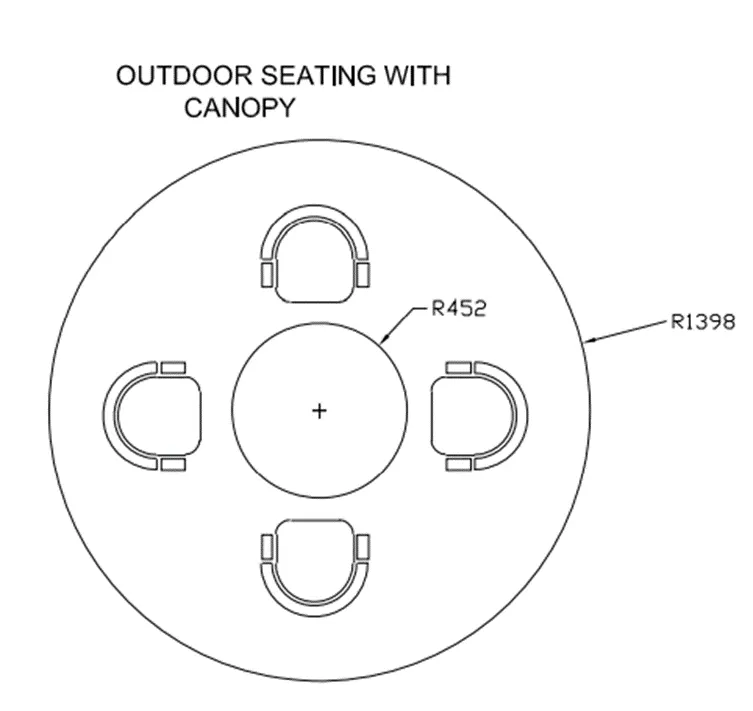

Sketch the seating plan for an outdoor canopy. Assume the dimensions for the seating. Also, consider the dimensions in mm.

PROCEDURE:

Enter CIRCLE command: C

CIRCLE Specify center point for circle: click on the points

Specify radius of circle or[Diameter]: 1398

Enter CIRCLE command: C

CIRCLE Specify center point for circle: click on the same point

Specify radius of circle or[Diameter]: 452

CREATING CHAIR

Enter LINE command: L

LINE specify first point: click left mouse button, drag the mouse right and type 200

Specify next point or [Undo]: drag the mouse up and type 100

Create the second vertical line

Enter FILLET command: F

FILLET select first object or [Undo Polyline Radius Trim Multiple]: R

Specify fillet radius: 150

Select first object: select vertical side

Select second object: select other vertical side

Enter ARRAY command: AR

ARRAY select objects: select the created chair

Enter array type [Rectangular Path Polar]: PO

Specify centre point of array: click the centre of the circle

Select grip to edit array [Associative Base point Items Angle]: I

Enter number of item in array: 4

Exit command

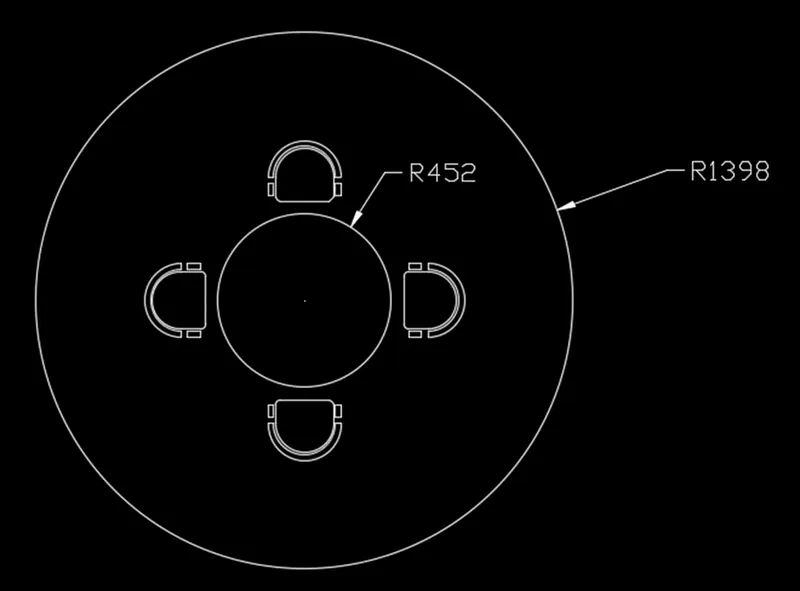

RESULT

AIM

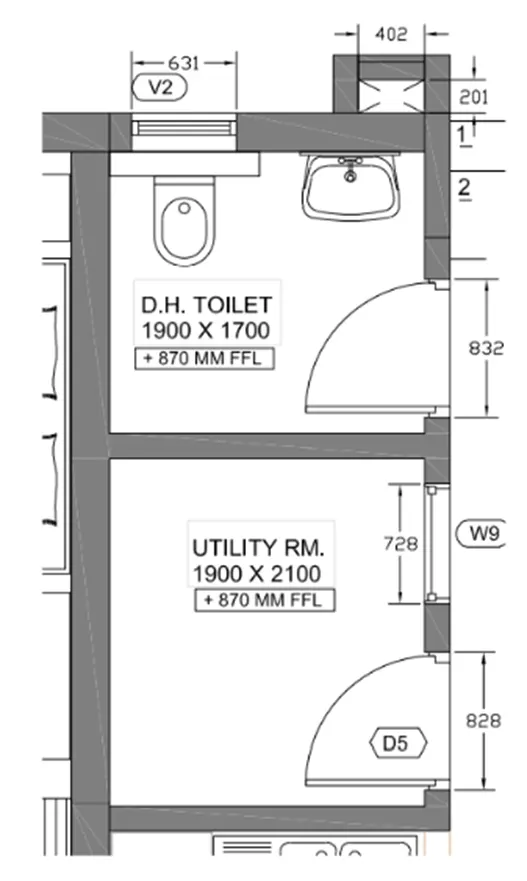

Sketch the part plan for the toilets and utility room. Consider the outer wall thickness as 300mm and inner wall thickness as 150mm.

PROCEDURE:

Enter LINE command: L

LINE specify first point: click left mouse button, drag the mouse right and type 1900

Specify next point or [Undo]: drag the mouse UP and type 1700

Specify next point or [Undo]: drag the mouse left and type 1900

Specify next point or [Undo]: C

Enter OFFSET command: O [enter]

OFFSET specify offset distance: 300

Select object to offset or [Exit Undo]: select for exterior wall

Specify point on side to offset [Exit Multiple Undo]: click outside the rectangle

Enter OFFSET command: O [enter]

OFFSET specify offset distance: 150

Select object to offset or [Exit Undo]: select for interior wall

Specify point on side to offset [Exit Multiple Undo]: click outside the rectangle

Enter OFFSET command: O [enter]

OFFSET specify offset distance: 2100

Select object to offset or [Exit Undo]: select for interior wall

Specify point on side to offset [Exit Multiple Undo]: click other side of the rectangle

Enter TRIM command: TR

TRIM select object to trim: enter

TRIM: select the lines to be trimmed and create doors

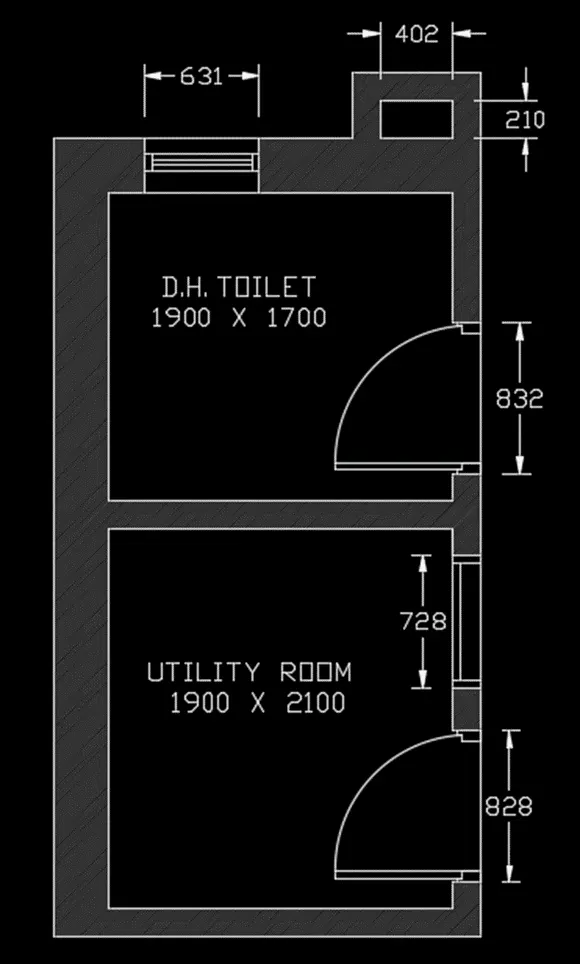

RESULT
