Challenge

Creating a Residence Layout, Seating plan, Toilet and Utility room plan using AutoCad

Aim:

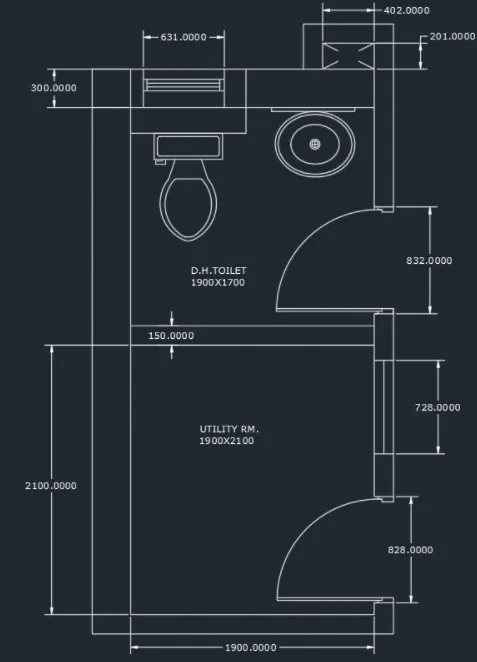

To Sketch the part plan for the toilers and utilities room.

Procedure:

Using rectangle command, draw a rectangle of dimension 1900 (length) and 3800 (height)
Select all, and type X in the command box and press enter.
Offset the top edge at a distance 1700 towards down.
Offset all the top and left edge at a distance 300, and offset the middle and bottom and right edge at a distance of 150.
Trim the unwanted lines.
Place doors by, creatind offseted line at distance 828, and an arc connecting like the door, at the right corners of the two rectangle cells.
Place a hathed vertical rectangle of length 728 and thickness of the right wall, over the bottom door.
Place a hathed vertical rectangle of length 631 and thickness of the top wall , on the left right corner.
Draw a rectangle from the top right corner of dimension 201 (height) and 402 (length).
Offset all edges to a distance 300.
Trim the unwanted lines.
Using DS command, place the required en-us- home utility symbols and place in the required feild.
Mark the dimensions.

Result:

________________________________________________________________________________________________________

Aim:

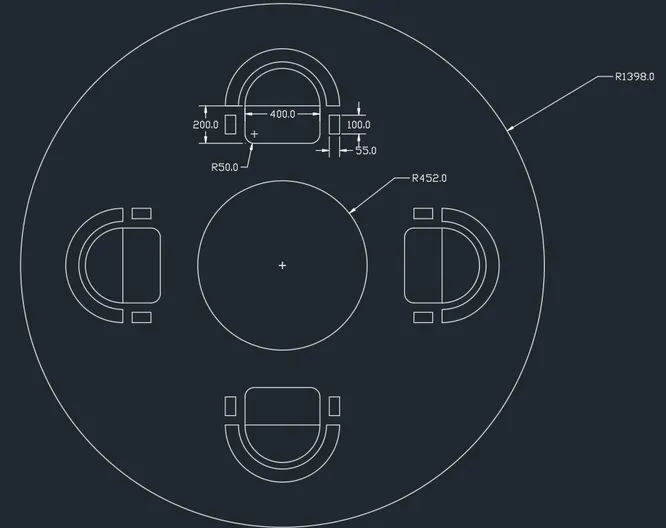

To sketch the seating plan for an outdoor canopy.

Procedure:

Draw a pair of perpendicular lines of length 1398, like a plus symbol.
From the mid point, Draw a circle of diameter 1398.
Draw another circle of radius 452, from the midpoint.
Offset the inner circle to a distance of 200, to determine the position of the chairs.
Choose any intersection point, so that the horzontal line intersects the middle line.
Draw a rectangle from there tanget to the intersection point, of a dimension of 400 (height) and 200 (length).
Fillet the bottom corners to a radius of 50.
Draw an arc at the top edge to an approximate radius, with star, middle and end point command.
Draw two small rectangles to the left and right of the chair shaped structure.
Select the chair, and using Array command and set the path to the middle circle and set the number to two.
Adjust the distnace so that everything is uniformly placed.
Trim the unwanted lines.
Mark the dimensions.

Result:

________________________________________________________________________________________________________

Aim:

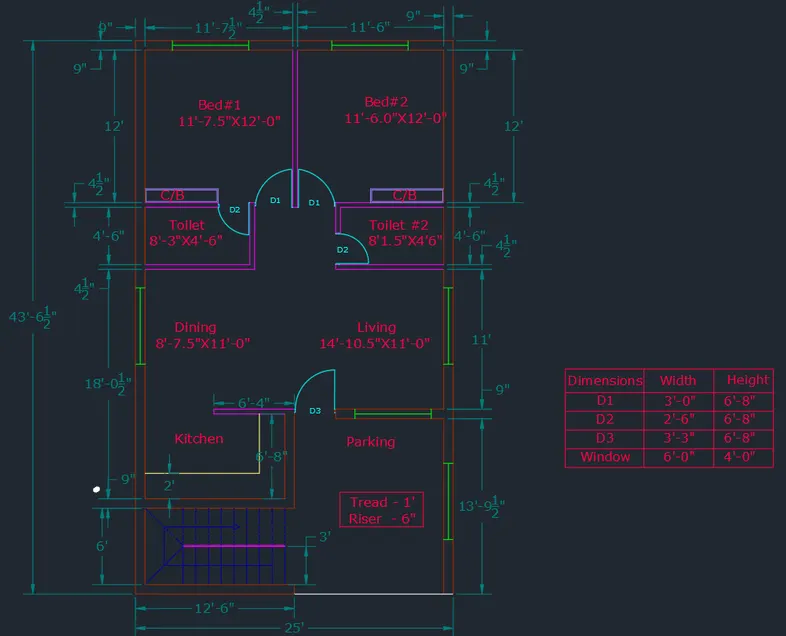

To sketch the given residence layout.

Procedure:

Draw a rectangle of dimesion 25' (lenght) and 12' (height).
Select all and type x in the command bar and press enter.
Offset the left edge towards right to a distance of 11'-5".
Offset the outer edges to a distance of 9".
Offset the inner middle line to a distance of 4.5".
This makes our bedroom.
Using line and trim tool, give opnings at the the inner right and left corner of the bedroom to a width of 3'. (D1)
Draw two rectangle of dimensions 8'-3" (length) and 4'-6" (height) and 8'-1.5" (lenght) and 4'-6" (height) at the left and right corner from the bedroom.
Offset the edges of the toilet to a distance of 4.5".
Trim the unwanted lines.
Place the openings using trim and line at the desored coreners of a ditance of 2'-5".
This makes our toilet.
Offset the bottom edge of the overall shape, to a distance of 11' and another one at a distance of 6'-8" downwardes.
Fill the gap using extends command.
From 11' draft the kitchen segment of dimsion 12' ( length ) and 6'-12" (height), with wall thickness, 9", except for the top , ( 4.5" offset)
Draw stairs of raise 6" and thread 1' using rec and array command.
Join the openings using line
Trim the unwanted lines.
Create door object and window objects.
Copy and move to the desried walls.
Using layer command, Place the objects in respective places and make is aesthetic to look.
Annotate.
MArk the dimensions.

Result:
