Creating a Residence Layout, Seating plan, Toilet and Utility room plan using AutoCad

NNidhin Varghese28 Dec 2021

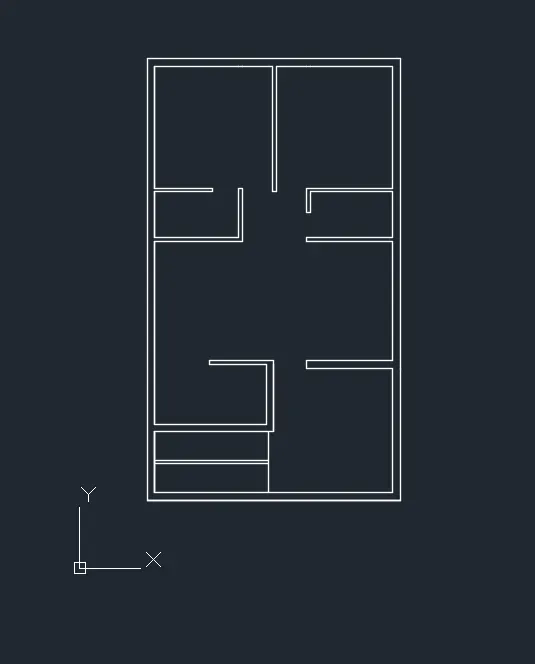

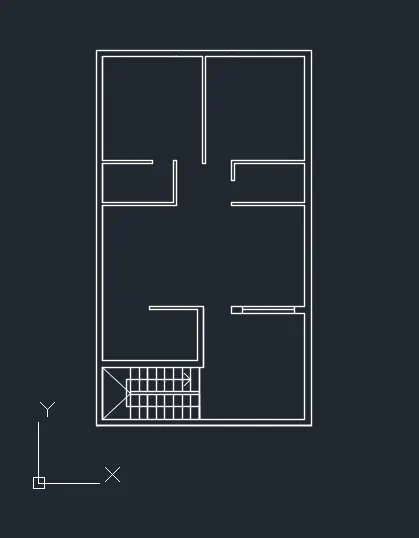

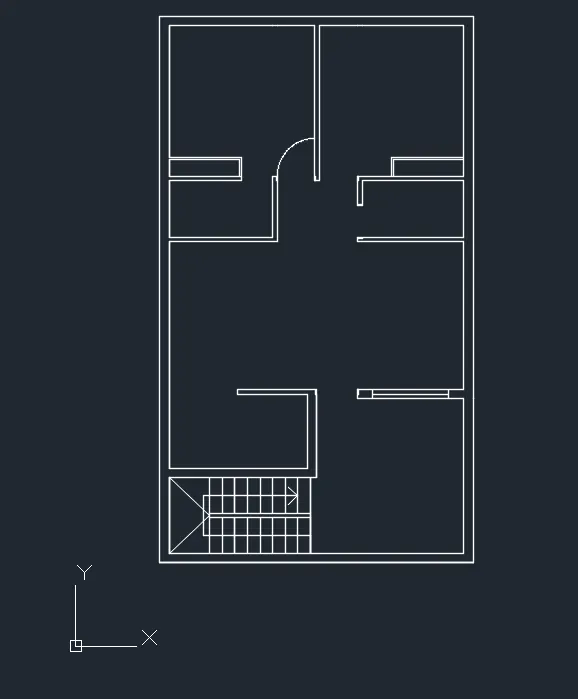

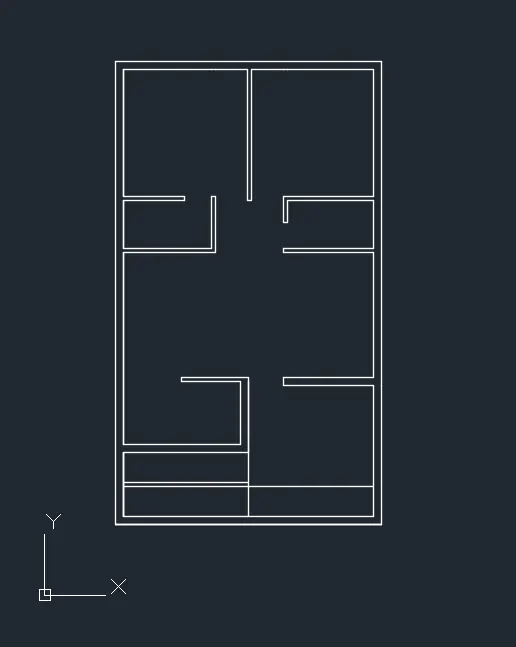

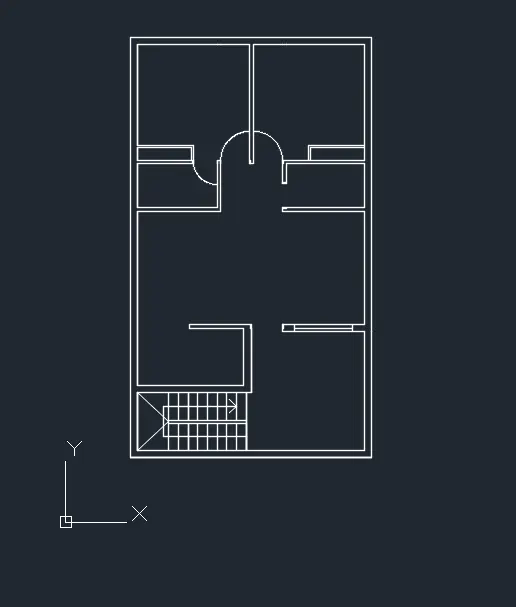

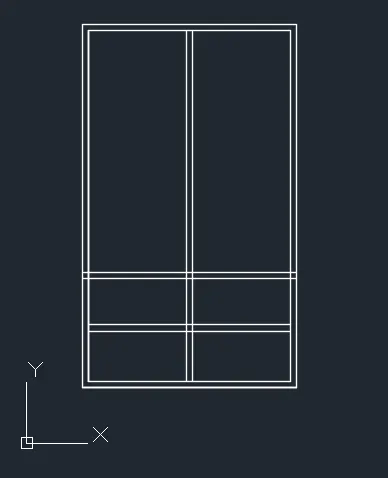

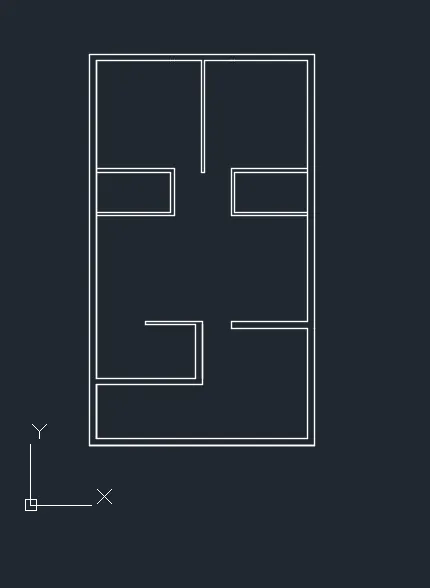

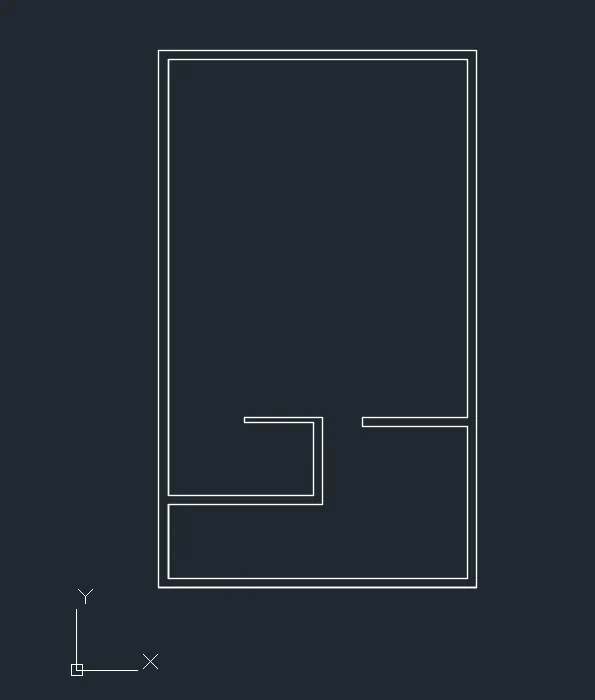

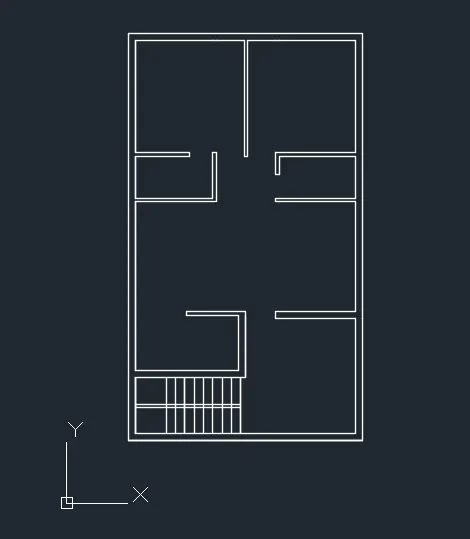

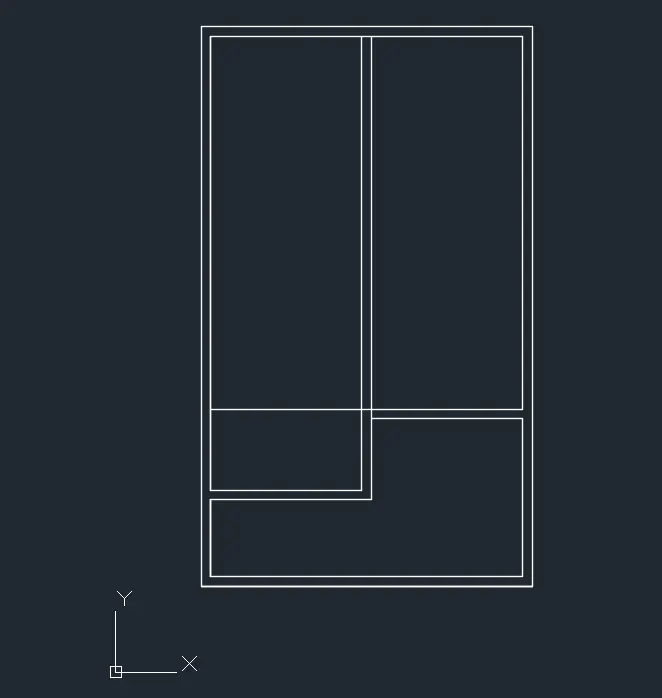

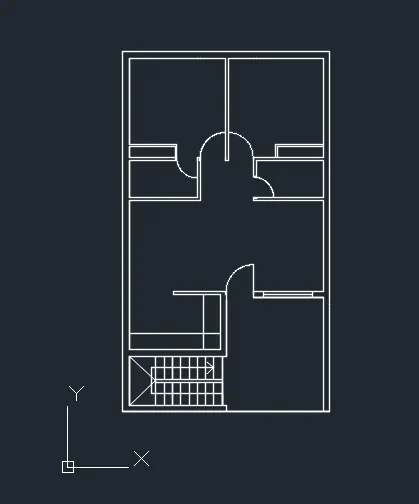

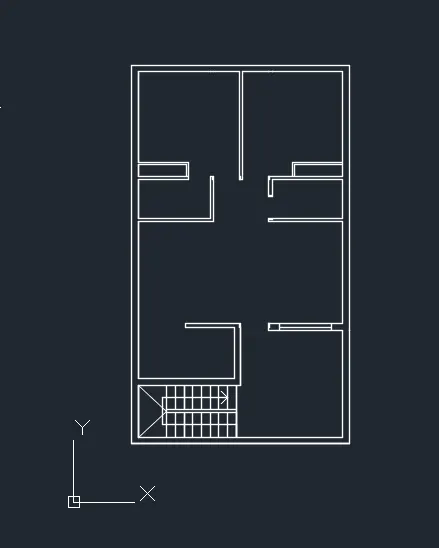

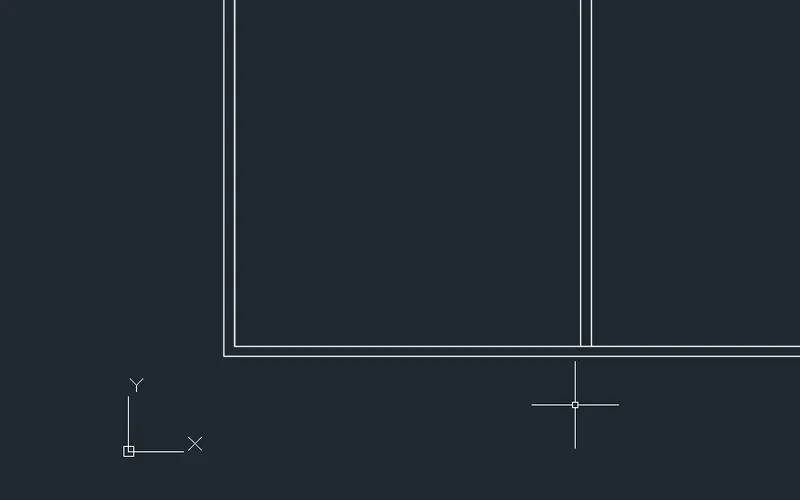

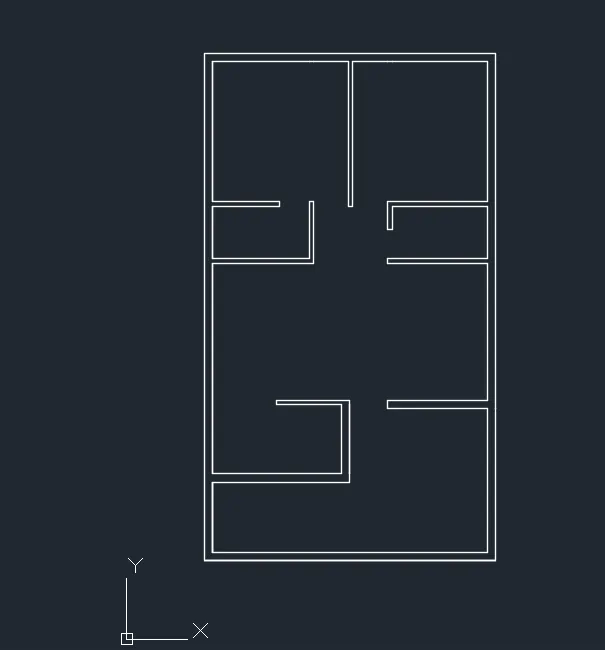

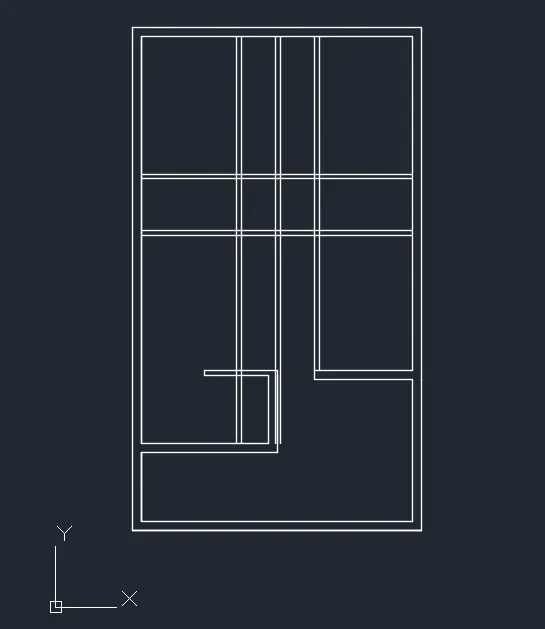

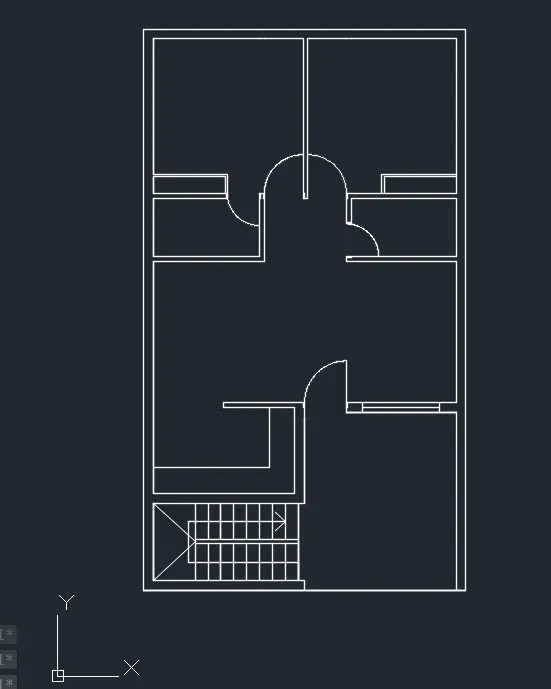

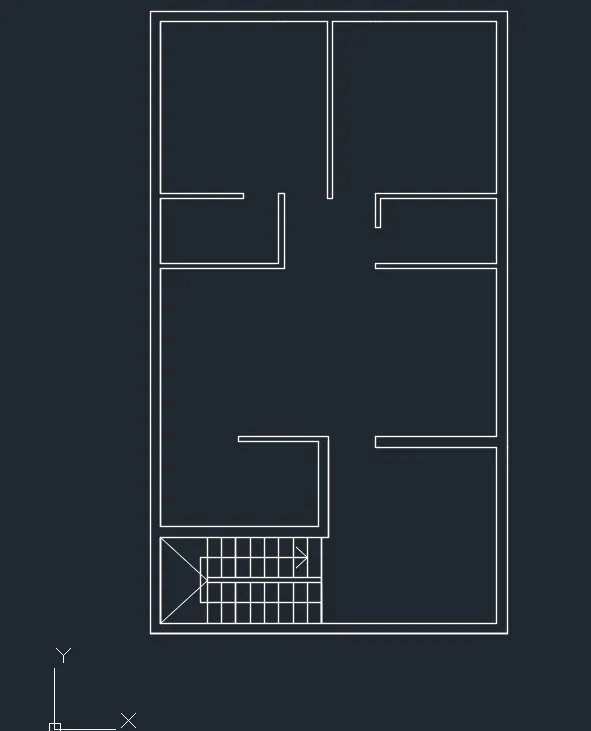

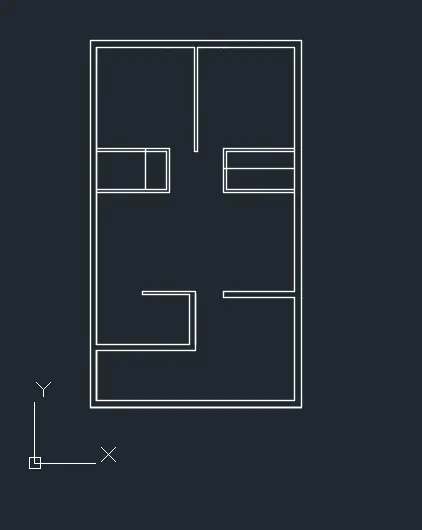

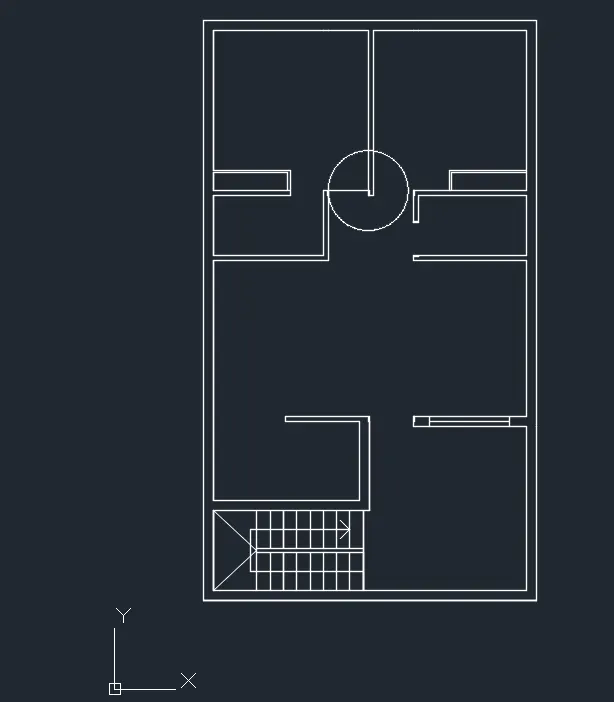

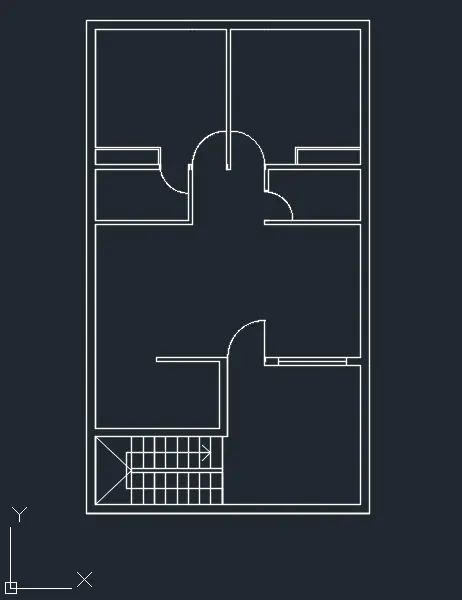

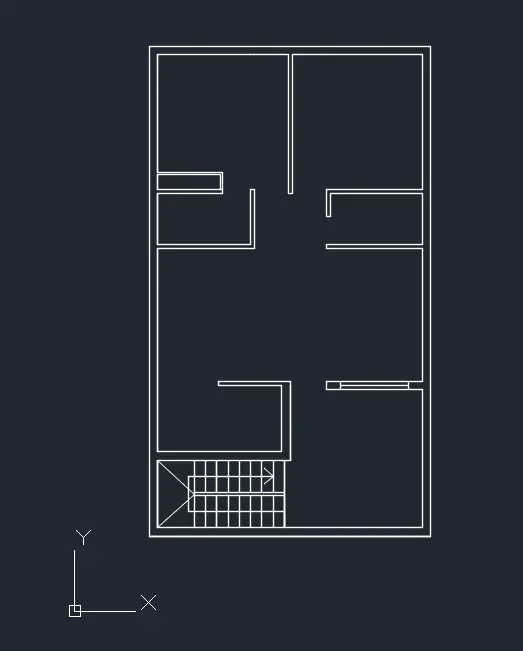

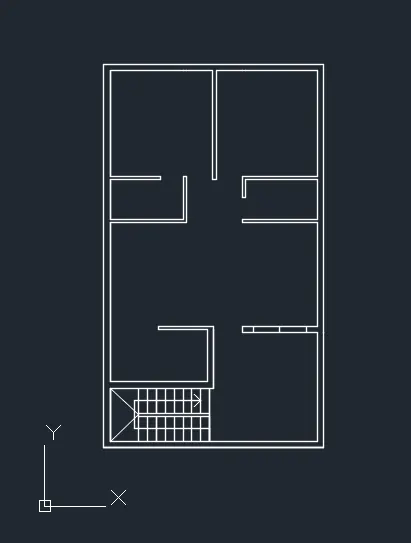

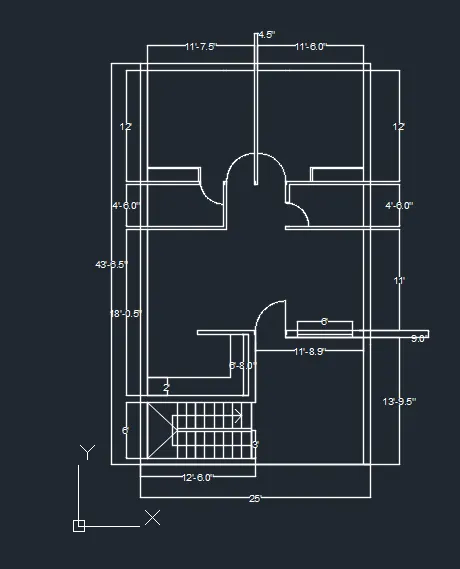

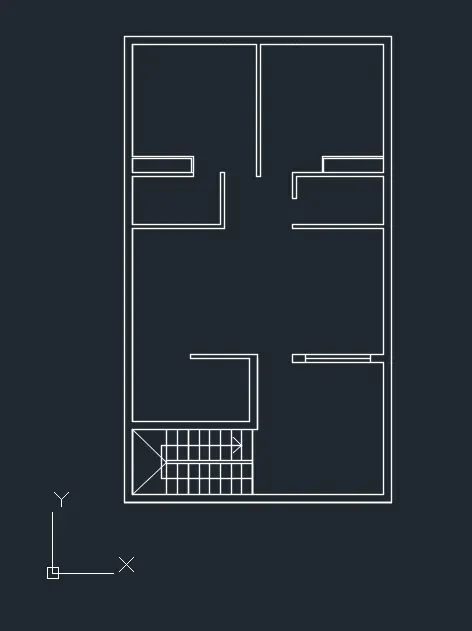

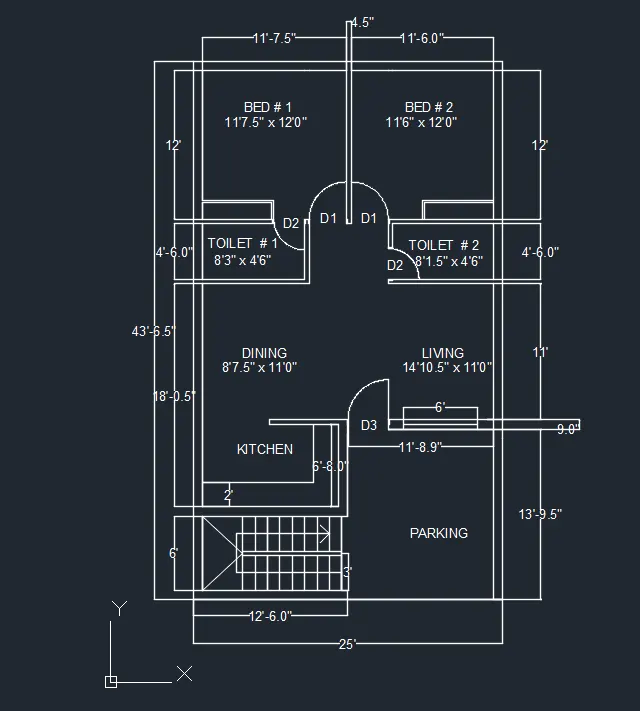

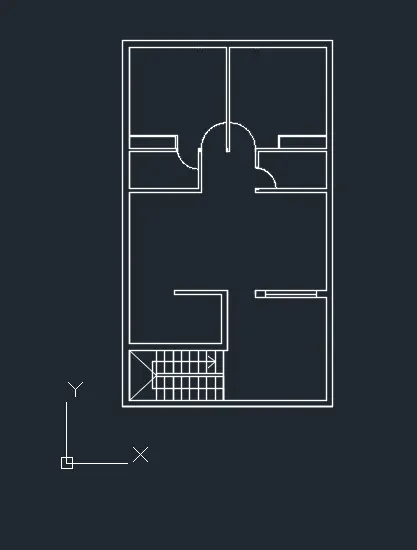

Q1: Aim: To Sketch the layout of a residence, and illustrate the procedure involved.

Procedure:

Create a new drawing from the dropdown menu
Select the imperial system and Engineering units
To set the drawing limits type LIMMAX
Enter the maximum limit as 100',100'
Type Z and press enter
Type A and press enter

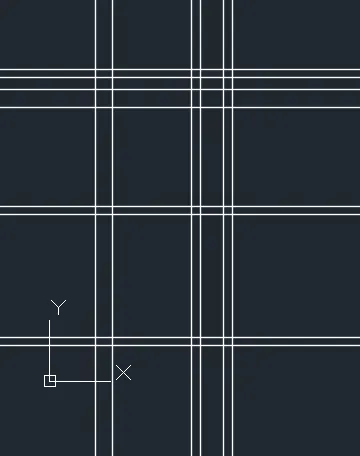

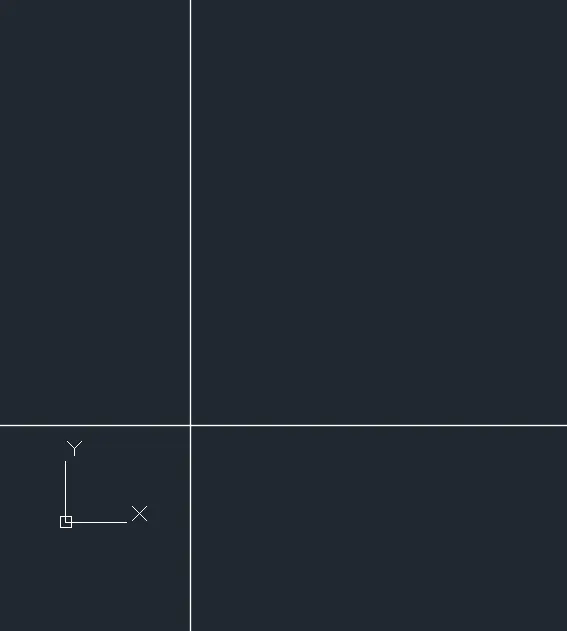

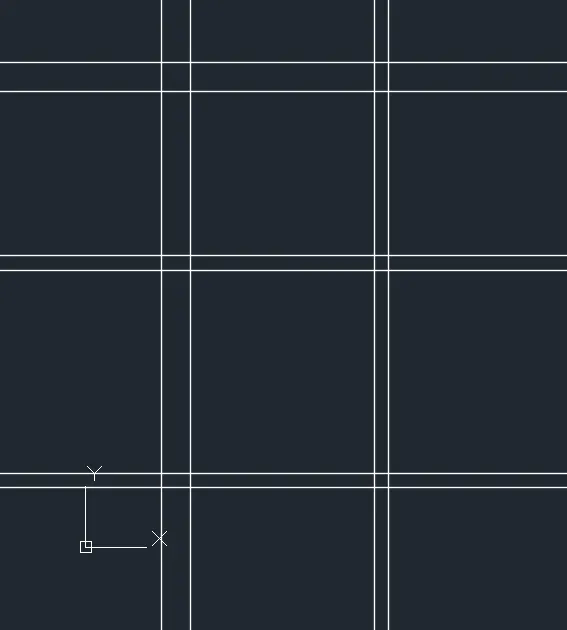

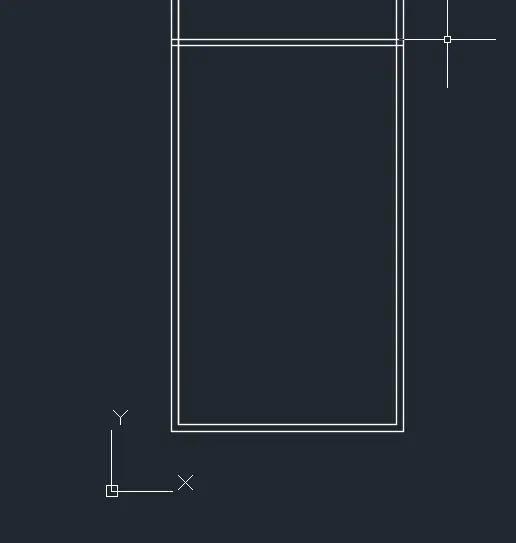

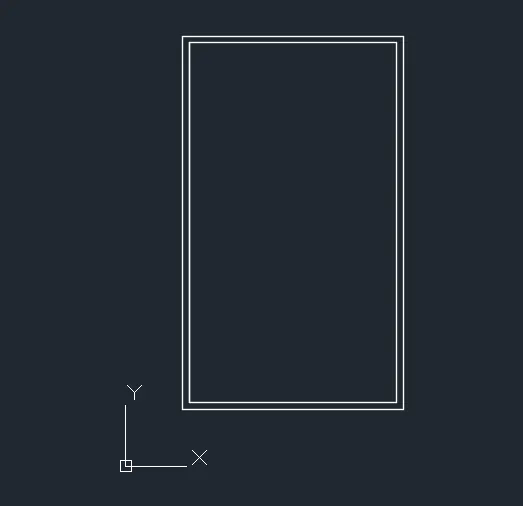

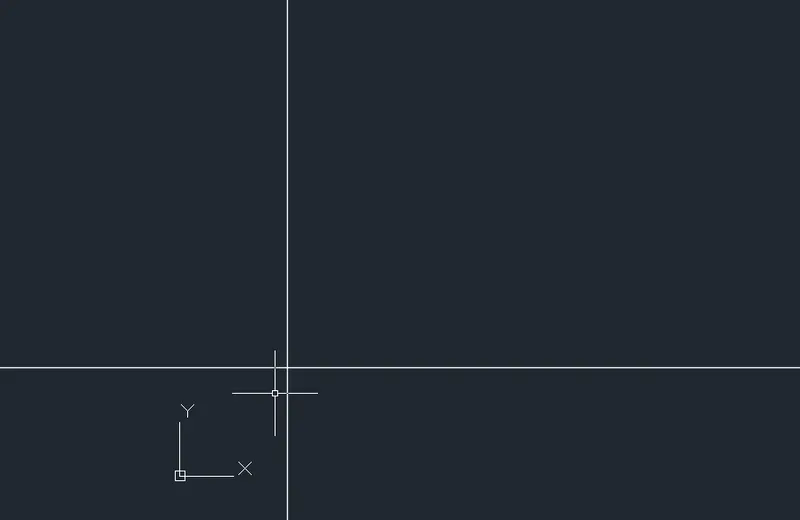

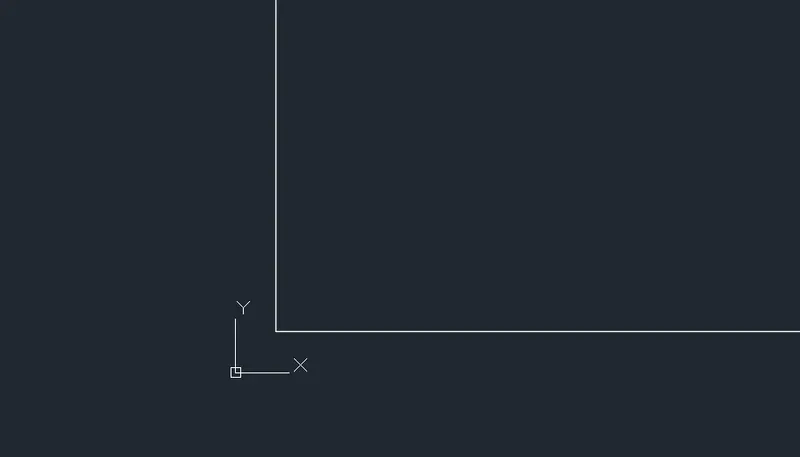

Type XLINE to create a construction line and select vertical and select a suitable point
Type XLINE to create a construction line and select horizontal and select a suitable point to intersect the vertical line

.

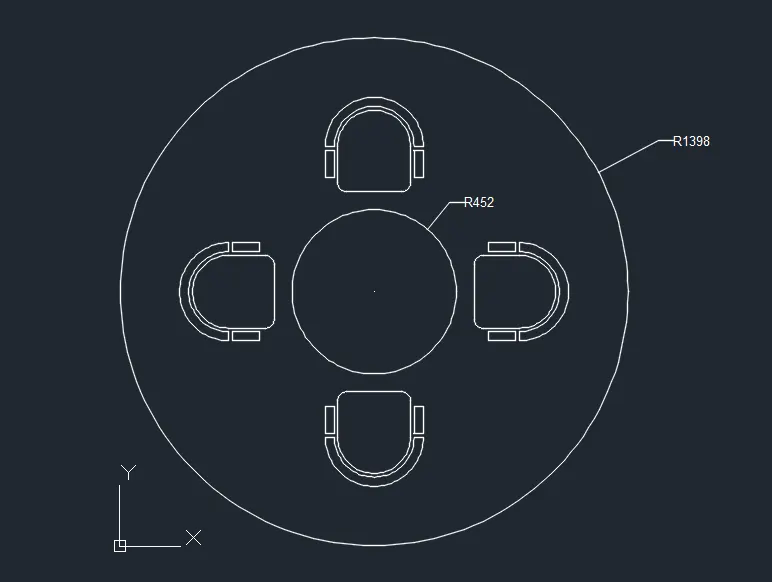

Q2: Aim: To draw the seating plan for an outdoor canopy, and illustrate the procedure involved.

Procedure:

Create a new drawing from the dropdown menu
Select the imperial system and decimal units
Type UN to open drawing units
Change the insertion scale units to centimetres
Type C to activate circle tool
Enter centre of the circle 1400, 1400
Enter the radius of the circle 1398
Type C to activate circle tool
Enter centre of the circle 1400, 1400
Enter the radius of the circle 452
Type XLINE fore construction line
Select horizontal
Specify the point as the centre of the circle
Type XLINE fore construction line
Select vertical
Specify the point as the centre of the circle
Type O to activate offset tool
Enter the offset distance 550
Select the line
Specify the point on the top to create an offset line
Type O to activate offset tool
Enter the offset distance 250
Select the line
Specify the point on the top to create an offset line
Type O to activate offset tool
Enter the offset distance 200
Select the line
Specify the point to create an offset line
Type O to activate offset tool
Enter the offset distance 200
Select the line
Specify the point on the top to create an offset line
Type O to activate offset tool
Enter the offset distance 200
Select the line
Specify the point on the left to create an offset line
Type O to activate offset tool
Enter the offset distance 200
Select the line
Specify the point on the right to create an offset line
Type O to activate offset tool
Enter the offset distance 20
Select the line
Specify the point on the right to create an offset line
Type O to activate offset tool
Enter the offset distance 50
Select the line
Specify the point on the right to create an offset line
Type O to activate offset tool
Enter the offset distance 20
Select the line
Specify the point on the left to create an offset line
Type O to activate offset tool
Enter the offset distance 50
Select the line
Specify the point on the left to create an offset line
Click arc on the ribbon and select 3 point
By selecting the 3 points create 3 nos arc
Type TR to activate the trim tool
Enter 2 times and trim all the extra lines
Type F to activate fillet tool
Select radius
Enter the radius 50
Select the two objects for fillet on the left side
Type F to activate fillet tool
Select radius
Enter the radius 50
Select the two objects for fillet on the right side
Type ARRAY to activate array tool
Select the above object press enter
Select the path option
Select the path curve as R452 circle
Move the cursor on the arrow clockwise to create another 3 objects and press enter
Save the drawing

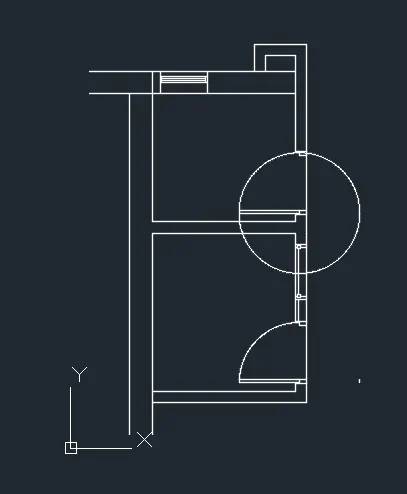

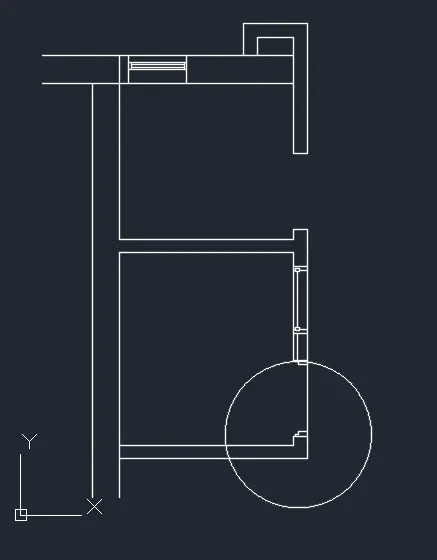

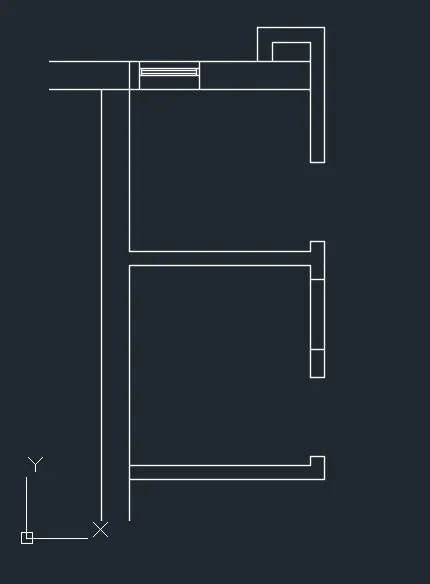

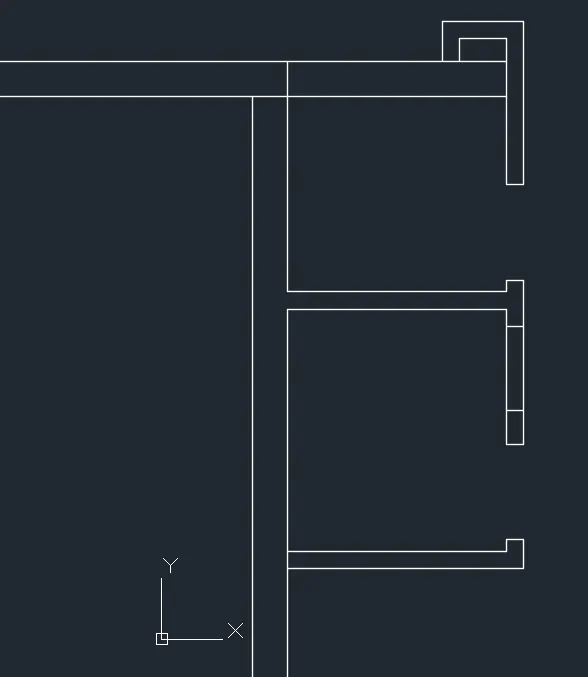

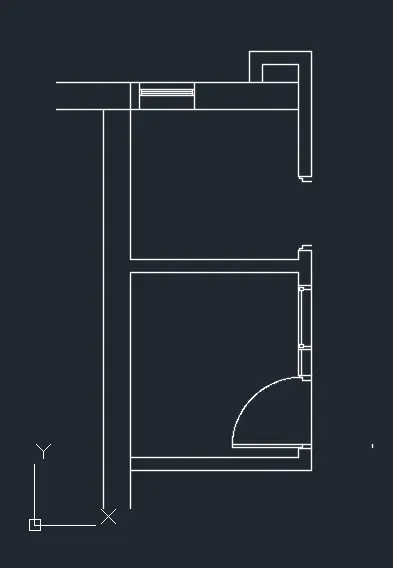

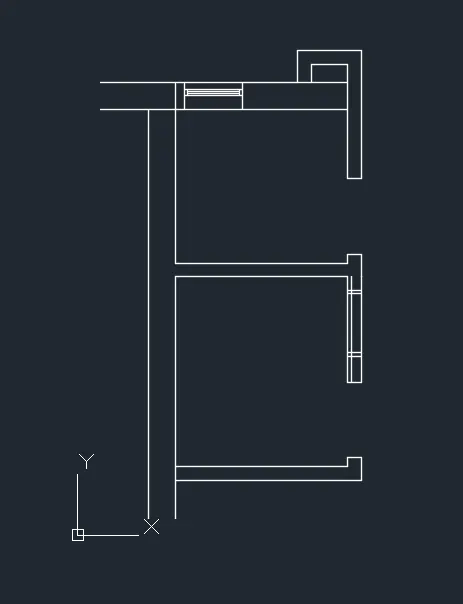

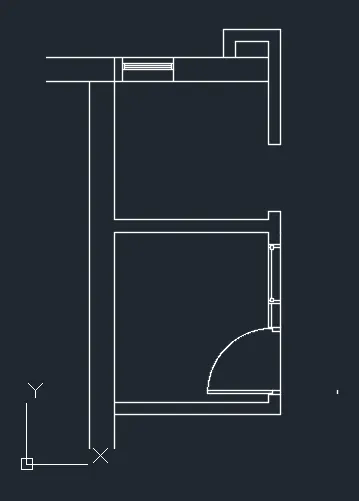

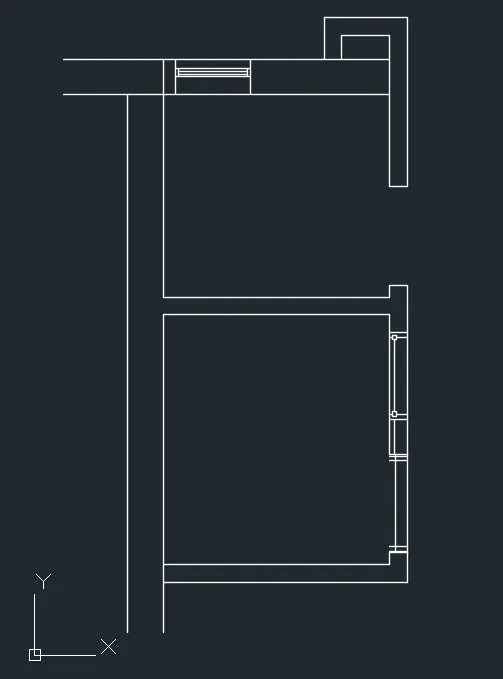

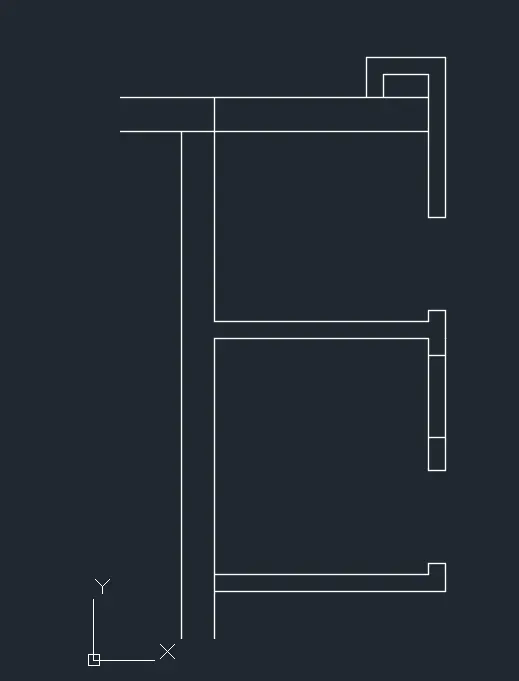

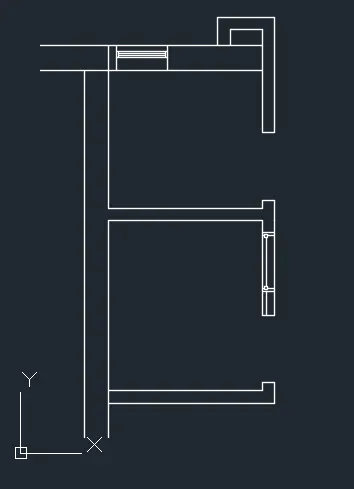

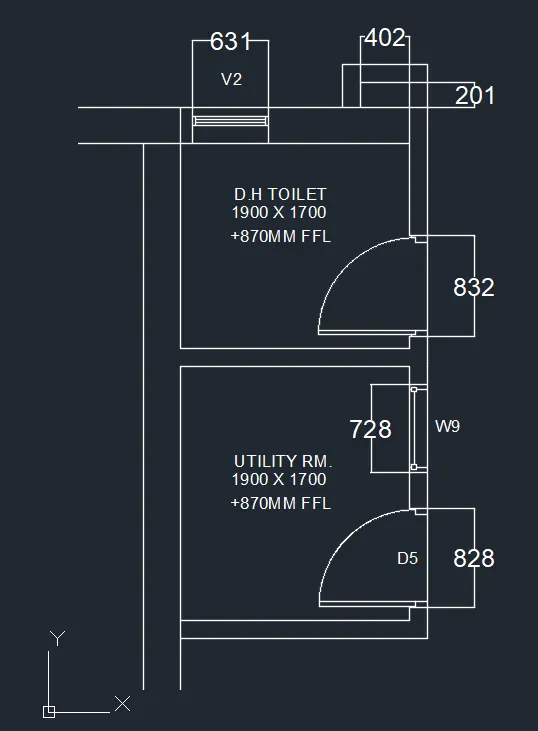

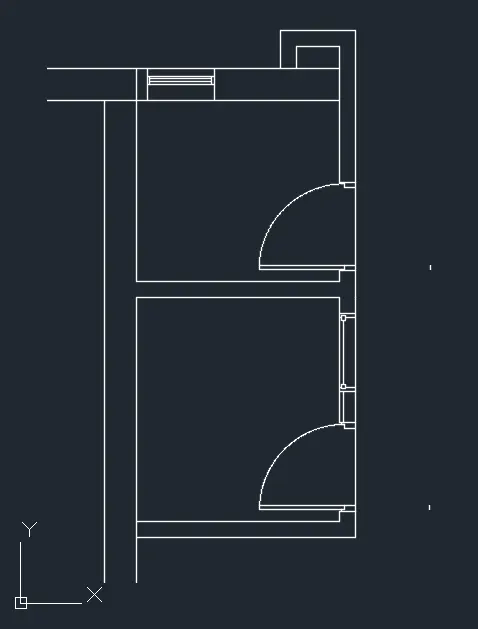

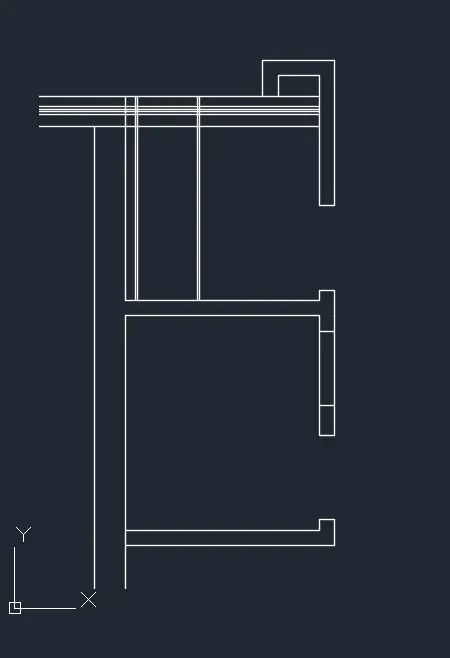

Q3: Aim: To draw the part plan for the toilet and utility room, and illustrate the procedure involved.

Procedure:

Create a new drawing from the dropdown menu
Select the imperial system and decimal units
Type UN to open drawing units
Change the insertion scale units to millimetres
To set the drawing limits type LIMMAX
Enter the maximum limit as 100',100'
Type Z and press enter
Type A and press enter

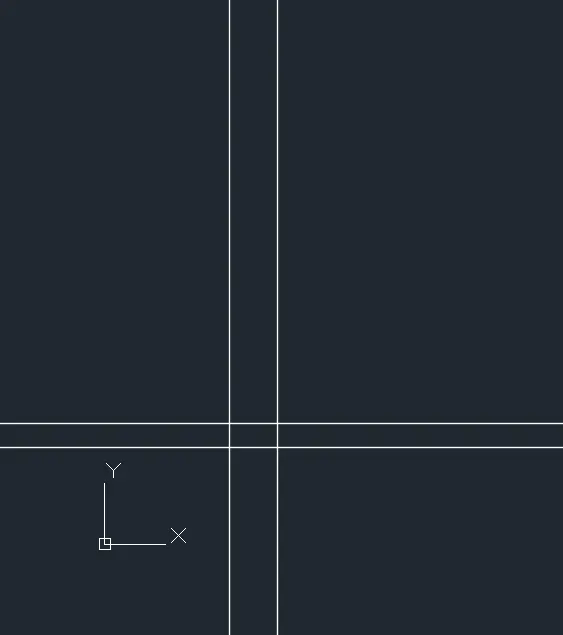

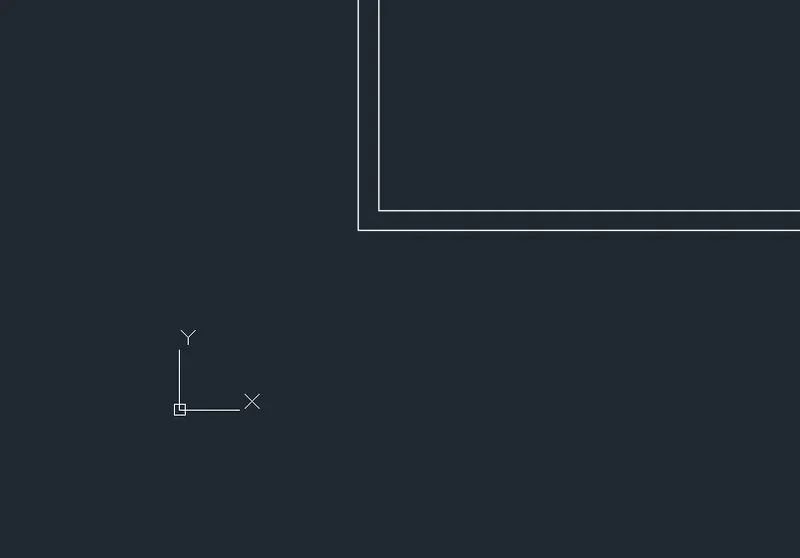

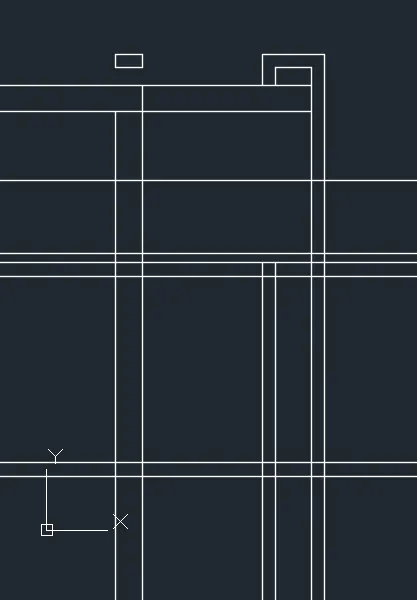

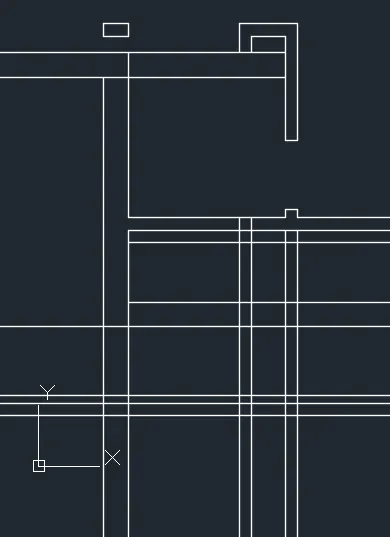

Type XLINE to create a construction line and select vertical and select a suitable point
Type XLINE to create a construction line and select horizontal and select a suitable point to intersect the vertical line
