Creating a Layout, Section and Elevation with dimensions using AutoCad

Q1. AIM AND INTRODUCTION

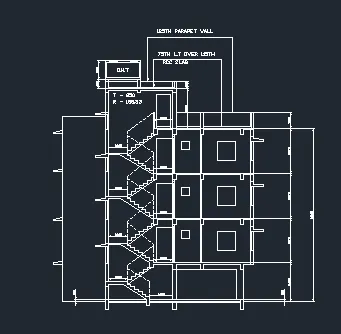

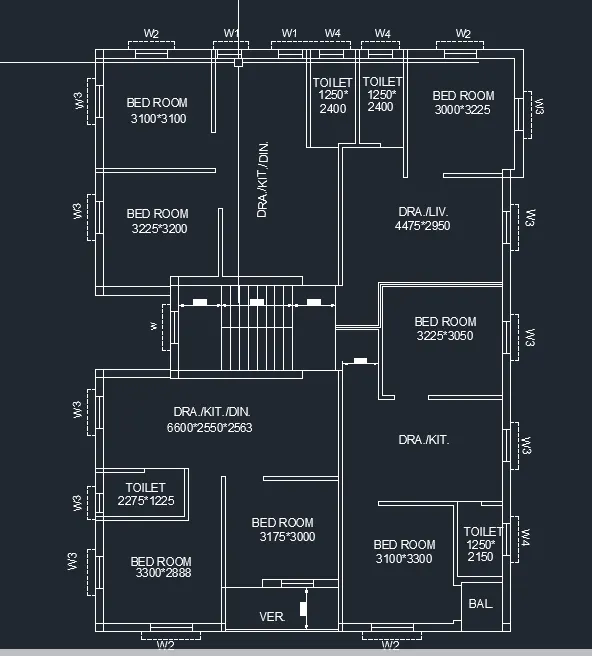

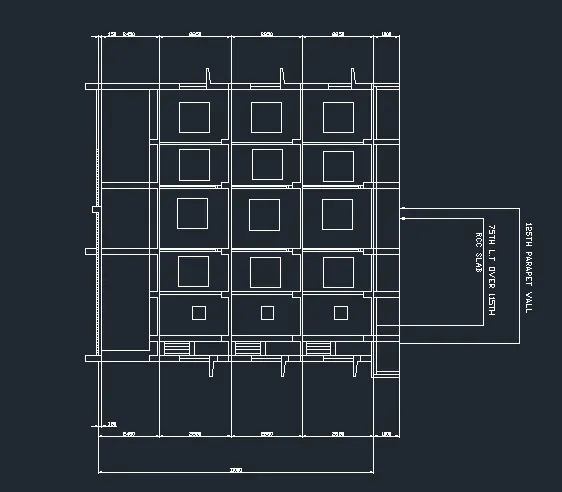

TO DRAW THE PLAN AND SECTION OF A STRUCTURE WITH SUITABLE DIMENSION TECHNIQUES AND DIMENSION STYLES.

PROCEDURE

• TO DRAW THE BORDER LINE OF A PLAN, USE XLINE COMMAND.
• TO DRAW THE INNER WALLS OF A STRUCTURE, USE LINE COMMAND AND OFFSET COMMAND.
• USE COPY, MOVE, ROTATE COMMAND TO MODIFY ANY STRUCTURE OF THE PLAN AND SECTION.
• USE RECTANGLE AND CIRCLE COMMAND TO DRAW THE DOORS AND WINDOWS OF THE STRUCTURE.
• AFTER FINISHING THE WHOLE PLAN AND SECTION OF A STRUCTURE,USE SAVE COMMAND TO SAVE THE WHOLE DIAGRAM.

RESULT
