Creating a Layout, Section and Elevation with dimensions using AutoCad

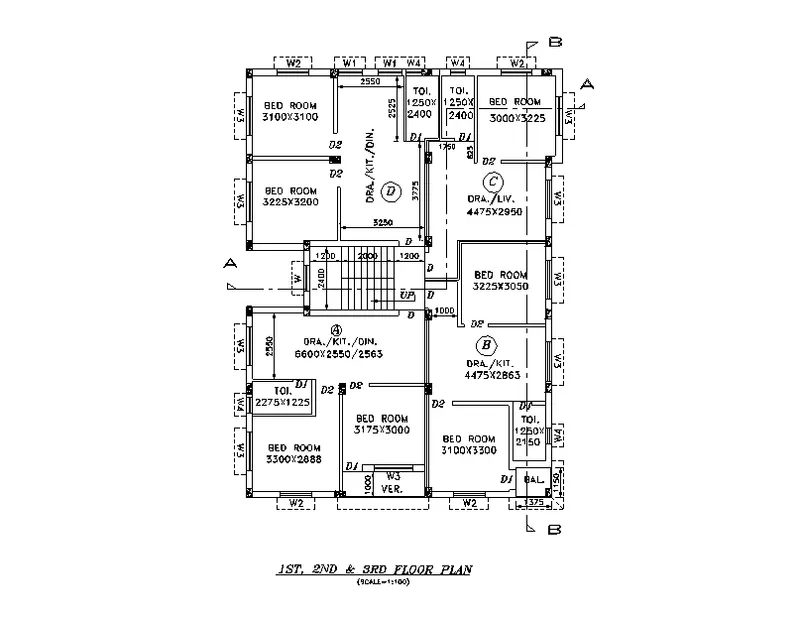

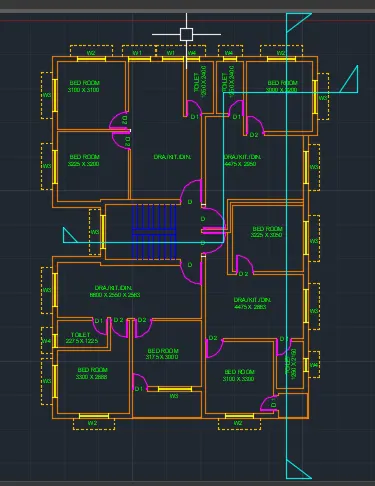

1. Create the Plan and Sections as shown in the Figures. Use proper dimension techniques and dimension styles to document the project. Assume the sizes of the doors and windows as per construction standards. Refer to sections for stair details if required.
AIM :

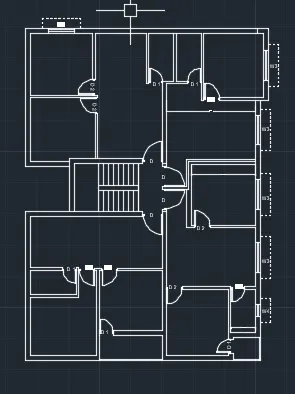

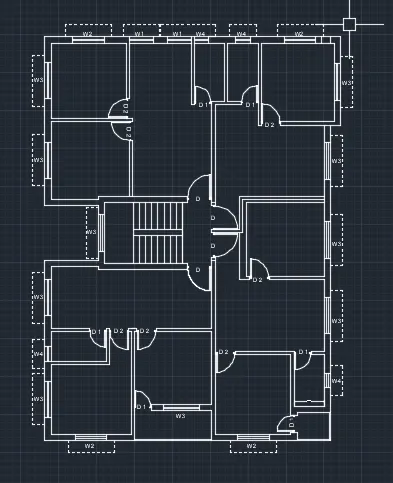

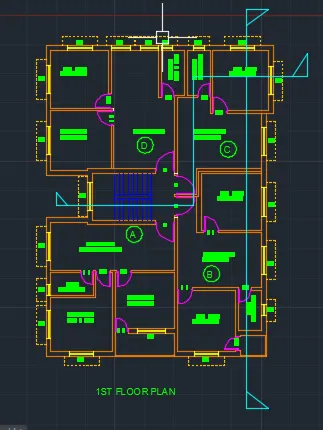

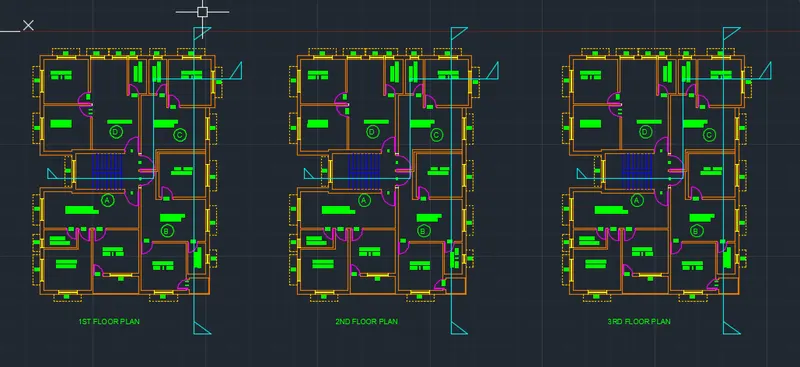

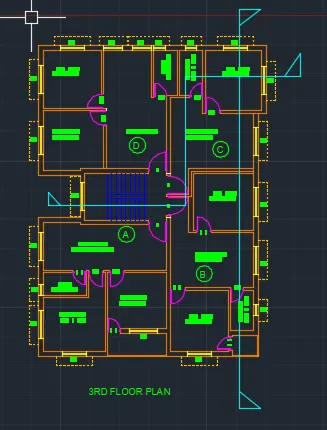

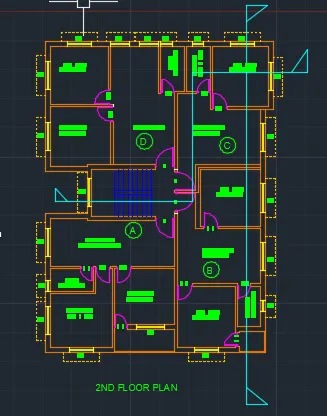

Create the Plan as shown in the Figures Useing AUTOCAD Tool
PROCEDURE :
open AUTOCAD
TO SET UNITS

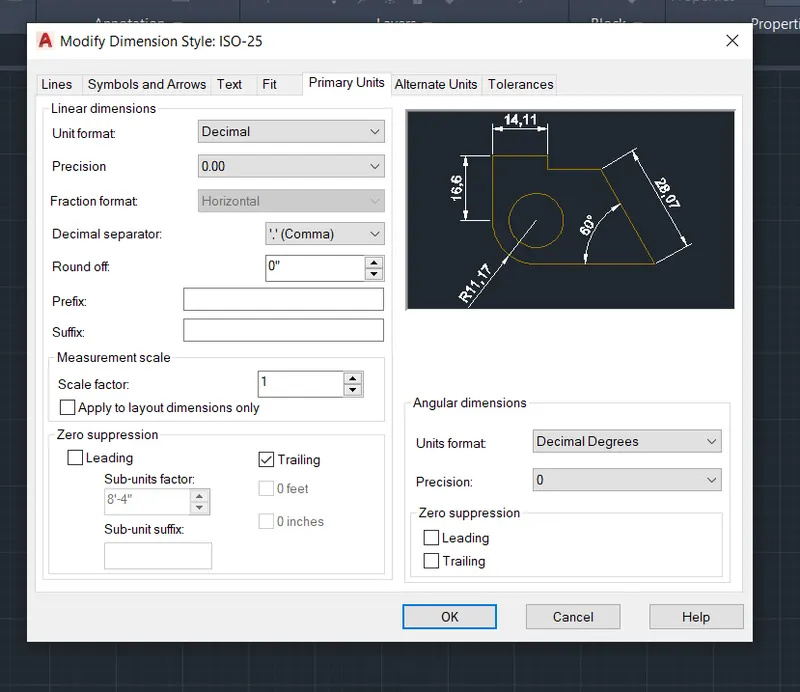

TO SET DIMSTLYE

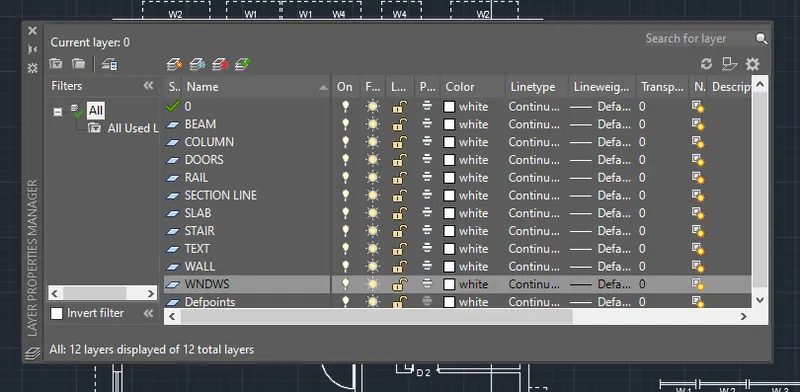

TO SET LIMITS

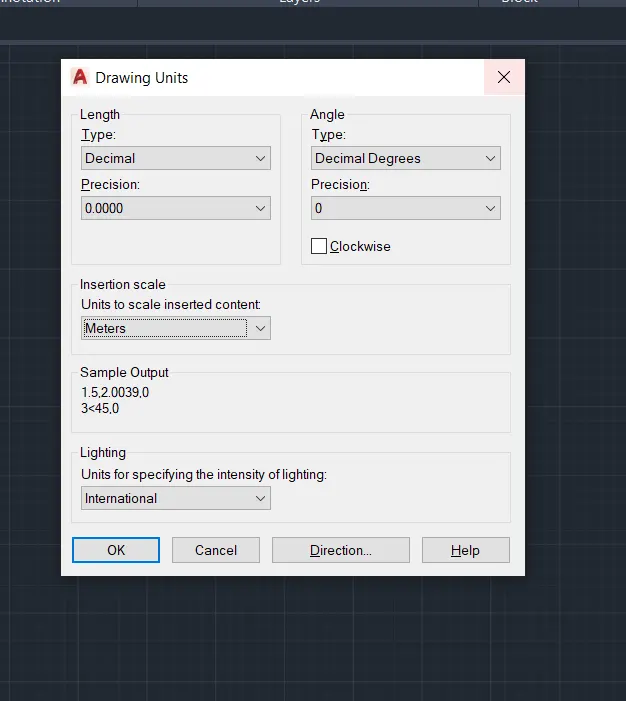

- TO SET THE DRAWING UNITS OF THE SHEET.

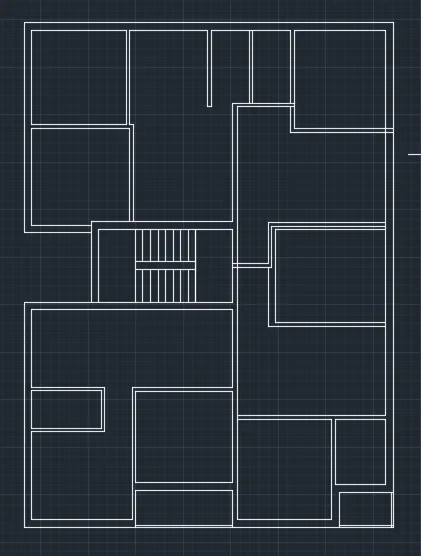

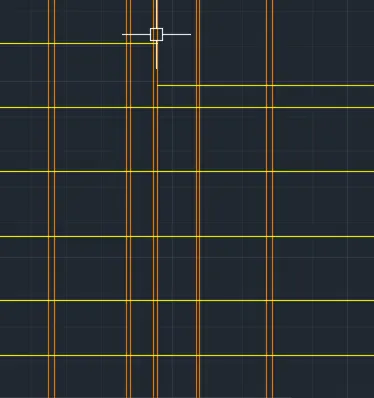

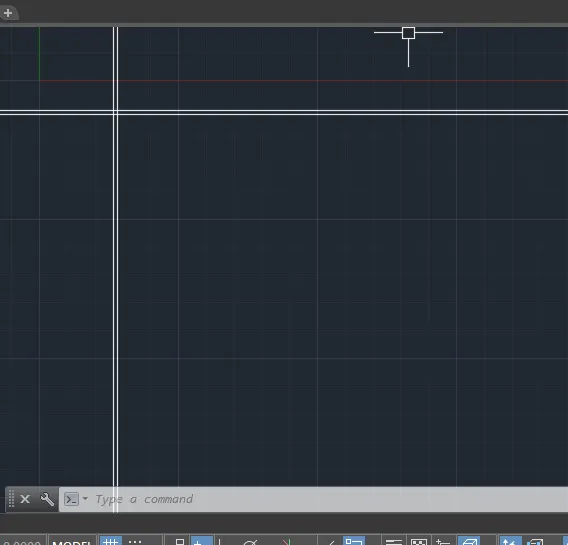

- TO DRAWN THE HORIZONTAL AND VERTICAL LINES BY USEING THE CONSTRUCTION LINE COMMAND.
- TO CREATE THE CORNER BY USEING THE TRIM COMMAND.
- TO CREATE THE CORNER BY USEING THE TRIM COMMAND.

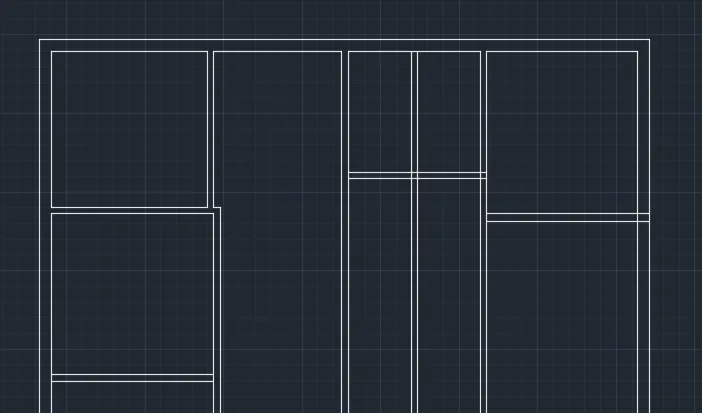

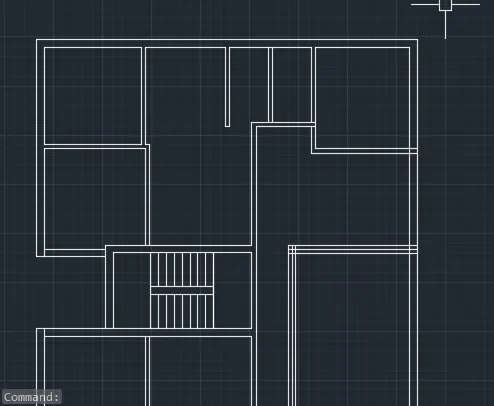

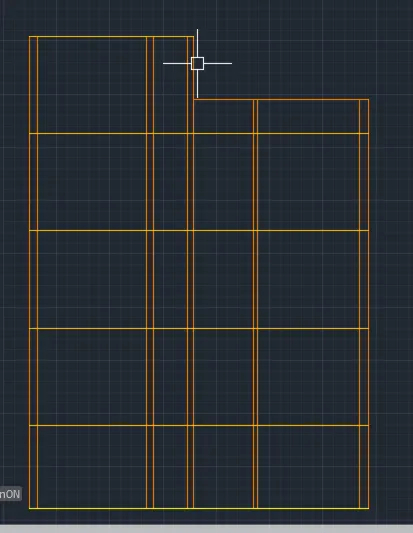

- IN ORDER TO CREATE ROOMS AS PER REQUIRED ROOM SIZES BY USEING THE OFFSET COMMAND.
- IN ORDER TO CREATE INTERAL WALL OF 150mm THICK BY USEING THE OFFSET COMMAND.

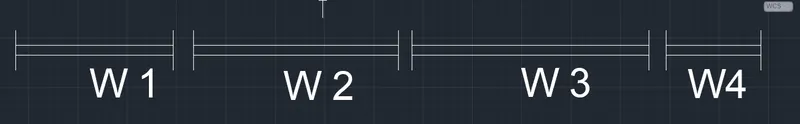

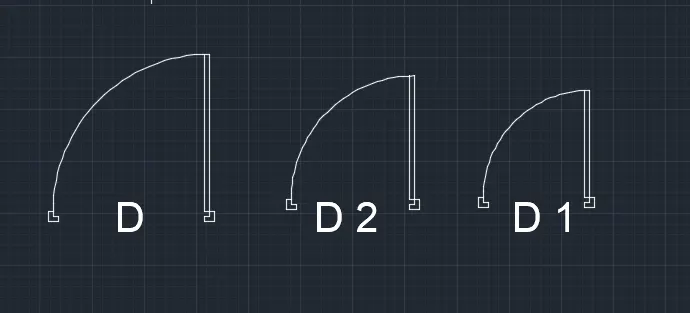

- IN ORDER TO REMOVE THE EXTRA LINES BY USEING THE TRIM COMMAND.
RESULT :
AIM :

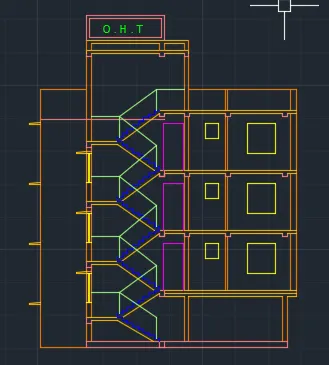

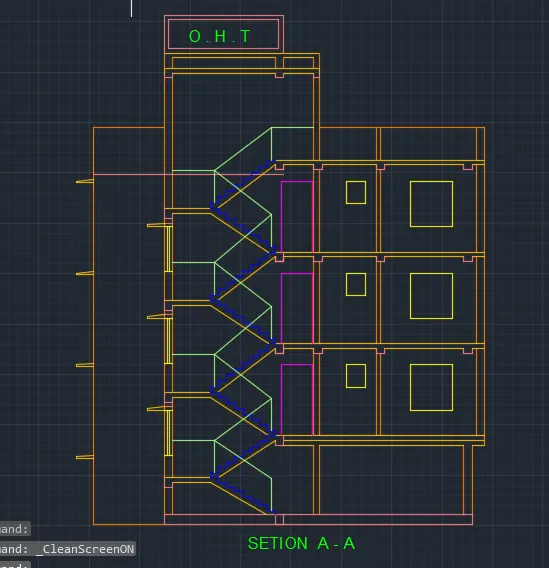

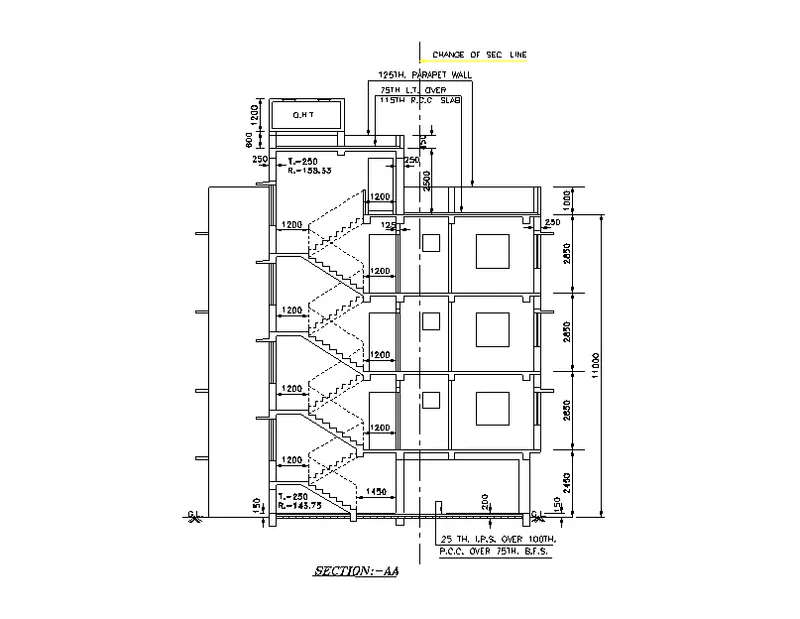

Create the SECTION AA as shown in the Figures Useing AUTOCAD Tool
PROCEDURE :
open AUTOCAD
TO SET UNITS
TO SET DIMSTLYE
TO SET LIMITS
- IN ORDER TO CREATE THE SECTION LINE AS YOUR REQUIRED SEXTION A - A.

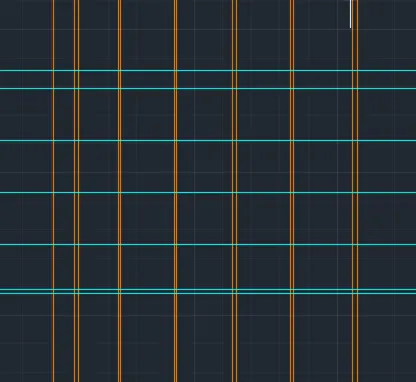

- TO PROJECTION THE LINE AS PER SECTION LINE BY USEING THE CONSTRUCTION LINE COMMAND.
- TO DRAWN THE FINAL SEXTION A - A BY USE OF PROJECTION LINES.

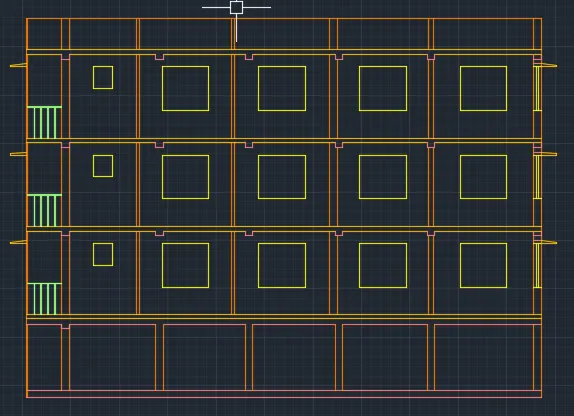

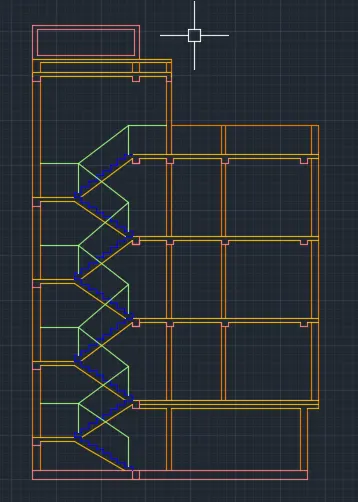

- THE PERAPET WALL , STAIRS AND THE OVER HEAD TANK ARE DRAWN AS PER THE DIMENSTIONS BY USEING REQUIRED COMANDS.
RESULT :
AIM :
Create the Plan as shown in the Figures Useing AUTOCAD Tool
PROCEDURE :
open AUTOCAD
TO SET UNITS
TO SET DIMSTLYE
TO SET LIMITS

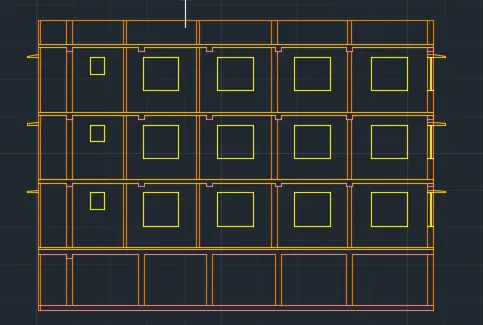

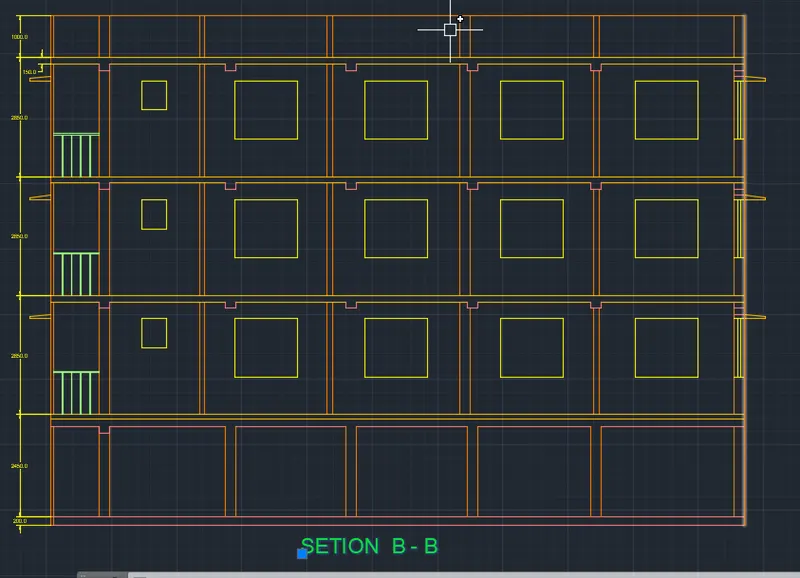

- IN ORDER TO CREATE THE SECTION LINE AS YOUR REQUIRED SEXTION B - B.
- TO PROJECTION THE LINE AS PER SECTION LINE BY USEING THE CONSTRUCTION LINE COMMAND.

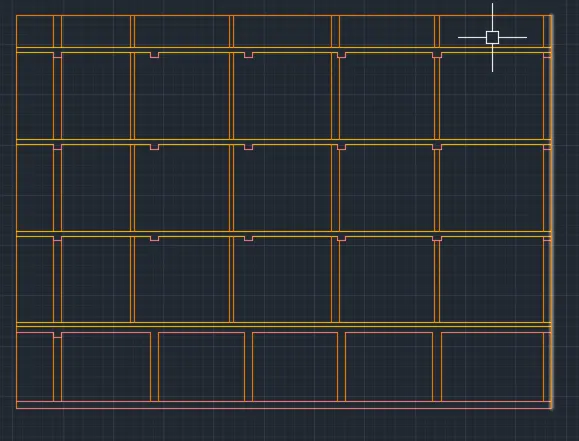

- TO DRAWN THE FINAL SEXTION A - A BY USE OF PROJECTION LINES.
- THE PERAPET WALL ARE DRAWN AS PER THE DIMENSTIONS BY USEING REQUIRED COMANDS.
RESULT :

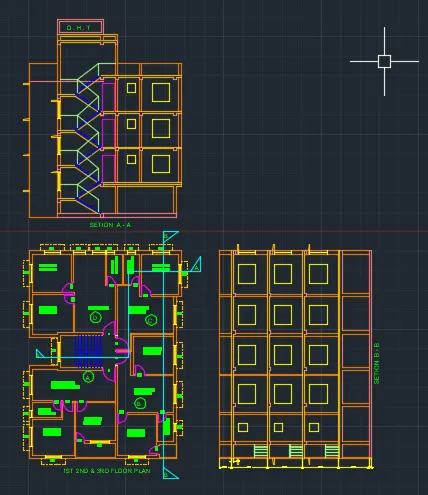

FINALY RESULT :
