Creating a Layout, Section and Elevation with dimensions using AutoCad

Aim:- To be create the Plan and Sections.

Procedure :-

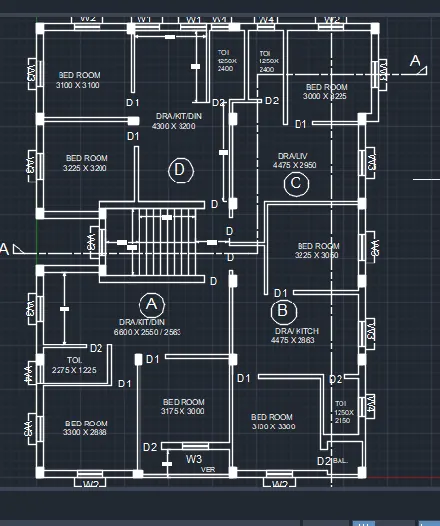

Step1:- First draw plan with the help of construction line, offcet, line, copy , errase, trim etc.

Step2 :- create doors and window and assign naming as per there sizes

Syep3 :- give the namming and size to every room as per plan

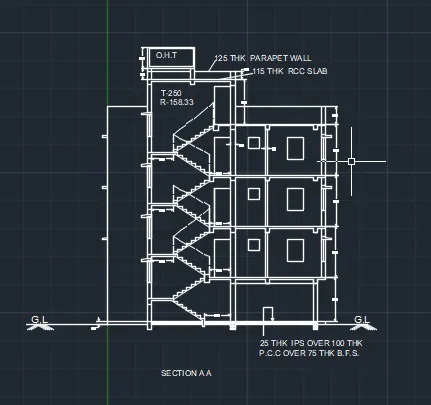

Step 1 :- extenend plan projection we need to refer section line AA

Step 2:- give vertical dimention as per plan showing

Step3 :- draw stariecase in details as per given dimension

Step4 :- show all vertical dimesion

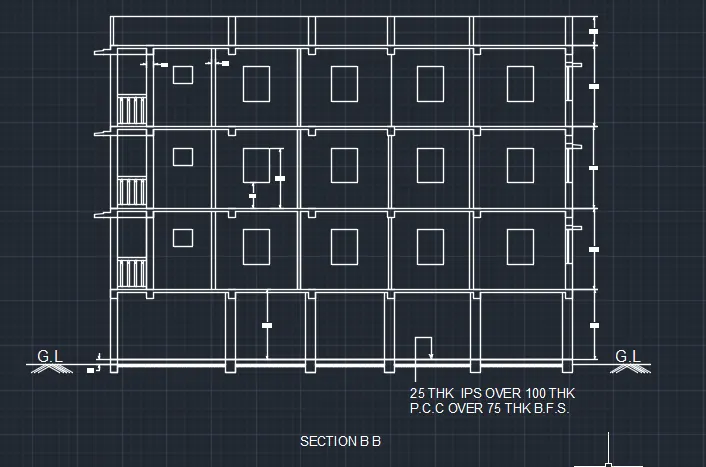

Step 1:- Extend plan and section elevation we need to refer section line BB

Step 2:- draw door and window

step 3 :- show all vertical dimesion

Result : - well understood how to draw plan and sectional elevation
