Creating a Layout, Section and Elevation with dimensions using AutoCad

Aim :- To draft the Plan and section by using a AutoCAD

Introduction:-

Floor Plan

• Floor plan is a type of drawing that shows the layout of a home or property from above
• Planning of a building gives the idea about the building how the building will be done in future
• Planning plays an important role in the civil engineering because without this planning we can't determine structural element
• Planning may be residential, public or commercial  building

Section:-

• Its used to see the cross section of the building

AutoCAD:-

It is essential to draft the geometry

The different tools required in this drafts are construction line  (XL), text(MTEXT), donut (DO), fillet (F), offset (O), Hatching (H) and Hatch edit (HE).

Procedure:-

• Go to start menu, click on Start drawing
• Type stratup (Enter) in command line
• Enter the new value of start up:1
• Go to application menu and select new or type new in command line
• In the "create new drawing" dialogue box contains imperial  type of systems and metric type of system
• We select the metric system in the "start from scratch" option
• After that in Advance setup option select the decimal unit system in the units

The above procedure should be followed every time when the new sheet is opened

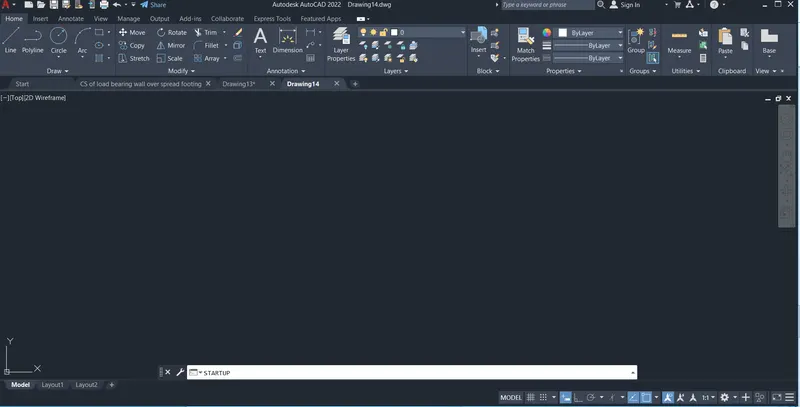

                               Entering the start up command in the command line

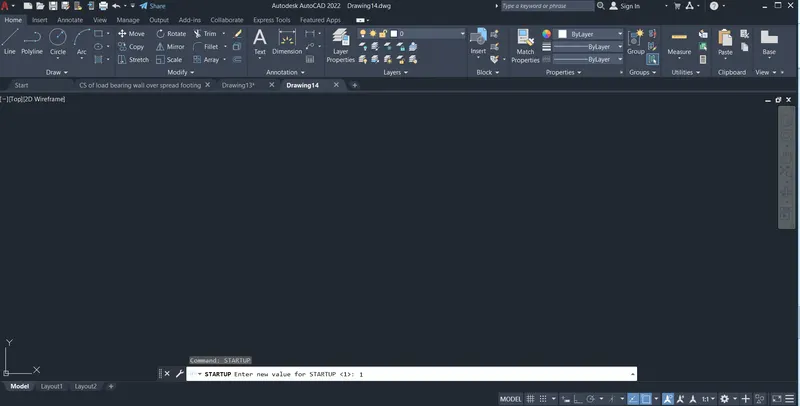

                             Entering the value 1 for the start up

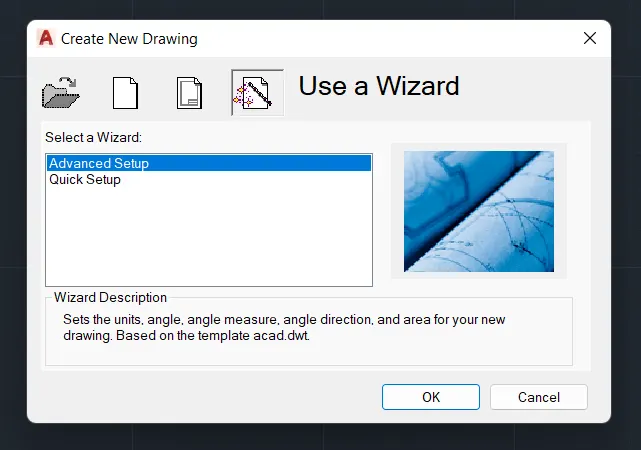

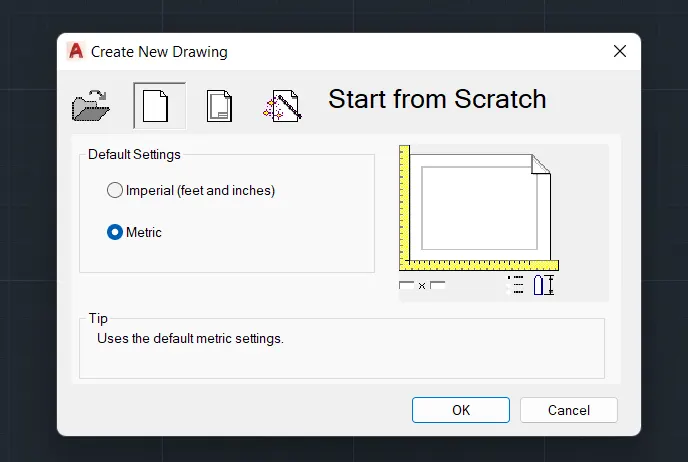

                            When we go to the new file then we get this file select the metric from start from scratch





                           Then advance setup setting should be done by clicking OK

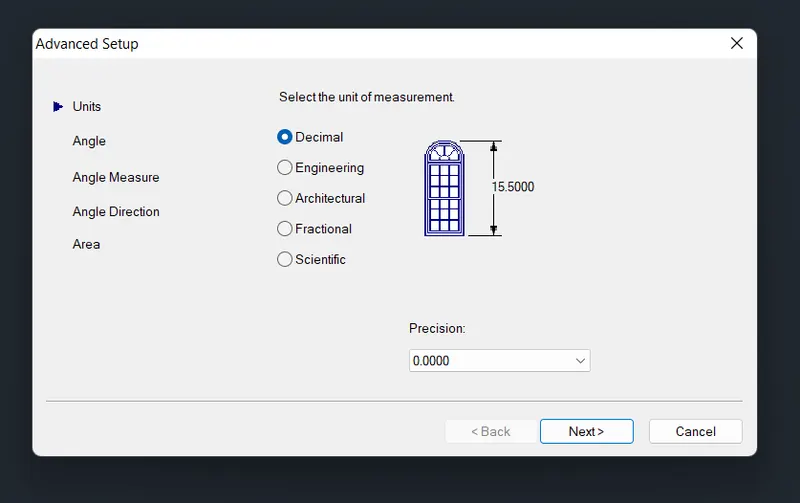

                          Keep the units in decimal and adjust precision then click next

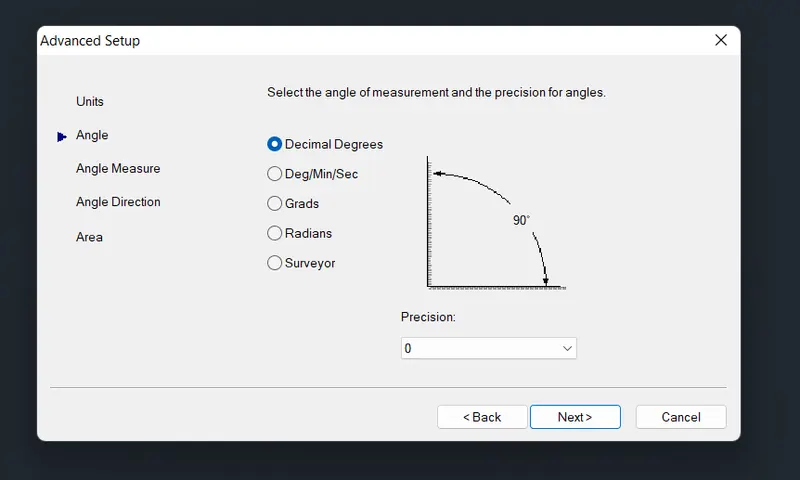

                           Keep angle in decimal degree and adjust precision then click next

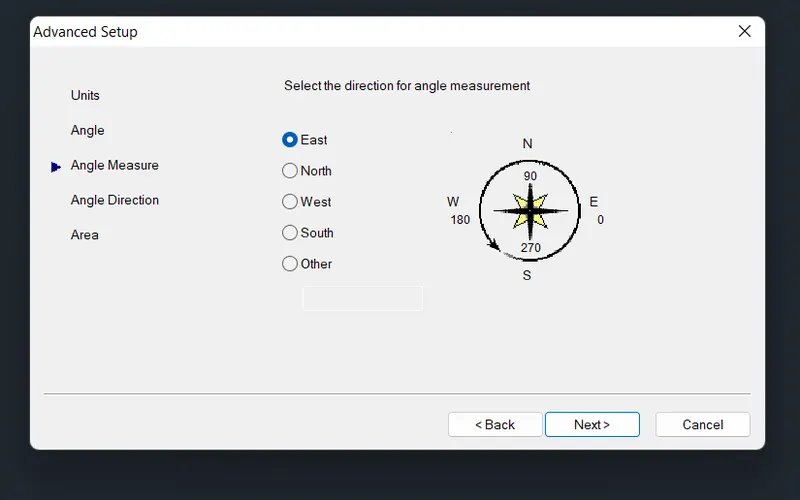

                          Select the angle measurement in east and click on next

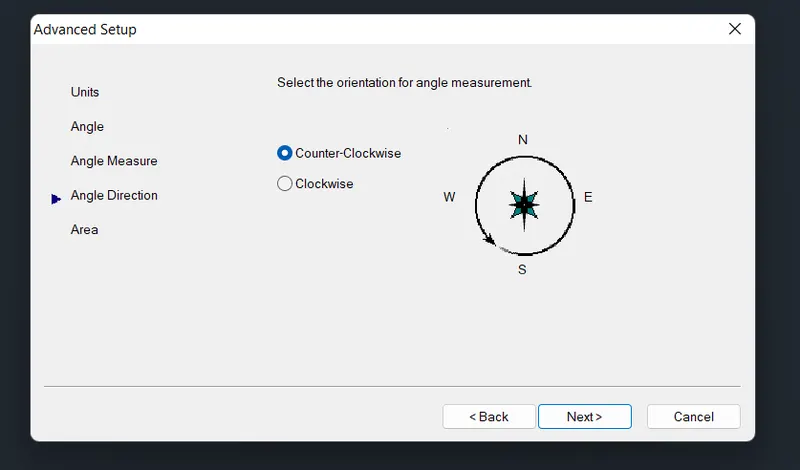

                            Select angle direction in counter clockwise and click on next

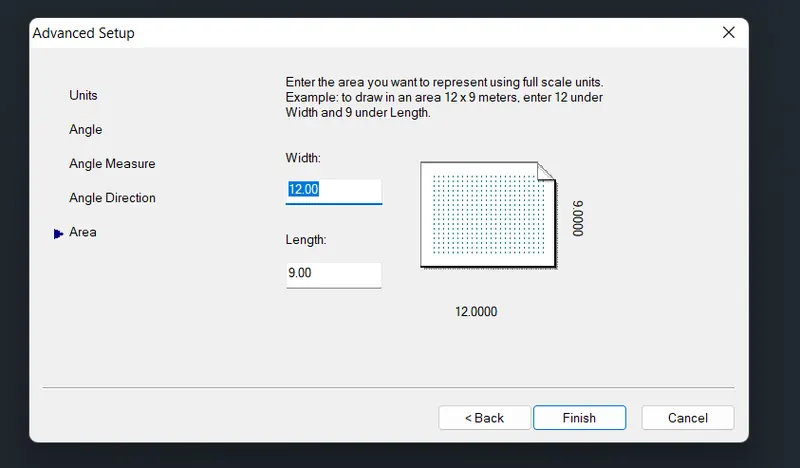

                           Keep the width as 12m and length of 9m as default and click on finish



Aim:- To draft the plan of a given building by using AutoCAD



Procedure:-

By using direct distance entry method

• Here all the units are in Decimals (milimeter)
• Select the construction line tool by entering XL (Enter) in the command line
• Select the vertical line and place it any where on the screen
• Next by using a same command (construction line) select horizontal line and place it on the screen
• Take a offset of 250mm for the outer wall from the vertical line
• Take a offset of 250mm for the outer wall from the horizontal line

To get Bed room

• Take a offset of 3100 right side from the 250mm outer wall vertical line +ve x-direction
• Take a offset of 3100mm downwards from the 250mm outer wall horizontal line -ve y-direction
• Trim off unwanted lines inside the rooms

To get space

• Take a offset of 125mm from the 3100mm wall in +ve x-direction
• Again take a offfset of 2550mm from the 125mm wall in +ve x-direction
• Take a offset of 2525mm from the 250mm outer wall in -ve y-direction

To get toilet 1 and 2

• Take a offset of 62.5mm right side from the 25500mm line to get inner wall +ve x-direction
• Take a offset of 1250mm right side from the 62.5mm line +ve x-direction
• Take a offset of 125mm right side from the 1250mm line to get inner wall +ve x-direction
• Take a offset of 1250mm right side from the 125mm line +ve x-direction
• Take a offset of 2400mm downwards from the 250mm line -ve y-direction
• Trim off unwanted lines inside toilets

To get bedroom room

• Take a offset of 125mm right side from the 1250mm line to get inner wall +ve x-direction
• Take a offset of 3000 right side from the 125mm wall vertical line +ve x-direction
• Take a offset of 3225mm downwards from the 250mm outer wall horizontal line -ve y-direction
• Trim off unwanted lines inside the rooms

To get bedroom room

• Take a offset of 3225mm right side from the 250mm line to get inner wall +ve x-direction
• Take a offset of 3200mm downwards from the 125mm inner wall below the bedroom -ve y-direction
• Trim off unwanted lines inside the rooms

To get Draw/Living

• Take a offset of 4475mm left side from the 250mm line to get inner wall -ve x-direction
• Take a offset of 2950mm downwards from the 1250mm inner wall below the bedroom -ve y-direction
• Trim off unwanted lines inside the rooms

To get drawing/kitchen

• The reamining area is the drawing/kitchen area

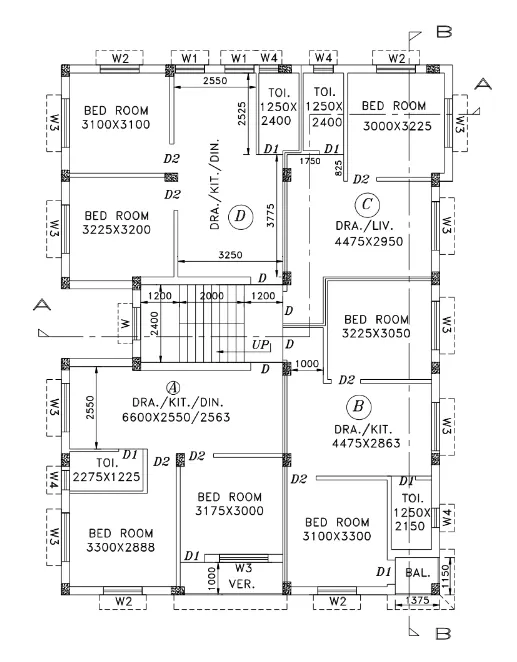

           Plan from Bed room having dimension 3100x3100mm to Draw/Kit/Din having dimension 3250mm width



To get bedroom

• Take a offset of 3225mm left side from the 250mm line to get inner wall in -ve x-direction
• Take a offset of 125mm left side from the 3225mm wall vertical line -ve x-direction
• Take a offset of 3050mm downwards from the 125mm inner wall horizontal line -ve y-direction
• Draw a wall from the midline of the 125mm vertical wallwhich has a distance of 1250mm
• Trim off unwanted lines inside the rooms

To get stairs

• Take a offset of 1200mm from 1250mm wall which is near the bedroom in -ve-x direction
• Take a offset of 2000mm from the 1200mm line to create the thread in -ve-x direction
• Take a offset of 1200mm from 2000mm in -ve-x direction
• Take a offset of 250mm from the 1200mm which is at the edge of the steps to create a outer wall
• The width of the first flight is 1187.5mm and width of second flight is 1187.5mm
• The tread size of the steps is 250mm and riser size of step is 143.75mm for Ground floor
• The tread size of the steps is 250mm and riser size of step is 158.33mm

To get Draw/Kit

• Take a offset of 4475mm left side from the 250mm line to get inner wall -ve x-direction
• Take a offset of 2863mm downwards from the 125mm inner wall below the bedroom -ve y-direction
• Trim off unwanted lines inside the rooms

To get toilet

• Take a offset of 1250mm left side from the 250mm outer wall line to get inner wall -ve x-direction
• Take a offset of 2150mm downwards from the 125mm line -ve y-direction
• Trim off unwanted lines inside toilet

To get Balcony

• Take a offset of 75mm line left side from the 250mm outer wall in -ve x-direction
• Take a offset of 1375mm left side from the 75mm line in -ve x-direction
• Take a offset of 1075mm from the 230mm wall which is near the toilet

To get bedroom room

• Take a offset of 125mm left side from the 1250mm line to get inner wall -ve x-direction
• Take a offset of 3100 left side from the 125mm wall vertical line -ve x-direction
• Take a offset of 3300mm downwards from the 125mm wall horizontal line -ve y-direction
• Again take a offset of 250mm from the 3300mm wall line to get a main wall
• Trim off unwanted lines inside the rooms

To get bedroom room

• Take a offset of 125mm left side from the 3100mm line to get inner wall -ve x-direction
• Take a offset of 3175 left side from the 125mm wall vertical line -ve x-direction
• Draw a horizontal line from the edge of the column
• Take a offset of 125mm from that line
• Take a offset of 3000mm downwards from the 125mm wall horizontal line -ve y-direction
• Trim off unwanted lines inside the rooms

To get Verandha

• Take a offset of 250mm from the 3000mm wall line to get a main wall
• Again take a offset of 1000mm from the 250mm wall
• Take a offset of 75mm from the base of the main wall which is at the bottom

To get the bed room

• Take a offset of 125mm left side from the 3175mm line to get inner wall -ve x-direction
• Take a offset of 3300 left side from the 125mm wall vertical line -ve x-direction
• Take a offset of 2888mm upwards from the 250mm wall horizontal line +ve y-direction
• Trim off unwanted lines inside the rooms

To get toilet

• Take a offset of 75mm upside from the 2888mm wall line to get inner wall +ve y-direction
• Take a offset of 1225mm upwards from the 75mm line +ve y-direction
• Take a offset of 75mm upside from the1225mm wall line to get inner wall +ve y-direction
• Take a offset of 2275mm right side from the 250mm main wall which is at right side
• Take a offset of 125mm rightside from the 2275mm line to get inner wall
• Trim off unwanted lines inside toilet

To get Draw/Kit

• Take a offset of 2550mm upwards from the 75mm line to get  wall +ve y-direction
• Take a offset of 6600mm right side from the 250mm outer wall which is at left side in +ve x-direction
• Trim off unwanted lines inside the rooms

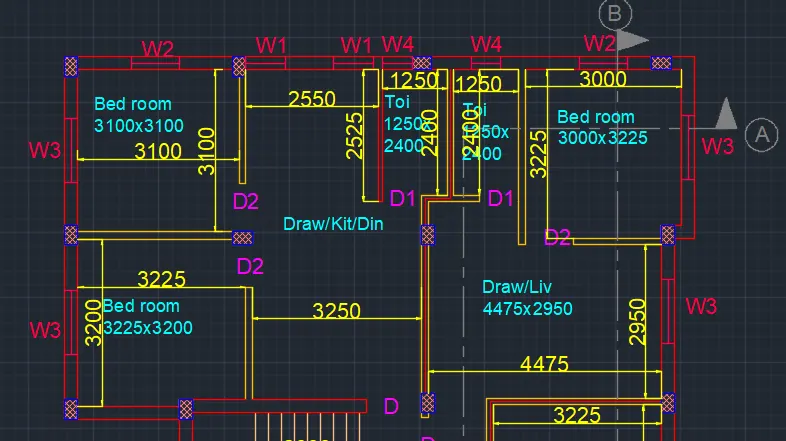

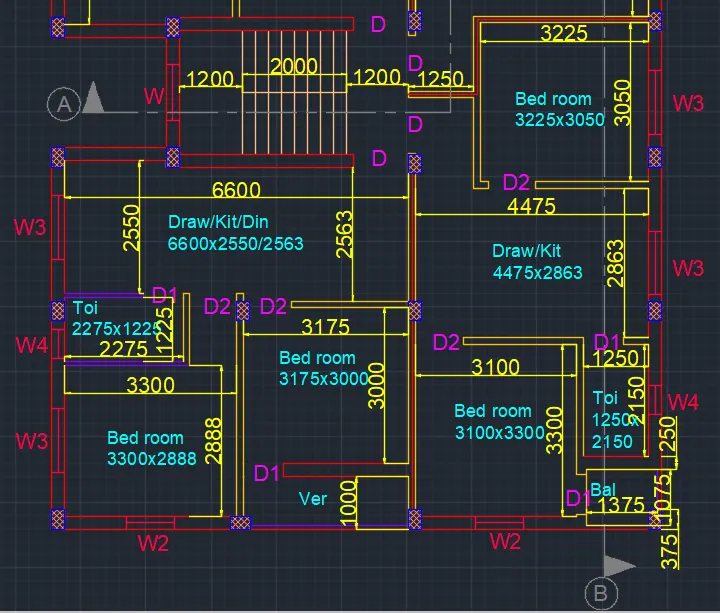

Plan from Stairs, Bed room having a dimension 3225x3050mm to Draw/Kit/Dining having dimennsion 6600x2550 or 2563mm



Layers used are

• Ceneter line - ACI 8
• Column - Blue
• Column hatching - ACI 11
• Doors - Magenta
• Dimension - Yellow
• Interior wall 62.5mm - ACI 10
• Interior wall 75mm - ACI 190
• Interior wall 125mm - ACI 40
• Lintel - ACI 150
• Lintel hatching - ACI 102
• Main wall 250mm - Red
• Multileader- ACI 230
• Schedule - ACI 71
• Section A-A - ACI 20

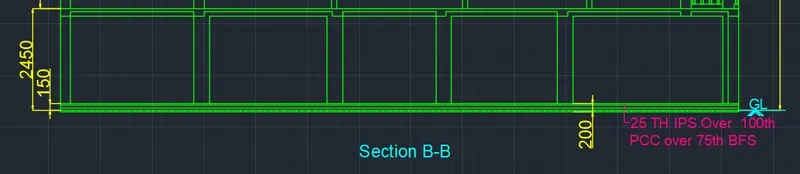

• Section B-B - Green
• Stairs - ACI 31
• Text -  Cyan
• Windows - ACI 240

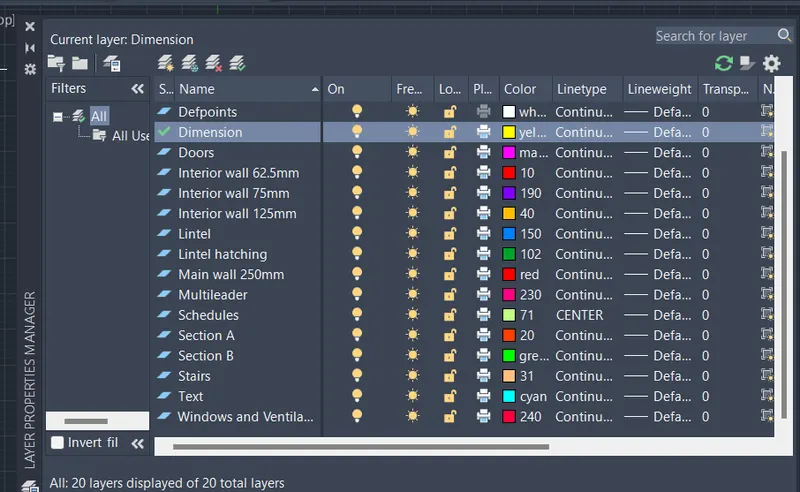

                                                Layers for Plan and Sections



 Result:-

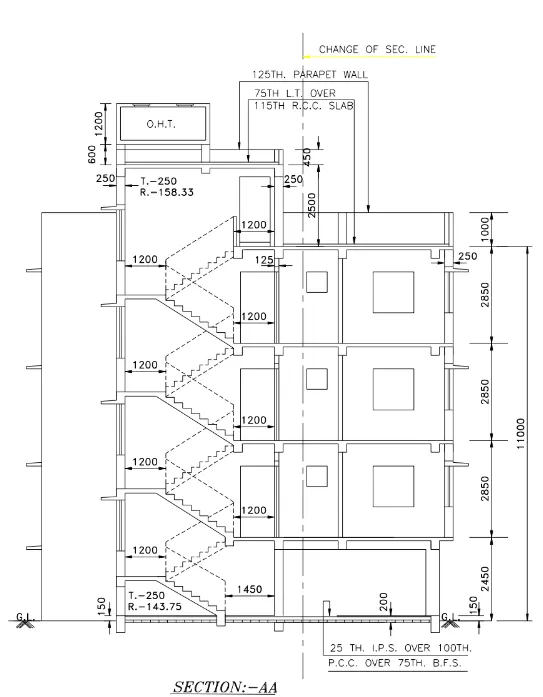

Aim: To draft the section at A-A



Procedure:-

By using direct distance entry method

• Here all the units are in Decimals (milimeter)
• Select the construction line tool by entering XL (Enter) in the command line
• Project vertical lines and horizontal lines which cuts at the axis A-A
• Draw the construction line below which is the base line or Ground level for the section
• Take a offset of 150mm from the base and take a offset of 50mm below the GL to create a PCC and earthing

Ground floor

• Take a offset of 2450mm from the GL
• Create a column and beam section by using a projected lines
• Column having a dimensions 250mm, 375mm, 125mm
• For beam and slab take a offset of 190 from the 2450mm line
• In 190mm 75mm is the slab and remainig 115mm is the beam section

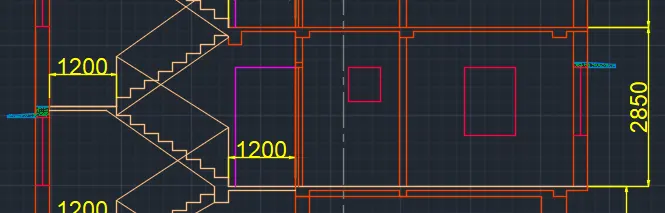

• Create a stairs which has a distance of 1200mm from the right side column and 1450mm from the second column
• The stairs thread is 250mm and riser is 143.75mm
• Create a stairs up to mid land then create a lintel with projection at the midlanding position
• Projection dimension is 500mm from the outside of the wall in -ve x-direction and 40mm upwards in +ve y-directionand join the lintel having a 75mm thick in +ve x-direction
• Next create a stairs from midlanding to first floor
• Give a waist slab fro both the stairs

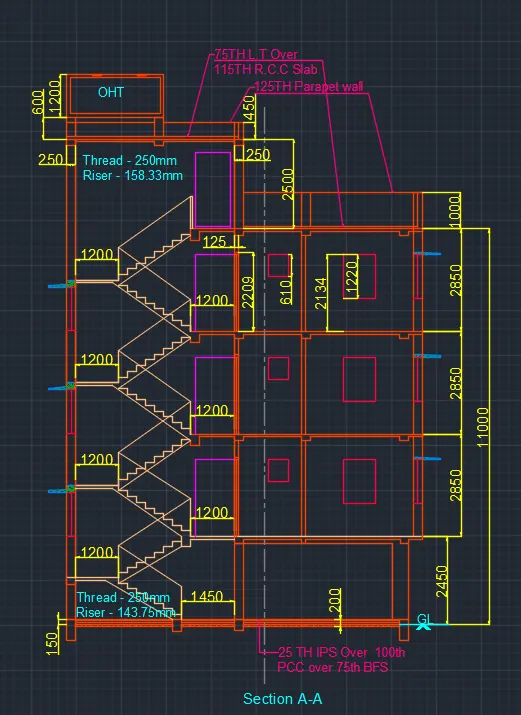

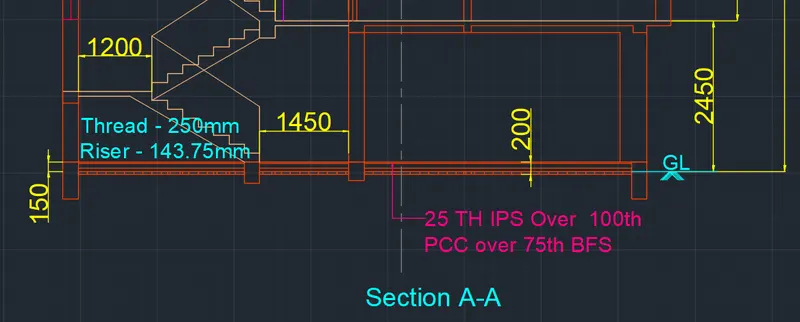

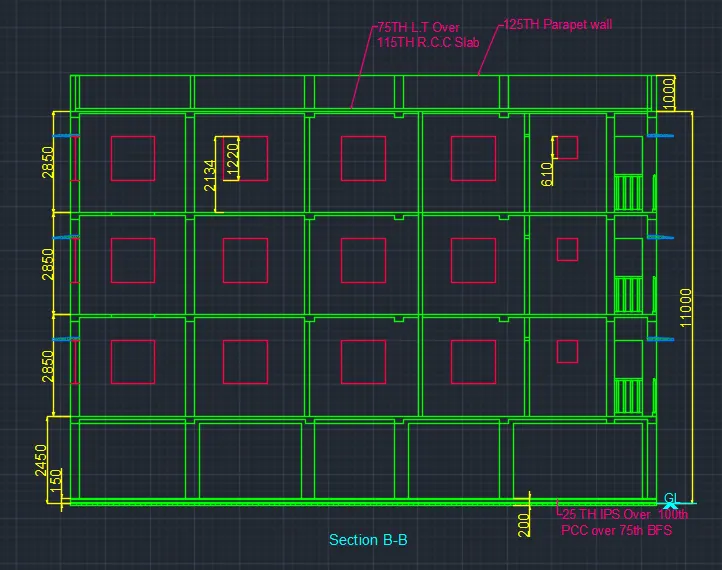

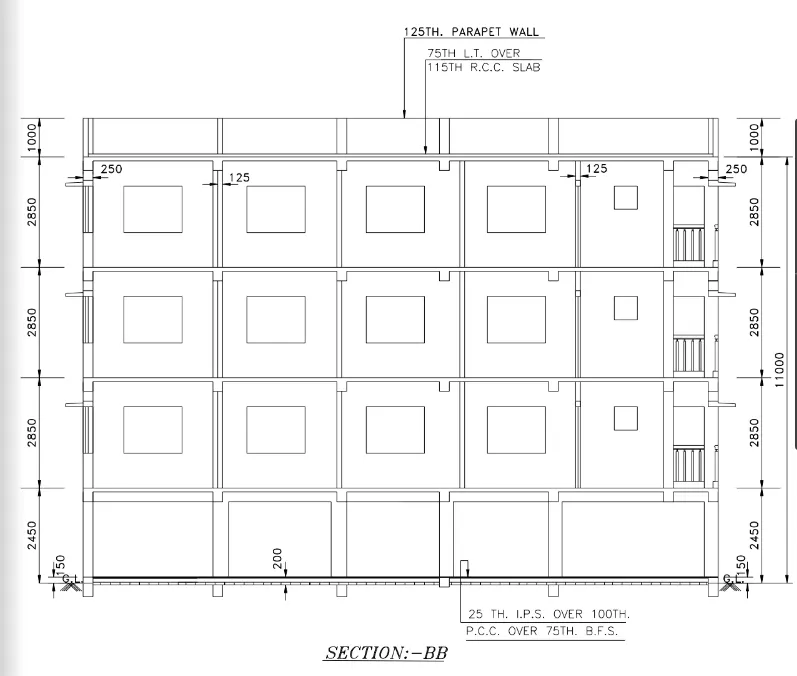

                                                       Section A-A Ground floor

First floor

• Take a offset of 2850mm from the 2450mm line
• Create a column and beam section by using a projected lines
• Column having a dimensions 250mm, 375mm, 125mm
• For beam and slab take a offset of 190 from the 2850mm line
• In 190mm 75mm is the slab and remainig 115mm is the beam section
• Create a stairs which has a distance of 1200mm from the right side column and 1200mm from the second column
• The stairs thread is 250mm and riser is 158.33mm
• Create a stairs up to mid land then create a lintel with projection at the midlanding position
• Projection dimension is 500mm from the outside of the wall in -ve x-direction and 40mm upwards in +ve y-directionand join the lintel having a 75mm thick in +ve x-direction
• Next create a stairs from midlanding to first floor
• Give a waist slab fro both the stairs

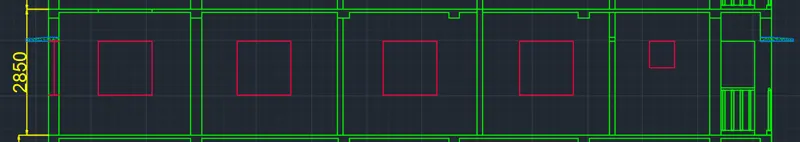

• By using a projected line trace a  windows and door
• Height of the door is 2209mm and height of the windows are 2134 from the 2450mm line
• Height of the windows from the 2209mm line is 610mm and 1220mm which is W4 and W2 respetively

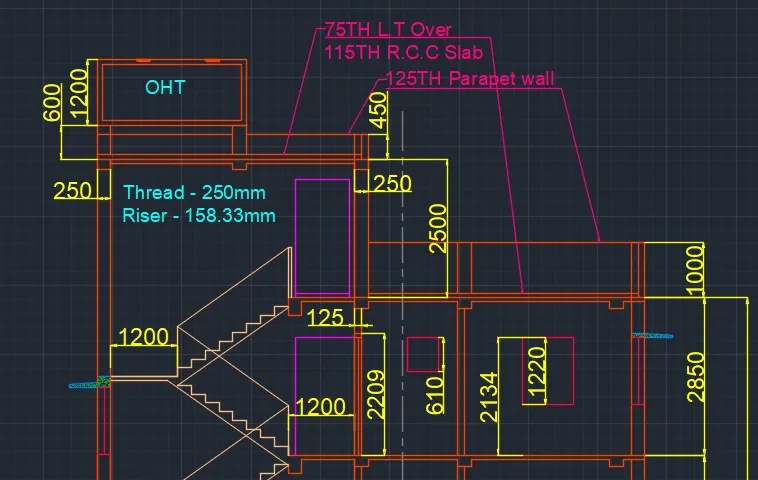

                                              Section A-A 1st floor

Second floor

• Take a offset of 2850mm from the 2850mm line
• Create a column and beam section by using a projected lines
• Column having a dimensions 250mm, 375mm, 125mm
• For beam and slab take a offset of 190 from the 2850mm line
• In 190mm 75mm is the slab and remainig 115mm is the beam section
• Create a stairs which has a distance of 1200mm from the right side column and 1200mm from the second column
• The stairs thread is 250mm and riser is 158.33mm
• Create a stairs up to mid land then create a lintel with projection at the midlanding position
• Projection dimension is 500mm from the outside of the wall in -ve x-direction and 40mm upwards in +ve y-directionand join the lintel having a 75mm thick in +ve x-direction
• Next create a stairs from midlanding to first floor
• Give a waist slab fro both the stairs
• By using a projected line trace a  windows and door
• Height of the door is 2209mm and height of the windows are 2134 from the 2450mm line
• Height of the windows from the 2209mm line is 610mm and 1220mm which is W4 and W2 respetively

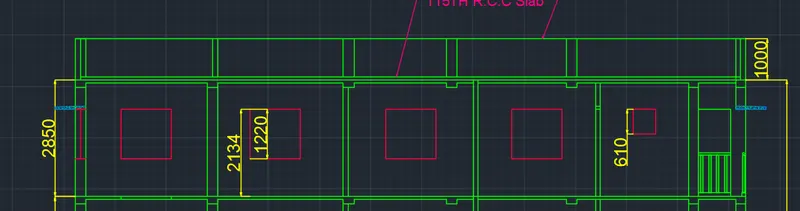

                                            Section A-A 2nd floor

Third floor

• Take a offset of 2850mm from the 2850mm line
• Create a column and beam section by using a projected lines
• Column having a dimensions 250mm, 375mm, 125mm
• For beam and slab take a offset of 190 from the 2850mm line
• In 190mm 75mm is the slab and remainig 115mm is the beam section
• Create a stairs which has a distance of 1200mm from the right side column and 1200mm from the second column
• The stairs thread is 250mm and riser is 158.33mm
• Create a stairs up to mid land then create a lintel with projection at the midlanding position
• Projection dimension is 500mm from the outside of the wall in -ve x-direction and 40mm upwards in +ve y-directionand join the lintel having a 75mm thick in +ve x-direction
• Next create a stairs from midlanding to first floor
• Give a waist slab fro both the stairs
• By using a projected line trace a  windows and door
• Height of the door is 2209mm and height of the windows are 2134 from the 2450mm line
• Height of the windows from the 2209mm line is 610mm and 1220mm which is W4 and W2 respetively

Partition Wall

• Take a offset of 1000mm from the 2850mm line which is a 3rd floor
• Project a 2nd column up to 2500mm from the 2850mm line
• Project a remaining column up to 1000mm
• By using a projected line trace a door
• Height of the door is 2209mm
• Rcc slab consists a 75mm thick lintel over 115mm RCC slab
• 125mm thick parapet wall

                                                     Section A-A Third floor and Parapet wall



Layers used are

• Ceneter line - ACI 8
• Column - Blue
• Column hatching - ACI 11
• Doors - Magenta
• Dimension - Yellow
• Interior wall 62.5mm - ACI 10
• Interior wall 75mm - ACI 190
• Interior wall 125mm - ACI 40
• Lintel - ACI 150
• Lintel hatching - ACI 102
• Main wall 250mm - Red
• Multileader- ACI 230
• Schedule - ACI 71
• Section A-A - ACI 20
• Section B-B - Green
• Stairs - ACI 31
• Text -  Cyan
• Windows - ACI 240

                                                Layers for Plan and Sections

Result:-



                                                                            Section A-A



 Aim:- To draft the section B-B



Procedure:-

By using direct distance entry method

• Here all the units are in Decimals (milimeter)
• Select the construction line tool by entering XL (Enter) in the command line
• Project vertical lines and horizontal lines which cuts at the axis A-A
• Draw the construction line below which is the base line or Ground level for the section
• Take a offset of 150mm from the base and take a offset of 50mm below the GL to create a PCC and earthing

Ground floor

• Take a offset of 2450mm from the GL
• Create a column and beam section by using a projected lines
• Column having a dimensions 250mm, 375mm, 125mm
• For beam and slab take a offset of 190 from the 2450mm line
• In 190mm 75mm is the slab and remainig 115mm is the beam section
• The region of GL has a 25TH IPS over 100TH PCC over 75TH BFS

                                      Section B-B Ground floor

First floor

• Take a offset of 2850mm from the 2450mm line
• Create a column and beam section by using a projected lines
• Column having a dimensions 250mm, 375mm, 125mm
• For beam and slab take a offset of 190 from the 2850mm line
• In 190mm 75mm is the slab and remainig 115mm is the beam section
• Create a lintel with projection at the Lintel level
• Projection dimension is 500mm from the outside of the wall in -ve x-direction and 40mm upwards in +ve y-directionand join the lintel having a 75mm thick in +ve x-direction
• By using a projected line trace a  windows
• Height of the windows are 2134 from the 2450mm line
• Height of the windows from the 2134mm line is 1220mm and 610mm  which is W3,W3,W3,W3 and W4 respetively
• Trace the stairs section so that we can see the railing over there

                                          Section B-B First floor

Second floor

• Take a offset of 2850mm from the 2850mm line
• Create a column and beam section by using a projected lines
• Column having a dimensions 250mm, 375mm, 125mm
• For beam and slab take a offset of 190 from the 2850mm line
• In 190mm 75mm is the slab and remainig 115mm is the beam section
• Create a lintel with projection at the Lintel level
• Projection dimension is 500mm from the outside of the wall in -ve x-direction and 40mm upwards in +ve y-directionand join the lintel having a 75mm thick in +ve x-direction
• By using a projected line trace a  windows
• Height of the windows are 2134 from the 2450mm line
• Height of the windows from the 2134mm line is 1220mm and 610mm  which is W3,W3,W3,W3 and W4 respetively
• Trace the stairs section so that we can see the railing over there

                                          Section B-B Second floor

Third floor

• Take a offset of 2850mm from the 2850mm line
• Create a column and beam section by using a projected lines
• Column having a dimensions 250mm, 375mm, 125mm
• For beam and slab take a offset of 190 from the 2850mm line
• In 190mm 75mm is the slab and remainig 115mm is the beam section
• Create a lintel with projection at the Lintel level
• Projection dimension is 500mm from the outside of the wall in -ve x-direction and 40mm upwards in +ve y-directionand join the lintel having a 75mm thick in +ve x-direction
• By using a projected line trace a  windows
• Height of the windows are 2134 from the 2450mm line
• Height of the windows from the 2134mm line is 1220mm and 610mm  which is W3,W3,W3,W3 and W4 respetively
• Trace the stairs section so that we can see the railing over there

Partition wall

• Take a offset of 1000mm from the 2850mm line
• Trace the column by using a projected line (construction line)
• Rcc slab consists a 75mm thick lintel over 115mm RCC slab
• 125mm thick parapet wall

                                      Section B-B Third floor and Parapet wall

Layers used are

• Ceneter line - ACI 8
• Column - Blue
• Column hatching - ACI 11
• Doors - Magenta
• Dimension - Yellow
• Interior wall 62.5mm - ACI 10
• Interior wall 75mm - ACI 190
• Interior wall 125mm - ACI 40
• Lintel - ACI 150
• Lintel hatching - ACI 102
• Main wall 250mm - Red
• Multileader- ACI 230
• Schedule - ACI 71
• Section A-A - ACI 20
• Section B-B - Green
• Stairs - ACI 31
• Text -  Cyan
• Windows - ACI 240

                                                Layers for Plan and Sections



Result:-



                                                                                  Section B-B
