Create the Plan and Sections as shown in the Figures. Use proper dimension techniques and dimension styles to document the project. Assume the sizes of the doors and windows as per construction standards. Refer to sections for stair details if required.

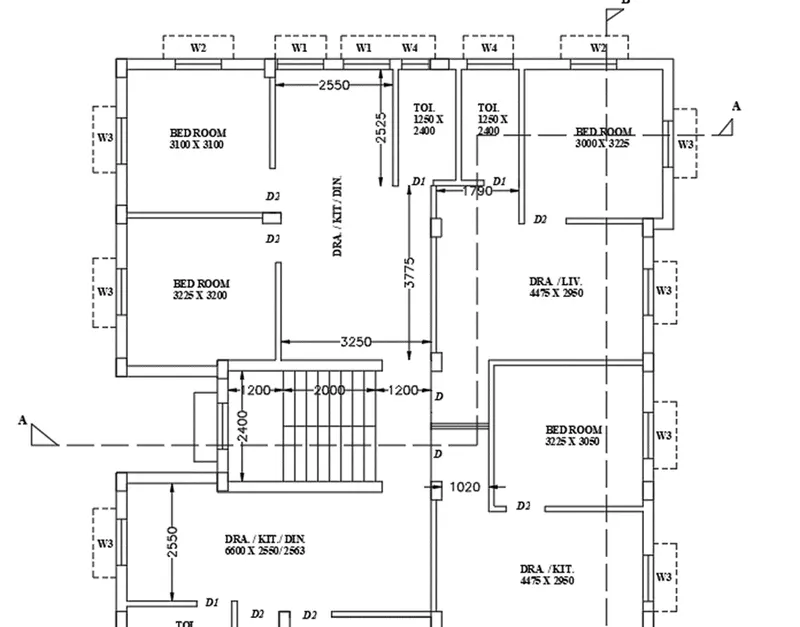

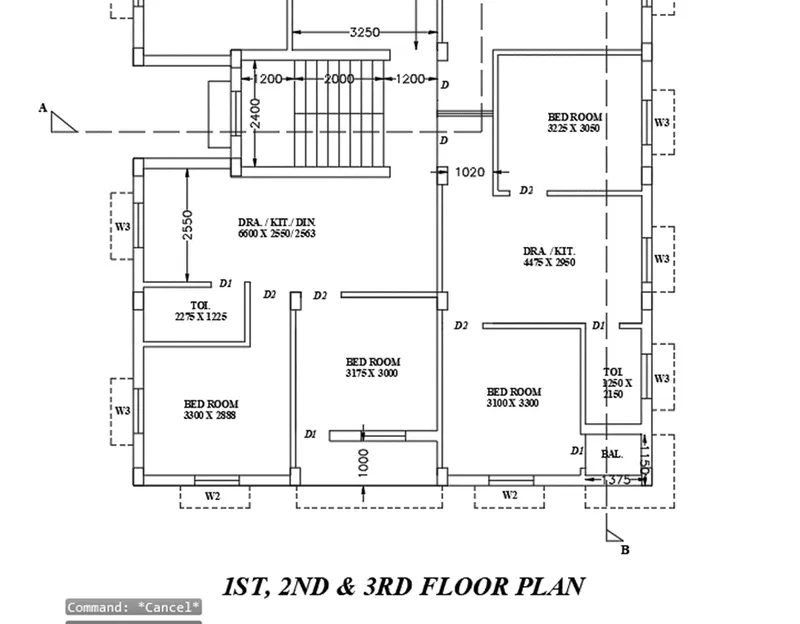

1^ST, 2^ND & 3^RD FLOOR PLAN

Procedure

Set the unit using the UNIT command to decimal.

Draw the line with the length of 16308mm from down to up vertically.

Draw the line from the previous line with the length of 11640mm horizontally forwards.

Draw the line from the previous line with the length of 16308mm downwards vertically.

Draw the line from the last line to the first line to form the rectangle.

Draw the rooms with help of line command and offset command and trim command, with the lengths given in figures.

Draw the bedroom with a length of 3100mm and width of 3100mm and 3225mm x 3200mm.

Draw the draw./kit./din. with the size of 2550mm x 3250mm and 3250mm x 3775mm

Draw two toilets with the sizes of 1250mm x 2400mm.

Draw another bedroom in part C with the size of 3000mm x 3225mm.

Draw the dra/liv with the size of 4475mm x 2950mm.

Draw the bedroom in part B with the size of 3225mm x 3050mm.

Draw the dra/kit room with the size of 4475mm x 2950mm.

Draw the toilet and room with the size of 1250mm x 2150mm

Draw another bedroom with the size of 3100 x 3300mm

Draw the balcony with the size of 1375mm x 1150mm.

Draw the bedroom in the A part with the size of 3175mm x 3000mm

Next, we leave some space for the veranda, with a length of 3175mm.

Draw the bedroom with the size of 3300mm x 2888mm.

Trim the unnecessary lines and objects.

Then we draw the columns with the size of 250mm x 350mm.

Draw the windows and doors with the sizes as shown below

W 600 x 1200mm

W1 900 X 1200mm

W2 1000 x 1200mm

W3 1500 x 1200mm

W4 500 x 500mm

D 1000 X 2100mm

D1 700x2100mm

D2 900mm x 2100mm

Finally, we indicate the rooms using the single text command.

Provide the dimensions for the given floor plan using the DIMLINEAR command.

Draw the section lines as given in the figure.

Result

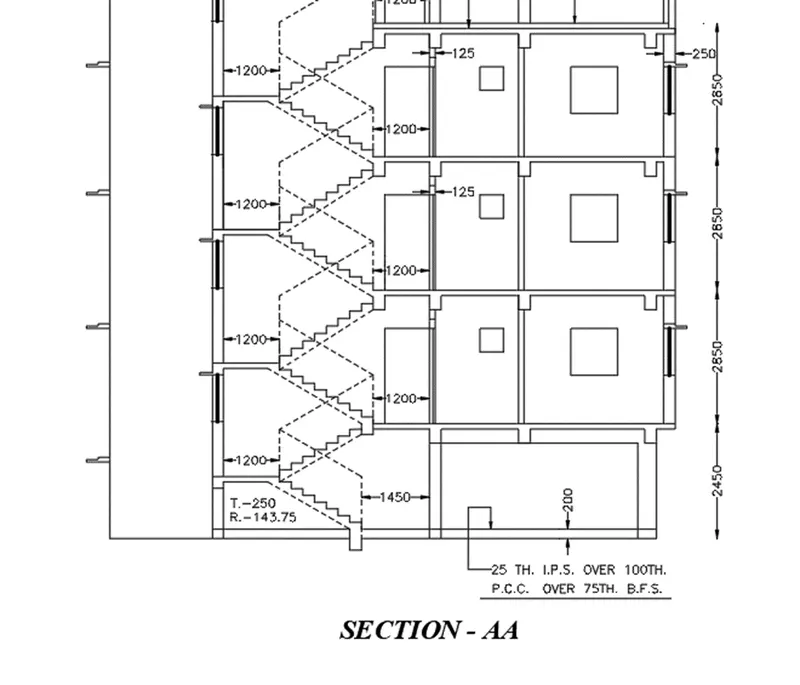

SECTION AA

Procedure

Construction lines are drawn as projections for the appropriate dimension of the room size and location of doors and windows

The floors are created with the OFFSET command with the appropriate floor height mentioned in the section

The inner wall offsets are 125mm and the outer wall thickness is 250mm. And the ground-level thickness is 200mm and 150mm.

Draw the windows in their requires places in 1st. 2nd and 3rd floors

The staircase with the tread of 250mm and the riser with 143.75mm and 158.33mm are drawn

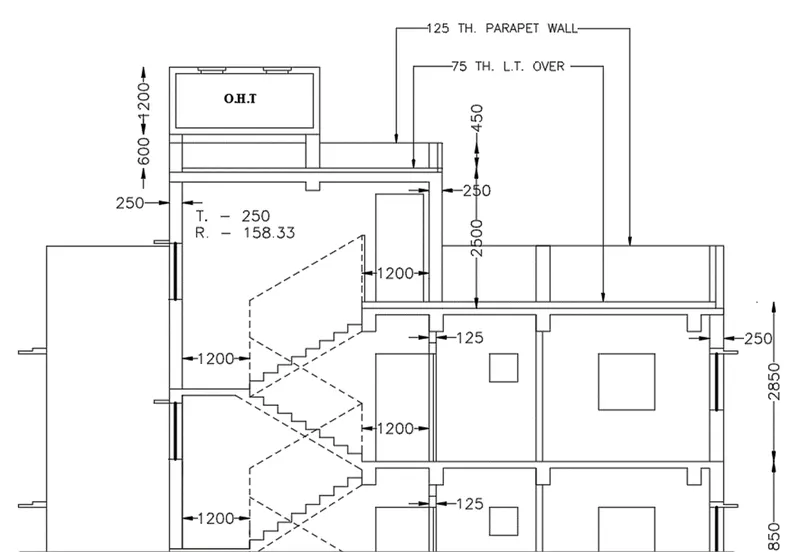

Draw the remaining parts, we draw the parapet wall and water tank (O.H.T) at the top of the building,

Draw the doors at their required places on the first second and third floors.

Draw the windows and sunshades in their particular places.

Put the dimensions where ever they are required in the section drawing as shown below.

Select the single text command to indicate the parts in the section plan.

Finally, draw the section line in the section plan as shown in the below figure.

Result

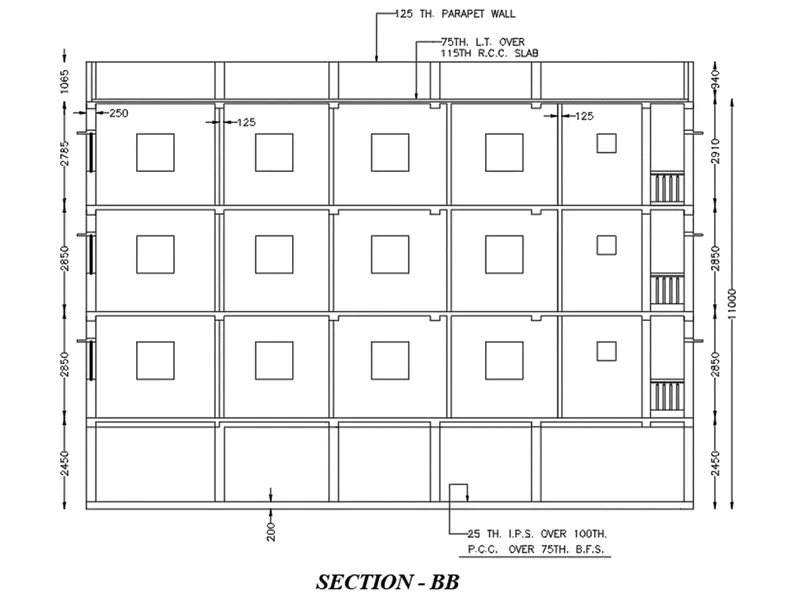

SECTION BB

Procedure

Construction lines are drawn as projections for the appropriate dimension of the room size and location of doors and windows

The floors are created with the OFFSET command with the appropriate floor height mentioned in the section

The inner wall offsets are 125mm and the outer wall thickness is 250mm. And the ground-level thickness is 200mm and 150mm.

Draw the windows in their required places in 1st. 2nd and 3rd floors.

Draw the sunshades on the upside of the window to protect from the sunlight.

Put the dimensions where ever they are required. And write the text to denote the parts in the section plan using the single text command.

Result
