Creating a Layout, Section and Elevation with dimensions using AutoCad

1.

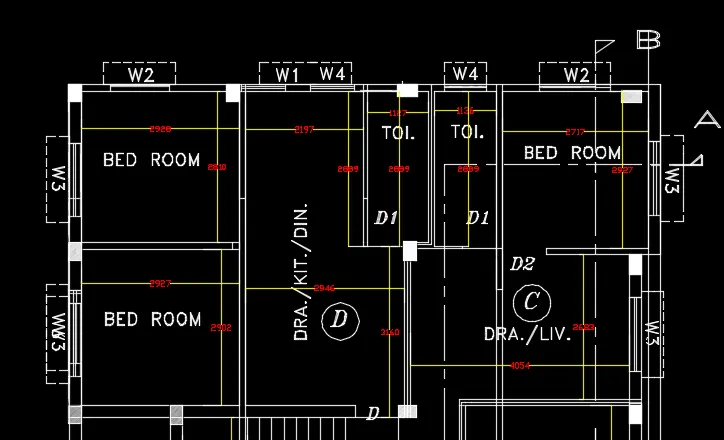

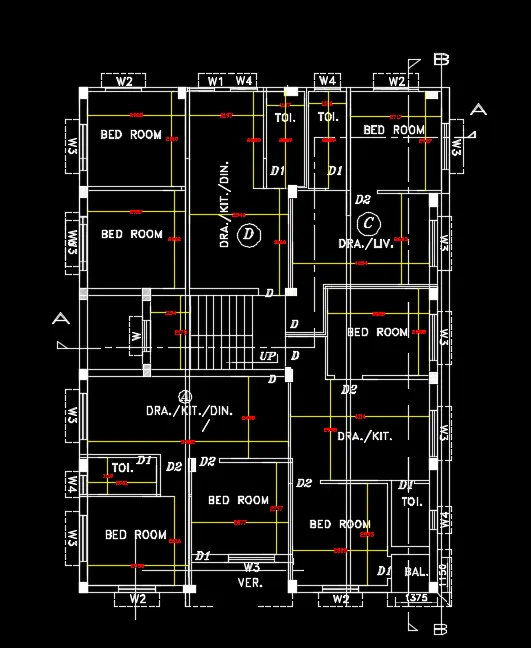

Aim :to draw the Plan and Sections as shown in the Figures.

procedure :

• Use line commend
• Draw the walls as per the form
• Divide the walls
• move as per the dimension

• provide the text and dimesions
• provide the windows as per the layout
• finish the full layout by the above procedure
• provide the door d1 d2

• provoide the staircase
• provide the section line

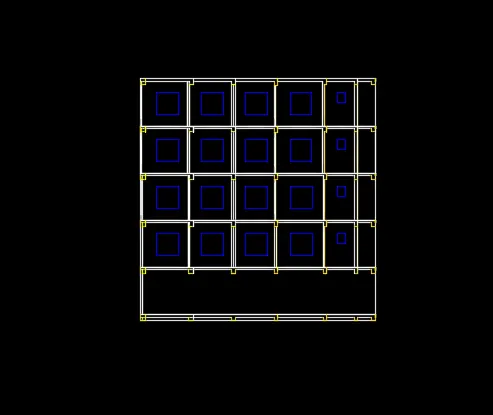

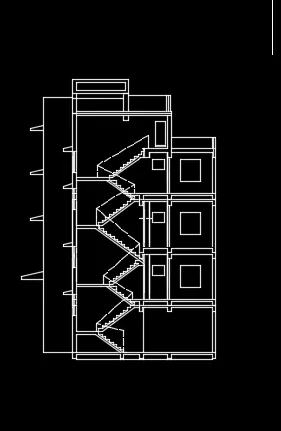

• Then draw section A and BB
• Use the line tool draw asa per the section

• draw as per the section aa use the xline to draw the dimensions are assumed
• staricase thread is 167 rise 170mm
• height 3000 mm
• place 3 floors
• provide windows
• lintel measurents

• Provide as per the dimesnions for the section BB
• providfe the windoes the small and big also
• provide the beam
• rise the floor for 3

Result

at last the building is drawn as per the values.
