Creating a Layout, Section and Elevation with dimensions using AutoCad

AIM: To create the Layout, Section and Elevation of a given plan with the help of Various Essential command from AutoCAD.

INTRODUCTION: The Given PLAN, SECTION & ELEVATION with Dimension is created in AutoCAD using primarily the Line tool, XLINE, Offset and other essential tools and The procedure of drawing is explained in detail with diagrams of each step and the final result is given.

PROCEDURE:

Go to START MENU, select AutoCAD 2022.

In the Command line type in: STARTUP [ENTER]

Enter new value of start-up: 1

Go to Application Menu and select New

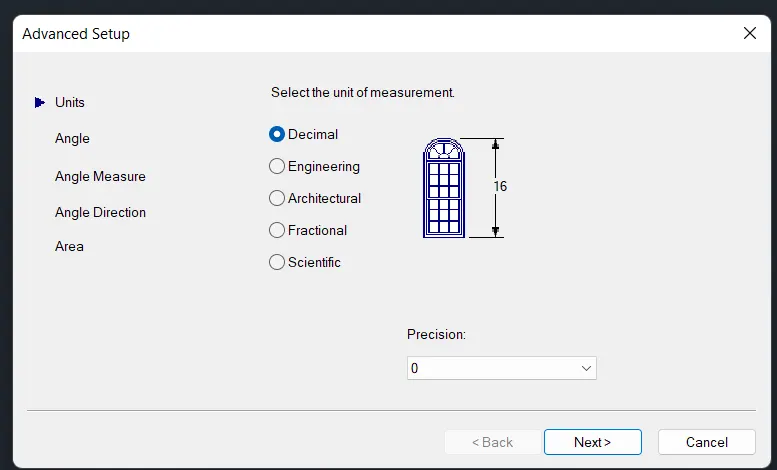

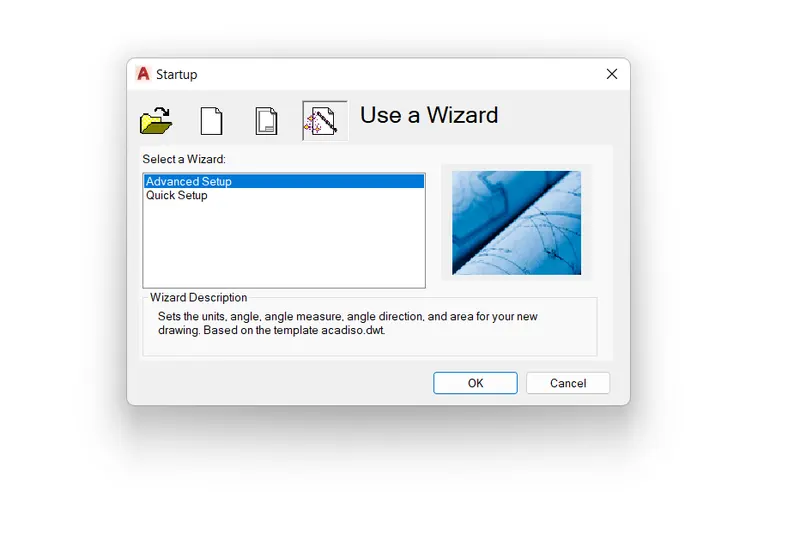

In the 'Create New Drawing' dialog box, we do the Advanced Setup and select the DECIMAL unit of measurement and select precision as 0

Set the limits by entering LIMITS in the Command tab. The lower-left corner is specified as 0,0 and the upper-right corner is specified as 10000,10000

Enter 'UNITS' command in the command tab.

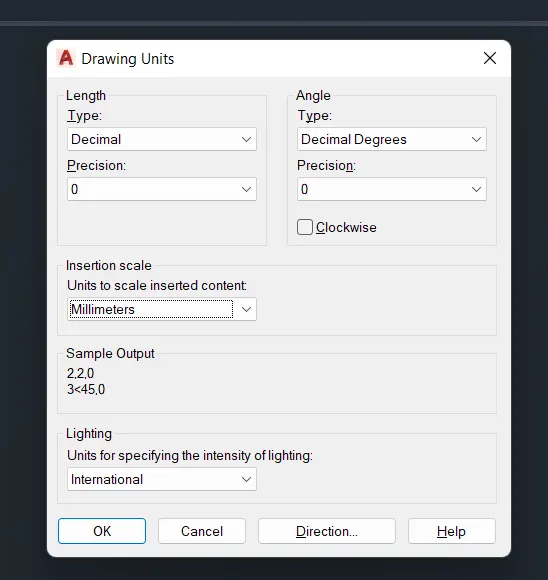

In the Drawing Units dialog box, select DECIMAL in Type 0 in Precision and MILLIMITERS in Insertion scale.

Click on 'OK'.

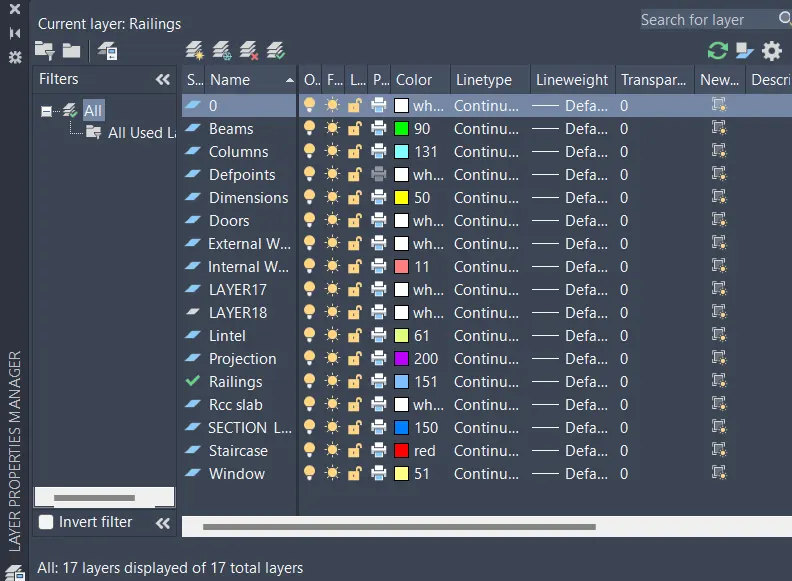

LAYER: Click on 'Layer Properties' in the Layer panel on the Ribbon.

Click on 'New Layer' to create the following layers - Doors, External Wall, Internal Wall, Window, Stairs, Section Line, RCC Slab, Beam, Column, Projection, Railings , Dimension and Text. etc., as shown below

Specify different colors for the different layers and then close the Layer Properties Manager dialog box

To Cancel Selected Command Press “ESC”

To Invoke Previously Selected Command Press “ENTER”

WALL:

LAYER: EXTERNAL WALL

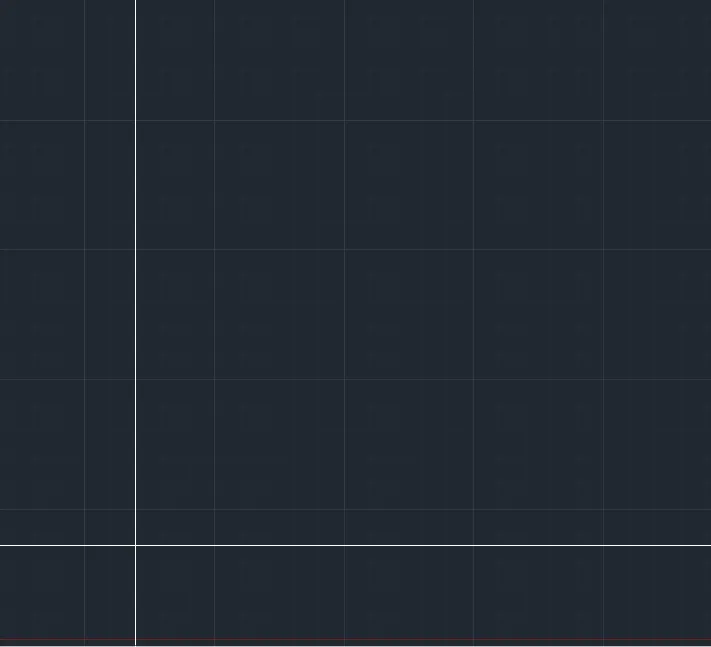

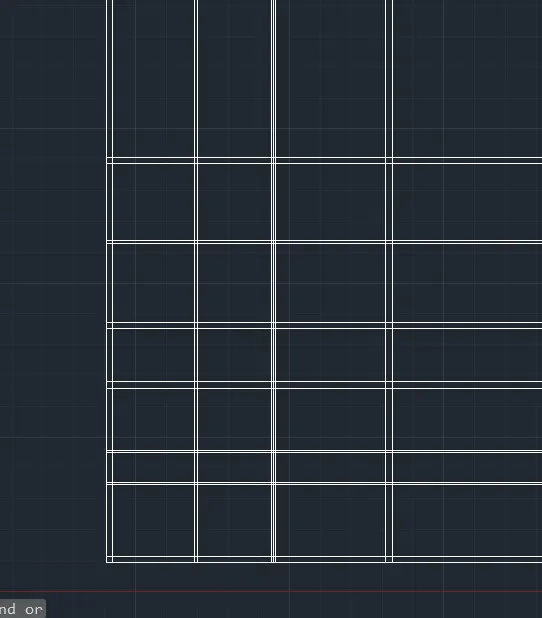

XLINE : Create Horizontal and Vertical lines

OFFSET : Create Vertical OFFSETS at a Distance of 250,3000,250,2550,75,1250,150,1250,150,3000,250 in +X Direction

Create Horizontal Offsets at a Distance of 250,2888,75,1225,75,2550,250,2200,250,3225,125,3100,250 in +Y Direction

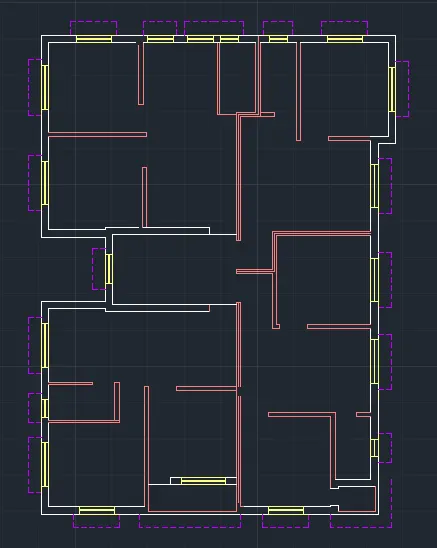

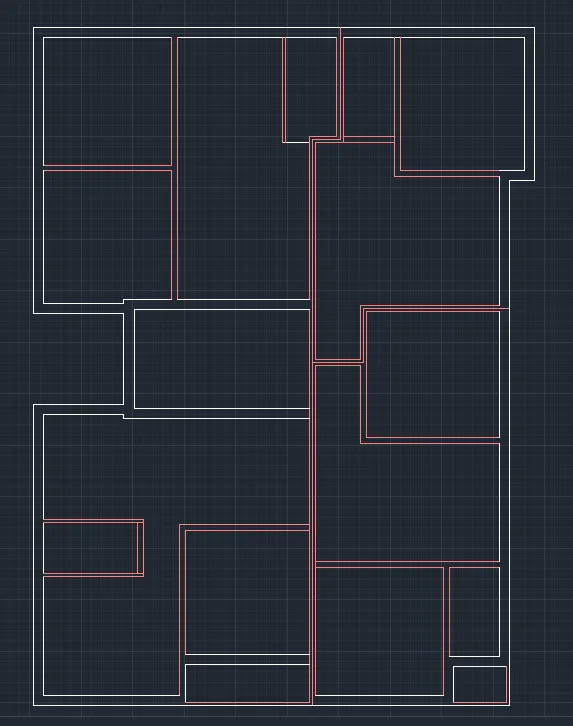

TRIM : Cut off all Unwanted Lines and keep the wall lines as per the plan and Save the Drawing

LAYER: INETRNAL WALL

Specify thickness of 75 and 150 for Internal wall

DOORS AND WINDOWS

LAYER: DOOR D-1000,D1- 750 D2-875

LINE: To Create the door Create the line in at Desired Door Position Perpendicularly

OFFSET: specify an offset distance of 1000 for D, 750 for D1, 875 for D2

TRIM: cut off the Extra Protruded lines

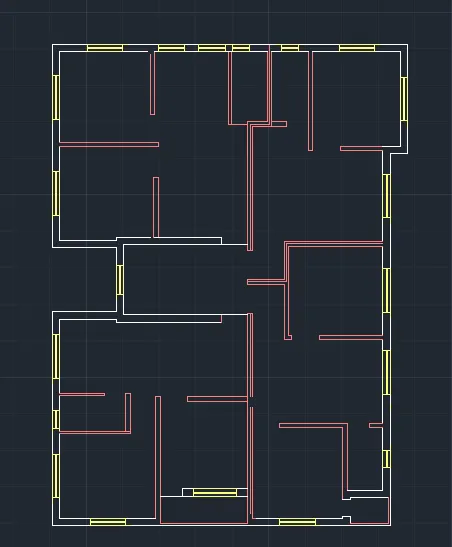

LAYER: WINDOW

WINDOWS W1-900, W2-1200, W3- 1500, W4-600

OFFSET: Specify 110,30 from External wall to Create panels

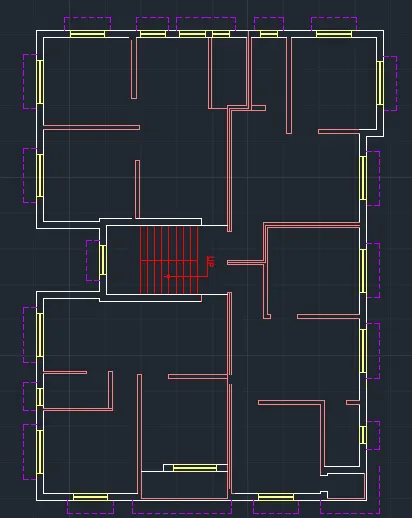

PROJECTION

LAYER: PROJECTION

LINE: line type as DASHED, Scale: 15

Create the projection from each window with Projection width of 450 and bearing of 200 from both end of windows

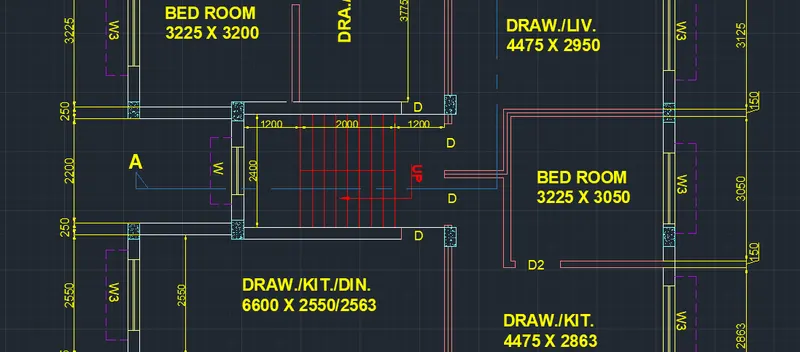

STAIRCASE

LAYER: STAIRCASE

OFFSET: Create The offset of 1200 from wall end and then Create 08 Offset of 250mm to create Treads of stairs

RECTANGLE: Create a Rectangle of 3300 x 300 place it at Centre

OFFSET: Create The offset of 1200 from wall to divide the flight in stair

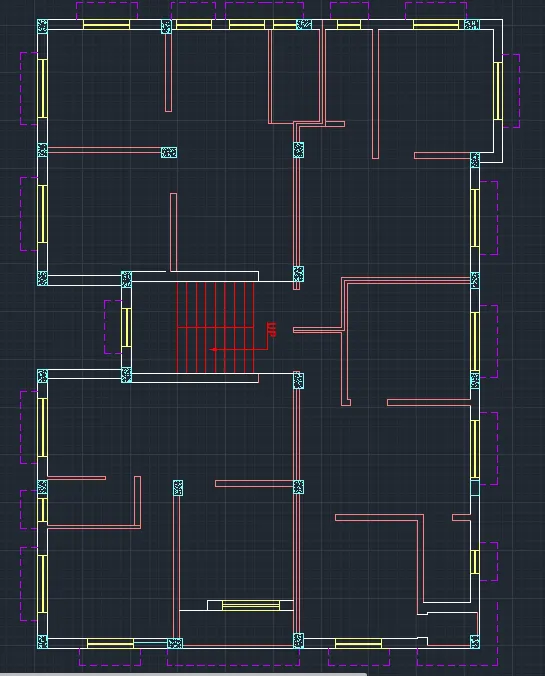

LEADER: Create a leader and type UP Show the direction as shown in figure

To Create the Columns

LAYER: COLUMN

RECTANGLE: Create the Rectangle of 250x 350 , 250x 400

HATCH: Pattern AR-CONC, Scale:1

Create the Hatch inside the Rectangle to make Columns

COPY: copy and Paste the Columns in desired positions

LAYER: Section line

LINE: Line type CENTRE 2, Scale 100

Create the line to show the Section line Type SECTION AA

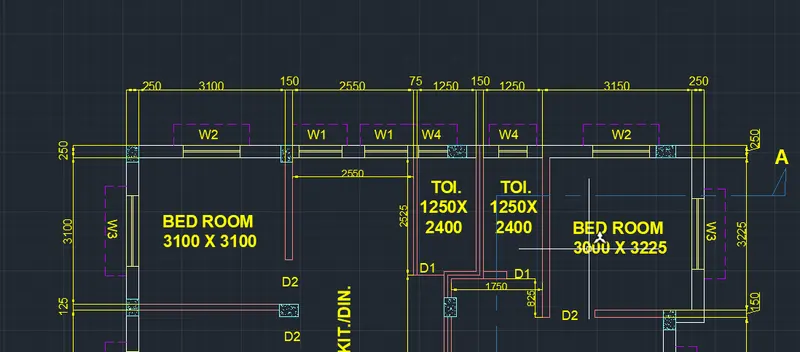

LAYER: Dimensions

DIMLENIAR: Select and Place the Desired Dimensions, Represent all the Dimensions

DIMSTY: Set Arrow size 100, Text Height 175, Precision to 0

DIMCONTINUE: Create Remaining Dimensions

MTEXT: Create a Text Box and Enter the sample text, Copy and Paste multiple in Desired Position and desired angle with Desired Size

EDIT TEXT (ED): Edit the MTEXT Created and Pasted and Type the actual name, size, rotation angle

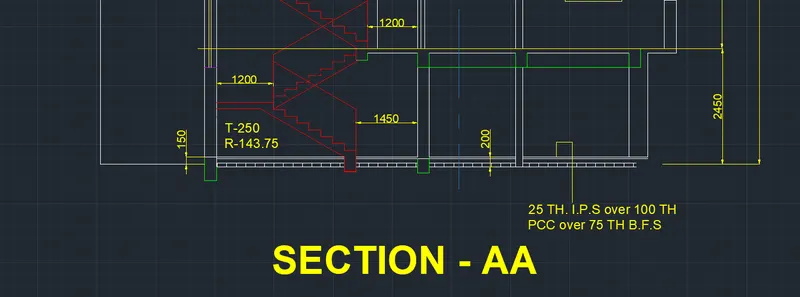

To Create the SECTION -AA

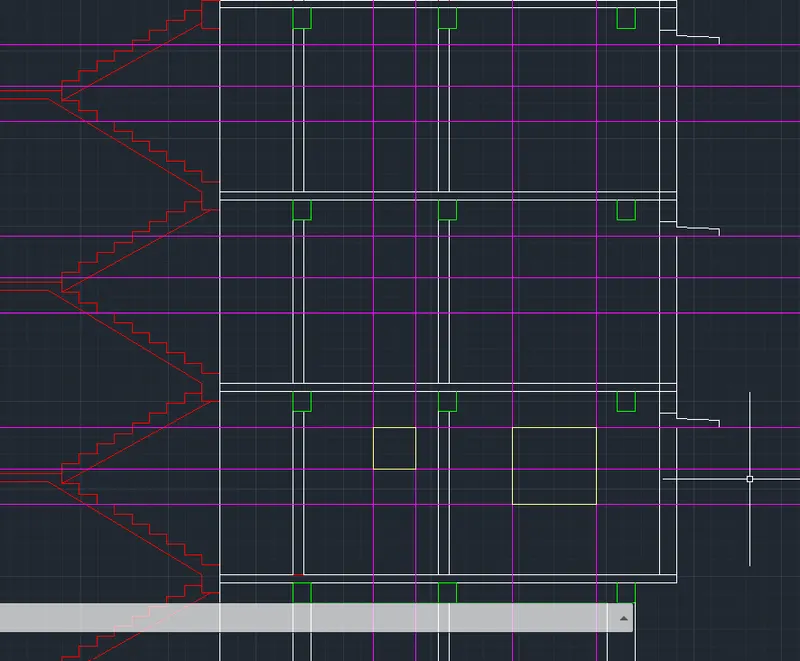

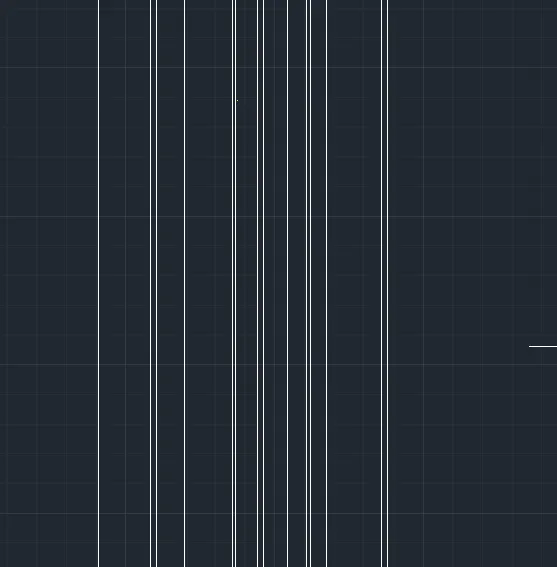

XLINE: Select Vertical Line and Project all the Walls and staircase, Treads, Windows

Select Horizontal Line and place it at Bottom Consider it as GL (Ground Level)

OFFSET: Create 150 offset in +Y Con and from that offset line create 25 in -Y, 100 in -Y, 75 in -TRIM : trim off the 150mm offset line which is coming inside building

HATCH: pattern USER DEFINED Rotation 90, scale 200

Hatch the line containing 75mm thickness

FLOORS

OFFSET:Offset 2450 from GL, Continue offset of 2850,2850,2850,1000 in +Y to Create floors

Specify and Offset of 115 from Each Floor in -Y directions as Slab Thickness

BEAMS

LAYER: BEAM

RECTANGLE: Create the Rectangle by specifying 250x 400

COPY: Copy and Paste the Rectangle in at Desired Positions

WINDOWS:

LAYER: WINDOW

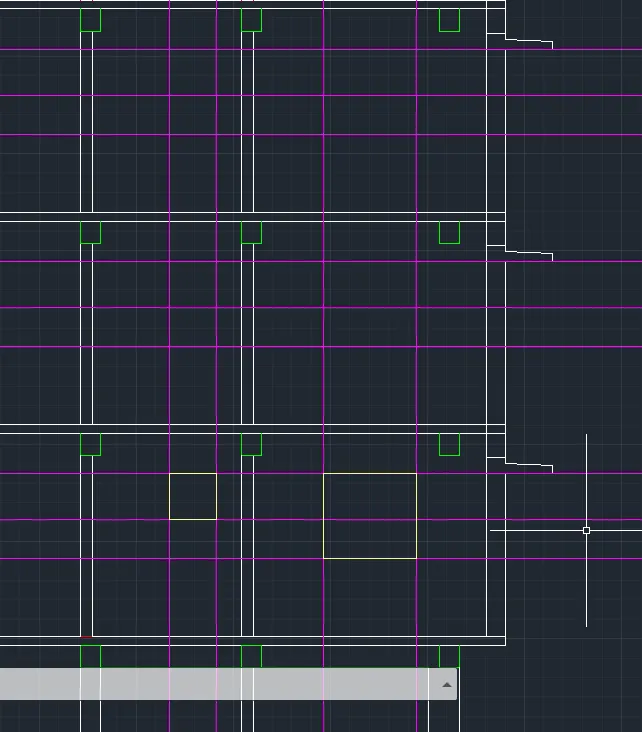

XLINE: Create the XLINE at a Distance of 900 and 2100 from Each floor to Create the Windows

RECTANGLE: Create the Rectangle inside Horizontal and Vertically Projected Lines

Delete the XLINES

CHAJJA: Create the rectangle of 230x200 and Project the line of 450 in X direction 100 in + Y direction,450in -X direction connect the line at a distance of 125

COPY: Copy and paste it in Desired Positions

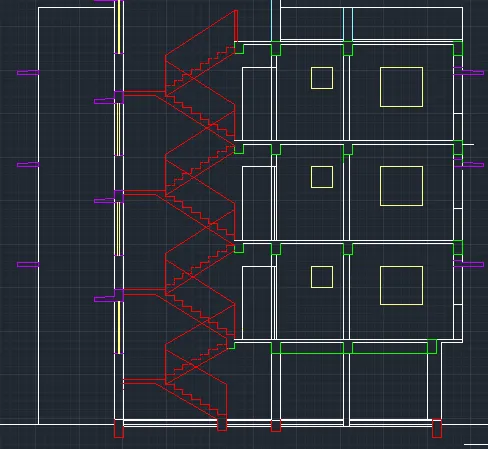

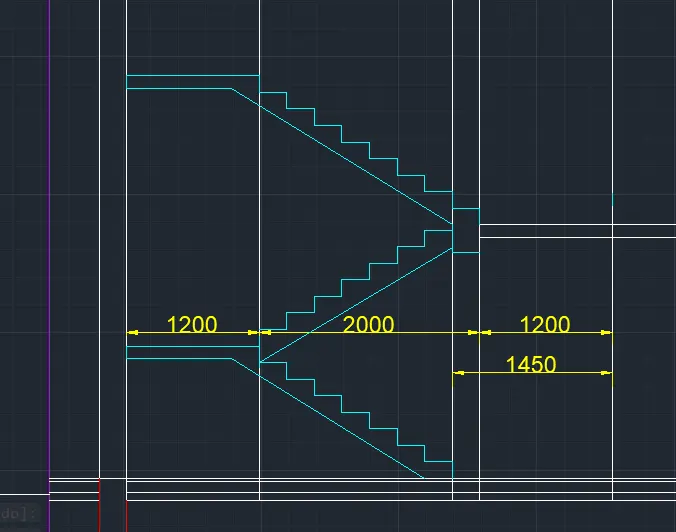

STAIRS:

Create the Stairs of risers as 143.75, Treads as 250, at Ground Floor and 158.33 and 250 in first floor and and Higher Floors

TRIM: erase all the Unwanted lines, intersections as shown in the Figure

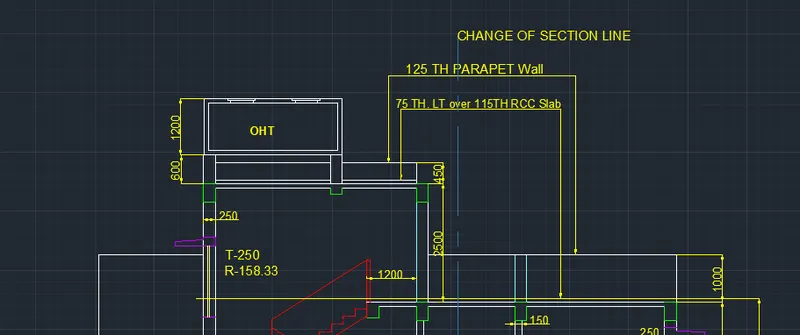

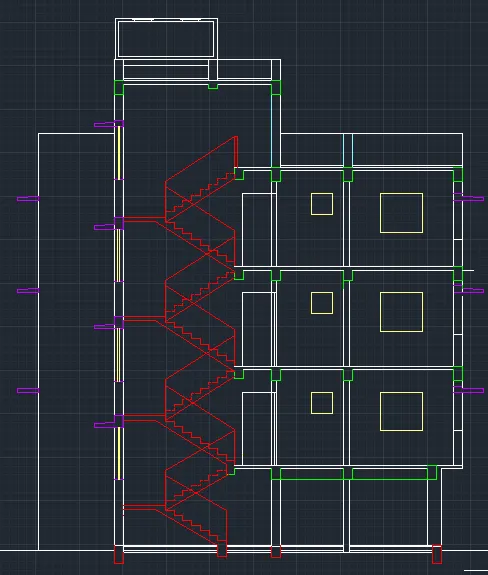

HEADROOM and OHT

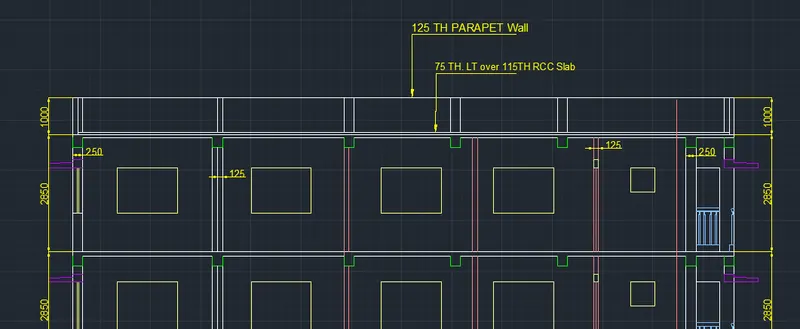

LINE: create the line of 2500,450,150 of from second floor over the Staircase to create the Headroom

RECTANGLE: Specify 2921,1200 to create the OHT

OFFSET: Specify an offset of 100 and drag towards inward

RECTANGLE: Specify 500x 70 and 800x 30 position it one over the other and keep it at the top of OHT

LAYER: Section line

LINE: Line type CENTRE 2, Scale 100

Create the line to show the Section line Type SECTION BB

SECTON B-B

LAYER: Section line

LINE: Line type CENTRE 2, Scale 100

Create the line to show the Section line

LAYER: Dimensions

DIMLENIAR: Select and Place the Desired Dimensions, Represent all the Dimensions

DIMSTY: Set Arrow size 100, Text Height 175, Precision to 0

DIMCONTINUE: Create Remaining Dimensions

MTEXT: Create a Text Box and Enter the sample text, Copy and Paste multiple in Desired Position and desired angle with Desired Size

EDIT TEXT (ED): Edit the MTEXT Created and Pasted and Type the actual name, size, rotation angle

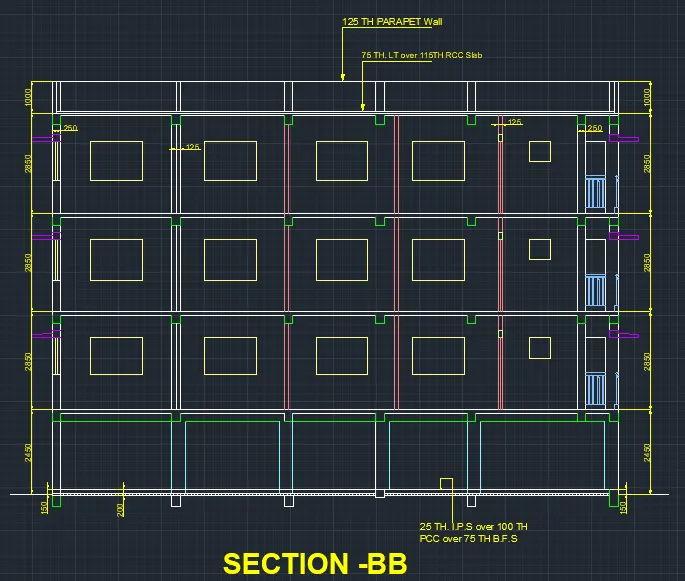

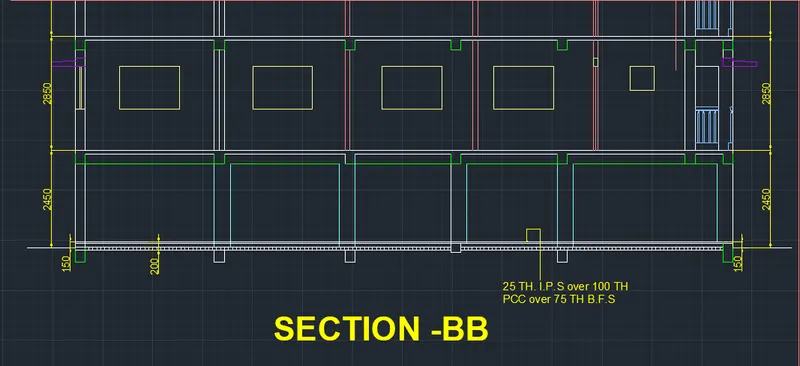

SECTION- BB

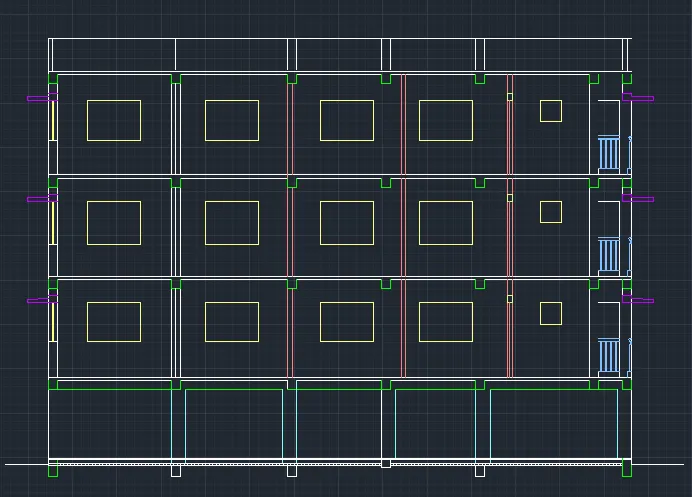

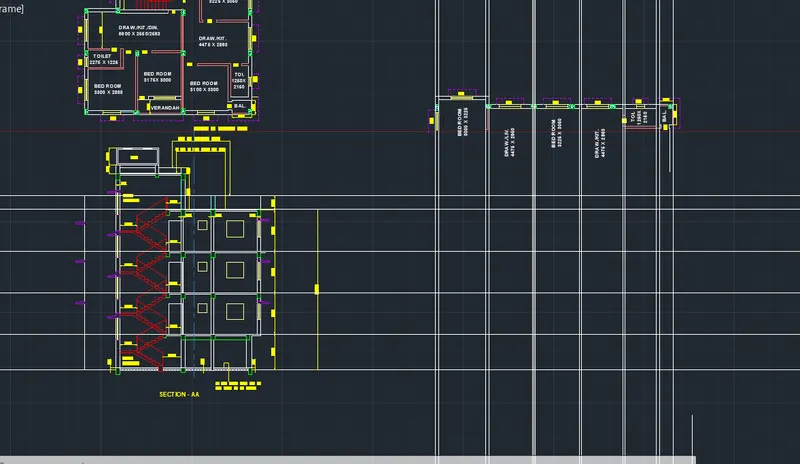

XLINE: Select Vertical Line and Project all the Walls and staircase, Treads, Windows

From Both PLAN and SECTION AA

BEAM:

LAYER: BEAM

COPY : copy and Paste in BEAM from the SECTION AA and Paste it in Elevation

WINDOW: Create the window from the Intersected Xlines

WALLS

LAYER: EXTERNAL

Create the External walls

LAYER: INTERNAL

Create the internal walls from the Projected lines

BALCONY:

OFFSET: Specify the offset of 170,850,100,75

RECTANGLE: Create a Rectangles of 50x 750 copy and paste it equal Distance between the Railings as Balusters

similarly Create Rectangles of 25x100 and place centre on the top of balusters

LAYER: Dimensions

DIMLENIAR: Select and Place the Desired Dimensions, Represent all the Dimensions

DIMSTY: Set Arrow size 100, Text Height 175, Precision to 0

DIMCONTINUE: Create Remaining Dimensions

MTEXT: Create a Text Box and Enter the sample text, Copy and Paste multiple in Desired Position and desired angle with Desired Size

EDIT TEXT (ED): Edit the MTEXT Created and Pasted and Type the actual name, size, rotation angle

RESULT :

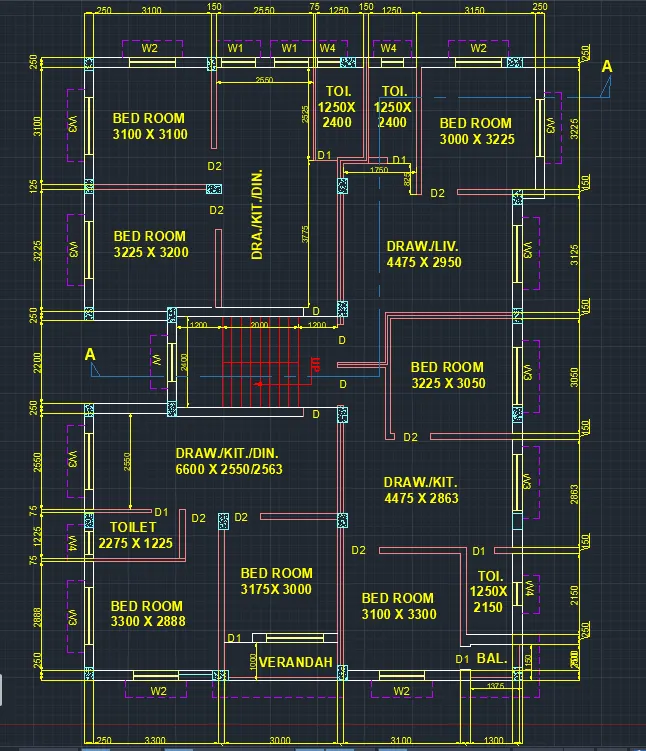

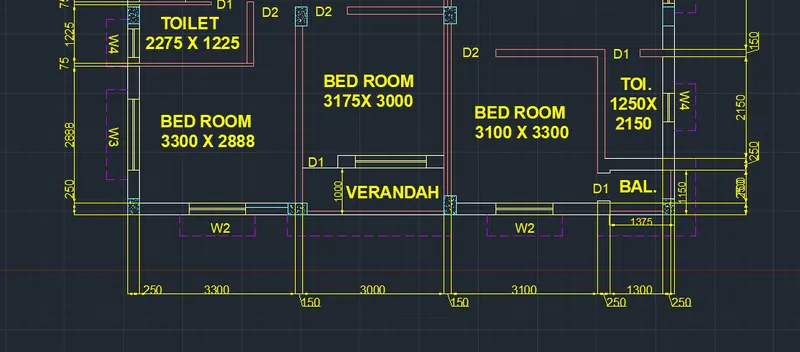

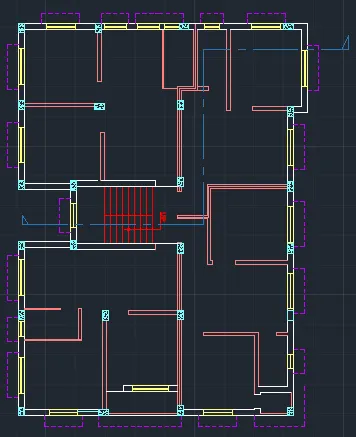

PLAN

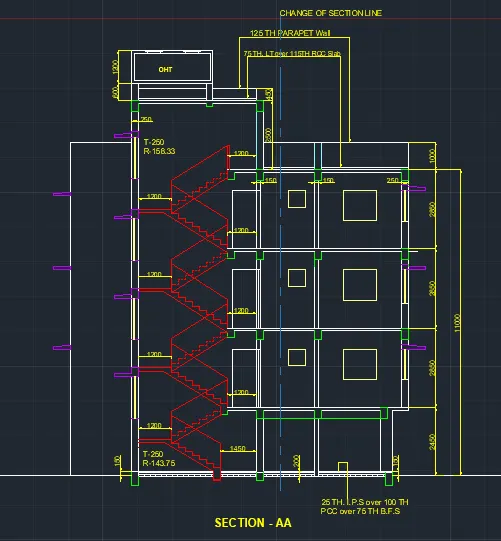

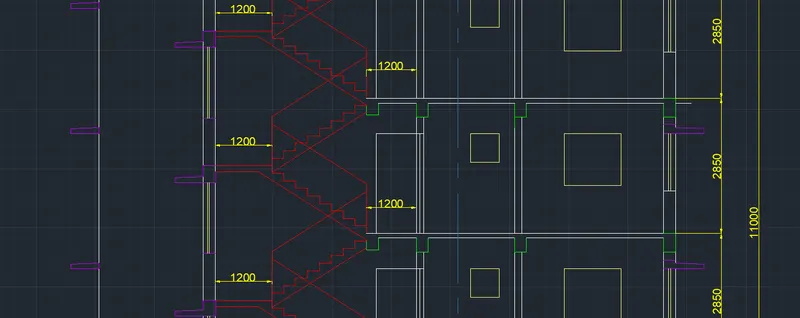

SECTION

ELEVATION
