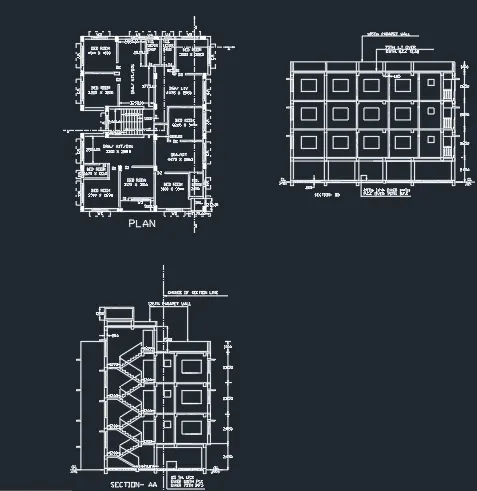

Creating a Layout, Section and Elevation with dimensions using AutoCad

Aim:

To create the Plan and Sections.

Procedure:

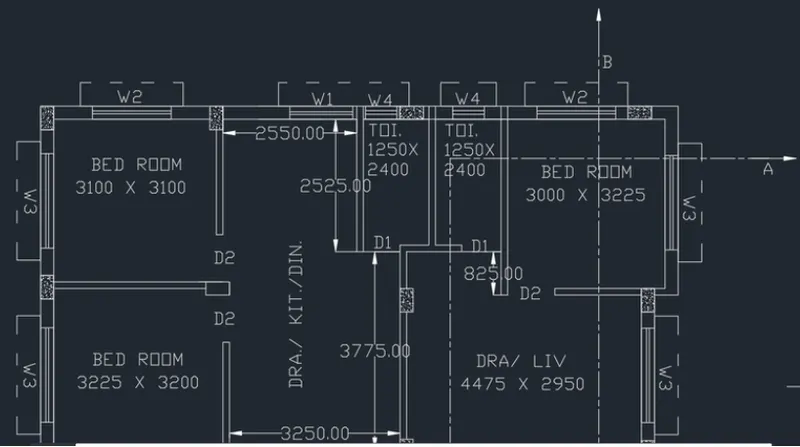

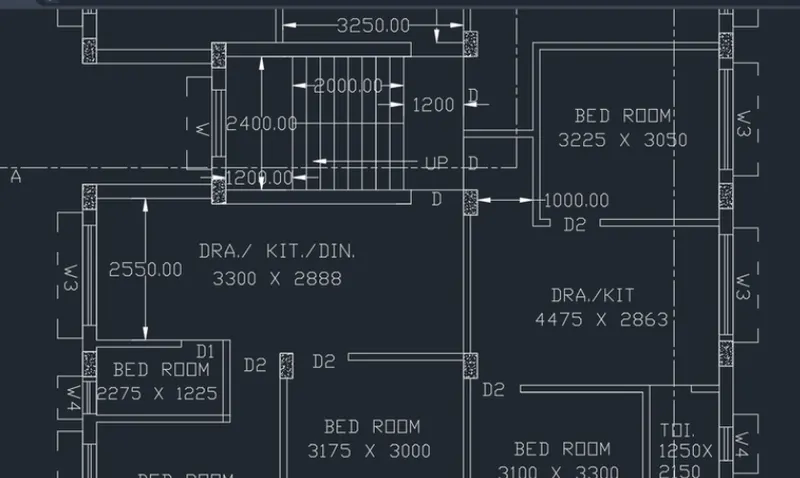

-1st, 2nd, and 3rd Floor plan:

• Draw vertical and horizontal X lines.
• Trim the unwanted lines.
• Offset both the lines to a distance of 230mm.
• Give the offsets as follow along the x-direction.
• Offset 3200mm for bedroom.
• Offset 125 for the inner wall.
• Offset 2250 for kitchen/drawing and dining room.
• Offset 1250 for both toilets.
• Offset 250 for external wall.
• Offset 250 for threads.
• Offset 2400 for the width of the staircase.
• Offset 1000 for Varanda
• Widows are drawn using line command.
• Hatch the inner columns with AIRCON.
•
•
•

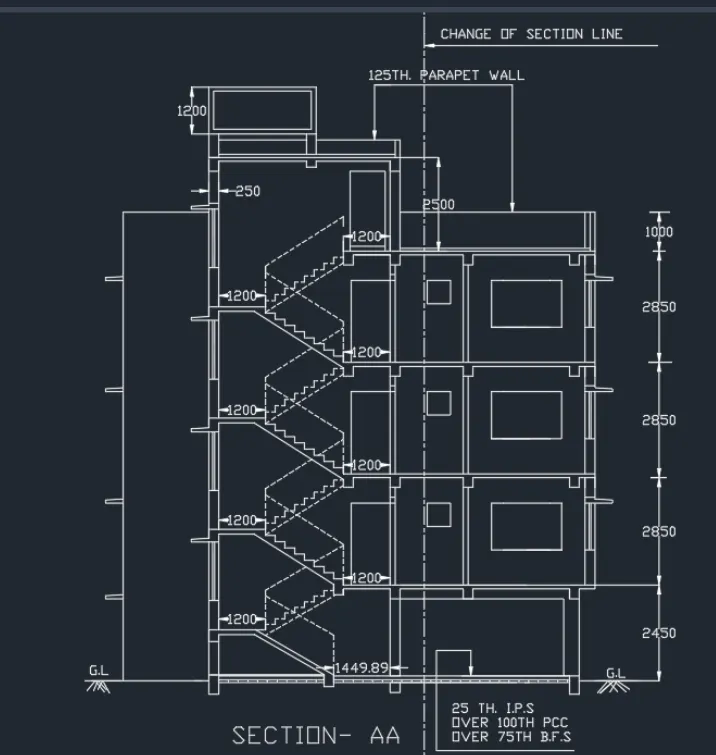

- Section AA

• Create a projection for the drawing downwards using the Xline command.
• Offset 2480 for the ground floor, 2850 for the second floor, and third floor.
• Offset 1000 for parapet wall
• Offset 2000 for Terrance level of mumty
• Offset 450 from mumty to parapet wall
• Offset 600 and 4000 of OCH
• For drawing staircase offset 2250 for thread and 143.75 fo rise
• Offset 125 below floor level for the slab.
• Draw windows and doors as per dimensions
• Annotate and mark the dimensions
•

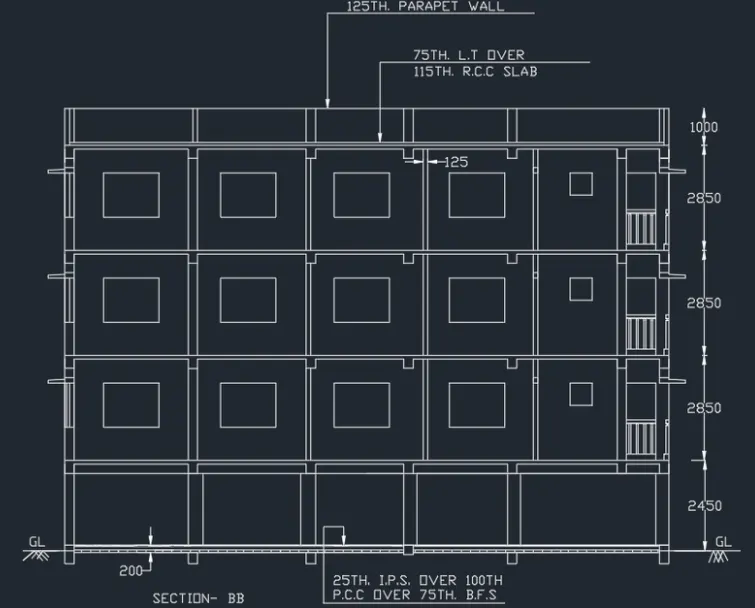

-Section BB

• Rotate the entire plan to 90 degrees
• Take the projection of all inner walls to125 and external 225mm
• Offset 150 from baseline.
• Offset 2450 for the ground floor, 2850 for the second floor, and third floor.
• Offset 1000 for parapet wall
• Thickness of the slab is assumed to be 125 mm
• Offset each floor 125 mm downwards
• ANnotate and mark the dimensions
•

Result:
