Creating a Layout, Section and Elevation with dimensions using AutoCad

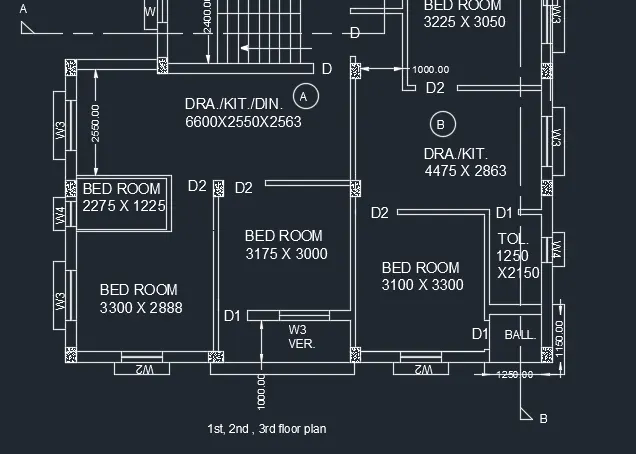

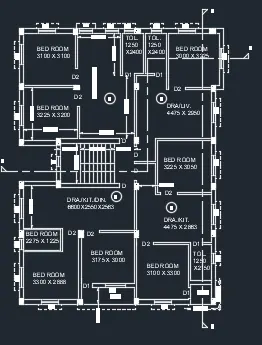

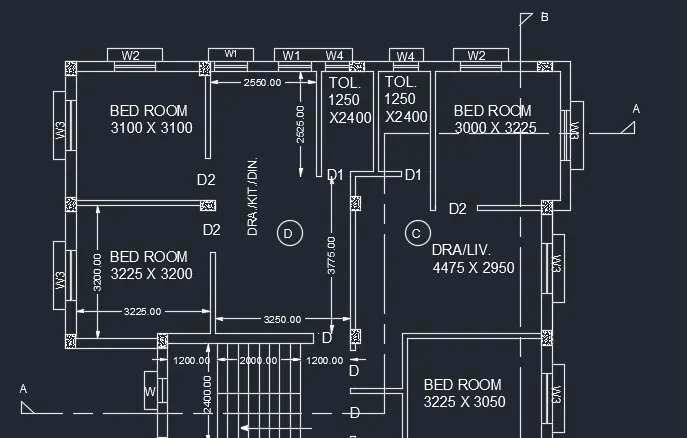

1. Create the Plan and Sections:

assumed

W3 = 1200 X 1500 MM

W2 = 1000 X 1500 MM

W1 = 800 X 600 MM

W4 = 600 X 600 MM

W = 600 X 1500 MM

D2 = 1000 X 2100 MM

D1 = 700 X 2100 MM

D = 900 X 2100 MM

Tread = 250 MM

.open autocad, opem new file

.unit command set decimal and precision 0.00

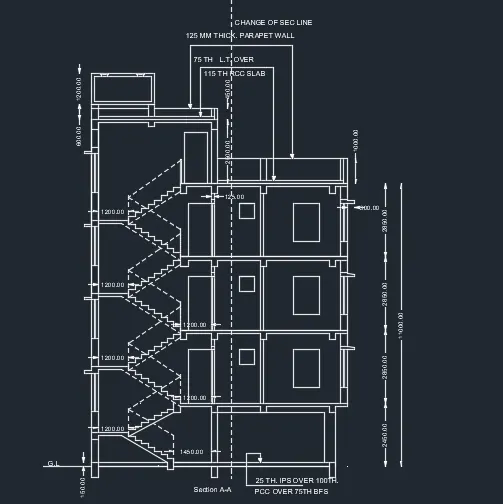

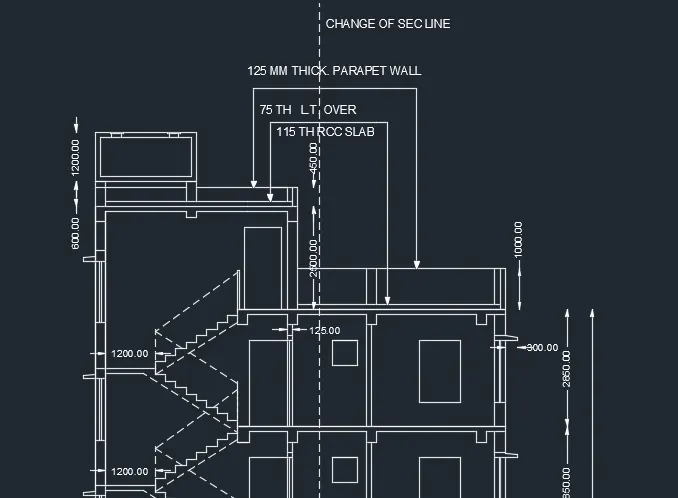

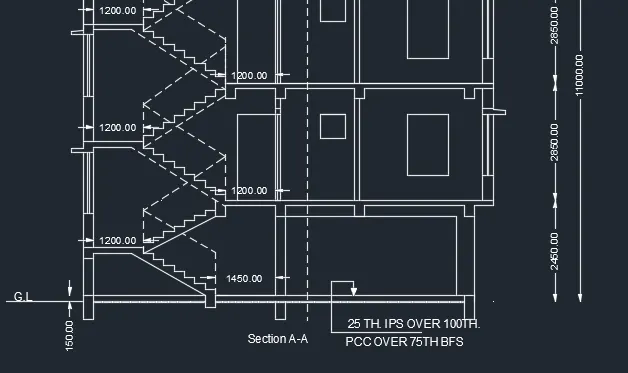

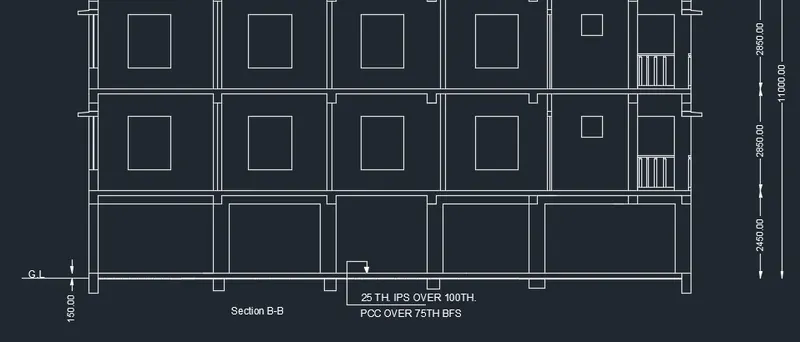

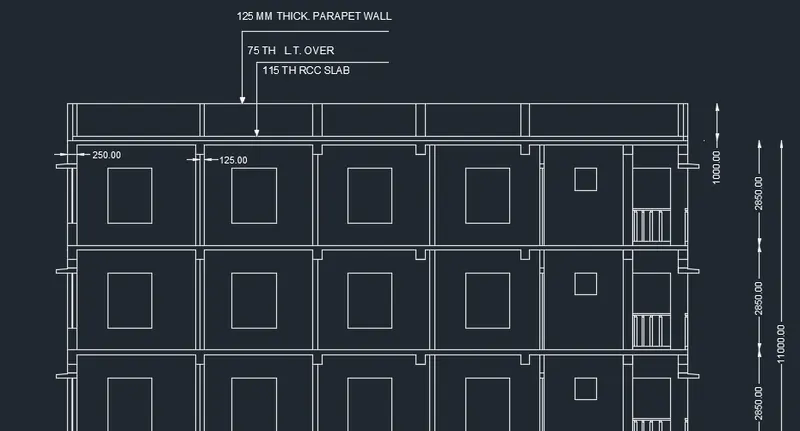

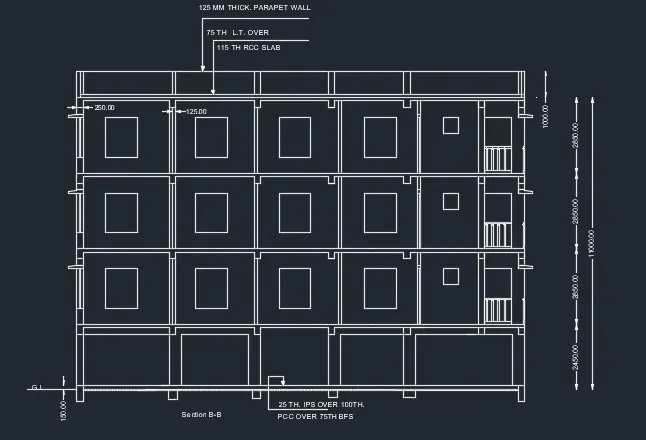

.using line command , offset command, move command, copy command, trim command, text command, hatching, and dimension command we draw the drawings as shown in image.
