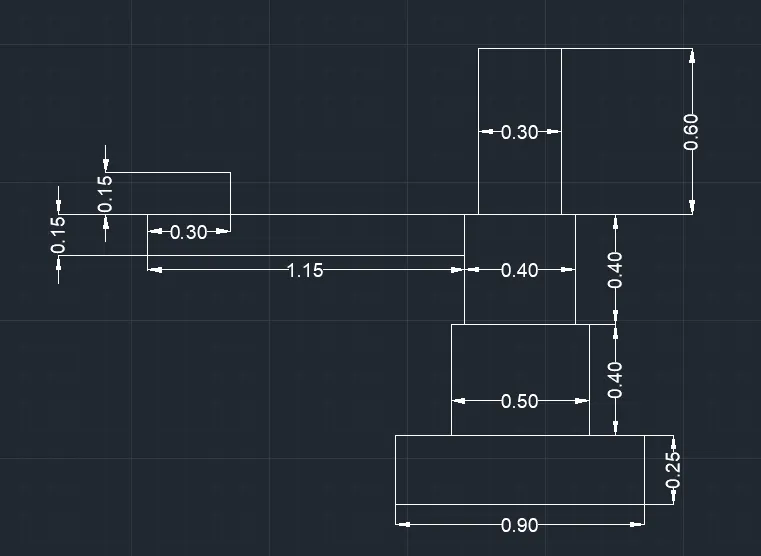

Creating a Floor plan, Footing detail and Isometric view using AutoCad

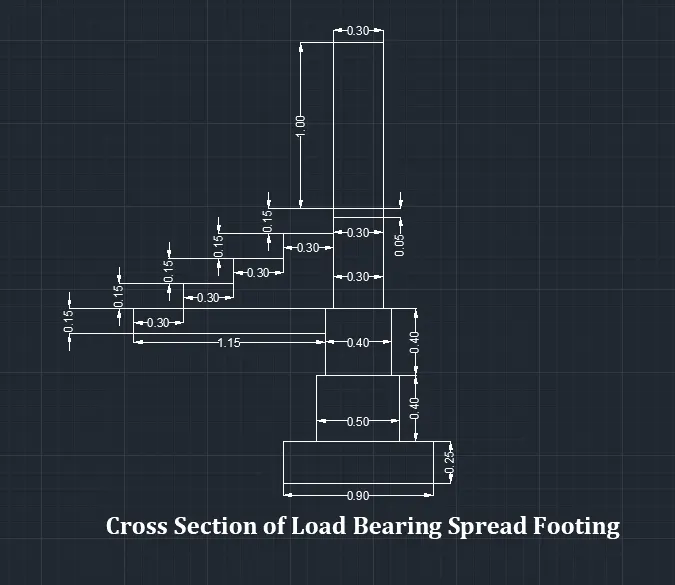

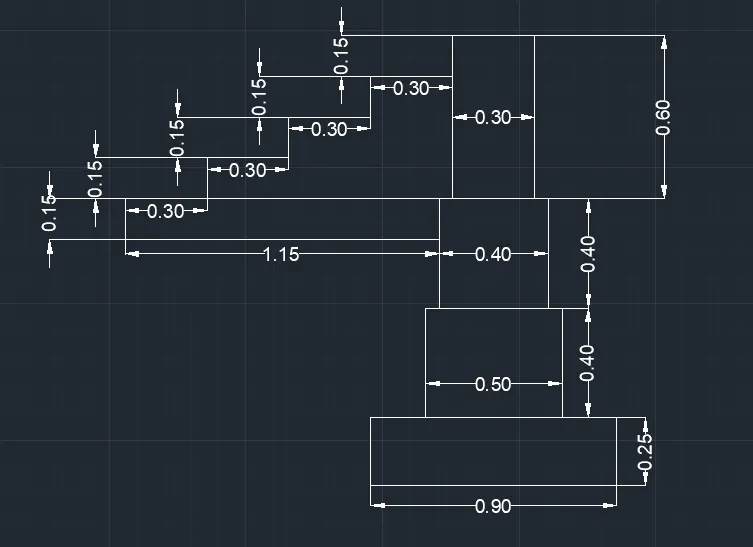

Cross Section of the load-bearing wall spread footing.

Aim: To draw a cross-section of the wall over the footing.

Commands Used:

• Line
• Rectangle
• Trim

Procedure:

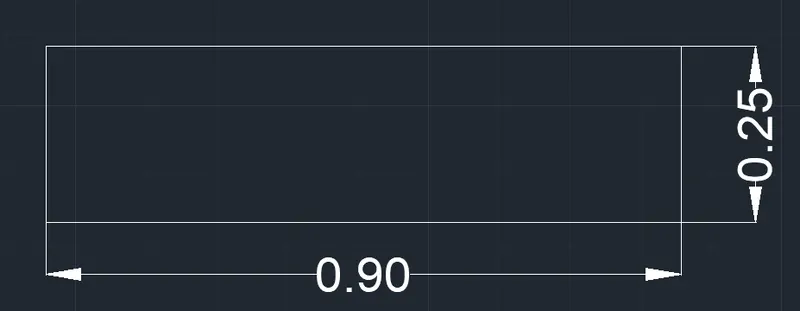

Step 1: Create a rectangle by typing "REC" in the command box.

• Specify the first corner point as (5,5)
• Specify the length of the rectangle= 0.9 units in the command box.
• Specify the width of the rectangle= 0.25 units in the command box.

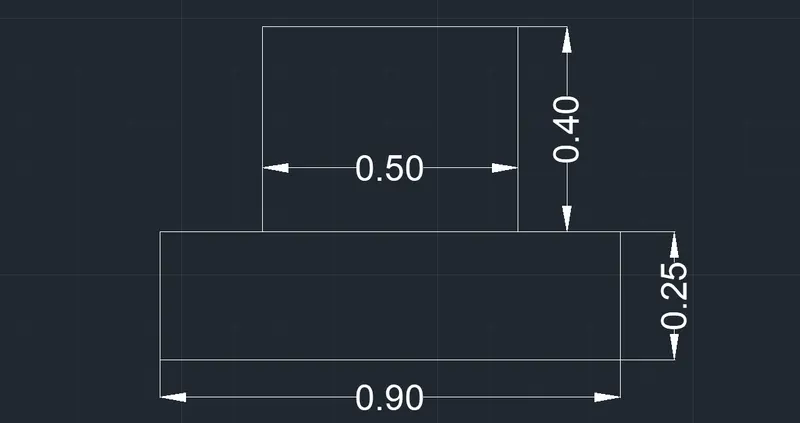

Step 2: Create another rectangle - "REC" in the command box.

• Specify the first corner point which is 0.2 units from the starting point of the first rectangle.
• Enter the length of the rectangle as 0.5 units and the width of the rectangle as 0.4 units.

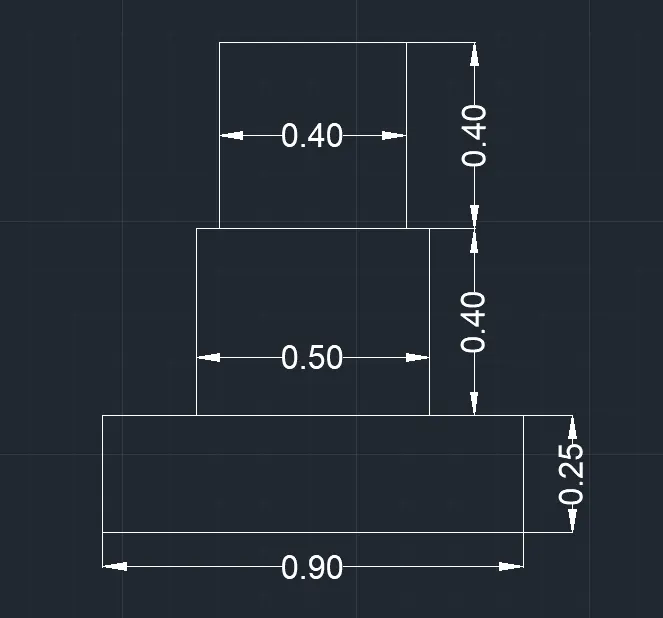

Step 3: Create the third rectangle command "REC"

• Specify the first corner point which is 0.05 units from the starting point of the second rectangle.
• Enter the length of the rectangle as 0.4 units and the width of the rectangle as 0.4 units.

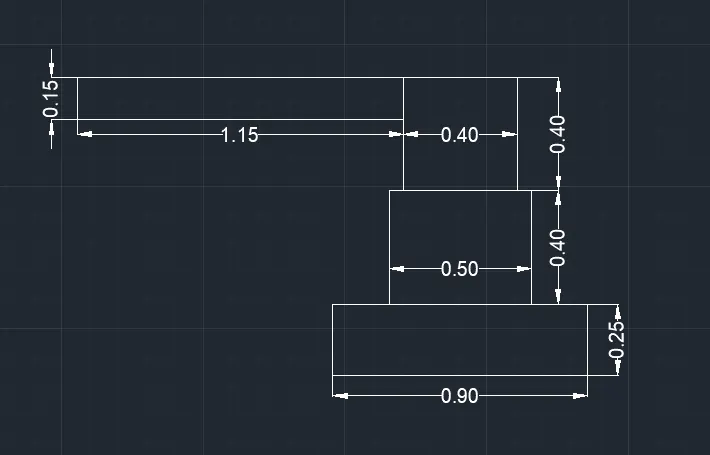

Step 4: A line is drawn from the corner of the third rectangle, command L

• Give the length as 1.15 units
• Move the cursor downwards and give the value 0.15 units and right and give the length 1.15 units.

Step 5: Fourth rectangle is drawn, command "REC"

• Specify the first corner point at a distance of 0.05 from the third rectangle.
• Give the length as 0.3 and width as 0.6.

Step 6: From the line drawn in step 4, at a distance of 0.3, draw another line with the distance of 0.15 units vertically and 0.3 units horizontally.

• Continue it two more times, until 3 steps are created.

Step 7: Draw another rectangle above the fourth rectangle, command- "REC"

• Specify the corner point as the corner of the fourth rectangle.
• Click on dimension- give length as 0.3 units and width as 0.05 units.

Step 8: Draw the fifth rectangle command "REC"

• Specify the corner point as the corner of the fourth rectangular.
• Click on dimension- give length as 0.3 units with as 1 unit.
• Erase the unwanted line by "trim".

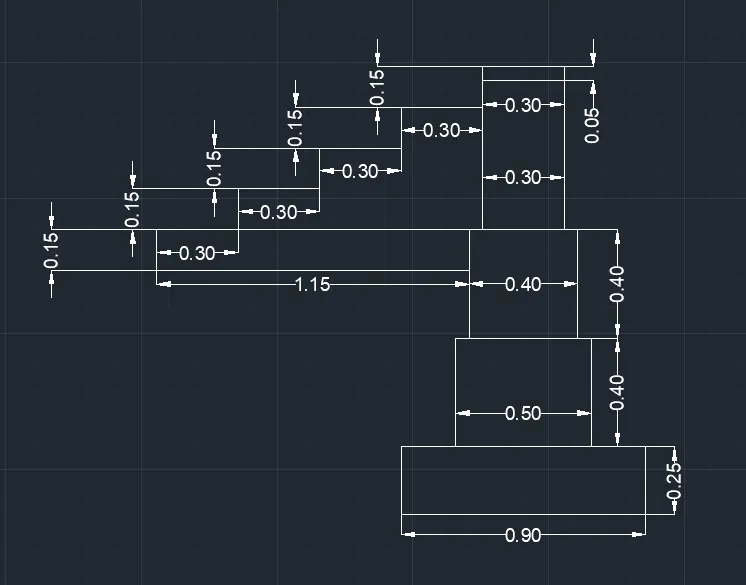

Result: The cross-section of load-bearing wall overspread footing is drawn.

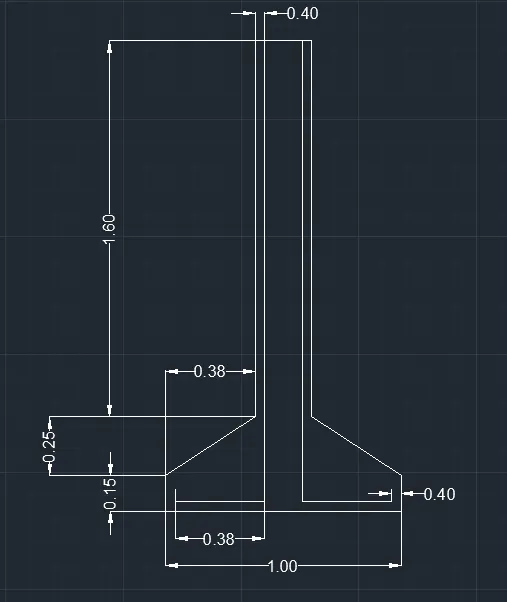

Cross Section of an isolated footing

Aim: To draw a cross-section of an isolated footing.

Commands Used:

• Line
• Offset
• Trim

Procedure:

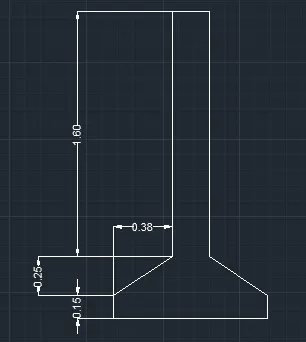

Step 1: Draw a line with the command "l" and give units.

• Give command "l" and give the relative coordinates as @ 0,0.15.
• Give the next coordinate as @ 0.38,0.25.
• Next coordinate is given as @0,16.
• Next coordinate @ 0.38, -0.25.
• Next @ 0,-0.15 or close.

Step 2: Draw an offset with the command at a distance of 0.04 from the bottom, the line to upwards.

• Give the command "o" select the object and give the offset distance as 0.04.
• Do the same at the right and left bottom end.
• Trim the unwanted lines.

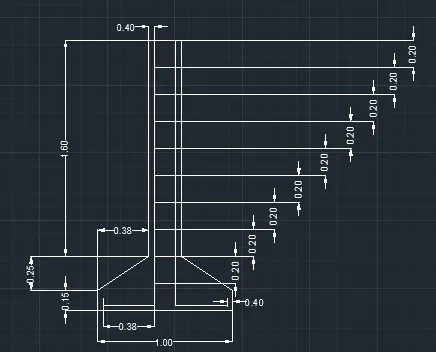

Step 3: Give offset from the top line with an offset distance of 0.2 units.

• Give the command "o" and select the object-give the offset distance as 0.2
• Select multiple options a 9 such lines.
• Trim the excess lines.

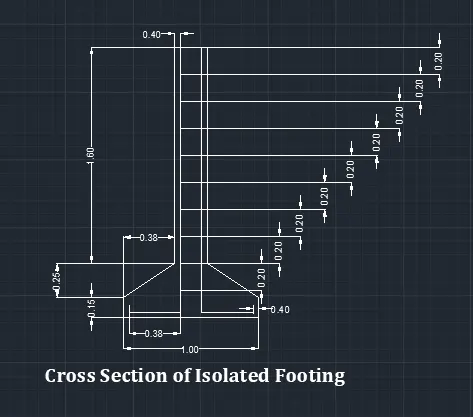

Result: The cross-section of isolated footing is drawn.

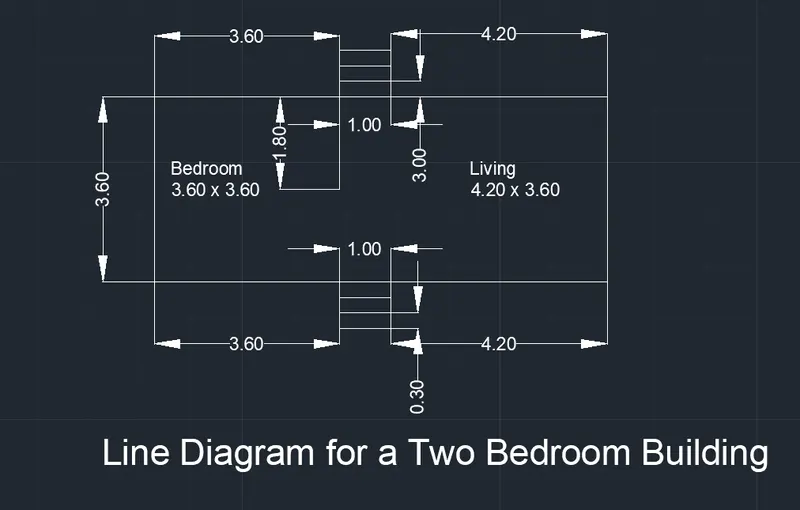

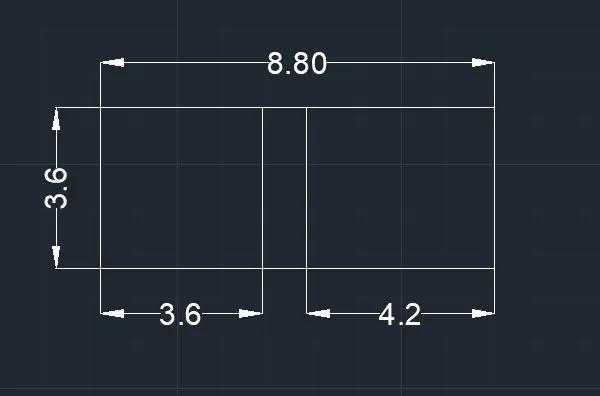

Line Diagram of 2 bedroom building

Aim: To draw a line diagram of 2 bedroom building

Commands Used:

• Line
• Rectangle
• Offset
• Trim

Procedure:

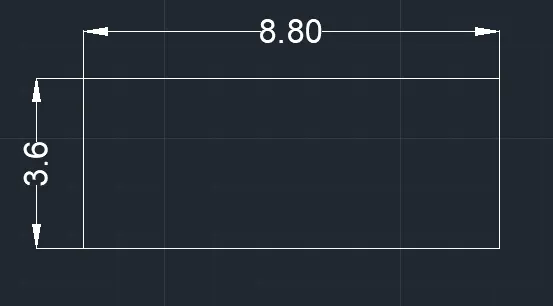

Step 1: Create a bedroom (8.8 x 3.6) by using the rectangle command.

Step 2: Use the command "Explode" and select the rectangle.

• Draw an offset using the command "O"
• In the command line enter "O" and specify the distance of 3.6 units from the left bottom end.
• Draw an offset using the command "O" at a distance of 4.2 units from the right bottom end.

Step 3: Extend the two lines in the bottom and the top.

• Draw an offset at a distance of 0.3 between the two lines to the bottom side.
• Repeat the same step and create two offsets.
• Do the same process at the top.
• Trim the unwanted lines.

Step 4:

• Using the line command draw a line at a distance of 3.2 units from the left bottom-end to upward 0.9 units.
• Using the line command draw a line at a distance of 3.2 units from the left top end to downwards 1.8 units.

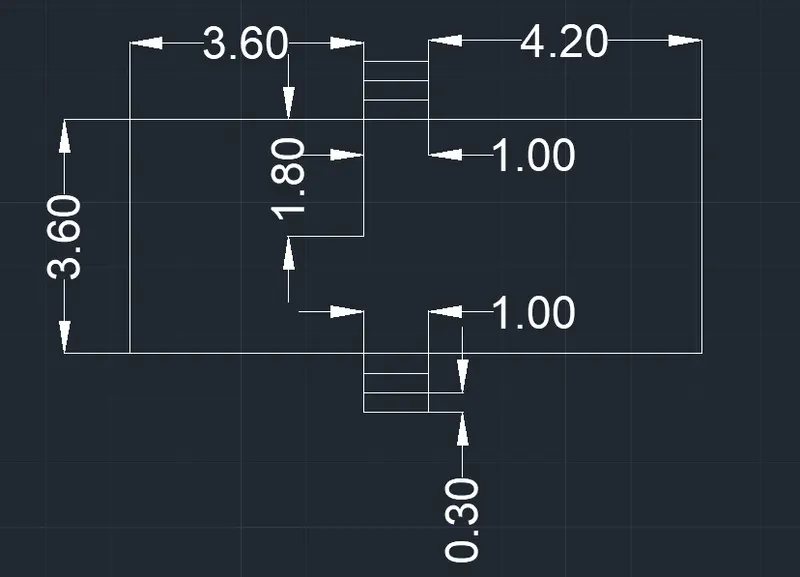

Result: The diagram of a 2-bedroom building is drawn.

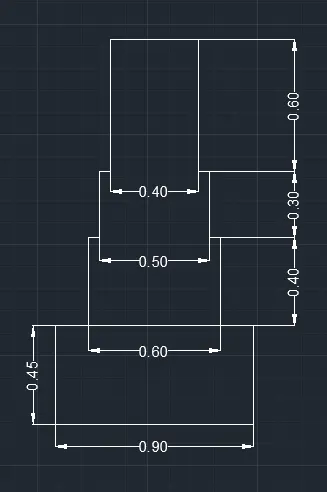

Cross Section of the Load Bearing wall showing foundation details

Aim: To draw the cross-section of a load-bearing wall showing foundation details.

Commands Used:

• Line
• Rectangle
• Trim

Procedure:

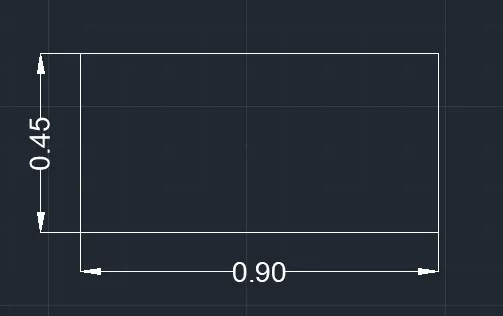

Step 1:

• Create a rectangle by typing "REC" in the command box.
• Specify the first corner point as (5,5).
• Specify the length of the rectangle as 0.9 units in the command box.
• Specify the width of the rectangle as 0.45 units in the command box.

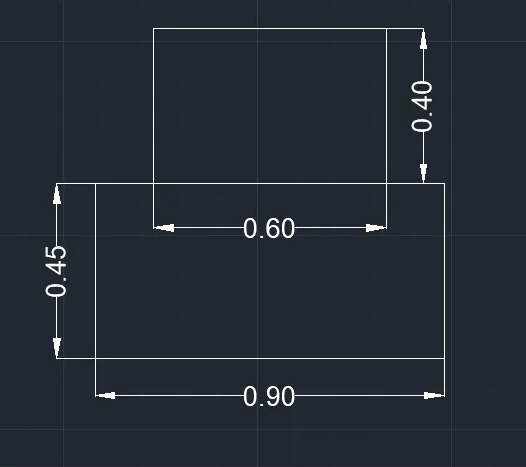

Step 2:

• Create another rectangle typing "REC" in the command box.
• Specify the first corner point which is 0.15 units from the starting point of the first rectangle.
• Enter the length of the rectangle as 0.6 units and the width of the rectangle as 0.4 units.

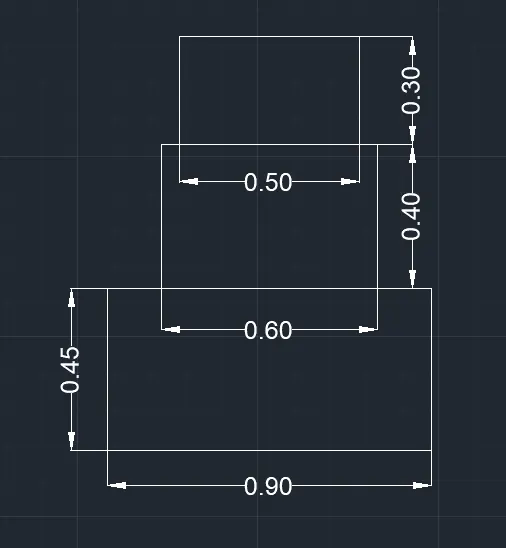

Step 3:

• Create the third rectangle typing "REC" in the command box.
• Specify the first corner point which is 0.05 units from the starting point of the second rectangle.
• Enter the length of the rectangle as 0.5 units and the width of the rectangle as 0.3 units.

Step 4:

• Create the fourth rectangle typing "REC" in the command box.
• Specify the first corner point which is 0.05 units from the starting point of the second rectangle.
• Enter the length of the rectangle as 0.4 units and the width of the rectangle as 0.6 units.

Step 5:

• Create the fifth rectangle typing "REC" in the command box.
• Specify the corner point as the corner of the fourth rectangle.
• Click on dimension and give length as 0.3 unit and width as 1 unit.
• Erase the unwanted line by using the "trim" command.

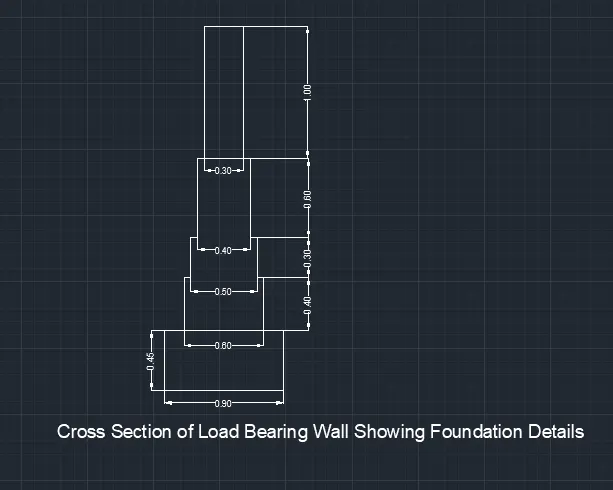

Result: The cross-section of the load-bearing wall foundation is drawn and the details of the same are as under:

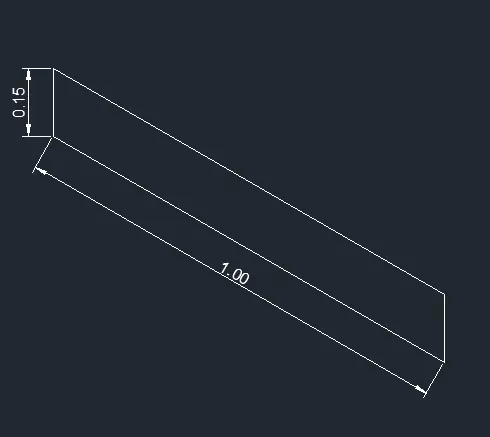

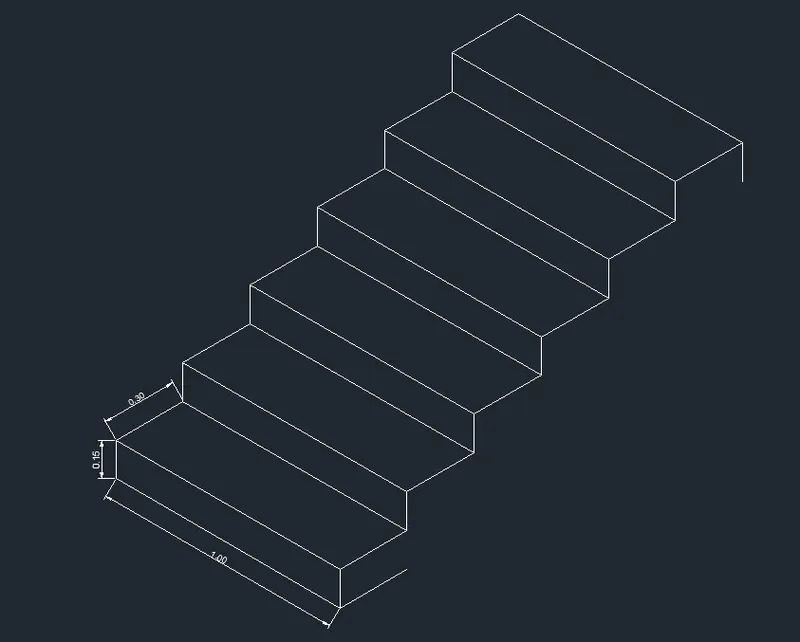

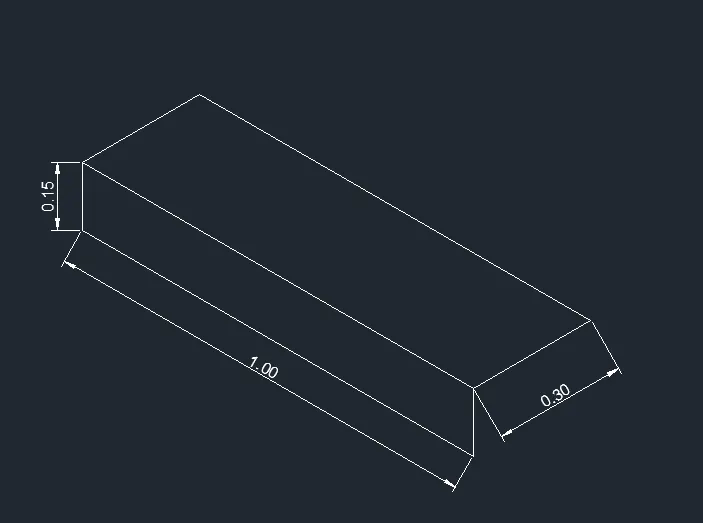

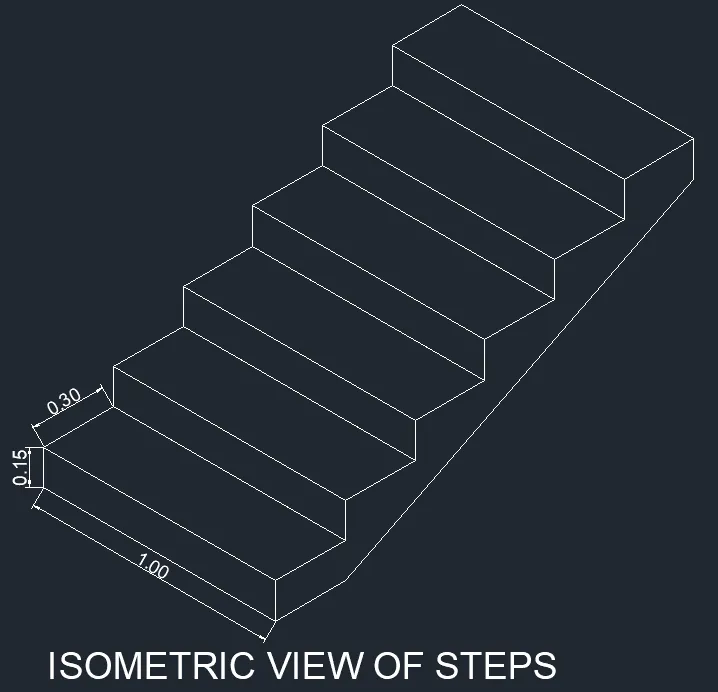

Isometric view of the Steps

Aim: To draw the isometric view of the steps.

Commands used:

• Line
• Isometric Plane.

Procedure:

• To work with an isometric view type command "ds" and snap off, grid off.
• Make sure that ortho mode is on.

Step 1: From isometric drafting select iso-plane left.

• Give command "l" and move the cursor to x-direction (left) to 1 unit.
• Move the cursor to +y direction (top), give 0.15 units.
• Move the cursor to +x direction again and give 1 unit and the cursor to y-direction (downwards) give 0.15 units.

Step 2: Change the isometric drafting to the isoplane top.

• Move the cursor and give the command to draw 0.3 units from the last drawn point.
• Move the cursor in the right direction and move 1 unit.
• Move the cursor to the front and give 0.3 units.

Step 3: Change the isometric drafting to iso-plane right.

• Copy the object drawn, and give the command for ortho off.
• Enter the "copy" command and specify the base point and place it to a new point.
• Repeat the command till 4 steps are formed.

Step 4: With the isoplane right join the two ends with ortho off.

Result: The steps are drawn in an isometric view.

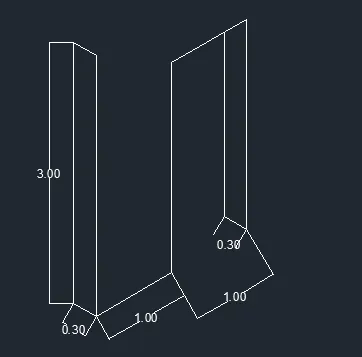

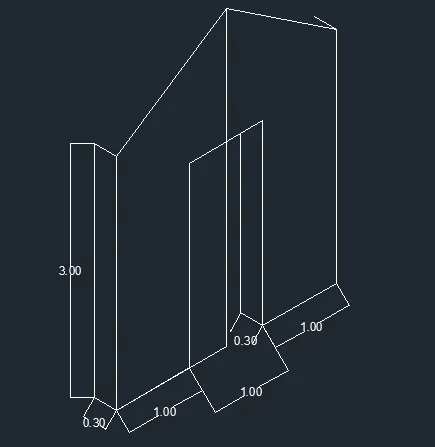

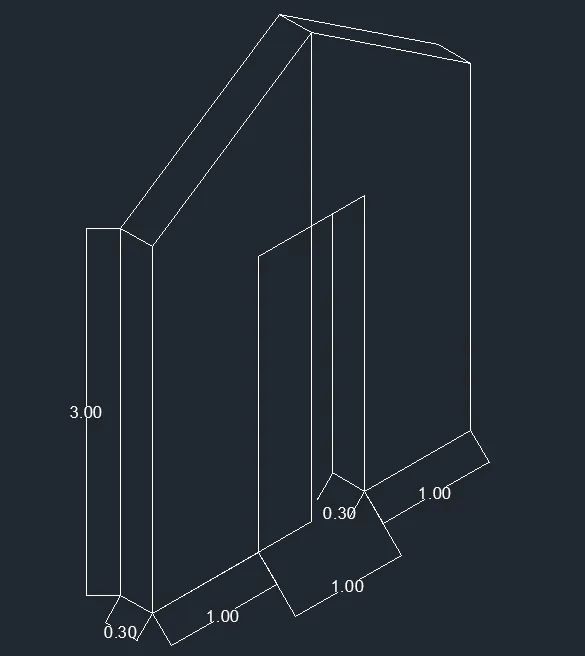

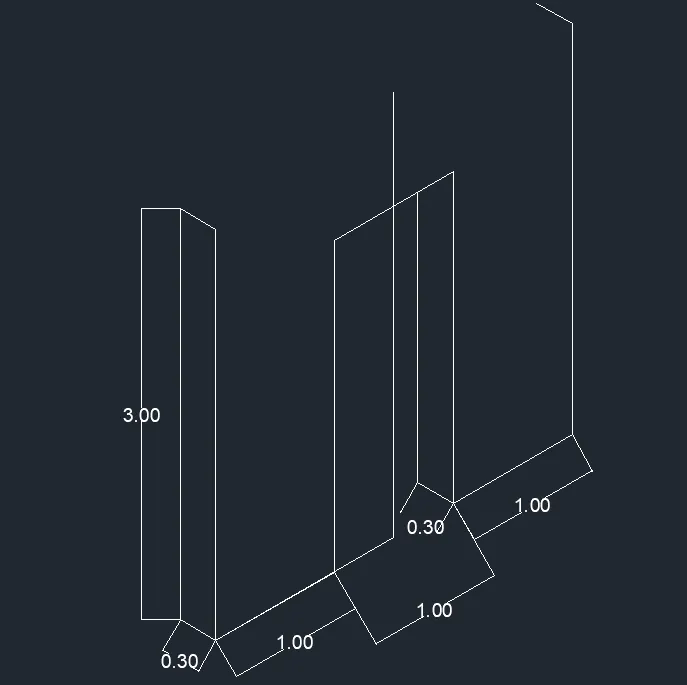

Isometric View of the Gable Wall.

Aim: To draw the isometric view of the gable wall.

Commands Used:

• Line
• Isometric Plane

Procedure:

• To work with an isometric view type command "ds" and snap off, grid off.
• Make sure that ortho mode is on.

Step 1: From isometric drafting select iso-plane left.

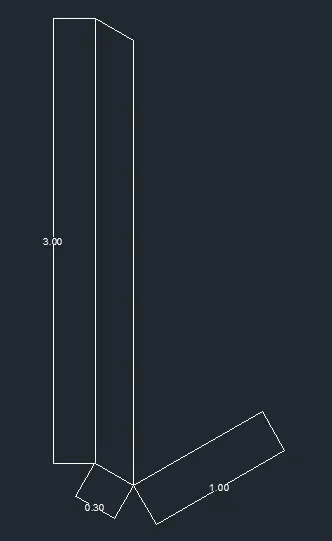

• Give command "l" and move the cursor to right for the distance of 1 unit.
• Pointing the cursor upwards move 3 units.
• Draw 0.3 units to the left and 3 units downwards.

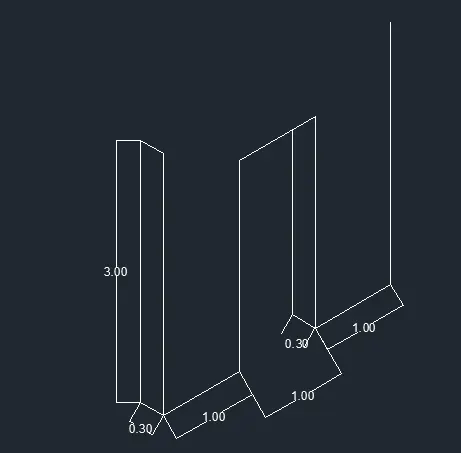

Step 2: Using isometric right, take line command and draw a line upwards to 2.42 units from the starting point of step 1.

• Draw 1 unit towards the right and 2.42 units downwards.
• Using isometric left again, using the line command draw 0.3 units towards the left side and draw a line that intersects with the top line.

Step 3: Using iso-metric right with the line command draw 1.0 units to the right side and 3 units to the upside.

Step 4: By using the line command draw a line from the bottom left corner @1.5 units and extend the line 4 units upwards i.e., a total of 3.25 units from the bottom.

Step 5: With ortho off, draw a line between the corner of the left side and the projected line done in step 4.

• Draw it to the other side also till it meets the right corner.

Step 6: Draw the vertical line with ortho on @0.3 and join the vertical line using lines from the left and right end same as in step 5 remove unwanted lines by using erase command.

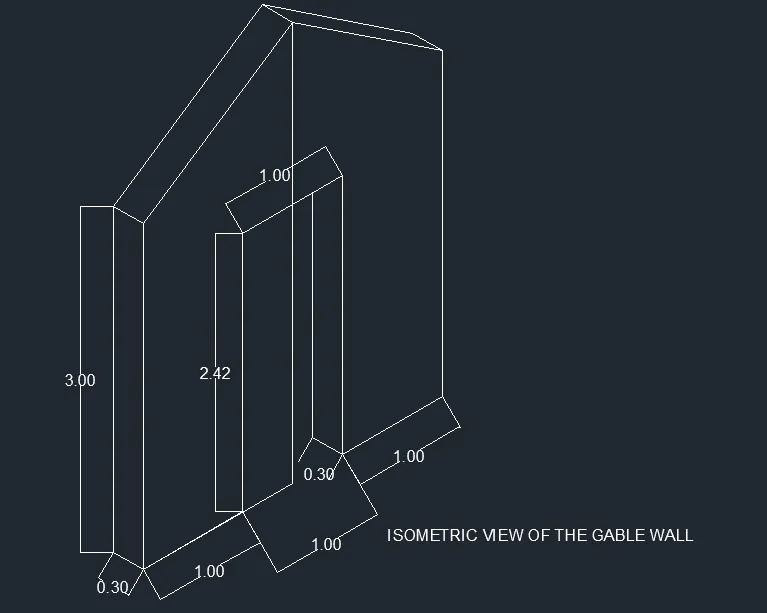

Result: The isometric view of the gable wall is drawn.
