Creating a 3D rendered model for a Residential Building in AutoCad

1.AIM:

Create a 3 dimensional model of the residential building with a rendered view.

Create a 3 dimensional model of the residential building:

1. First step we need create the 2d plan for residential building.
2. First we need to study the plan and get planed to draw.
3. First we need start from a left hand side of the plan.
4. Click 'XL'-V(Vertical Line) command to start draw.
5. And 'Of' offset coomand as per plan dimension.

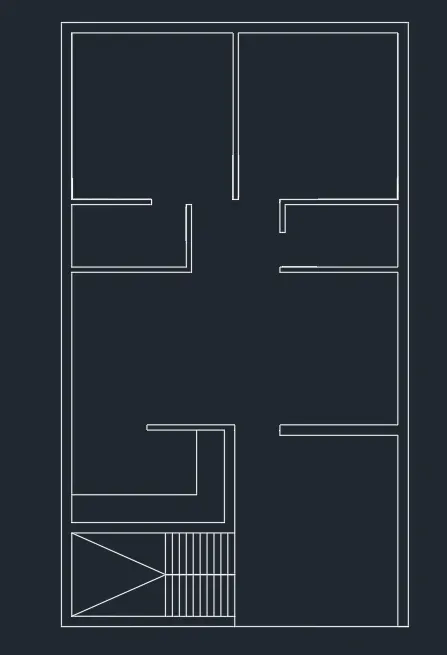

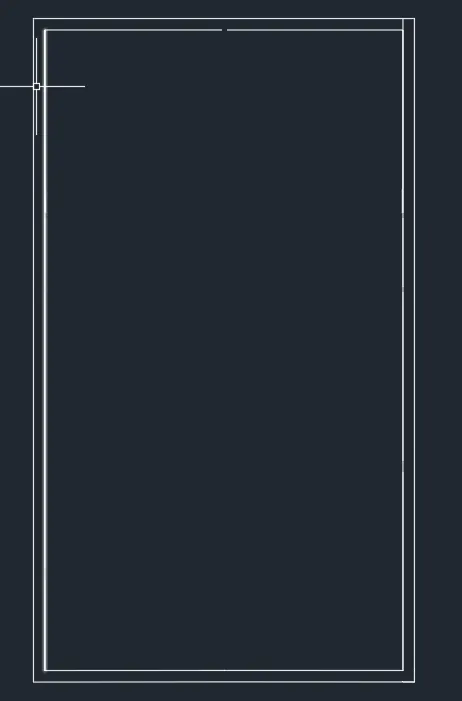

6. First we need to create a Outer plan of drawing.
7. Then offset the Room size as per Dimension given as per plan.
8. Click 'TR'Trim command trime the extendend line.
9. Then 'Ex'extend command to extentend line with upto second line.

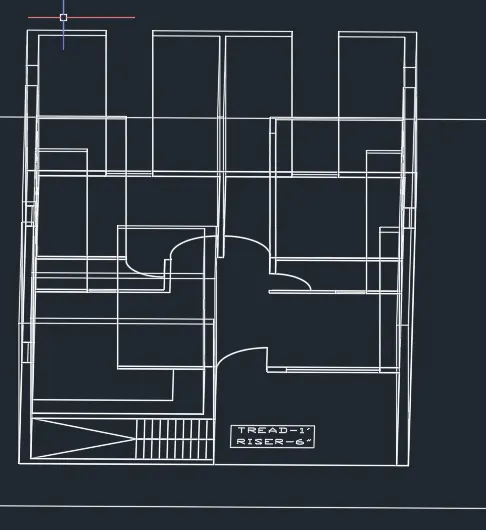

10. THen Draw Staircase as per dimension of given plan.
11. Click offset the steps by length by plan.

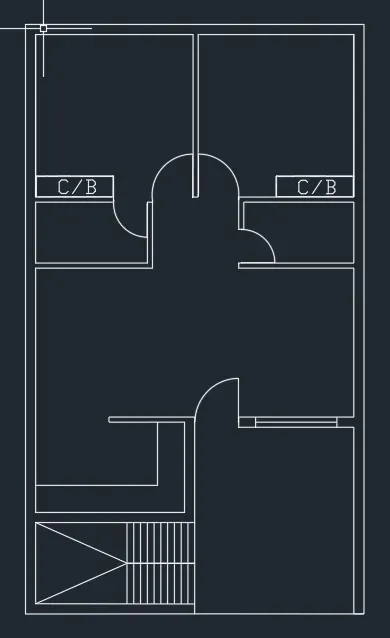

12. And Draw the 'DOOR' with the help of 'Circle' command.
13. And first to draw hinch .25"inch and draw over a circle.
14. And draw staright line to the centre to centre of the line
15. Finally trim the cricle and create a door.
16. Then create a Layer properties to create a Layer option
17. Create a Layer option to 3DDOOR,3Dfloor,3Dwindow,3Dparapt wall,3Dwall seprately.
18. Click"TEXT"option to create a room name as a text Layer

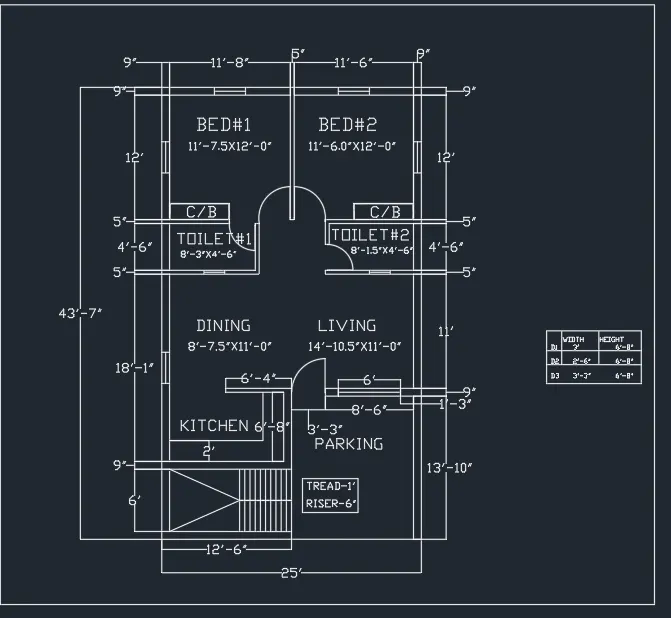

19. After complete a drawing we need show dimension of 2DReesidence Plan.
20. Click "DIM"command to create a dimension.

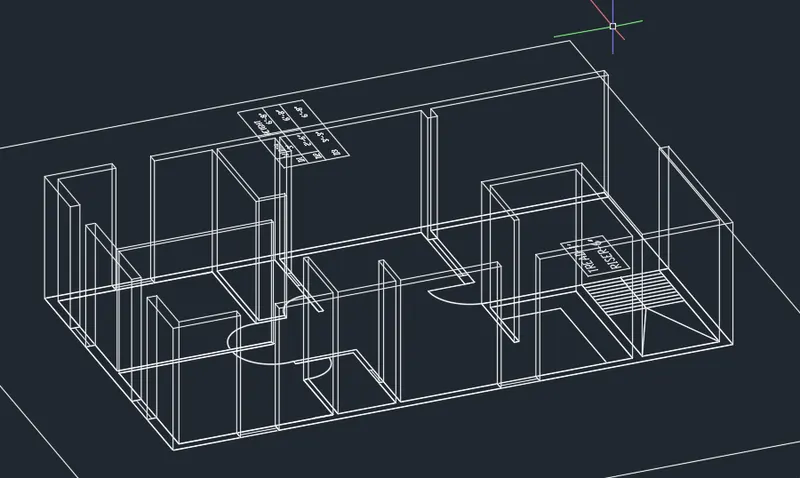

21. Then we rotate the Plan for isometric view to create the 3D plan.
22. And Click 'Boundary' command and pick region point.
23. Then select the edges as region.

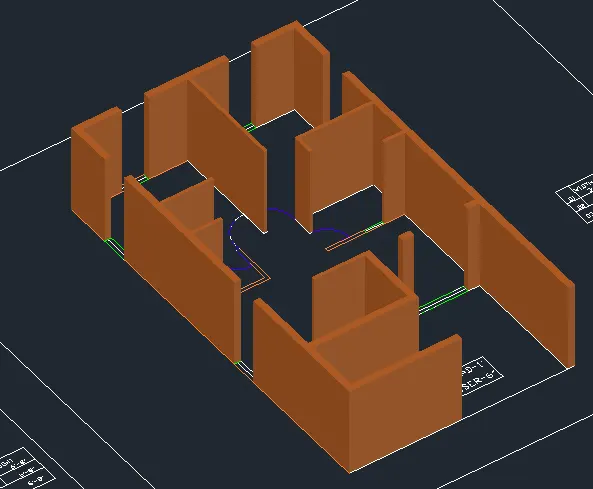

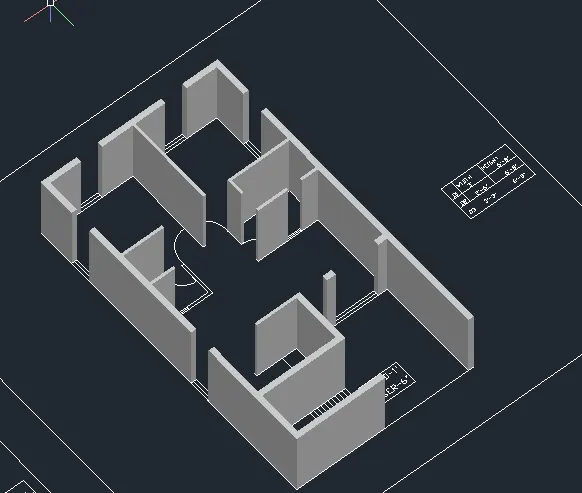

24. Then Click "EXT" extude command to 10'of the height of the wall.
25. And create the window and door in 3D view by using extude command.
26. Then click 'Shaded' command and view the building.
27. After complete the inner design then create the Roof for 6"thickness.

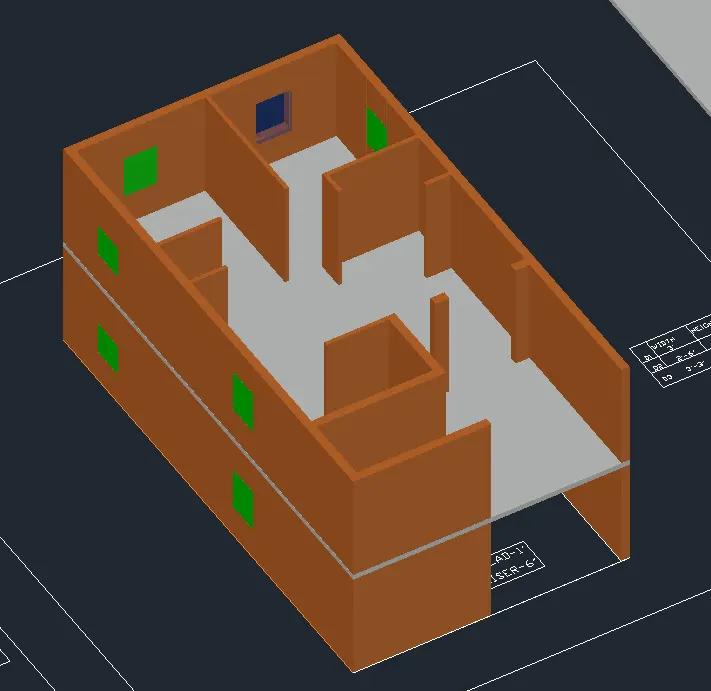

28. Click Copy button to create the First Floor of the plan as same dimension.

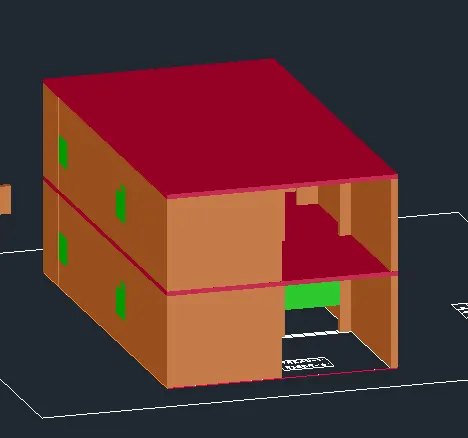

29. Then create the top roof of the building.
30. And create the parapet wall as for 3'feet.

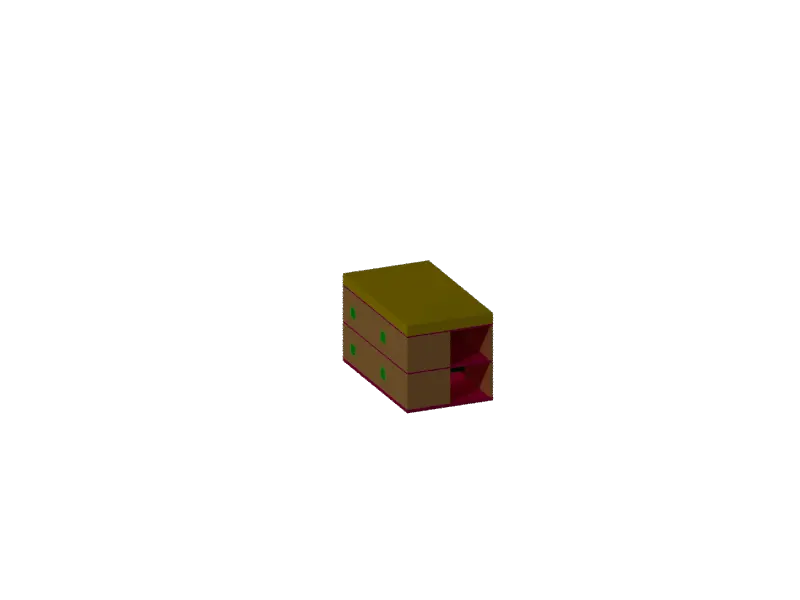

31. Finnaly "RR" render view the residental building.
32. And check the view and proper finishing of the building.
33. And we use a Snipping Tool to take a screenshot.
34. Finally Click Save as to save the picture.

RESULT:

In this challenge we get a knowldge of create the 3Dview of the residential building in the render view.
