Creating 3D Isometric view of various structural elements in AutoCAD
1. A 3D Isometric View of the building as given in the plan and elevation :
A ) AIM & INTRODUCTION:
AIM:
- To create a 3D Isometric View of the building with plan and elevation given from the 3D workspace by using solid editing tools.
INTRODUCTION:
- "A 3D isometric View of the Building with two side walls " is a drawing of PLAN A which was created in the "3D modeling /basics workspace".
- Here in the 3D modeling space, all drawings can be created in all the 3 axiz such as x,y and z.
- The solid model creating tool from the "tool palette" is used to create this 3D View of the Building is given in the plan and elevation.
- The plan will be created in the 2D workspace and then extruded to the 3D isometric view.
- Also the created 3D View of the Building as given in the plan and elevation are can be viewed/seen in the "360 degree" to make sure of the shape structure which was created as a 3D model.
- Some of the view tools in the 3D modeling workspace plays the major role for the 3D isometric models they are such as VISUAL STYLE, VIEW CUBE, UCS/UCS ICON.
- With the "Visual style" the visual styles can be changed by customization as required to view the 3D elements, some of the Visual styles such as "2D "Wireframe", "Shaded", "Conceptual", "Hidden", "Realistic".
- With the "View Cube" the various views of the elements can be viewed such as TOP, BOTTOM, RIGHT, LEFT, FRONT ,BACK and so on.
- And with the "UCS/UCS ICON" the differect faces of the 3D models can be created or edited on the "axis plane" such as XY, YZ, ZX.
- In the visual bar selecting the "Materials browser" option the colors of the the isometric views can be made as per the required material property.
- Also, to render the created isometeric view can be rendered with the render option in the "visual bar" .
B ) PROCEDURE:

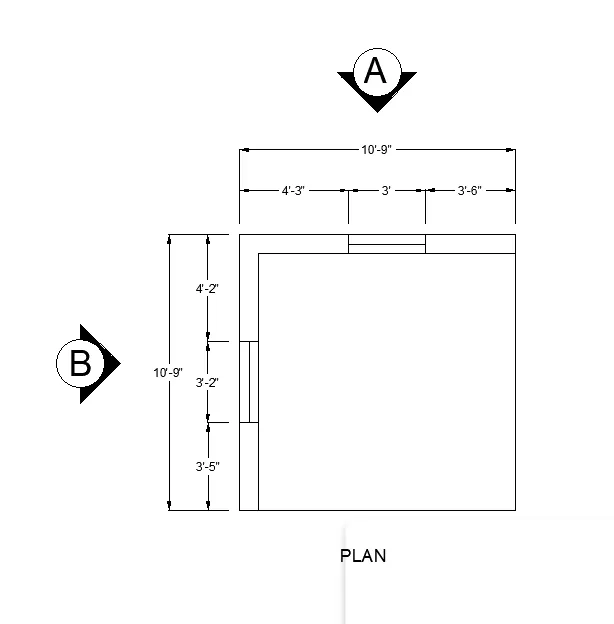

- First the 2D plan of the given figure should be created as per the given dimensions.
- The plan A will be created as per the figure with the required tools and dimensions with the "line" and the "rectangle" tool.
-
The walls are presented in the 2 sides of the plan with two elevations along with widows.
-
The two different elevations of this plan are such as ELEVATION 1 & ELEVATION 2 .
-
And the dimension are should be denoted by the DIMLINEAR command.
- Then the workspace should be chaged from the DRAFTING AND ANNOTATION to the 3D MODELING (OR) 3D BASICS.
- Then the view of the model space should be extruded as the isometric view with the "VIEW CUBE" by clicking the home button.
- After getting into the 3D MODELING workspace, the created wall and window of the plan should be allowed to extruded by 3D solid extrude tool.
- But before starting the process of extruding the created 2D draft, it should be converted into the region (or) boundary with REGION/BOUNDARY command.
- For that the UCS ICON must be placed at the suitable face with the UCS command such as UCS<FACE<and selecting the face of the 3D element to make the Dimension mark at the required axis plane.
- To check the 360 degree view of the 3D element, the 3DORBIT command should be used using the command, with this 3D ORBIT tool we can access the 360 view of the element by rotating the mouse pointer.
- To view the 2D wireframed structure as a 3D visual structure, the BOUNDARY or REGION command should be used to make the every face of the element as a single individual face of the object.
- Then through the command "HIDE" or "HIDDEN", the element will be made as a 3D visualized structure without the excess lines/edges behind the object.
- After making a region of a 2D plan, its wall part should be extruded first @10' and the window will be created at the wall height of 3' from the GL.
- The creation of the window will be done in three different layers such as WINDOW FRAME, WINDOW PANEL, WINDOW GLASS as per the given figure and dimensions.
- The windows will be created as per the given dimensions and the the window panel and the window glass are created and inserted inside the window by creating individually.
- The created window panel and the glass are attached after the subraction of the required space inside the window as a size of the PANEL and the GLASS.
- After the complete creation of the 3D isometric view of the Plan A, the 3D model will be allowed to look in the suitable color as per the material used in the structure.
- The walls, windows and other structures and material are can be colored as per its material property to look real as it is, and it can be done by using the MATERIAL BROWSER tool in the VISUAL BAR.
- The required "Lighting" can also be attached inside the created isometric view with the light settings in the VISUAL BAR.
- Then the Created isometric view will be allowed to render by using the render tool in the VISUAL BAR.
- The rendering of 3D view can be adjusted in the render option such as RENDER OPTION < QUALITY OF THE RENDERING < RENDER AS REGION < RENDER.
C ) RESULT:
- It is a "3D View of the Building with two side walls of the plan, it was created in the 3D modeling/basics workspace.
- The shown 3D View of the Building is from the "Home view" of the VIEW CUBE.
- This 3D View of the Building with two side walls of the plan is created in all the 3 axis such as "x, y and z".
- The TOP VIEW of the Building with two side walls of the plan is created as a 2D drawing and extruded as a 3D view.
- The faces of this 3D View of the Buildingwith two side walls of the plan are made into single object with the "UNION" tool.
- By placing the UCS icon at the required face of the 3D view, the faces can be edited individually along its axis plane.

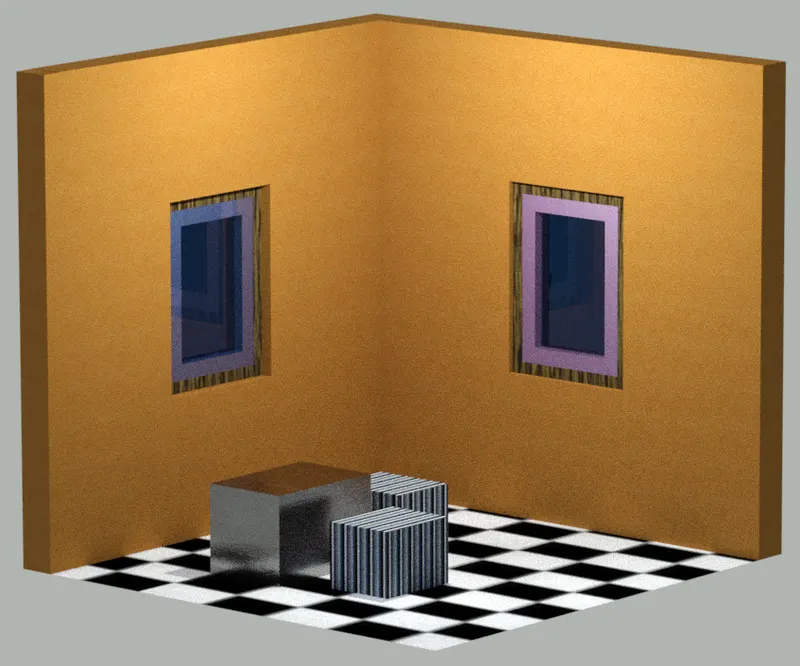

A 3D ISOMETRIC VIEW OF THE BUILDING
2. A 3D View of the Building Façade as given in the plan and elevation :
A ) AIM & INTRODUCTION:
AIM:
- To create the 3D View of the Building Façade as given in the plan and elevation in the 3D modeling/basics workspace as per the shown figure.
INTRODUCTION:
- A 3D View of the Building Façade is a drawing which was created in the "3D modeling /basics workspace".
- Here in the 3D modeling space, all drawings can be created in all the 3 axiz such as x,y and z.
- The solid model creating tool from the "tool palette" is used to create this 3D View of the Building Façade as given in the plan and elevation.
- The plan will be created in the 2D workspace and then extruded to the 3D isometric view.
- Also the created 3D View of the Building Façade as given in the plan and elevation are can be viewed/seen in the "360 degree" to make sure of the shape structure which was created as a 3D model.
- Some of the view tools in the 3D modeling workspace plays the major role for the 3D isometric models they are such as VISUAL STYLE, VIEW CUBE, UCS/UCS ICON.
- With the "Visual style" the visual styles can be changed by customization as required to view the 3D elements, some of the Visual styles such as "2D "Wireframe", "Shaded", "Conceptual", "Hidden", "Realistic".
- With the "View Cube" the various views of the elements can be viewed such as TOP, BOTTOM, RIGHT, LEFT, FRONT ,BACK and so on.
- And with the "UCS/UCS ICON" the differect faces of the 3D models can be created or edited on the "axis plane" such as XY, YZ, ZX.
- In the visual bar selecting the "Materials browser" option the colors of the the isometric views can be made as per the required material property.
- Also, to render the created isometeric view can be rendered with the render option in the "visual bar" .
B ) PROCEDURE:
- First the 2D plan of the given figure should be created as per the given dimensions.
- The plan A will be created as per the figure with the required tools and dimensions with the "line" and the "rectangle" tool.
-
And the dimension are should be denoted by the DIMLINEAR command.
- Then the workspace should be chaged from the DRAFTING AND ANNOTATION to the 3D MODELING (OR) 3D BASICS.
- Then the view of the model space should be extruded as the isometric view with the "VIEW CUBE" by clicking the home button.
- After getting into the 3D MODELING workspace, the created wall and window of the plan should be allowed to extruded by 3D solid extrude tool.
- But before starting the process of extruding the created 2D draft, it should be converted into the region (or) boundary with REGION/BOUNDARY command.
- For that the UCS ICON must be placed at the suitable face with the UCS command such as UCS<FACE<and selecting the face of the 3D element to make the Dimension mark at the required axis plane.
- To check the 360 degree view of the 3D element, the 3DORBIT command should be used using the command, with this 3D ORBIT tool we can access the 360 view of the element by rotating the mouse pointer.
- To view the 2D wireframed structure as a 3D visual structure, the BOUNDARY or REGION command should be used to make the every face of the element as a single individual face of the object.
- Then through the command "HIDE" or "HIDDEN", the element will be made as a 3D visualized structure without the excess lines/edges behind the object.
- After making a region of a 2D plan, its wall part should be extruded first @10' and the window will be created at the wall height of 3' from the GL.
- The creation of the window will be done in three different layers such as WINDOW FRAME, WINDOW PANEL, WINDOW GLASS as per the given figure and dimensions.
- The windows will be created as per the given dimensions and the the window panel and the window glass are created and inserted inside the window by creating individually.
- The created window panel and the glass are attached after the subraction of the required space inside the window as a size of the PANEL and the GLASS.
- After the complete creation of the 3D isometric view of the Plan A, the 3D model will be allowed to look in the suitable color as per the material used in the structure.
- The walls, windows and other structures and material are can be colored as per its material property to look real as it is, and it can be done by using the MATERIAL BROWSER tool in the VISUAL BAR.
- The required "Lighting" can also be attached inside the created isometric view with the light settings in the VISUAL BAR.
- Then the Created isometric view will be allowed to render by using the Render tool in the VISUAL BAR.
- The rendering of 3D view can be adjusted in the render option such as RENDER OPTION < QUALITY OF THE RENDERING < RENDER AS REGION < RENDER.
C ) RESULT:
- It is a 3D View of the Building Façade and it was created in the 3D modeling/basics workspace.
- The shown 3D View of the Building Façade is from the "Home view" of the VIEW CUBE.
- This 3D View of the Building Façade is created in all the 3 axis such as "x, y and z".
- The TOP VIEW of the Building Façade is created as a 2D drawing and extruded as a 3D view.
- The faces of this 3D View of the Building Façade are made into single object with the "UNION" tool.
- By placing the UCS icon at the required face of the 3D view, the faces can be edited individually along its axis plane.

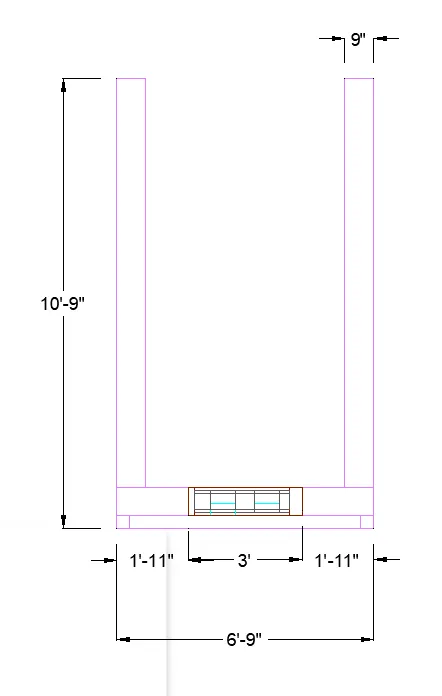

PLAN

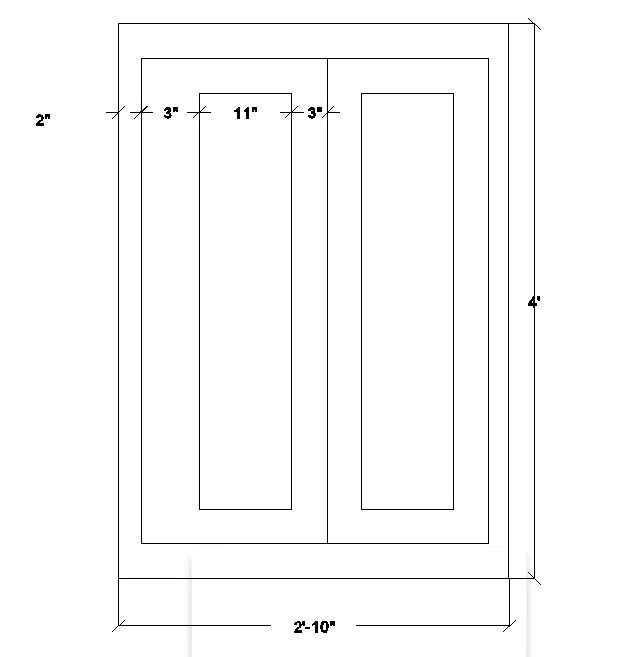

THE DETAILS OF WINDOW

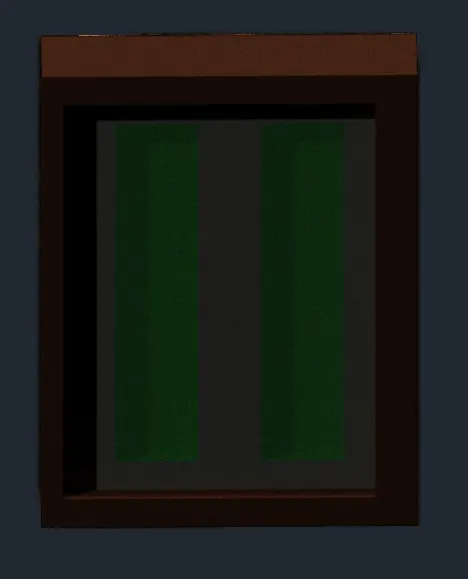

A 3D ISOMETRIC VIEW OF WINDOW

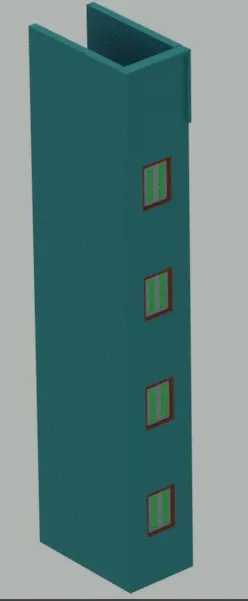

A 3D ISOMETRIC VIEW OF THE BUILDING FACADE
3. A ismoteric 3D view of a stair with railing as given in the plan and elevation :
A ) AIM & INTRODUCTION:
AIM:
- To Create the ismoteric 3D view of a stair with railing as shown in the plan and elevation by assuming the size of the balustrades and the hand rails in the 3D modeling/basics workspace as per the shown figure.
INTRODUCTION:
- A 3D ismoteric view of a stair with railing is a drawing which was created in the "3D modeling /basics workspace".
- Here in the 3D modeling space, all drawings can be created in all the 3 axiz such as x,y and z.
- The solid model creating tool from the "tool palette" is used to create this 3D ismoteric view of a stair with railing as given in the plan and elevation.
- The plan will be created in the 2D workspace and then extruded to the 3D isometric view as per the given figure.
- Also the created 3D ismoteric view of a stair with railing as given in the plan and elevation are can be viewed/seen in the "360 degree" to make sure of the shape structure which was created as a 3D model.
- Some of the view tools in the 3D modeling workspace plays the major role for the 3D isometric models they are such as VISUAL STYLE, VIEW CUBE, UCS/UCS ICON.
- With the "Visual style" the visual styles can be changed by customization as required to view the 3D elements, some of the Visual styles such as "2D "Wireframe", "Shaded", "Conceptual", "Hidden", "Realistic".
- With the "View Cube" the various views of the elements can be viewed such as TOP, BOTTOM, RIGHT, LEFT, FRONT ,BACK and so on.
- And with the "UCS/UCS ICON" the differect faces of the 3D models can be created or edited on the "axis plane" such as XY, YZ, ZX.
- In the Visual bar selecting the "Materials browser" option the colors of the the isometric views can be made as per the required material property.
- Also, to render the created isometeric view can be rendered with the Render option in the "visual bar" .
B ) PROCEDURE:
- First the 2D plan of the given figure should be created as per the given dimensions.
- The the side elevation of the staircase should be created as per the figure with the required tools and dimensions with the "line"tool by using required unit values and dimensions as per the given figure.
-
And the dimension are should be denoted by the DIMLINEAR command.
- Then the workspace should be chaged from the DRAFTING AND ANNOTATION to the 3D MODELING (OR) 3D BASICS.
- Then the view of the model space should be extruded as the isometric view with the "VIEW CUBE" by clicking the home button.
- After getting into the 3D MODELING workspace, the created 2D elevation plan should be rotated in 90 degree in the rotation axis of "X-axis" with the 3D rotate command.
- Then the Rotated 2D elevation of the staircase plan should be allowed to extruded by 3D solid extrude tool.
- But before starting the process of extruding the created 2D plan, it should be converted into the region (or) boundary with REGION/BOUNDARY command.
- For that the UCS ICON must be placed at the suitable face with the UCS command such as UCS<FACE<and selecting the face of the 3D element to make the Dimension mark at the required axis plane.
- To check the 360 degree view of the 3D element, the 3D ORBIT command should be used using the command, with this 3D ORBIT tool we can access the 360 view of the element by rotating the mouse pointer.
- To view the 2D wireframed structure as a 3D visual structure, the BOUNDARY or REGION command should be used to make the every face of the element as a single individual face of the object.
- Then through the command "SHADE" or "SHADEN", the element will be made as a 3D visualized MODEL without the excess lines/edges around the object.
- After making a region of a 2D plan, the whole parts of the staircase such as STEPS and LANDINGS should be extruded as 3' to make it as an 3D model view .
- Then the Balustrades and the Hand rails will be created by assuming its values, here it is assumed in the height as 3' from the surface of the tread.
- To create this following balustrades and the hand rails the CYLINDER TOOL will be used with the radius of 2" for the hand rails and 1.5" for the balustrades.
- The circle will be created with the radius of 1.5" and made into the REGION with region tool and it should be allowed to sweep over the PLINE tool created over the BALUSTRADES.
- The Hand rails are then created with the SWEEP TOOL, by creating the PLINES to connect the top of the all balustrades and sweeping it with the circle created as a radius of 1.5" along the path of the polyline.
- After the complete creation of the 3D isometric view of the staicase, the 3D model will be allowed to look in the suitable color as per the material used in the structure with the MATERIAL BROWSING TOOL.
- The stairs, balustrades and the hand rails can be colored as per its material properties to look real as it is, and it can be done by using the MATERIAL BROWSER tool in the VISUAL BAR.
- Then the Created isometric view will be allowed to render by using the render tool in the VISUAL BAR.
- The rendering of 3D view can be adjusted in the render option such as RENDER OPTION < QUALITY OF THE RENDERING < RENDER AS REGION < RENDER.
C ) RESULT:
- It is a 3D Isometric view of the staircase and it was created in the 3D modeling/basics workspace.
- The shown 3D Isometric view of the staircase is from the "Home view" of the VIEW CUBE.
- This 3D Isometric view of the staircase is created in all the 3 axis such as "x, y and z".
- The TOP VIEW of the Staircase is created as a 2D drawing along with its Riser and Tread dimensions as per the given figure and extruded as a 3D view.
- The faces of this 3D Isometric view of the staircase along with the balustrades and the hand rail are made into single object with the "UNION" tool.
- By placing the UCS icon at the required face of the 3D view, the faces can be edited individually along its axis plane.

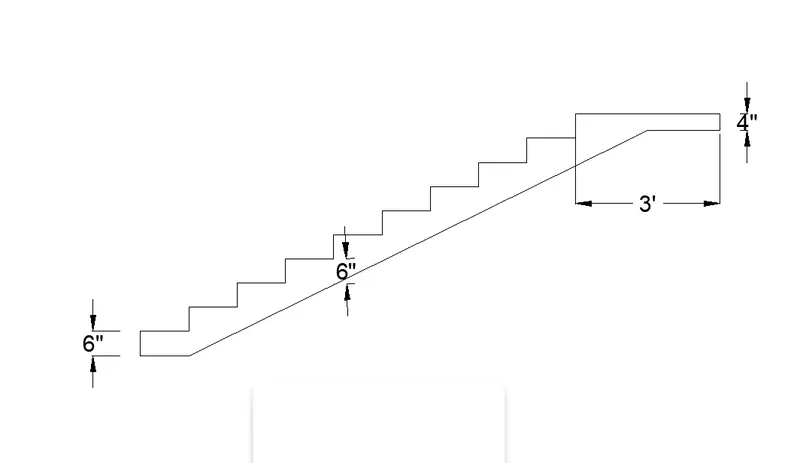

SIDE ELEVATION

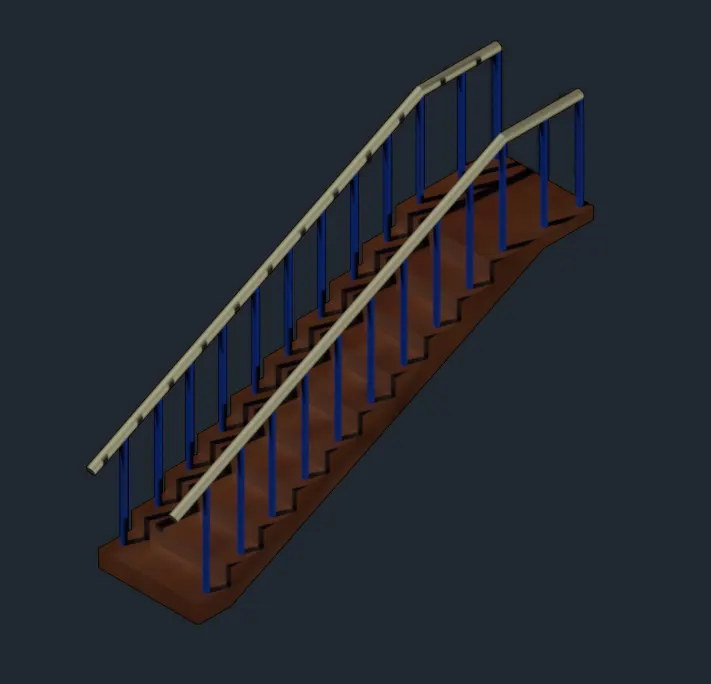

A 3D ISOMETRIC VIEW OF THE STAIR WITH BALUSTRADES AND HAND RAIL

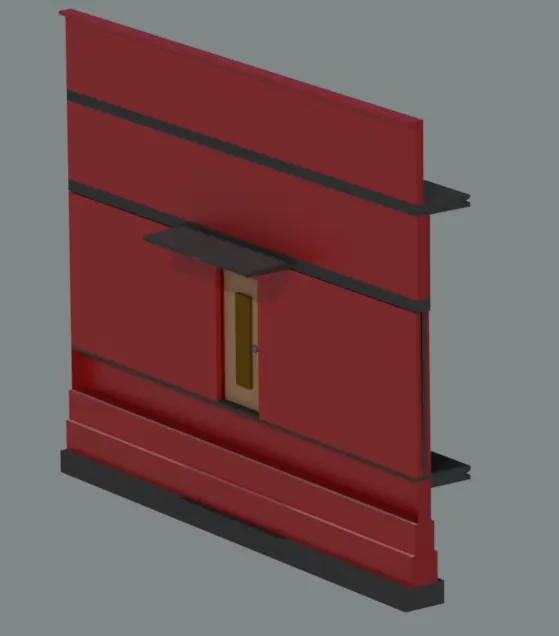

4. A 3D view of a Wall with spread footing and the Door opening as given in the plan and elevation :
A ) AIM & INTRODUCTION:
AIM:

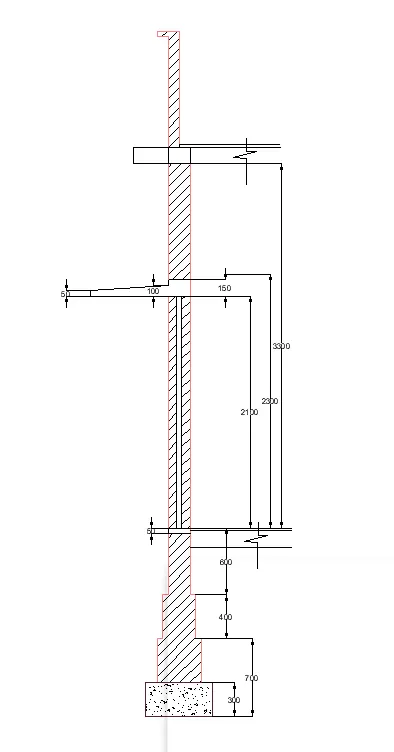

- To create the 3D view of a Section of a Wall with spread footing and the door opening by assuming the size of the parpaet and the coping as per the given plan and elevation.
- To create a rendered view of the model with materials as of our choice in the 3D modeling/basics workspace.
INTRODUCTION:

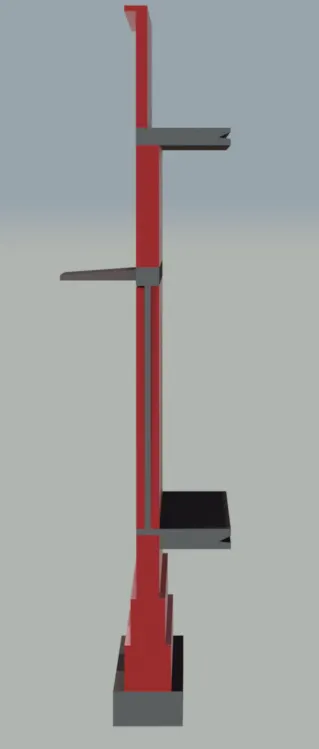

- A "3D view of a "Section of a Wall with spread footing and the door opening" is a drawing which was created and rendered in the "3D modeling /basics workspace".
- Here in the 3D modeling space, all drawings can be created in all the 3 axiz such as x,y and z.
- The solid model creating tool from the "tool palette" is used to create this 3D view of a Wall with spread footing and the door opening as given in the plan and elevation.
- The plan will be created in the 2D workspace and then extruded into the 3D isometric view.
- Also the created 3D view of a "Section of a Wall with spread footing" and "the door opening" as given in the plan and elevation are can be viewed/seen in the "360 degree" to make sure of the shape structure which was created as a 3D model.
- Some of the view tools in the 3D modeling workspace plays the major role for the 3D isometric models they are such as VISUAL STYLE, VIEW CUBE, UCS/UCS ICON.
- With the "Visual style" the visual styles can be changed by customization as required to view the 3D elements, some of the Visual styles such as "2D "Wireframe", "Shaded", "Conceptual", "Hidden", "Realistic".
- With the "View Cube" the various views of the elements can be viewed such as TOP, BOTTOM, RIGHT, LEFT, FRONT ,BACK and so on.
- And with the "UCS/UCS ICON" the differect faces of the 3D models can be created or edited on the "axis plane" such as XY, YZ, ZX.
- In the visual bar selecting the "Materials browser" option the colors of the the isometric views can be made as per the required material property.
- Also, to render the created isometeric view can be rendered with the render option in the "visual bar" .
B ) PROCEDURE:
- First the 2D plan of Section of a wall footing should be created as per the given figure and dimensions.
- The Section of a wall footing will be created as per the figure with the required tools and dimensions with the "line" and the "rectangle" tool.
-
And the dimension are should be denoted by the DIMLINEAR command.
- Then the workspace should be chaged from the DRAFTING AND ANNOTATION to the 3D MODELING (OR) 3D BASICS.
- Then the view of the model space should be extruded as the isometric view with the "VIEW CUBE" by clicking the home button.
- After getting into the 3D MODELING workspace, the created 2D Section of a wall footing plan should be rotated in 90 degree in the rotation axis of "X-axis" with the 3D rotate command.
- Then the Rotated 2D Section of a wall footing plan should be allowed to extruded with 3D solid extrude tool.
- But before starting the process of extruding the created 2D draft, it should be converted into the region (or) boundary with REGION/BOUNDARY command.
- For that the UCS ICON must be placed at the suitable face with the UCS command such as UCS<FACE<and selecting the face of the 3D element to make the element in the required axis plane.
- To check the 360 degree view of the 3D element, the 3DORBIT command should be used using the command, with this 3D ORBIT tool we can access the 360 view of the element by rotating the mouse pointer.
- To view the 2D wireframed structure as a 3D visual structure, the BOUNDARY or REGION command should be used to make the every face of the element as a single individual face of the object.
- Then through the command "HIDE" or "HIDDEN", the element will be made as a 3D visualized structure without the excess lines/edges behind the object.
- After making a region of a 2D plan, the whole Section of a wall footing should be converted as a union with UNION COMMAND, it will make the individually created sections into the single structure.
- So, it is easy to extrude the whole Section of a wall footing in to a single 3D model and the distance of the extrution will be @7500.
- Then as per the given figure the DOOR OPENING should be created as per the given figure. Here, the height of the Door Opening should be of @900,1900.
- The creation of the Door was done in three different layers such as DOOR FRAME, DOOR CENTER WOOD and DOOR MIDDLE DESIGN by assuming the design and dimensions.
- The created door will be then placed over the Plinth beam of the Extruded Plan of a Sectional wall footing from the distance of 3300 from the edge of the wall.
- After the complete creation of the 3D isometric view of the "Section of a Wall with spread footing and the door opening", the 3D model will be allowed to be look in the suitable color as per the material used in the structure.
- The walls, concrete structures, door and other structures can be colored as per its material properties to look real as it is, and it can be done by using the MATERIAL BROWSER tool in the VISUAL BAR.
- The required "Lighting" can also be attached inside the created isometric view with the light settings in the VISUAL BAR.
- Then the Created isometric view will be allowed to render by using the render tool in the VISUAL BAR.
- The rendering of 3D view can be adjusted in the render option such as RENDER OPTION < QUALITY OF THE RENDERING < RENDER AS REGION < RENDER.
C ) RESULT:
- It is a 3D View of the Section of a Wall with spread footing and the door opening and it was created in the 3D modeling/basics workspace.
- The shown 3D View of the Section of a Wall with spread footing and the door opening is from the "Home view" of the VIEW CUBE.
- This 3D View of the Section of a Wall with spread footing and the door opening is created in all the 3 axis such as "x, y and z".
- The TOP VIEW of the "Section of a Wall footing" is created as a 2D drawing and extruded as a 3D view.
- The faces of this 3D View of the Section of a Wall with spread footing and the door opening are made into single object with the "UNION" tool.
- By placing the UCS icon at the required face of the 3D view, the faces can be edited individually along its axis plane.
A SECTION OF WALL FOOTING A 3D ISOMETRIC VIEW OF THE SECTION OF WALL FOOTING
A 3D ISOMETRIC VIEW OF THE PLAN WITH DOOR OPENING
