Creating 3D Isometric view of various structural elements in AutoCAD

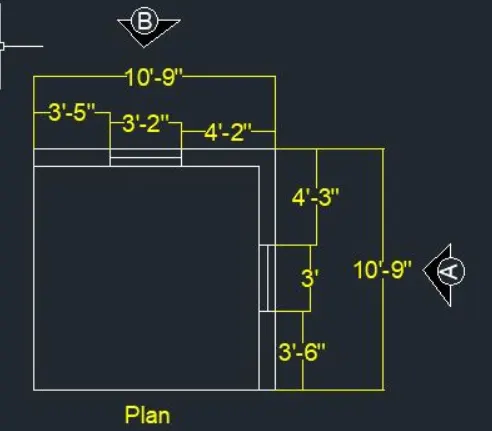

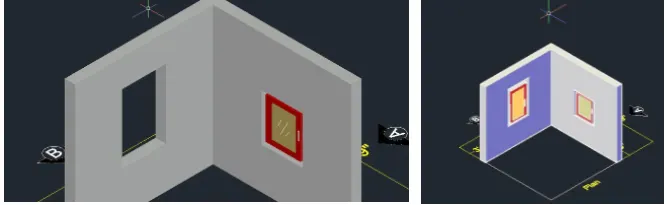

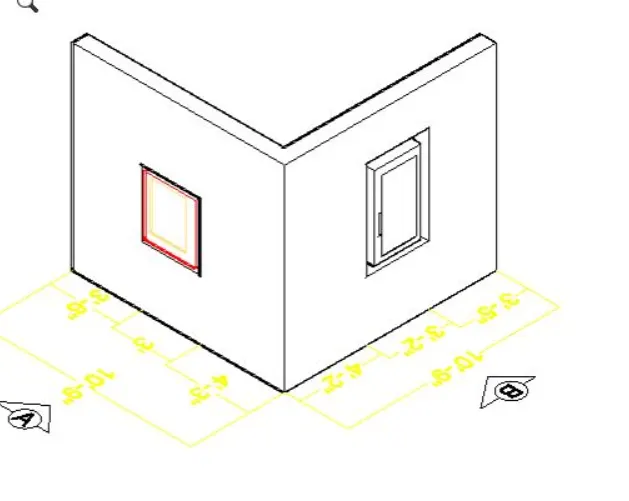

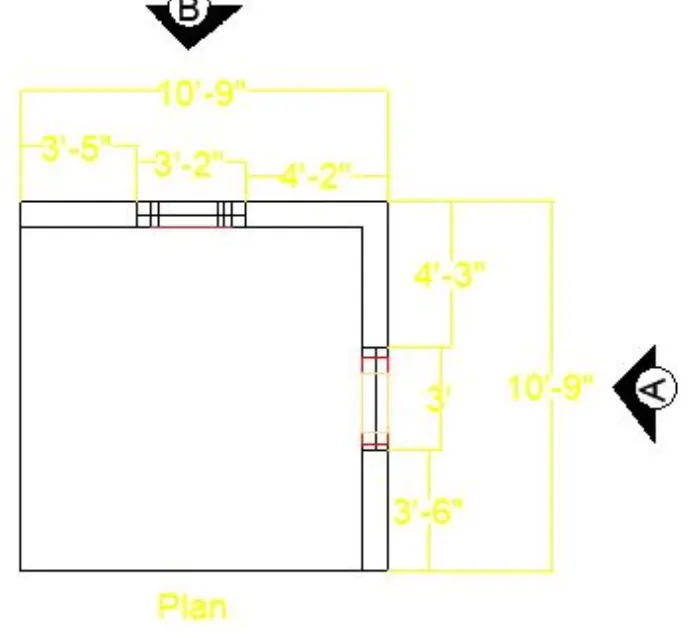

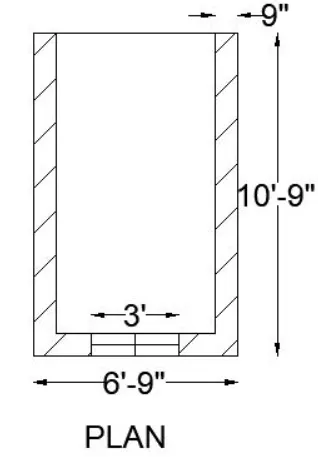

1. Create a 3D Isometric view of the building with plan and elevation given.

AIM:

To create a 3D isometric view of the building with plan and elevation using Autocad.

PROCEDURE:

• Type units>engineering>0'-0''
• Type limax>100',100'
• Type limits>0'0'
• Type zoom>a
• Go to the top view.

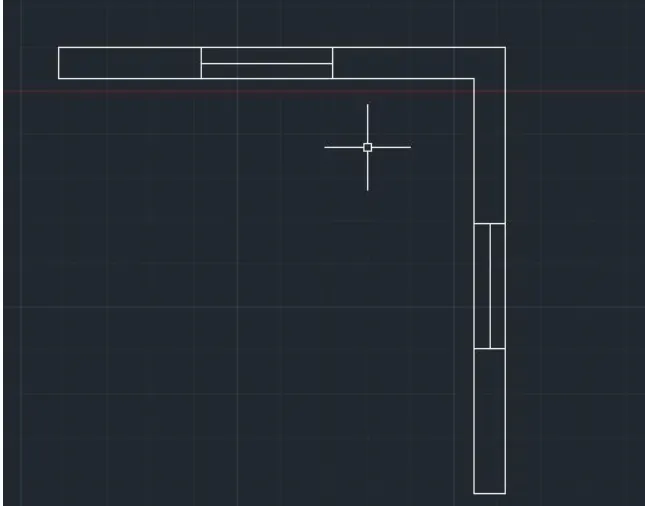

• Use L command to draw the lines of distance given and thickness.

• Go to south west isometric view and
• Type reg to region the object

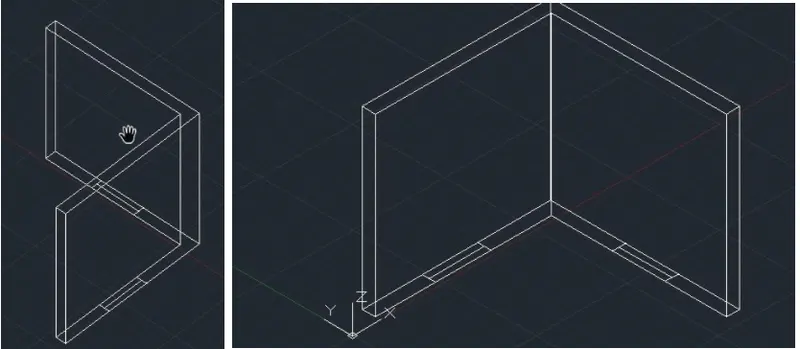

• Type extrude to extrude the object.

• Type dim to give dimensions.

• Go to right view and draft the rectangle using rec command
• Then go south west isometric view and extrude it to 9''
• Using sub command to substract the windows.
• Type H to hatch the windows.
• Type rec and L to give the window detailing.

• In south west isometric view.

RESULT:

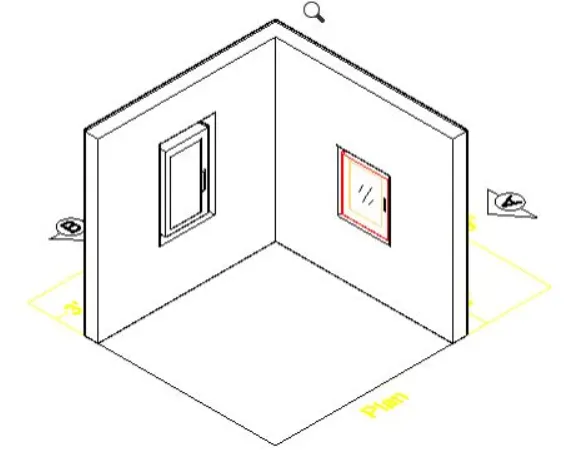

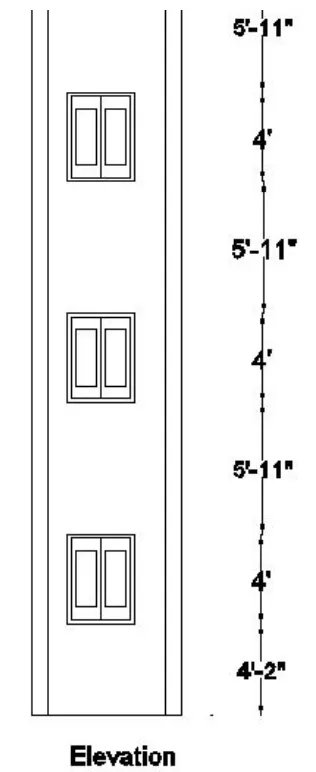

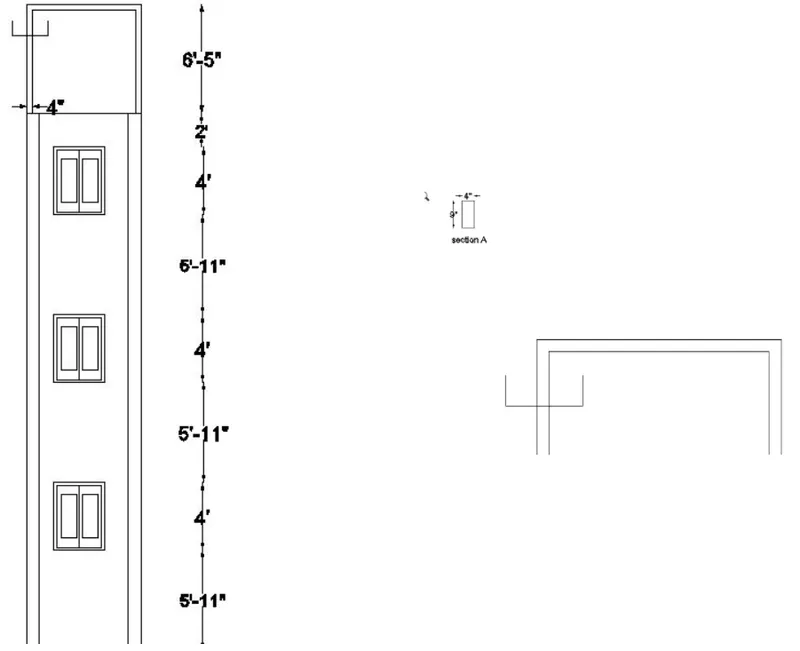

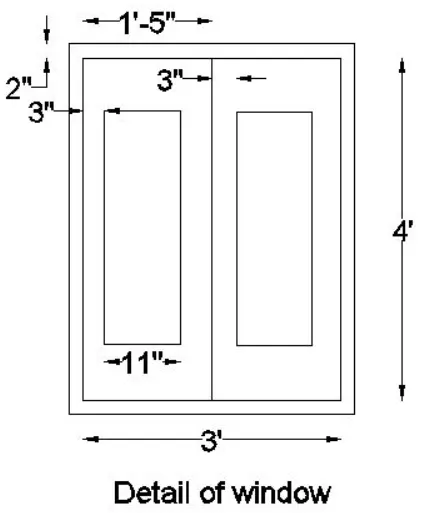

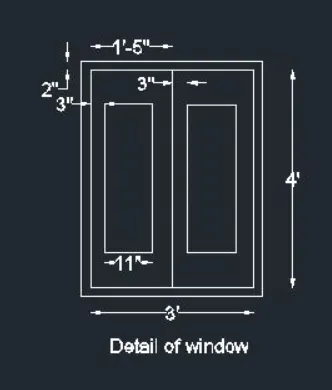

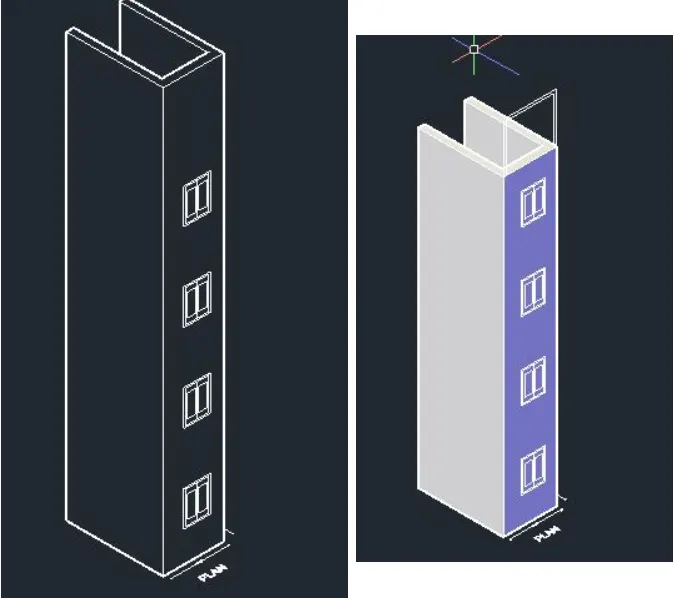

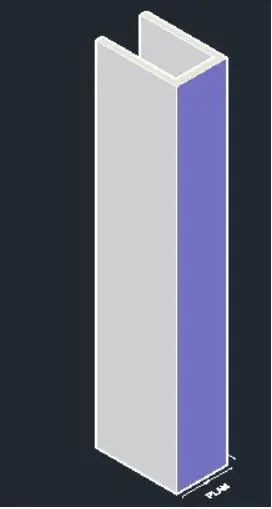

2. Create a 3D view of the building Facade as given with plan and elevation.Also see the detail of the window.

AIM:

To create a 3D isometric view of the building Facade as given with plan and elevation.

PROCEDURE:

• Type units>engineering>0'-0''
• Type limax>100',100'
• Type limits>0'0'
• Type zoom>a

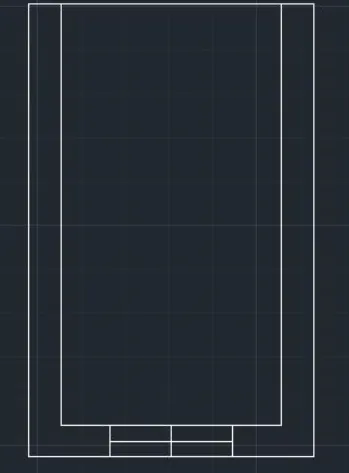

• Go to the top view.
• Use L command and draft thr desired lines.

• Use dim command to give the dimensions.
• Type mt to give the text.

• Now go to south isometric view
• type reg to to region the plan
• Type extrude to extrude the plan.

• In the right view window is drafted using line and rec command.

• The windows are added to wall in outh west isometric view.

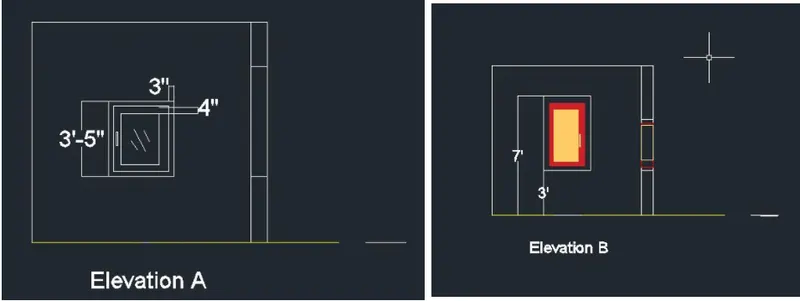

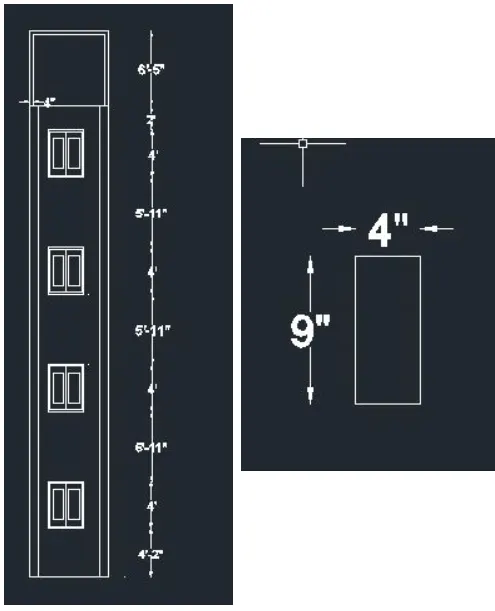

• The front view of the elevation is shown in the front view.
• Use dim command to give the dimensions.

RESULT:

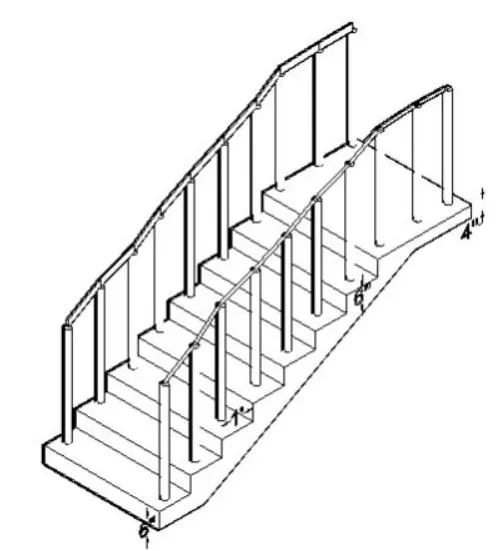

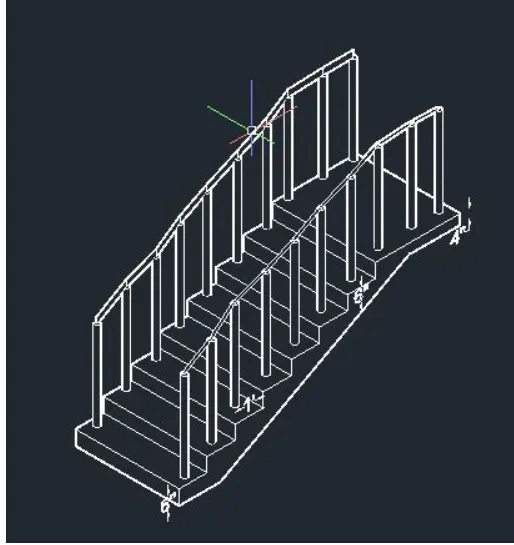

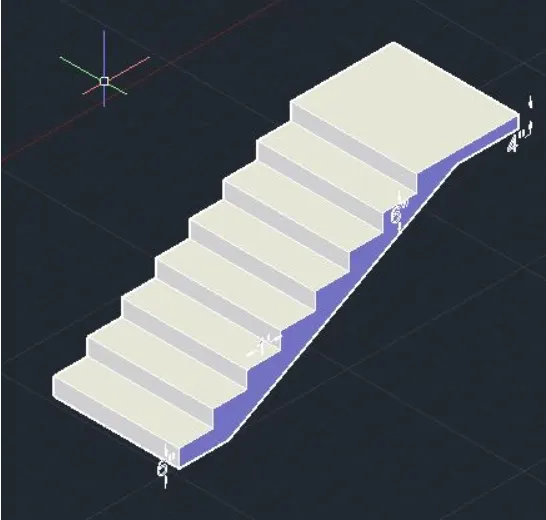

3. Create the isometric 3D view of a stair with railing as shown in the plan and elevation.Assume the size of the balustrades and the hand rails.

AIM:

To create a 3D isometric view of a stair with railing as shown in the plan and elevation using 3D Autocad.

PROCEDURE:

• Type units>engineering>0'-0''
• Type limax>100',100'
• Type limits>0'0'
• Type zoom>a

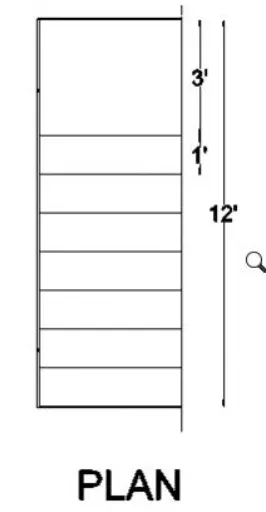

• Go to the top view.
• Use L command and draft thr desired lines.
• In the top view the plan is created.

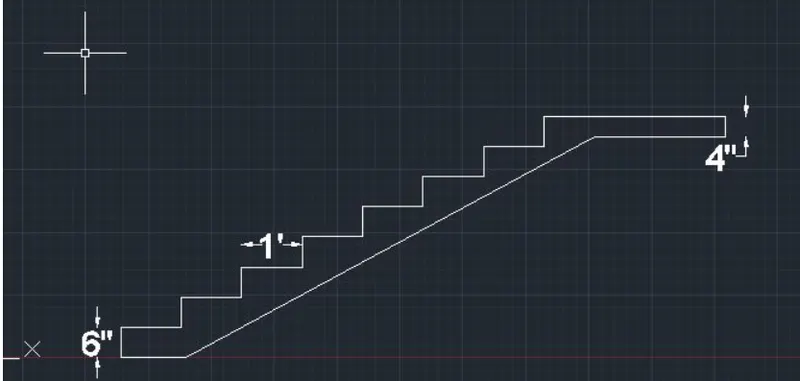

• Go to the front view and create tread and riser with the help Line command.
• Use dim command to give the dimensions.

• Go to south west isometric view.
• Type region to give the region.
• Type extrude to extrude the staircase.

• Create circle of dia 2.
• Extrude to a distance of 3'2''
• Type L and join the railings.

RESULT:

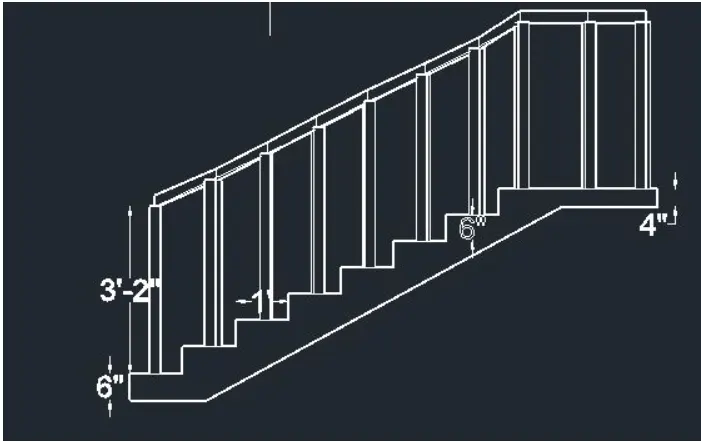

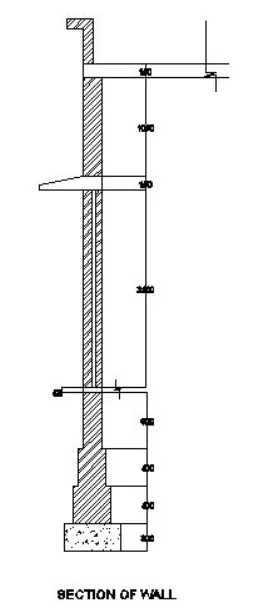

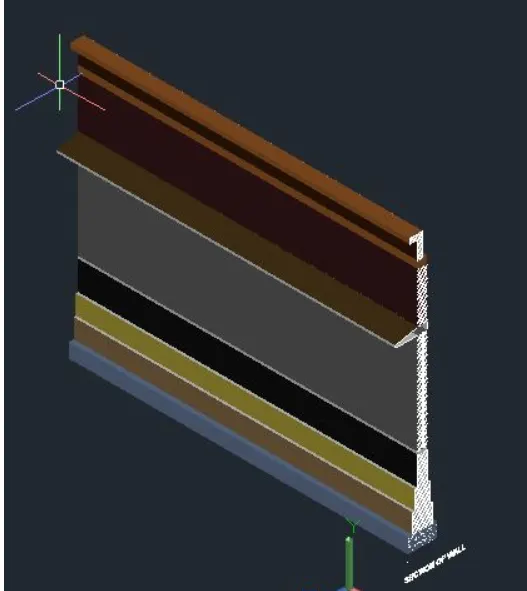

4. Create the 3D view of a wall with spread footing. Create the door opening only.Assume the size of the parapet and the coping.See the plans and elevation for details.Also,create a rendered view of the model with materials as of your choice.

AIM:

To create a 3D isometric view of a wall spread footing and to also create a door opening using Autocad.

PROCEDURE:

• Type units>engineering>0'-0''
• Type limax>100',100'
• Type limits>0'0'
• Type zoom>a
• Go to the front view.

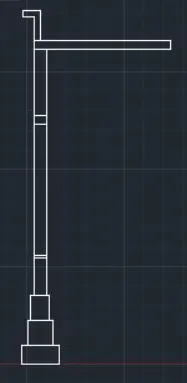

• Use L command and draft thr desired lines.

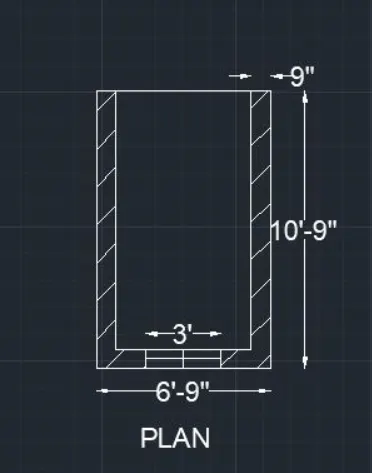

• In the top view the plan is created.

• Type H to hatch the windows.

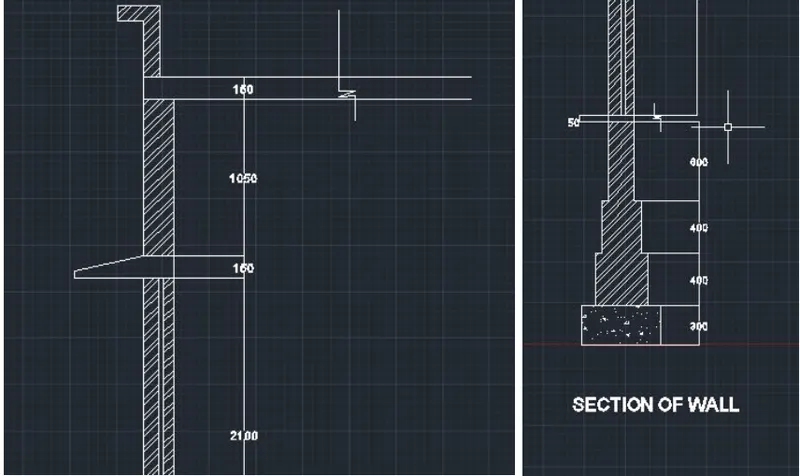

• Use dim command to give the dimensions.

• Go to the south west isometric view.

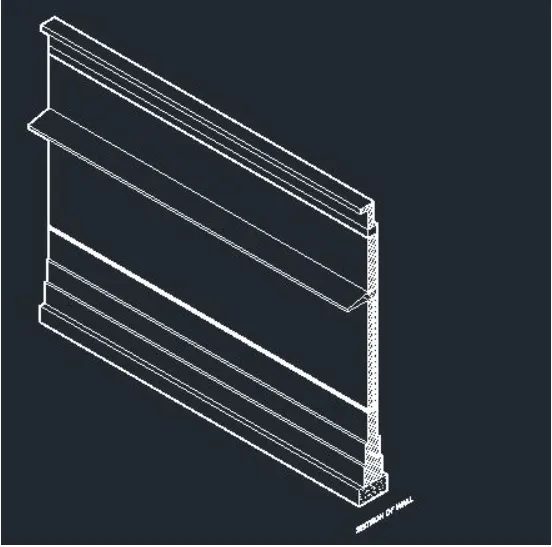

• Type extrude to extrude the plan.

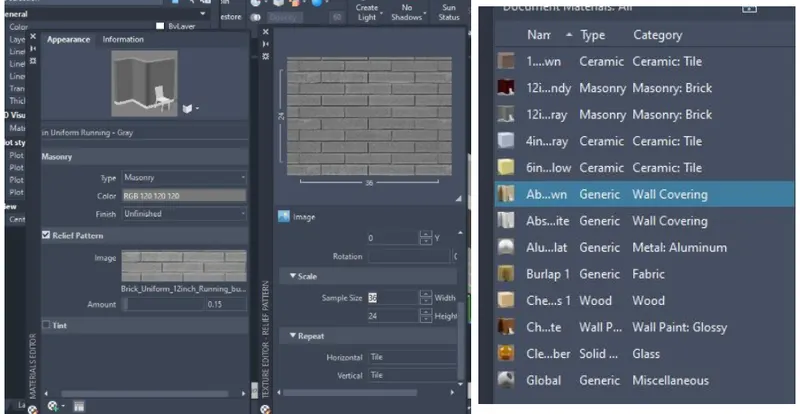

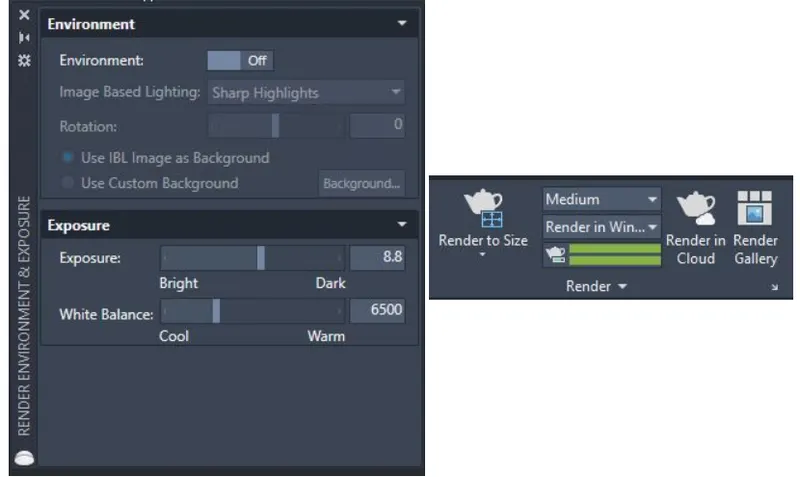

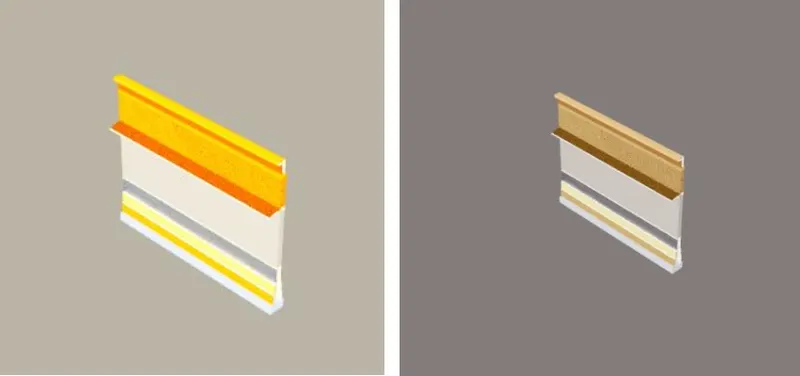

• In the ribbon bar>Visualisation>material browser>assign the material to each element.

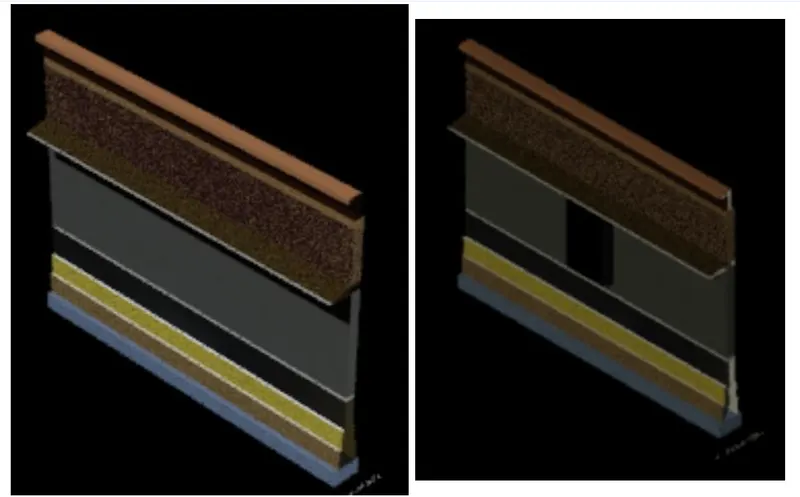

• In the ribbon bar>Visualisation>render to size.

RESULT:
