Creating 3D Isometric view of various structural elements in AutoCAD

Aim:

To create a 3D isometric view of the building.

Procedure:

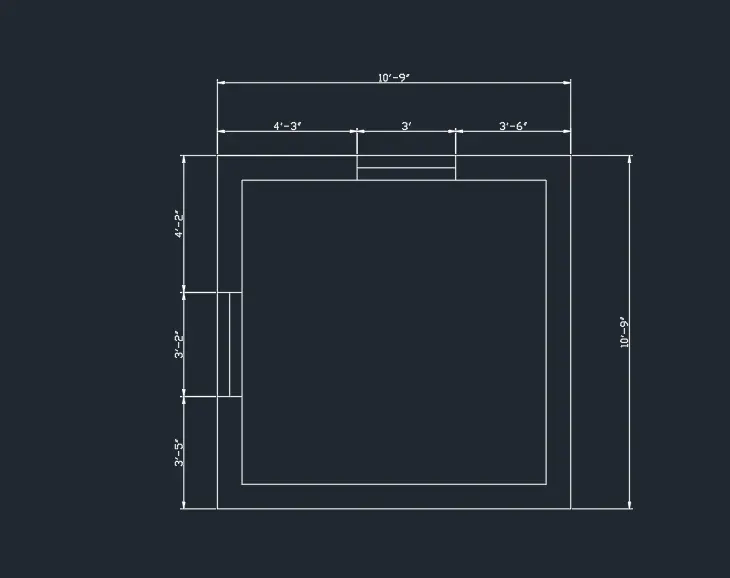

• First draw the plan.
• Draw a rectangle of 10'9" ,10'9"
• And create window.
• Next change the view to isometric and extrude it .

Result:

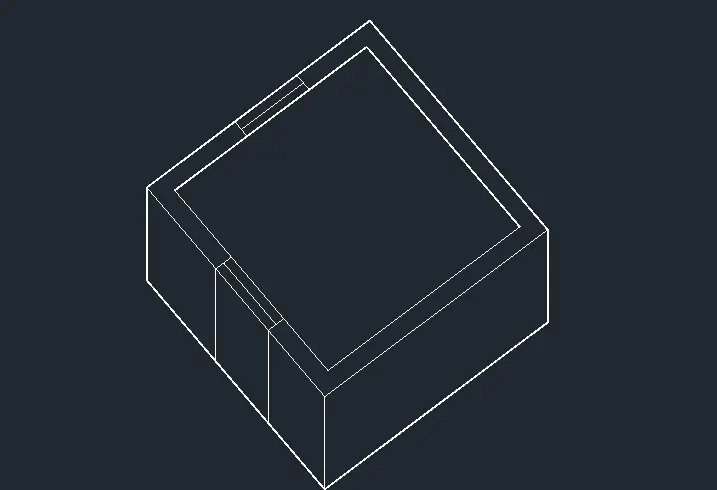

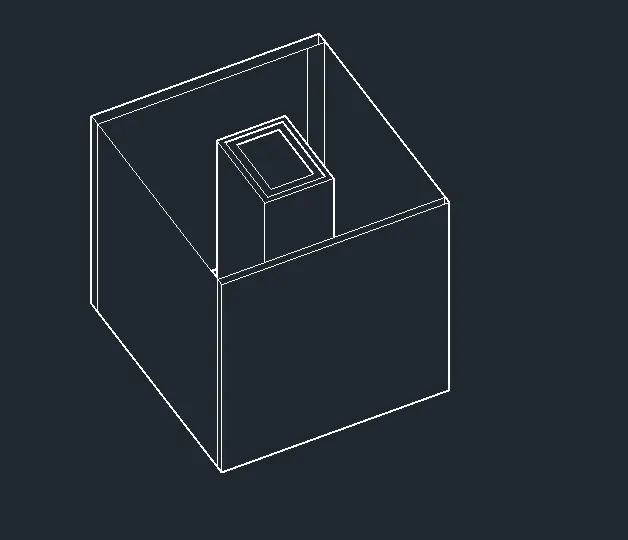

3D isometric view

Elevation:

Aim:

To create the 3D view of the building facade.

Procedure:

• Draw the plan as per the given dimension.
• And offset .
• Now change the view to isometric and extrude it.

Result:

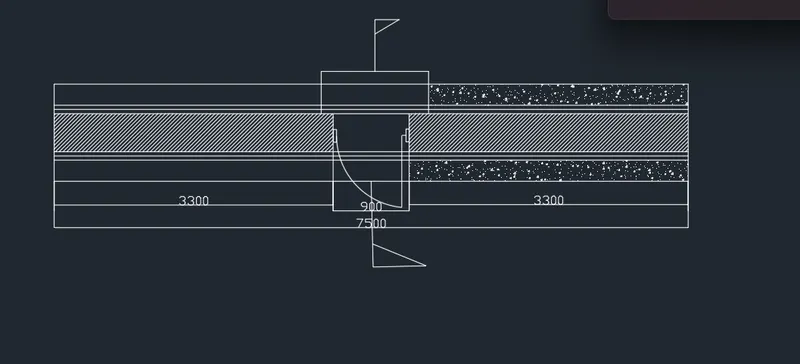

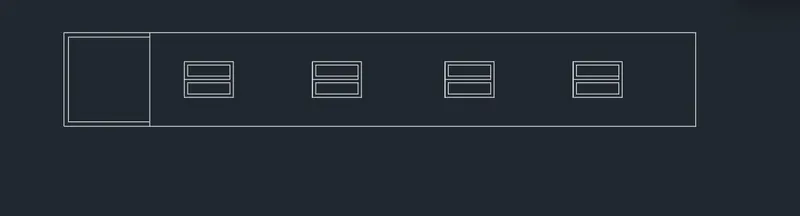

Plan

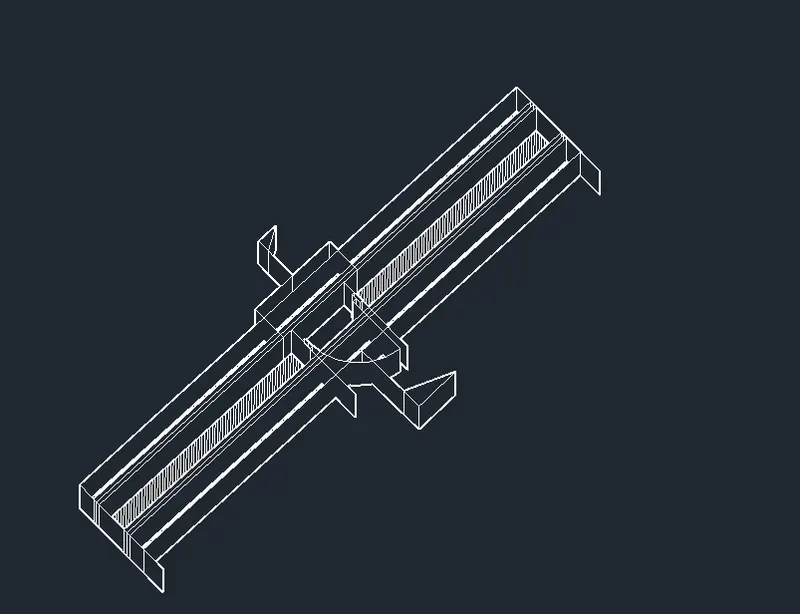

Isometric view:

Elevation:

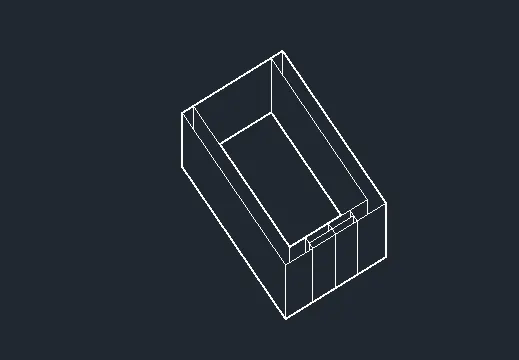

Isometric view

Aim:

To create the isometric 3d view of a stair with railing.

Procedure:

• Draw the plan of stairs.
• And change the view to isometric.
• Make boundary and exyrude all the stairs one by one.

Result:

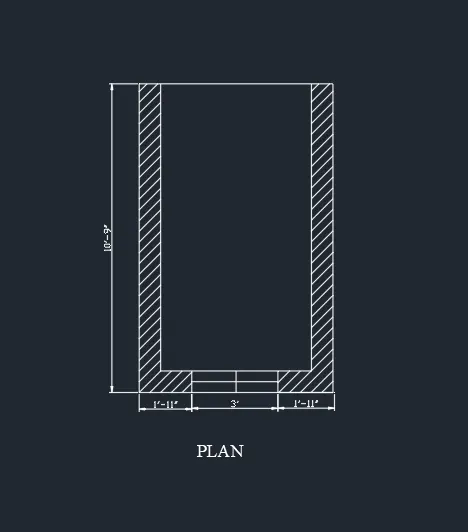

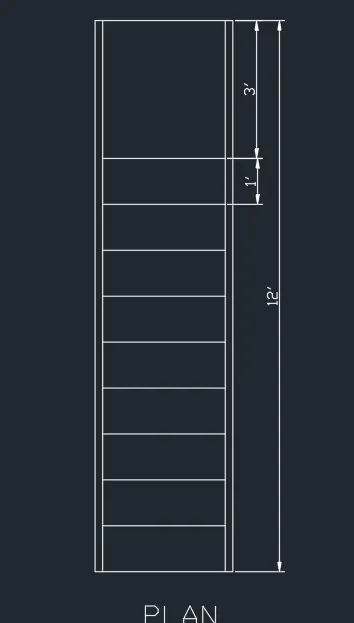

Plan

Isometric view:

Aim:

To create 3d view of wall with spread footing.

Procedure:

• Draw the plan of wall with spread footing.
• Now change the view to isometric and make boundary and extrude it.

Result:

Plan:

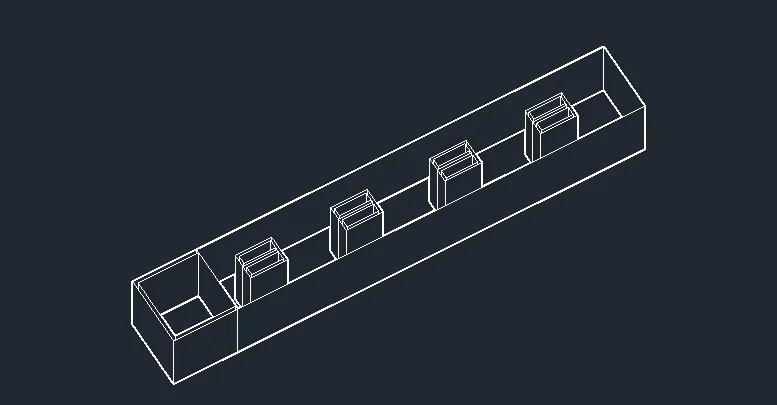

Isometric view:
