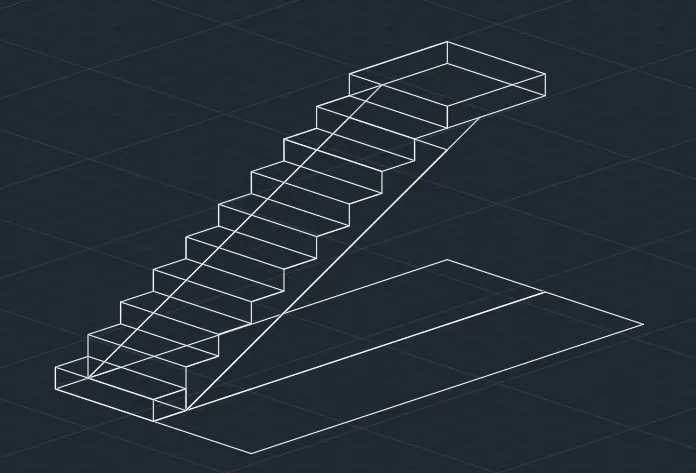

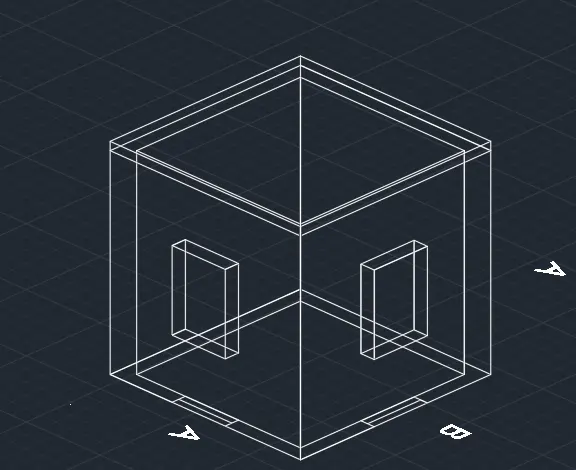

Creating 3D Isometric view of various structural elements in AutoCAD

AIM=Created the 3D Plan and Sections as shown in the above Figures. Used proper dimension techniques and dimension styles to document the project.

COMMAND= line, rectangle,circle,offset,text,dimmension.dimstyle,types of line,layer,arrey,,,etc

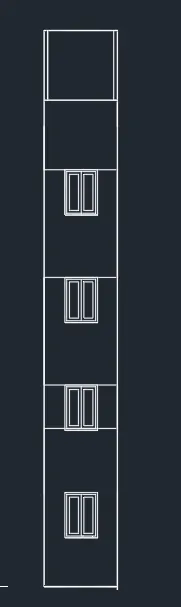

INTRODUCTION= using some command drawn plan and section AND ELEVATION IN 3D

PROCEDURE=

• Set a sheat with unit command
• using line command created bouder line and next with help of offset created walls with dim

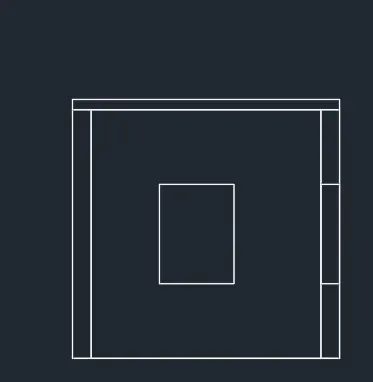

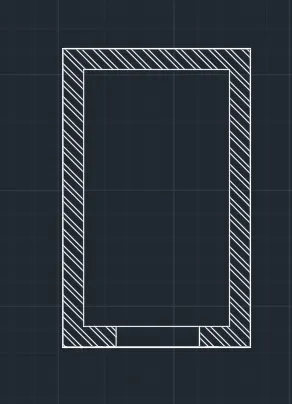

• after using some command created required plan and section of building
• using text cammand mentained text wherver required
• with help of dimmension command meaure the line wherever required
• after save the file

1.

2,

3'
