Creating 3D Isometric view of various structural elements in AutoCAD
- Create a 3D Isometric View of the building with plan and elevation given.
Aim: To draw the 3D Isometric View of the building as shown in the figure
Introduction:

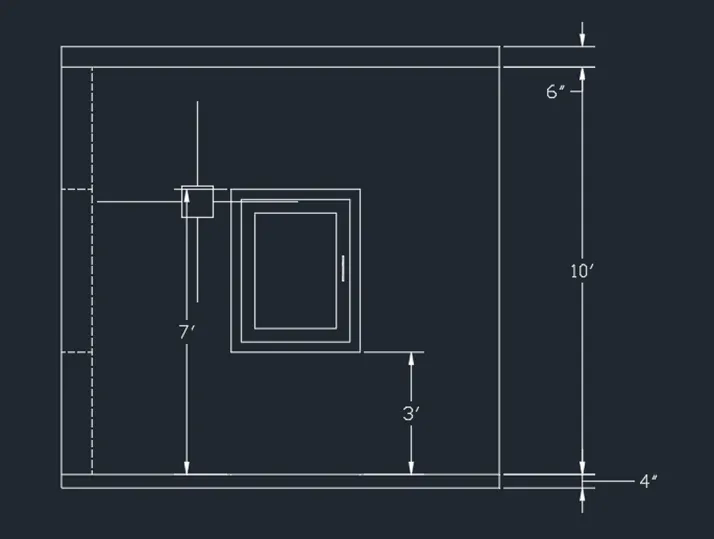

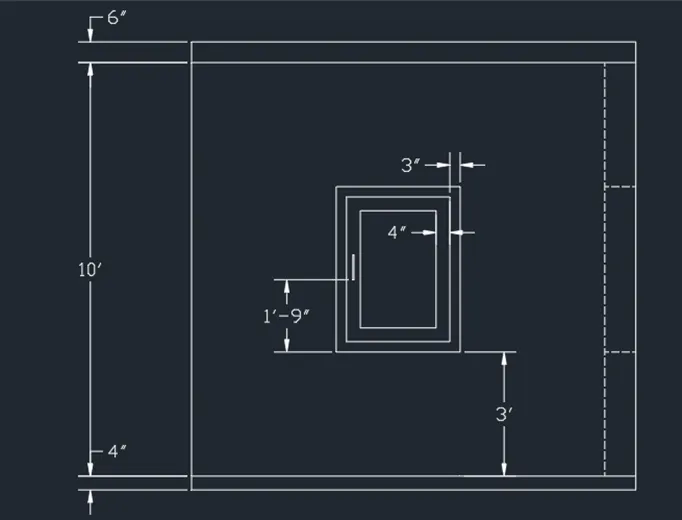

A plan view of wall of two elevation views of windows on both sides are given and they are to be converted into a 3D model. 2 window openings on both sides are given with details regarding the frame dimensions, mullion dimensions and handle height. The thickness of bottom floor and top roof are also given as 4” and 6” respectively. The height of the floor is given as 10’. The height of the window from the floor is 3’.
COMMANDS USED: -
- Line command
- Rectangle command
- UCS command
- Dimlinear command
- Region command
- Extrude command
- Substract command
- Box command
- Units command
- Dimstyle command
- 3Dface command
- 3Dorbit command
- Hide command
- Explode command
- Move command
- Copy command
- Dist. command
- Solid edit command
- Union command
- Boundary command
- 3Dmirror command
- 3Drotate command
- Erase command
- Plan command
PROCEDURE: -
- First, we have to open the AutoCAD and set the maximum limit and minimum limit on the screen.

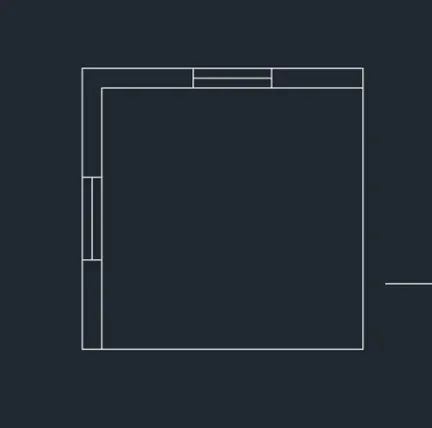

- Here first you have to draw the rectangle using the rectangle command, as shown in the figure.
- Next, we have to draw the two windows of sizes of 3' x 9" and 9" x 3'-2".
- Now we draw the elevation of A and the elevation of B, as shown in the below figures.
- We draw the given elevations using the line command and we put the dimensions using the dimlinear command.
- First, we draw the window of the size 3' x 4' as shown in the below figure.
- We draw this window using the line command and extruded using the extrude command.
- Next, we draw the window of the size 3'-2" x 4' as shown in the below figure.
- We draw this window using the line command and extruded using the extrude command.

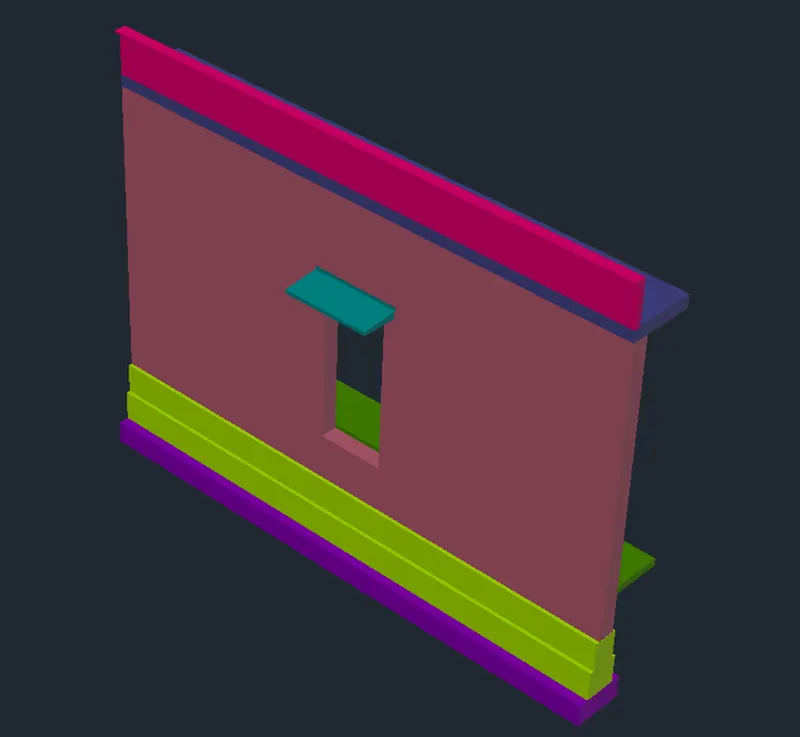

- Next, we draw the walls using the extrude command as shown in the figure.
- Next, we use the layers for providing the colors to them.

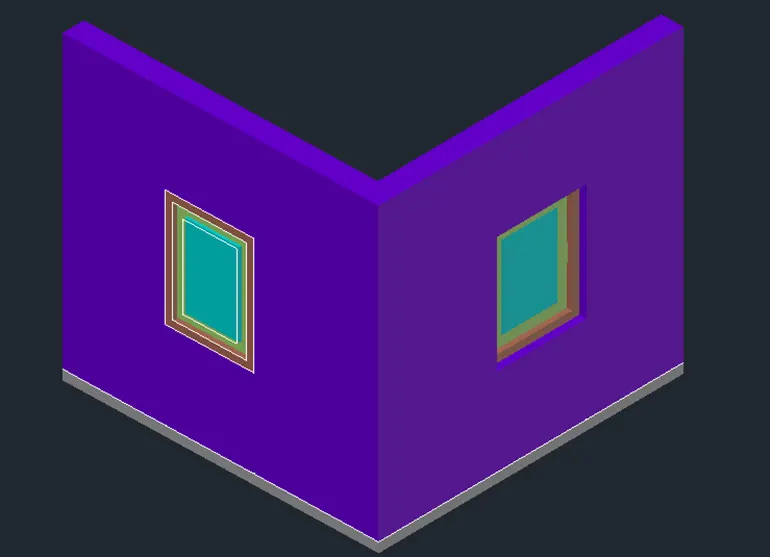

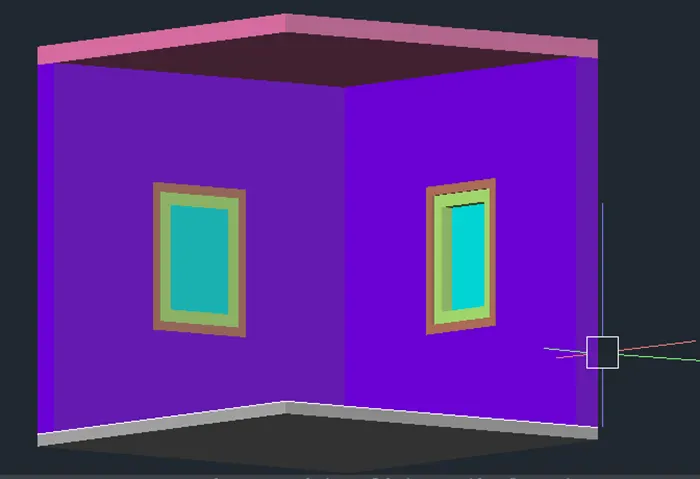

- Next, we attach the created windows to the walls shown in the below figure.

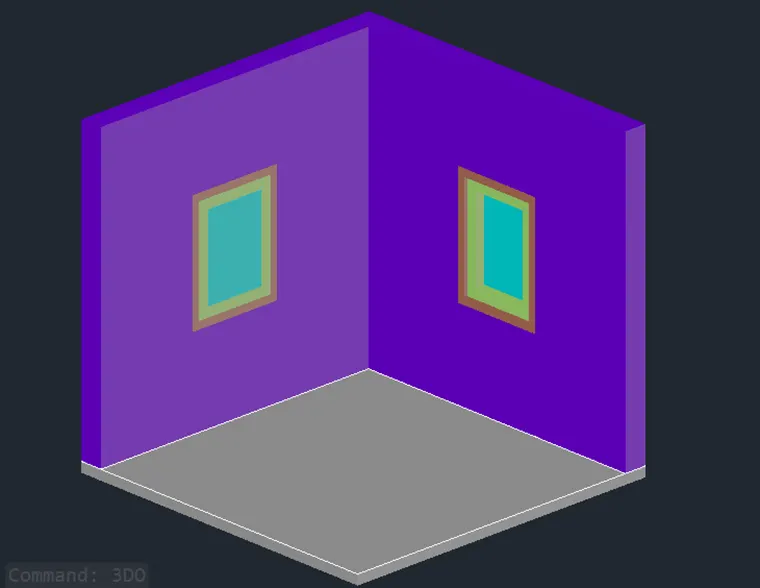

- Next, we use the 3dorbit command to see the different views of the given figure.
RESULT: -
- The given 3d isometric view of the building with plan and elevation is drawn successfully in the AutoCAD in detailed manner.
-
2. Create the 3D View of the Building Façade as given in the plan and elevation. Also, see the details of the window.
AIM: - To Create the 3D View of the Building Facade as given in the plan and elevation and need to create the window using the given dimensions.
INTRODUCTION: -
- An isometric drawing is a 3D representation of an object, room, building or design on a 2D surface.
- One of the defining characteristics of an isometric drawing, compared to other types of 3D representation, is that the final image is not distorted.
- This is due to the fact that the foreshortening of the axes is equal.
- In an isometric drawing, the object appears as if it is being viewed from above from one corner, with the axes being set out from this corner point.
- Isometric drawings begin with one vertical line along which two points are defined.
COMMANDS USED: -
- Line command
- Rectangle command
- UCS command
- Dimlinear command
- Region command
- Extrude command
- Substract command
- Box command
- Units command
- Dimstyle command
- 3Dface command
- 3Dorbit command
- Hide command
- Explode command
- Move command
- Copy command
- Dist command
- Solid edit command
- Union command
- Boundary command
- 3Dmirror command
- 3Drotate command
- Erase command
- Plan command
PROCEDURE: -
- First, we have to open the AutoCAD and set the maximum limit and minimum limit on the screen.
- Here first you have to draw the rectangle using the rectangle command, as shown in the figure.

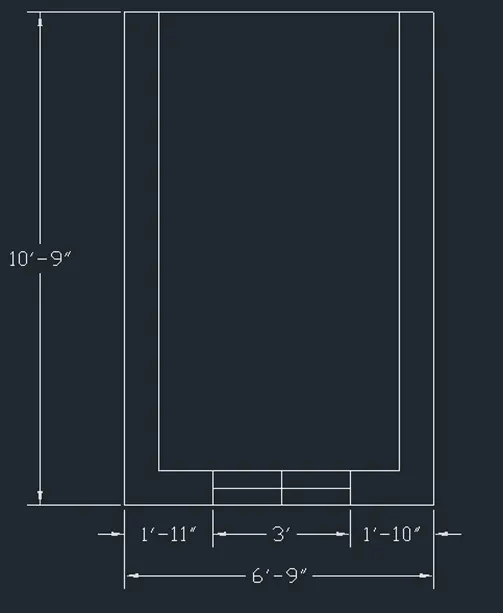

- Create a rectangle of dimensions 6’9”X10’9” at any point on the screen
- Offset the rectangle to inside to distance of 9” as wall thickness
- Explode the rectangles drawn
- Delete the top line and extend them to the edges

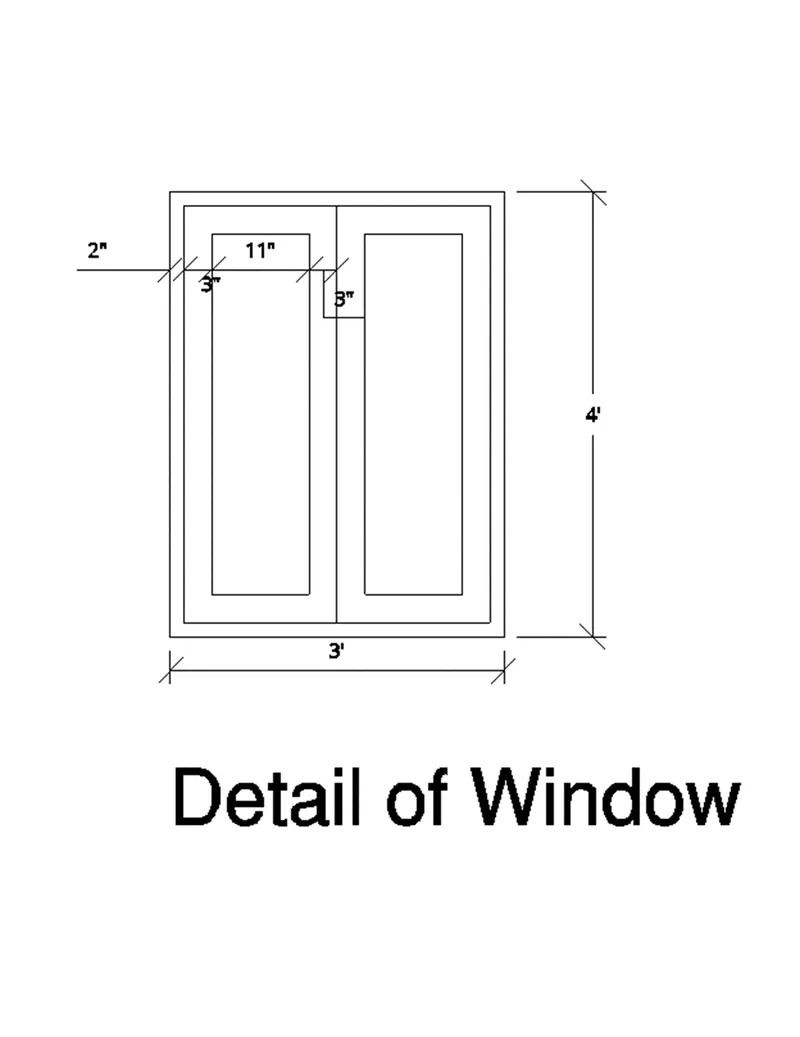

- Create the window opening of dimensions 3’ wide as shown in figure
- Add dimensions are drawn using dimension layer
- Next, we use the region command and select the objects, then press enter.
- Then after total objects will become the one region.
- Next, we need to extrude the plan using the extrude command, with the height of 40'-10".

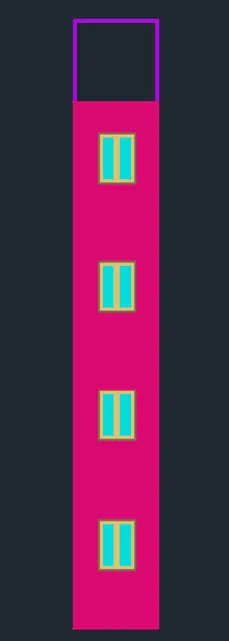

- Next, we need to subtract the four-window portion vertically in a building facade with the distance 5'-11" with the window size of 3' x 4'.
- Next, we use the union command and press enter.
- Then select the total drawing and press enter.

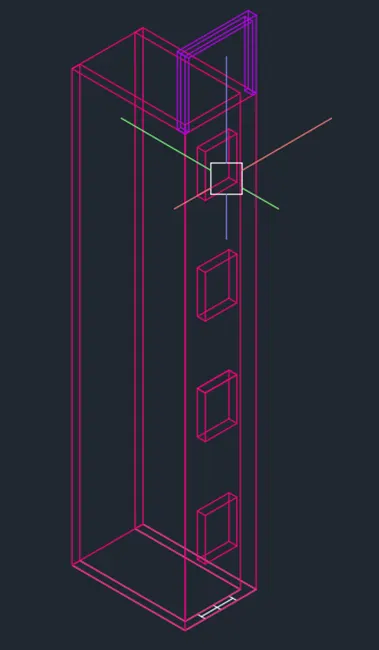

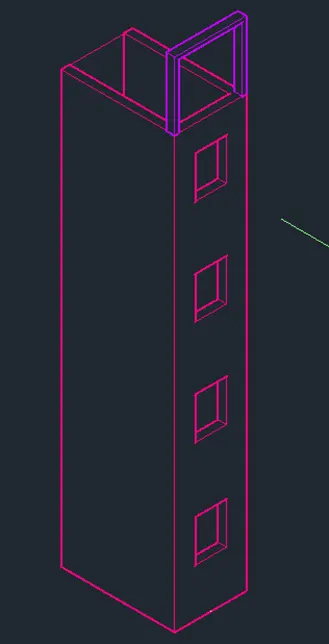

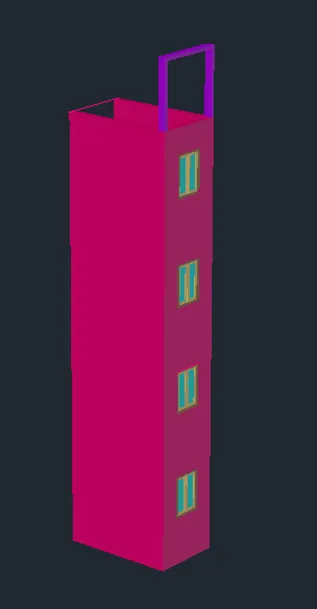

- Next the window portion will be clearly visible in the building facade as shown in the below figure.
- Next, we select the custom visual style as shaded with edges, as shown in the below figure.
- Next provide the layers for the building color, as shown in the below figure.

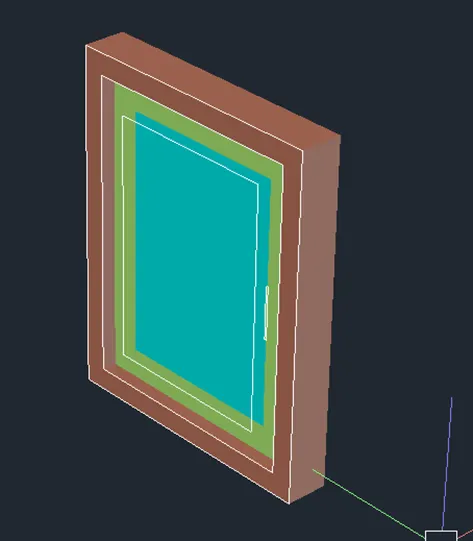

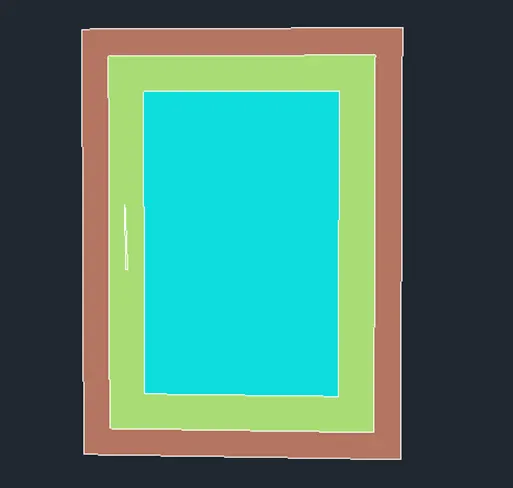

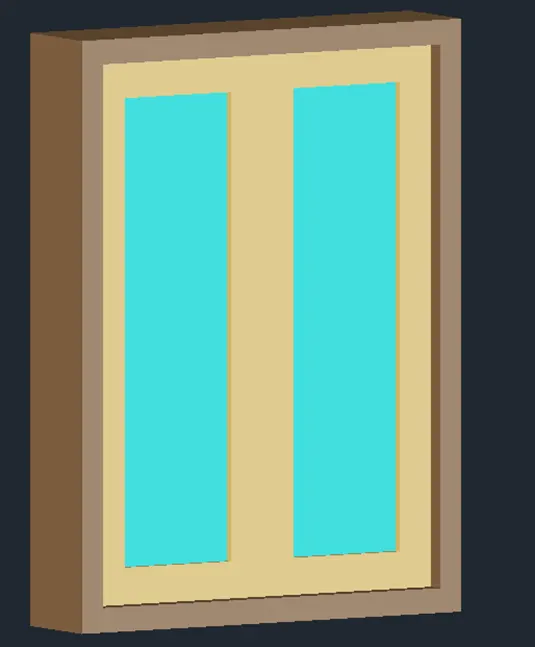

- Next, we draw the window of the size 3'-2" x 4' as shown in the below figure.
- We draw this window using the line command and extruded using the extrude command.
- Next, we use 3dorbit command to view the front elevation as shown in the below figure.

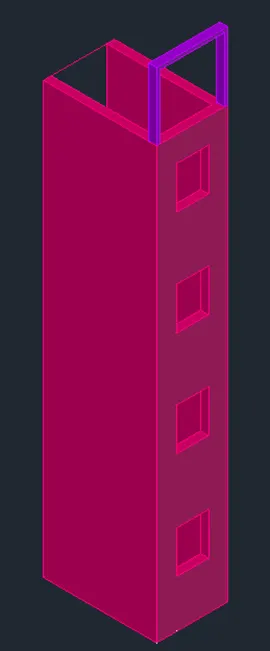

- Now put the building facade in the 3d isometric view using the 3dorbit command as shown in the below figure.
RESULT: -
- The given 3d isometric view of the building facade is drawn successfully in the AutoCAD in detailed manner.
3. Create the isometric 3d view of a stair with railing as shown in the plan and elevation. Assume the size of the balustrades and the hand rails.
AIM: - To create the isometric 3d view of a stair with railing as shown in the plan and elevation.
INTRODUCTION: -
- An isometric drawing is a 3D representation of an object, room, building, stairs or design on a 2D surface.
- One of the defining characteristics of an isometric drawing, compared to other types of 3D representation, is that the final image is not distorted.
- This is due to the fact that the foreshortening of the axes is equal.
- In an isometric drawing, the object appears as if it is being viewed from above from one corner, with the axes being set out from this corner point.
- Isometric drawings begin with one vertical line along which two points are defined.
COMMANDS USED: -
- Line command
- Rectangle command
- UCS command
- Dimlinear command
- Region command
- Extrude command
- Substract command
- Box command
- Units command
- Dimstyle command
- 3Dface command
- 3Dorbit command
- Hide command
- Explode command
- Move command
- Copy command
- Dist command
- Solidedit command
- Union command
- Boundary command
- 3Dmirror command
- 3Drotate command
- Erase command
- Plan command
- Circle command
- Sweep command
PROCEDURE: -
- First, we open the AutoCAD and set the maximum limit and minimum limit.
- Next, we set the units as architectural and take the precision as 0'-0".
- Draw a rectangle of dimensions 3’X12’
- Explode the rectangle
- Offset the side edges to inside to a distance of 1”

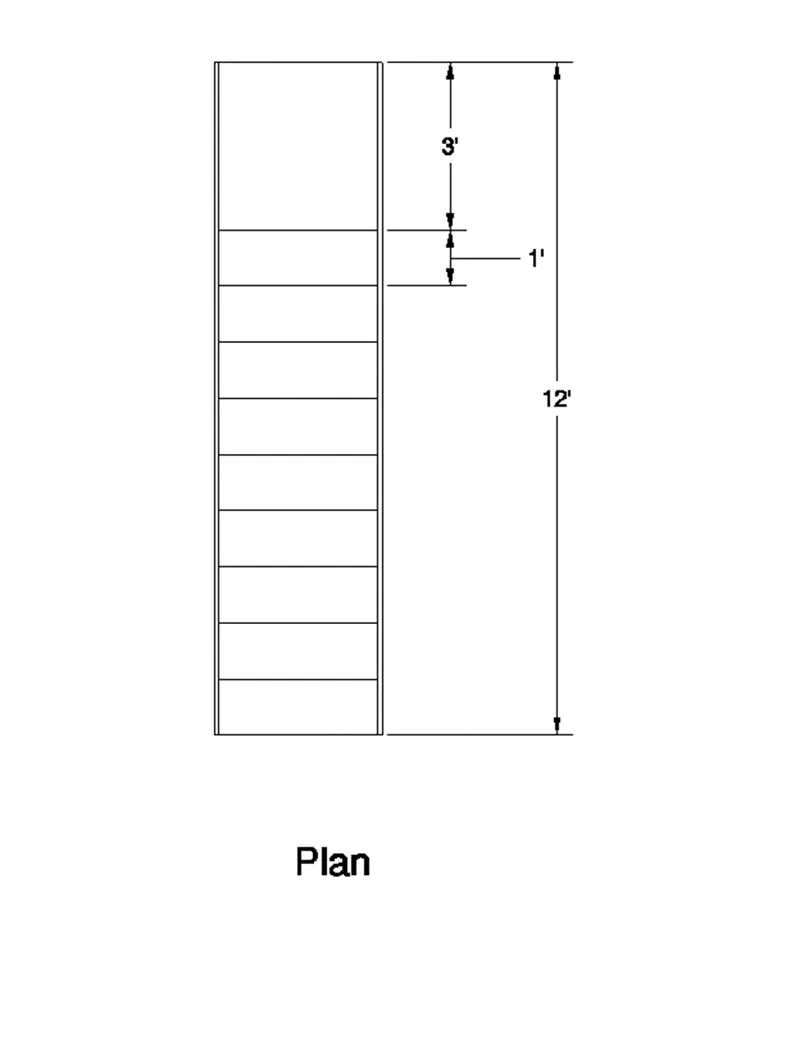

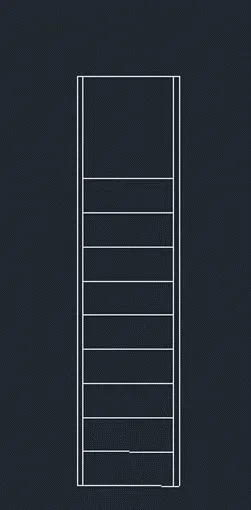

- Offset the bottom edge to upside 12 times to a distance of 1’ as shown in figure

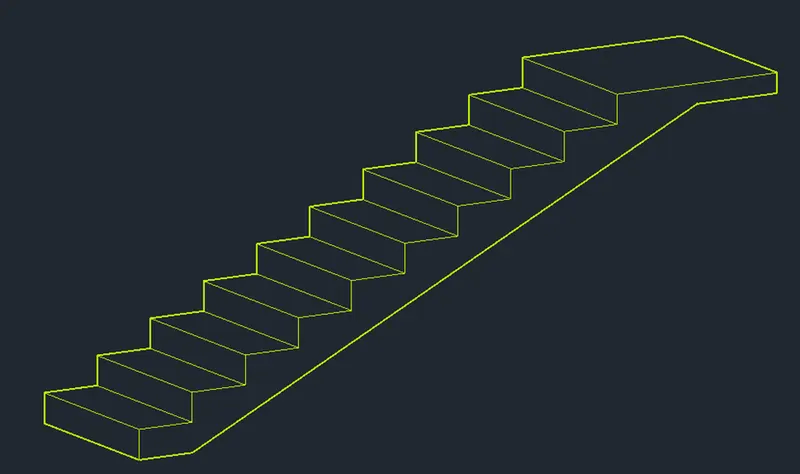

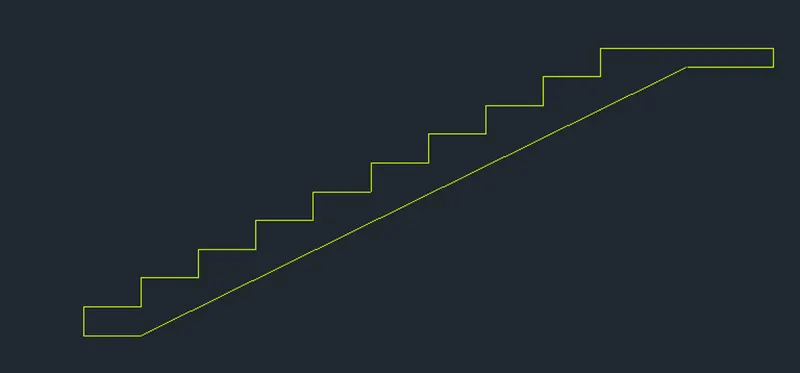

- We draw the stairs with the riser of 6" and tread of 1' as shown in the below figure.
- Next, we use the extrude command to extrude the rotated figure to form the stair in 3d view.

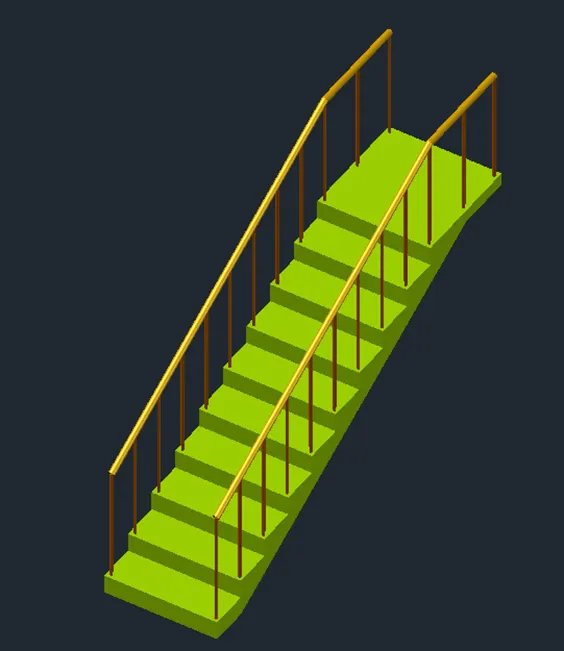

- Next, we draw the railing using the circle command and sweep command.
- Next, we show the stairs in the side view using the 3drotate command as shown in the below figure.

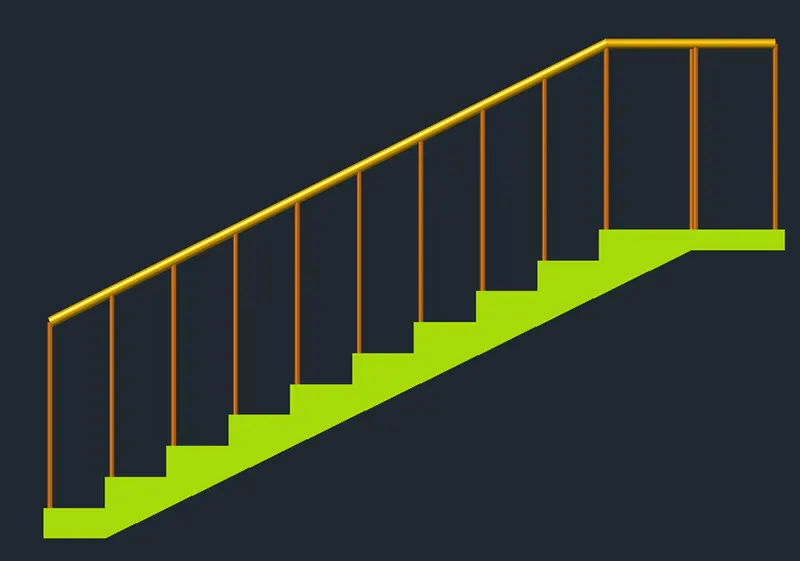

- Now put the stair in the 3d isometric view using the 3dorbit command as shown in the below figure.
RESULT: -
- The given 3d isometric view of the stair is drawn successfully in the AutoCAD in detailed manner.
- Create the 3D view of a Wall with spread footing. Create the Door opening only. Assume the size of the parapet and the coping. See the plans and elevation for the details. Also, create a rendered view of the model with materials as of your choice.
AIM: - To create the 3D view of a Wall with spread footing and need to create a rendered view of the model with materials.
INTRODUCTION: -
- An isometric drawing is a 3D representation of an object, room, building, stairs or design on a 2D surface.
- One of the defining characteristics of an isometric drawing, compared to other types of 3D representation, is that the final image is not distorted.
- This is due to the fact that the foreshortening of the axes is equal.
- In an isometric drawing, the object appears as if it is being viewed from above from one corner, with the axes being set out from this corner point.
COMMANDS USED: -
- Line command
- Rectangle command
- UCS command
- Dimlinear command
- Region command
- Extrude command
- Substract command
- Box command
- Units command
- Dimstyle command
- 3Dface command
- 3Dorbit command
- Hide command
- Explode command
- Move command
- Copy command
- Dist command
- Solidedit command
- Union command
- Boundary command
- 3Dmirror command
- 3Drotate command
- Erase command
- Plan command
PROCEDURE: -
- First, we open the AutoCAD and set the maximum limit and minimum limit.
- Next, we set the units as decimal and take the precision as 0.

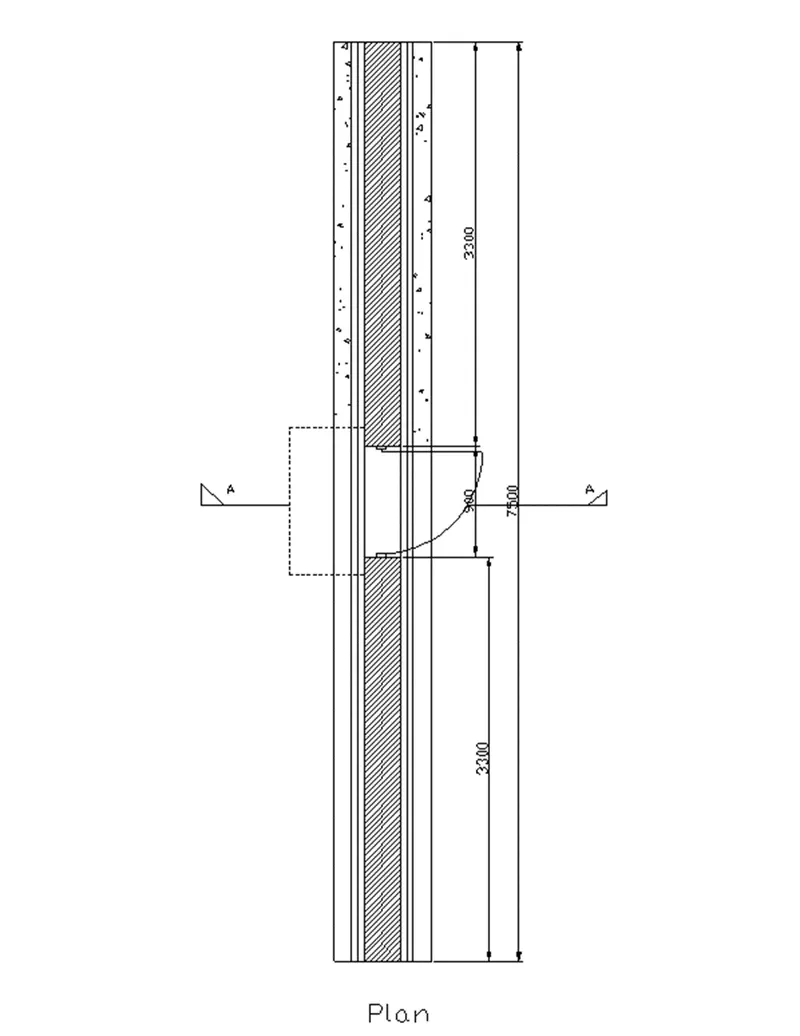

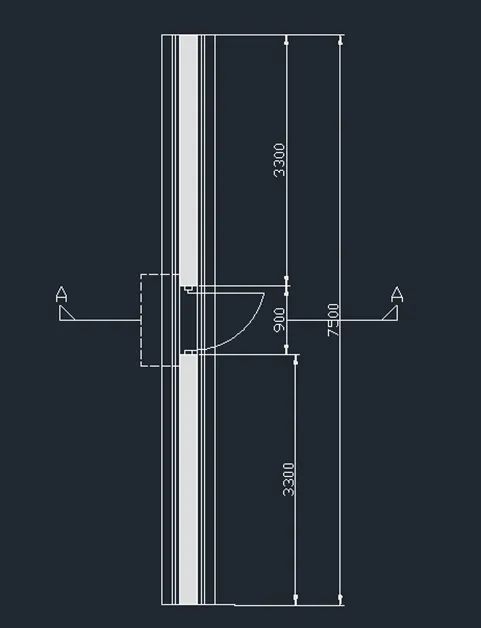

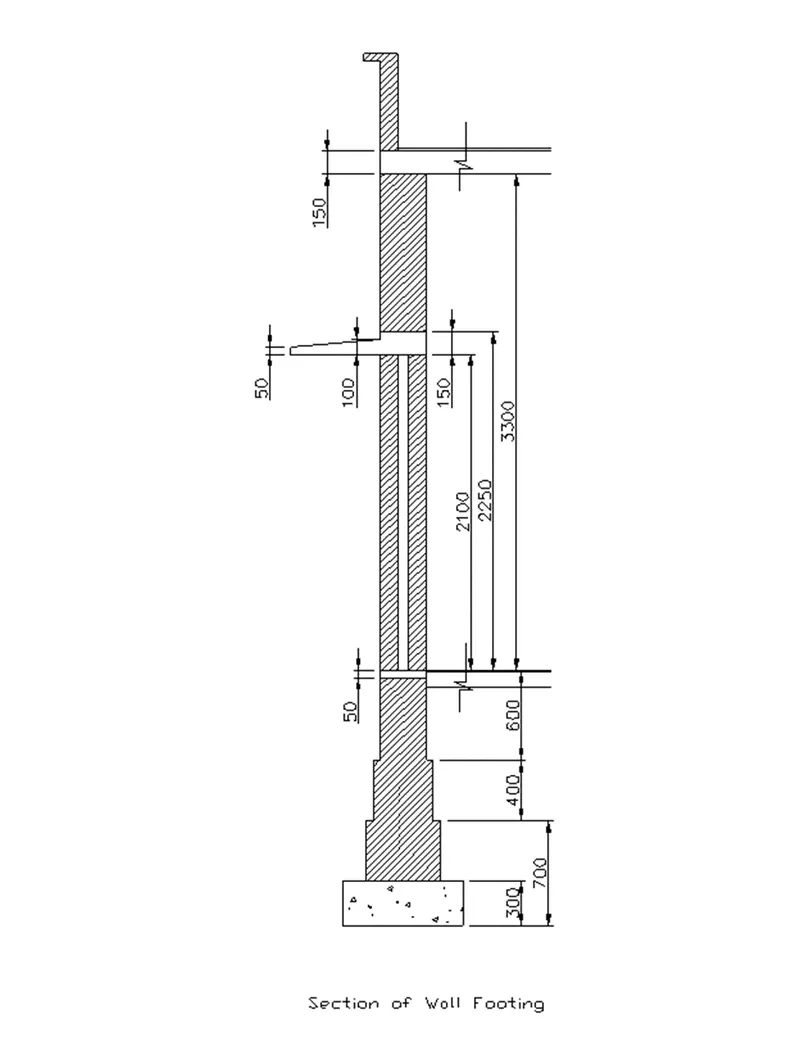

- Next, we have to draw a plan of a wall with spread footing with given dimensions as shown in the below figure.

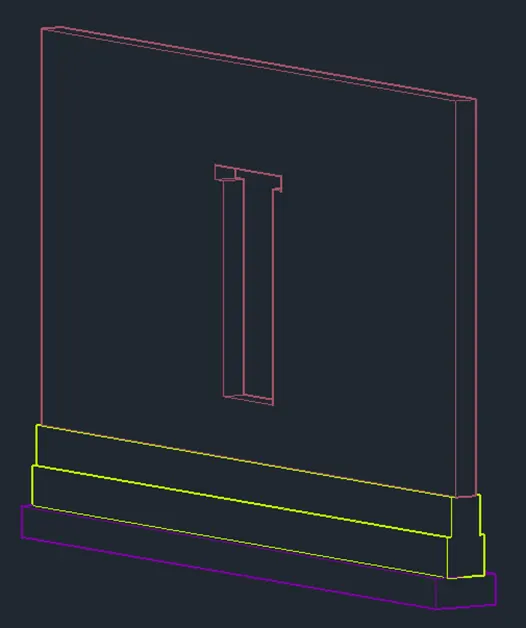

- Next, we draw the 3d isometric view of the wall with spread footing using the extrude command as shown in the below figure.

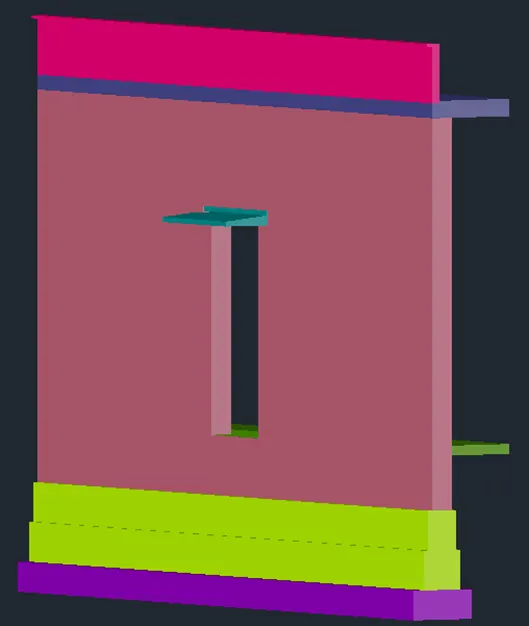

- Next provide the layers for the wall with spread footing with different colors for different parts, as shown in the below figure.

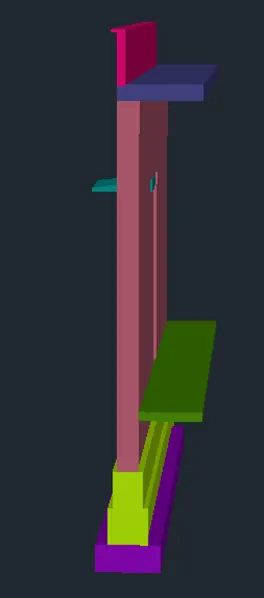

- Next, we provide different materials for the wall with spread footing, as shown in the below figure.
RESULT: -
- The 3D view of a Wall with spread footing and created a rendered view of the model with materials successfully in the AutoCAD in detail.
