Creating 3D Isometric view of various structural elements in AutoCAD

ANS 1 :

AIM:

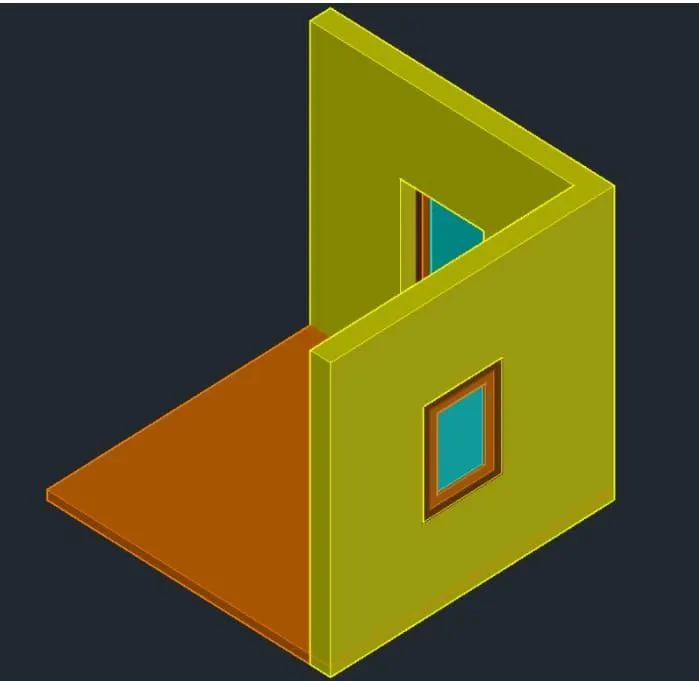

To create a 3D Isometric View of the building with plan and elevation given

PROCEDURE:

• Open AutoCAD and set maximum and minimum limit

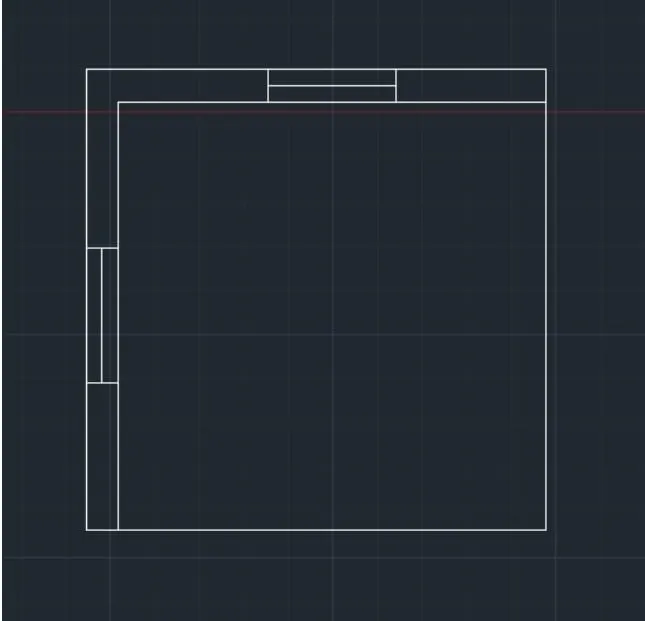

• Draw a rectangle.

• Draw the two windows of size 3'*9" and 9"*3'2"

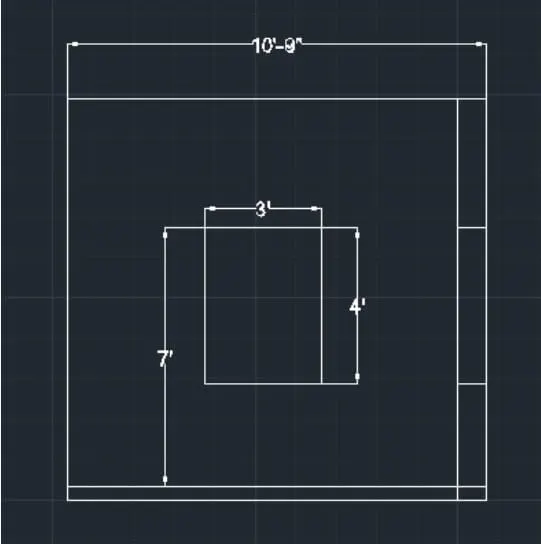

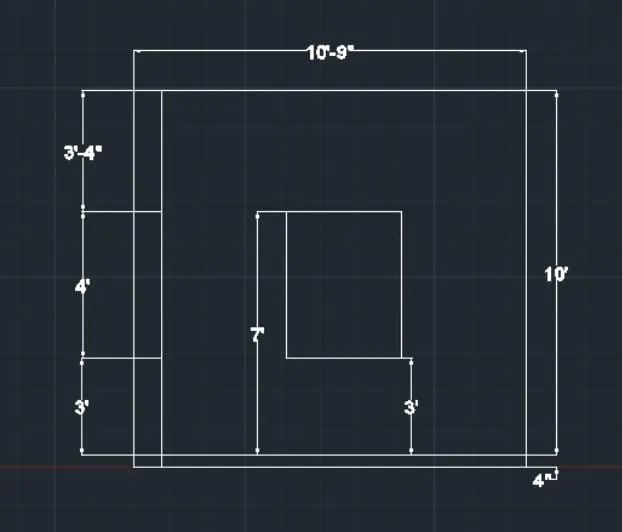

• Draw elevation A and B as shown in figure

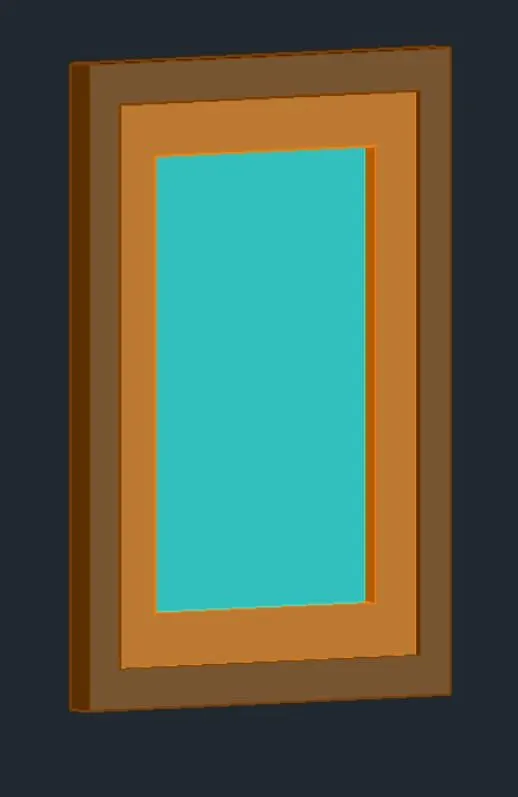

• Draw window of 3' * 4' and extrude it

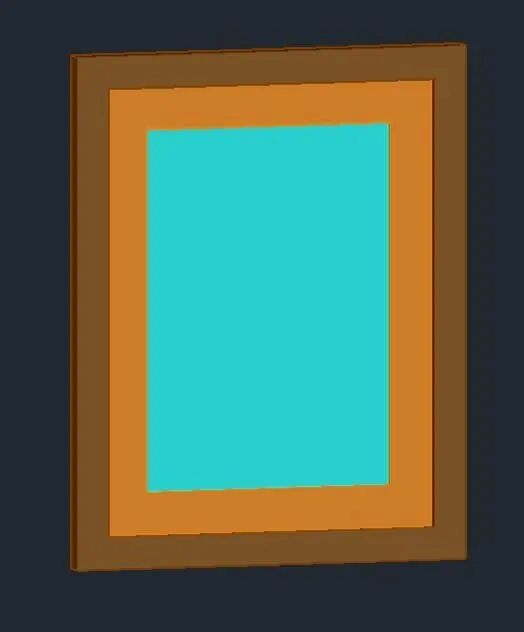

• Draw window of 3'2" * 4' and extrude it

• Draw wall using extrude command
• Use layers for colors to them

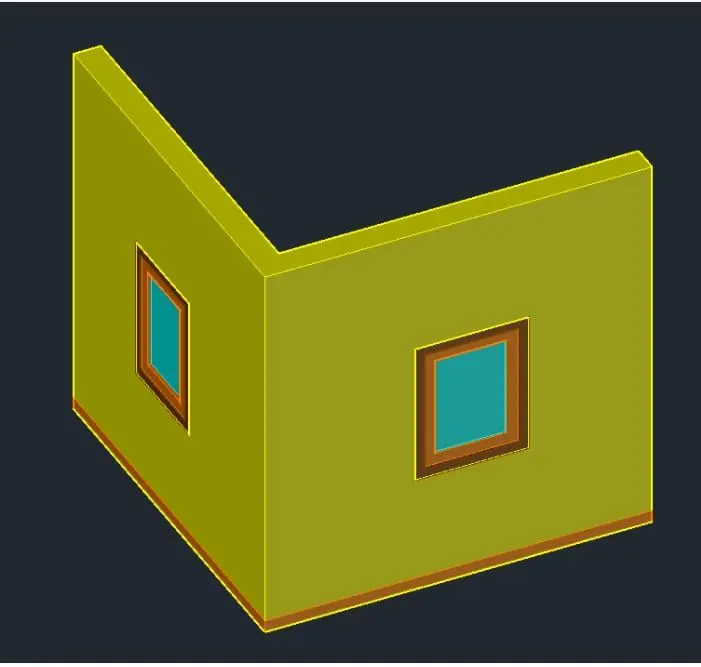

• Attach the created windows to the wall
• Use 3D orbit to show a different view

RESULT:

The given 3D Isometric View of the building with plan and elevation is created.

ANS 2 :

AIM:

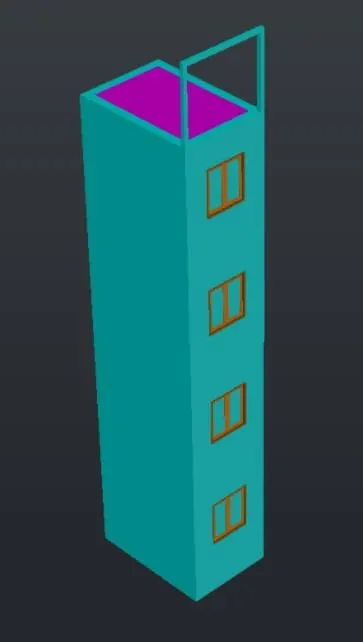

To create the 3D View of the Building Facade as given in the plan and elevation

PROCEDURE:

• Open AutoCAD and set limits and units
• Draw a rectangle and then the window of size 3'2" * 9"
• Use region command and select the object, then press enter
• Then after a total object will become the one region
• Now extrude the plan with the height of 40'10"
• Next, subtract the four window portion vertical in the building faced with the distance 5'11" with a window size of 3'*4'
• Next use the union command and press enter
• Then select total drawing and press enter
• Make window position clear in building as a facade
• Next shade the edges
• Provide the layer for the building faced of sky blue color
• Use extrude command and extend
• Use 3D orbit command to view the front elevation

RESULT:

The given 3D Isometric View of the building with plan and elevation is created.

ANS 3 :

AIM:

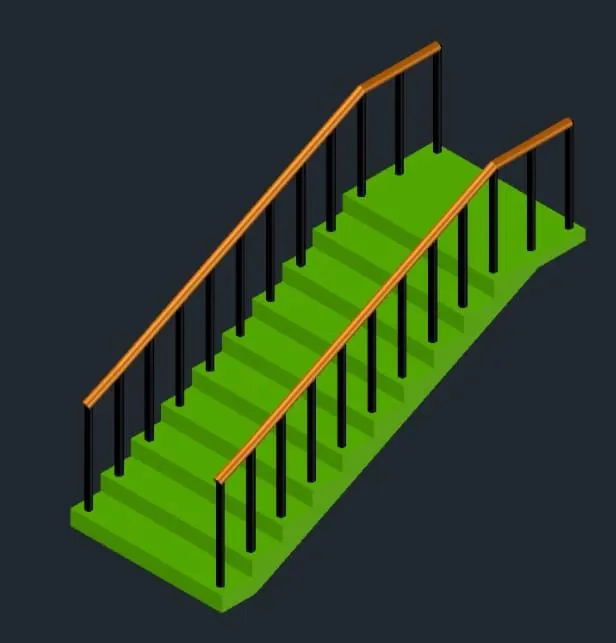

To create the 3D View of the stair with a railing as shown in the plan and elevation

PROCEDURE:

• Open AutoCAD and set limits and units

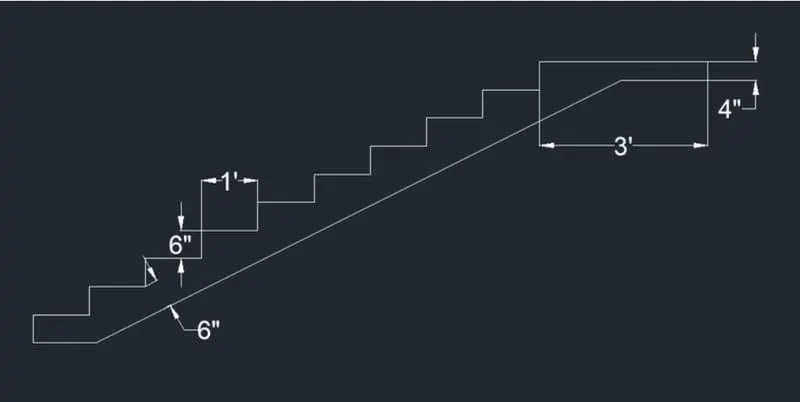

• Draw stair of 6" of rising and 1' thread

• Use 3D rotate to rotate the diagram
• Now extrude the diagram

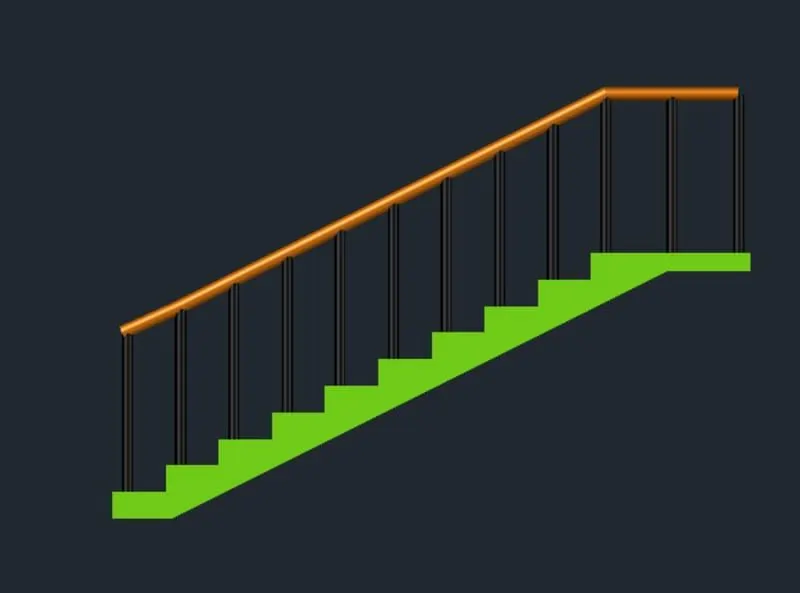

• Draw railing using circle command and sweep command
• 3D rotate and show the stairs inside view

• Now put stairs in 3D isometric view using 3D orbit command

RESULT:

The given 3D View of the stair with a railing as shown in the plan and elevation.

ANS 4:

AIM:

To create the 3D view of a Wall with spread footing with various aspects

PROCEDURE:

• Open AutoCAD and set unit and limit
• Draw a plan of the wall with spread footing with a given dimension

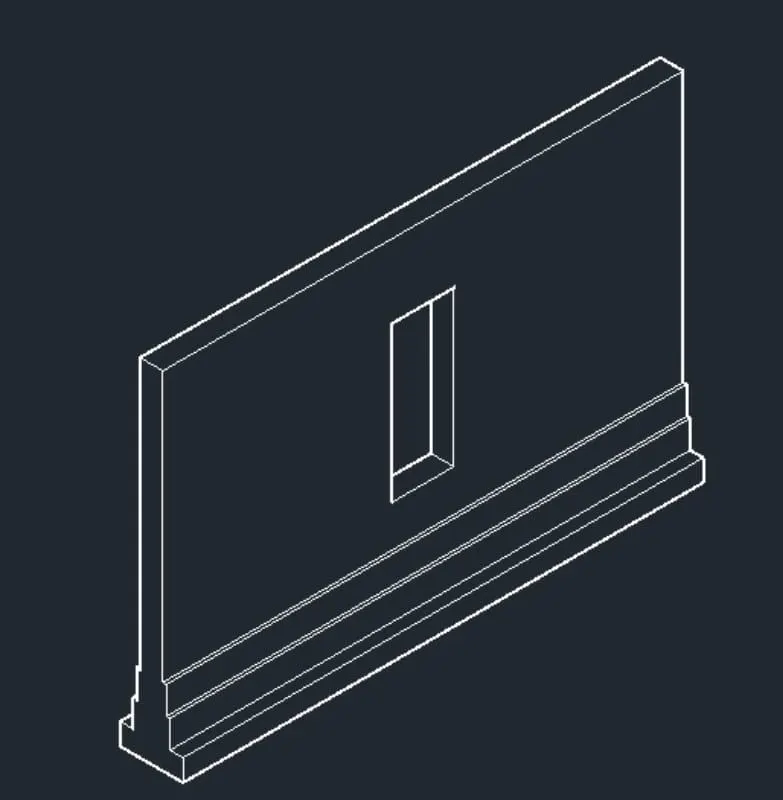

• Draw the isometric view of the wall of spread footing and extrude

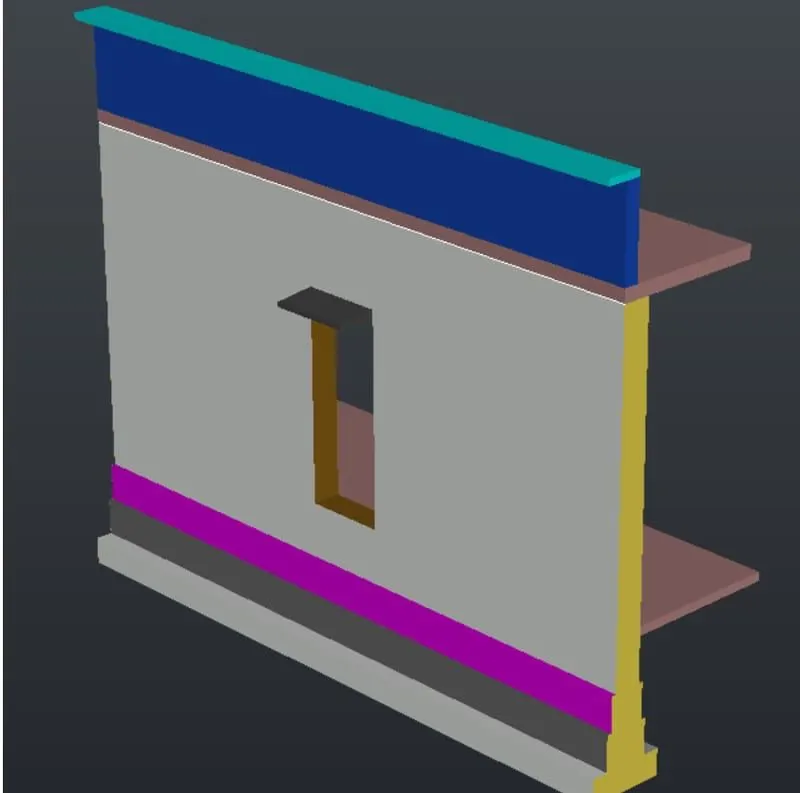

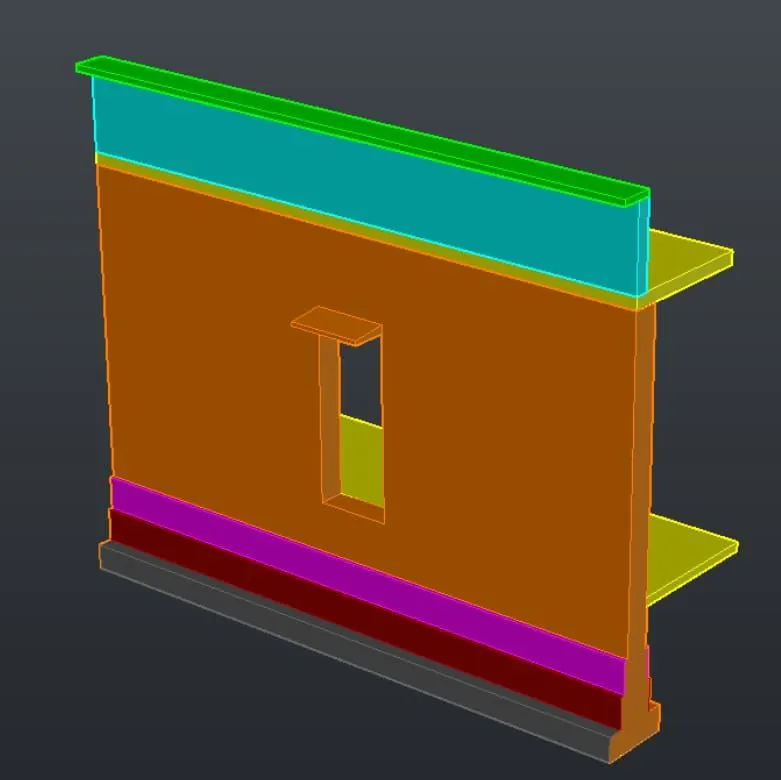

• Provide layers for wall with spread footing with different parts

• Provide materials for wall with spread footing with different parts

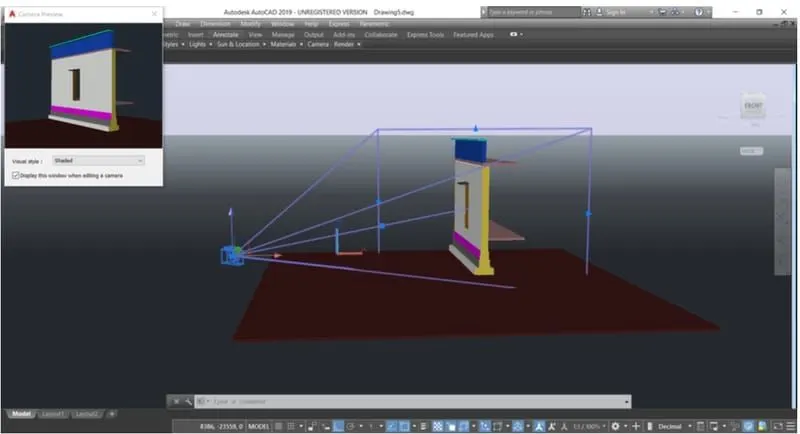

• Select the camera and put in the required position and then press enter
• Click camera the small tab appears as shown

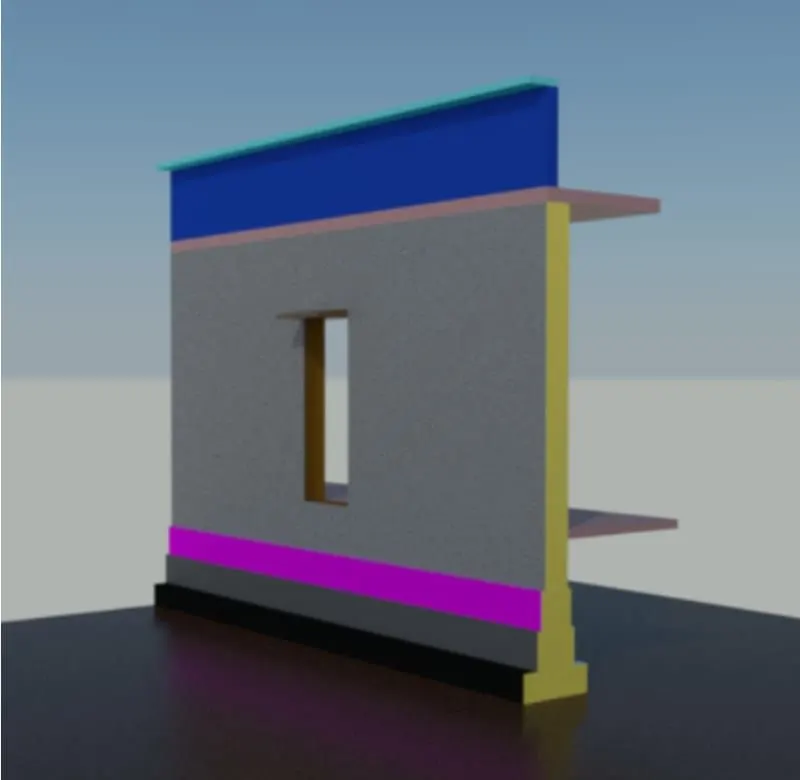

• Select render option and then slowly changes to rendering view

RESULT:

The 3D view of a Wall with spread footing with various aspects is created.
