Creating 3D Isometric view of various structural elements in AutoCAD

AIM: TO CREATE THE ISOMTRIC VIEW OF THE BUILDING

• PROCEDURE:

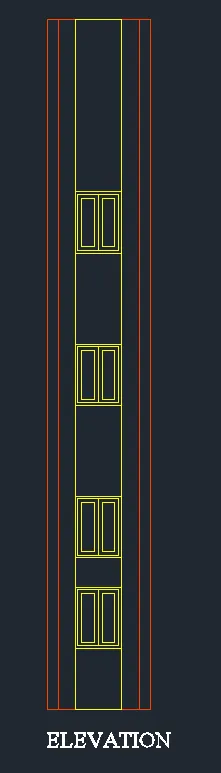

1. Draw the floor plan and elevation of the building and given imfor,mation

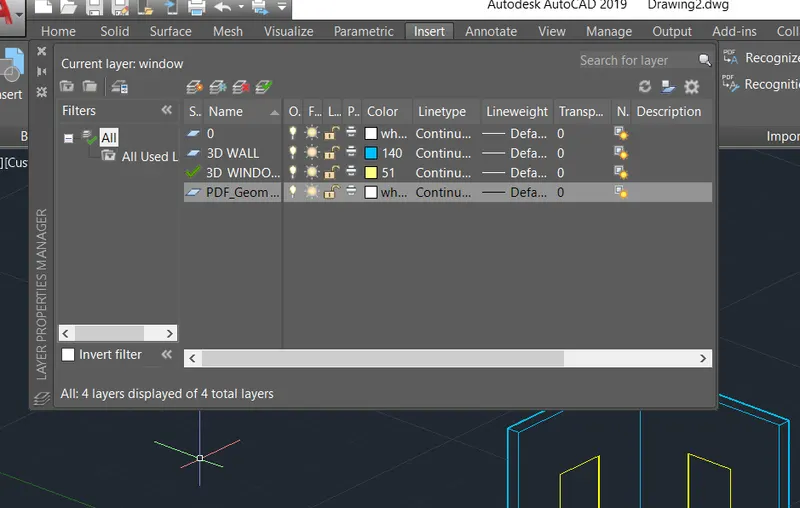

2. Create the layer 3d wall, 3d window
3. Select the wall in floor by using command boundry creathe region inside the boundry
4. Then use the subtract command to subtract the inner region
5. create the window fram by using comon boundry and subtract it
6. Extrude the region at specified dimension

• AIM: To create4r the isometric view of the building

• PROCEDURE:

1. Draw the floor plan ,elevation of the building with dimension

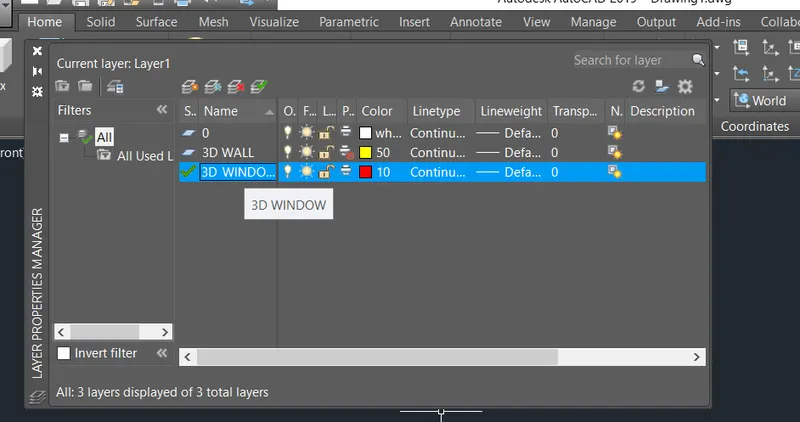

2. Create the layer such as 3d wall,3dwindow
3. Select the wall in floor by using command boundry Create the region inside bondry

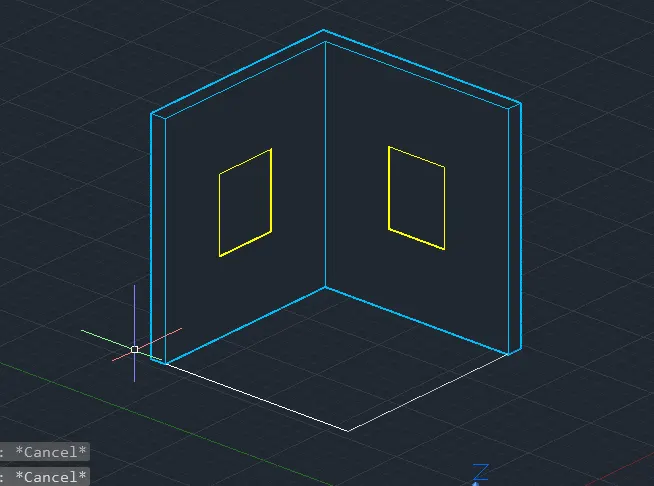

4. Extrude the region at specified dimension

• RESULT

• AIM: To create the isometric view of the building

• PROCEDURE:

1. raw the floor plan and elevation of the building and given imfor,mation
2. Create the layer 3d wall, 3d window

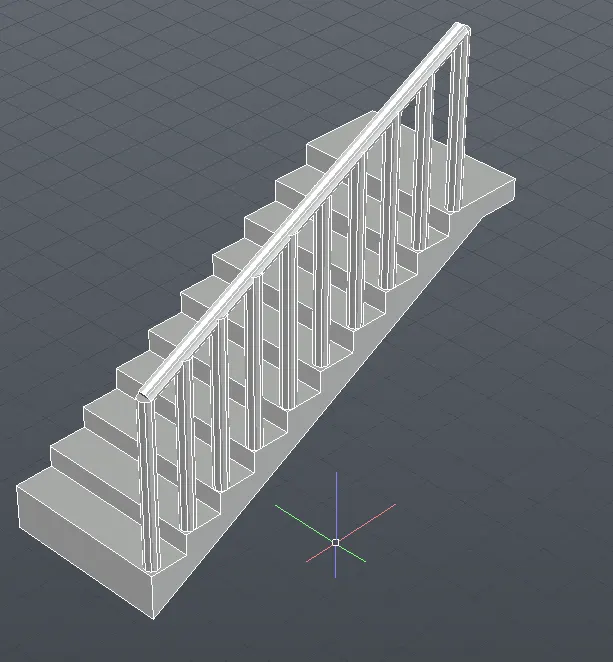

3. Select the stair in the floor by using common boundry create the region inside the boundry
4. By using the command ''rotate3d'' rotate the staircas by 90
5. After that extrude the staircase
6. Then create the cylinder and copy the cylinder to create the cylinder on the stair

• RESULT
