Challenge 9 : Project : Technical Surfacing Kia Sportage

Title of the Project;

Technical Surfacing Kia Sportage

Objective;

Follow the entire process as per the guidelines from Video Tutorial to build the Surfaces for Kia Sportage

Introduction;

The Kia Sportage is one among SUVs manufactured by the South Korean manufacturer Kia since 1993, Since 2004, the Sportage has come under the compact SUV version while previously it occupied the compact SUV class. It slots between the sectors or Niro and the three-row Sorento in Kia's SUV lineup, and having been through four generations is now in its fifth generation.

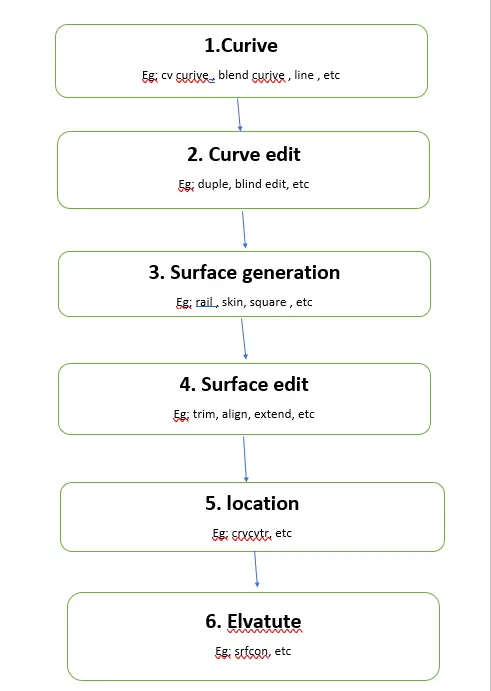

Design methodology / approach ;

Description;
the curve is first generated using the cv curve and keypoint and then it is edited using cv edit and then the surface is generation is done using a different method than the surface edit using and then object edit is used to aline the surface flow etc then the surface elevate is to know the surface continuity flow etc, and then the surface is edited...

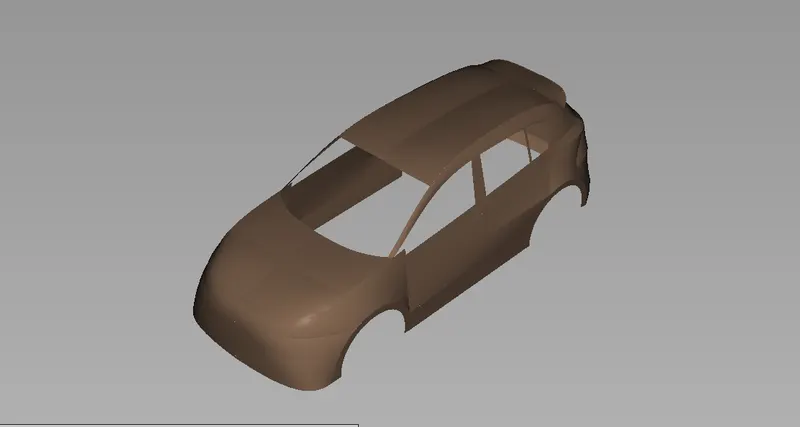

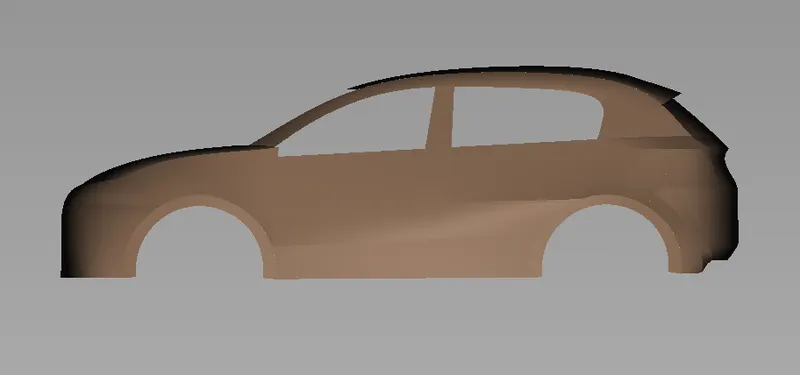

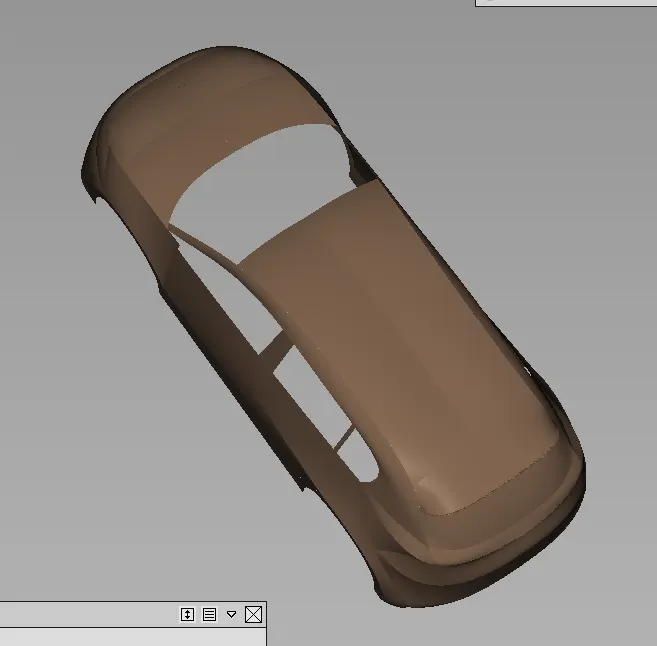

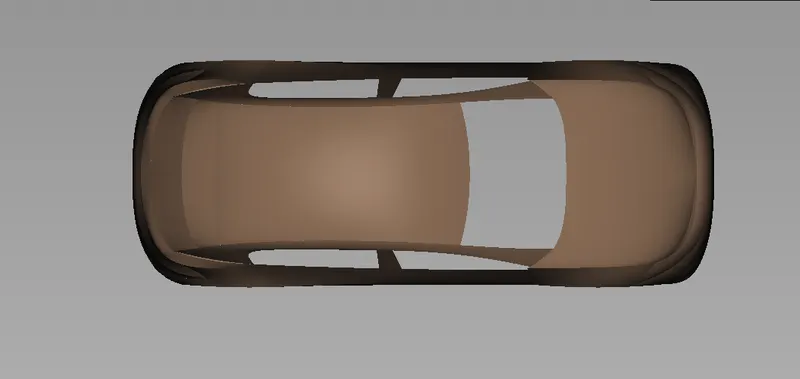

screenshots of Model;

Conclusion;

the Surface modeling for Kia Sportage is done by the Following the entire process as per the guidelines from Video Tutorial
